Terminator X and X Max Coyote systems supports Ford Coyote platform with Ti-VCT.Terminator X features real-time fuel learn, high impedance injector drivers, integrated 1bar MAP sensor, and 4 programmable inputs and outputs. These are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X ECU comes fully loaded with base maps for common Coyote engine combinations to get you out of the garage and on the road/track fast. The included 3.5 in. LCD touch screen handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Included with Terminator X is Holley EFIs industry leading support, easy to use software suite that allows full laptop access/compatibility for advance users. Whether youre building a budget beater or full on race car, Terminator X has the industry leading features and technology you need at a price that wont break the bank.
Specifications:
| Description_ASC |
Terminator X ECU's are designed to be mounted with the LED's facing up. |
| Description_DEF |
Fuel Injection System |
| Description_DES |

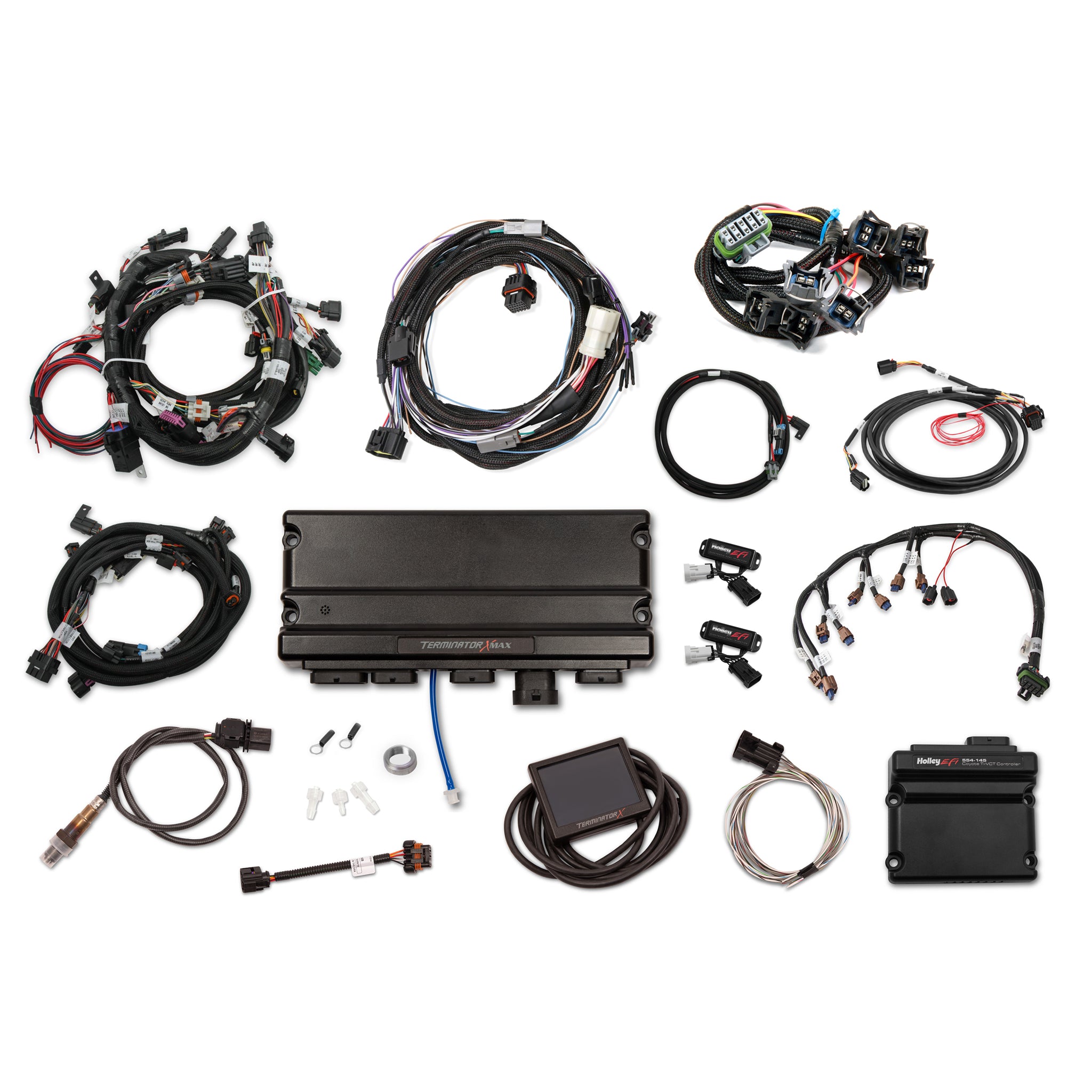

Holley EFI Terminator X Max - 2015.5-2017 Ford Coyote w/ Ti- VCT |
| Description_INV |
TERM X MAX,15.5-17 COYOTE TI-VCT,DBW,EV1 |
| Description_EXT |
Terminator X Max MPFI System; Fits w/15.5-17 Ford Coyote Engines w/Ti-VCT/EV1 Injectors/98+ 4R70W Transmission/Drive-By-Wire Throttle Body; |
| Description_FAB |
Plug and play engine control (for Ford 5.0L Coyote with Ti-VCT (Twin Independent Variable Camshaft timing) |
| Description_FAB |
Plug and Play compatible with Holley EFI accessories - Analog gauges, shift lights, modules, and both 6.86" and 12.3" Pro Dash |
| Description_FAB |

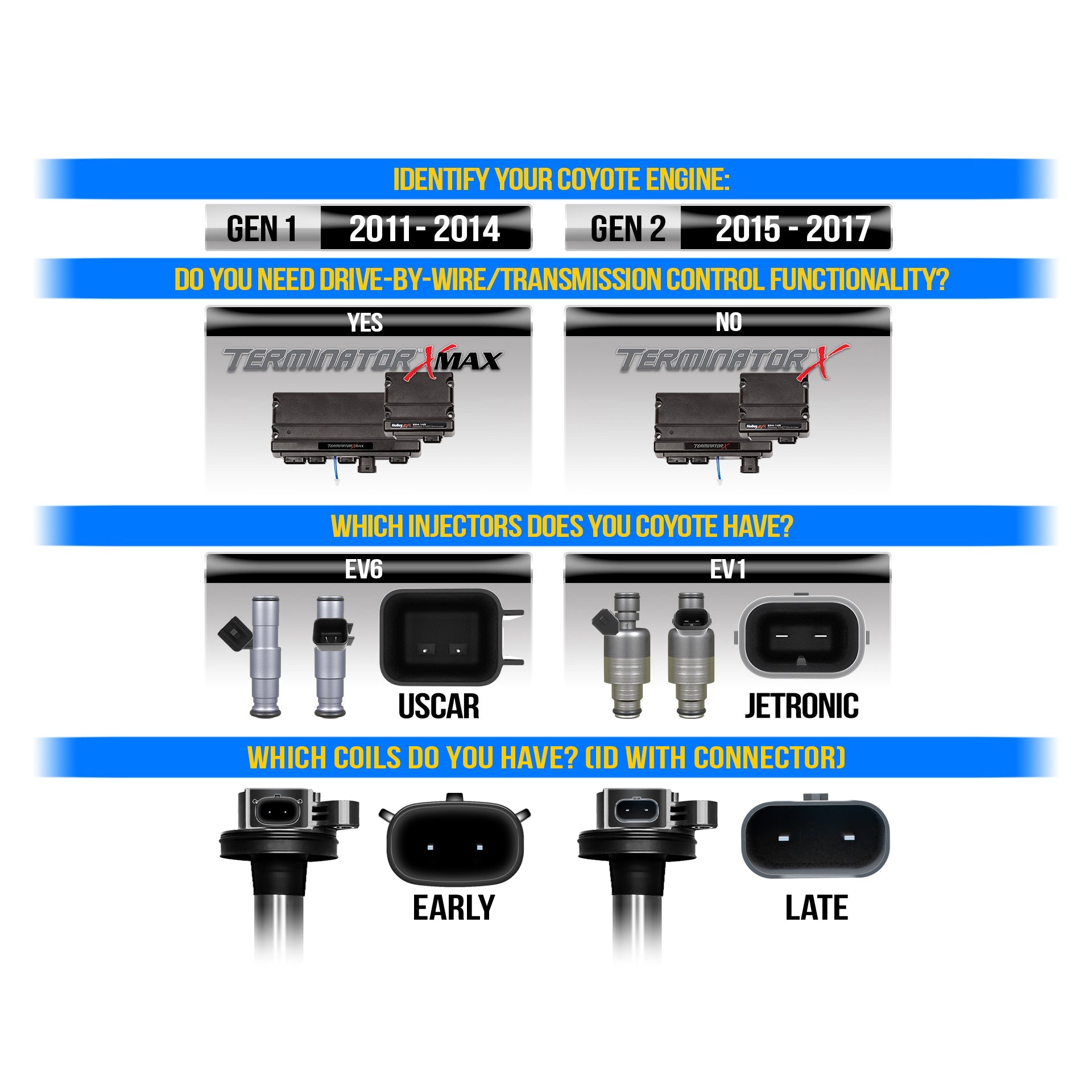

EV1 or EV6 injector harness included (depending on your injector configuration) |
| Description_FAB |
High Impedance Injector drivers power Holley EFI and most stock injectors -Injector support chart found in instructions (will not support low impedance injectors) |
| Description_FAB |
Included Bosch LSU 4.9 wideband O2 sensors for accurate readings and precise tuning control |
| Description_FAB |
Built in 1bar MAP (manifold absolute pressure) sensor included - For Boosted applications - internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation) |
| Description_FAB |
Vacuum hose adapters included - (1/8", ┬╝", and 3/16" sizes) |
| Description_FAB |
4 inputs - 12v, Ground, 5v, and frequency for items like pressure sensors, activation triggers, nitrous activation, or trans brake |
| Description_FAB |
Boost Control - boost vs. time, boost vs. gear, boost vs. RPM, boost vs. speed, and boost safeties |
| Description_FAB |
Nitrous Control - channels for wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR (Air/Fuel Ratio) |
| Description_FAB |
Advanced Tables - ( 4x 1D tables, 1x 1D gear table, 4x 2D table, and 1x 2D gear tables) for nearly unlimited table configuration options |
| Description_FAB |
On-board diagnostic LEDS - ECU power, engine run, TPS calibration, cam signal, and more! Identify critical engine parameters at a glance |
| Description_FAB |
3.5" touchscreen handheld included - Internal data-logging, custom gauge display, and calibration wizard allow quick building bases tunes for any Domestic V8 engine |
| Description_FAB |

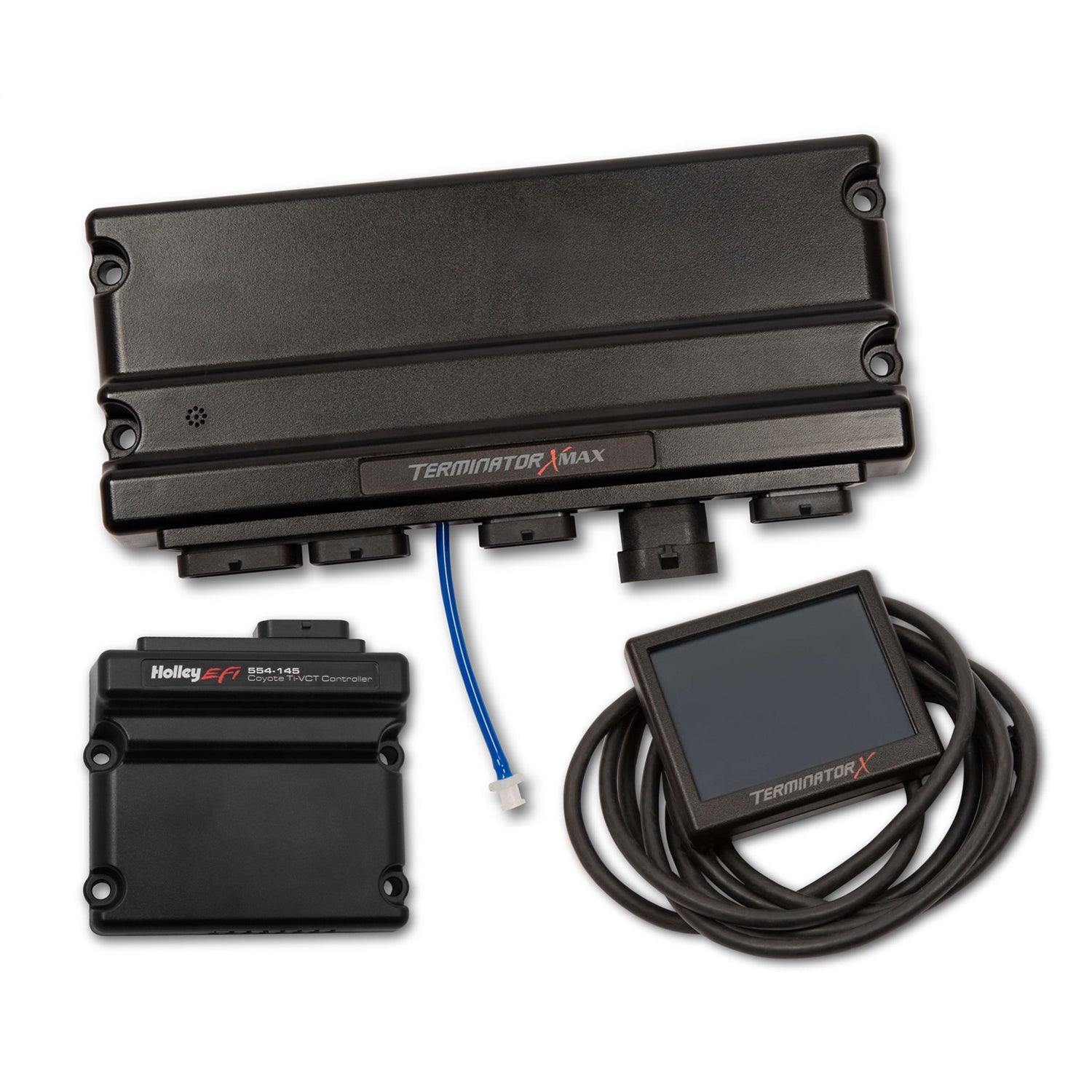

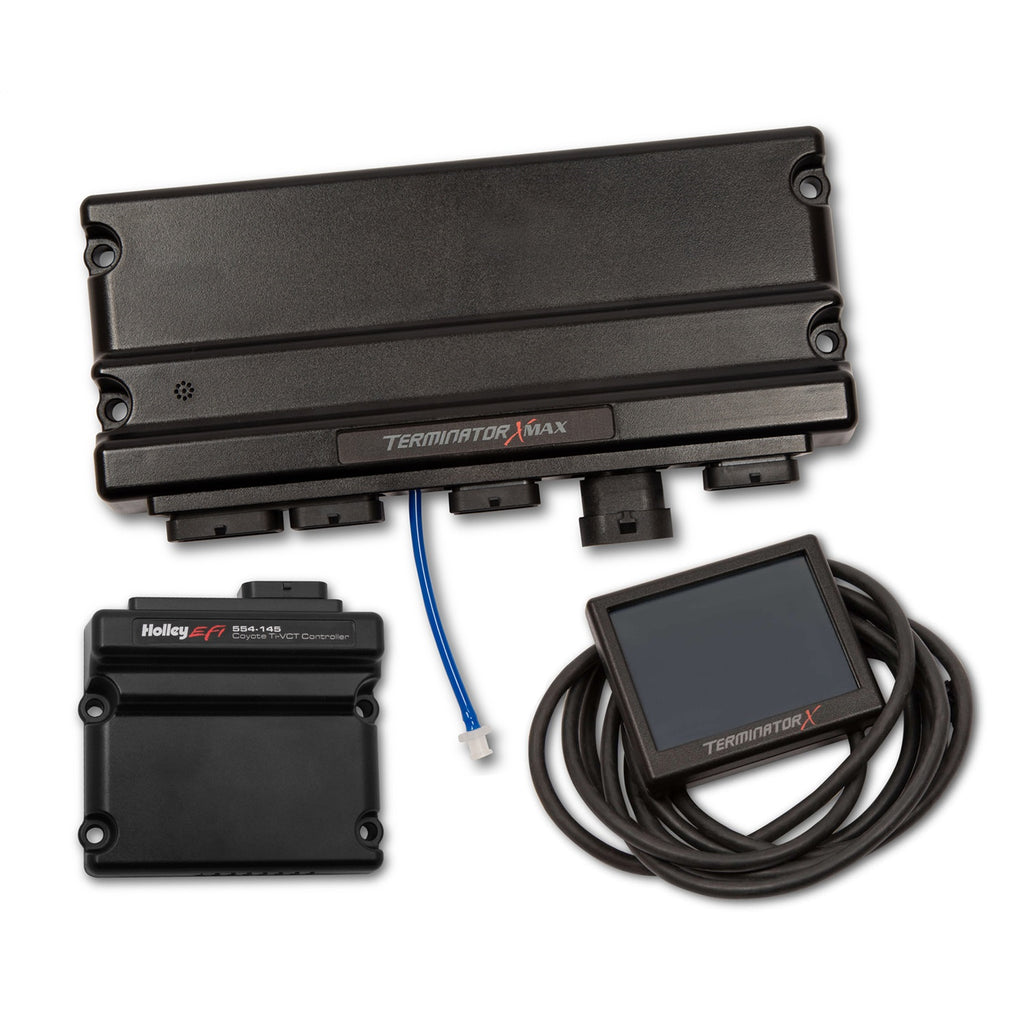

Compact ECU (Engine Control Unit) - At only 7.45" x 4.1" x 1.66" the compact packaging allows mounting virtually anywhere (XMAX ECU = 9.6" x 4.1" x 1.66"). REMINDER: diagnostic LED's must face up! |
| Description_FAB |
FREE EFI Tuning software - For compete control of your Terminator X power plant |
| Description_MKT |
Terminator X and X Max Coyote systems supports Ford Coyote platform with Ti-VCT.Terminator X features real-time fuel learn, high impedance injector drivers, integrated 1bar MAP sensor, and 4 programmable inputs and outputs. These are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X ECU comes fully loaded with base maps for common Coyote engine combinations to get you out of the garage and on the road/track fast. The included 3.5 in. LCD touch screen handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Included with Terminator X is Holley EFIs industry leading support, easy to use software suite that allows full laptop access/compatibility for advance users. Whether youre building a budget beater or full on race car, Terminator X has the industry leading features and technology you need at a price that wont break the bank. |
| Description_SHO |
FuelInjSystm |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Type |
Terminator X Ford MPFI Kit |
| Engine Make/Size |
Ford 5.0L Coyote |
| WARNING CA Proposition 65 |
Yes |
| Cylinder Head Type |
Standard |
| Brand |
Holley EFI |
| Injector Connector |
Jetronic / Minitimer (Bosch) |
| Warning |
California Proposition 65 |
| Emission Code |
3 |
| Length |
10.0000 |
| Width |
15.0000 |
| Height |
27.0000 |
| Weight |
16.0000 |
