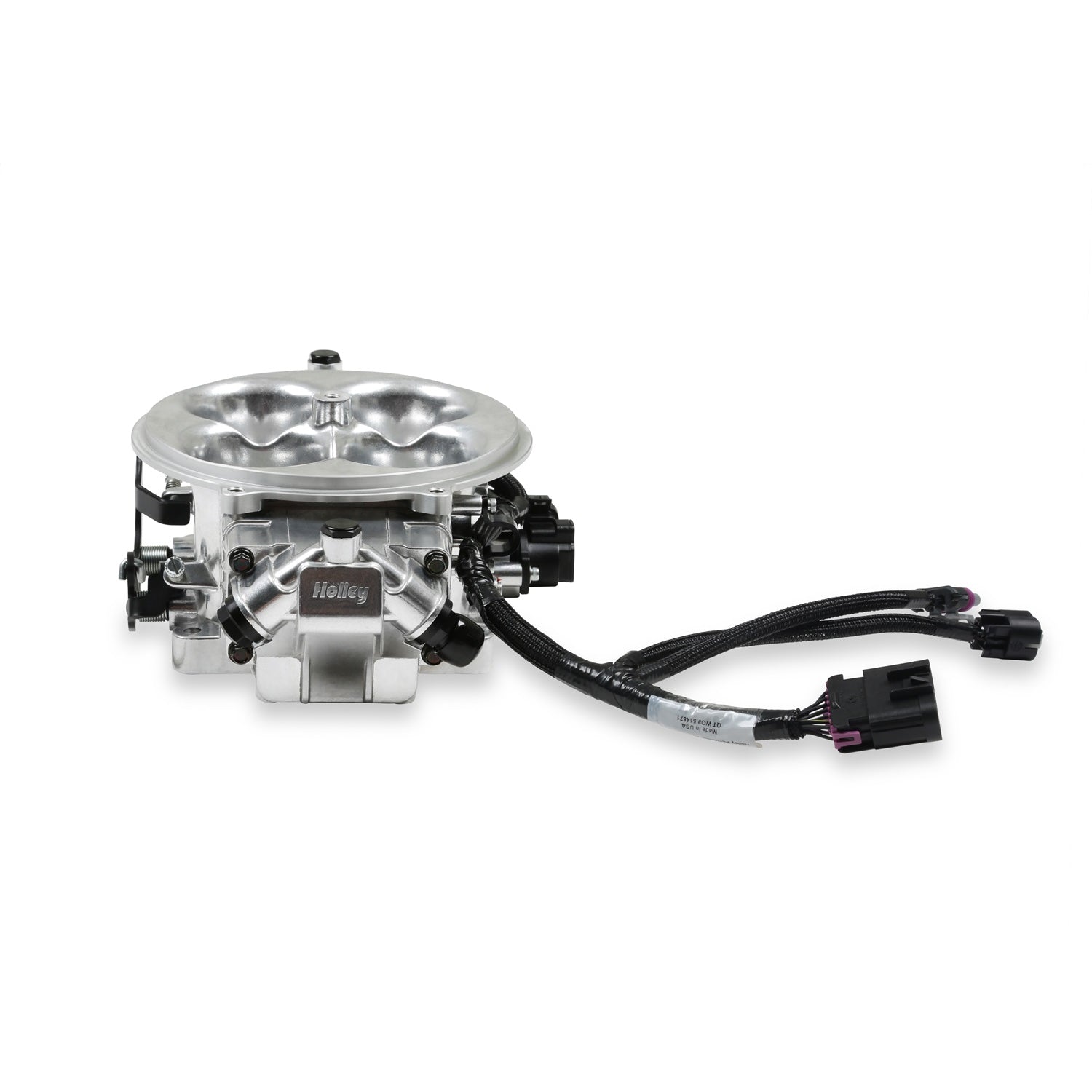

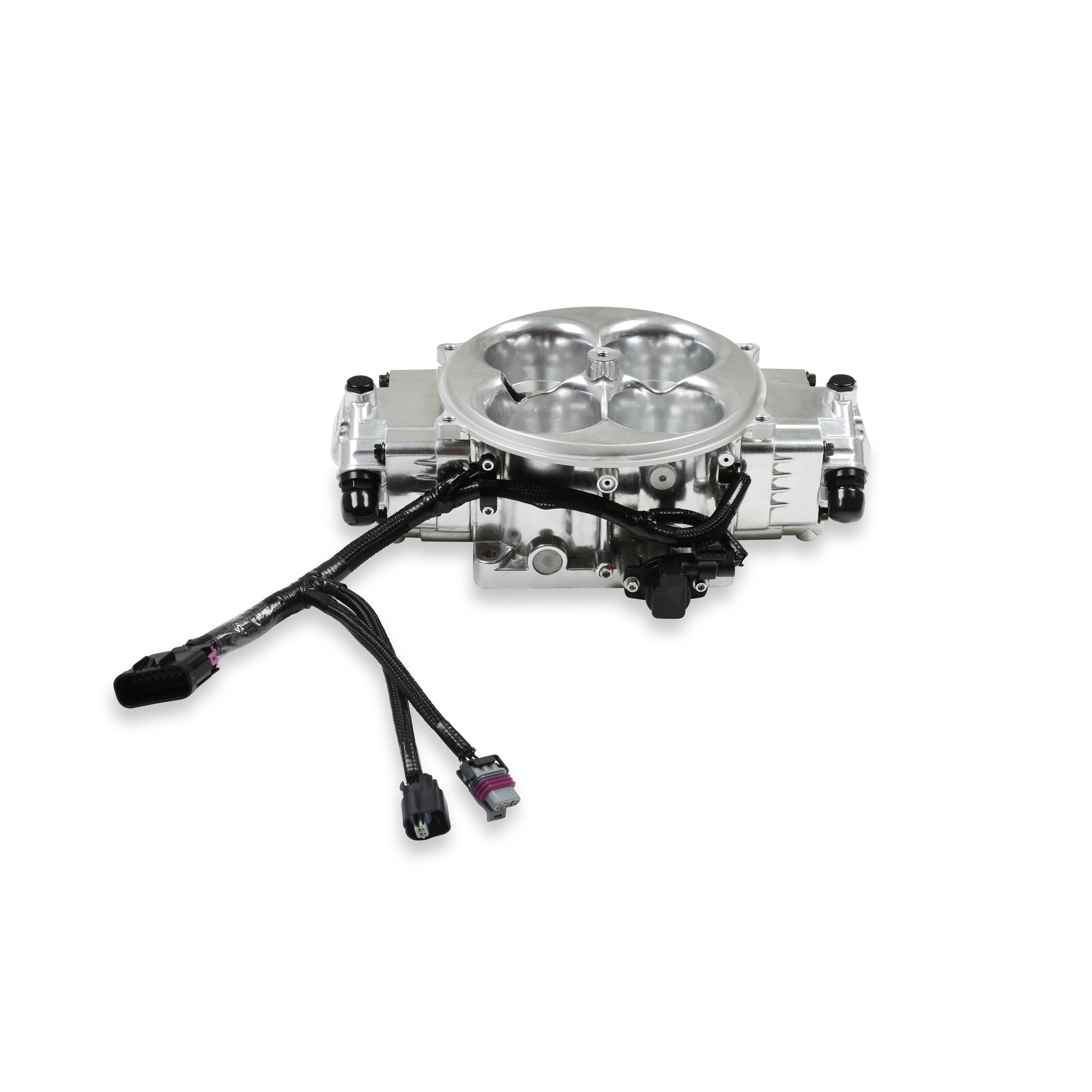

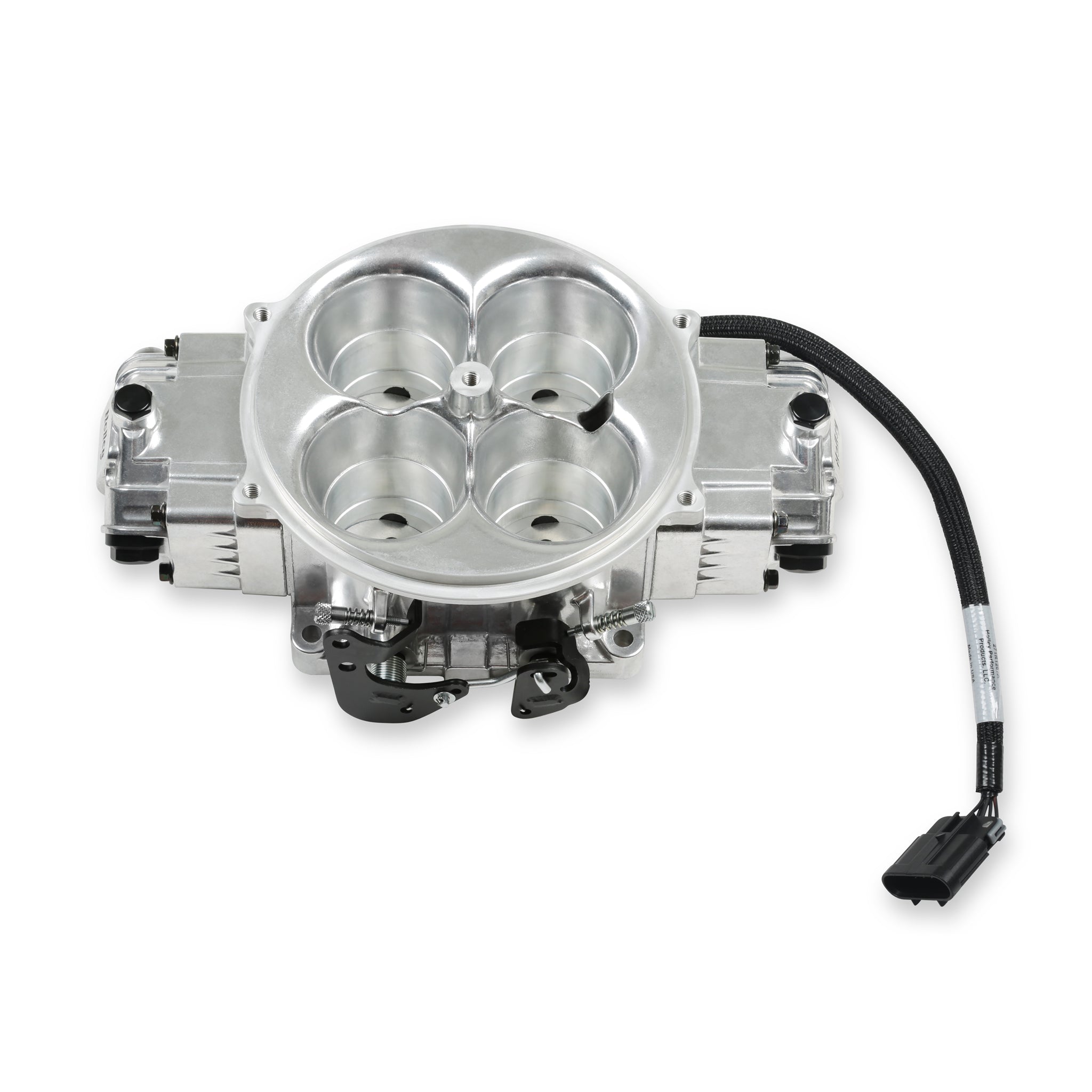

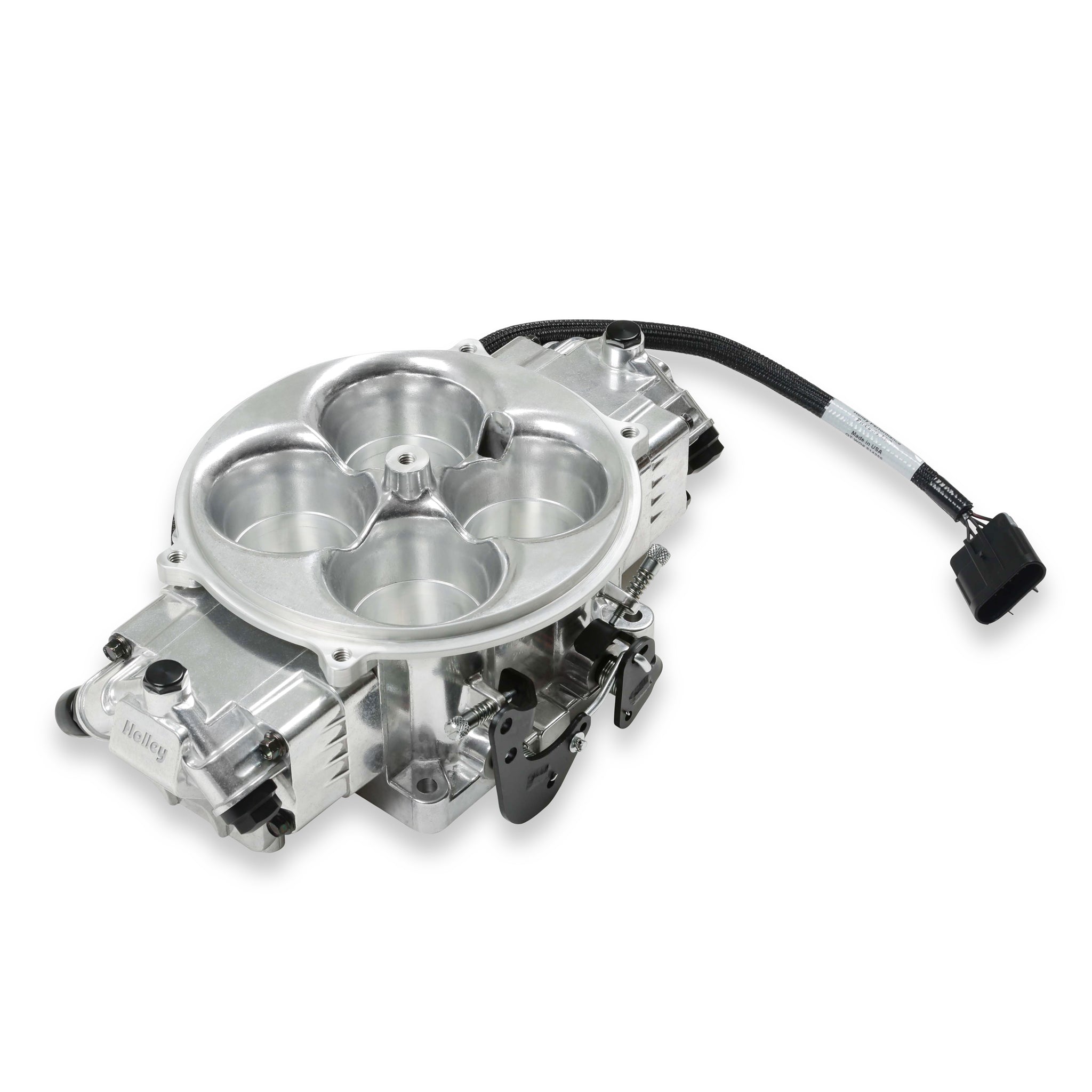

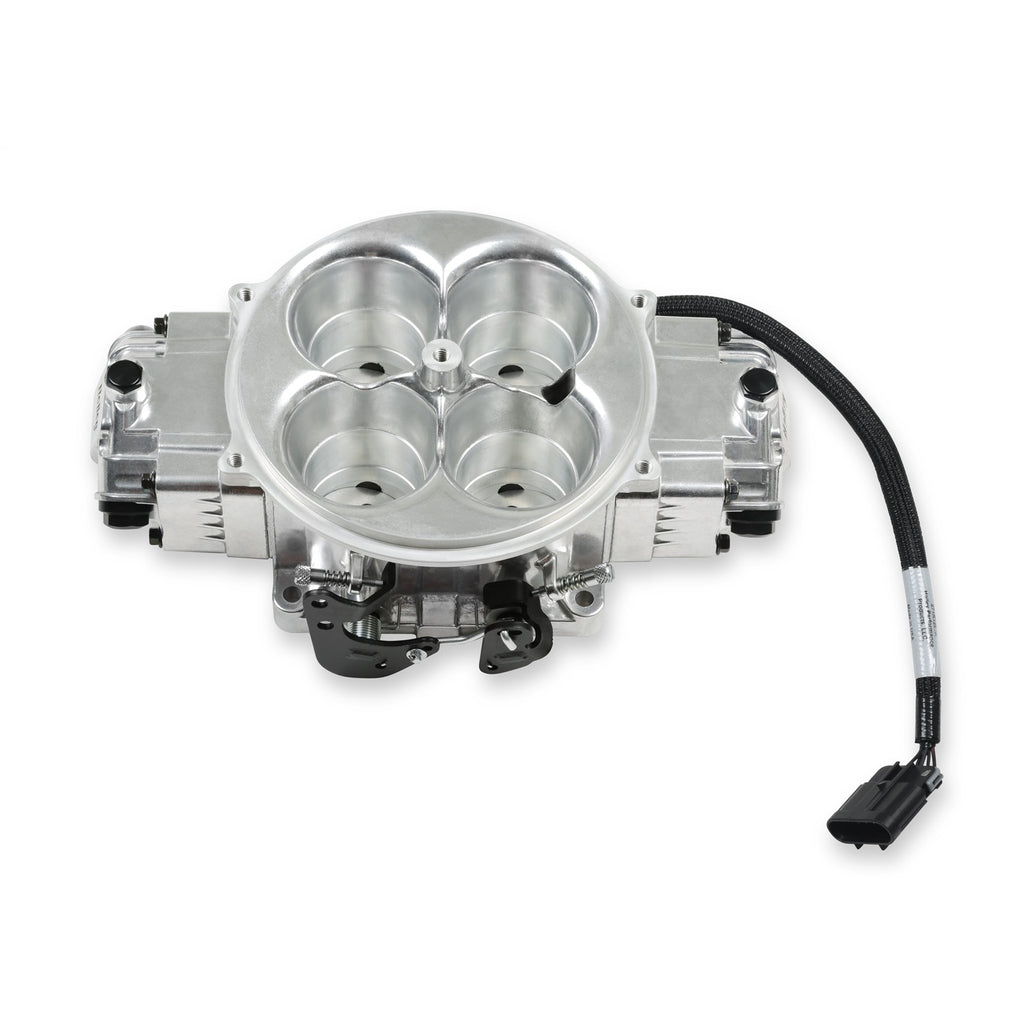

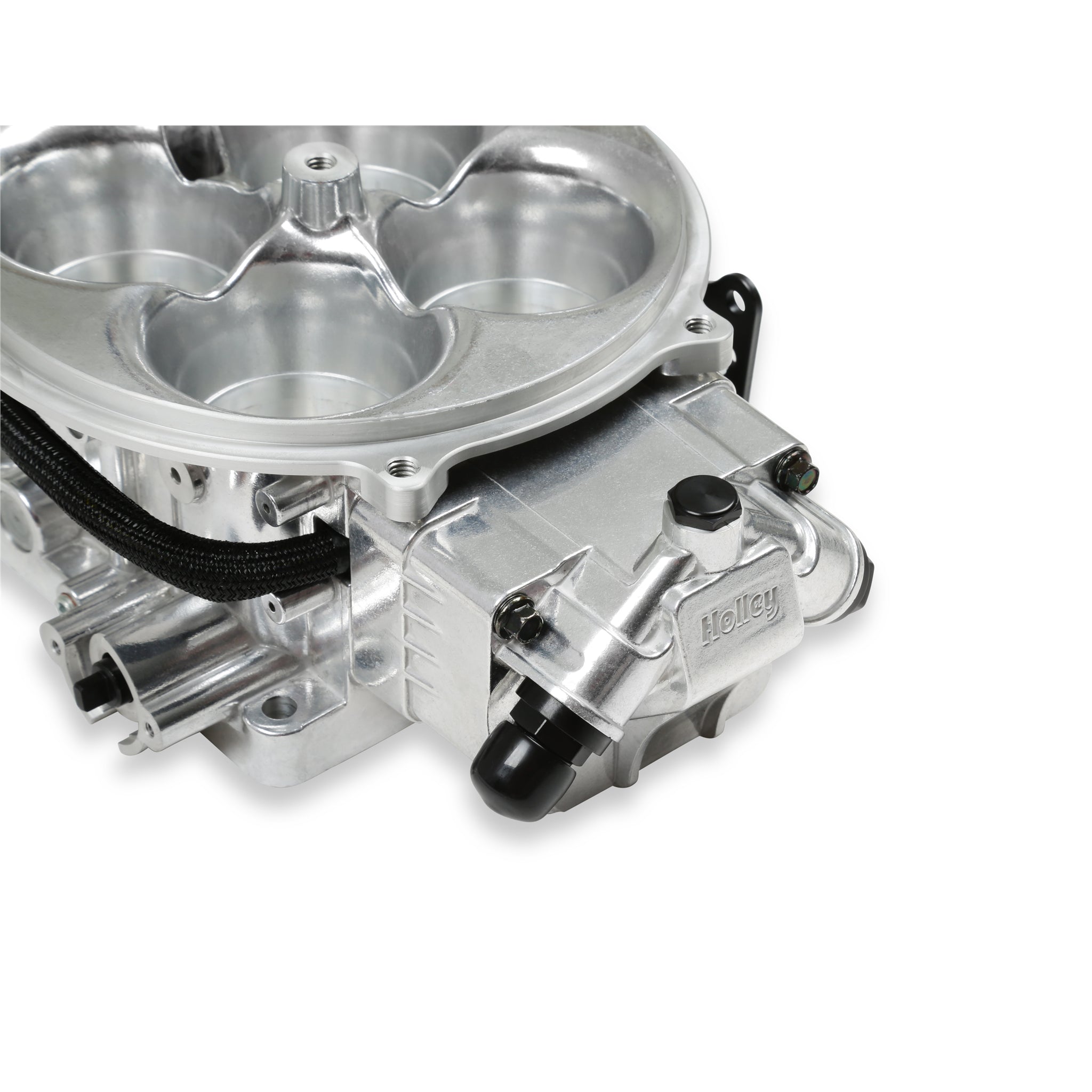

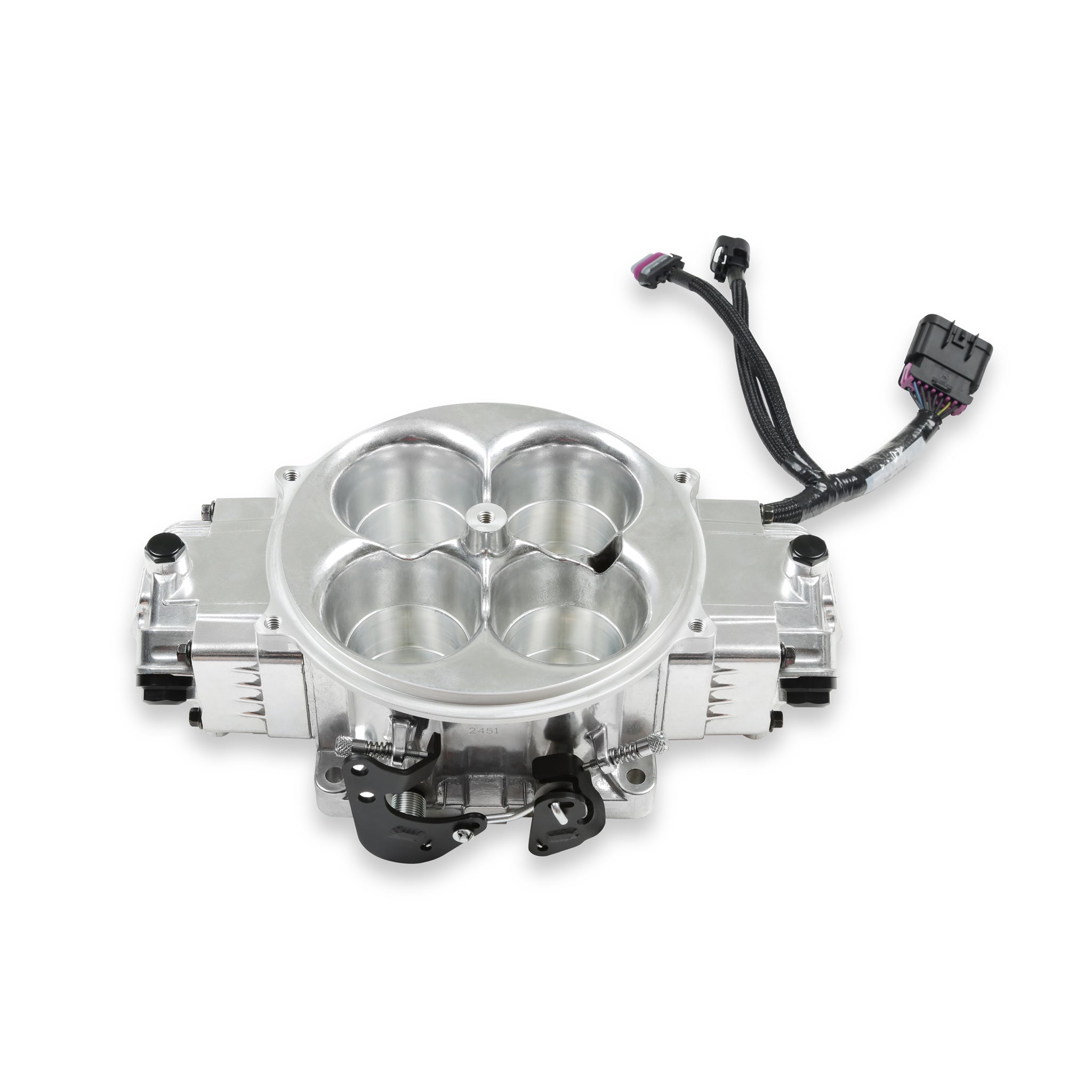

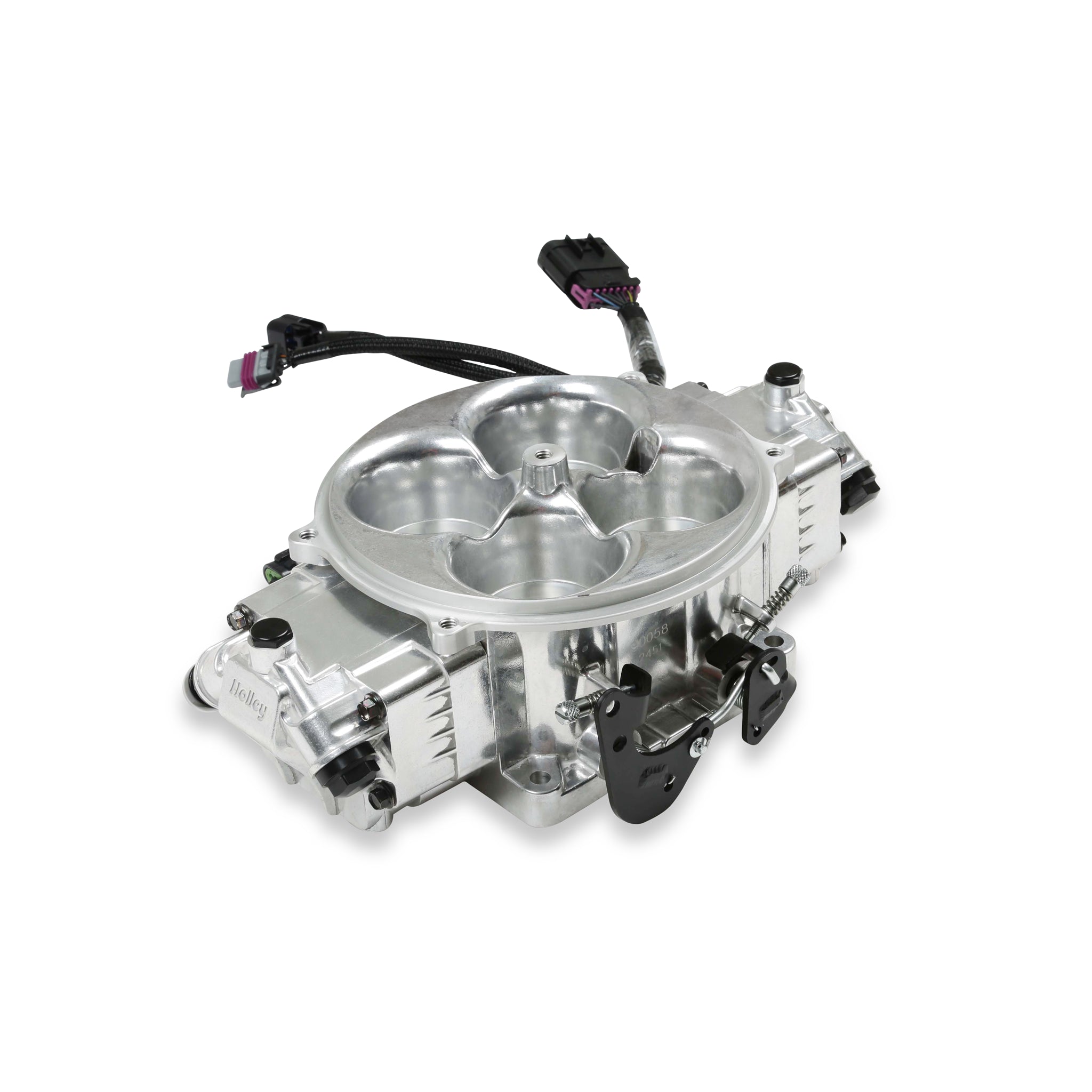

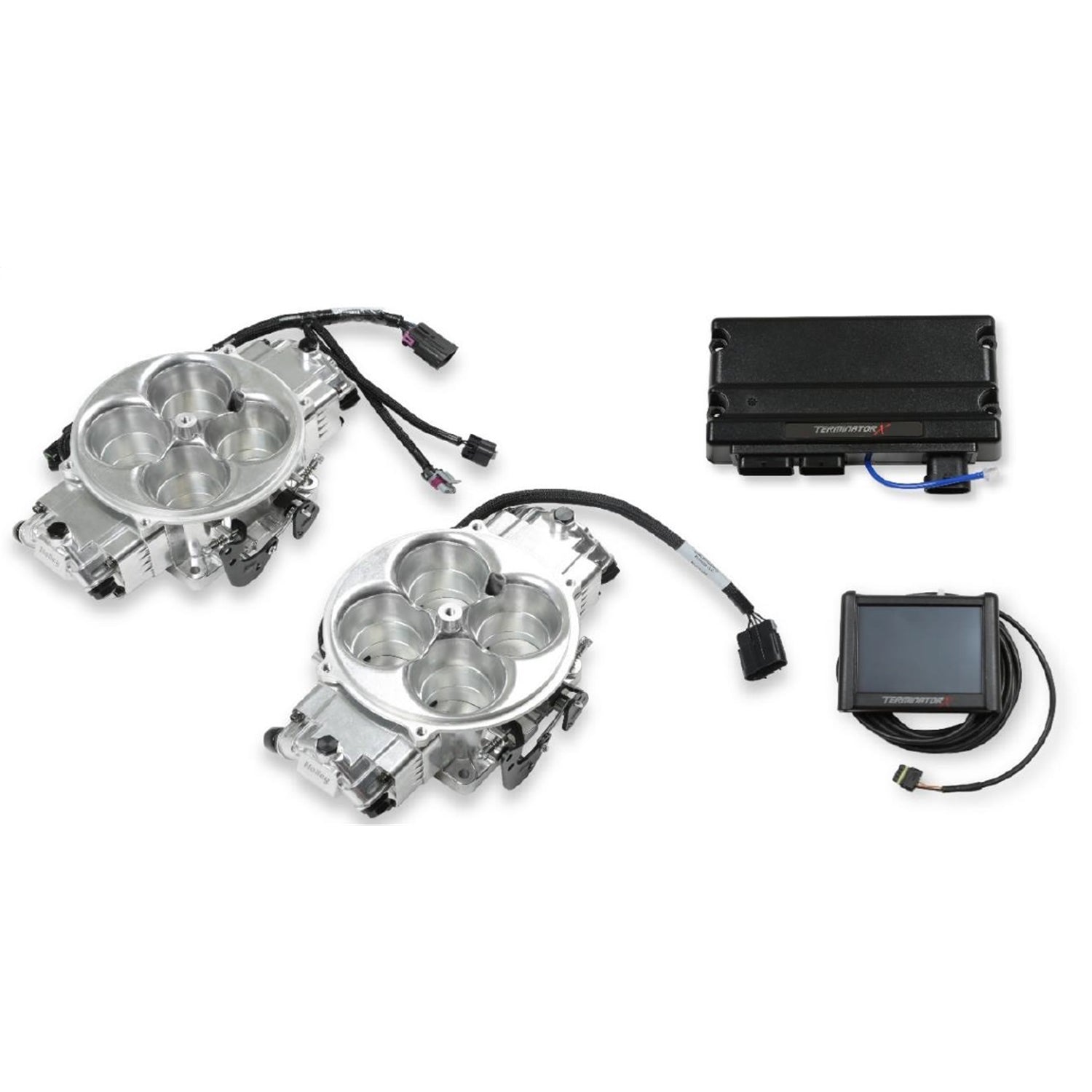

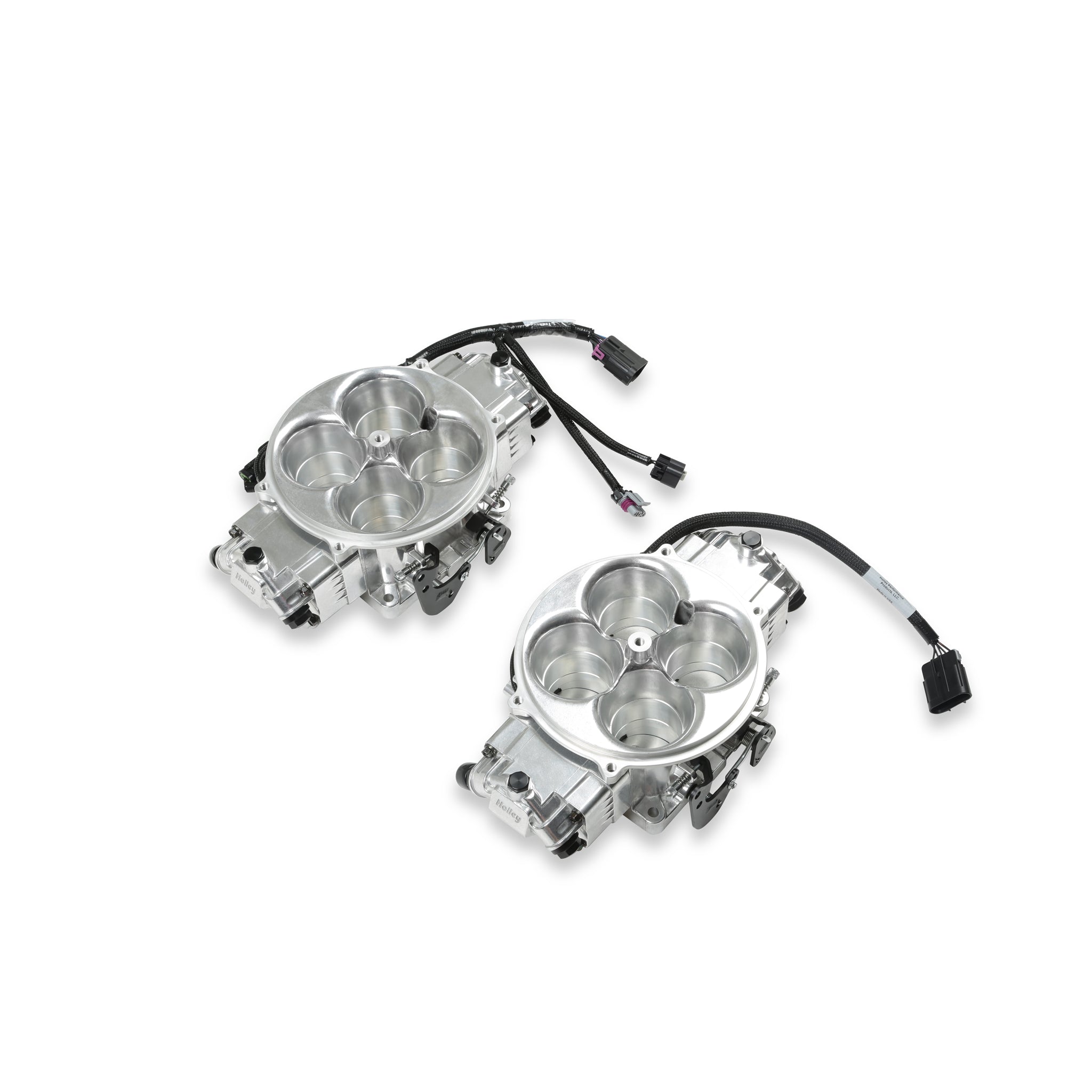

The Terminator X Stealth 4500 2x4 EFI systems from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 1500 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Designed to fit with Gen 3 Ultra Dominator air cleaners and fuel crossovers, allowing you to easily convert your 4500 equipped 800+ horsepower dragster or door car!
Specifications:
| Description_ASC |
Not for use with engines producing less than 800 horsepower
Gasoline Only
Use of leaded race fuels may shorten the service life of the WBO2 sensor |
| Description_DEF |
Fuel Injection System |
| Description_DES |

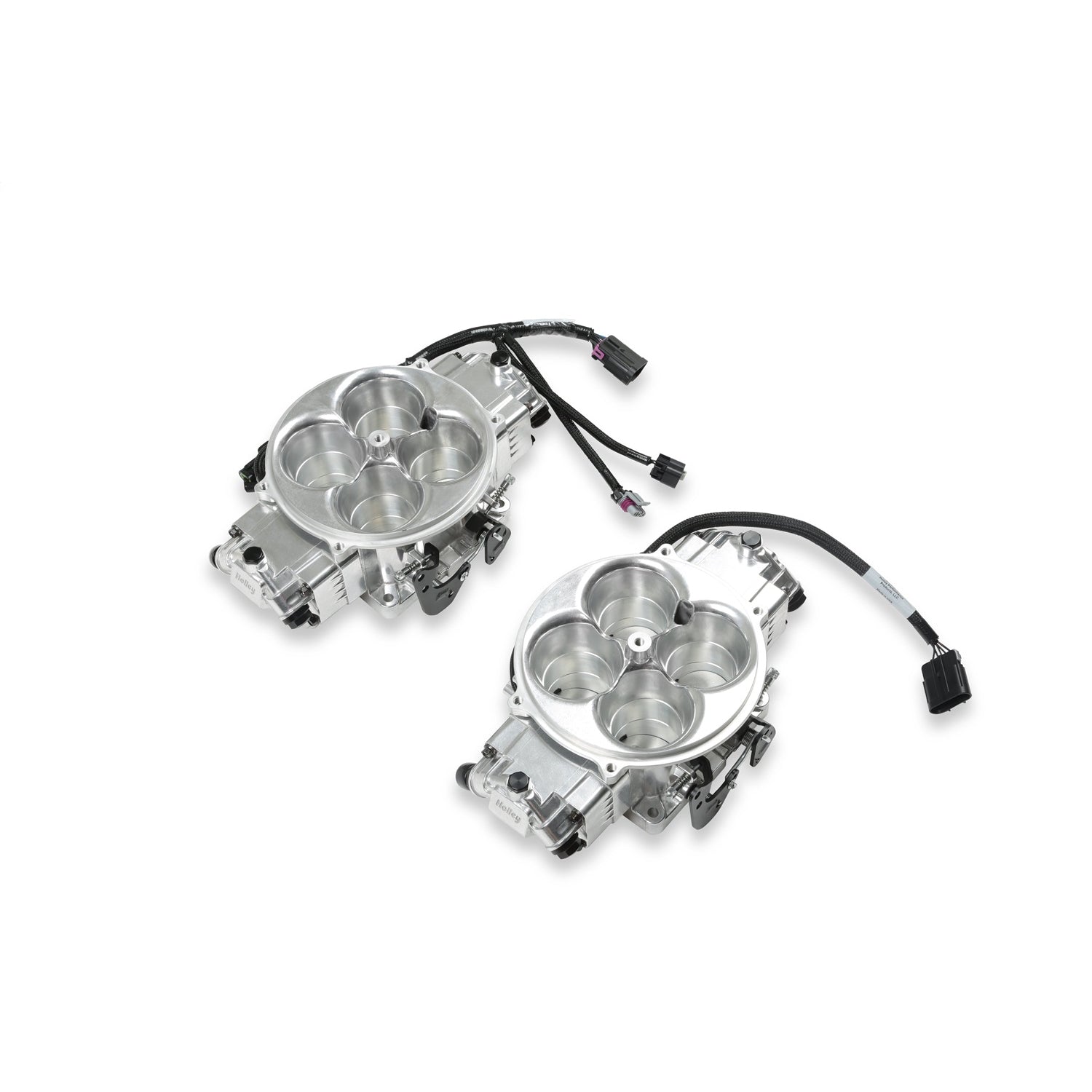

Holley EFI Terminator X Stealth 2x4 4500 Kit - Shiny |
| Description_INV |
TERMX STEALTH 4500, 2X4 , SHINY |
| Description_EXT |
Terminator x Stealth 4500 Kit; Bolt On 4500 Flange; 2.125 in. Throttle Plates; Replacement For 2X4 Intake Manifolds; Incl. Weld-In O2 Sensor Bung; Shiny; |
| Description_FAB |

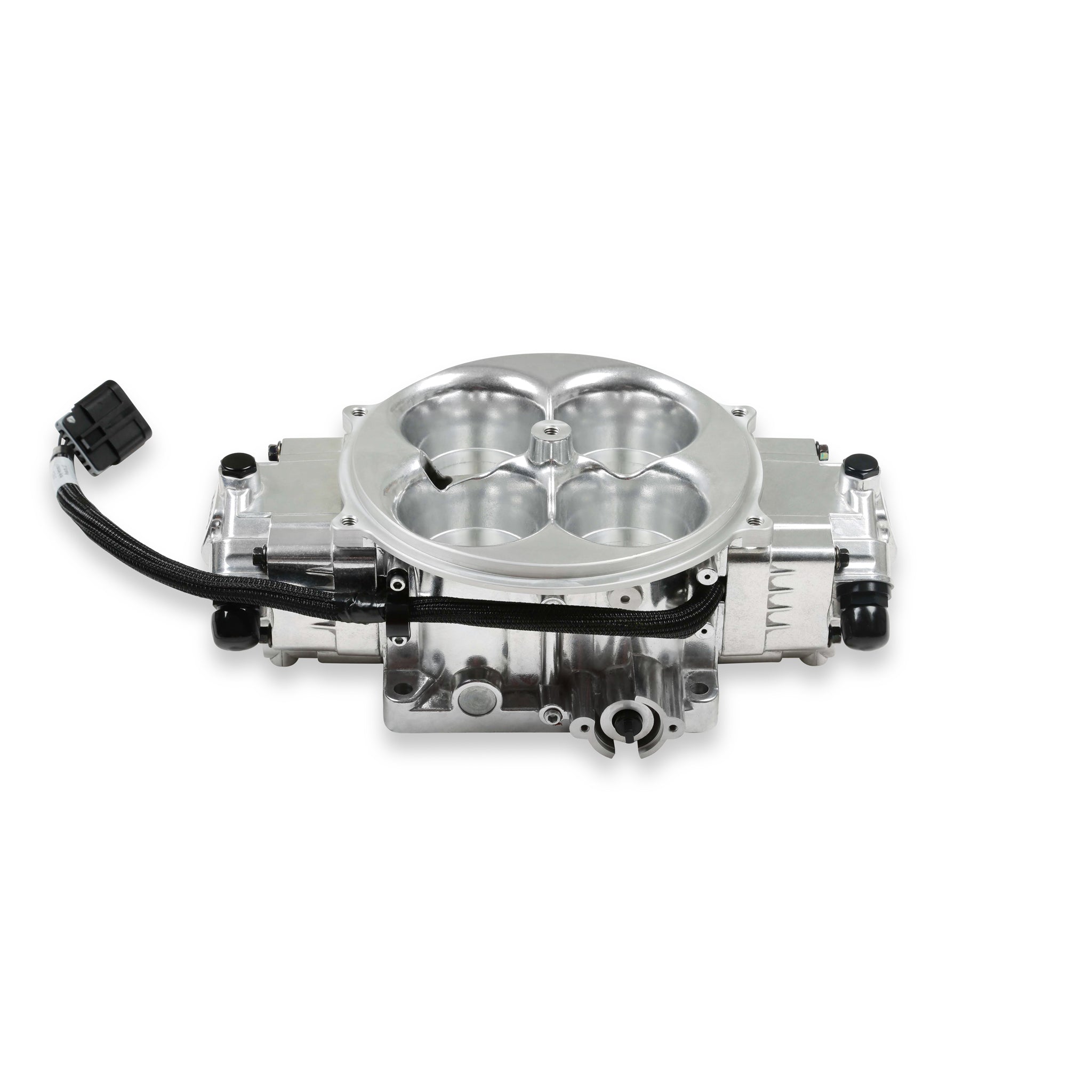

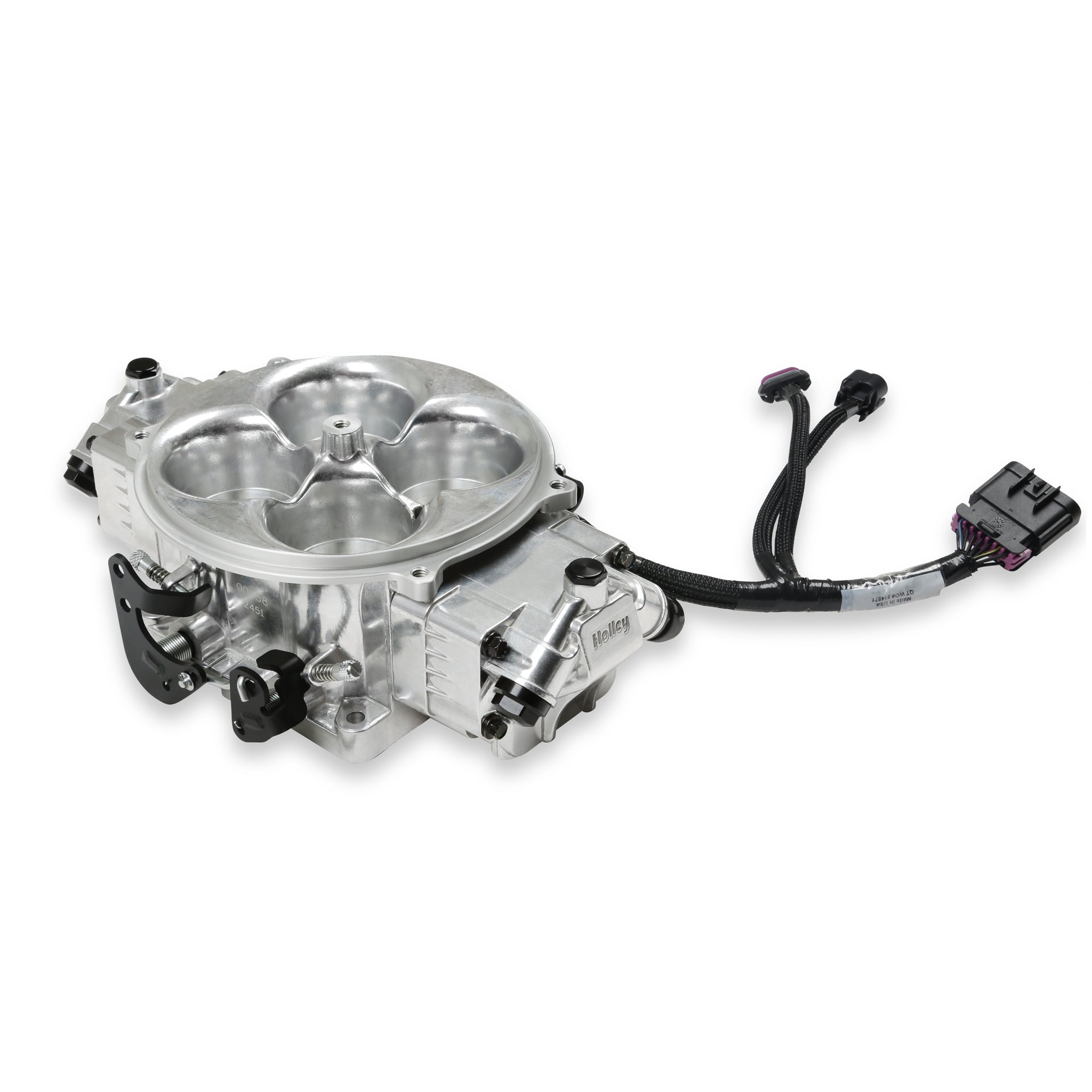

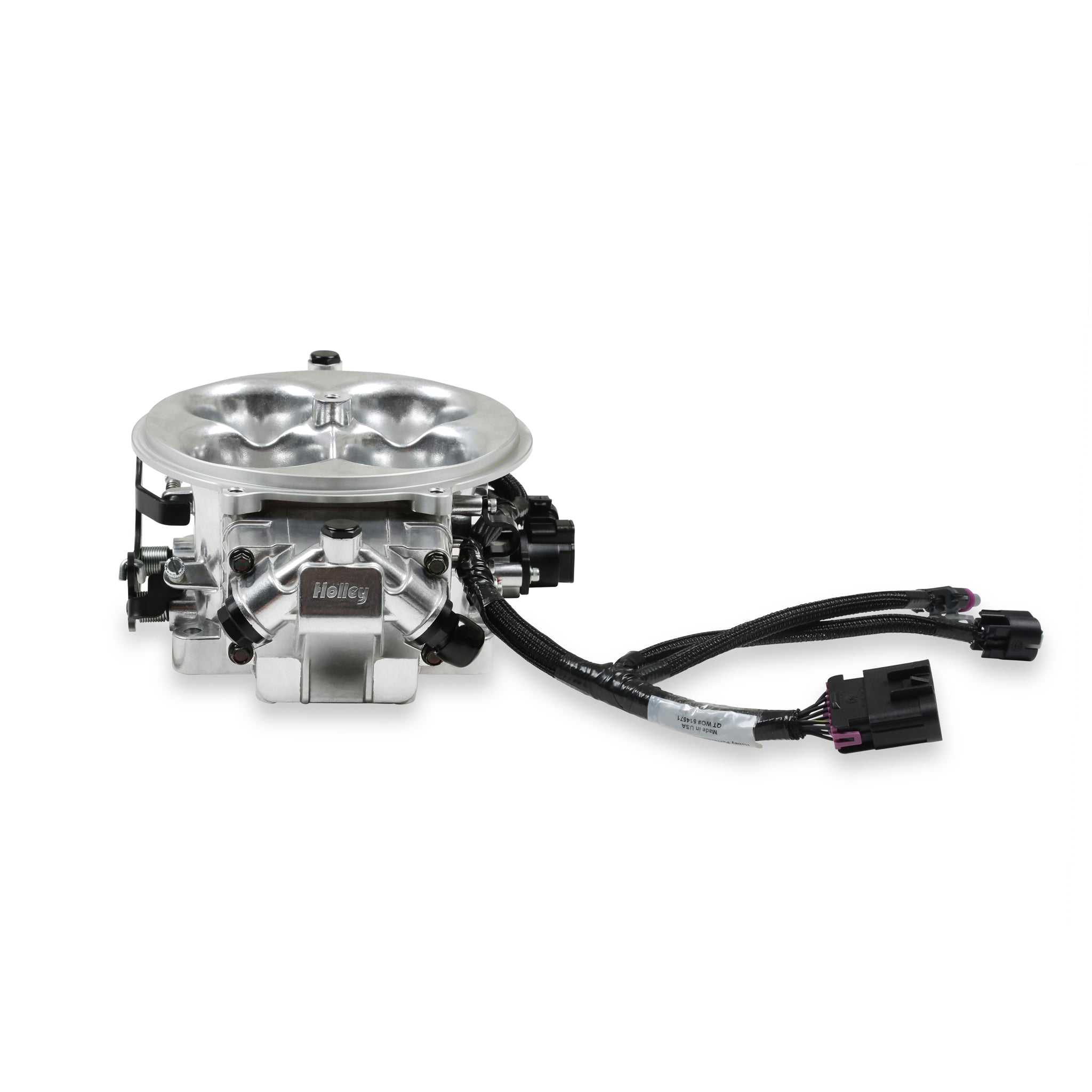

Bolt on 4500 Flange Carburetor Replacement for 2x4 intake manifolds |
| Description_FAB |
Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors |
| Description_FAB |

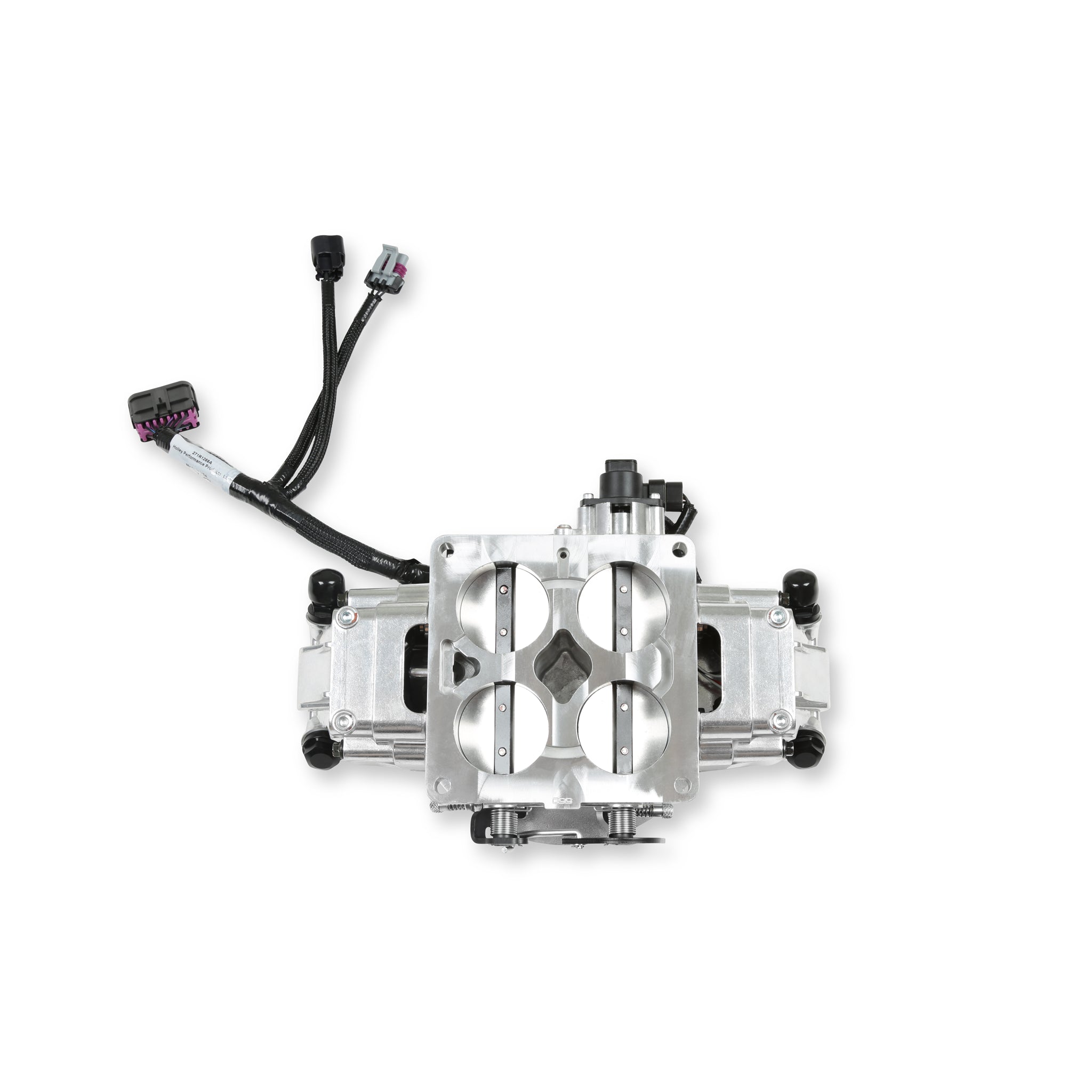

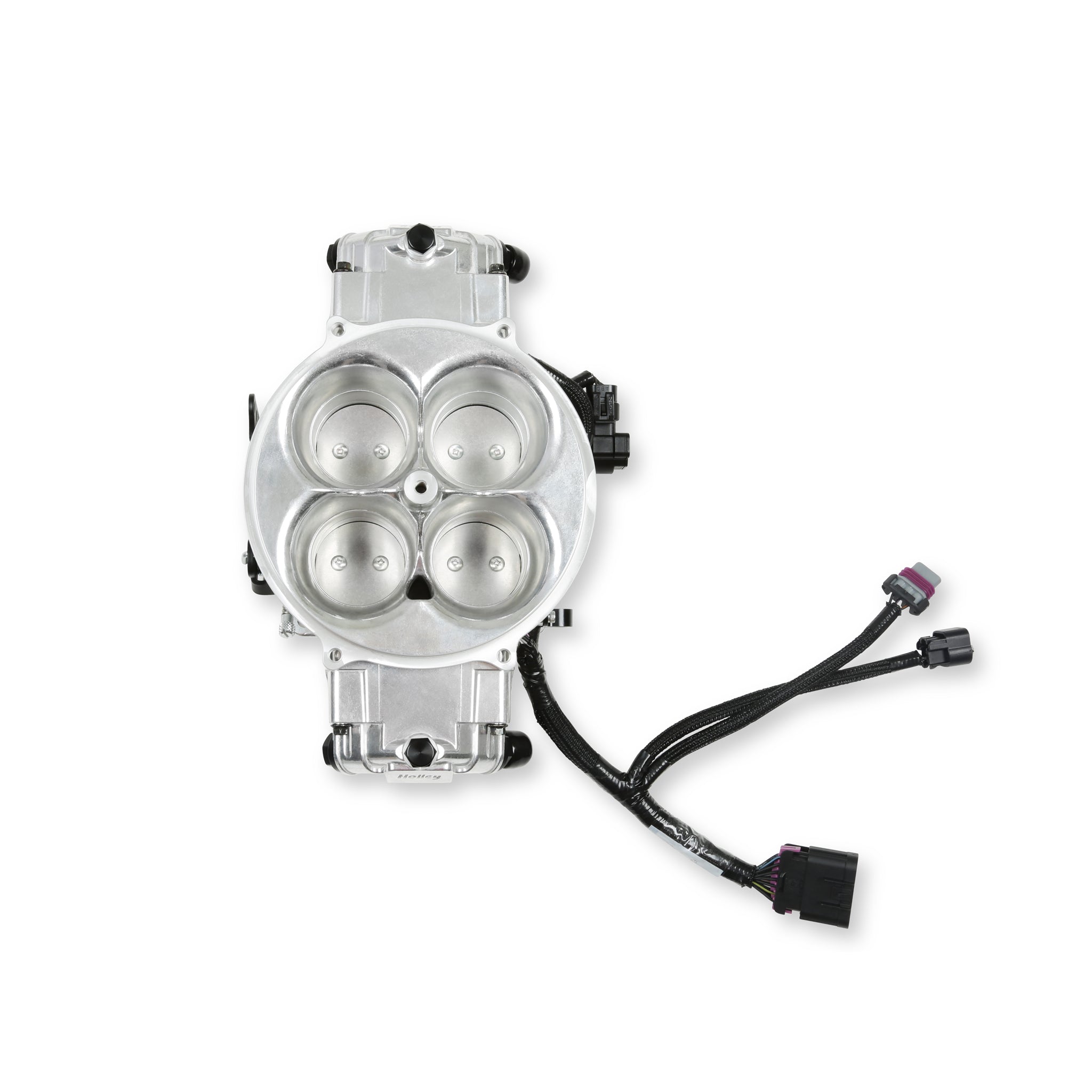

2.125" Throttle Plates, Flow 1440 CFM each for large cubic inch engines |
| Description_FAB |
Gen 3 Ultra Dominator Style 4 Bolt Air Cleaner Flange offering a variety of air cleaner options |
| Description_FAB |
External fuel pressure regulator required, such as 12-848 |
| Description_FAB |
Throttle Linkage not included |
| Description_FAB |

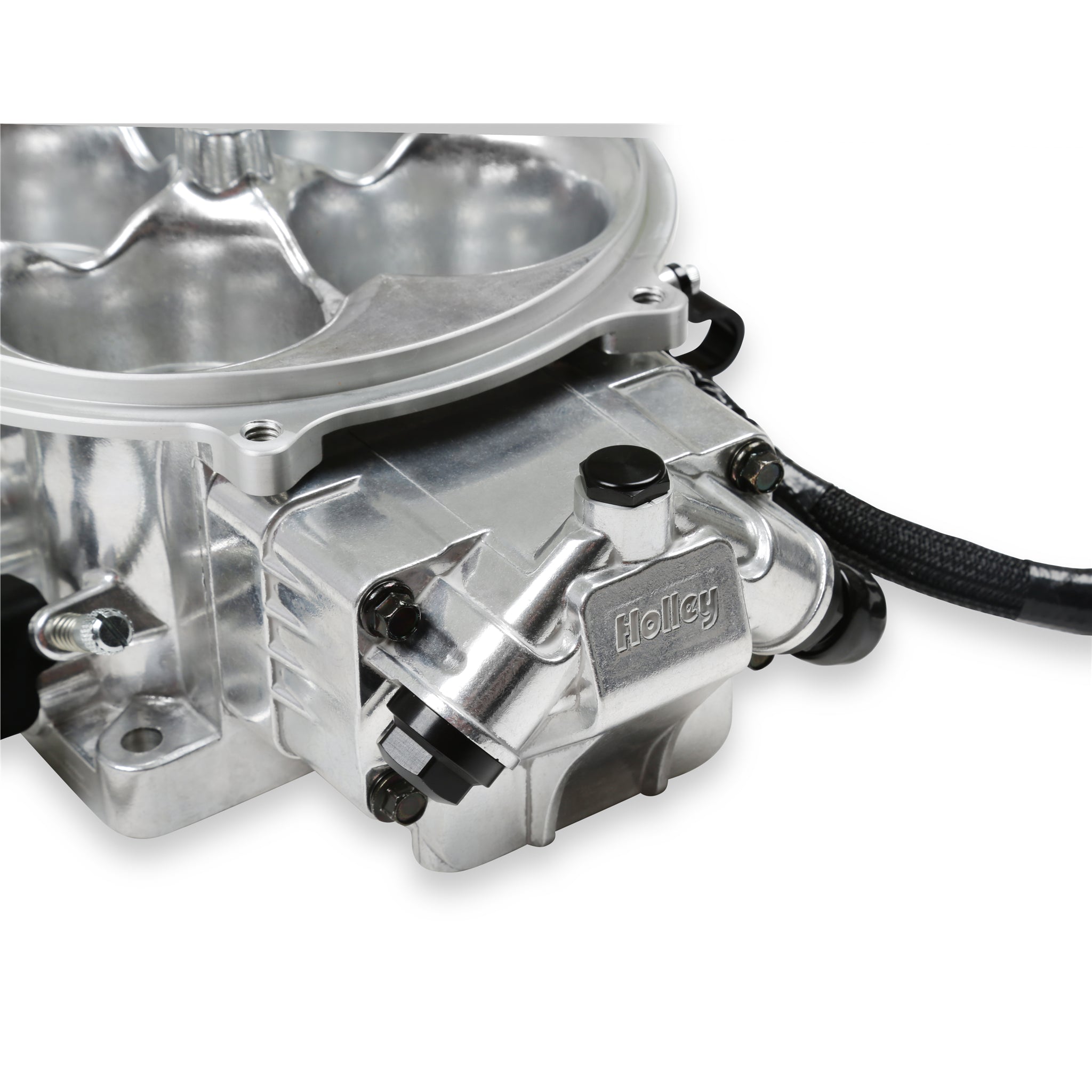

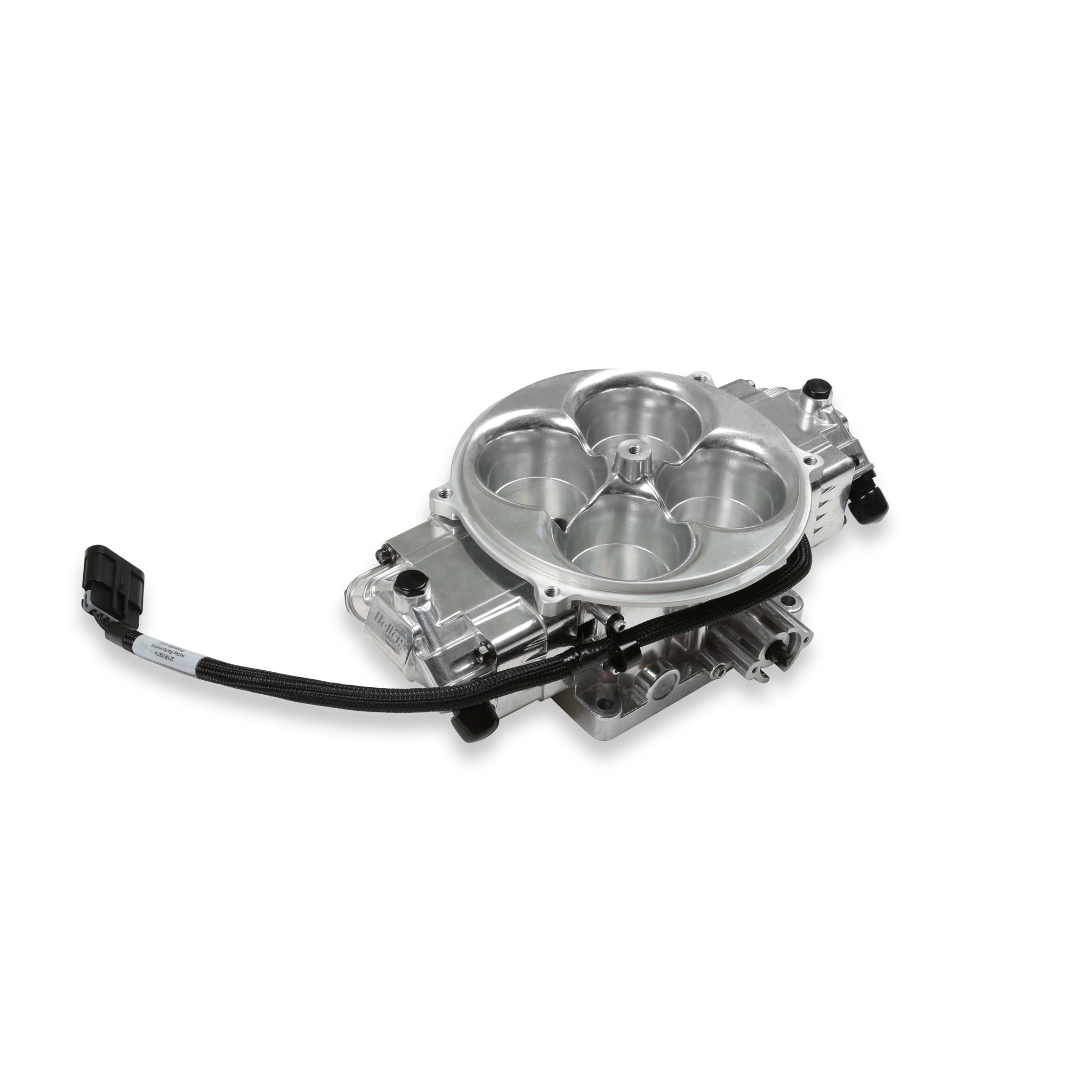

Each throttle body contains 4x 100lb/hr fuel injectors |
| Description_FAB |

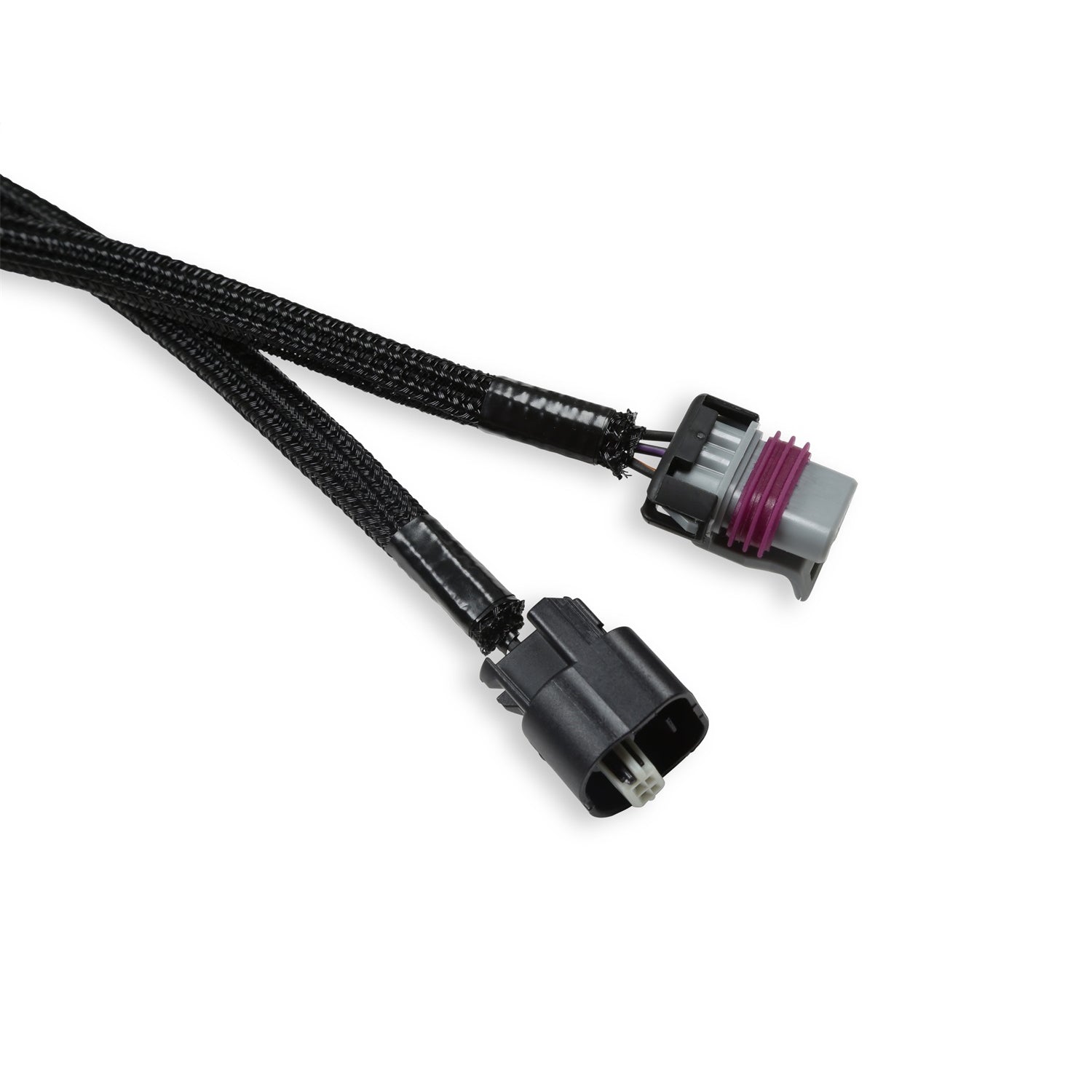

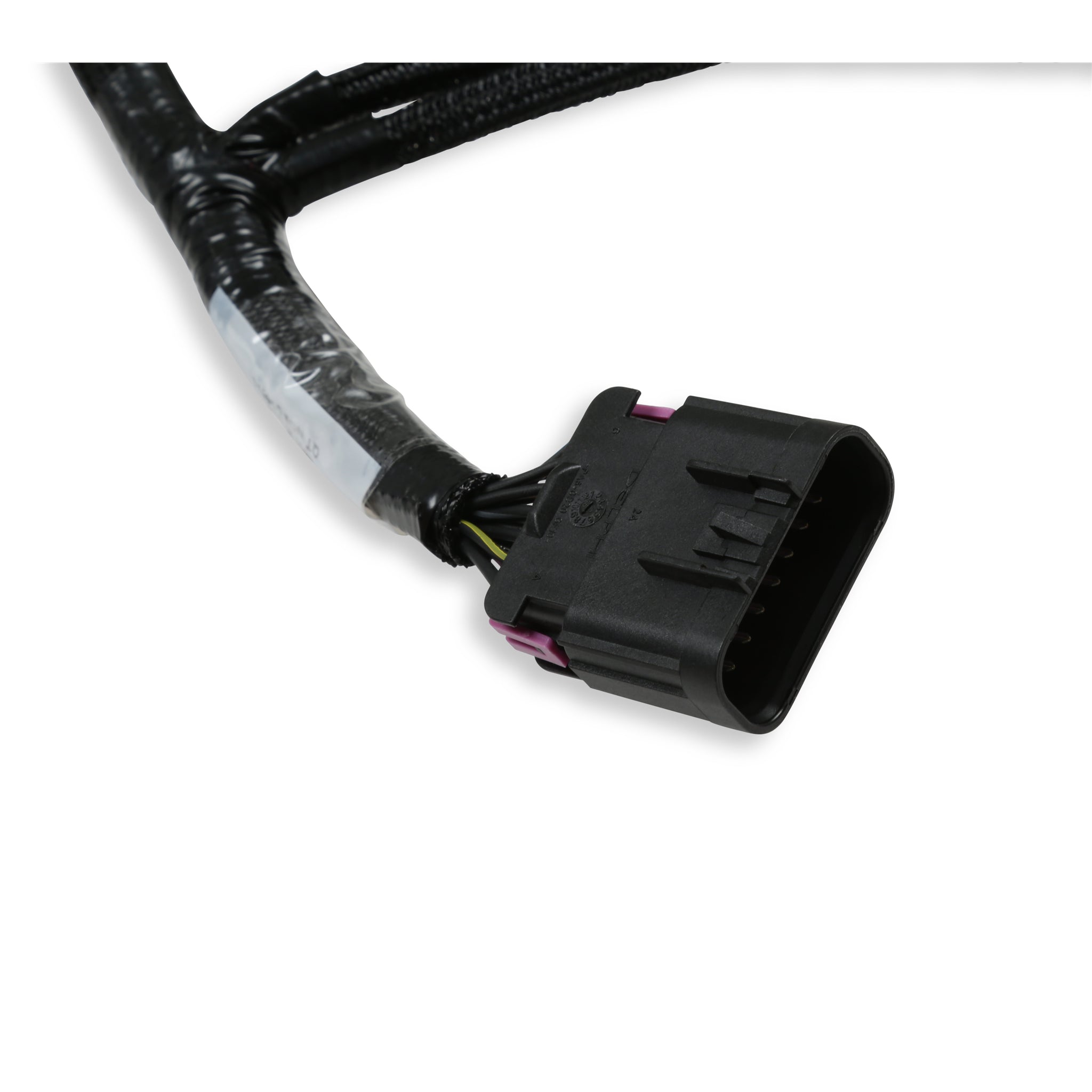

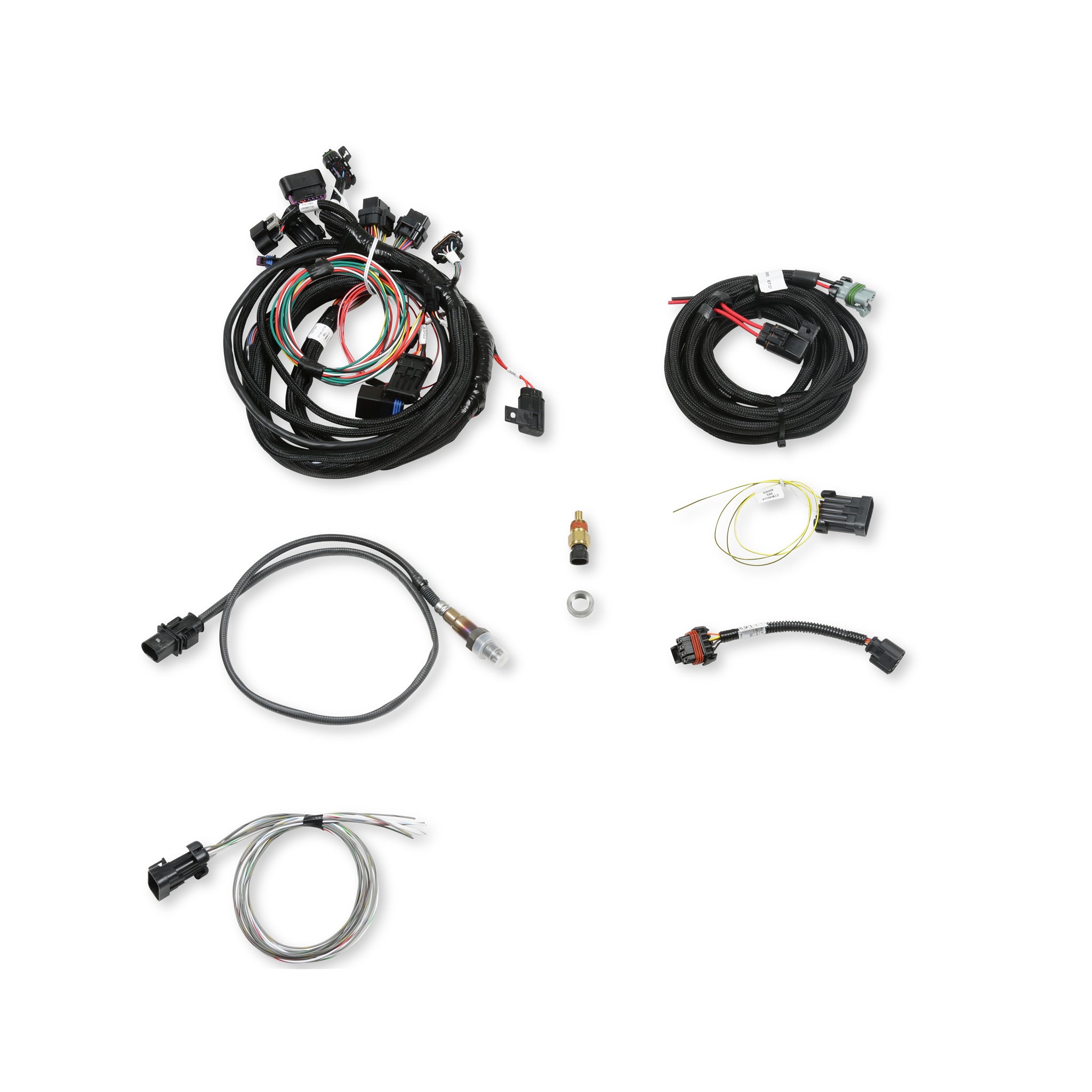

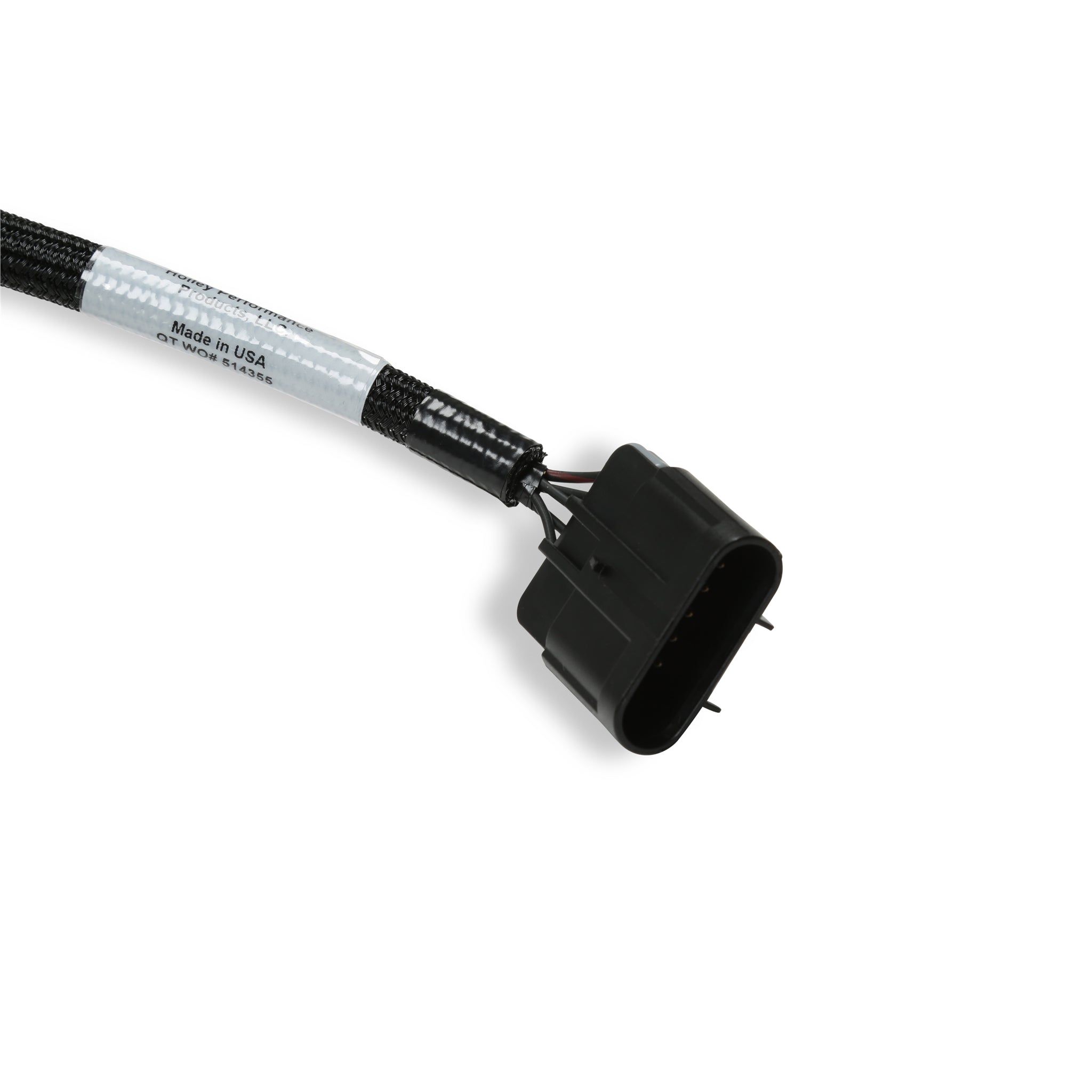

Universal engine harness allows you to easily install the Terminator X 2x4 4500 system on a wide variety of engine combinations |
| Description_FAB |

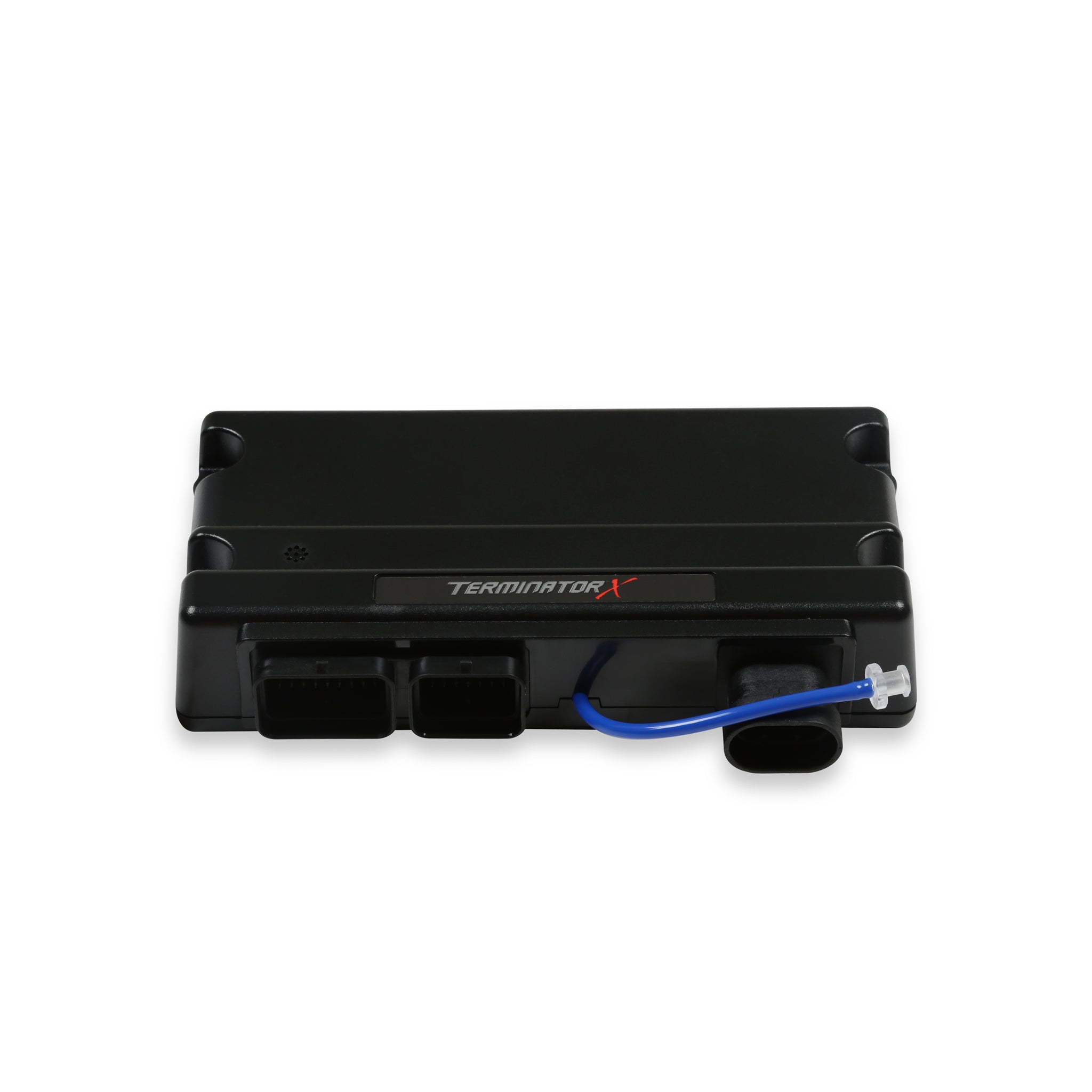

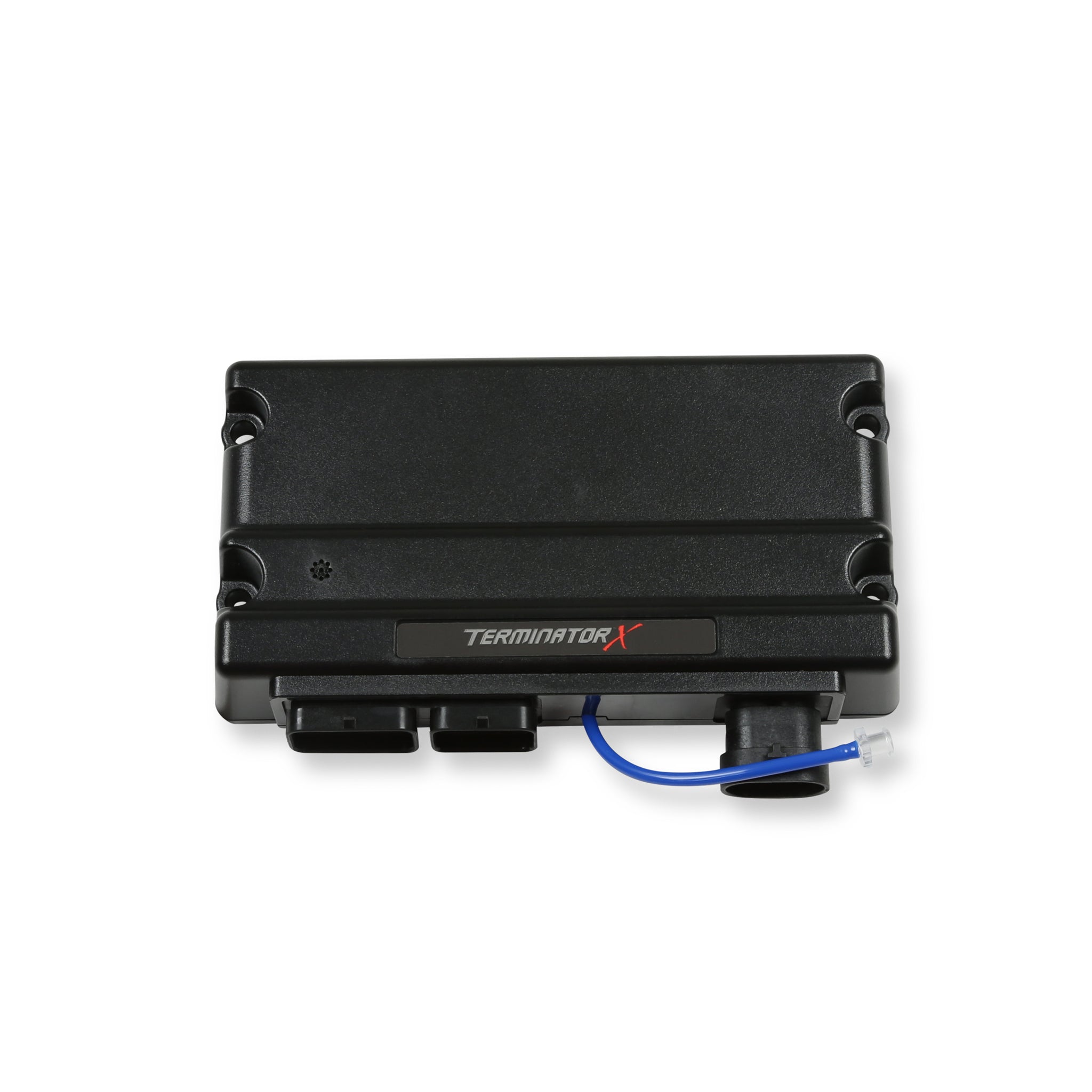

Timing Control support integrated within the ECU using supporting components (distributor, ignition box, or crank trigger) |
| Description_FAB |

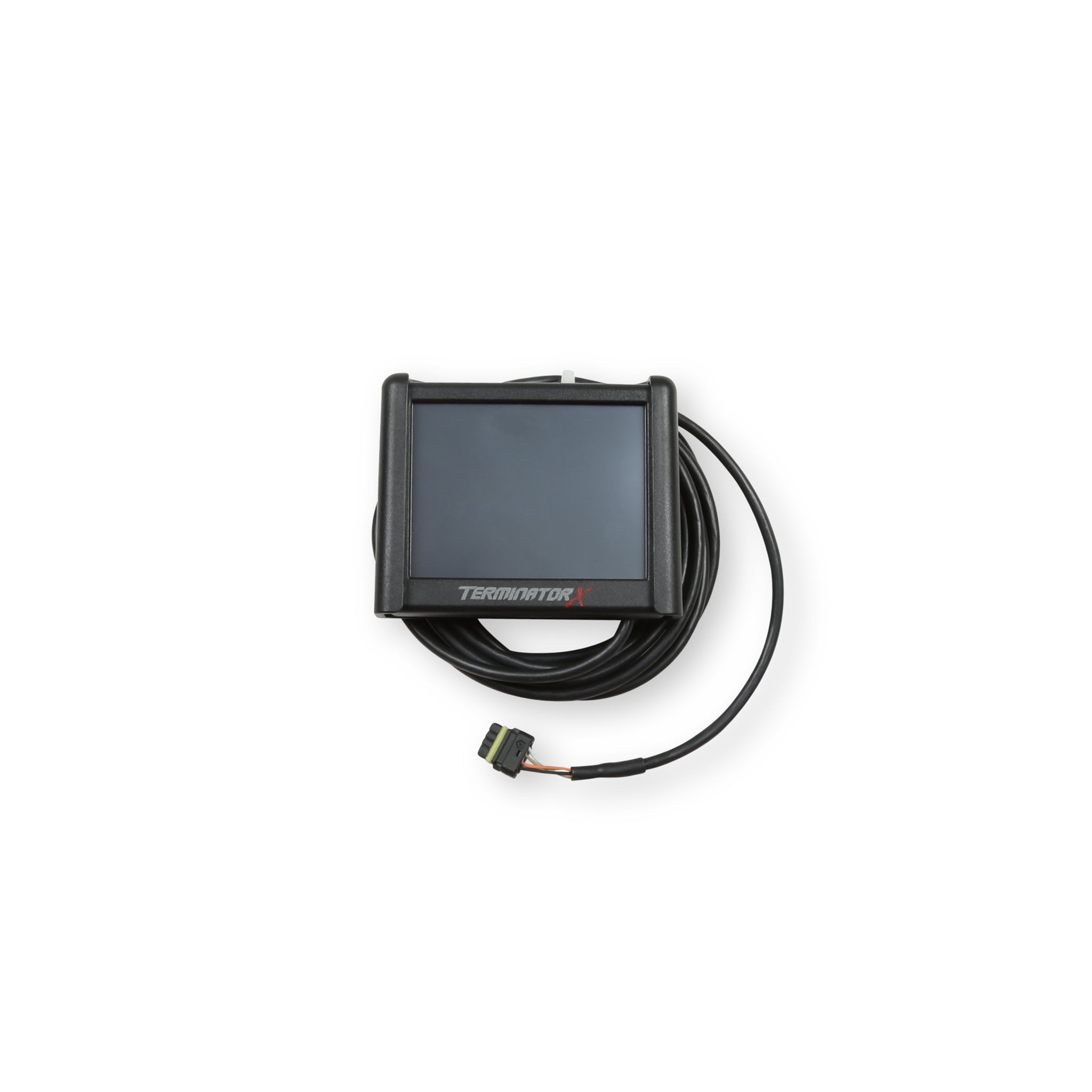

High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays |
| Description_FAB |
Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required! |
| Description_FAB |

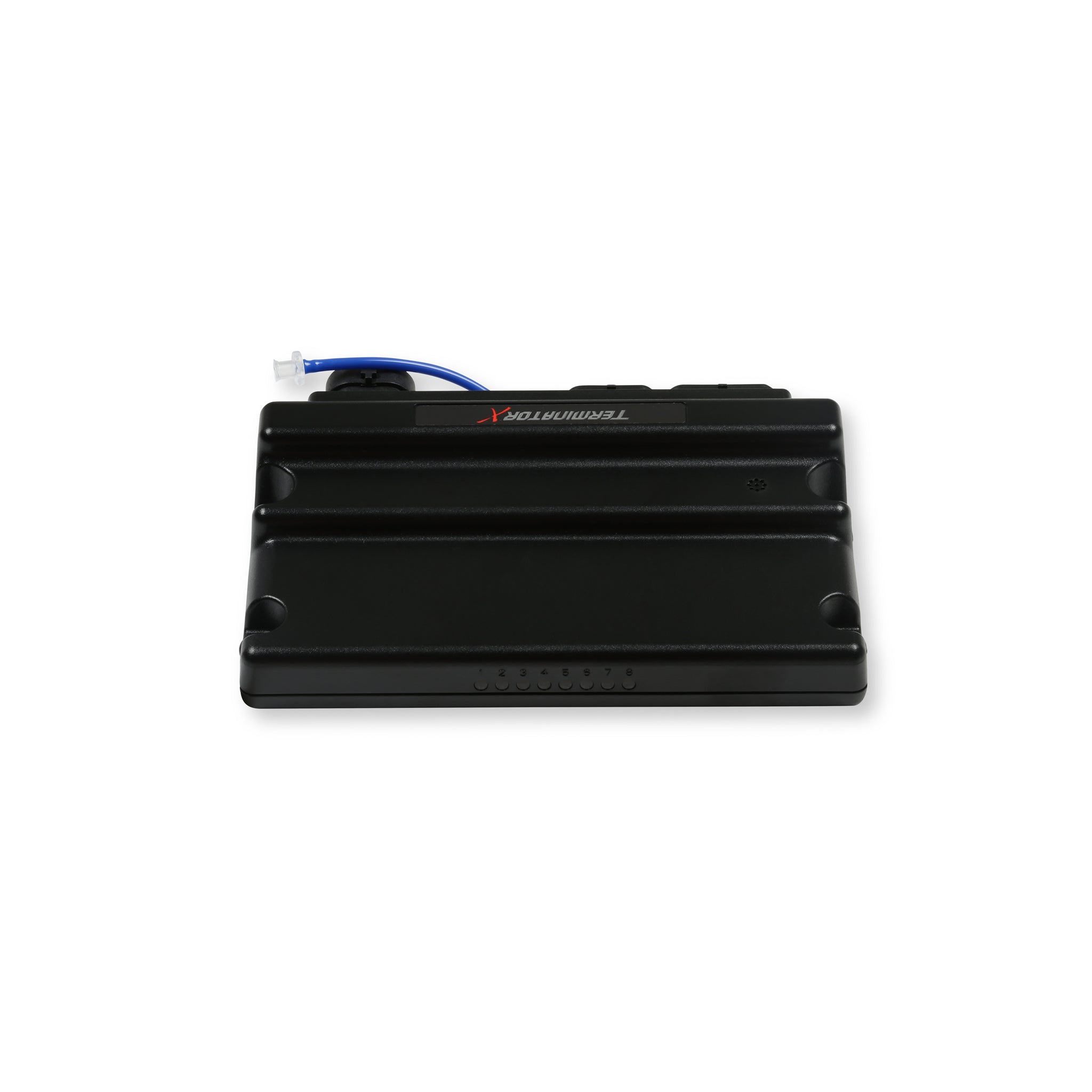

Self-tuning ECU means you don't have to be a computer/tuning wiz to have EFI! |
| Description_FAB |
The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn! |
| Description_FAB |
Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation |
| Description_FAB |
Plug and play with Holley EFI Accessories, such as the 12.3" and 6.86" Pro Dash; CAN EGT; and Digital Analog style EFI gauges |
| Description_FAB |
Available in 2 finishes, Shiny and Black |
| Description_KEY |
Sniper; Sniper EFI; Conversion; kit; kits; 4500; 4500 efi; Dominator TBI; 4500 TBI; 4500 Fuel Injection |
| Description_MKT |
The Terminator X Stealth 4500 2x4 EFI systems from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 1500 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Designed to fit with Gen 3 Ultra Dominator air cleaners and fuel crossovers, allowing you to easily convert your 4500 equipped 800+ horsepower dragster or door car! |
| Description_SHO |
FuelInjSystm |
| Flange Size |
4500 |
| Fuel Pressure |
58.5 PSI |
| Ignition Type |
Universal |
| Fuel Rate |
100 lbs./hr |
| Terminator LS Options |
Fuel, Spark |
| Finish |
Shiny |
| WARNING CA Proposition 65 |
Yes |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color |
Shiny |
| Flange Style |
Dominator |
| Injector Size |
100 lb/hr @ 58.5 PSI |
| Max Horsepower Rating |
1500+ |
| Product Type |
EFI System |
| Throttle Bore |
2.125 in. |
| Brand |
Holley EFI |
| CFM |
2880 |
| Emission Code |
3 |
| Handheld Included |
Yes |
| Inlet / Outlet Size |
8AN |
| MAP Sensor |
1bar |
| Sale Category |
Air and Fuel Delivery |
| Length |
10.0000 |
| Width |
15.0000 |
| Height |
27.0000 |
| Weight |
26.0000 |
