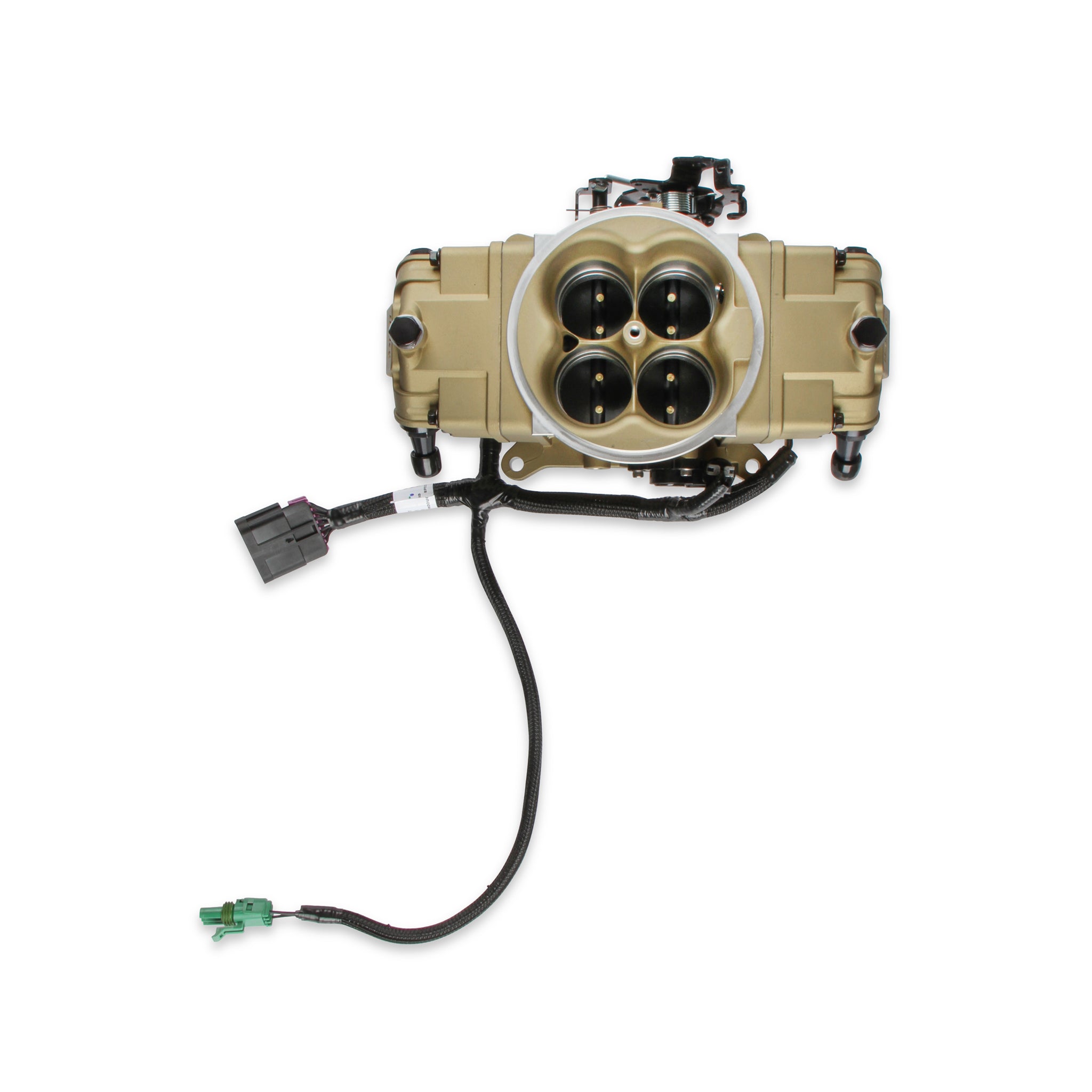

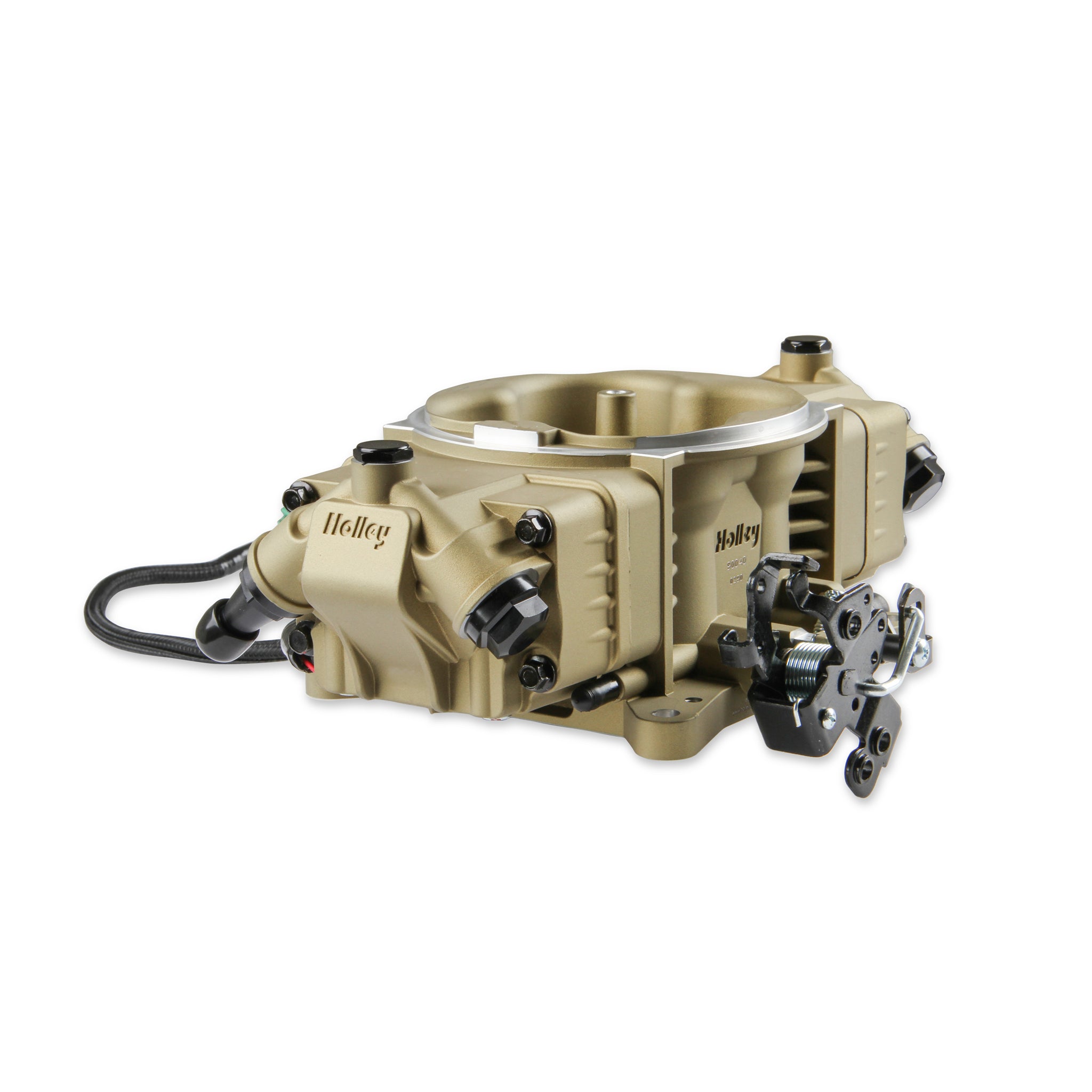

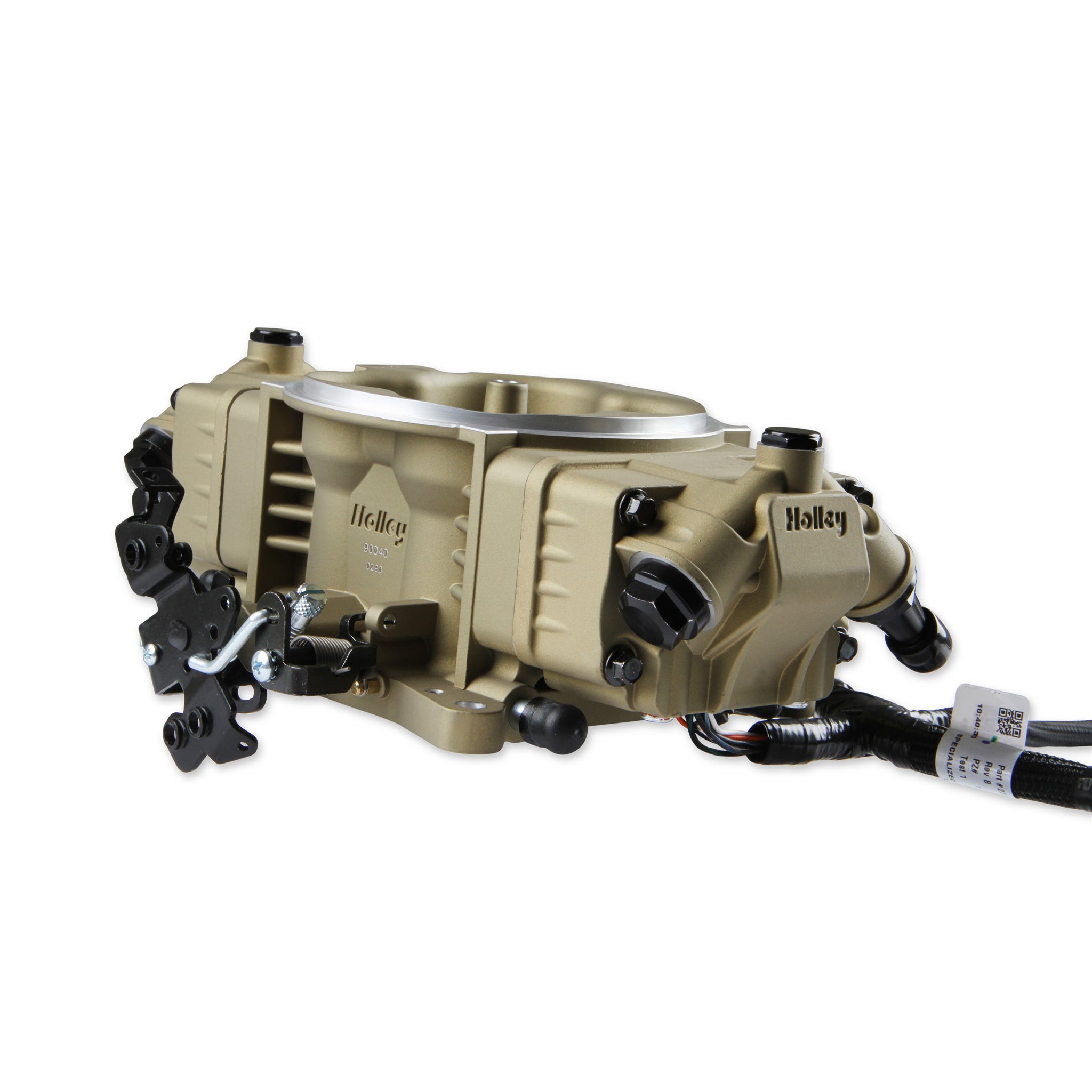

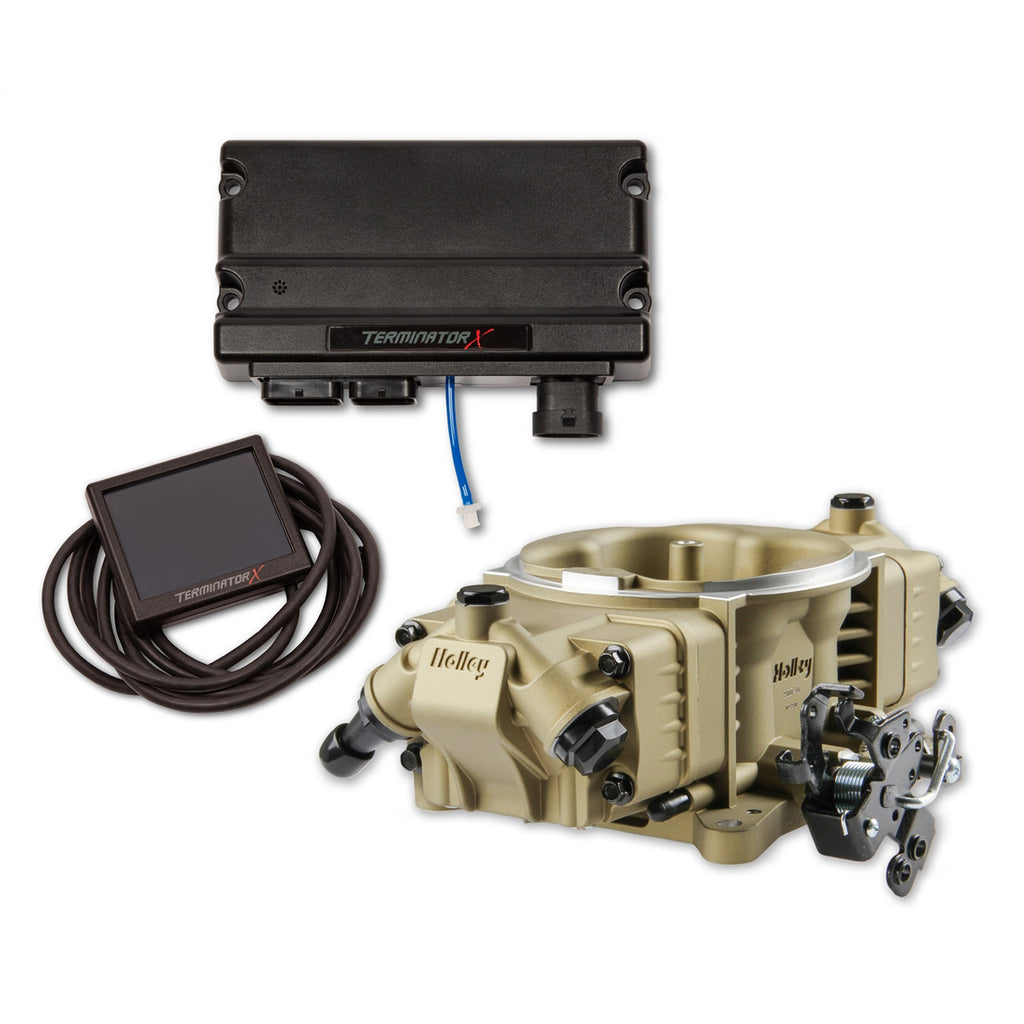

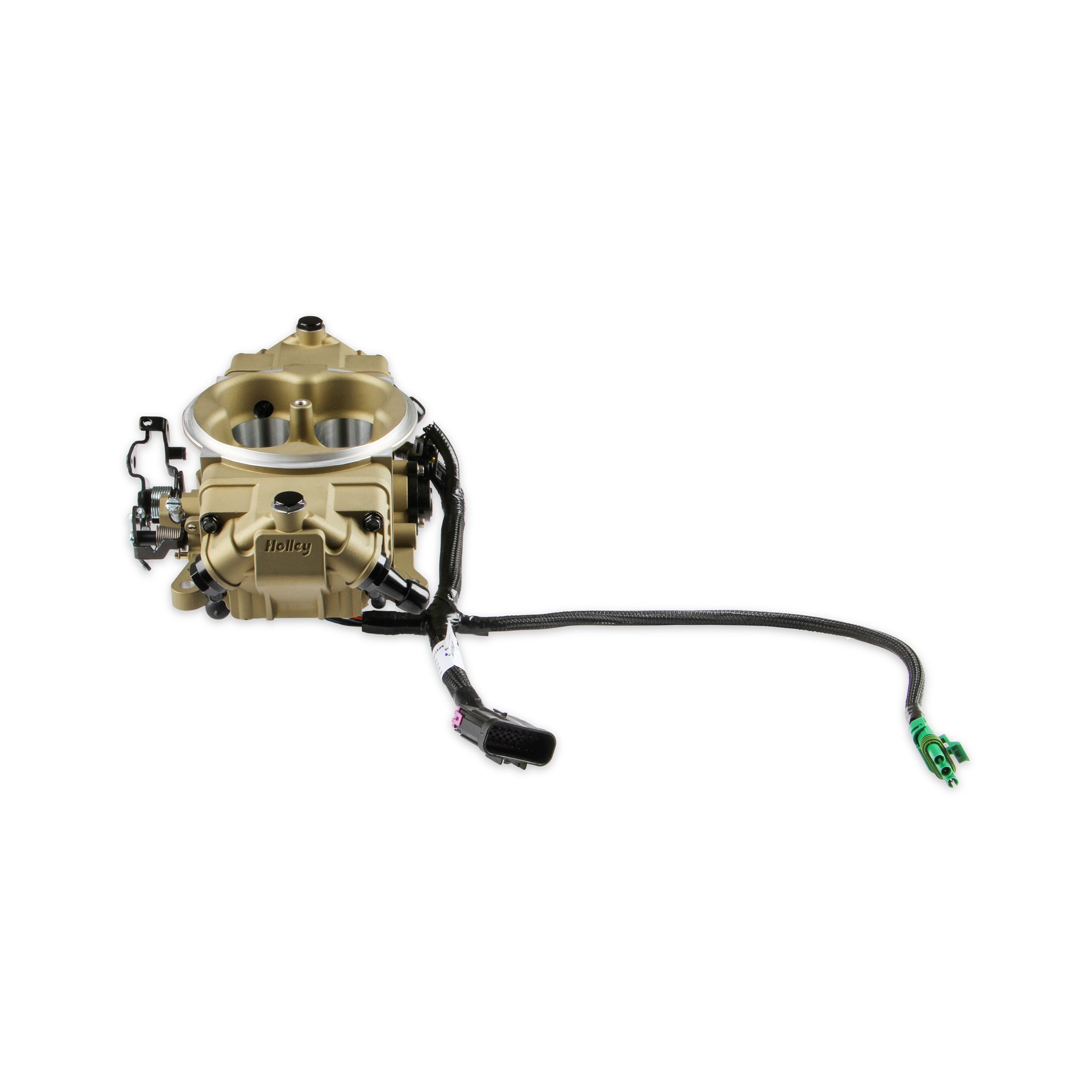

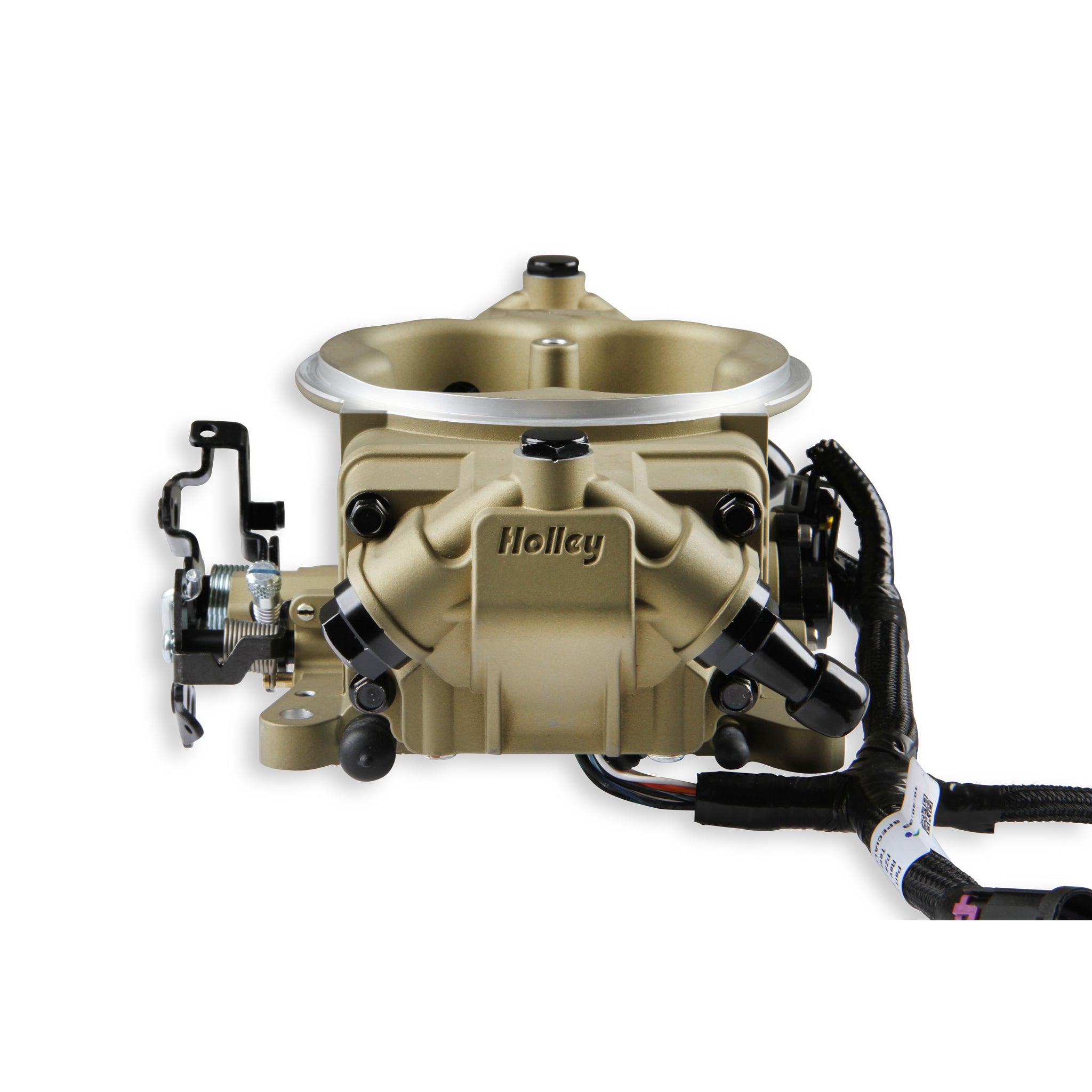

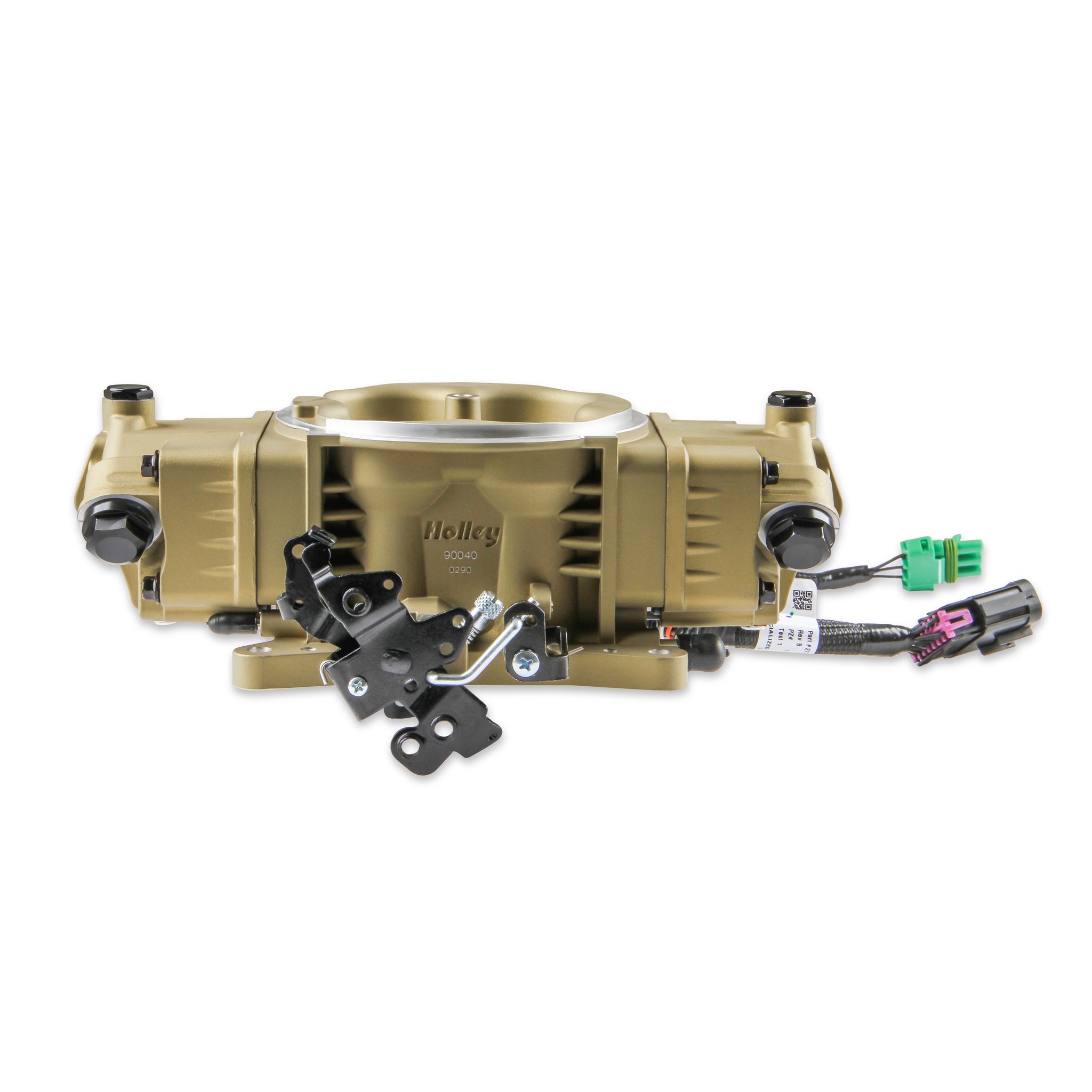

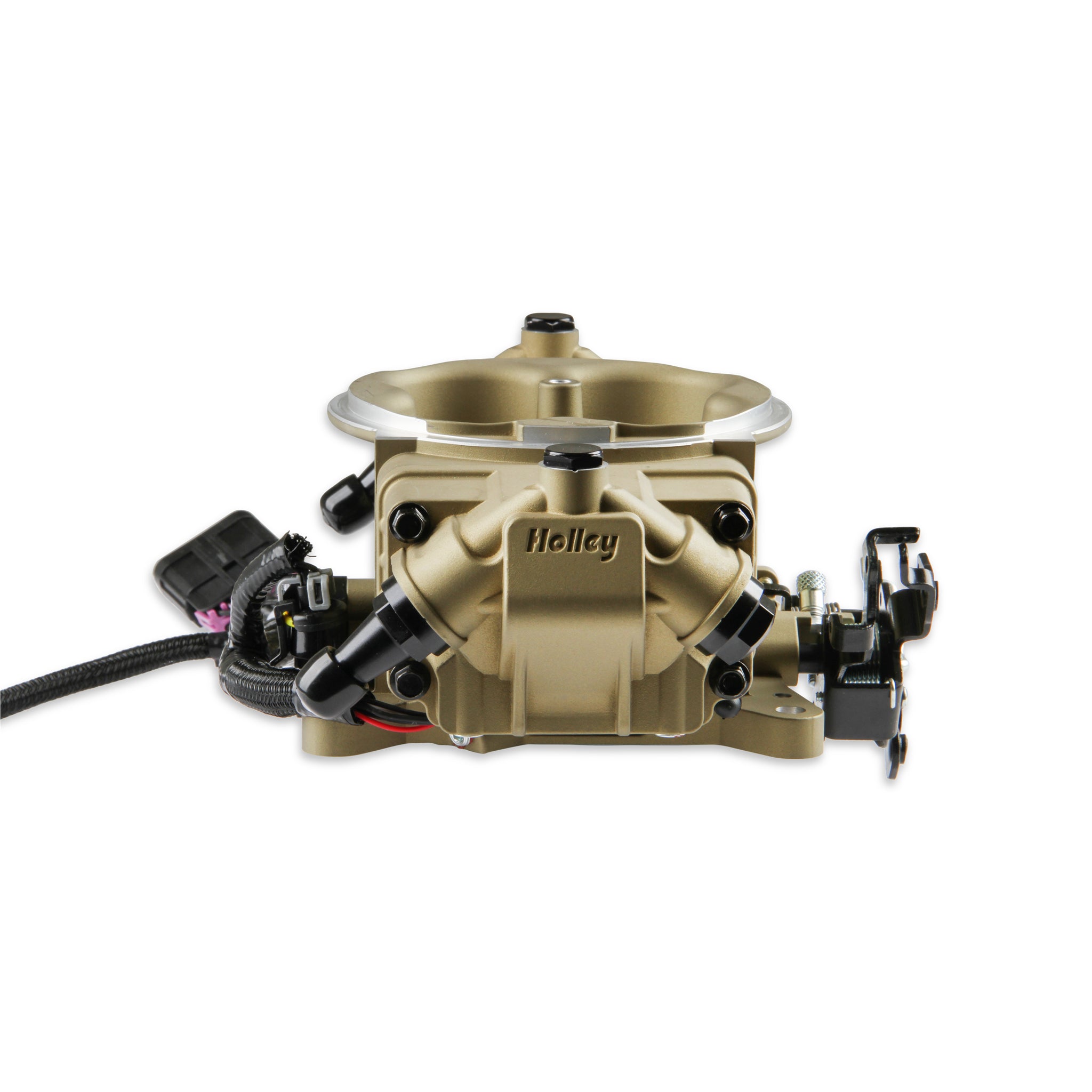

The Terminator X Stealth 4150 EFI system from Holley features 4, 100LB/HR Fuel Injectors capable of supporting up to 650 HP naturally aspirated or 600 HP on forced induction applications. The Terminator X ECU features fuel maps that self-learn and integrated ignition timing control, yielding improved idle stability, drivability, and horsepower at wide-open throttle! Did we mention that the Stealth 4150 also includes transmission kick down provisions for GM TH350/400, 200R4/700R4 and Ford C4/C6 applications Terminator X Max kits provide plug and play Transmission control for GM 4L60 and 4L80 Transmissions.
Specifications:
| Description_DEF |
Fuel Injection System |
| Description_DES |
Holley EFI Terminator X Stealth GM LS 4150 - Gold |
| Description_FAB |
Terminator X Stealth 4150 Kits for either 24x or 58x LS engines |
| Description_FAB |
Supports up to 650HP with Four 100lb./hr. Injectors |
| Description_FAB |
Terminator X Max kits provide plug and play Transmission control for GM Transmissions |
| Description_FAB |
Internal 1bar MAP sensor, built into the Terminator X ECU. |
| Description_FAB |

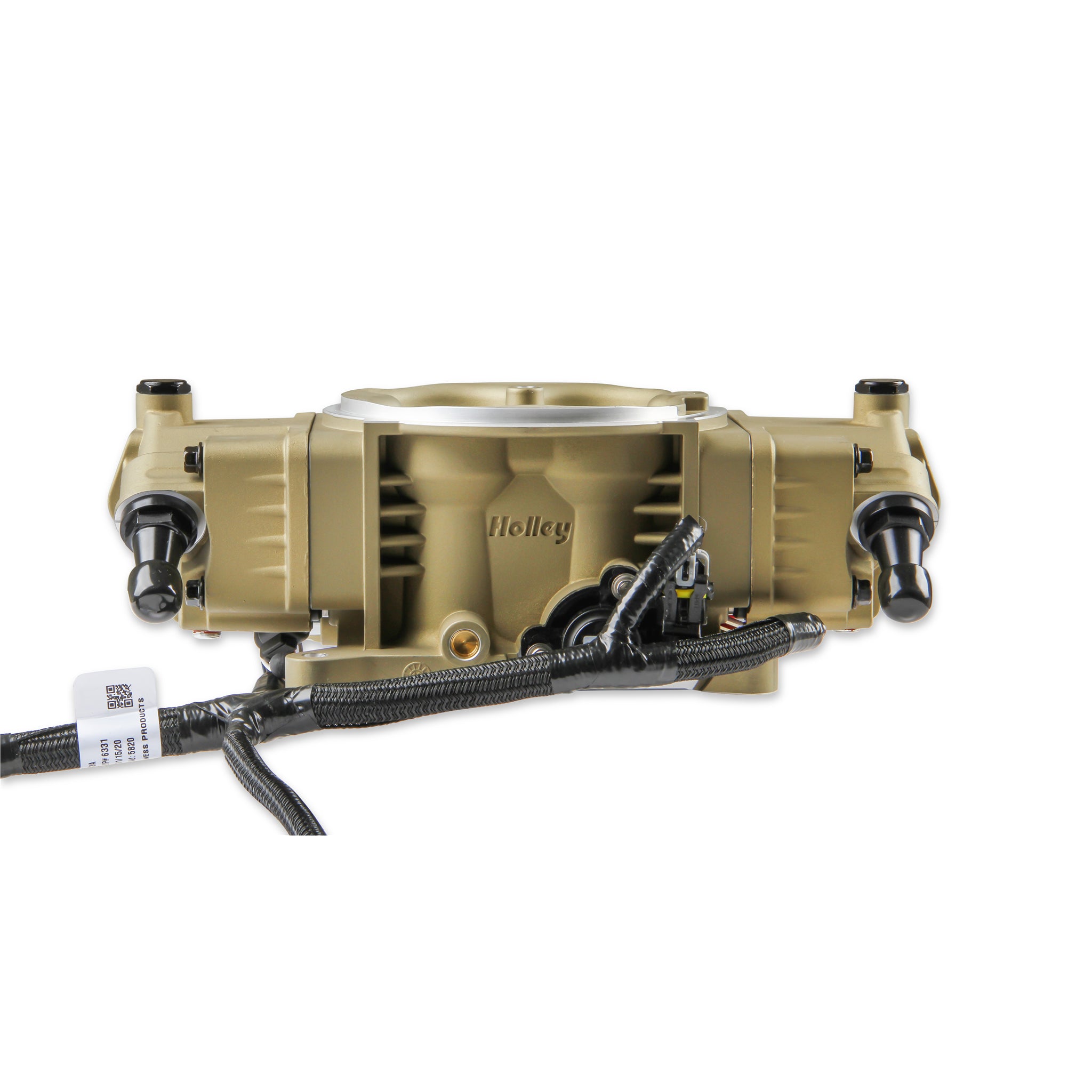

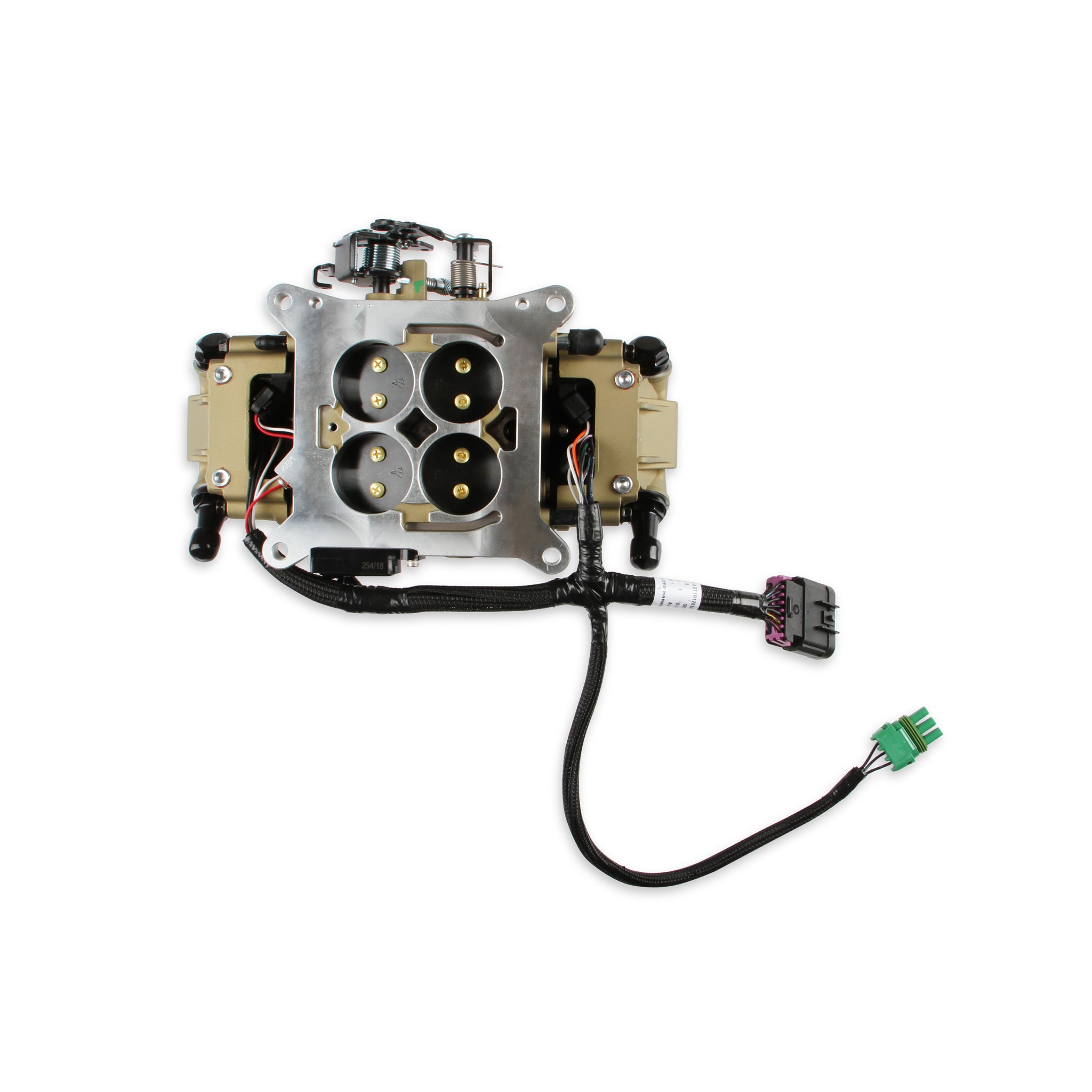

All of the wiring exits below the fuel injector bowls, for a completely stealth installation |
| Description_FAB |
Air entry machined to fit most stock style air cleaners with air cleaner locator provisions |
| Description_FAB |
External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as 12-886 |
| Description_FAB |

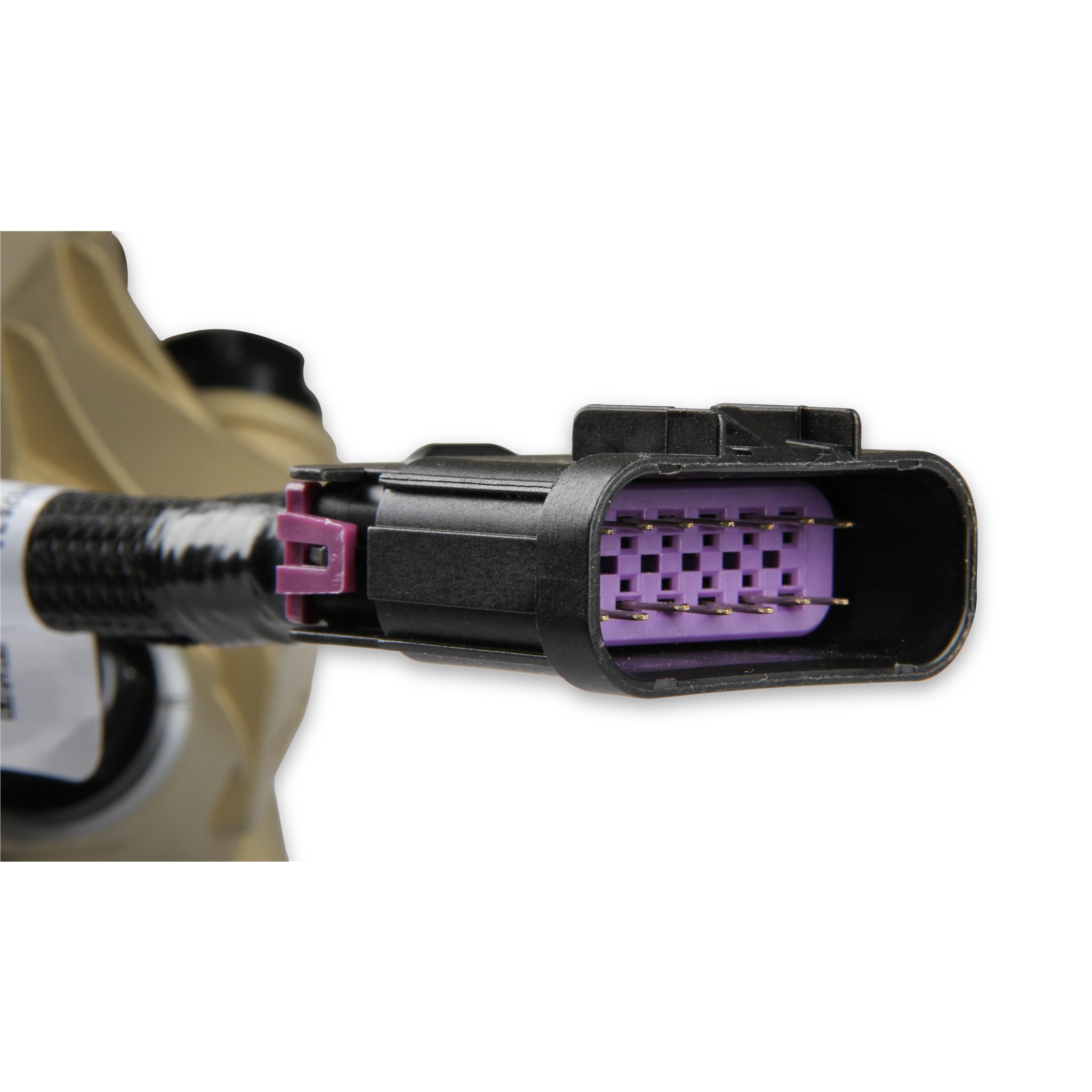

Integrated ignition timing control aΓé¼"Plug and play with factory LS coil sub harness and OEM LS coils aΓé¼" no external boxes/modules needed to run Coil Near Plug |
| Description_FAB |
High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays |
| Description_FAB |
Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required! |
| Description_FAB |
Self-tuning ECU means you donaΓé¼™t have to be a computer/tuning wiz to have EFI! |
| Description_FAB |
4 Inputs aΓé¼" 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake (Fuel and Oil Pressure Inputs are pre-terminated) |
| Description_FAB |
4 Outputs aΓé¼" Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More |
| Description_FAB |
The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn! |
| Description_FAB |
OEM Style TPS/IAC, for years of dependable service |
| Description_FAB |
Available in 3 finishes: Shiny, Black and Gold |
| Description_FAB |
Compatible with Holley EFI digital dashes, gauges and fuel system accessories |
| Description_EXT |
Terminator X Stealth 4150 System; Fits w/LS Engines w/24x Crank/GM TH350/400/200R4/700R4 Trans; 4 100LB/HR Fuel Injectors; Gold; |
| Description_INV |
TERMX STEALTH 4150, 4 INJ, LS 24X, GOLD |
| Description_SHO |
FuelInjSystm |
| Description_MKT |
The Terminator X Stealth 4150 EFI system from Holley features 4, 100LB/HR Fuel Injectors capable of supporting up to 650 HP naturally aspirated or 600 HP on forced induction applications. The Terminator X ECU features fuel maps that self-learn and integrated ignition timing control, yielding improved idle stability, drivability, and horsepower at wide-open throttle! Did we mention that the Stealth 4150 also includes transmission kick down provisions for GM TH350/400, 200R4/700R4 and Ford C4/C6 applications? Terminator X Max kits provide plug and play Transmission control for GM 4L60 and 4L80 Transmissions. |
| WARNING CA Proposition 65 |
Yes |
| CFM |
950 |
| Inlet / Outlet Size |
6AN |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Engine Make/Size |
Chevy LS Series |
| Brand |
Holley EFI |
| Color |
Gold |
| Injector Size |
100 lb/hr @ 58.5 PSI |
| Product Type |
EFI System |
| Flange Style |
Squarebore |
| MAP Sensor |
1bar |
| Crank Reluctor |
24x |
| Max Horsepower Rating |
650 |
| Warning |
California Proposition 65 |
| Fuel Rate |
100 lbs./hr |
| Cylinder Head Type |
GM LS Series |
| Emission Code |
3 |
| Ignition Type |
GM LS 24x |
| Terminator LS Options |
Fuel, Spark |
| Finish |
Gold |
| Flange Size |
4150 |
| Fuel Pressure |
58.5 PSI |
| Handheld Included |
Yes |
| Throttle Bore |
1.75 in. |
| Length |
10.0000 |
| Width |
15.0000 |
| Height |
26.5000 |
| Weight |
19.7400 |
