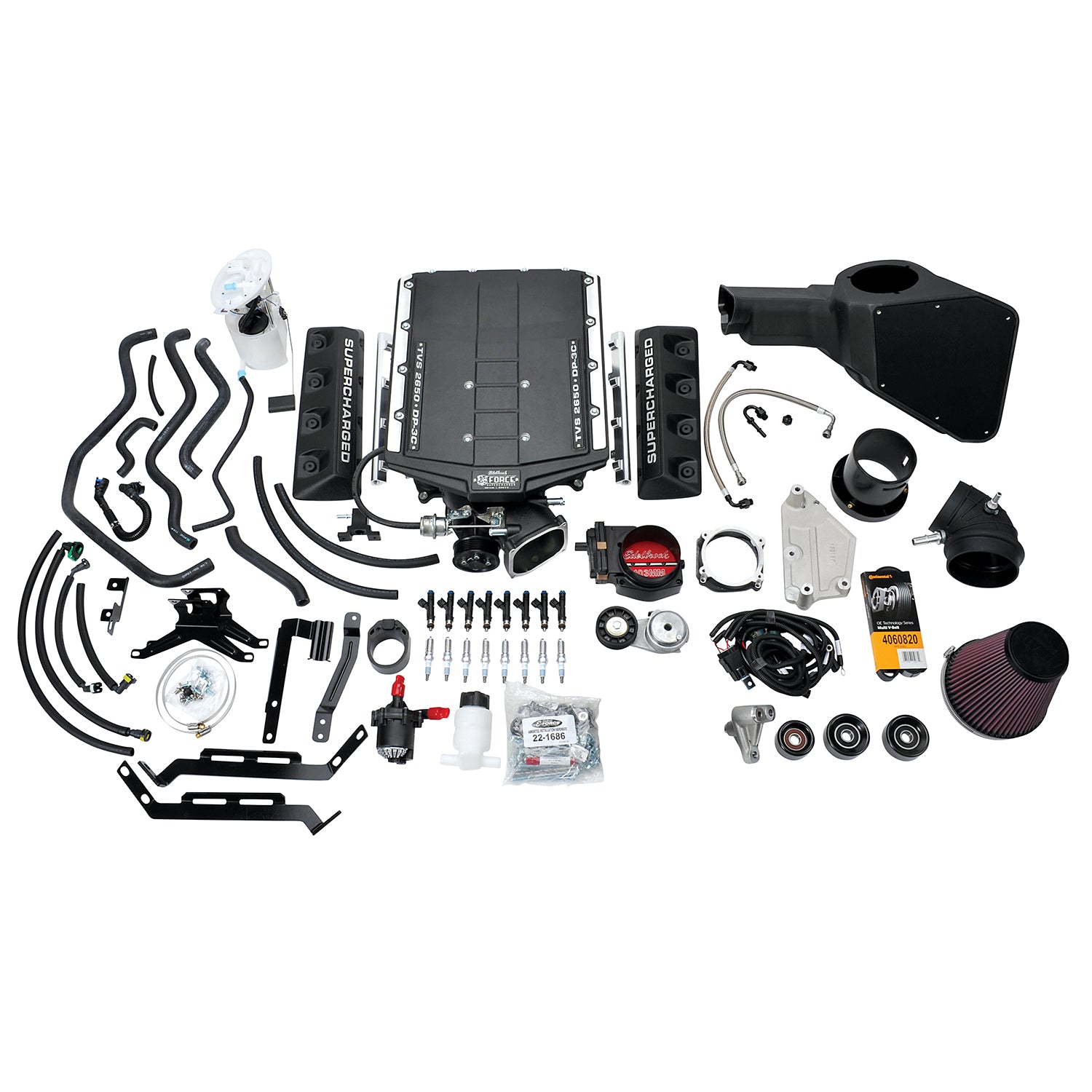

Take your 2015-17 Mustang to the next level with the Edelbrock Stage 2 Supercharger System W/O TUNERR #158390 for the Gen 2 Ford 5.0L Coyote engine. This potent new kit adds huge gains in horsepower and torque over Stage 1 performance, all while maintaining emissions-legal status in all 50 states. At the heart of this system is the top-of-the-line R2650 TVS rotor assembly housed with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler that lowers incoming air temperatures and increases power potential. To support the additional Stage 2 power increase, the fuel system components are upgraded to include larger 78 lb/hr direct-port injectors along with a drop-in 400 LPH fuel pump assembly with internal check valve. A dramatic increase in airflow over the Stage 1 kit comes from a new 103mm billet aluminum throttle body and high-flow air intake system with 113mm MAF housing. Like our Stage 1 kit for the Mustang, the Stage 2 System installs cleanly with no modifications to the hood or body and comes complete with all hardware, hoses and a handy full-color step-by-step instruction manual to streamline the installation process. This kit is backed by Edelbrock's industry-leading 3-Year/36,000-mile Powertrain Warranty. For the same kit with tuner, order #15839.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_DEF |
Supercharger Kit |
| Description_INV |
Stg 2 Supercharger #158390 for Mustang |
| Description_EXT |
Edelbrock Stage 2 Supercharger W/O TUNER #158390 for 2015-17 Mustang 5.0L Coyote Engine, R2650 TVS with DP3C air-to-water intercooler, bolt-on installation with no modificatios to hood or body, 50-emissions-legal with Edelbrock calibration. |
| Description_LAB |
Edelbrock Stg 2 Complete SC #158390 For 15-17 Mustang Coyote 5.0L W/O Tune |
| Description_MKT |
Take your 2015-17 Mustang to the next level with the Edelbrock Stage 2 Supercharger System W/O TUNERR #158390 for the Gen 2 Ford 5.0L Coyote engine. This potent new kit adds huge gains in horsepower and torque over Stage 1 performance, all while maintaining emissions-legal status in all 50 states. At the heart of this system is the top-of-the-line R2650 TVS rotor assembly housed with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler that lowers incoming air temperatures and increases power potential. To support the additional Stage 2 power increase, the fuel system components are upgraded to include larger 78 lb/hr direct-port injectors along with a drop-in 400 LPH fuel pump assembly with internal check valve. A dramatic increase in airflow over the Stage 1 kit comes from a new 103mm billet aluminum throttle body and high-flow air intake system with 113mm MAF housing. Like our Stage 1 kit for the Mustang, the Stage 2 System installs cleanly with no modifications to the hood or body and comes complete with all hardware, hoses and a handy full-color step-by-step instruction manual to streamline the installation process. This kit is backed by Edelbrock's industry-leading 3-Year/36,000-mile Powertrain Warranty. For the same kit with tuner, order #15839. |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_SLA |
If you own a 2015-17 Mustang and want max performance from a bolt-on power adder, jump right into our Stage 2 Supercharger System W/O TUNER #158390 for the Gen 2 Ford 5.0L Coyote engine. This potent new kit adds huge gains in horsepower and torque over Stage 1 performance, all while maintaining emissions-legal status in all 50 states. At the heart of this system is the top-of-the-line R2650 TVS rotor assembly housed with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler that lowers incoming air temperatures and increases power potential. To support the additional Stage 2 power increase, we've upgraded fuel system components in this kit to include larger 78 lb/hr direct-port injectors along with a drop-in 400 LPH fuel pump assembly with internal check valve. you'll also get a dramatic increase in airflow over the Stage 1 kit from a new 103mm billet aluminum throttle body and high-flow air intake system with 113mm MAF housing. Like our Stage 1 kit for the Mustang, the Stage 2 System installs cleanly with no modifications to the hood or body and comes complete with all hardware, hoses and a handy full-color step-by-step instruction manual to streamline the installation process. This kit is backed by Edelbrock's industry-leading 3-Year/36,000-mile Powertrain Warranty. If you want this kit with a tuner order #15839. |
| Gasket Or Seal Included |
Yes |
| Pulley Belt Width |
6-Rib |
| Hose Included |
Yes |
| Rotor Type |
Eaton TVS 2650 |
| Mounting Hardware Included |
Yes |
| Fuel Pump Included |
Yes |
| Internal Step Up |
Yes |
| Calibration |
No |
| Fuel Injector Type |
78 |
| Oil Capacity |
150 |
| Universal Or Specific Fit |
Specific |
| Finish |
Black Powder Coated |
| Harmonic Balancer Diameter |
6.67 |
| System Type |
Stage 2 - Street/Strip System |
| Vehicle Model |
Mustang |
| Spark Plugs Included |
Yes |
| Mounting Bracket Included |
Yes |
| Quantity |
Kit |
| Air Filter Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Center Housing Cooling Type |
Intercooler |
| Outside Pulley Diameter |
3.25 |
| Housing Material |
Cast Aluminum |
| Length |
26.0000 |
| Width |
44.0000 |
| Height |
44.0000 |
| Weight |
178.0000 |
