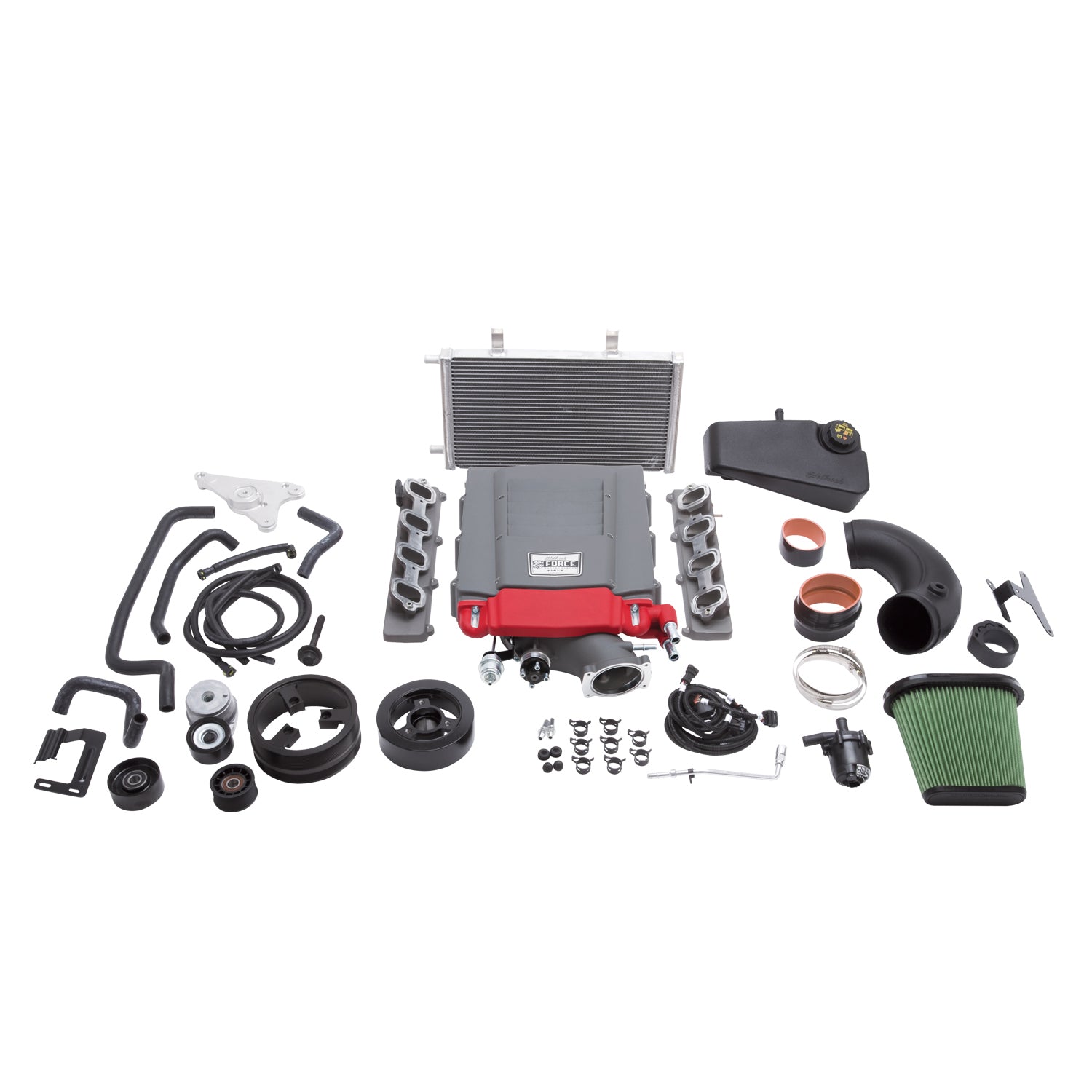

The Edelbrock supercharger Pro-Tuner system part #15702 is designed for use with 2014-19 Chevy Corvette Stingray Z51 applications with the LT1 engine. The Edelbrock competition supercharger is based off of our street supercharger kit but is paired down to the essential components that a racer needs, without the extras that experienced racers prefer to customize for their own competitive advantage. Featuring a unique design with minimal components and fits under the stock hood. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. This system requires the use of a universal heat exchanger (sold separately). Our #15702 Tuner system includes all of the essential components that a racer would need to build a custom supercharged racing setup. This system offers flexibility in pulley selection, cold air intake and more. These systems are for competition racing use only. This kit DOES NOT INCLUDE A TUNE, A CUSTOM TUNE MUST BE USED, NOT AVAILABLE THROUGH EDELBROCK.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen V LT1:376 (6.2L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
Edelbrock Supercharger #15702 is for the 2014-19 LT1 Corvette Stingray Z51. This kit produces 862 HP and 790 ft-lbs of TQ. The kit is paired down to the essential components a racer needs to customize their build. |
| Description_INV |
Edelbrock supercharger #15702 |
| Description_MKT |
The Edelbrock supercharger Pro-Tuner system part #15702 is designed for use with 2014-19 Chevy Corvette Stingray Z51 applications with the LT1 engine. The Edelbrock competition supercharger is based off of our street supercharger kit but is paired down to the essential components that a racer needs, without the extras that experienced racers prefer to customize for their own competitive advantage. Featuring a unique design with minimal components and fits under the stock hood. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. This system requires the use of a universal heat exchanger (sold separately). Our #15702 Tuner system includes all of the essential components that a racer would need to build a custom supercharged racing setup. This system offers flexibility in pulley selection, cold air intake and more. These systems are for competition racing use only. This kit DOES NOT INCLUDE A TUNE, A CUSTOM TUNE MUST BE USED, NOT AVAILABLE THROUGH EDELBROCK. |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_LAB |
Edelbrock Stage 3 SC #15702 For 14-19 Corvette Stingray Z51/Grand Sport W/O Tune |
| Oil Capacity |
150 |
| Universal Or Specific Fit |
Specific |
| Mounting Bracket Included |
Yes |
| Calibration |
No |
| Finish |
Black Powder Coated |
| Housing Material |
Cast Aluminum |
| Quantity |
Kit |
| Gasket Or Seal Included |
Yes |
| Air Filter Included |
Yes |
| Vehicle Model |
Corvette |
| Center Housing Cooling Type |
Intercooler |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Tensioner Included |
Yes |
| Hose Included |
Yes |
| Internal Step Up |
Yes |
| System Type |
Pro-Tuner Racing System |
| Rotor Type |
Eaton TVS 2300 |
| Mounting Hardware Included |
Yes |
| Length |
18.0000 |
| Width |
33.0000 |
| Height |
41.0000 |
| Weight |
154.0000 |
