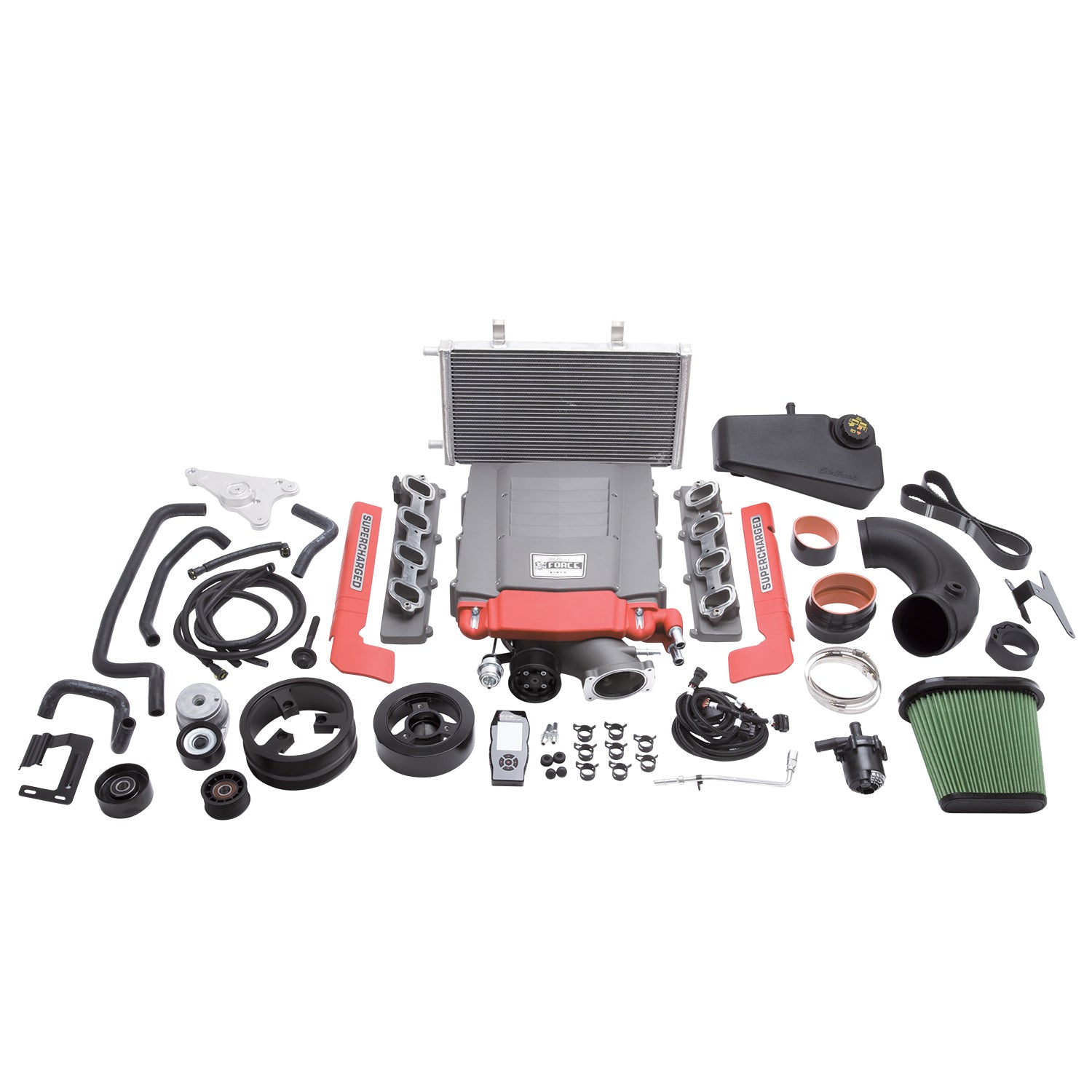

The Edelbrock supercharger stage 2 street/strip system part #15711 for 2014-19 Chevy Corvette Stingray LT1 increases the performance of your LT1 engine to 537 horsepower and 527 ft-lbs of torque to the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #15711 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen V LT1:376 (6.2L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
The Edelbrock Stage 2 street/strip system part #15711 is for your 2014-19 LT1 Corvette Stingray. This kit produces 537 RWHP and 527 RWTQ. |
| Description_INV |
Edelbrock supercharger #15711 |
| Description_LAB |
Edelbrock Stage 2 Supercharger #15711 For 14-19 Corvette Stingray LT1 W/ Tune |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_MKT |
The Edelbrock supercharger stage 2 street/strip system part #15711 for 2014-19 Chevy Corvette Stingray LT1 increases the performance of your LT1 engine to 537 horsepower and 527 ft-lbs of torque to the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #15711 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. |
| Harmonic Balancer Diameter |
Stock |
| Center Housing Cooling Type |
Intercooler |
| Finish |
Black Powder Coated |
| Universal Or Specific Fit |
Specific |
| Oil Capacity |
150 |
| Mounting Bracket Included |
Yes |
| Calibration |
Yes |
| Vehicle Model |
Corvette |
| Maximum Pressure Reading |
7.5 |
| Housing Material |
Cast Aluminum |
| Quantity |
Kit |
| Outside Pulley Diameter |
3.25 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Maximum Torque |
527RW (With 91 Octane); 534RW (With 93 Octane) |
| Rotor Type |
Eaton TVS 2300 |
| Mounting Hardware Included |
Yes |
| Gasket Or Seal Included |
Yes |
| Internal Step Up |
Yes |
| Tensioner Included |
Yes |
| Pulley Belt Width |
10-Rib |
| Air Filter Included |
Yes |
| Maximum Boost Pressure |
7.5 |
| Maximum Horsepower |
536RW (With 91 Octane); 551RW (With 93 Octane) |
| System Type |
Stage 2 - Street/Strip System |
| Hose Included |
Yes |
| Length |
18.0000 |
| Width |
33.0000 |
| Height |
41.0000 |
| Weight |
164.0000 |
