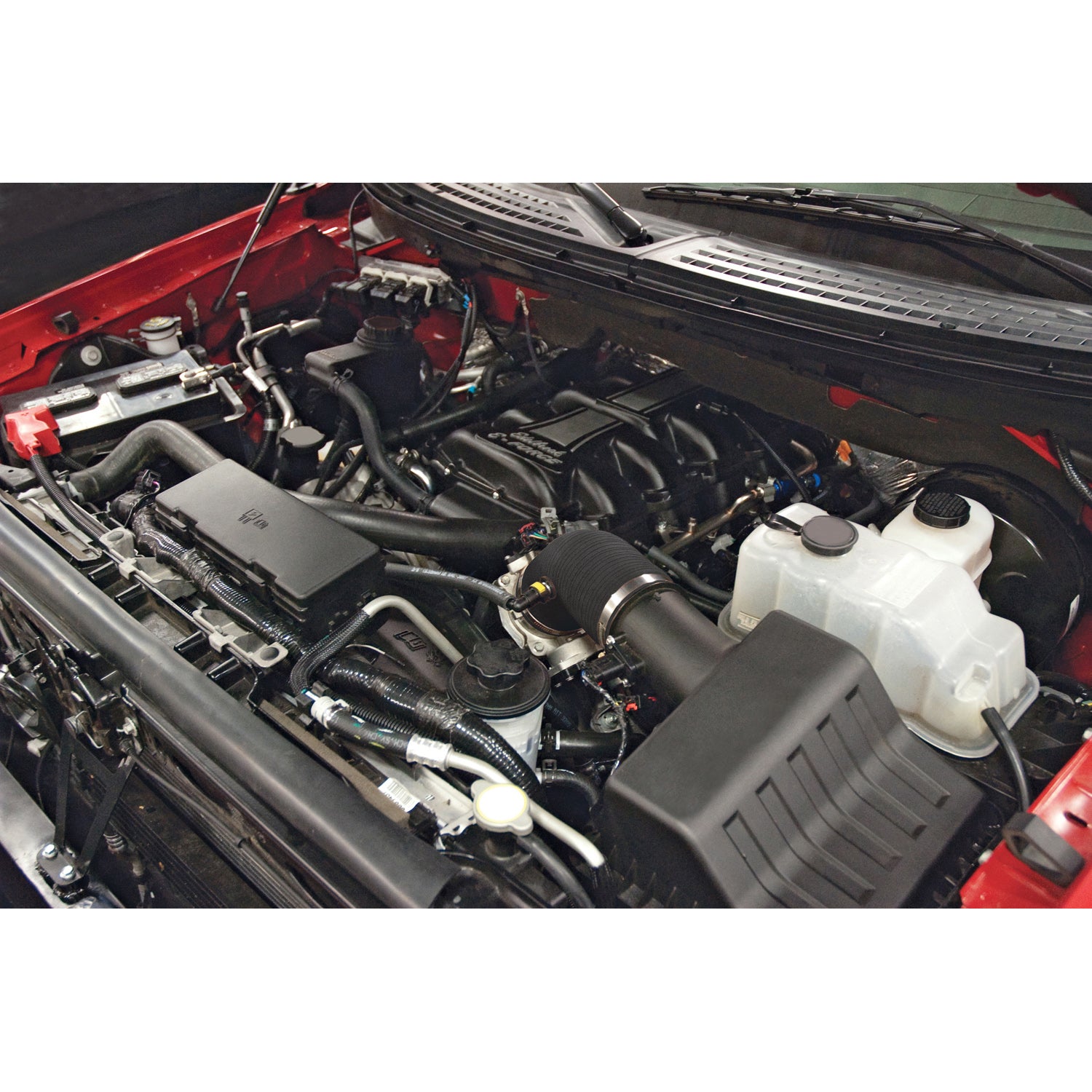

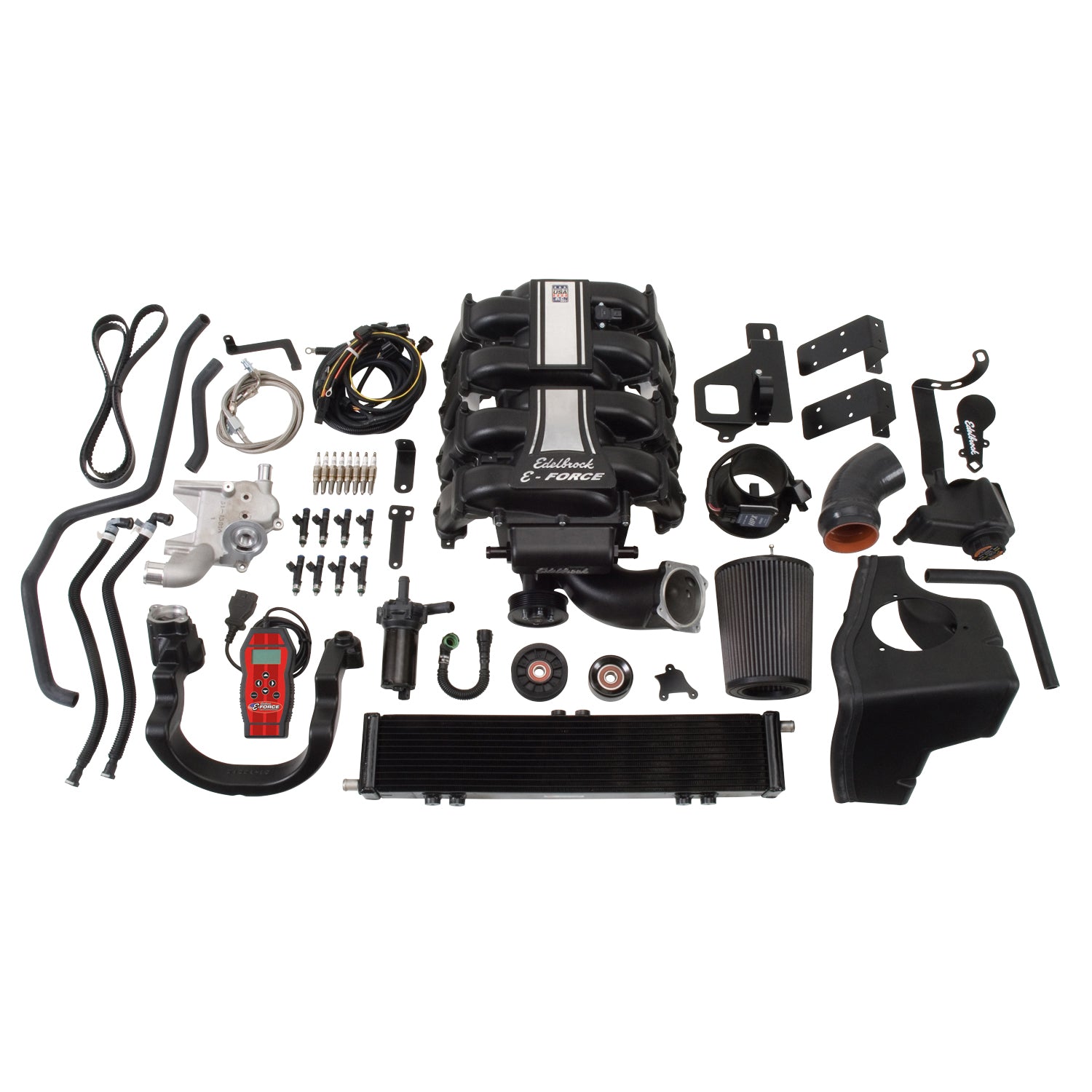

The Edelbrock supercharger Stage 1 Street system part #1581 for 2004-08 2-Wheel Drive Ford F-150 Trucks increases the performance of your 5.4L 3V engine to 478 horsepower and 504 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1581 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_DEF |
Supercharger Kit |
| Description_ASM |
Ford:Modular 3V:330 (5.4L) |
| Description_EXT |
The Edelbrock Supercharger System part #1581 is for the2004-08 Ford F-150 2WD 5.4L 3V. This kit produces 478 horsepower and 504 ft-lbs of torque. |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street system part #1581 for 2004-08 2-Wheel Drive Ford F-150 Trucks increases the performance of your 5.4L 3V engine to 478 horsepower and 504 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1581 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. |
| Description_LAB |
Edelbrock Stage 1 Supercharger Kit #1581 For 2004-08 Ford F-150 5.4L 3V W/ Tune |
| Description_INV |
Edelbrock supercharger #1581 |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Rotor Type |
Eaton TVS 2300 |
| Air Filter Included |
Yes |
| Gasket Or Seal Included |
Yes |
| Mounting Hardware Included |
Yes |
| Vehicle Model |
F-150 |
| System Type |
Stage 1 - Street System |
| Calibration |
Yes |
| Hose Included |
Yes |
| Maximum Torque |
504 |
| Internal Step Up |
Yes |
| Fuel Injector Type |
41 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Mounting Bracket Included |
Yes |
| Pulley Belt Width |
6-Rib |
| Maximum Boost Pressure |
7 |
| Harmonic Balancer Diameter |
6.67 |
| Universal Or Specific Fit |
Specific |
| Housing Material |
Cast Aluminum |
| Outside Pulley Diameter |
3.25 |
| Finish |
Black Powder Coated |
| Oil Capacity |
150 |
| Maximum Horsepower |
478 |
| Center Housing Cooling Type |
Intercooler |
| Spark Plugs Included |
Yes |
| Quantity |
Kit |
| Maximum Pressure Reading |
7 |
| Length |
18.0000 |
| Width |
34.0000 |
| Height |
42.0000 |
| Weight |
169.0000 |
