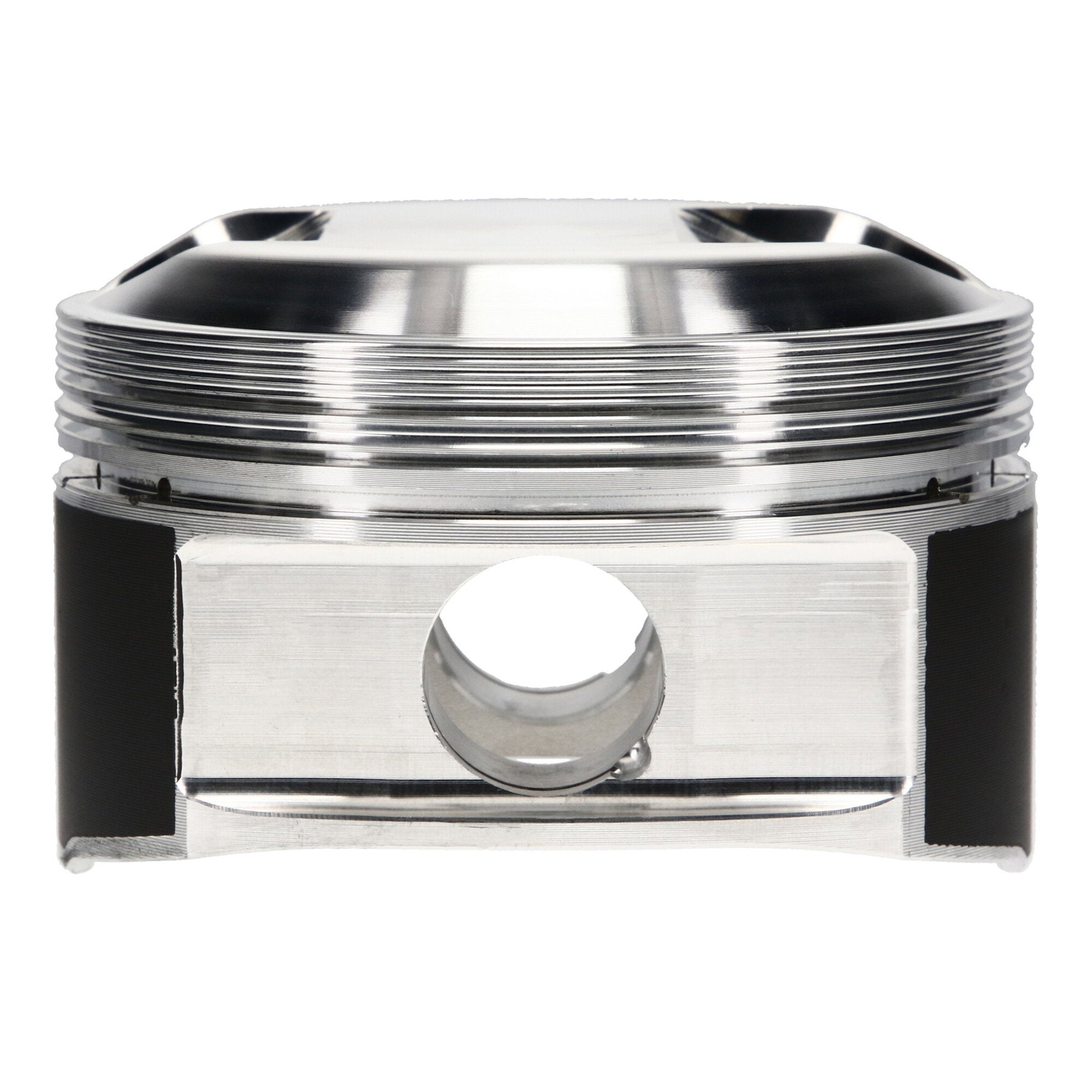

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Porsche 2.7L |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 3.543 Bore, 1.335 CD, 0.866 Pin, Set of 6. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, Porsche, Aircooled - 6 Cyl, 3.543 in. Bore, 9.50:1, Dome, 6 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Porsche 2.7L, 90.00 Bore, Dome, Set of 6 |
| Piston Quantity |
6 |
| Bore Diameter |
90.00 |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Outside Diameter |
0.866 |
| Piston Volume |
21.80 |
| Title - Web |
JE Pistons Porsche 2.7L Aircooled Piston Kit - 90.00 mm Bore - 1.335 in. CH, 21.80 CC |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Second Compression Ring Thickness |
0.0480 |
| Wrist Pin Length |
2.500 |
| Ring Set Included |
Yes |
| Add-On |
866-2500-15-93C |
| Product Type |
Engine Piston Kit |
| Product Market |
European |
| Compression Height |
1.335 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Piston Material |
2618 |
| Add-On |
JG1001-3543 |
| Top Compression Ring Thickness |
0.0400 |
| Cylinder Head |
2.7 Liter |
| Industry |
Automotive |
| Add-On |
866-063-MW |
| Engine - Web |
2.7L Aircooled |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Make - Web |
Porsche |
| Forging Type |
Round |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.111 |
| Piston Pin Wall Thickness |
0.150 |
| Ringset Included |
Yes |
| Piston Pin Material |
9310 |
| Title |
JE Pistons - Porsche, 2.7L Aircooled, 90.00 mm Bore, Piston Kit |
| Piston Head Type |
Dome |
| Piston Pin Length |
2.500 |
| Engine |
2.7L Aircooled |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.866 |
| Piston Series |
JE Pistons |
| Make |
PORSCHE |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
8.0000 |
