As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Porsche 3.0L 911 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

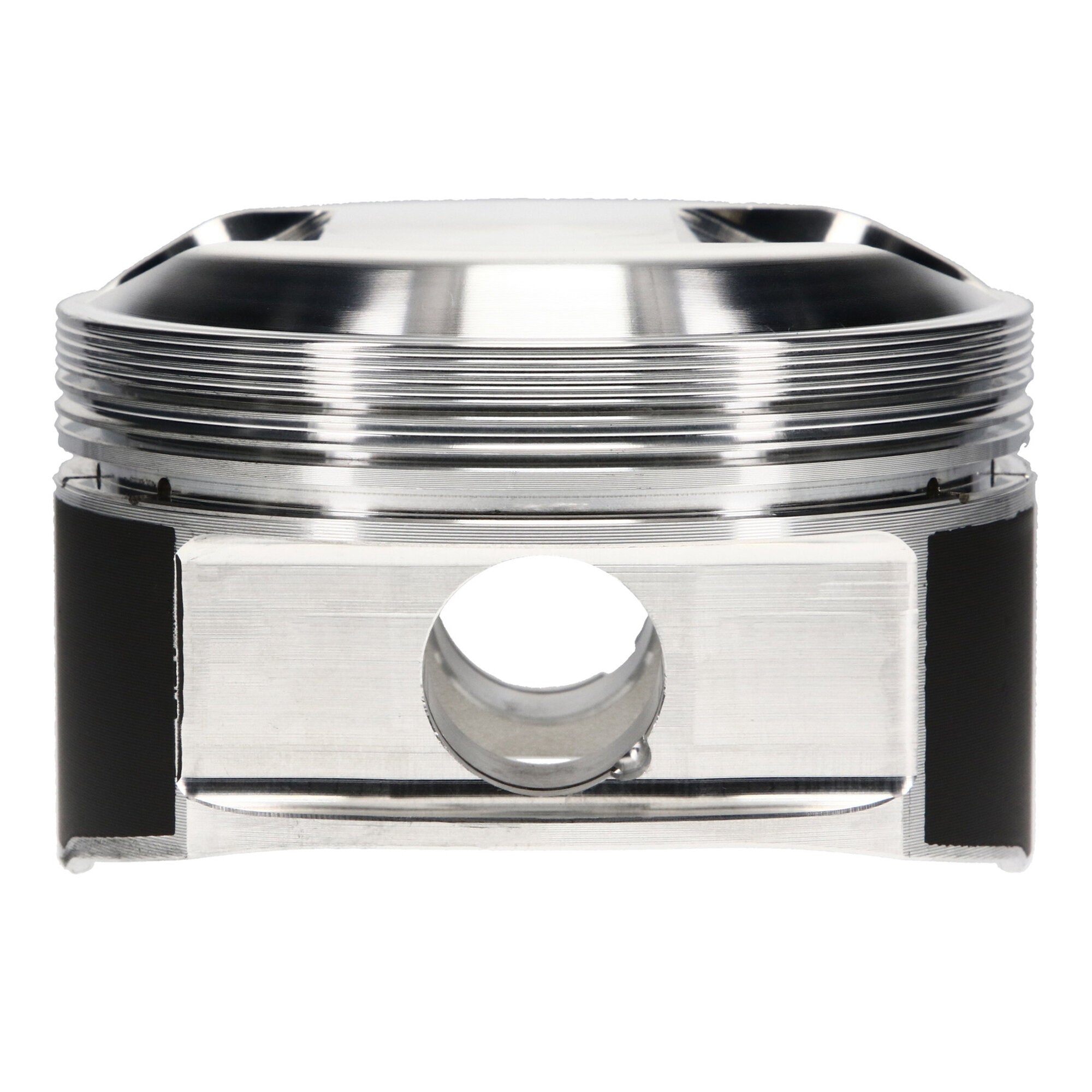

Piston Set, 2618, Dome, 3.858 Bore, 1.335 CD, 0.866 Pin, Set of 6. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Porsche, Aircooled - 6 Cyl, 3.858 in. Bore, 9.50:1, Dome, 6 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Porsche 3.0L, 98.00 Bore, Dome, Set of 6 |
| Second Compression Ring Thickness |
0.0480 |
| Piston Pin Length |
2.500 |
| Make - Web |
Porsche |
| Oil Ring Thickness |
0.111 |
| Forging Type |
Round |
| Engine |
3.0L Aircooled |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Piston Series |
JE Pistons |
| Ringset Included |
Yes |
| Piston Head Type |
Dome |
| Engine Type |
ICE |
| Prop 65 (C, R or CR) |
CR |
| Piston Quantity |
6 |
| Piston Pin Material |
9310 |
| Prop 65 Yes/No |
Yes |
| Title |
JE Pistons - Porsche, 3.0L Aircooled, 98.00 mm Bore, Piston Kit |
| Add-On |
866-063-MW |
| Title - Web |
JE Pistons Porsche 3.0L Aircooled Piston Kit - 98.00 mm Bore - 1.335 in. CH, 35.20 CC |
| Piston Pin Wall Thickness |
0.150 |
| Make |
PORSCHE |
| Product Market |
European |
| Add-On |
JG1001-3858 |
| Add-On |
866-2500-15-93C |
| Top Compression Ring Thickness |
0.0400 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Out of Stock Message |
Call for Availability |
| Bore Diameter |
98.00 |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.866 |
| Wrist Pin Length |
2.500 |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Wall Thickness |
0.150 |
| Engine - Web |
3.0L Aircooled |
| Piston Volume |
35.20 |
| Cylinder Head |
3.0 Liter |
| Piston Material |
2618 |
| Compression Height |
1.335 |
| Industry |
Automotive |
| Ring Set Included |
Yes |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
8.0000 |
