Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chrysler Small Block 340 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

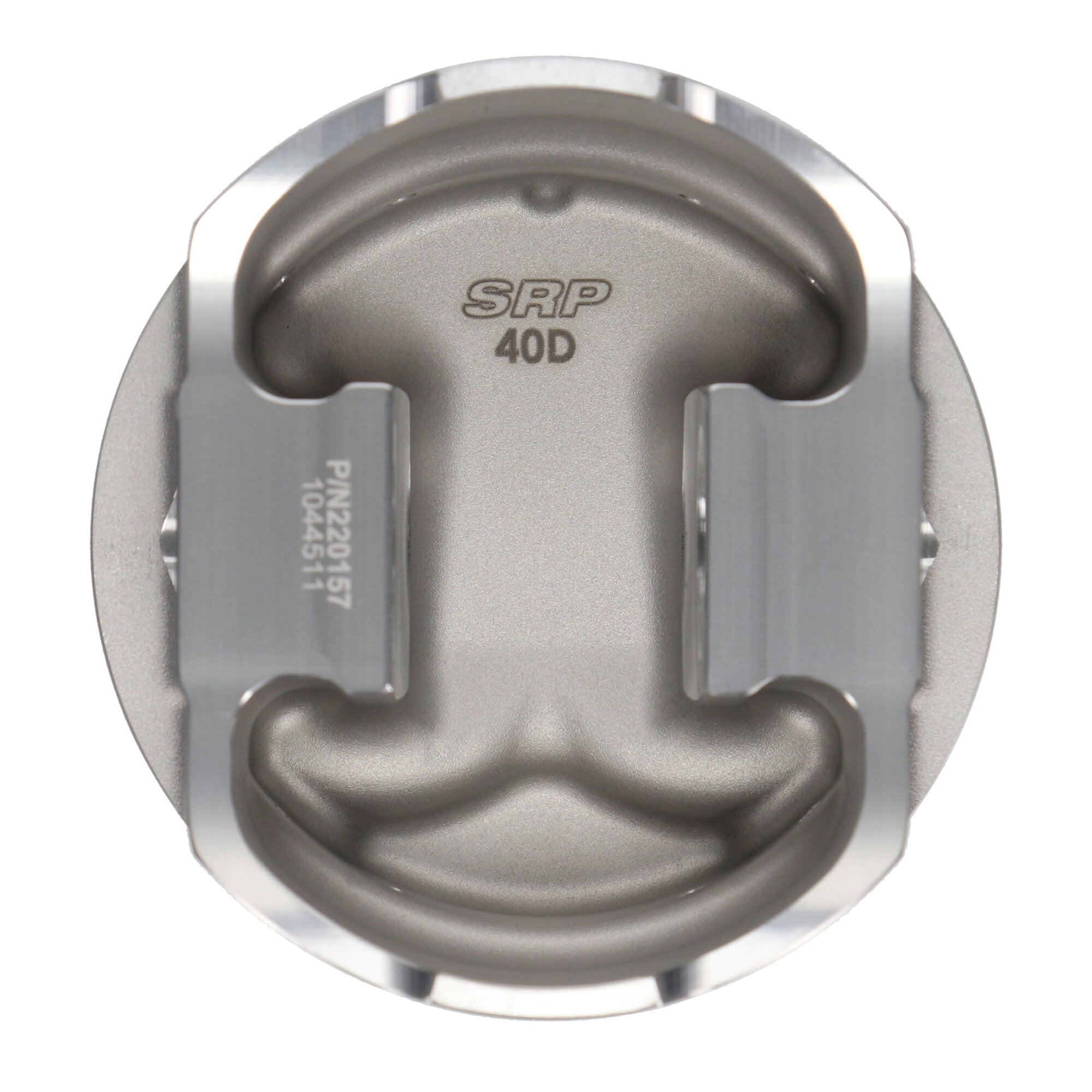

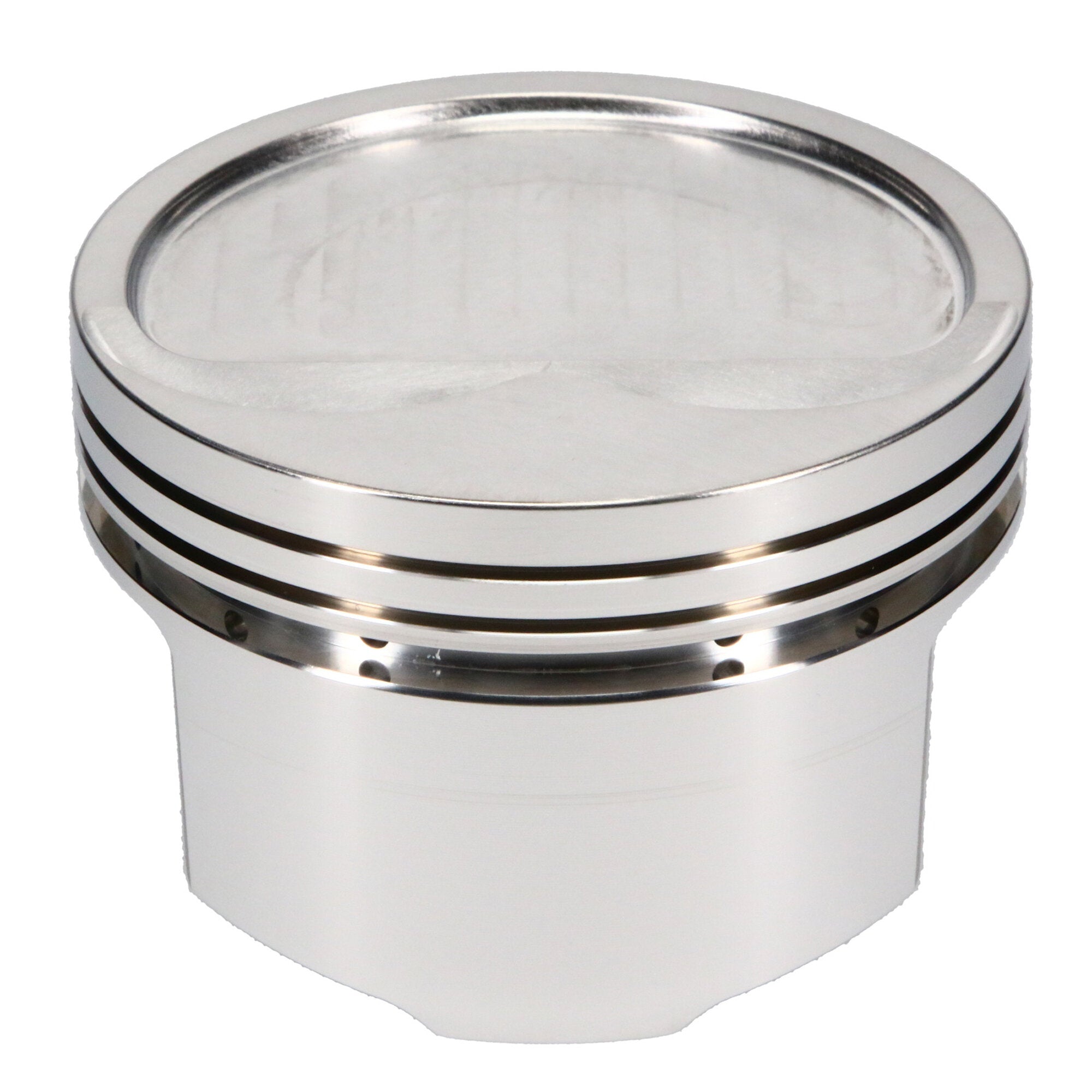

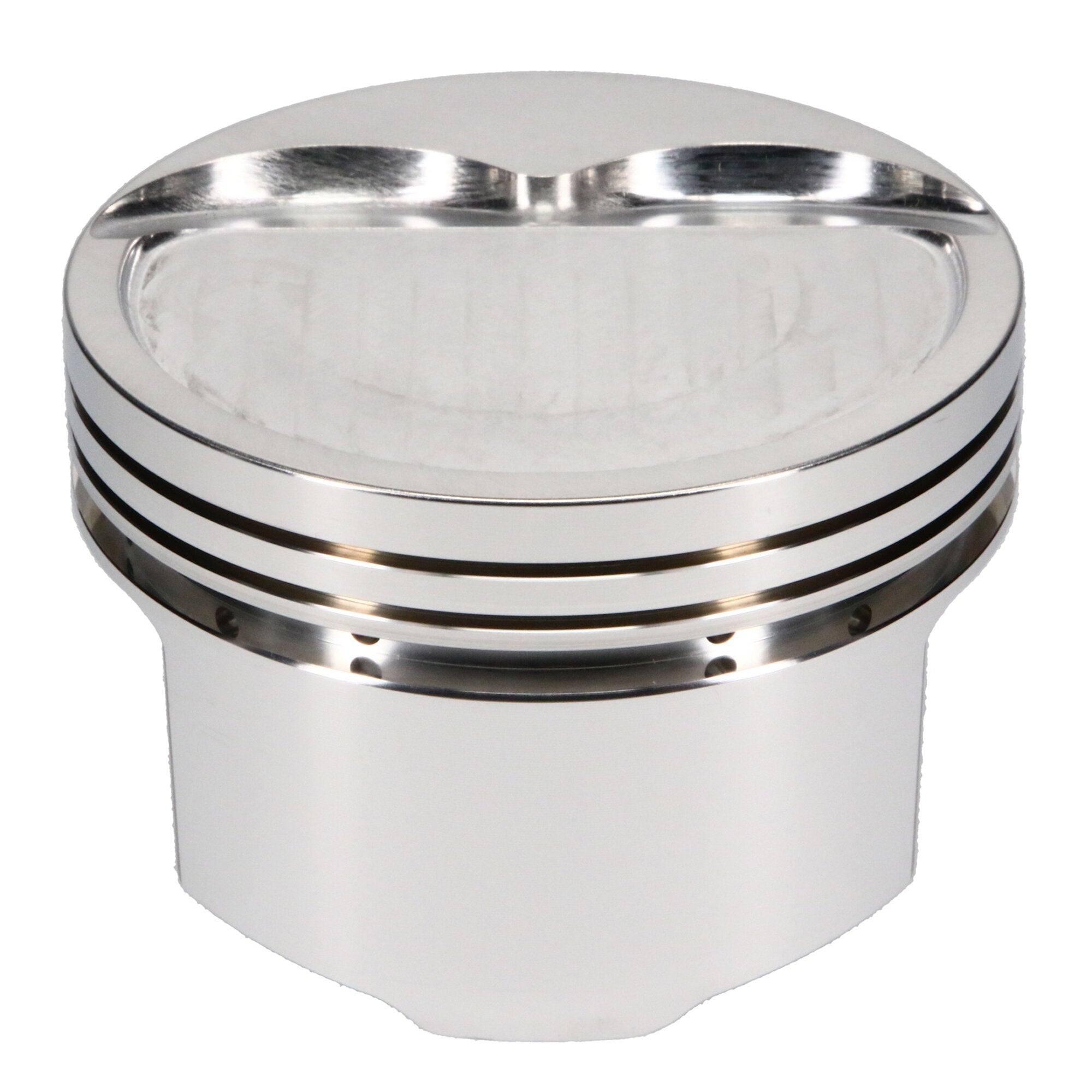

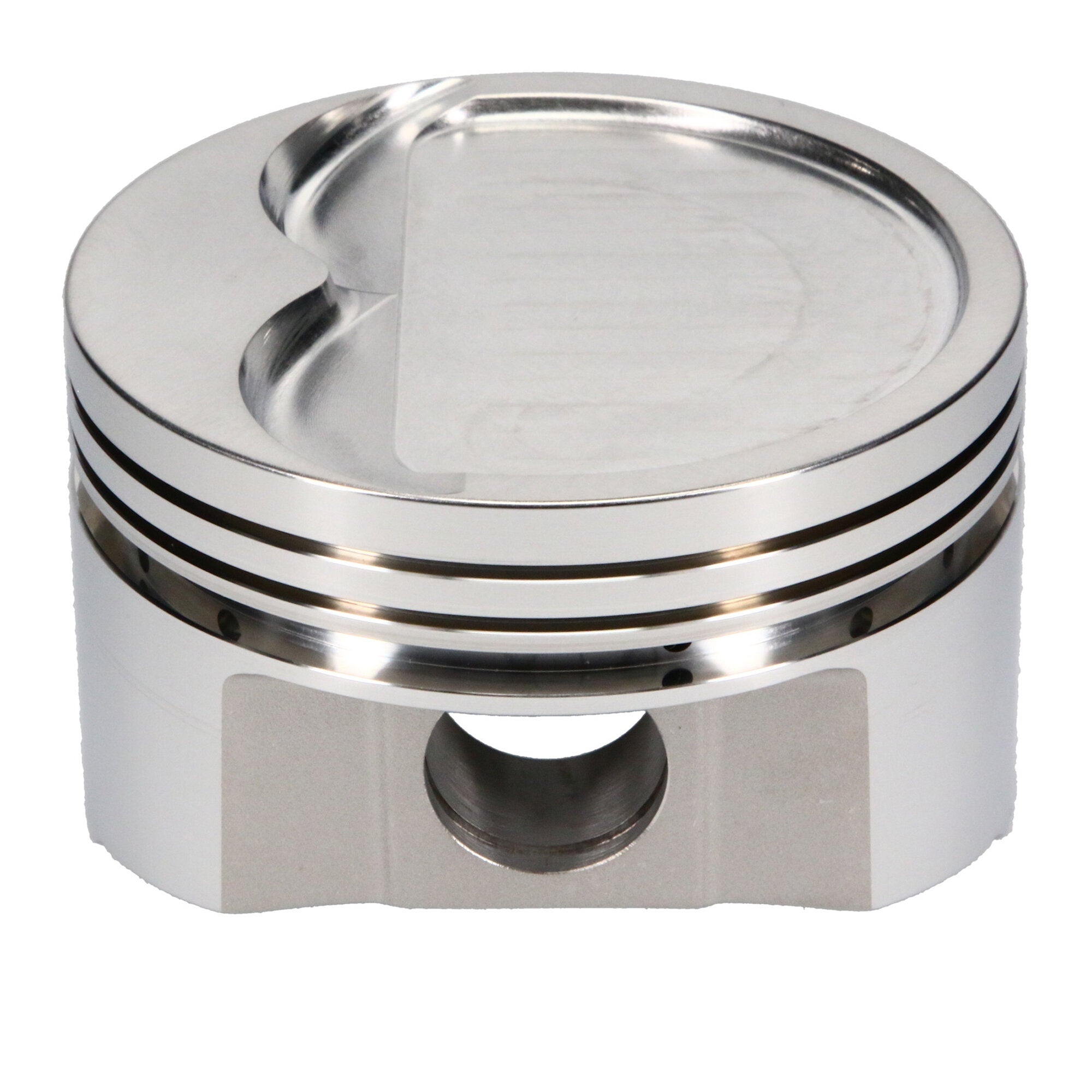

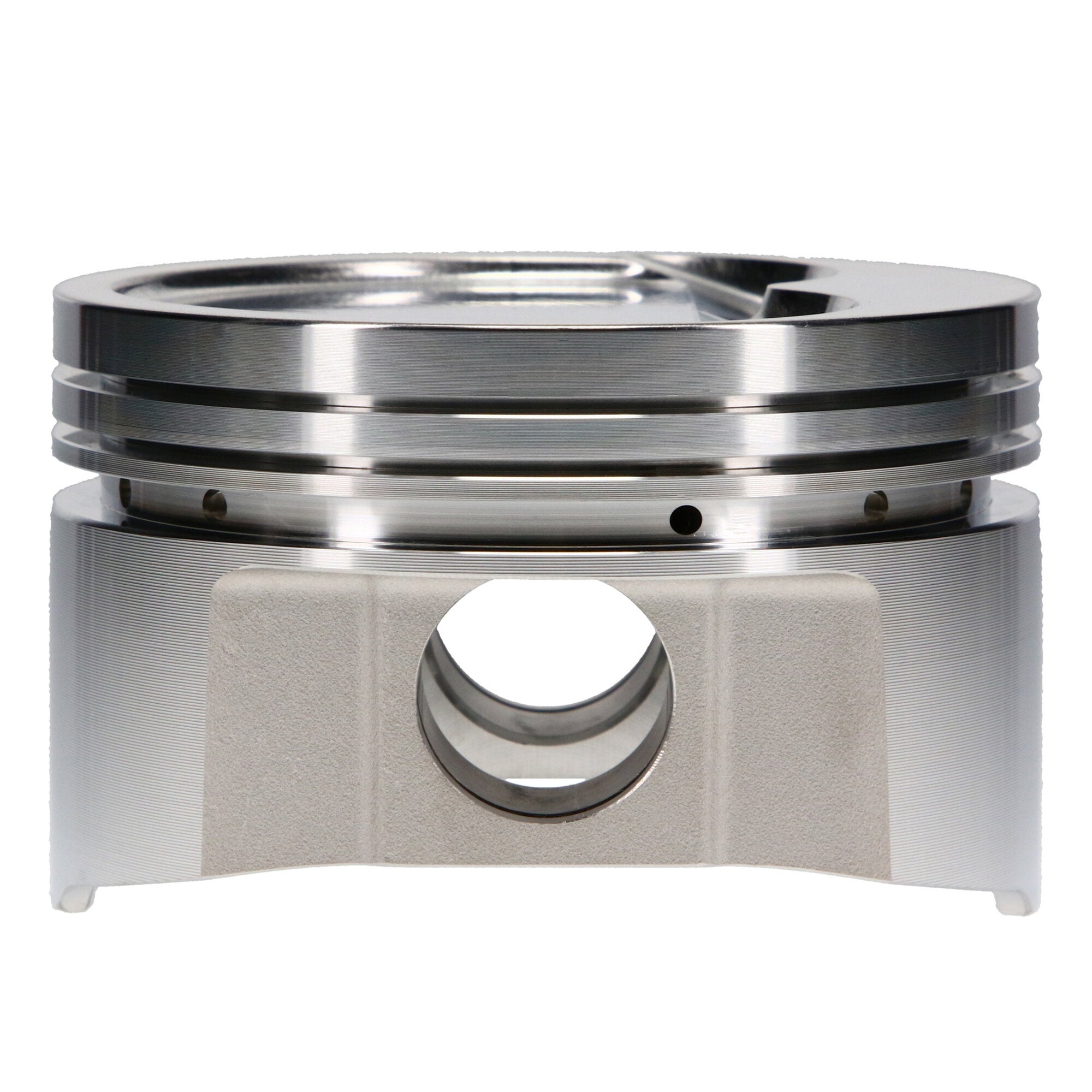

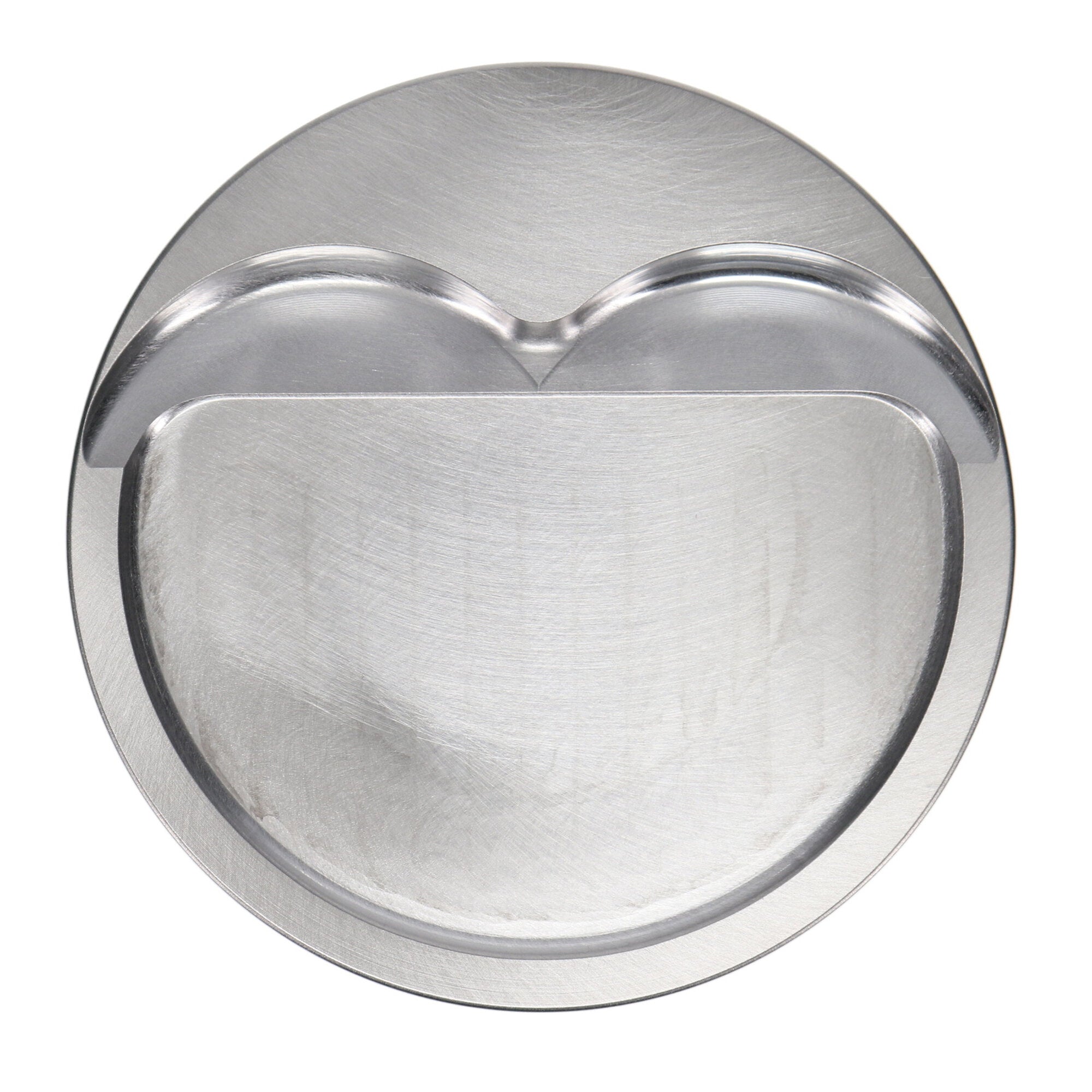

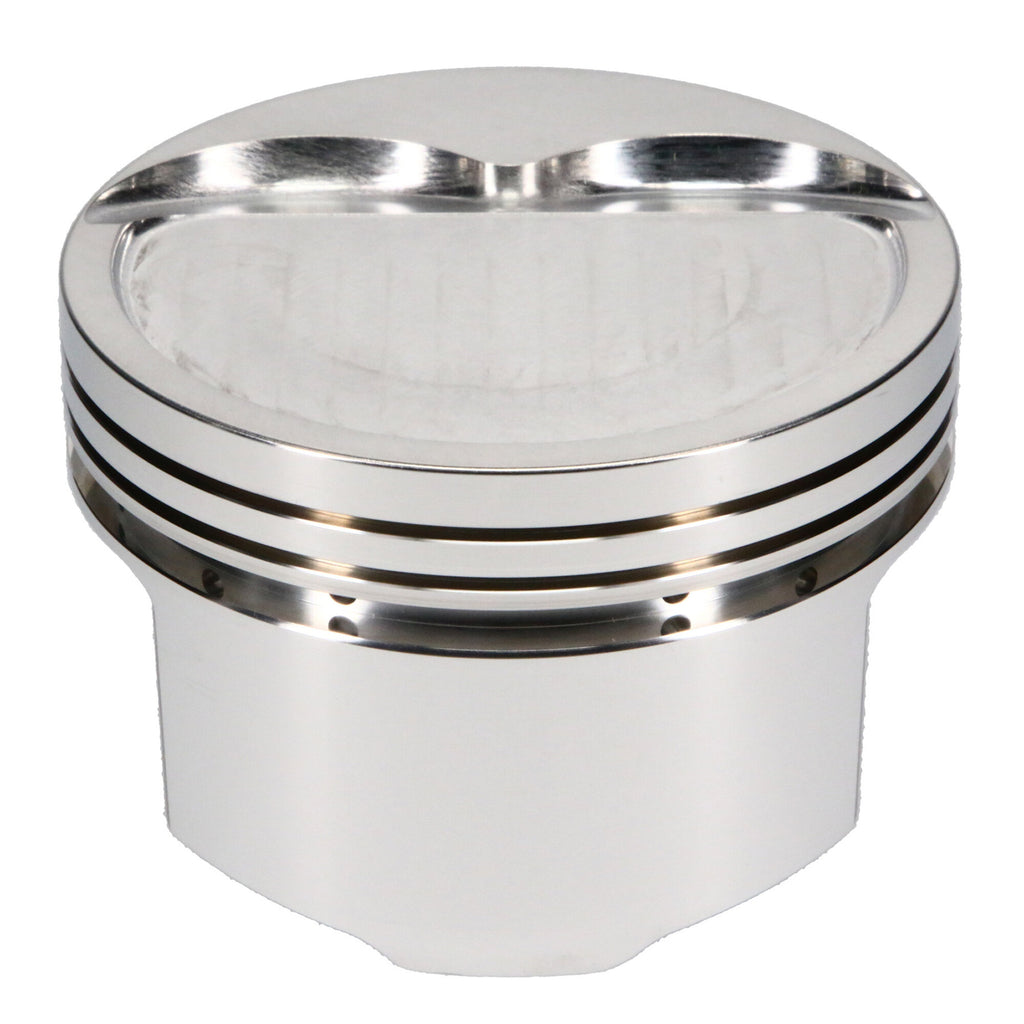

Piston Set, 4032, Inv Dome/Dish, 4.020 Bore, 1.460 CD, 0.984 Pin, Set of 8. |
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chrysler, Small Block Chrysler, 4.020 in. Bore, 1.460 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_TLE |
Chrysler 340, 4.020 Bore, Dish, Set of 8 |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Bore Diameter |
4.020 |
| Engine Type |
ICE |
| Piston Series |
SRP |
| Forging Type |
FSR |
| Piston Pin Wall Thickness |
0.150 |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.984 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Pin Outside Diameter |
0.984 |
| Oil Ring Thickness |
0.188 |
| Piston Volume |
-16.90 |
| Product Market |
Domestic |
| Compression Height |
1.460 |
| Make |
CHRYSLER |
| Piston Material |
4032 |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Pin Material |
5115 |
| Cylinder Head |
340 WEDGE |
| Title - Web |
SRP Chrysler Small Block Piston Kit - 4.020 in. Bore - 1.460 in. CH, -16.90 CC |
| Prop 65 Yes/No |
Yes |
| Add-On |
S100S8-4020-5 |
| Piston Head Type |
Dish |
| Add-On |
990-042-CS |
| Title |
SRP - Chrysler, Small Block, 4.020 in. Bore, Piston Kit |
| Add-On |
984-2750-15-51S |
| Industry |
Automotive |
| Top Compression Ring Thickness |
0.0640 |
| Out of Stock Message |
Call for Availability |
| Product Type |
Engine Piston Kit |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.750 |
| Engine |
Small Block |
| Piston Pin Length |
2.750 |
| Ringset Included |
No |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chrysler |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
