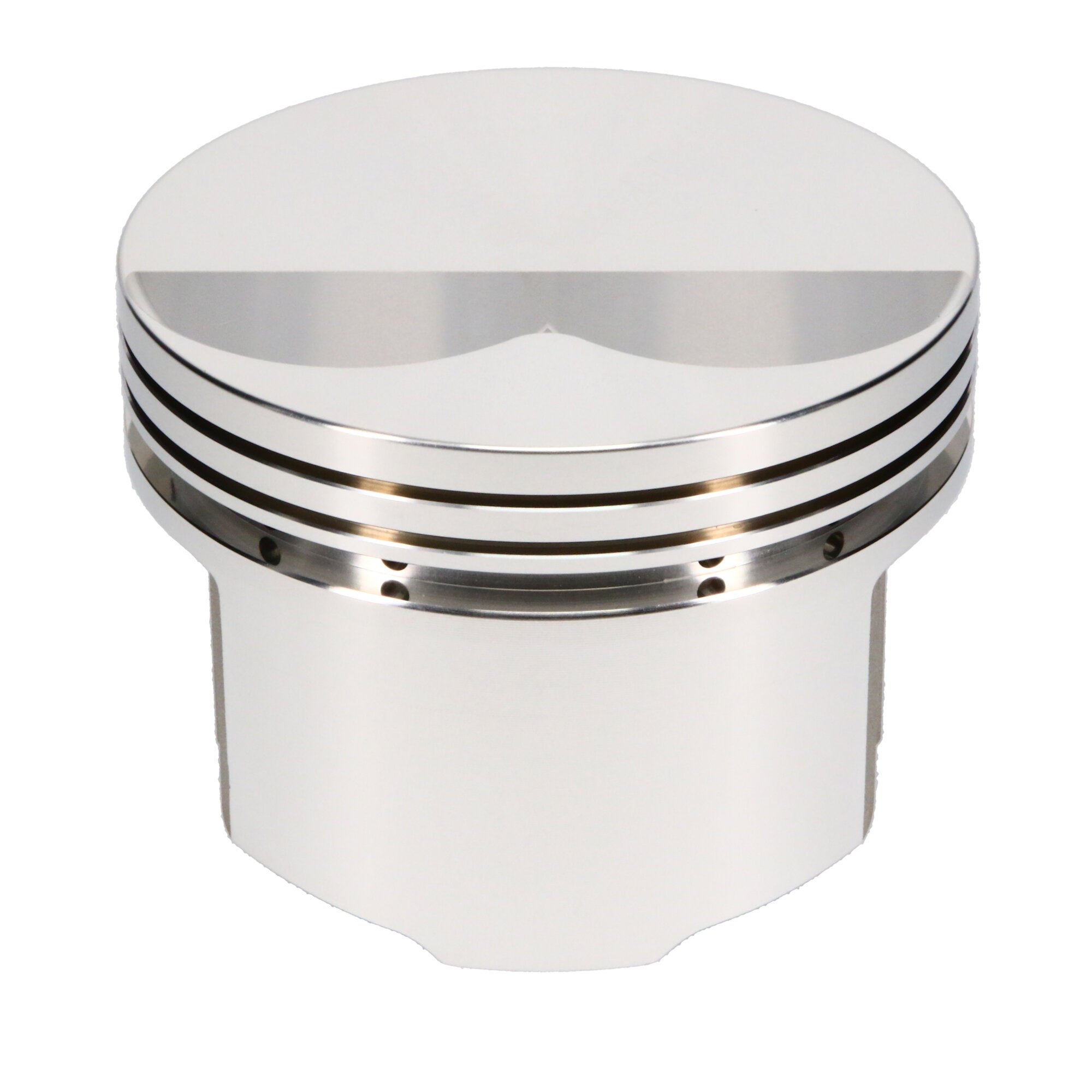

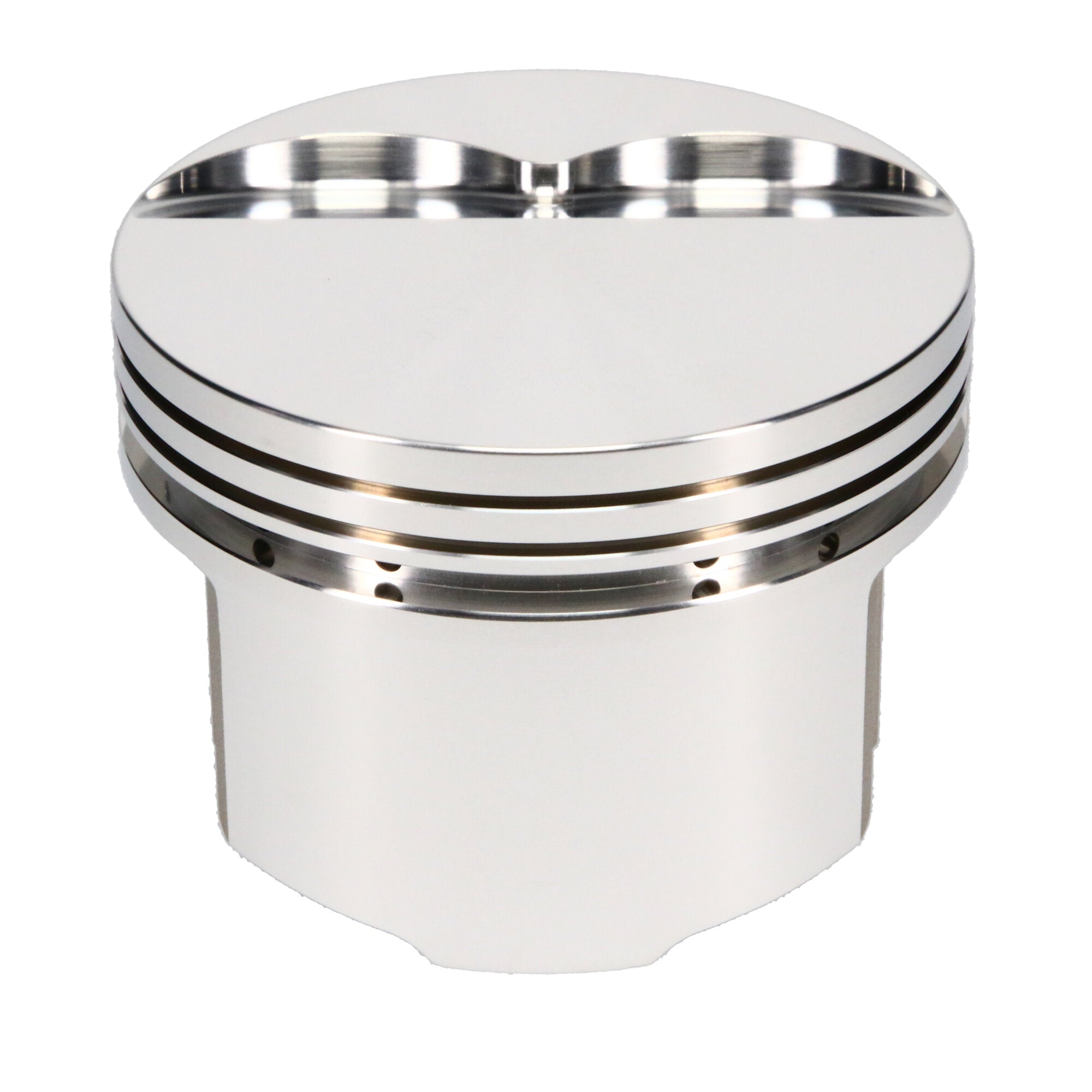

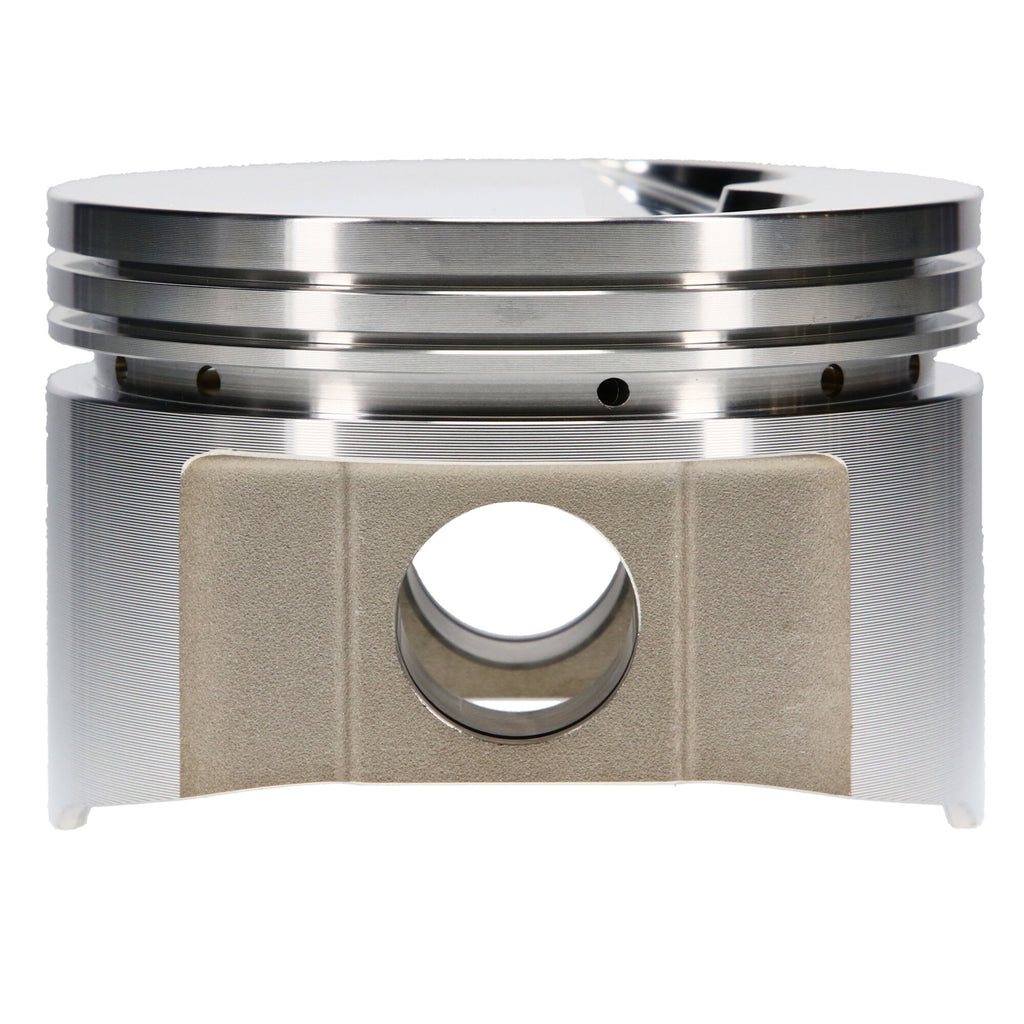

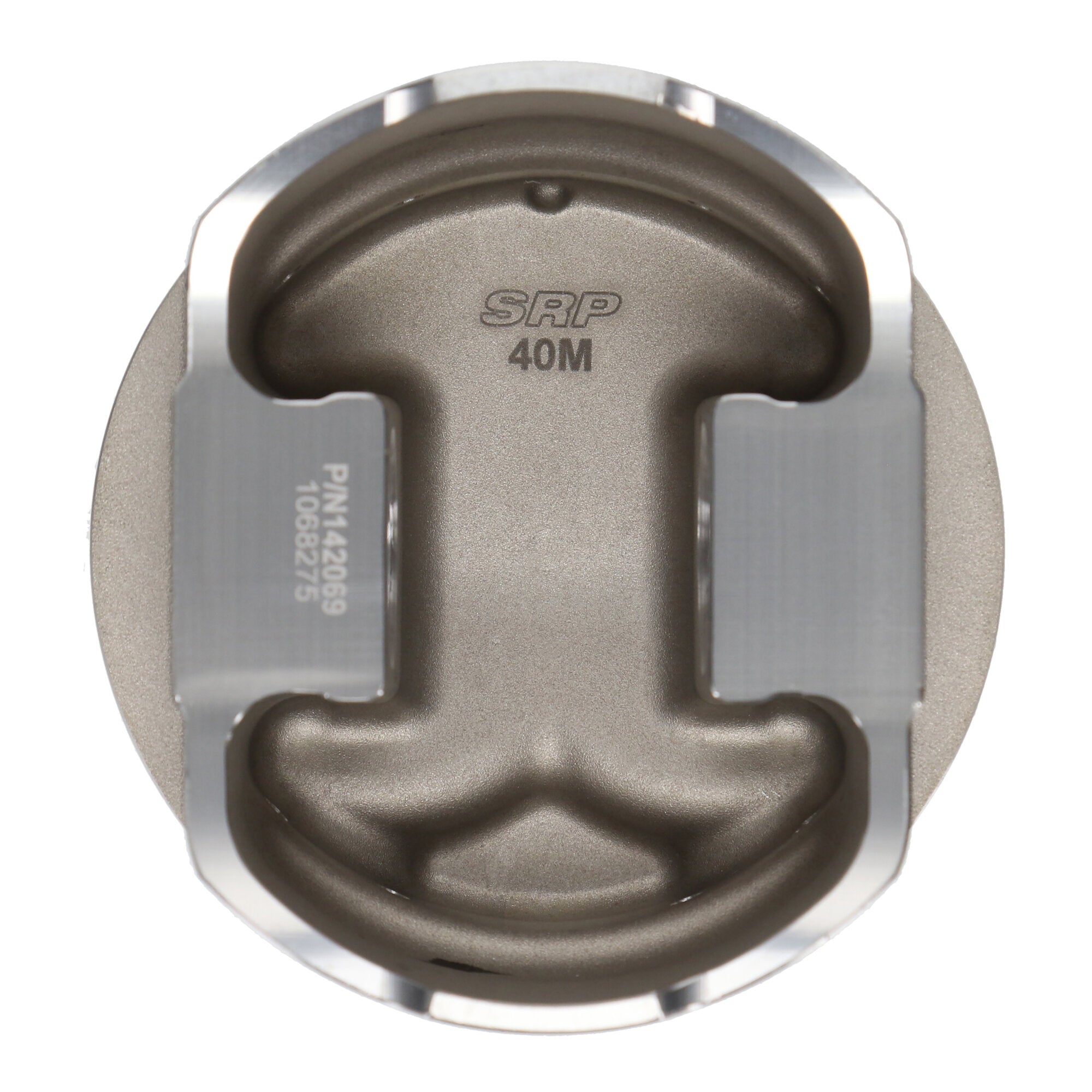

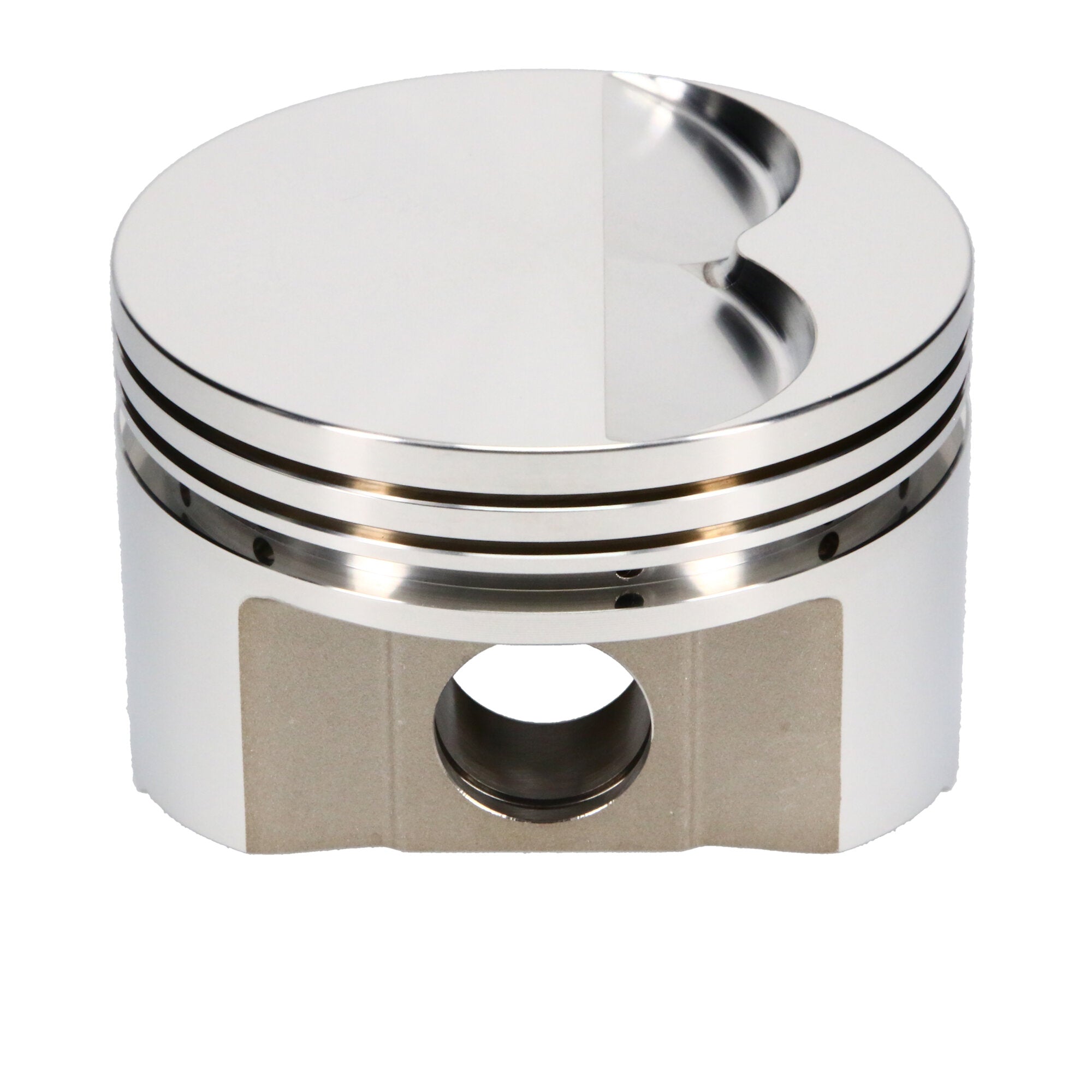

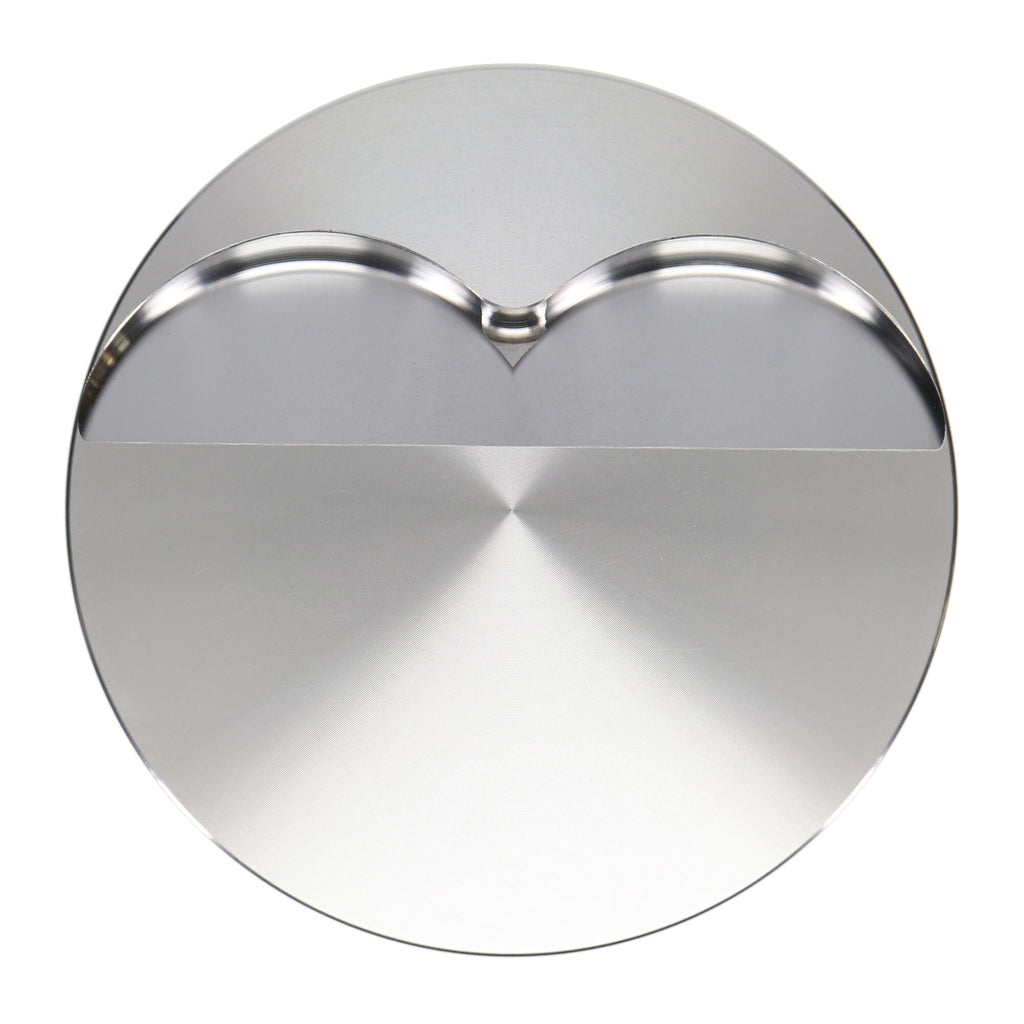

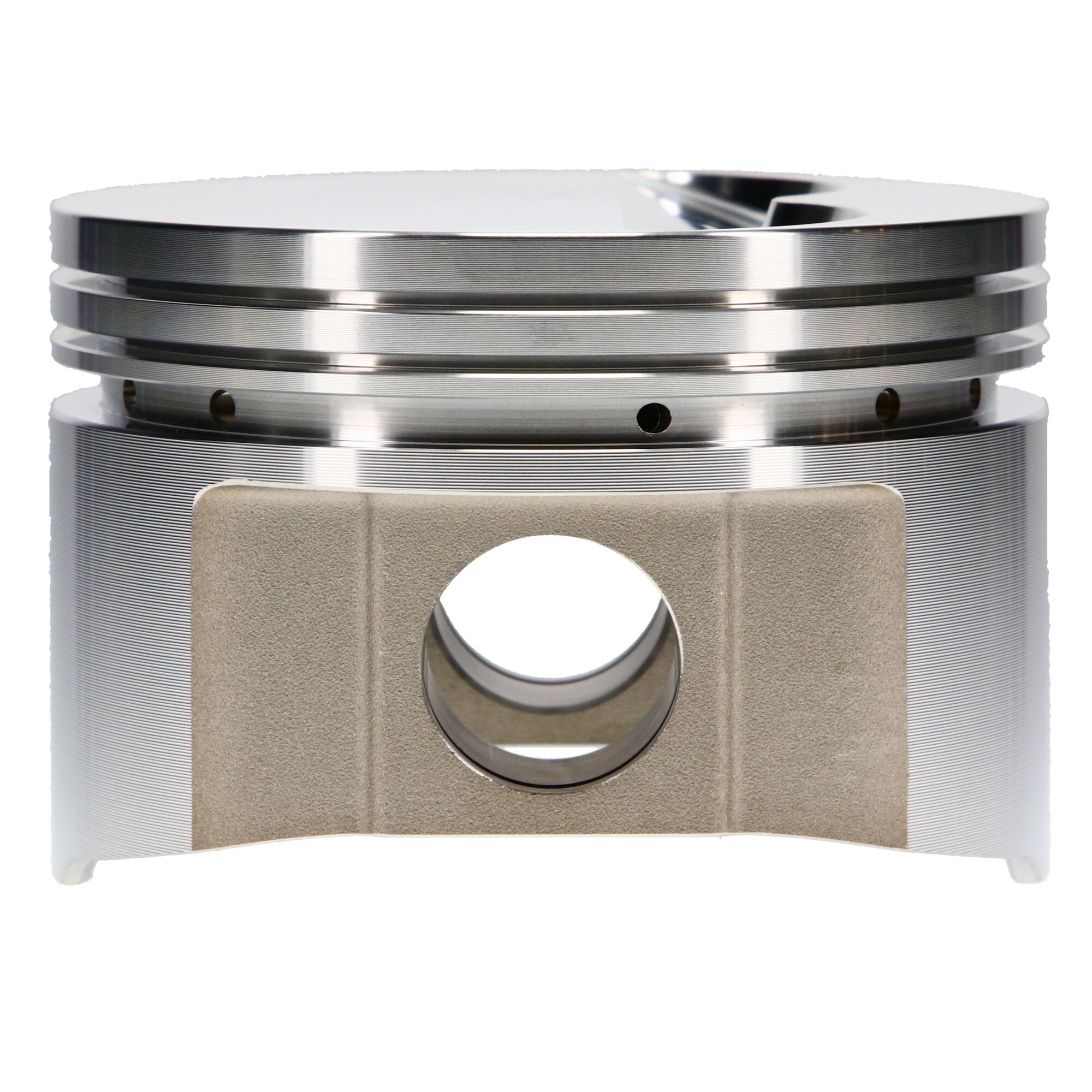

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chrysler Small Block 340 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.060 Bore, 1.804 CD, 0.984 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_EXT |
SRP, Chrysler, Small Block Chrysler, 4.060 in. Bore, 1.804 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chrysler 340, 4.060 Bore, Flat, Set of 8 |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Length |
2.750 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Title - Web |
SRP Chrysler Small Block Piston Kit - 4.060 in. Bore - 1.804 in. CH, -5.00 CC |
| Piston Material |
4032 |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 (C, R or CR) |
CR |
| Make - Web |
Chrysler |
| Add-On |
S100S8-4060-5 |
| Engine |
Small Block |
| Piston Head Type |
Flat |
| Ringset Included |
No |
| Industry |
Automotive |
| Add-On |
984-2750-15-51S |
| Add-On |
990-042-CS |
| Product Market |
Domestic |
| Piston Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Pin Outside Diameter |
0.984 |
| Title |
SRP - Chrysler, Small Block, 4.060 in. Bore, Piston Kit |
| Bore Diameter |
4.060 |
| Piston Average Weight |
535 |
| Engine Type |
ICE |
| Make |
CHRYSLER |
| Oil Ring Thickness |
0.188 |
| Cylinder Head |
340 WEDGE |
| Forging Type |
FSR |
| Compression Height |
1.804 |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.984 |
| Wrist Pin Length |
2.750 |
| Piston Volume |
-5.00 |
| Piston Series |
SRP |
| Product Type |
Engine Piston Kit |
| Top Compression Ring Thickness |
0.0640 |
| Piston Pin Material |
5115 |
| Ring Set Included |
No |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
