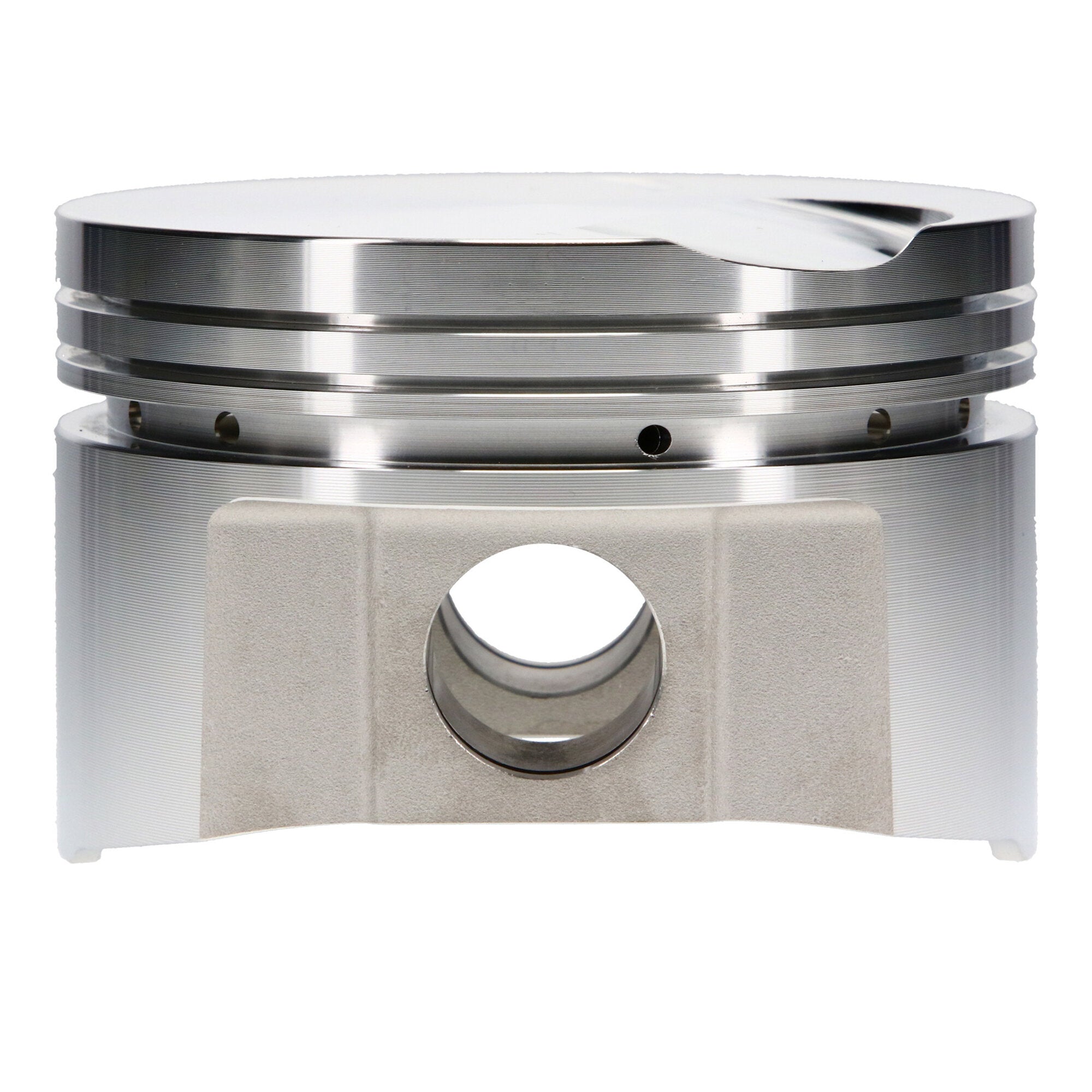

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Ford Small Block 351C |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.040 Bore, 1.440 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
SRP, Ford, Small Block Ford, 4.040 in. Bore, 1.440 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_TLE |
Ford 351 Cleveland, 4.040 Bore, Flat, Set of 8 |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Forging Type |
FSR |
| Piston Pin Material |
5115 |
| Piston Head Type |
Flat |
| Make |
FORD |
| Ringset Included |
No |
| Oil Ring Thickness |
0.188 |
| Compression Height |
1.440 |
| Top Compression Ring Thickness |
0.0640 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Pin Outside Diameter |
0.927 |
| Title |
SRP - Ford, Small Block, 4.040 in. Bore, Piston Kit |
| Engine Type |
ICE |
| Product Market |
Domestic |
| Piston Series |
SRP |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
Small Block |
| Prop 65 (C, R or CR) |
CR |
| Engine |
Small Block |
| Add-On |
927-042-CS |
| Add-On |
927-2750-15-51S |
| Piston Average Weight |
510 |
| Prop 65 Yes/No |
Yes |
| Industry |
Automotive |
| Piston Material |
4032 |
| Add-On |
S100S8-4040-5 |
| Product Type |
Engine Piston Kit |
| Out of Stock Message |
Call for Availability |
| Piston Pin Length |
2.750 |
| Cylinder Head |
CLEVELAND |
| Piston Volume |
-3.00 |
| Bore Diameter |
4.040 |
| Title - Web |
SRP Ford Small Block Piston Kit - 4.040 in. Bore - 1.440 in. CH, -3.00 CC |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.750 |
| Ring Set Included |
No |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Ford |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
