As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda B Series VTEC |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

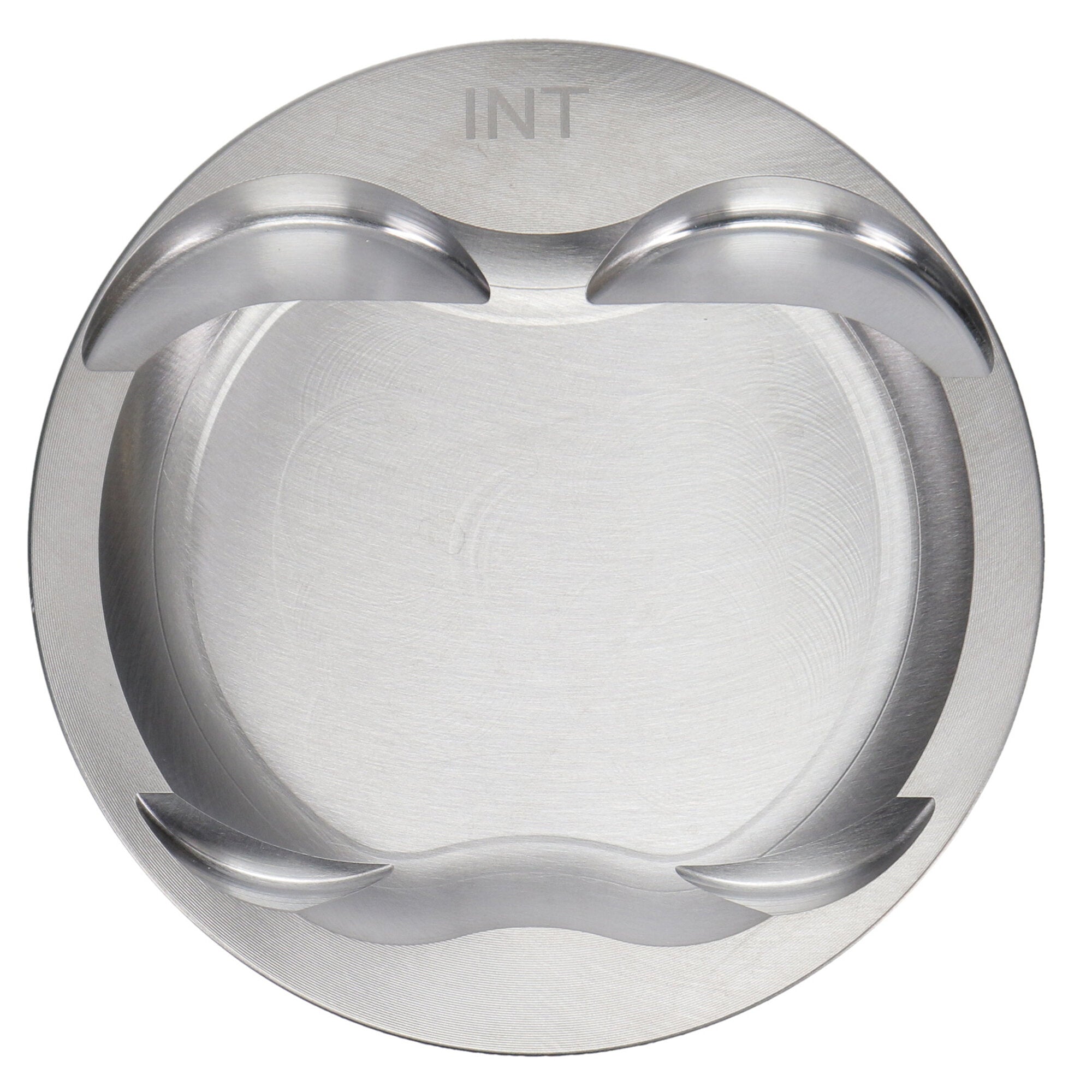

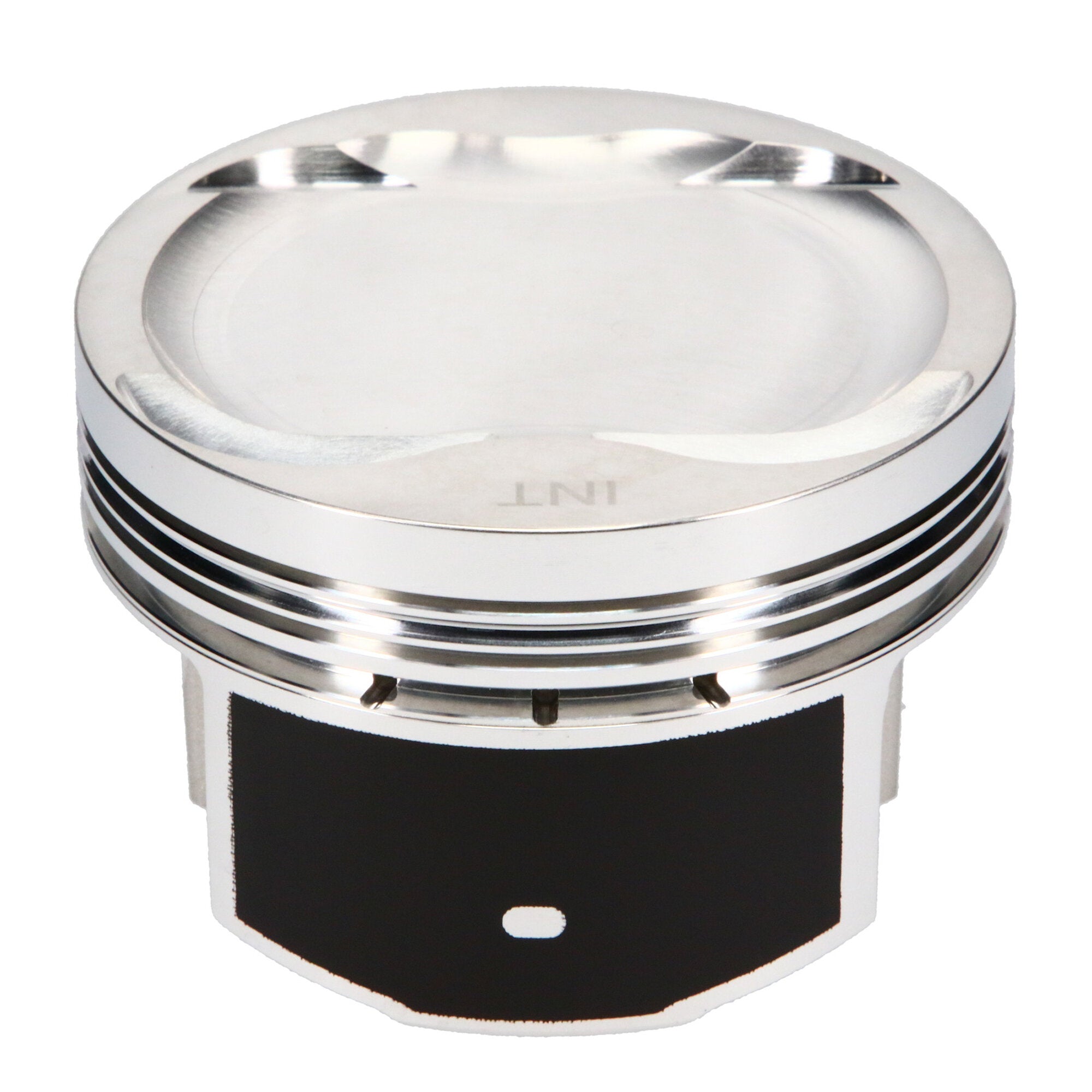

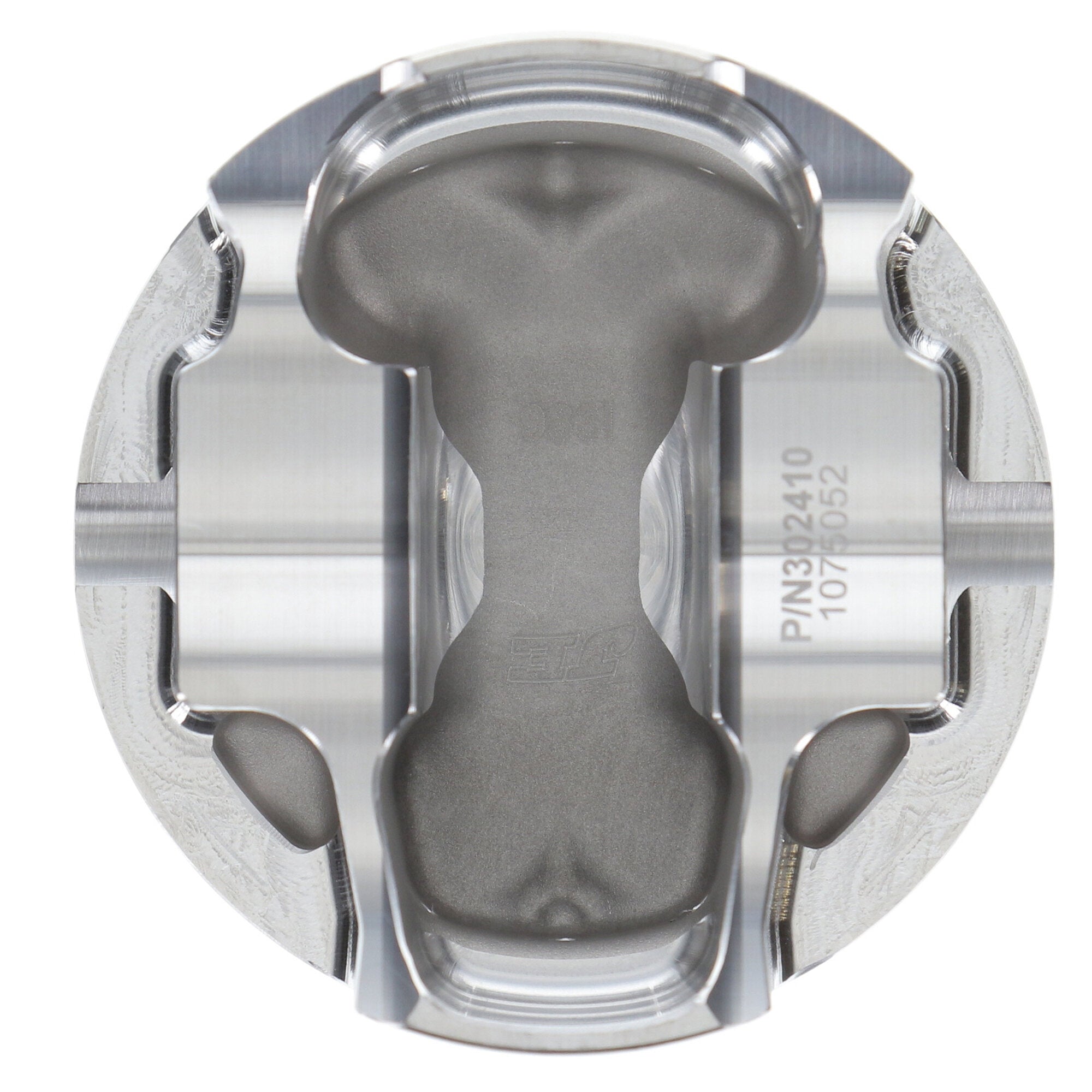

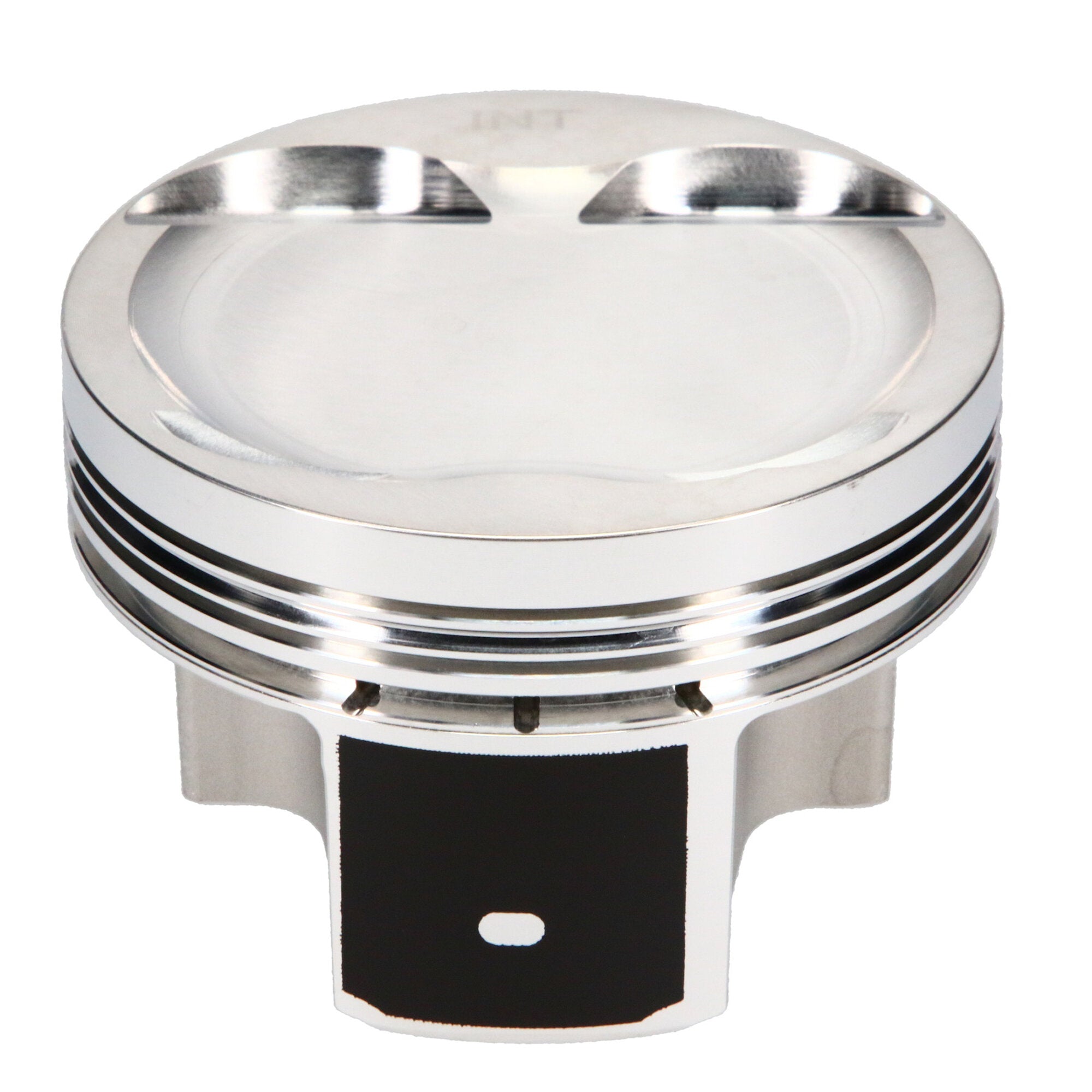

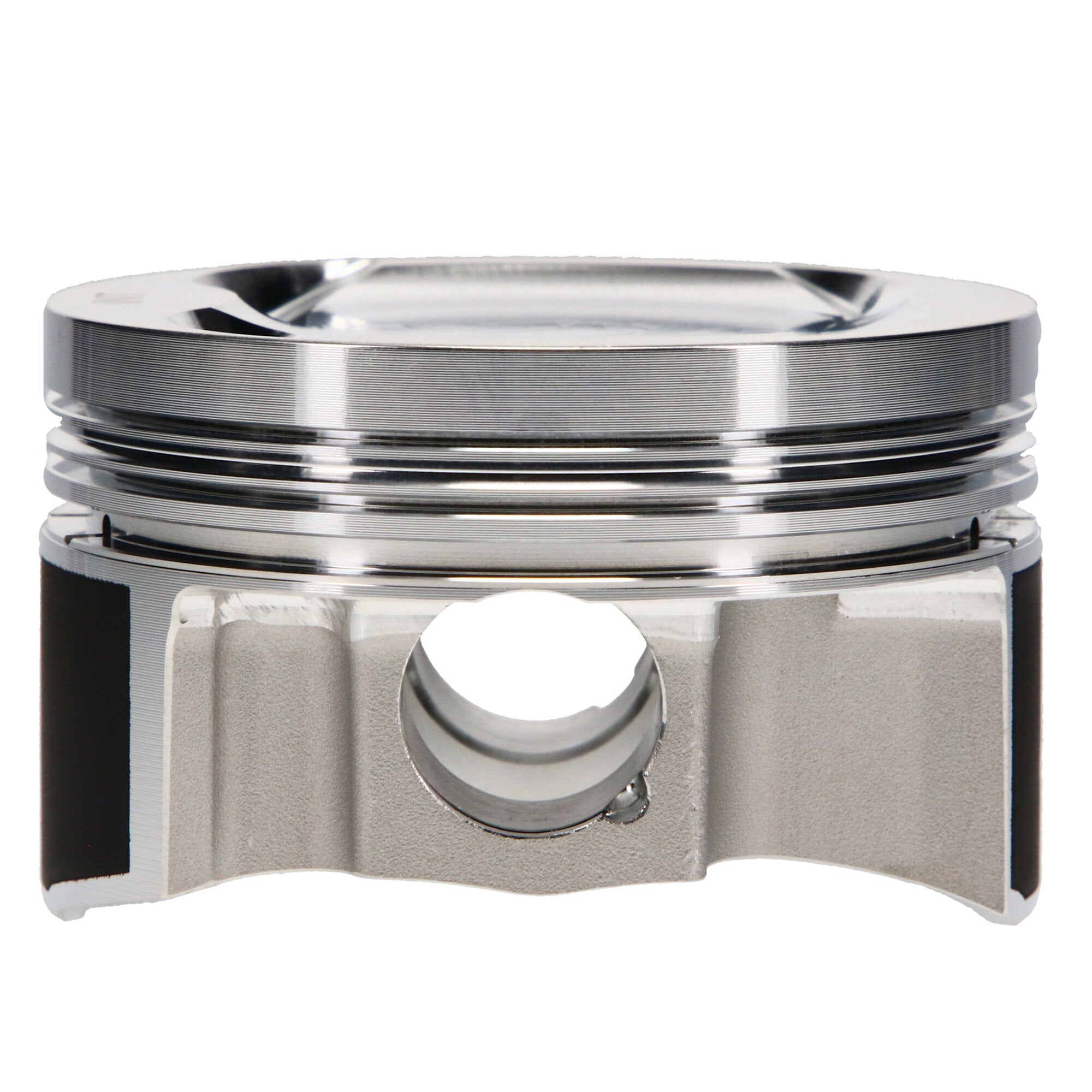

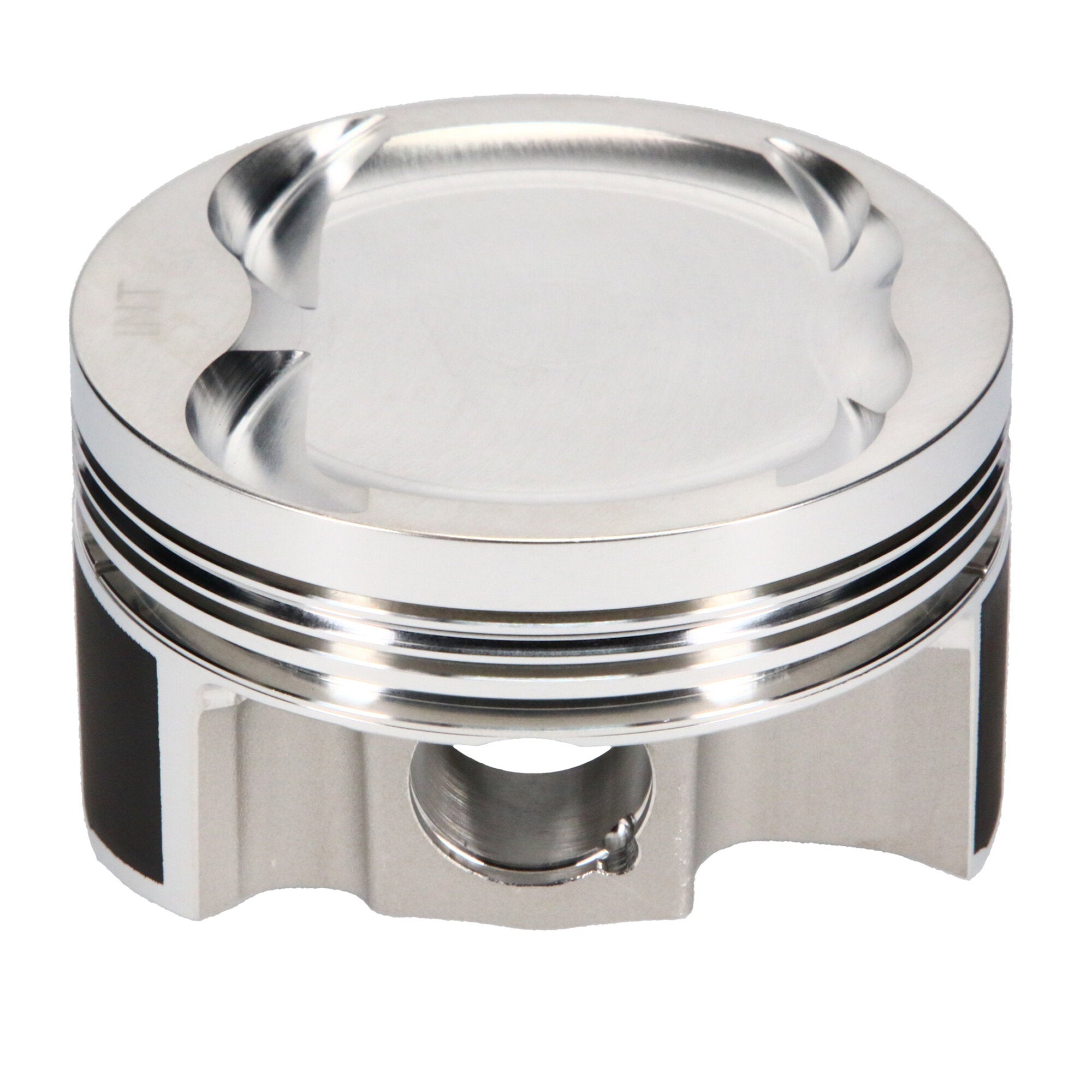

Piston Set, 2618, Inv Dome/Dish, 3.307 Bore, 1.181 CD, 0.827 Pin, Set of 4. |
| Description_EXT |
JE, Honda, B Series, 3.307 in. Bore, 9.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Honda B Series, 84.00 Bore, Dish, Set of 4 |
| Bore Diameter |
84.00 |
| Piston Pin Outside Diameter |
0.827 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Wrist Pin Outer Diameter |
0.827 |
| Product Market |
Sport Compact |
| Top Compression Ring Thickness |
0.0400 |
| Piston Average Weight |
300 |
| Piston Material |
2618 |
| Make |
HONDA |
| Title |
JE Pistons - Honda, B Series, 84.00 mm Bore, Piston Kit |
| Add-On |
JG1001-3307 |
| Out of Stock Message |
Call for Availability |
| Add-On |
827-2250-15-51C |
| Industry |
Automotive |
| Add-On |
827-063-MW |
| Prop 65 (C, R or CR) |
CR |
| Piston Quantity |
4 |
| Piston Pin Wall Thickness |
0.150 |
| Product Type |
Engine Piston Kit |
| Compression Height |
1.181 |
| Prop 65 Yes/No |
Yes |
| Piston Volume |
-11.40 |
| Cylinder Head |
B18C |
| Engine |
B SERIES |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine - Web |
B Series |
| Piston Series |
JE Pistons |
| Forging Type |
FSR |
| Piston Pin Length |
2.250 |
| Piston Head Type |
Dish |
| Oil Ring Thickness |
0.111 |
| Piston Pin Material |
5115 |
| Ringset Included |
Yes |
| Title - Web |
JE Pistons Honda B Series Piston Kit - 84.00 mm Bore - 1.181 in. CH, -11.40 CC |
| Engine Type |
ICE |
| Second Compression Ring Thickness |
0.0480 |
| Make - Web |
Honda |
| Wrist Pin Wall Thickness |
0.150 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
