As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Toyota 2JZ-GTE |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

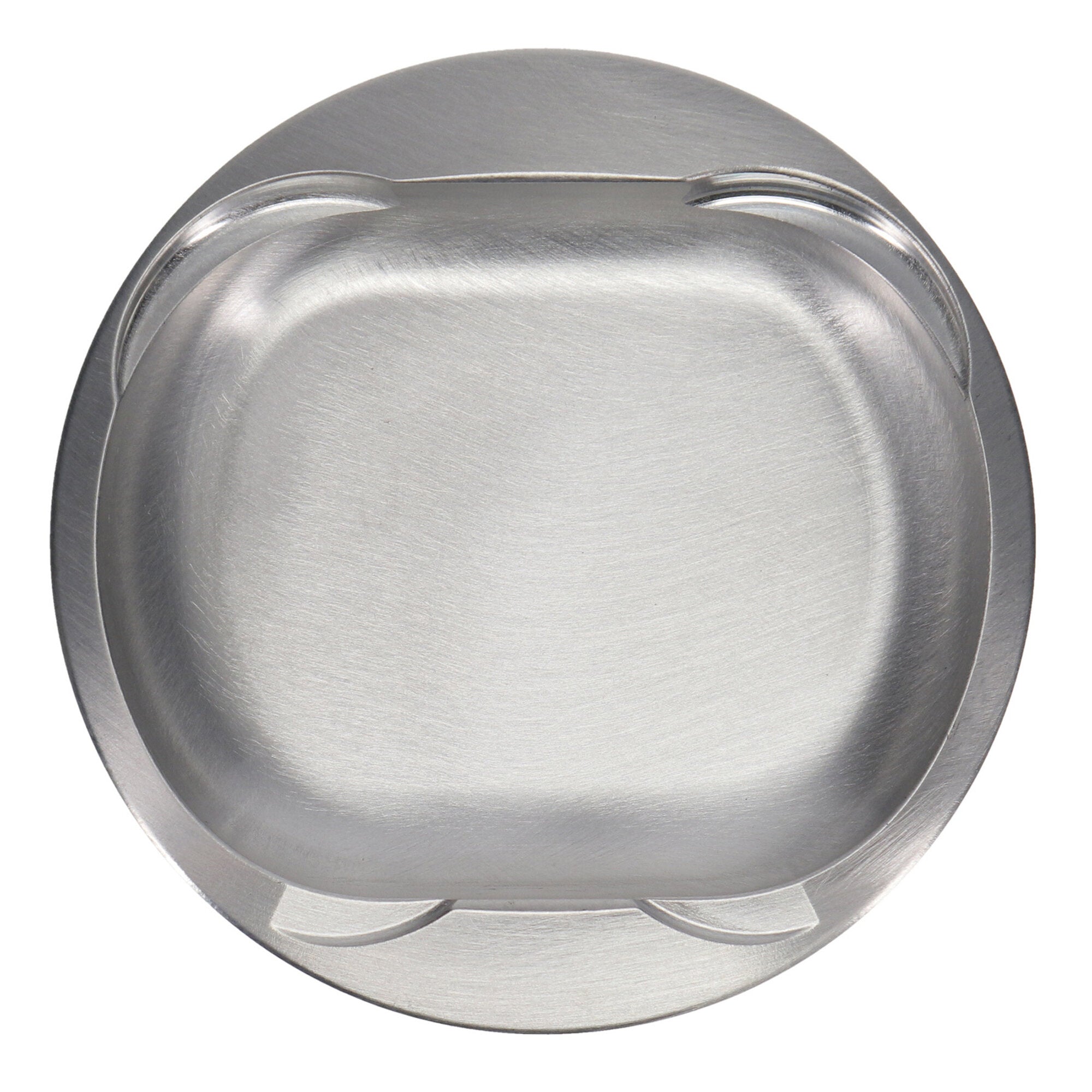

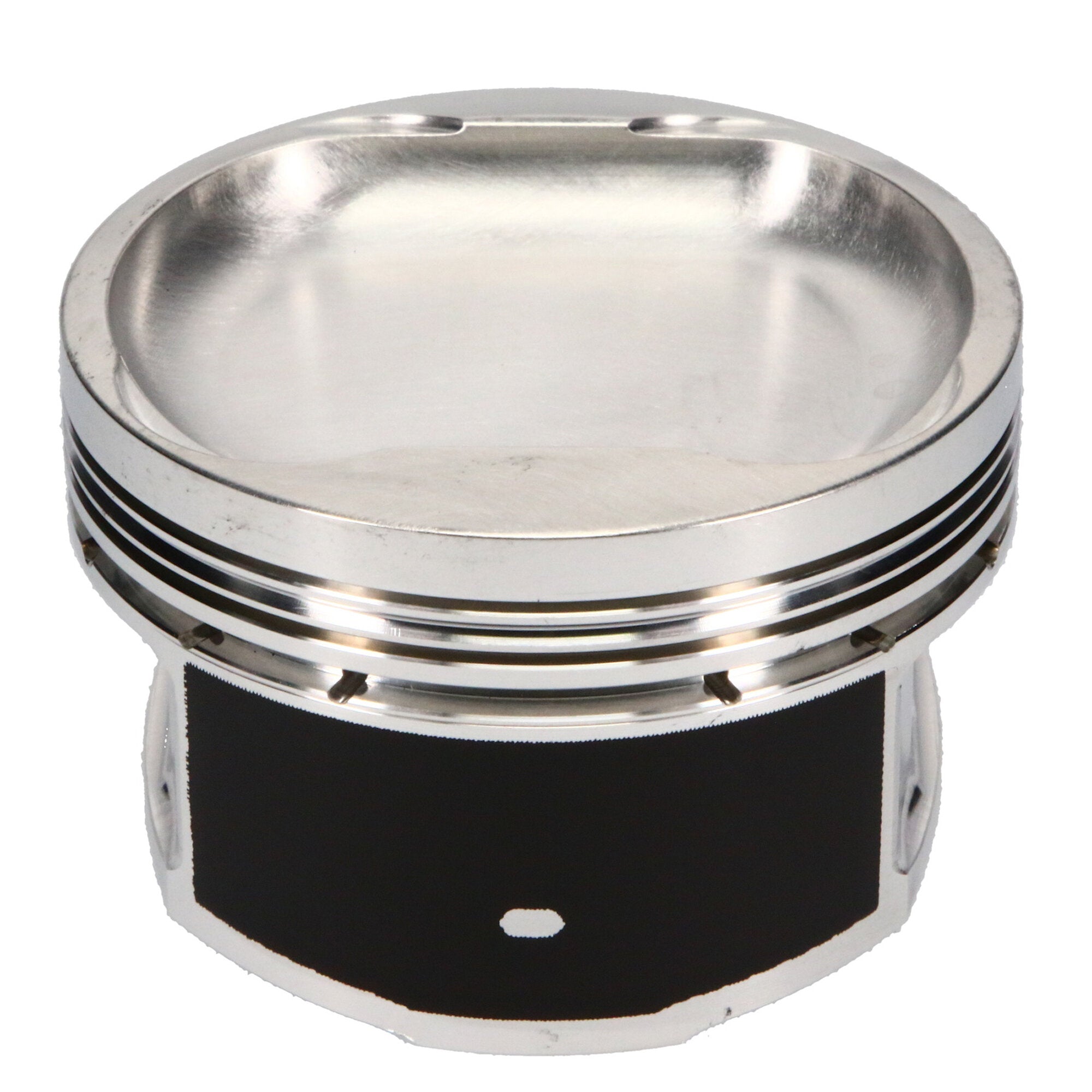

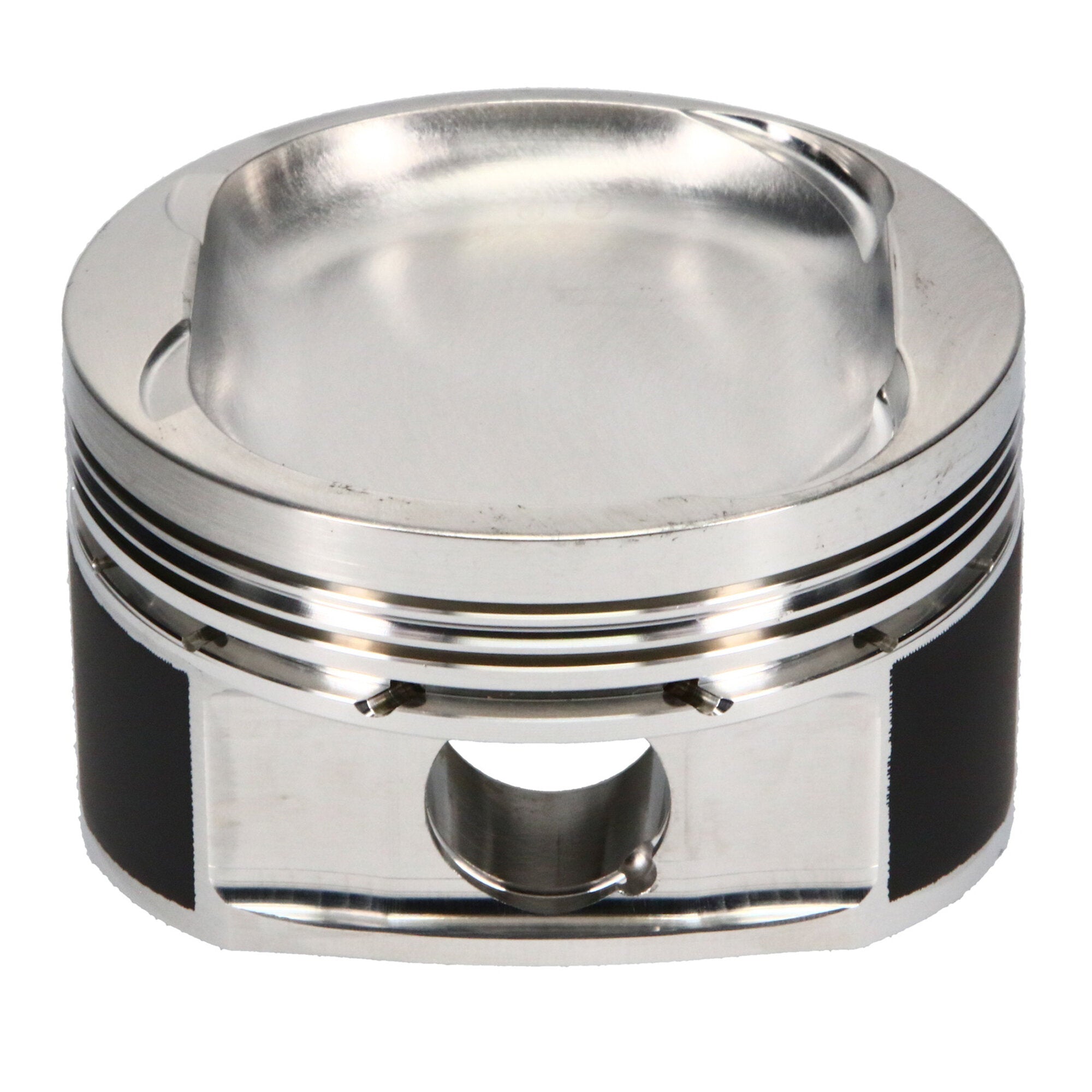

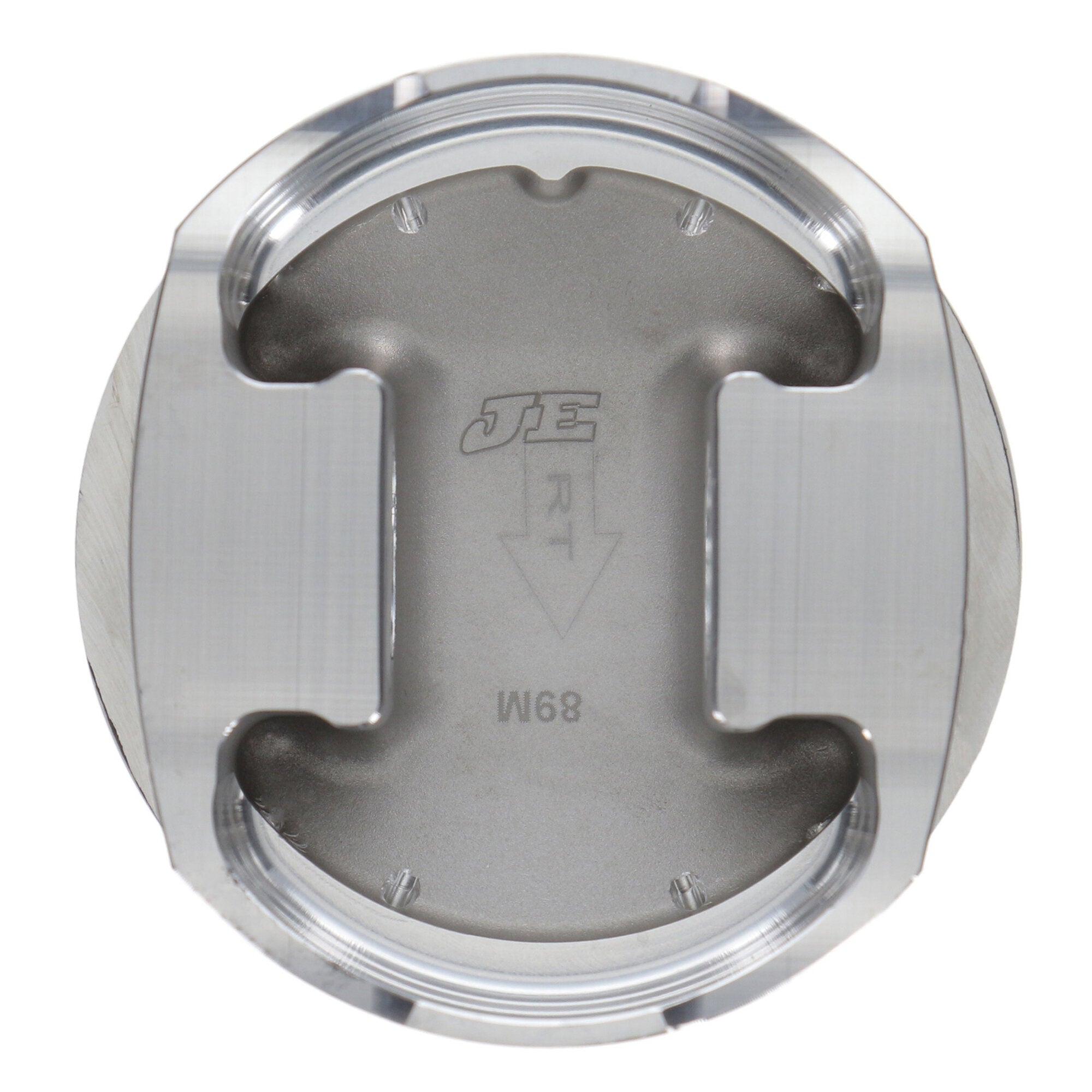

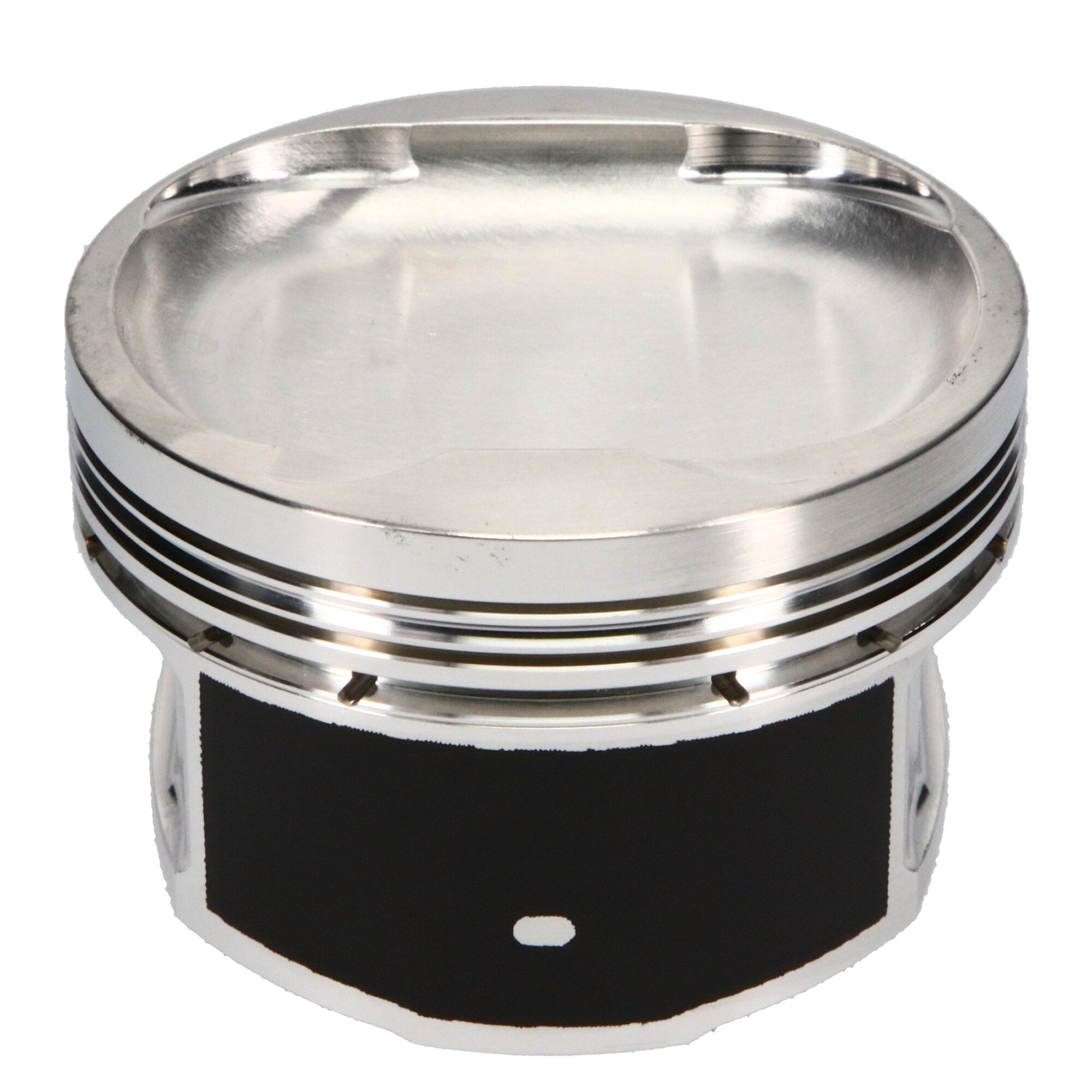

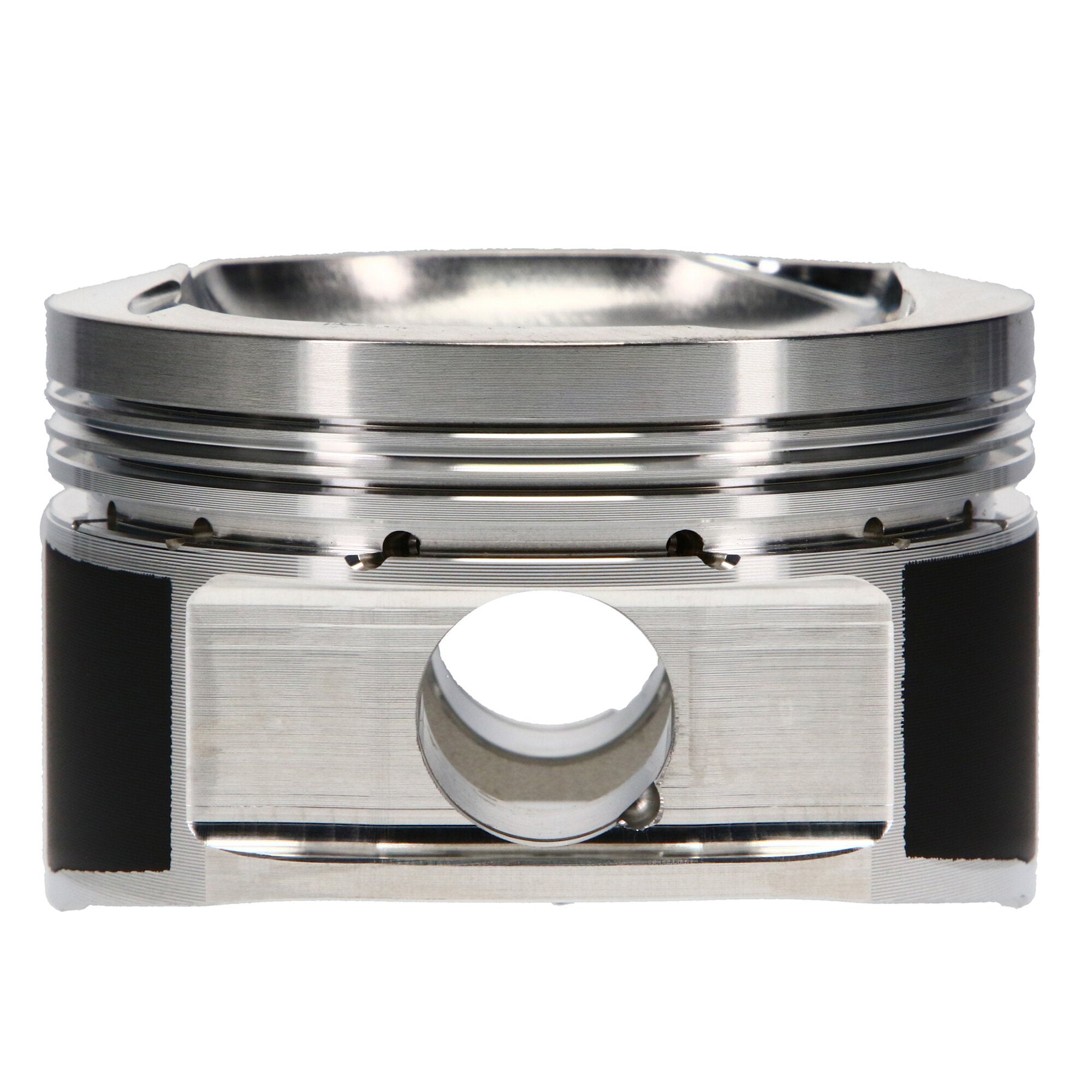

Piston Set, 2618, Inv Dome/Dish, 3.425 Bore, 1.338 CD, 0.866 Pin, Set of 6. |
| Description_EXT |
JE, Toyota, 2JZ-GTE, 3.425 in. Bore, 8.50:1, Inverted Dome/Dish, 6 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_TLE |
Toyota 2JZ-GTE, 87.00 Bore, Dish, Set of 6 |
| Description_SHO |
Piston Kit |
| Top Compression Ring Thickness |
0.0400 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Bore Diameter |
87.00 |
| Product Market |
Sport Compact |
| Add-On |
866-2250-15-51C |
| Add-On |
JG1001-3425 |
| Add-On |
866-063-MW |
| Piston Average Weight |
326 |
| Industry |
Automotive |
| Title |
JE Pistons - Toyota, 2JZ-GTE, 87.00 mm Bore, Piston Kit |
| Compression Height |
1.338 |
| Engine - Web |
2JZ-GTE |
| Cylinder Head |
2JZ-GTE |
| Prop 65 (C, R or CR) |
CR |
| Piston Quantity |
6 |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Piston Volume |
16.40 |
| Piston Material |
2618 |
| Wrist Pin Length |
2.250 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
Yes |
| Piston Pin Wall Thickness |
0.150 |
| Piston Head Type |
Dish |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.111 |
| Piston Pin Length |
2.250 |
| Piston Series |
JE Pistons |
| Ringset Included |
Yes |
| Title - Web |
JE Pistons Toyota 2JZ-GTE Piston Kit - 87.00 mm Bore - 1.338 in. CH, 16.40 CC |
| Make |
TOYOTA |
| Second Compression Ring Thickness |
0.0480 |
| Piston Pin Outside Diameter |
0.866 |
| Product Type |
Engine Piston Kit |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.866 |
| Make - Web |
Toyota |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Material |
5115 |
| Forging Type |
FSR |
| Engine |
2JZ-GTE |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
5.0000 |
