As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 632 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

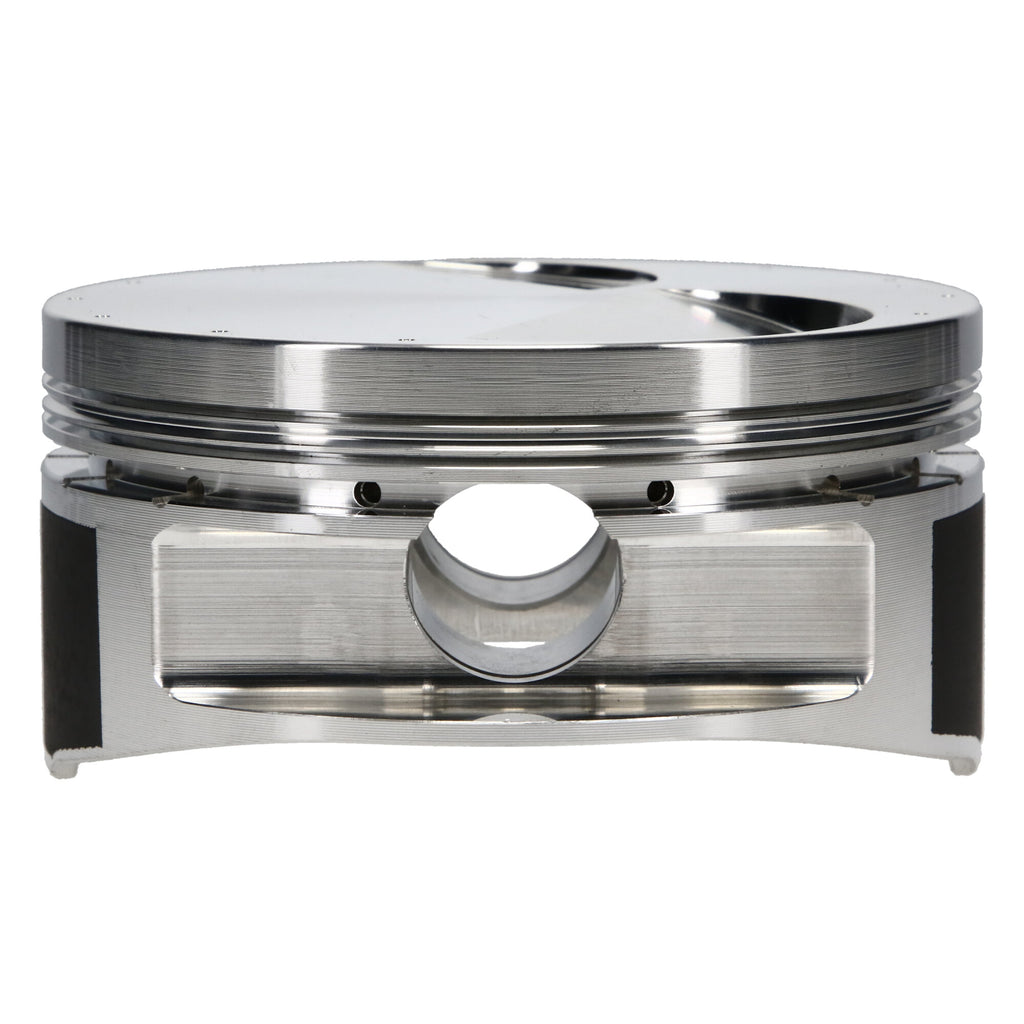

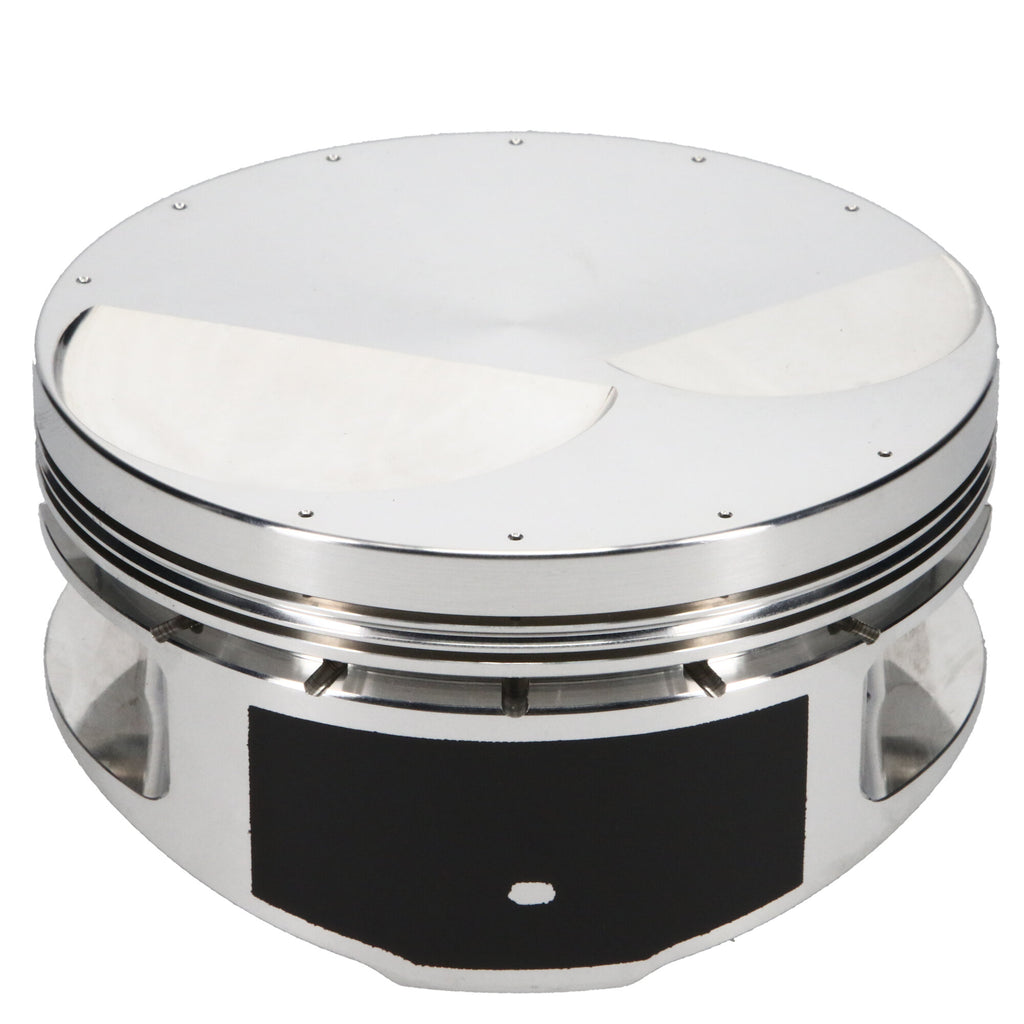

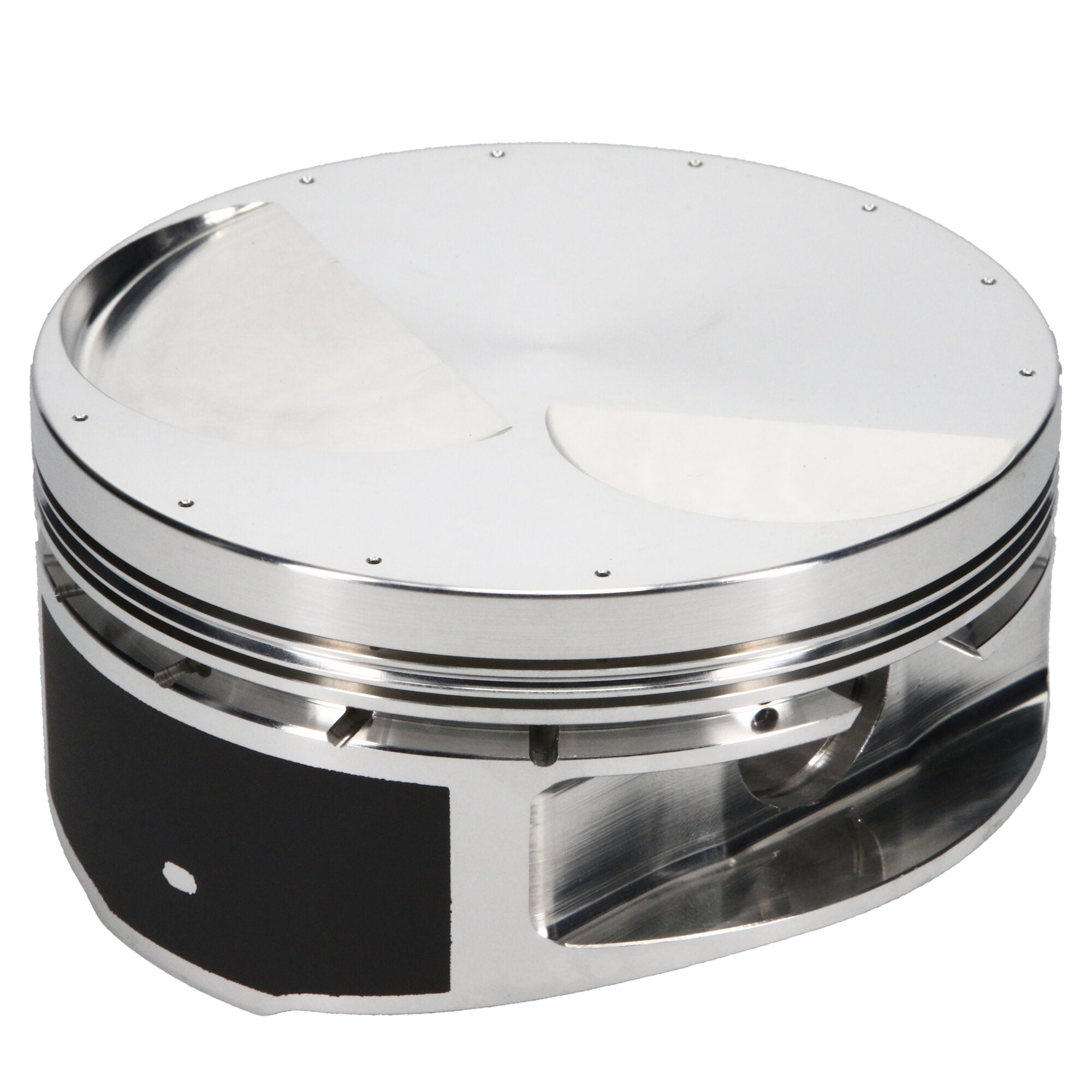

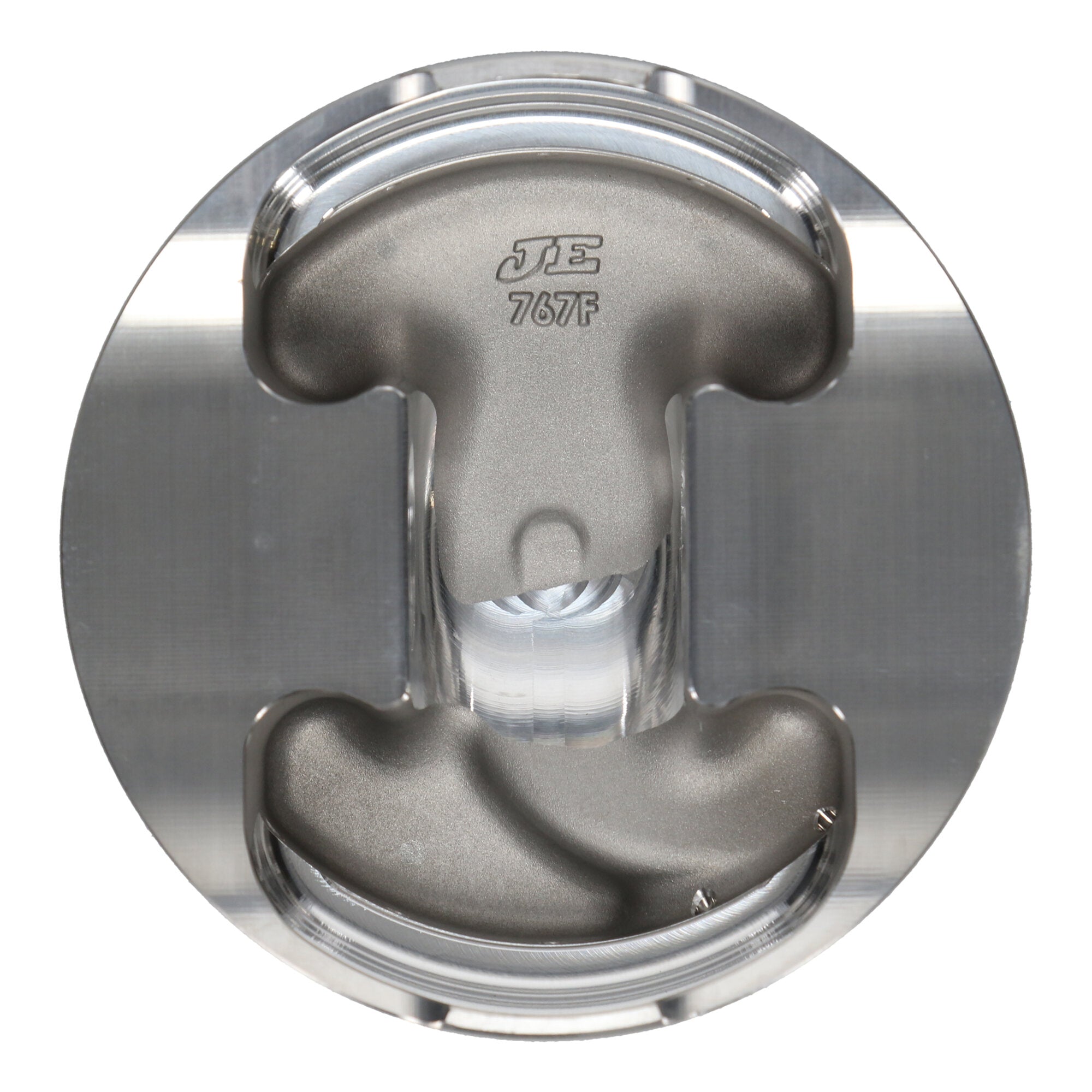

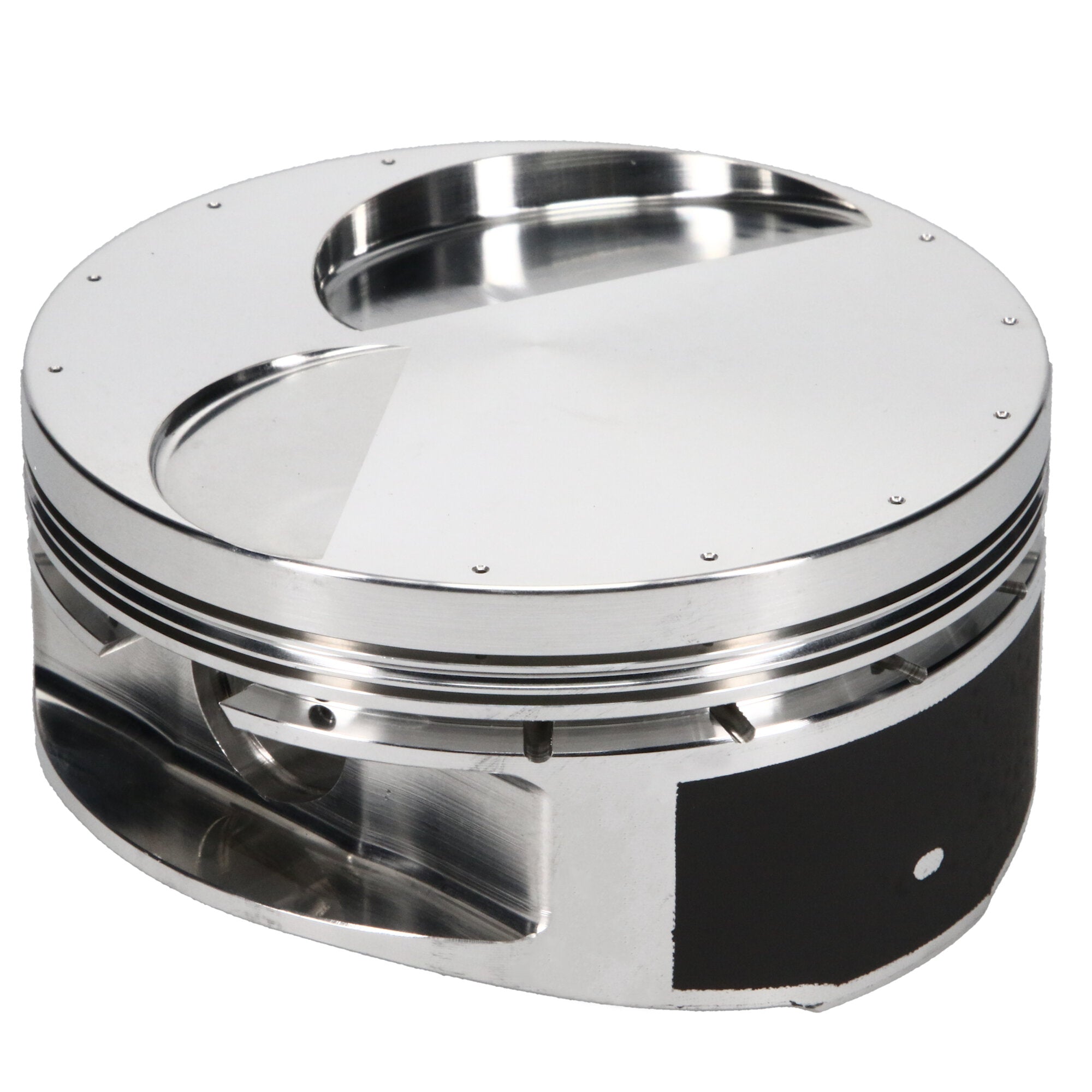

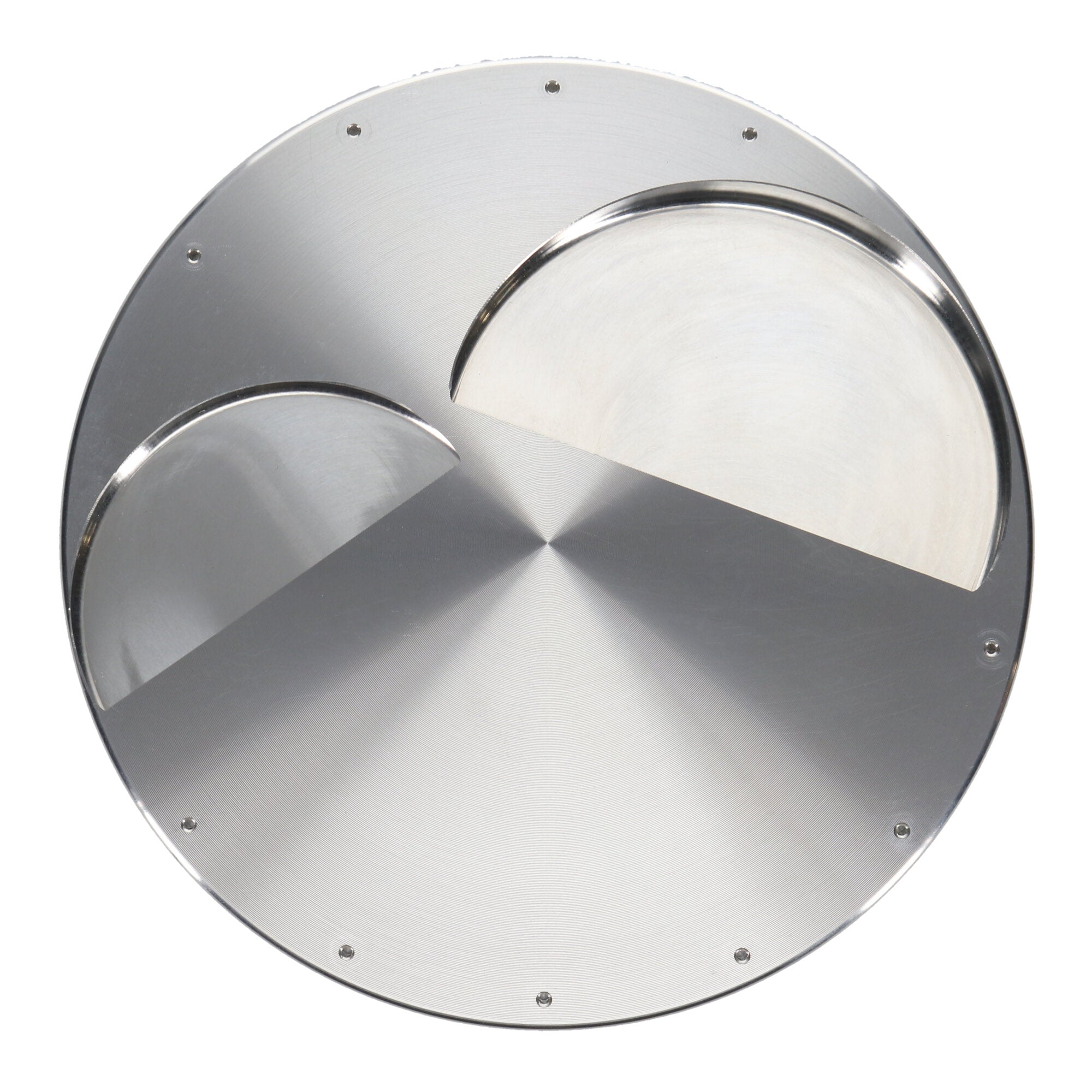

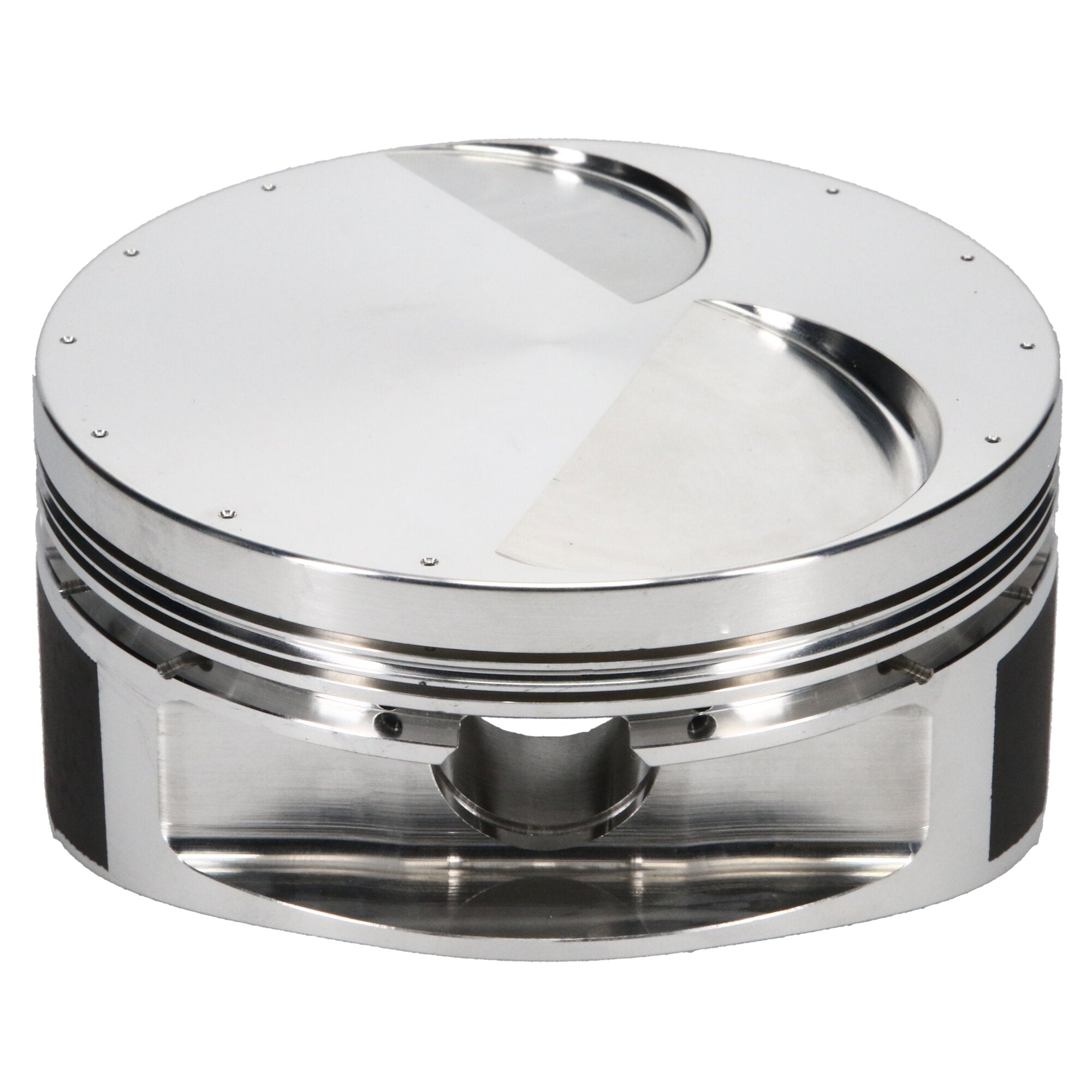

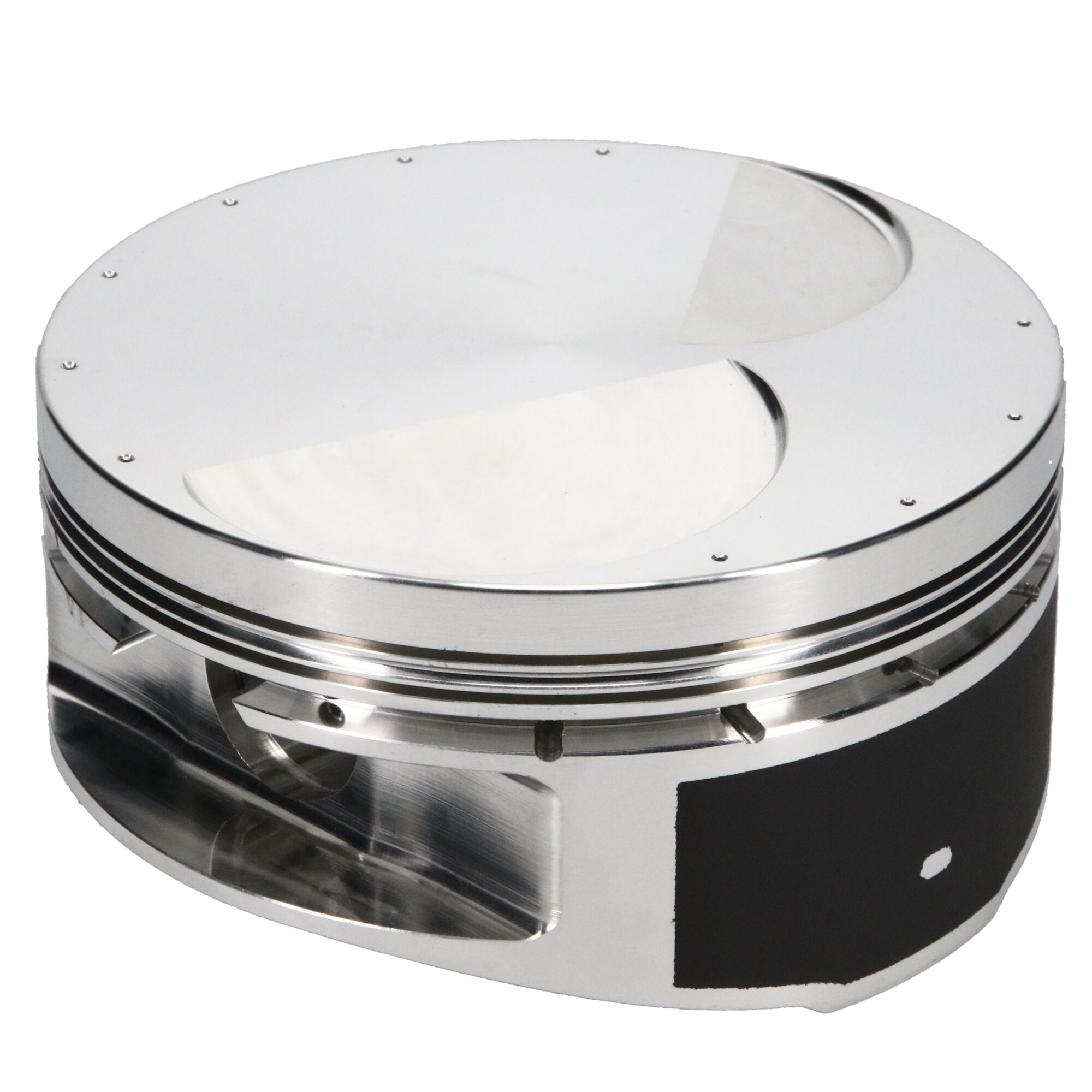

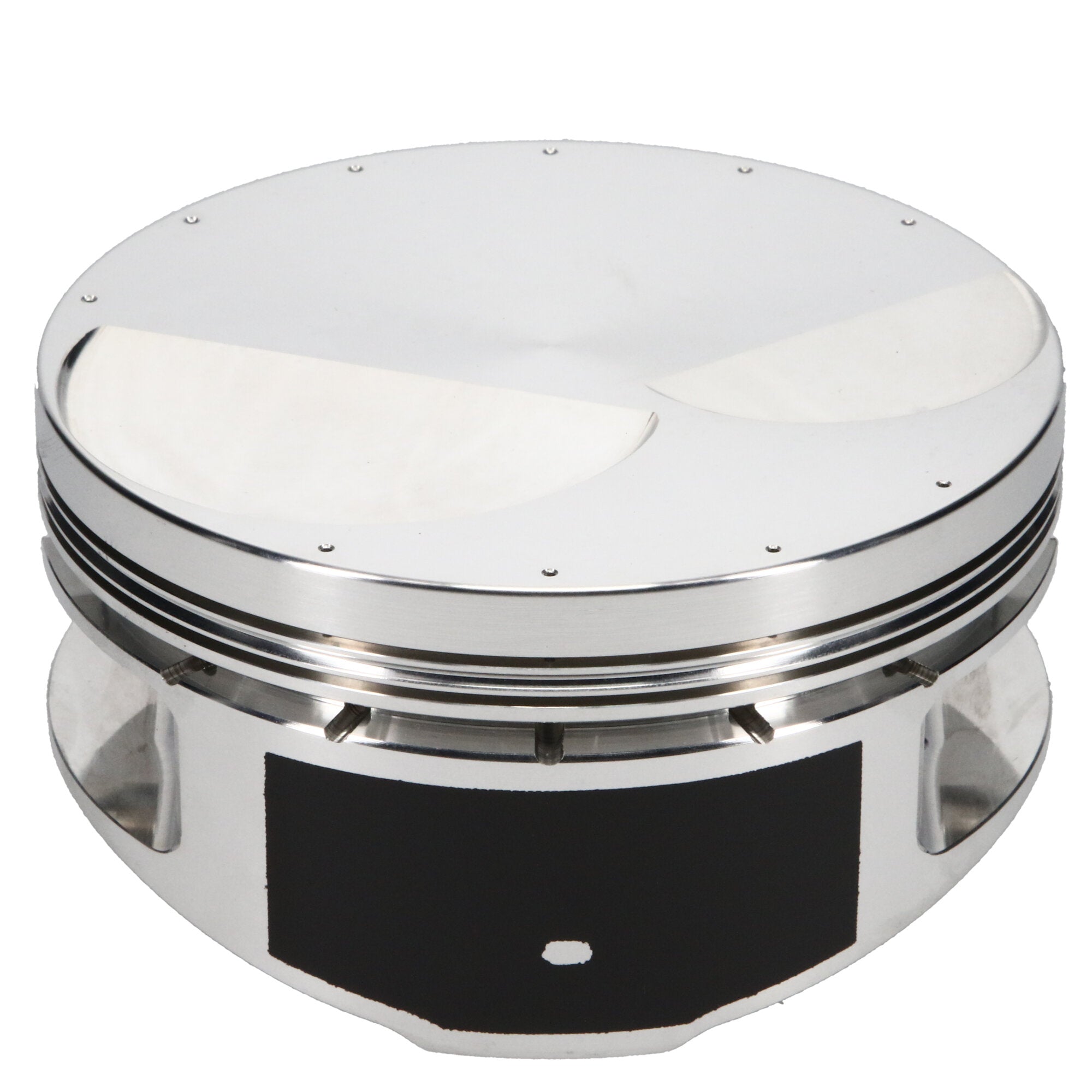

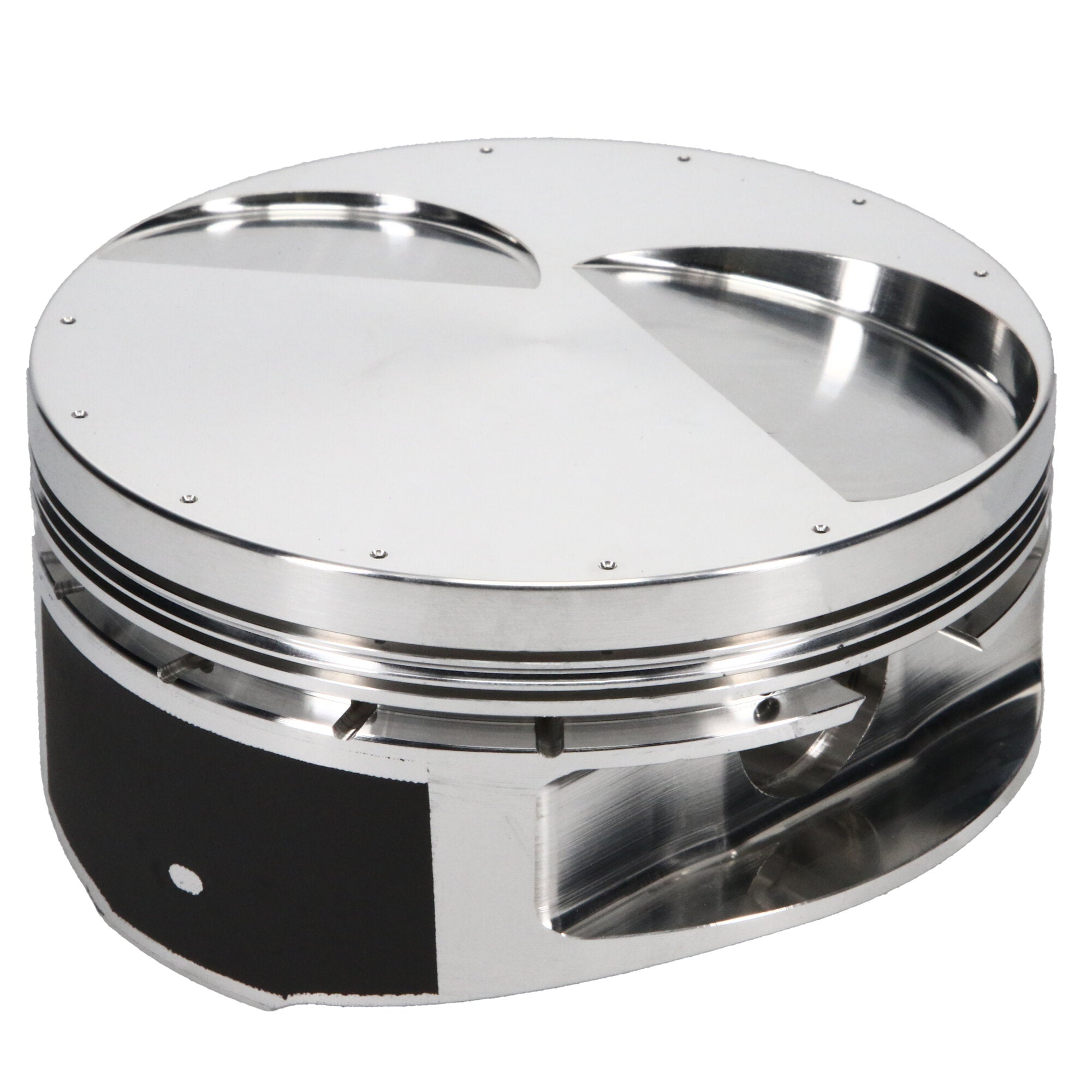

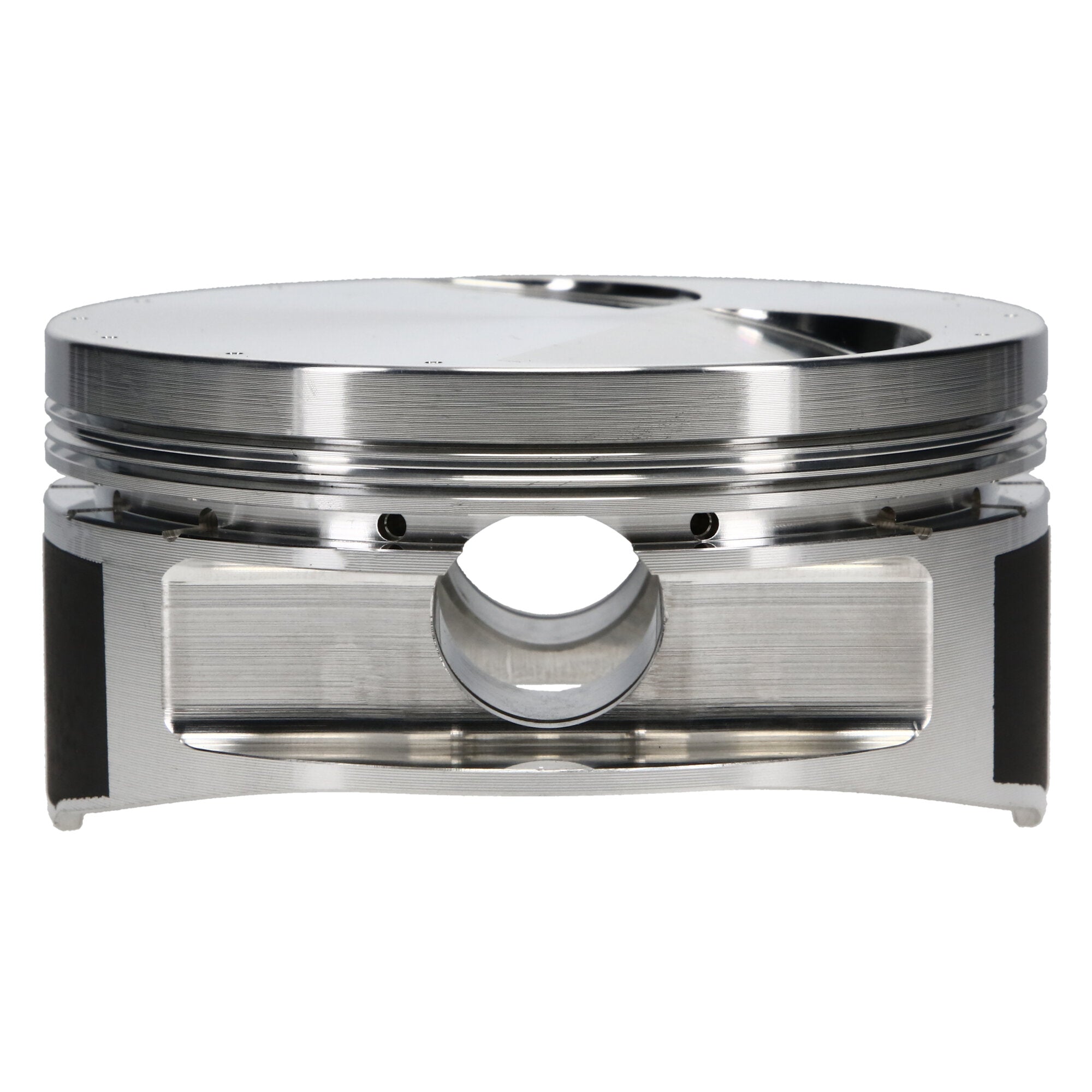

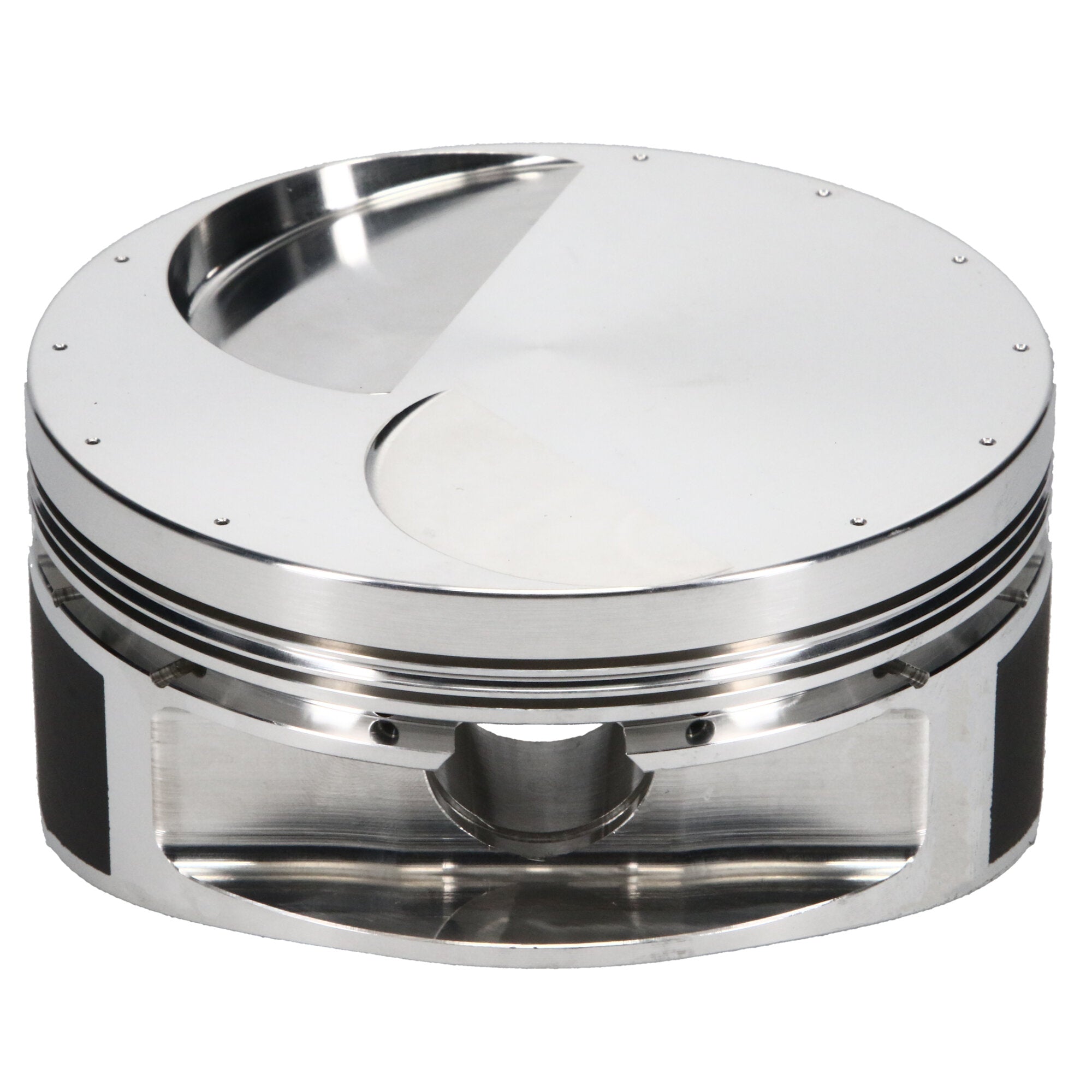

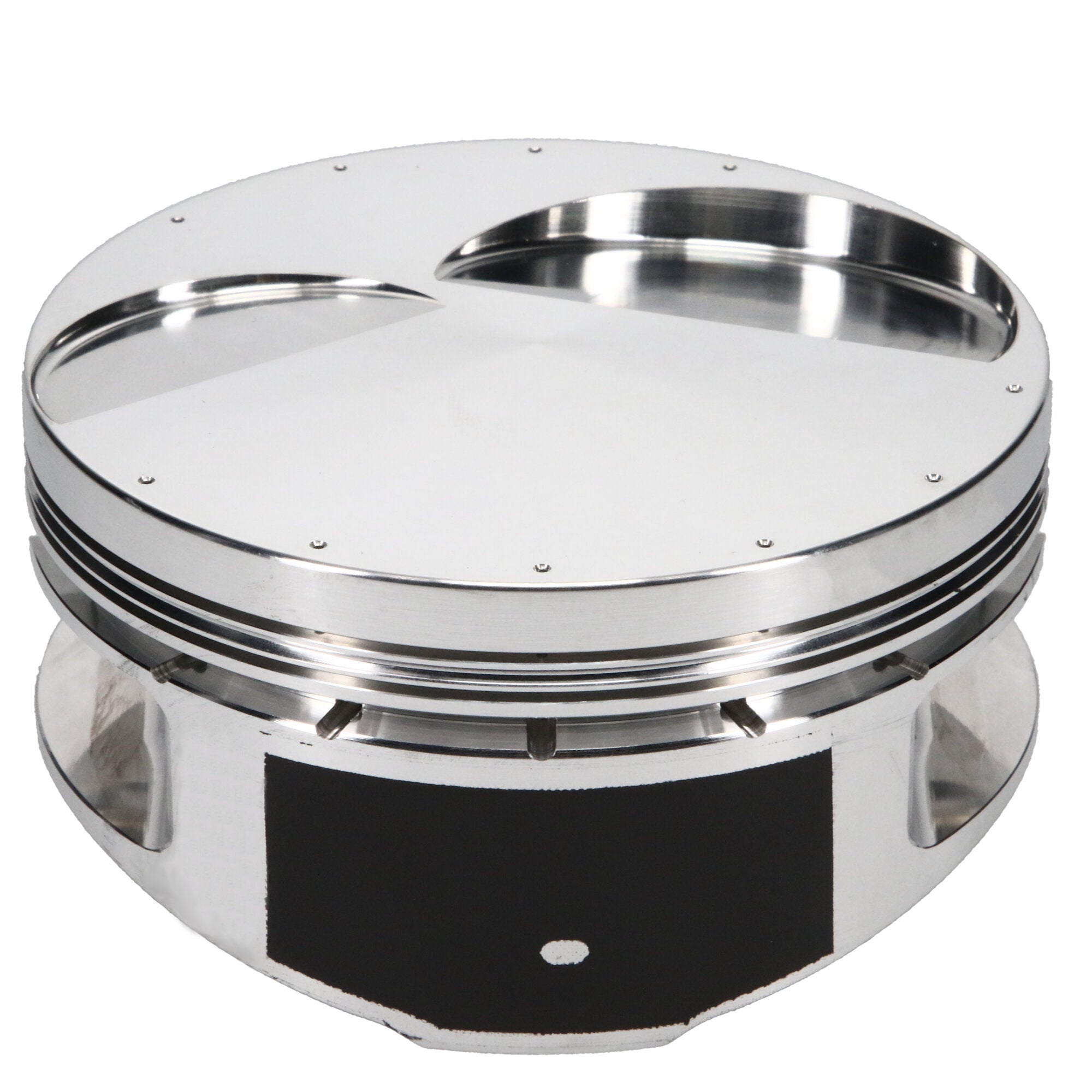

Piston Set, 2618, Flat Top, 4.625 Bore, 1.120 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.625 in. Bore, 1.120 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 632, 4.625 Bore, Flat, Set of 8 |
| Piston Pin Outside Diameter |
0.990 |
| Piston Quantity |
8 |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0440 |
| Prop 65 Yes/No |
Yes |
| Piston Volume |
-7.00 |
| Ring Set Included |
No |
| Product Type |
Engine Piston Kit |
| Add-On |
990-2930-18-51S |
| Industry |
Automotive |
| Top Compression Ring Thickness |
0.0435 |
| Add-On |
JG7708-4625-5 |
| Product Market |
Domestic |
| Add-On |
990-042-CS |
| Wrist Pin Length |
2.930 |
| Out of Stock Message |
Call for Availability |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.625 in. Bore - 1.120 in. CH, -7.00 CC |
| Cylinder Head |
BIG CHIEF 12 DEG/14 DEG |
| Title |
JE Pistons - Chevrolet, Big Block, 4.625 in. Bore, Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Average Weight |
579 |
| Bore Diameter |
4.625 |
| Compression Height |
1.120 |
| Piston Material |
2618 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Wall Thickness |
0.180 |
| Engine - Web |
Big Block |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Ringset Included |
No |
| Piston Pin Length |
2.930 |
| Piston Series |
JE Pistons |
| Forging Type |
Round |
| Piston Pin Material |
5115 |
| Piston Head Type |
Flat |
| Make |
CHEVROLET |
| Engine |
Big Block |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.149 |
| Piston Pin Wall Thickness |
0.180 |
| Wrist Pin Outer Diameter |
0.990 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
