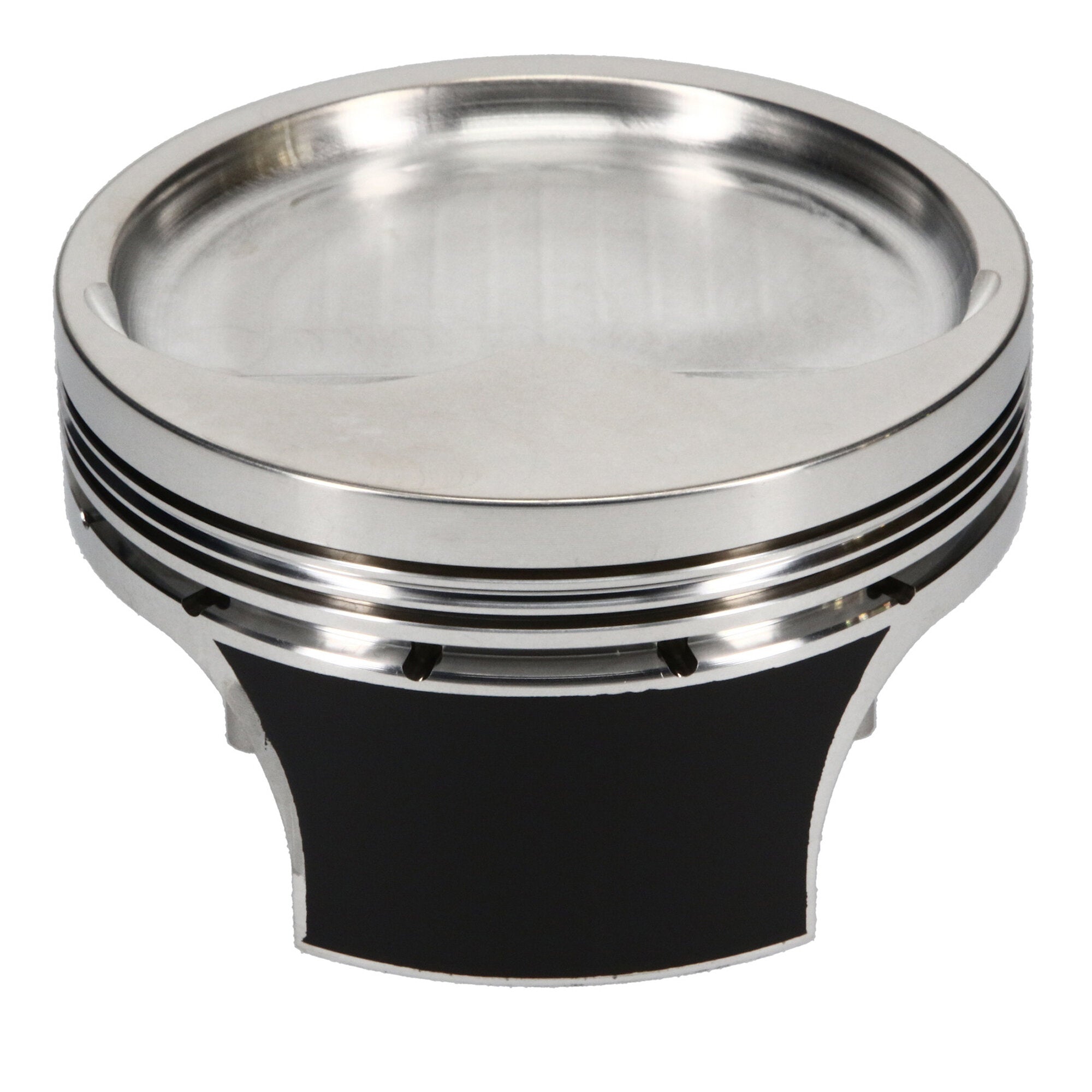

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Inv Dome/Dish, 4.030 Bore, 1.125 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
SRP Pro 4032, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.125 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
SRP Pro, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chevrolet 350, 4.030 Bore, Dish, Set of 8 |
| Piston Pin Material |
5115 |
| Piston Head Type |
Dish |
| Engine |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Title - Web |
SRP Pro 4032 Chevrolet Small Block Piston Kit - 4.030 in. Bore - 1.125 in. CH, -16.00 CC |
| Piston Pin Length |
2.250 |
| Ringset Included |
Yes |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.149 |
| Piston Pin Wall Thickness |
0.150 |
| Make |
CHEVROLET |
| Forging Type |
FSR |
| Piston Series |
SRP Pro 4032 |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.927 |
| Make - Web |
Chevrolet |
| Ring Set Included |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Second Compression Ring Thickness |
0.0600 |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Out of Stock Message |
Call for Availability |
| Piston Average Weight |
376 |
| Piston Material |
4032 |
| Add-On |
JG31F1-4030-2 |
| Piston Volume |
-16.00 |
| Product Market |
Domestic |
| Compression Height |
1.125 |
| Industry |
Automotive |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Product Type |
Engine Piston Kit |
| Add-On |
927-2250-15-51C |
| Piston Pin Outside Diameter |
0.927 |
| Add-On |
927-073-MW |
| Bore Diameter |
4.030 |
| Top Compression Ring Thickness |
0.0480 |
| Title |
SRP Pro 4032 - Chevrolet, Small Block, 4.030 in. Bore, Piston Kit |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine - Web |
Small Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
