As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

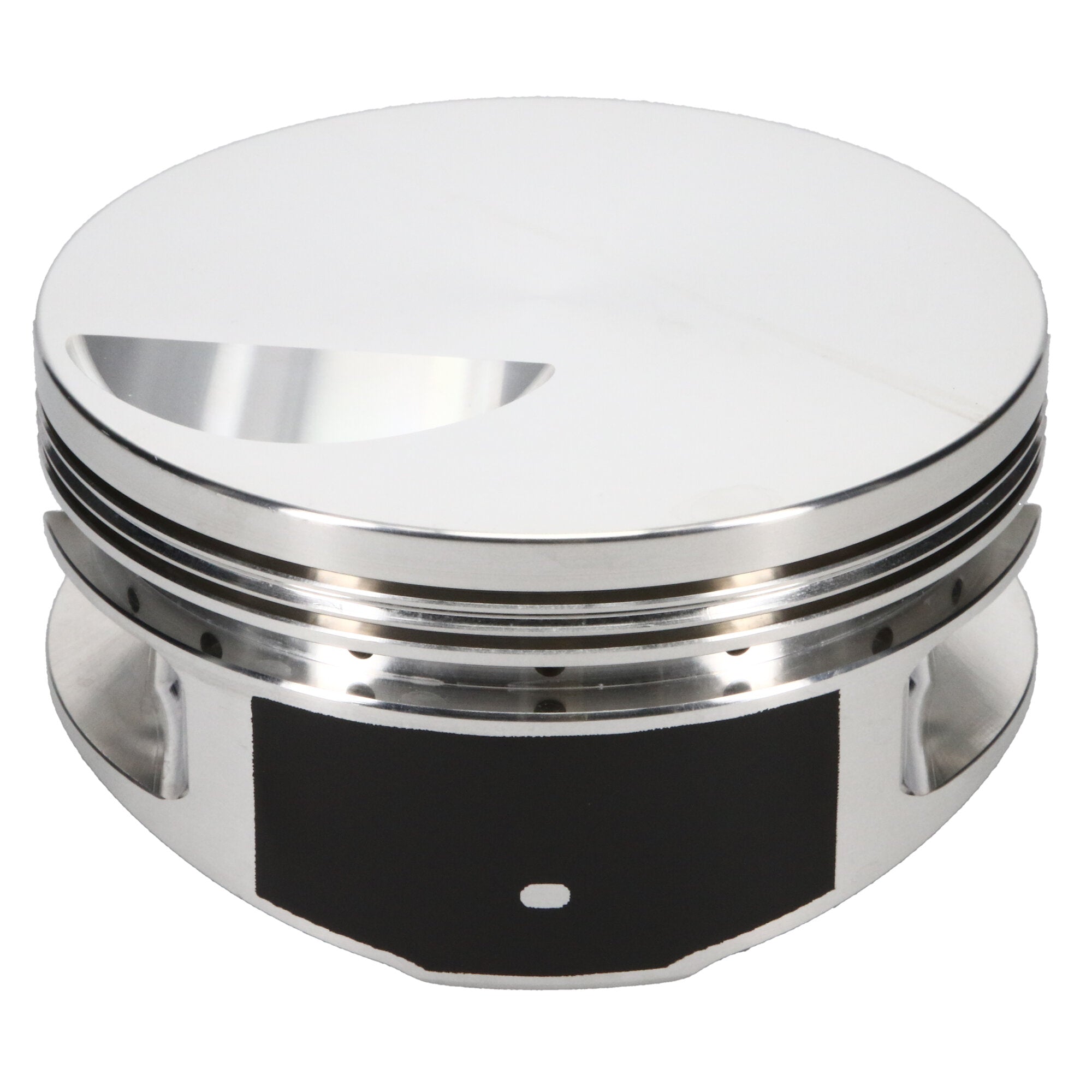

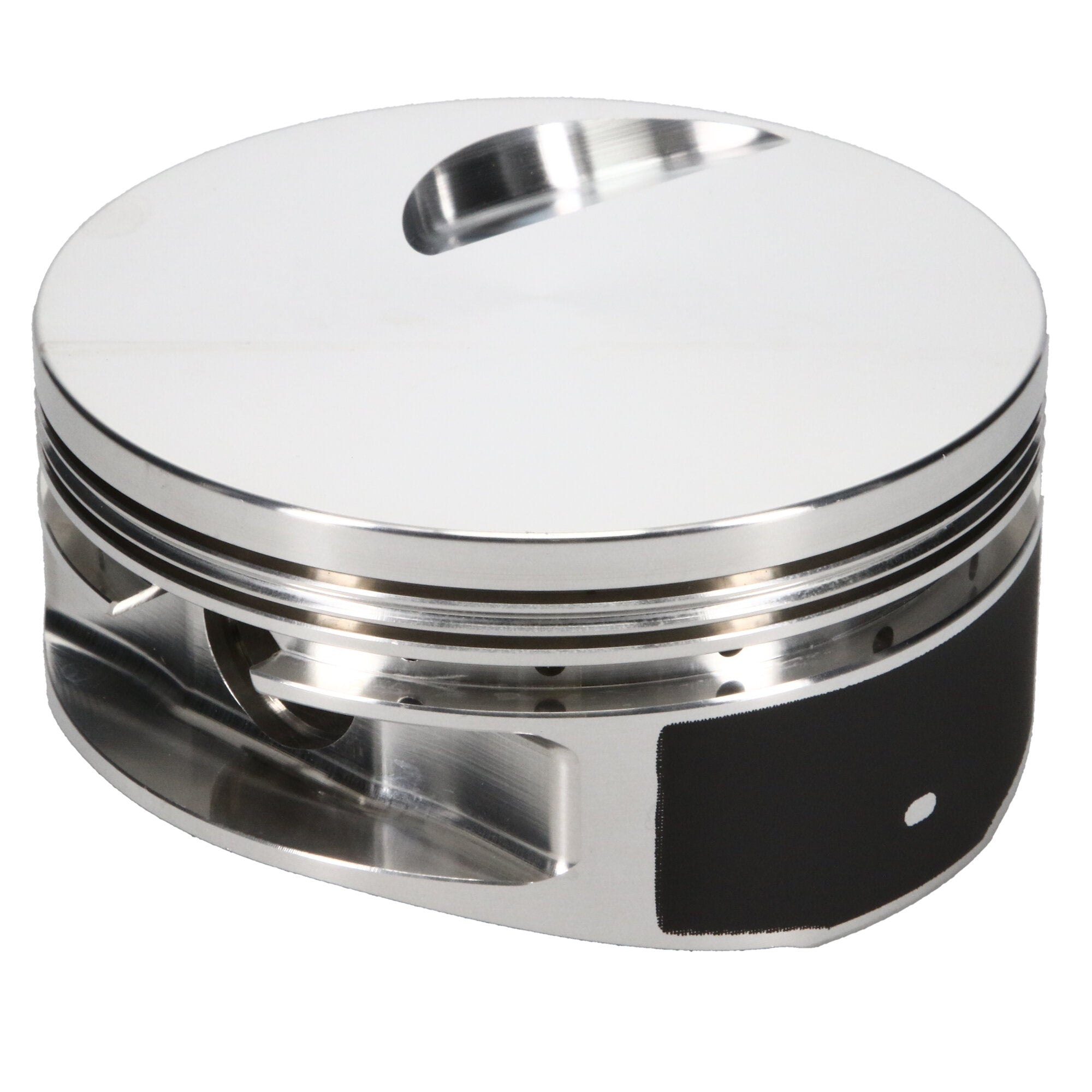

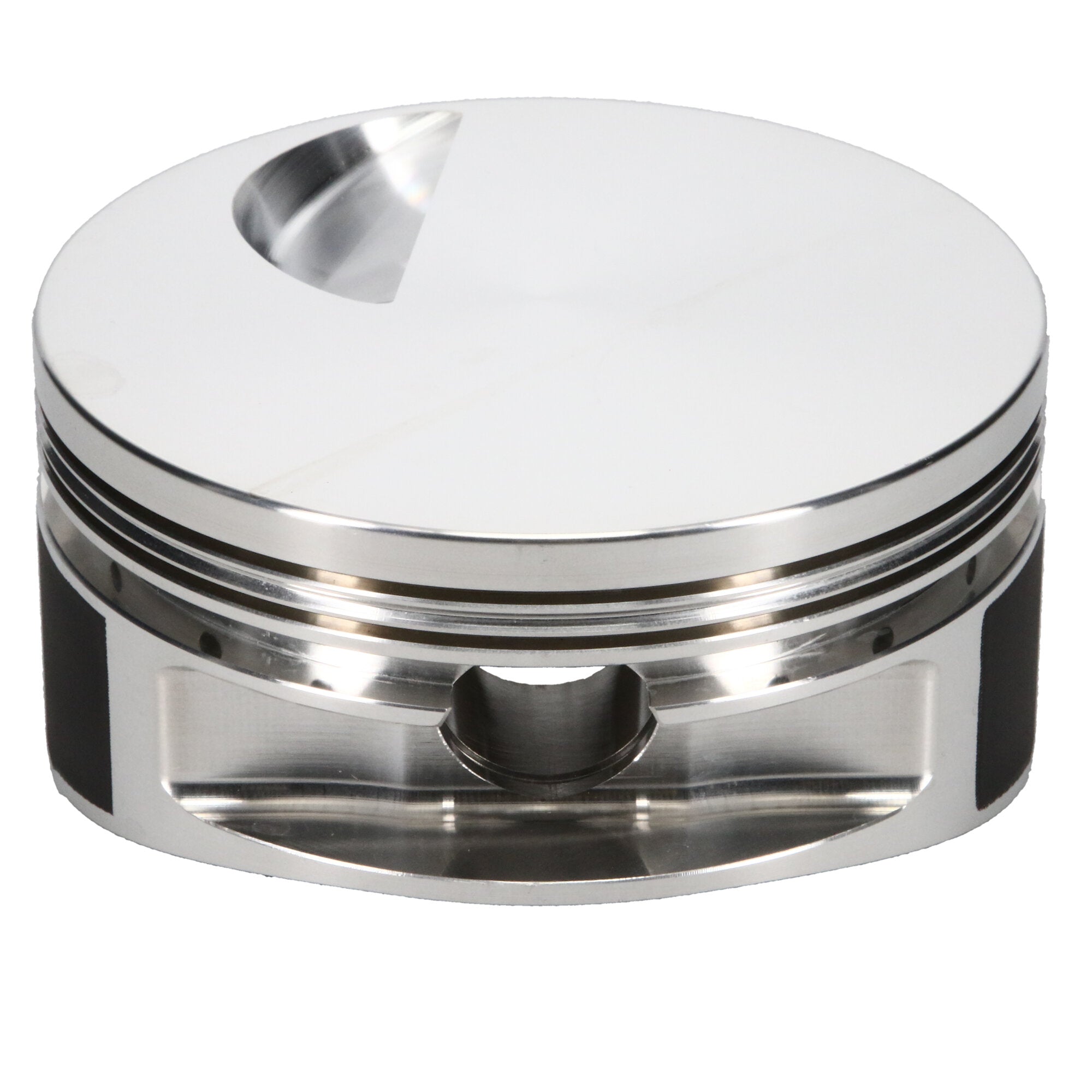

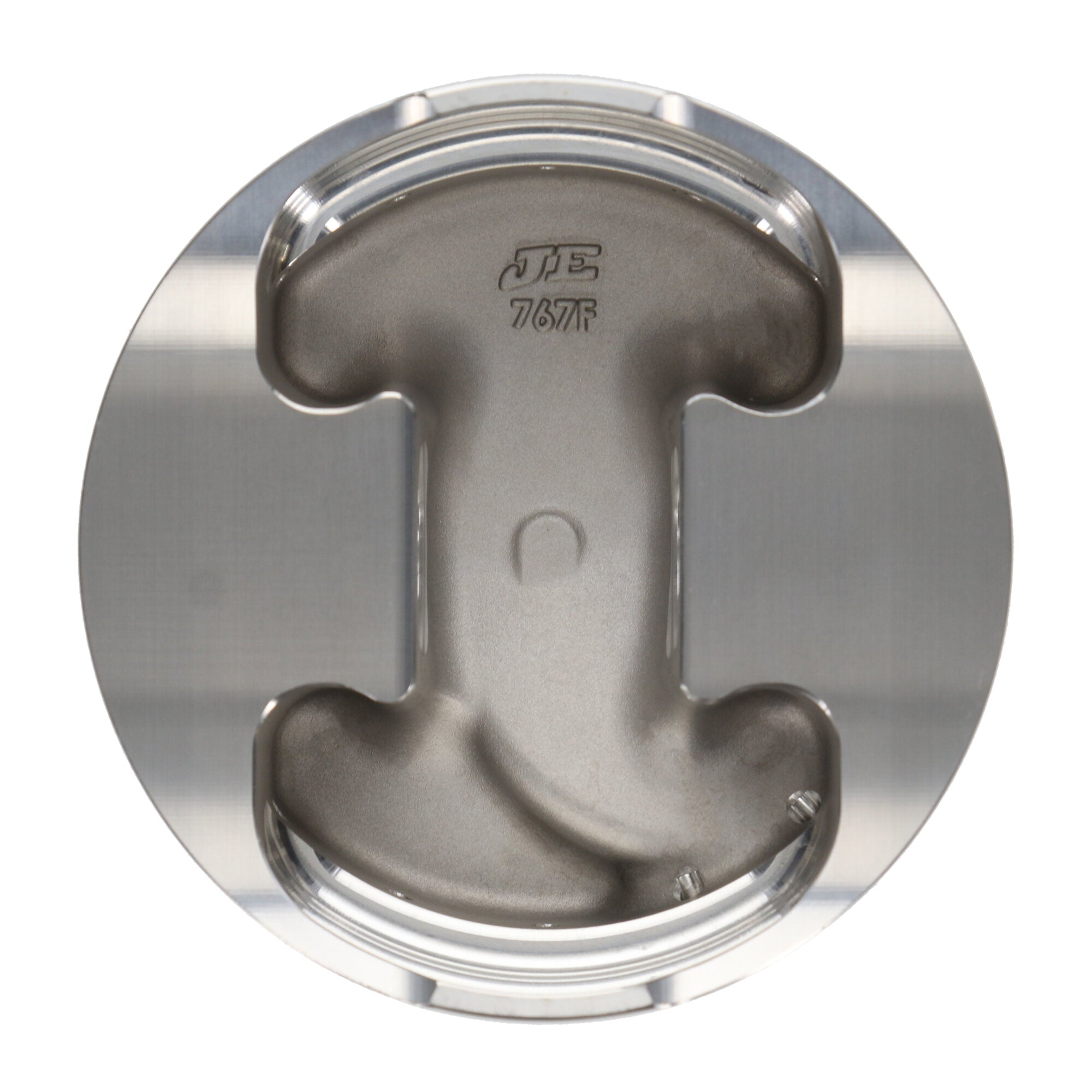

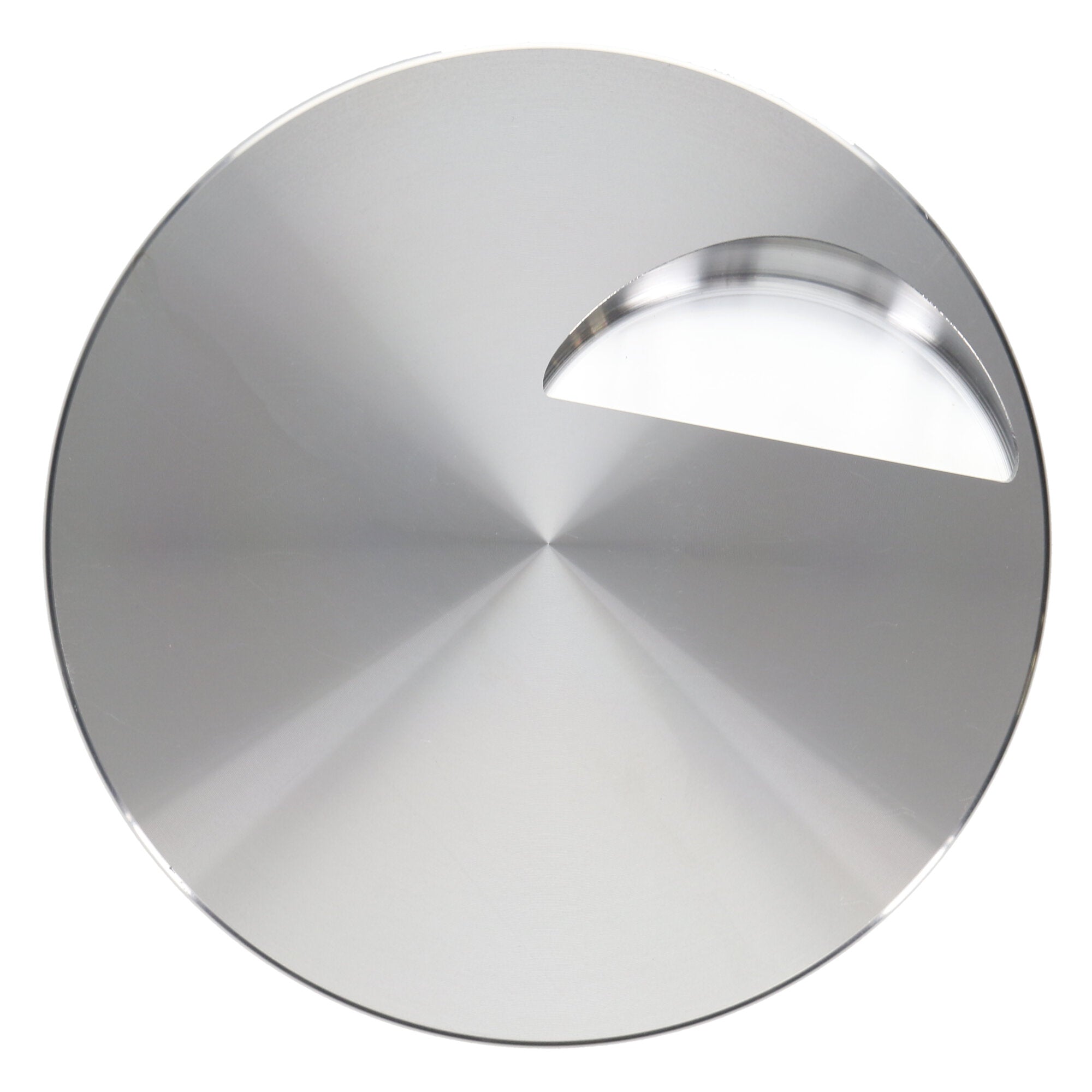

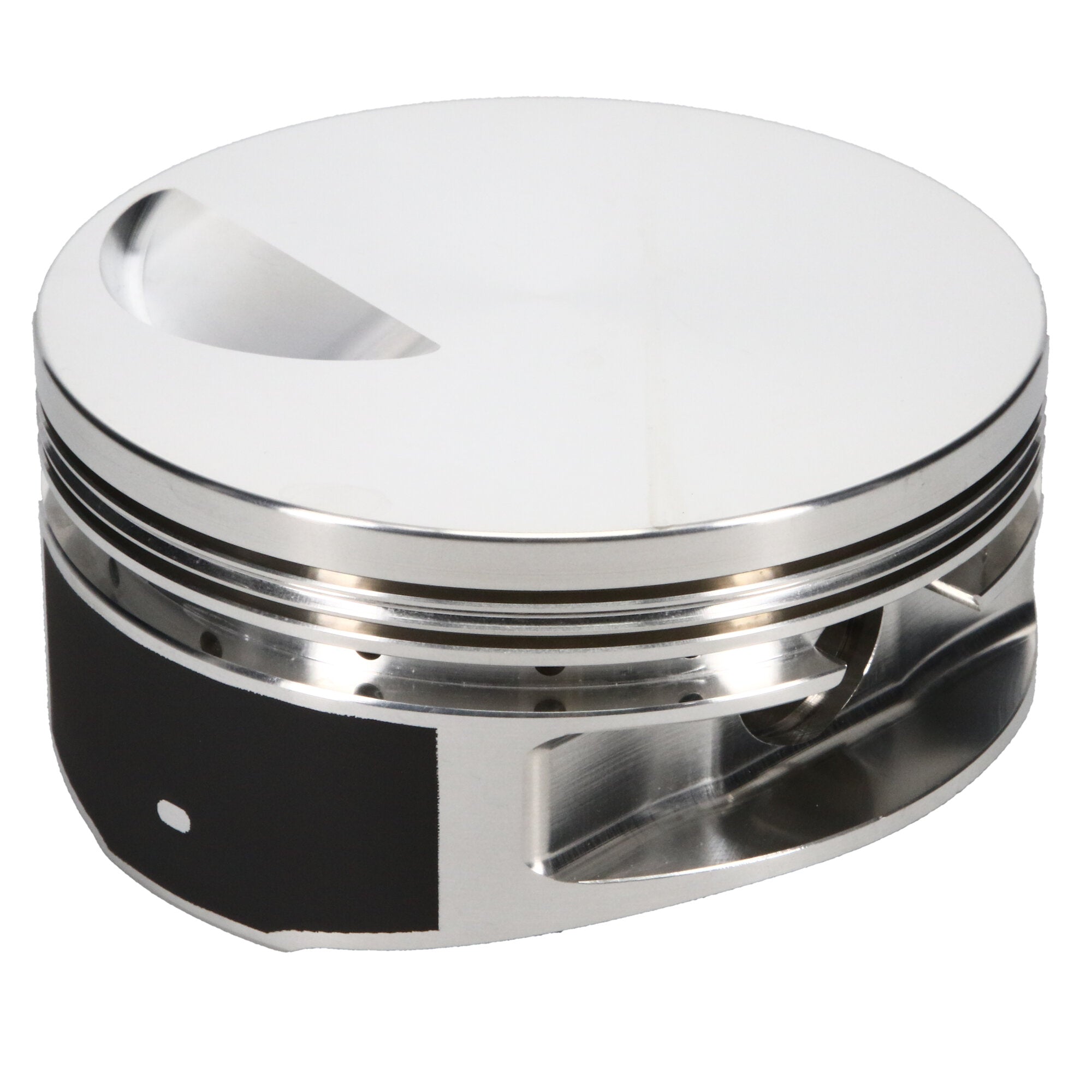

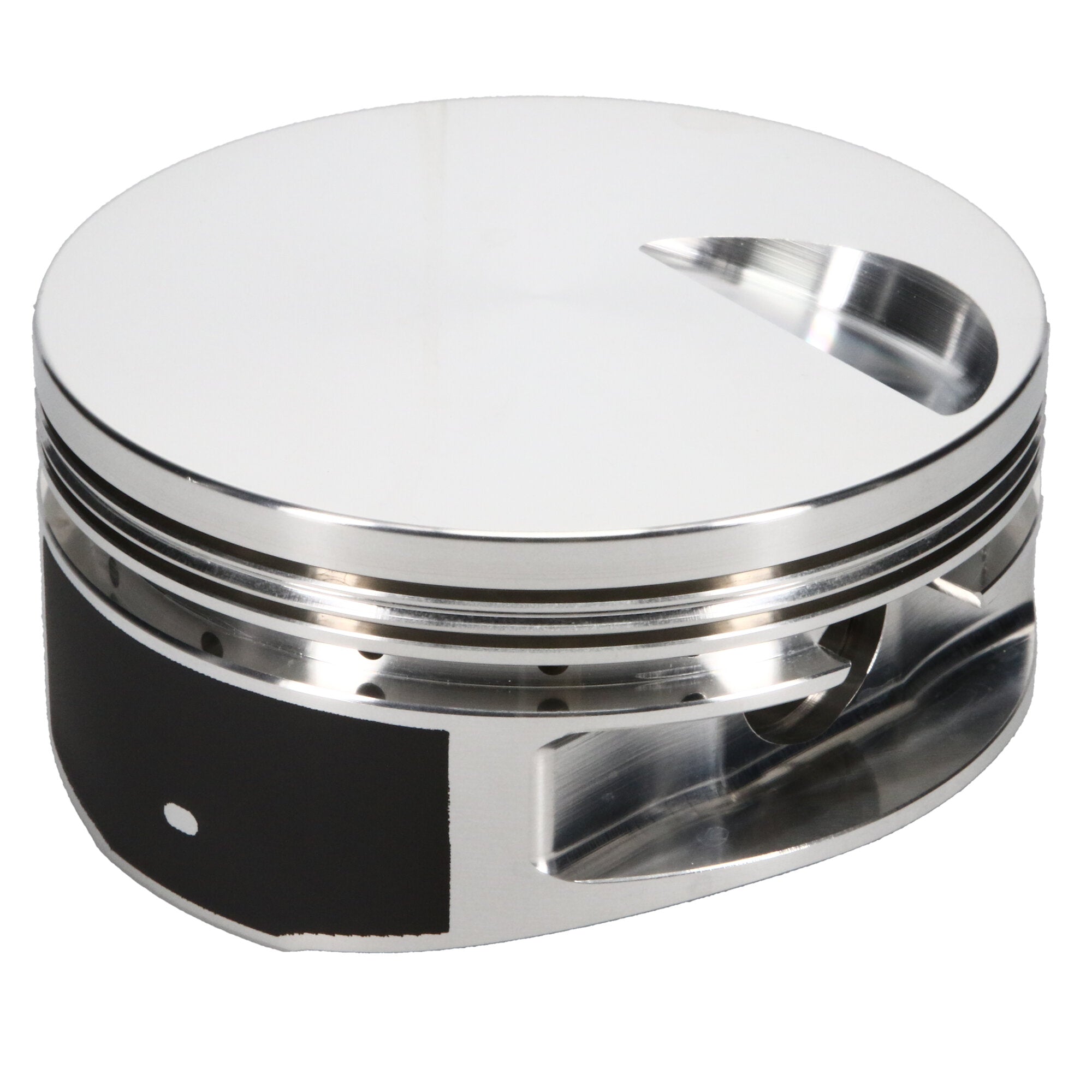

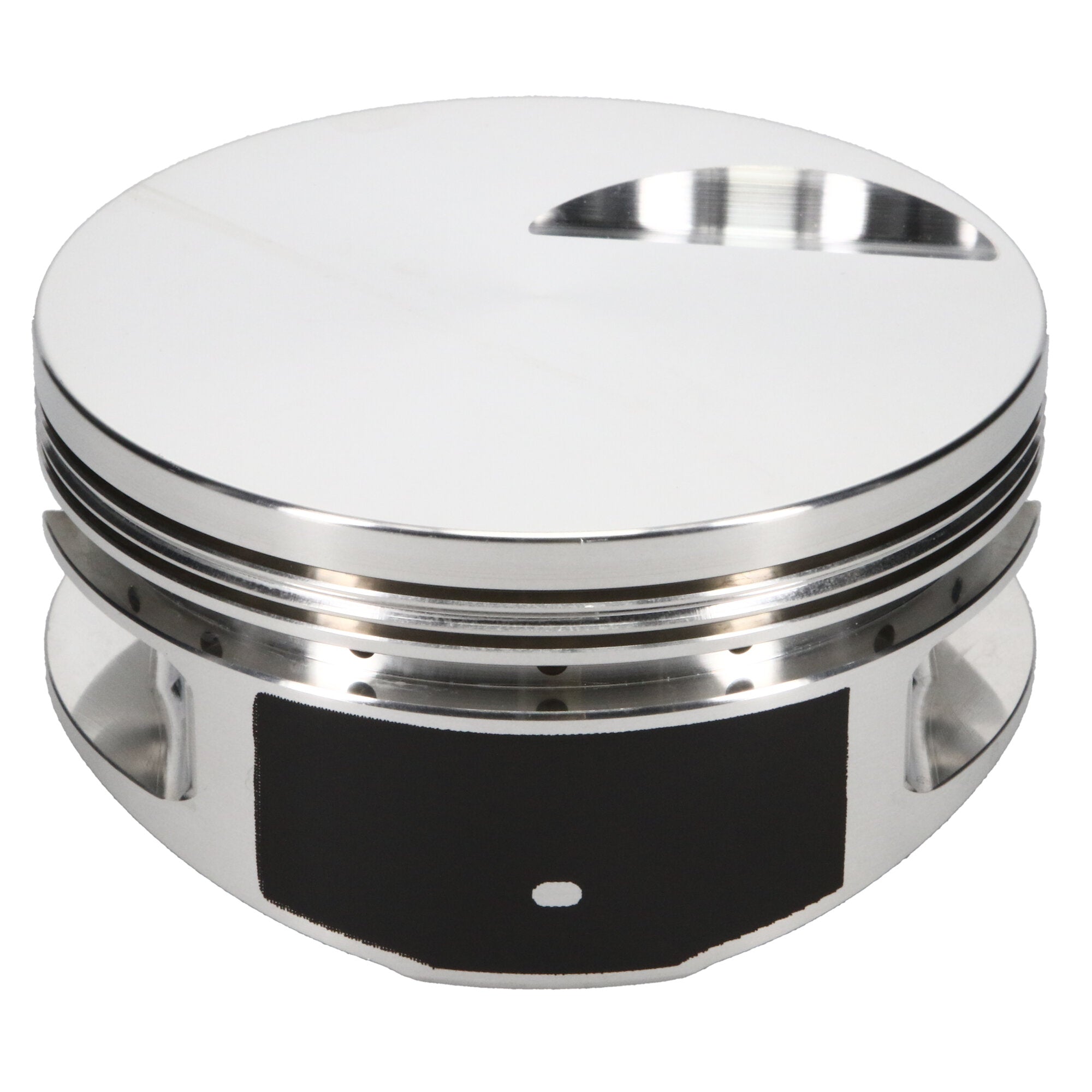

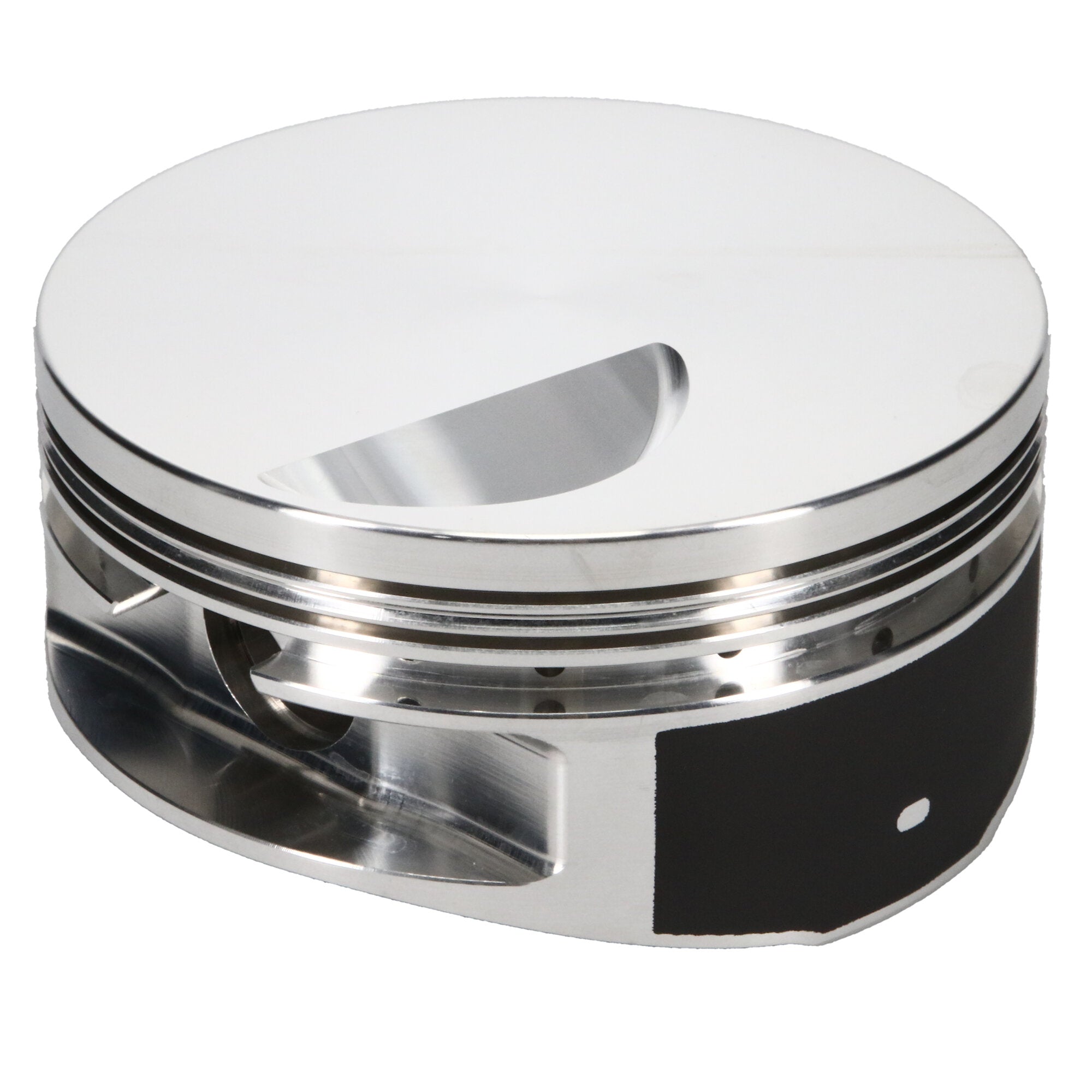

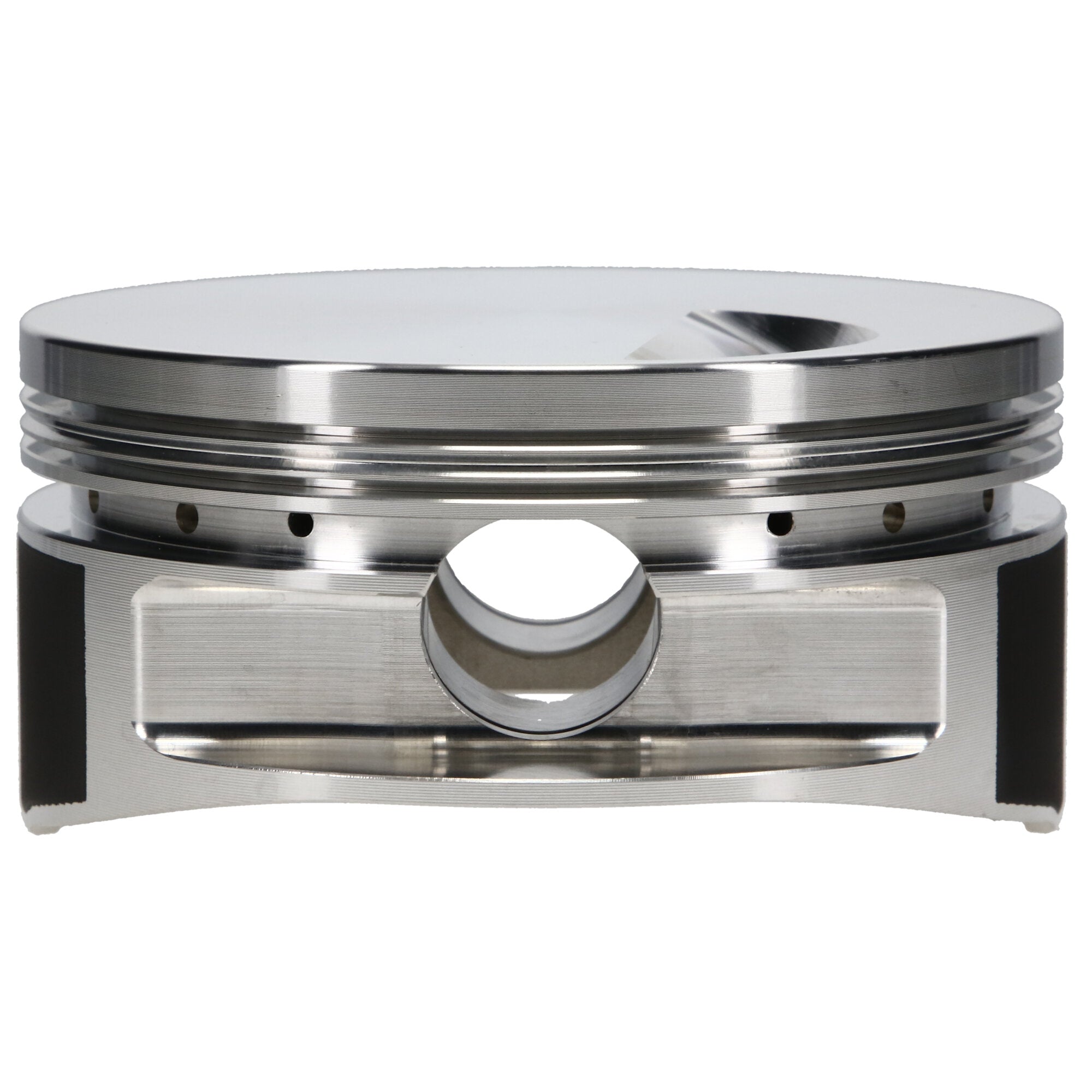

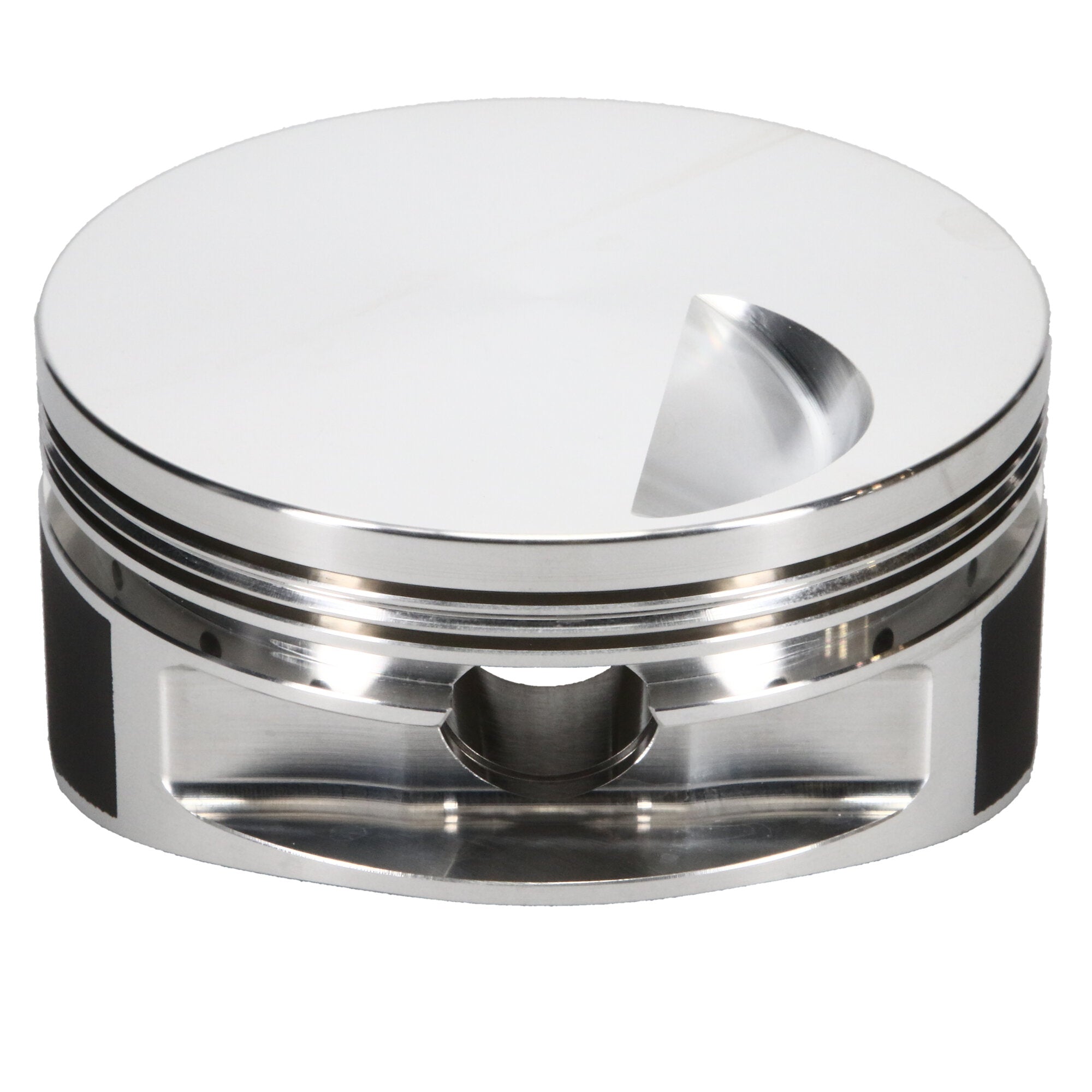

Piston Set, 2618, Flat Top, 4.466 Bore, 1.645 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.466 in. Bore, 1.645 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 502, 4.466 Bore, Flat, Set of 8 |
| Forging Type |
Round |
| Prop 65 Yes/No |
Yes |
| Engine Type |
ICE |
| Piston Head Type |
Flat |
| Out of Stock Message |
Call for Availability |
| Piston Pin Length |
2.930 |
| Piston Series |
JE Pistons |
| Second Compression Ring Thickness |
0.0640 |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.466 in. Bore - 1.645 in. CH, -3.00 CC |
| Ringset Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Piston Pin Wall Thickness |
0.180 |
| Compression Height |
1.645 |
| Add-On |
J100S8-4470-5 |
| Product Market |
Domestic |
| Prop 65 (C, R or CR) |
CR |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Make |
CHEVROLET |
| Add-On |
990-042-CS |
| Cylinder Head |
OPEN CHAMBER |
| Product Type |
Engine Piston Kit |
| Piston Volume |
-3.00 |
| Bore Diameter |
4.466 |
| Piston Pin Outside Diameter |
0.990 |
| Piston Quantity |
8 |
| Piston Average Weight |
682 |
| Add-On |
990-2930-18-51S |
| Oil Ring Thickness |
0.188 |
| Industry |
Automotive |
| Piston Pin Material |
5115 |
| Engine |
Big Block |
| Piston Material |
2618 |
| Wrist Pin Wall Thickness |
0.180 |
| Ring Set Included |
No |
| Wrist Pin Outer Diameter |
0.990 |
| Engine - Web |
Big Block |
| Title |
JE Pistons - Chevrolet, Big Block, 4.466 in. Bore, Piston Kit |
| Top Compression Ring Thickness |
0.0640 |
| Wrist Pin Length |
2.930 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
18.0000 |
