As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

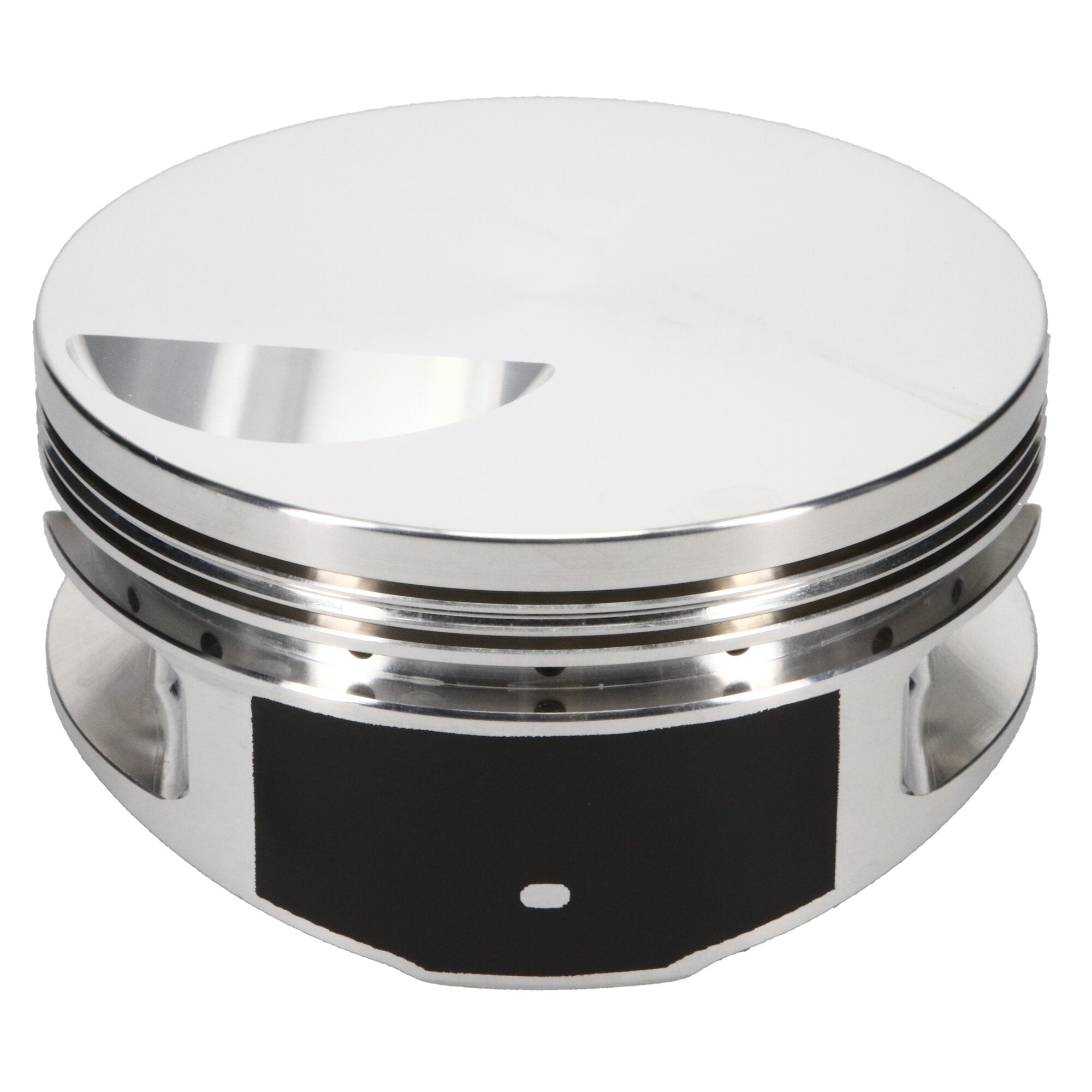

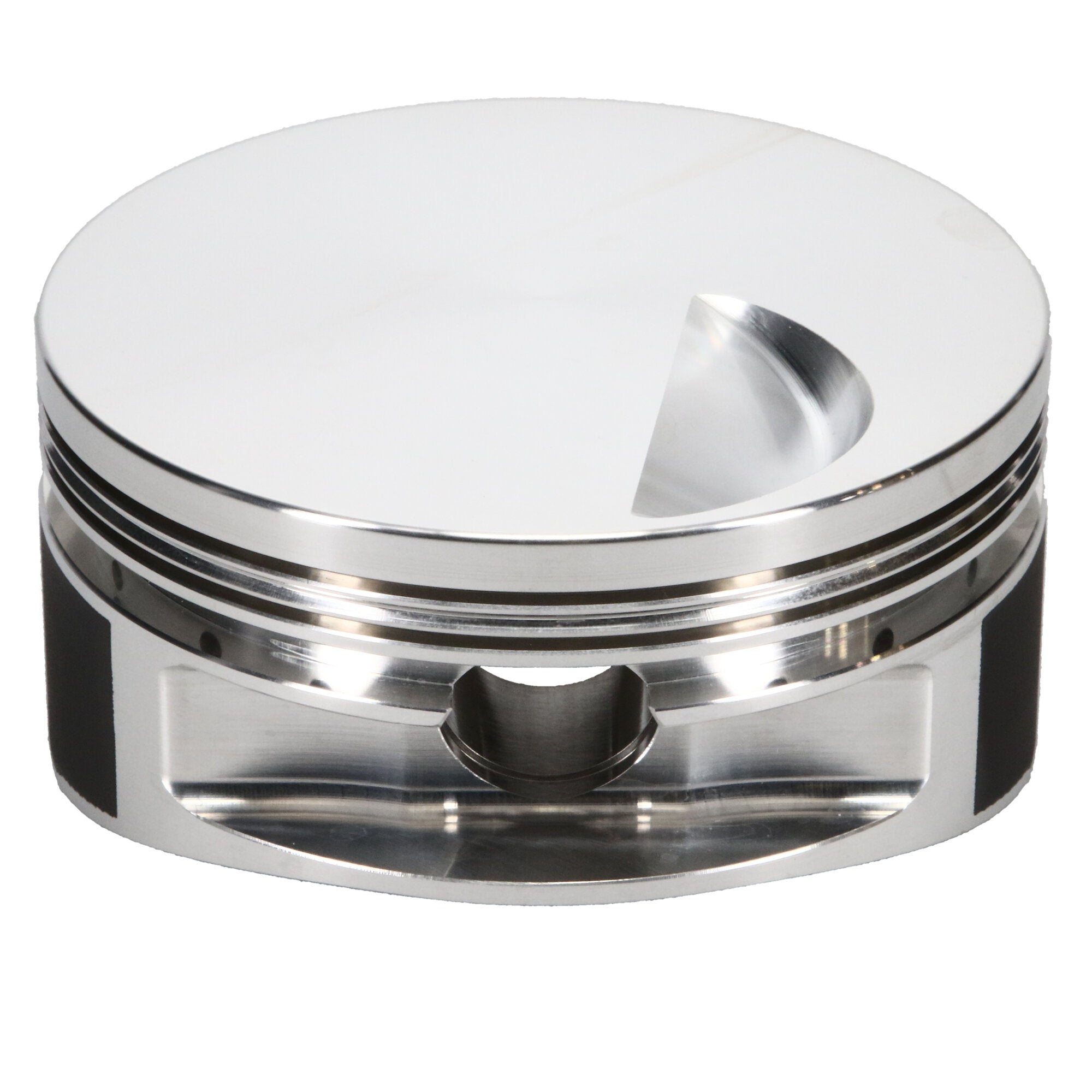

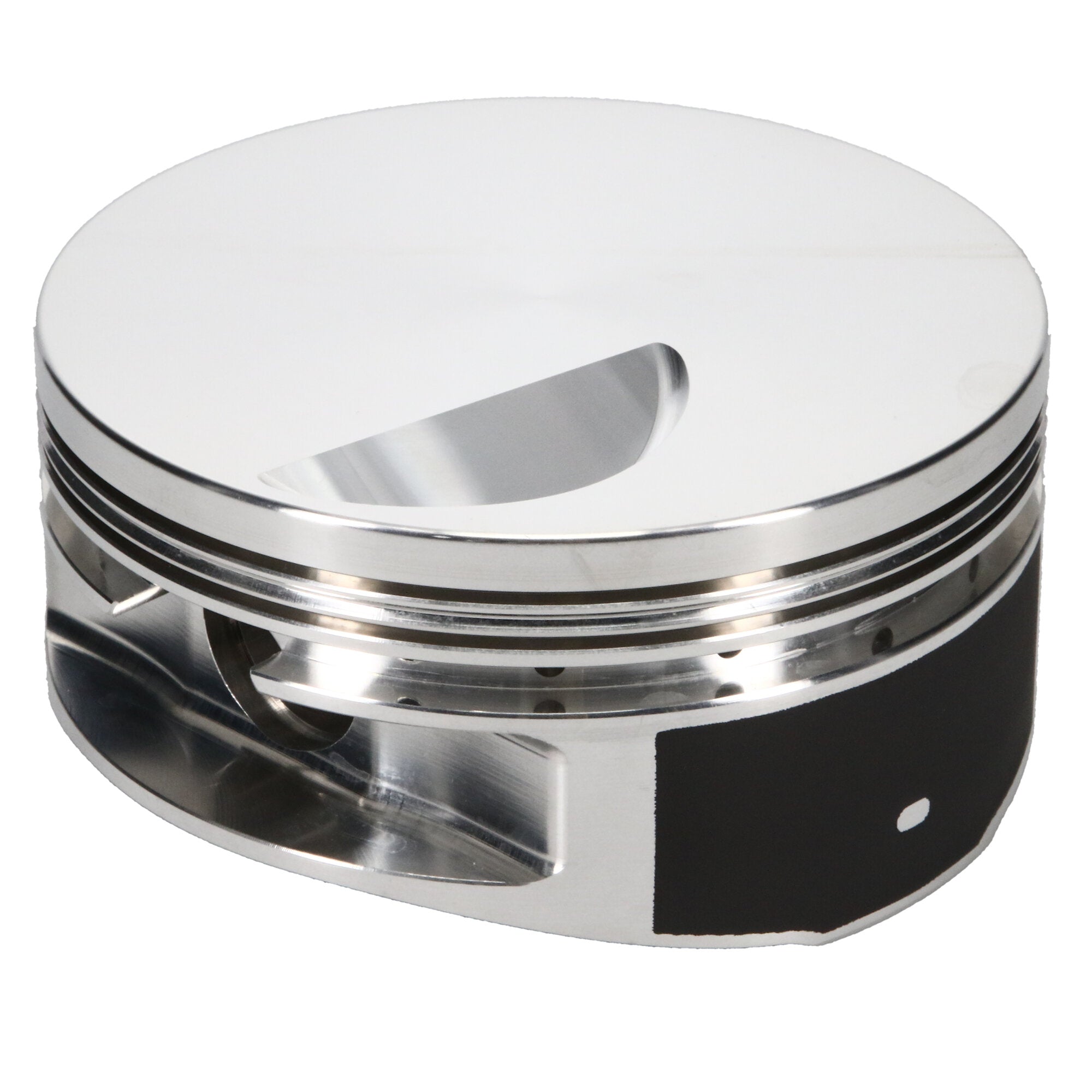

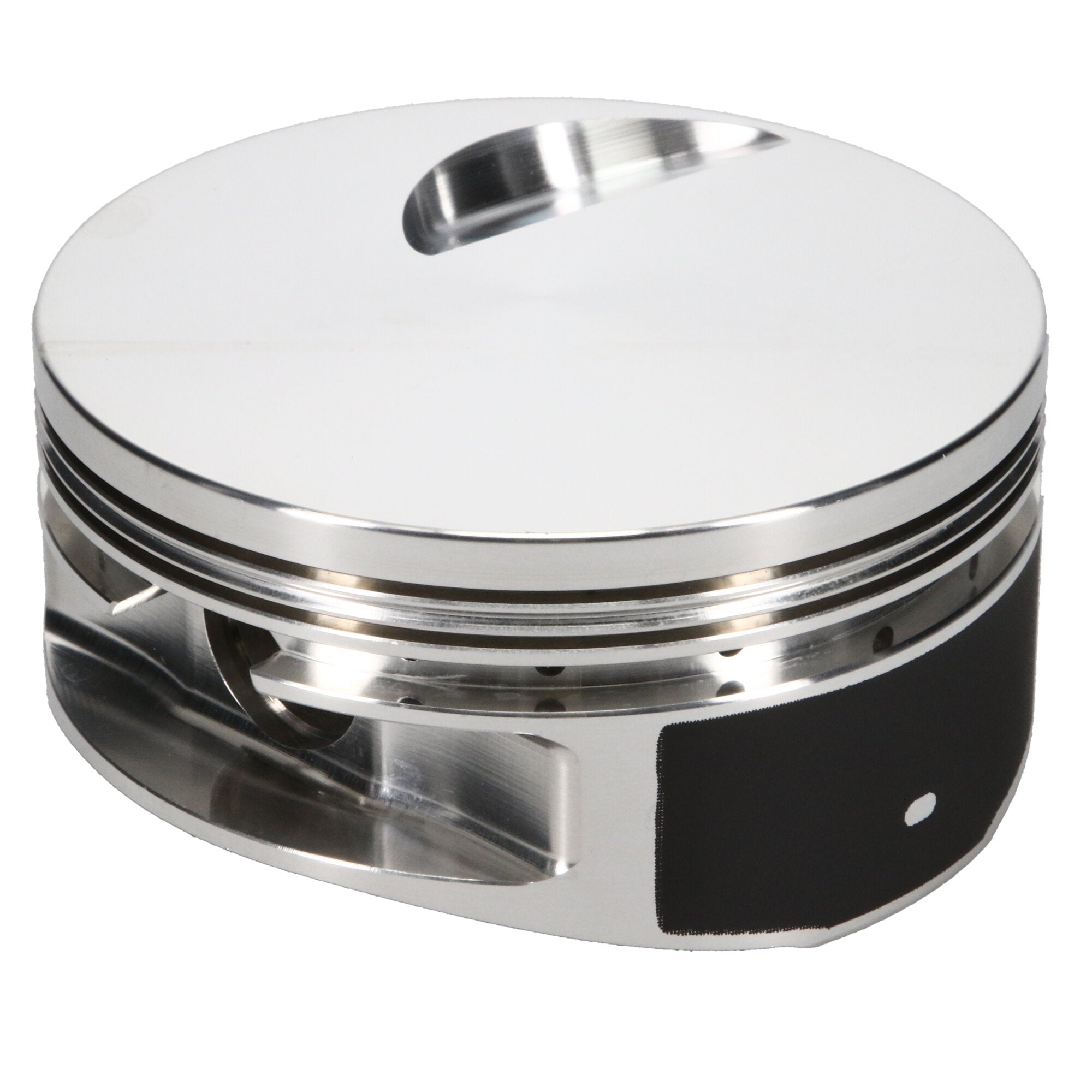

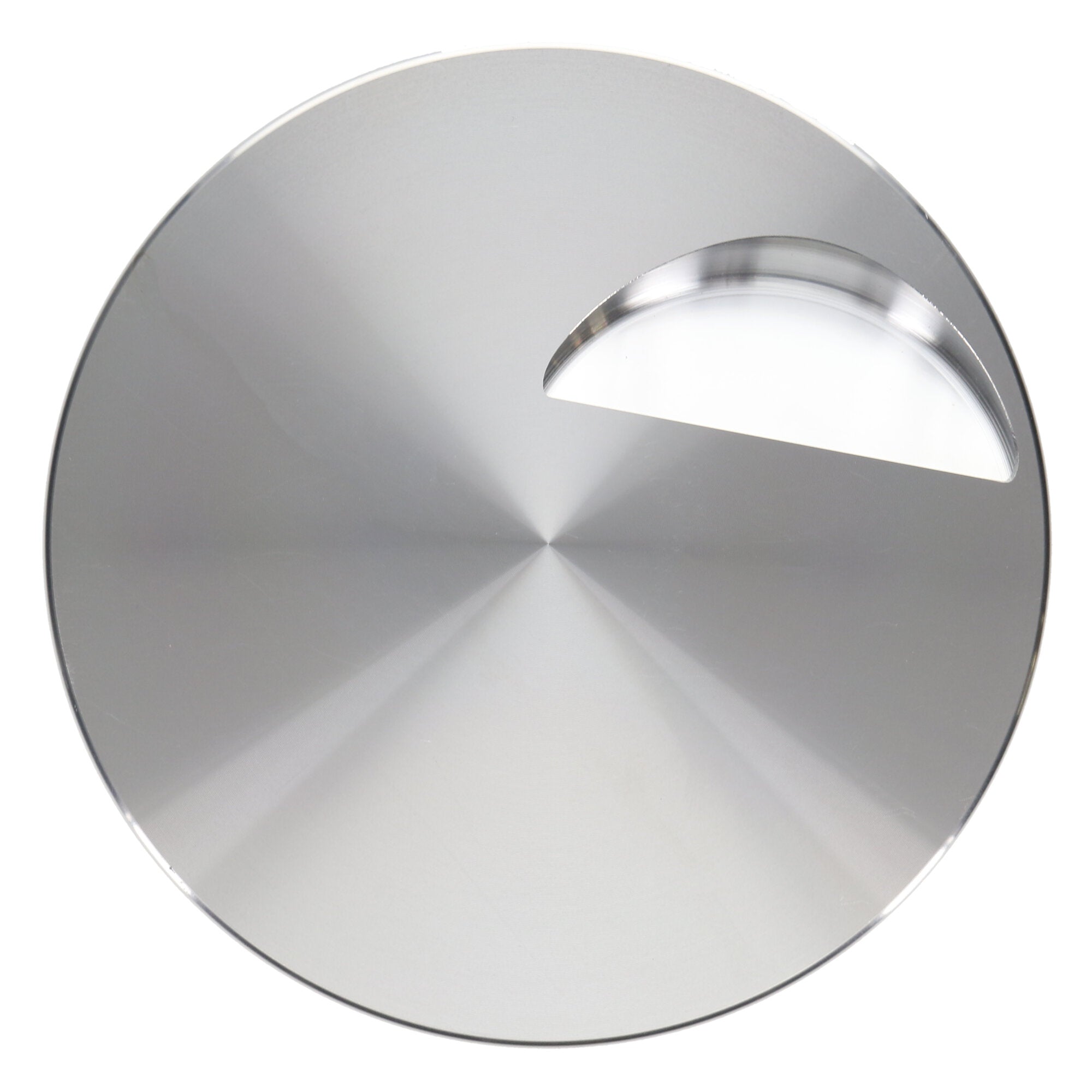

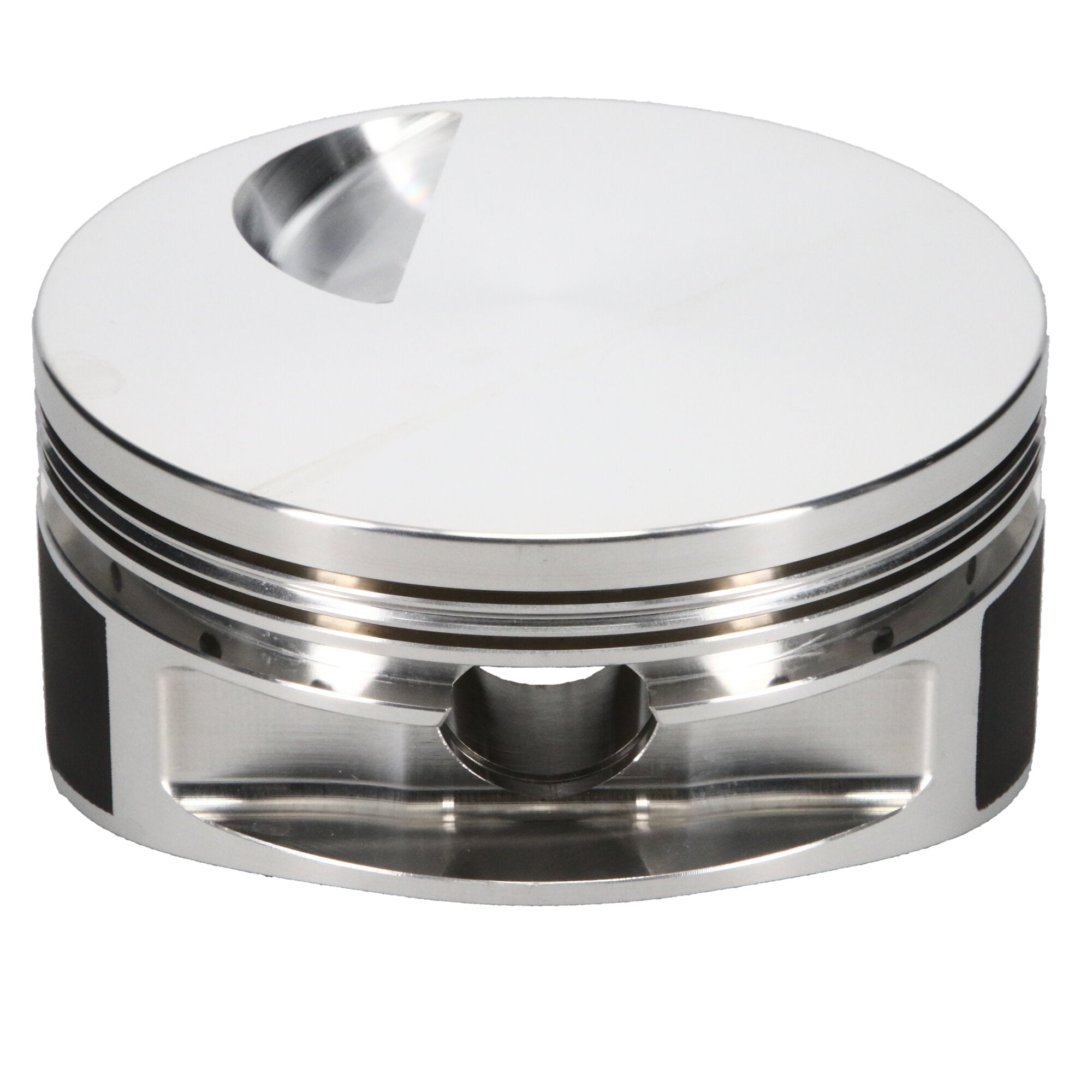

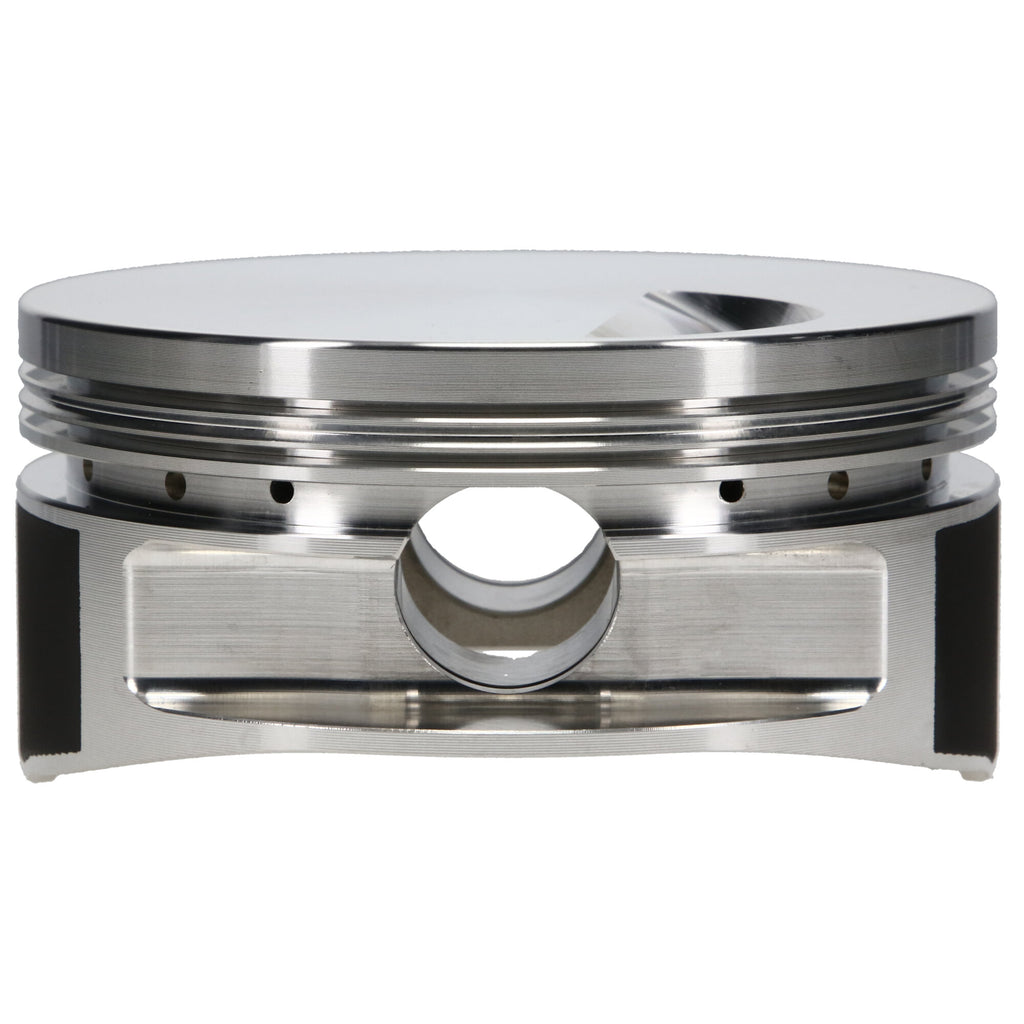

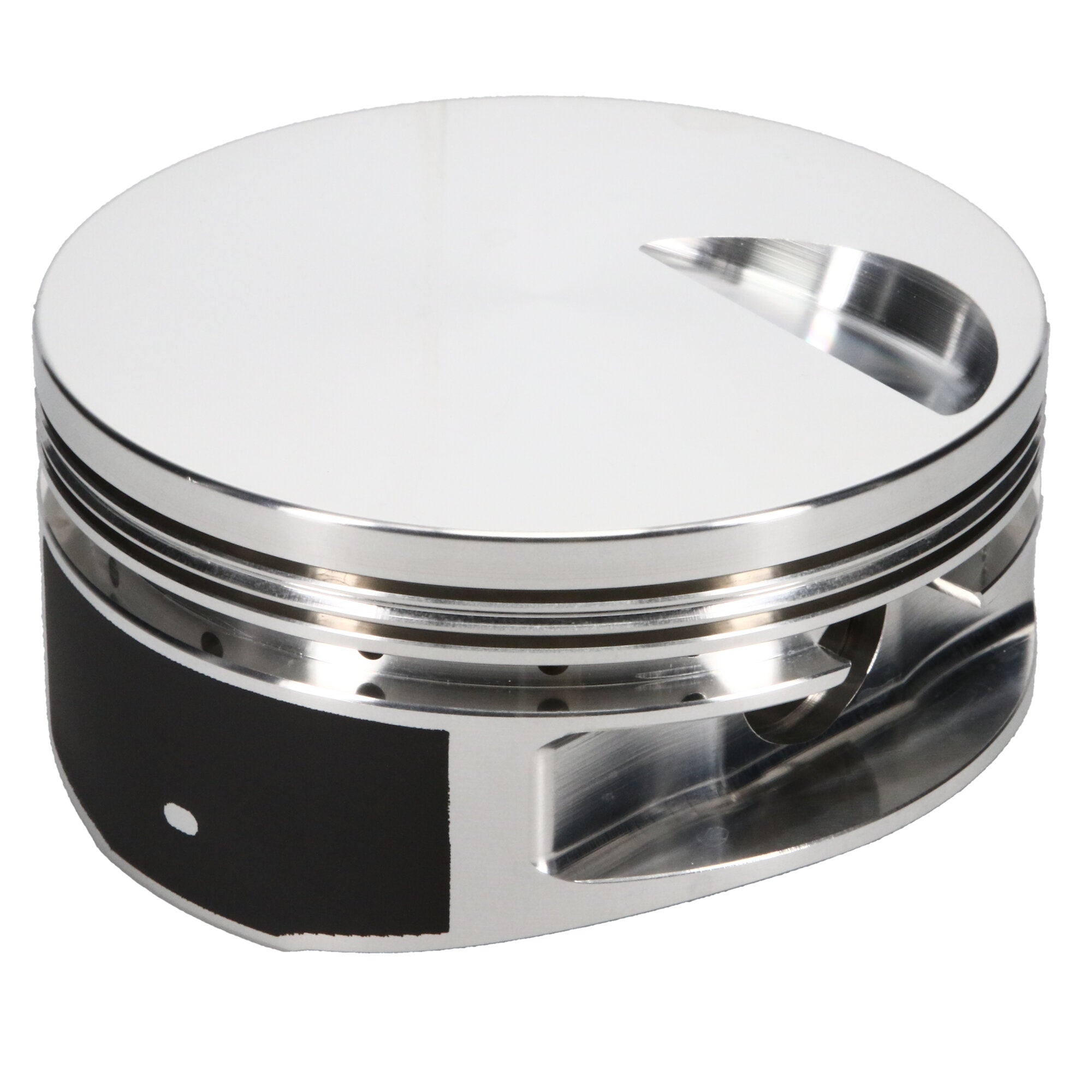

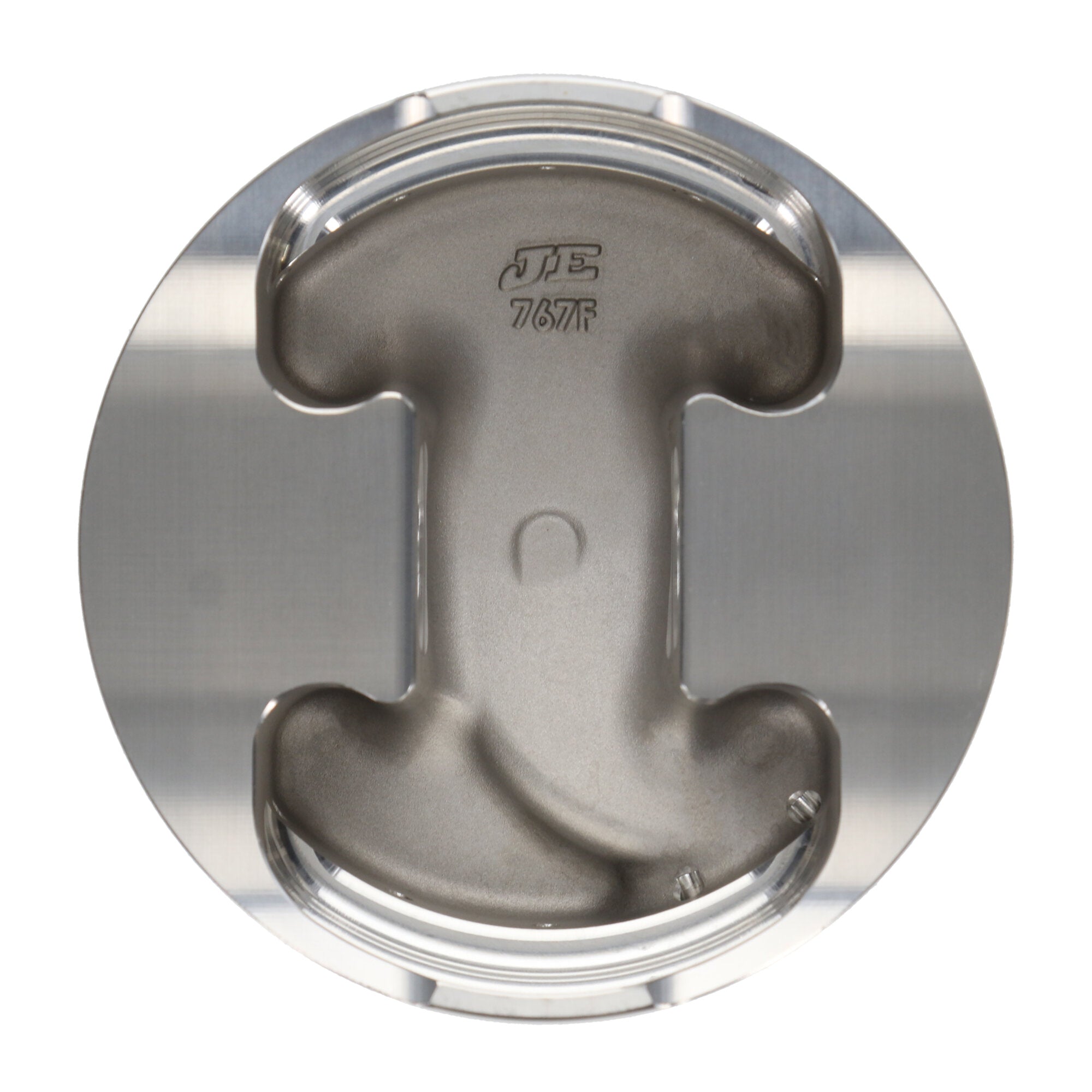

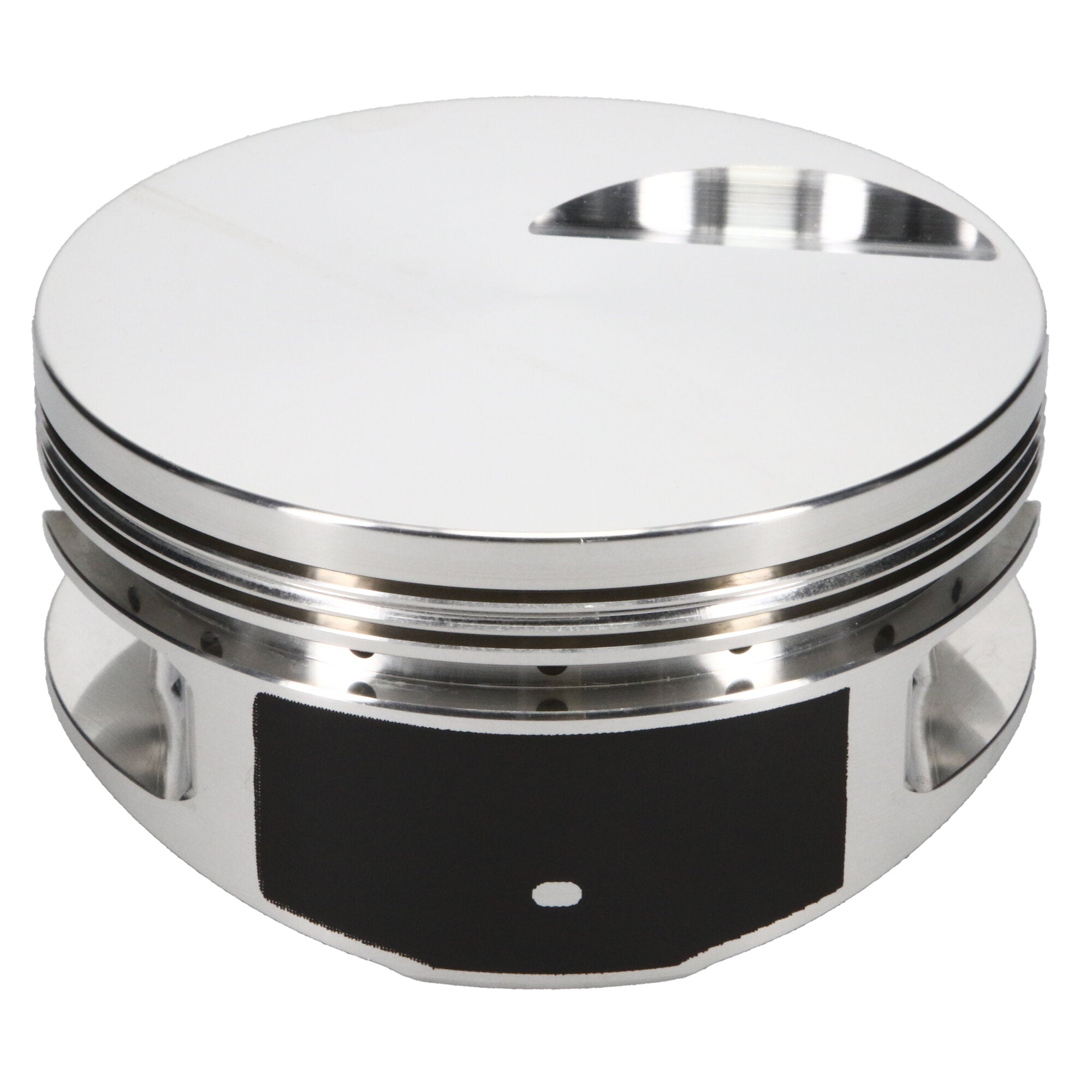

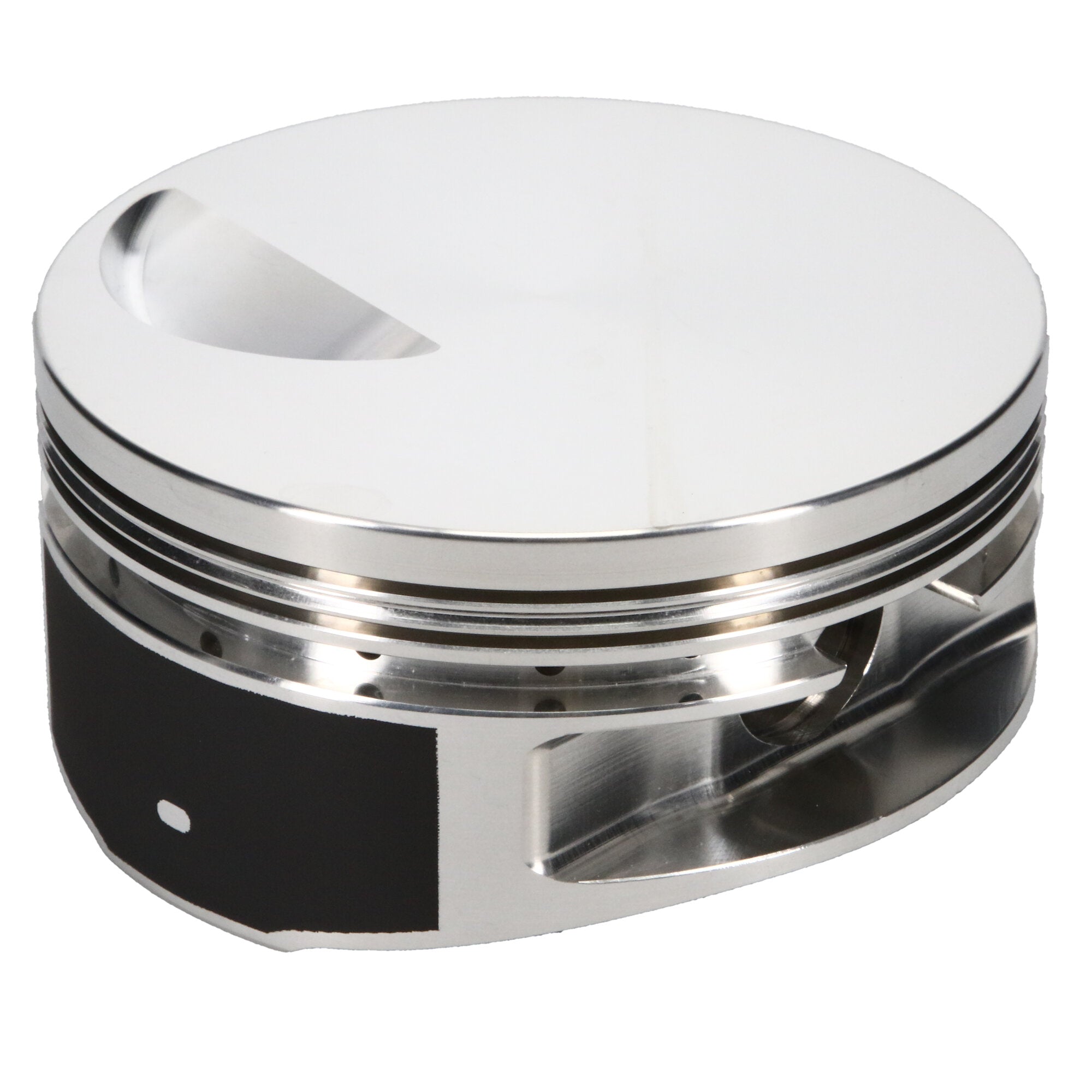

Piston Set, 2618, Flat Top, 4.310 Bore, 1.270 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.310 in. Bore, 1.270 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 502, 4.310 Bore, Flat, Set of 8 |
| Second Compression Ring Thickness |
0.0640 |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.310 in. Bore - 1.270 in. CH, -3.00 CC |
| Make - Web |
Chevrolet |
| Engine |
Big Block |
| Add-On |
990-042-CS |
| Add-On |
J100F8-4310-5 |
| Ringset Included |
No |
| Add-On |
990-2930-18-51S |
| Out of Stock Message |
Call for Availability |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Head Type |
Flat |
| Prop 65 Yes/No |
Yes |
| Engine Type |
ICE |
| Piston Pin Length |
2.930 |
| Product Type |
Engine Piston Kit |
| Title |
JE Pistons - Chevrolet, Big Block, 4.310 in. Bore, Piston Kit |
| Forging Type |
Round |
| Piston Pin Wall Thickness |
0.180 |
| Product Market |
Domestic |
| Piston Quantity |
8 |
| Piston Pin Material |
5115 |
| Compression Height |
1.270 |
| Industry |
Automotive |
| Oil Ring Thickness |
0.218 |
| Piston Series |
JE Pistons |
| Piston Volume |
-3.00 |
| Piston Pin Outside Diameter |
0.990 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Material |
2618 |
| Engine - Web |
Big Block |
| Wrist Pin Length |
2.930 |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.180 |
| Prop 65 (C, R or CR) |
CR |
| Make |
CHEVROLET |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Bore Diameter |
4.310 |
| Cylinder Head |
OPEN CHAMBER |
| Piston Average Weight |
558 |
| Wrist Pin Outer Diameter |
0.990 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
18.0000 |
