As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Big Block M-6049-SCJ |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

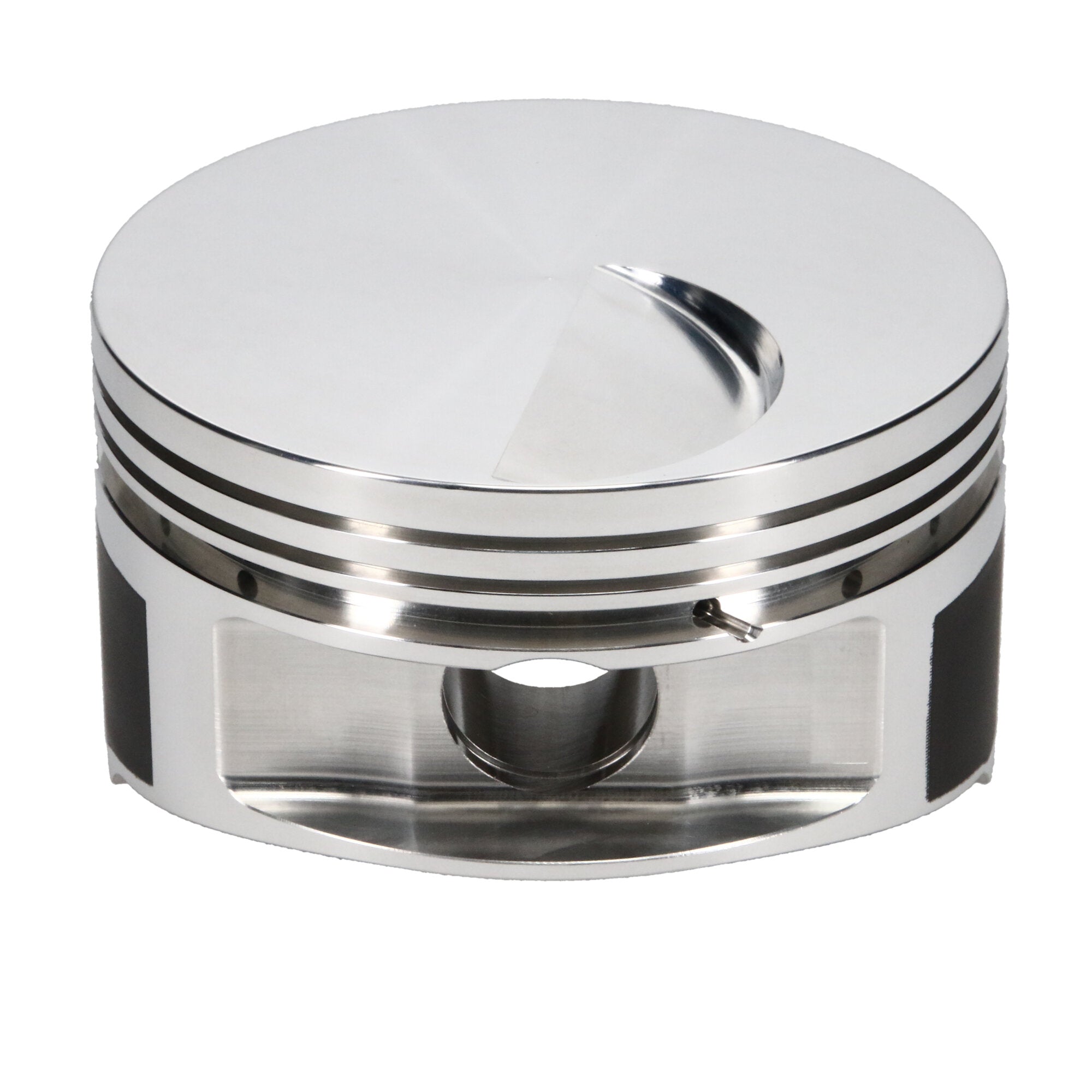

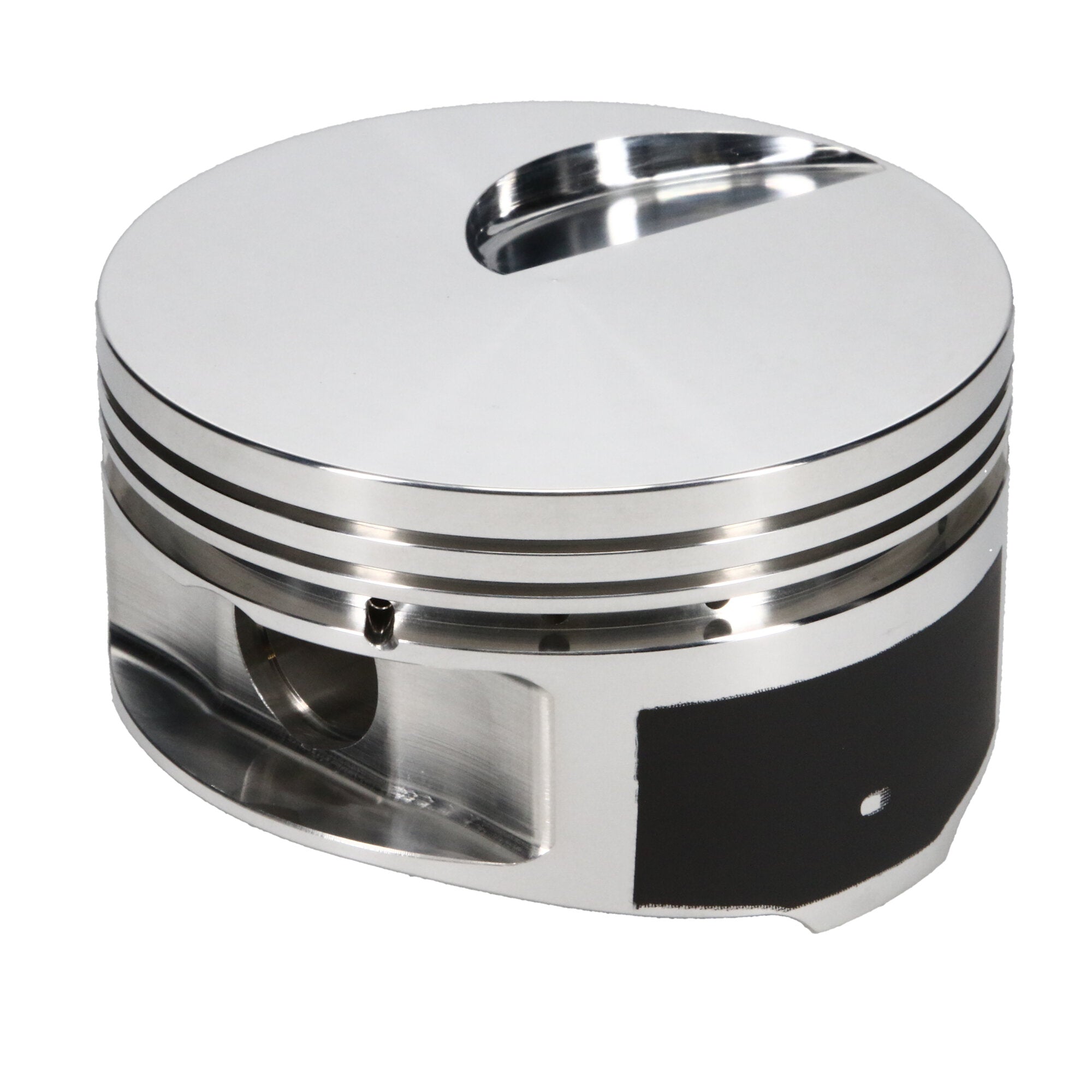

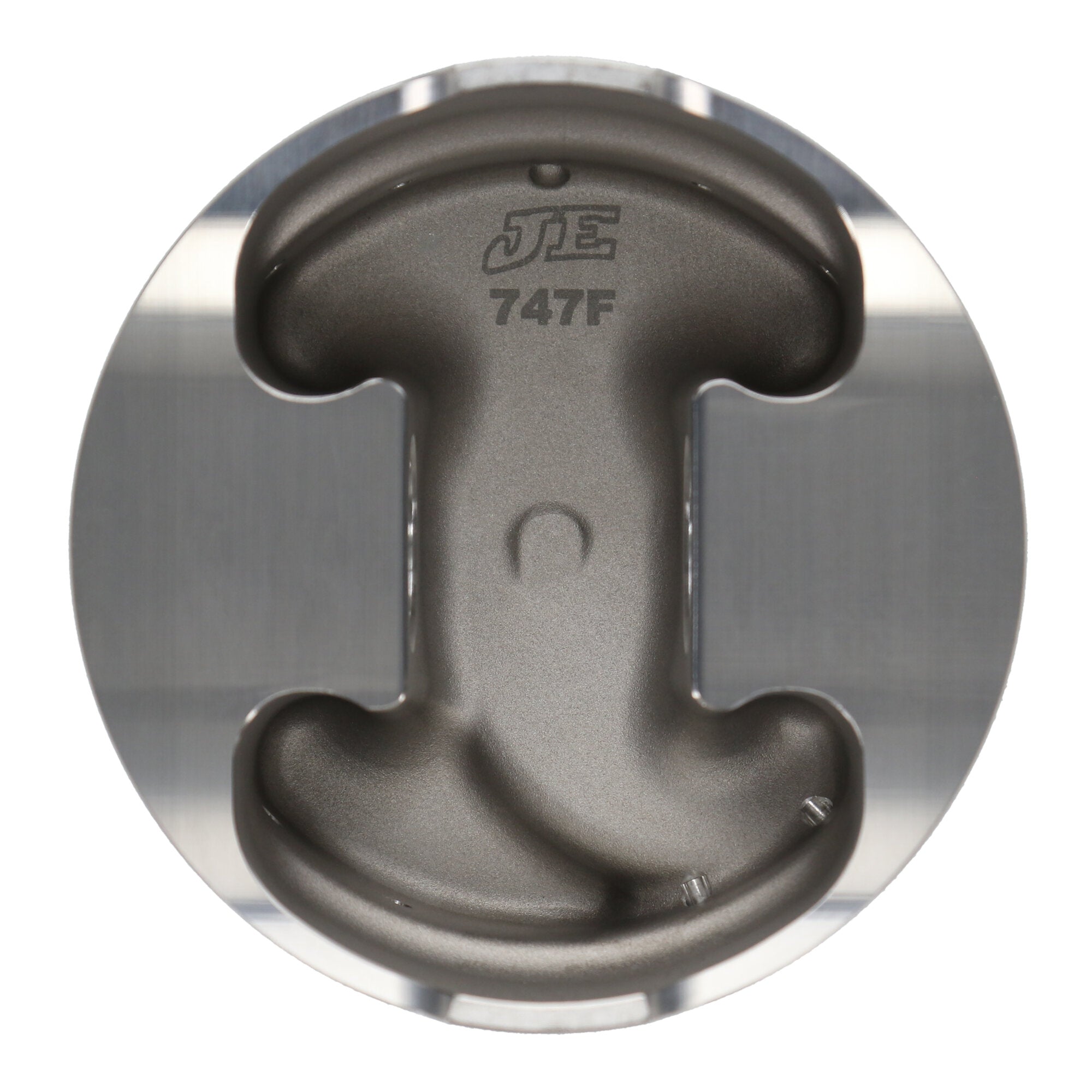

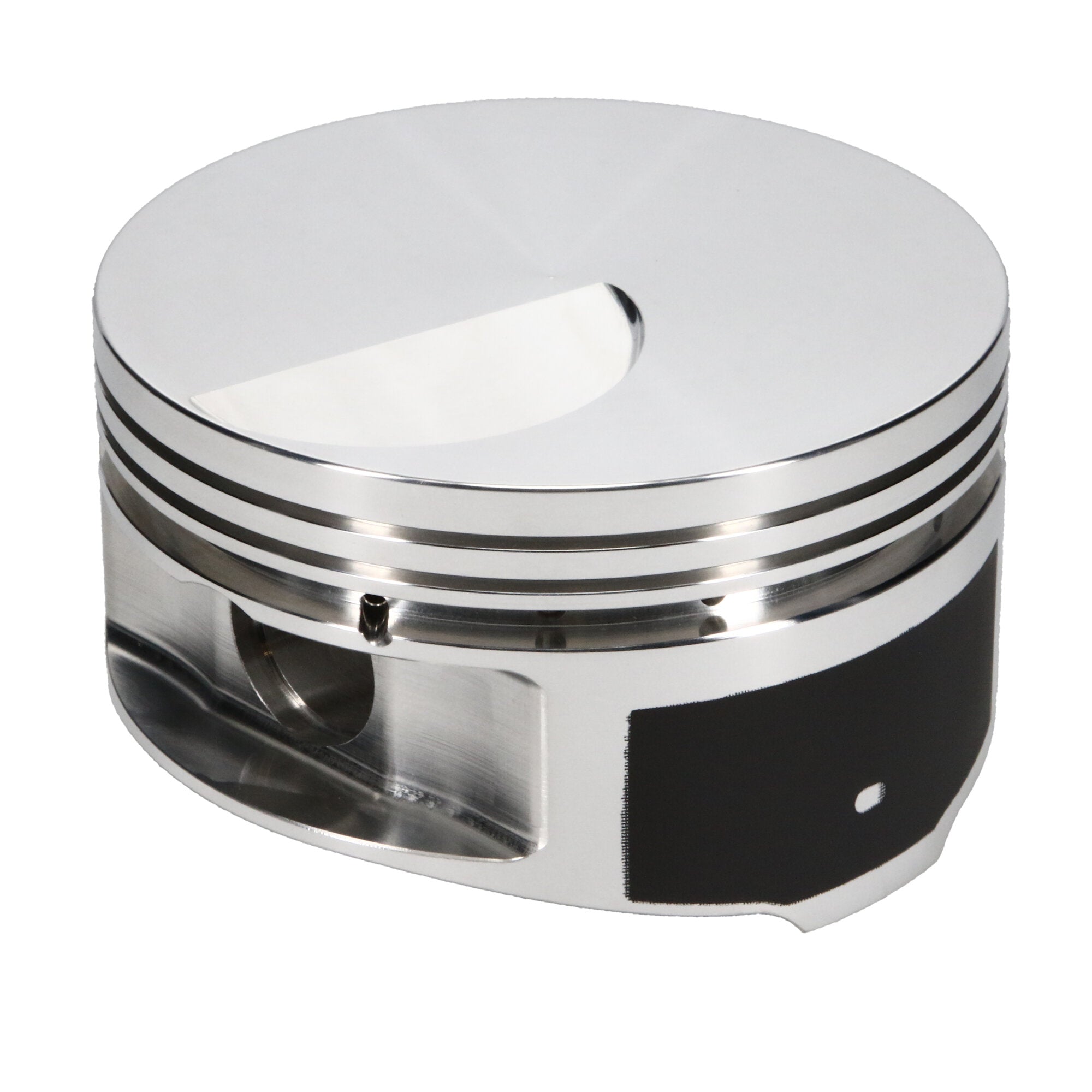

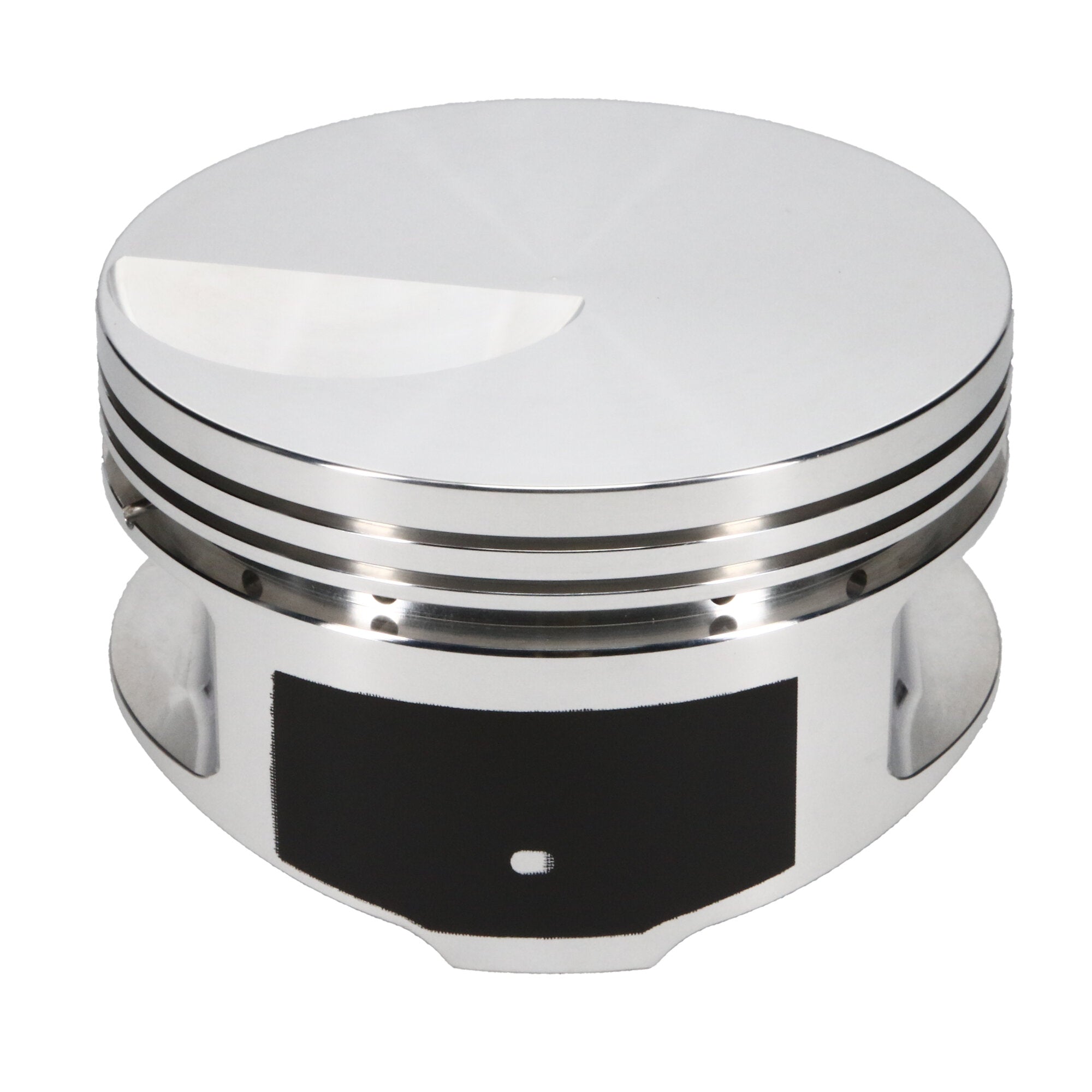

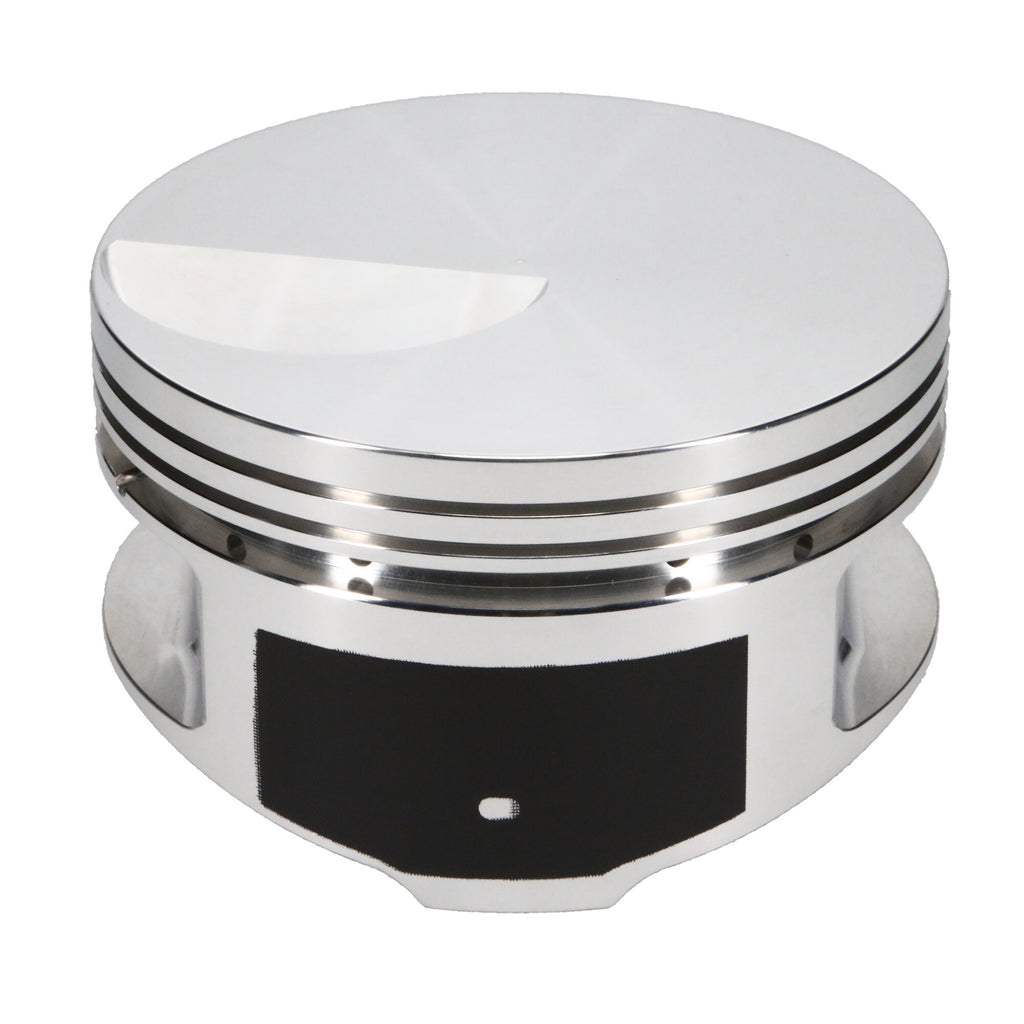

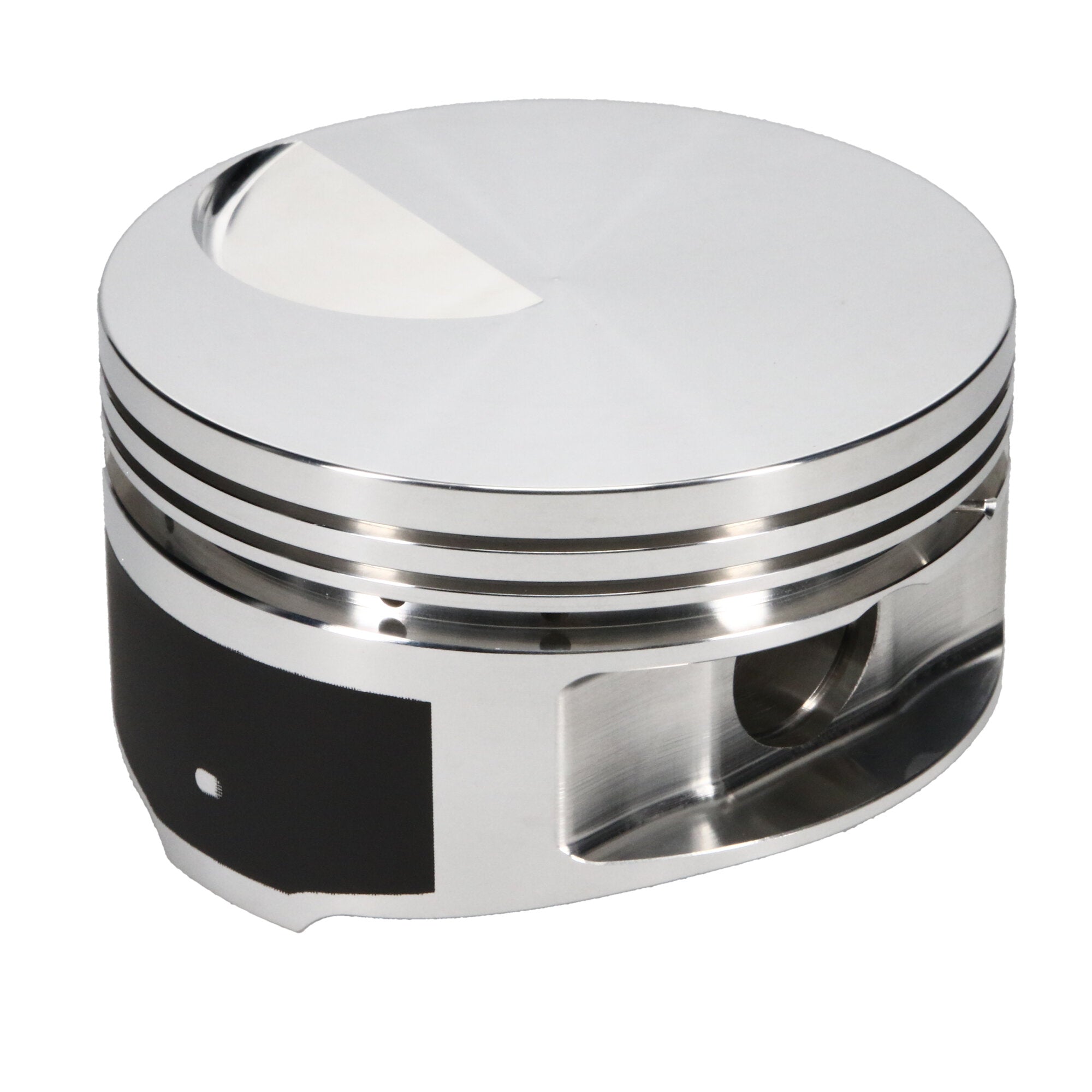

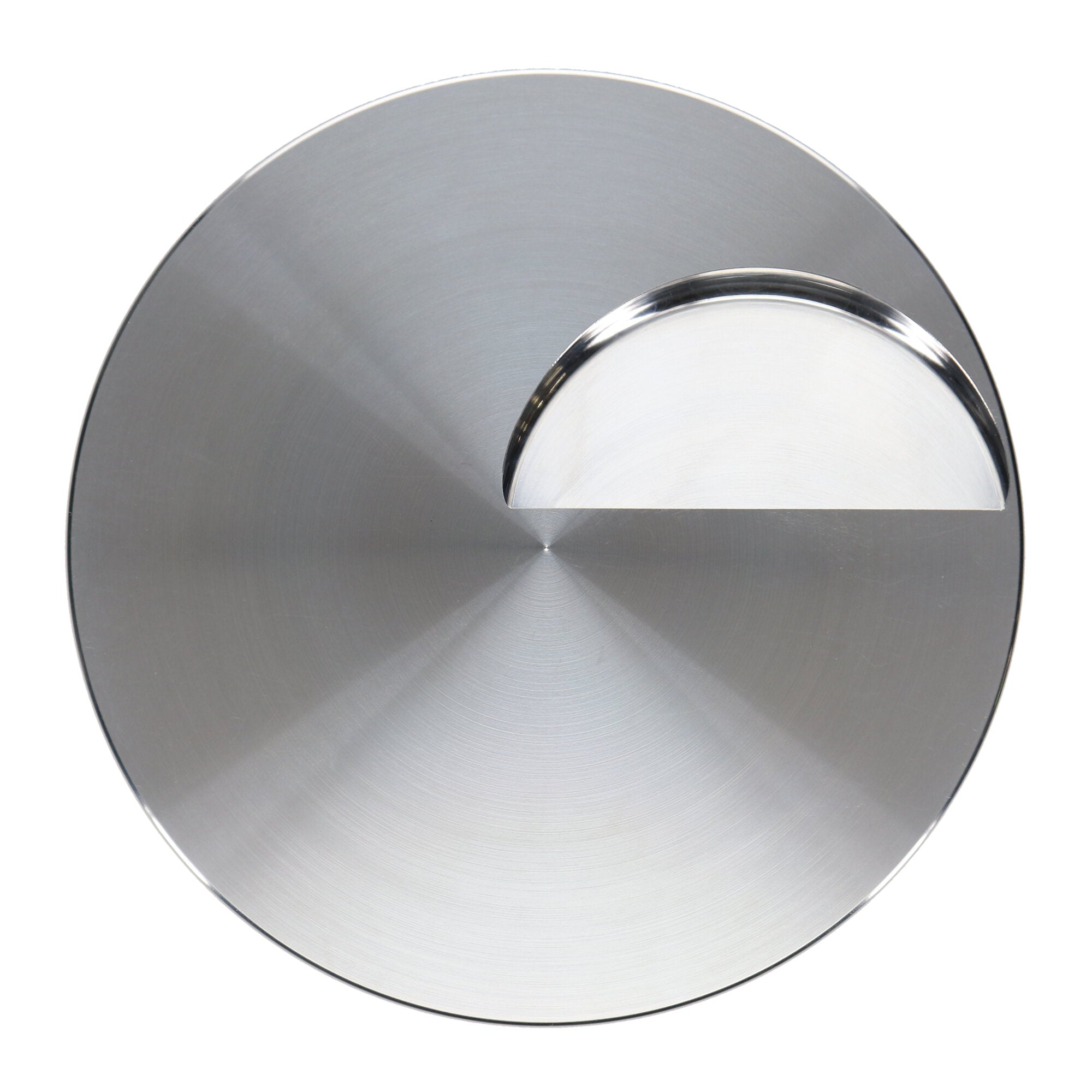

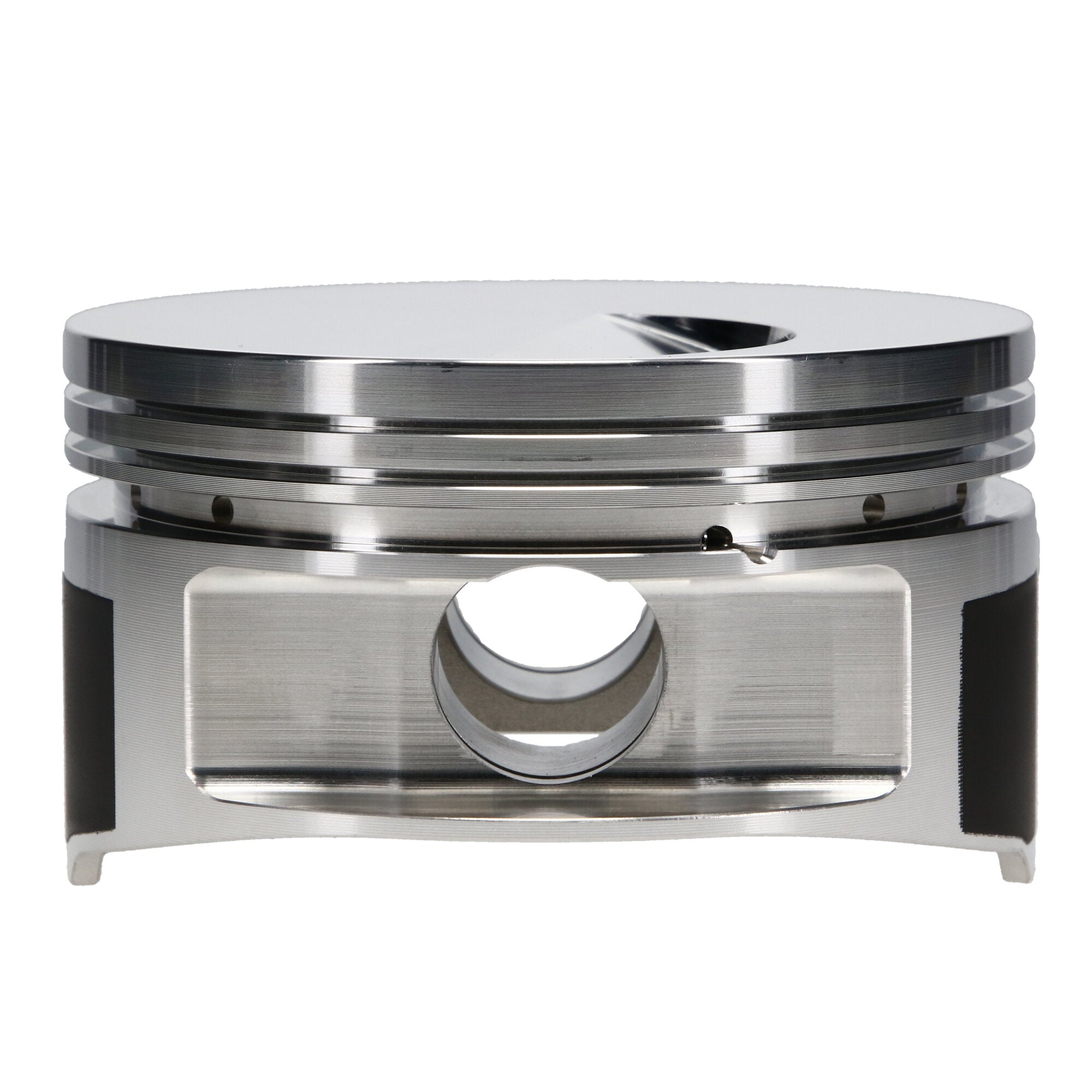

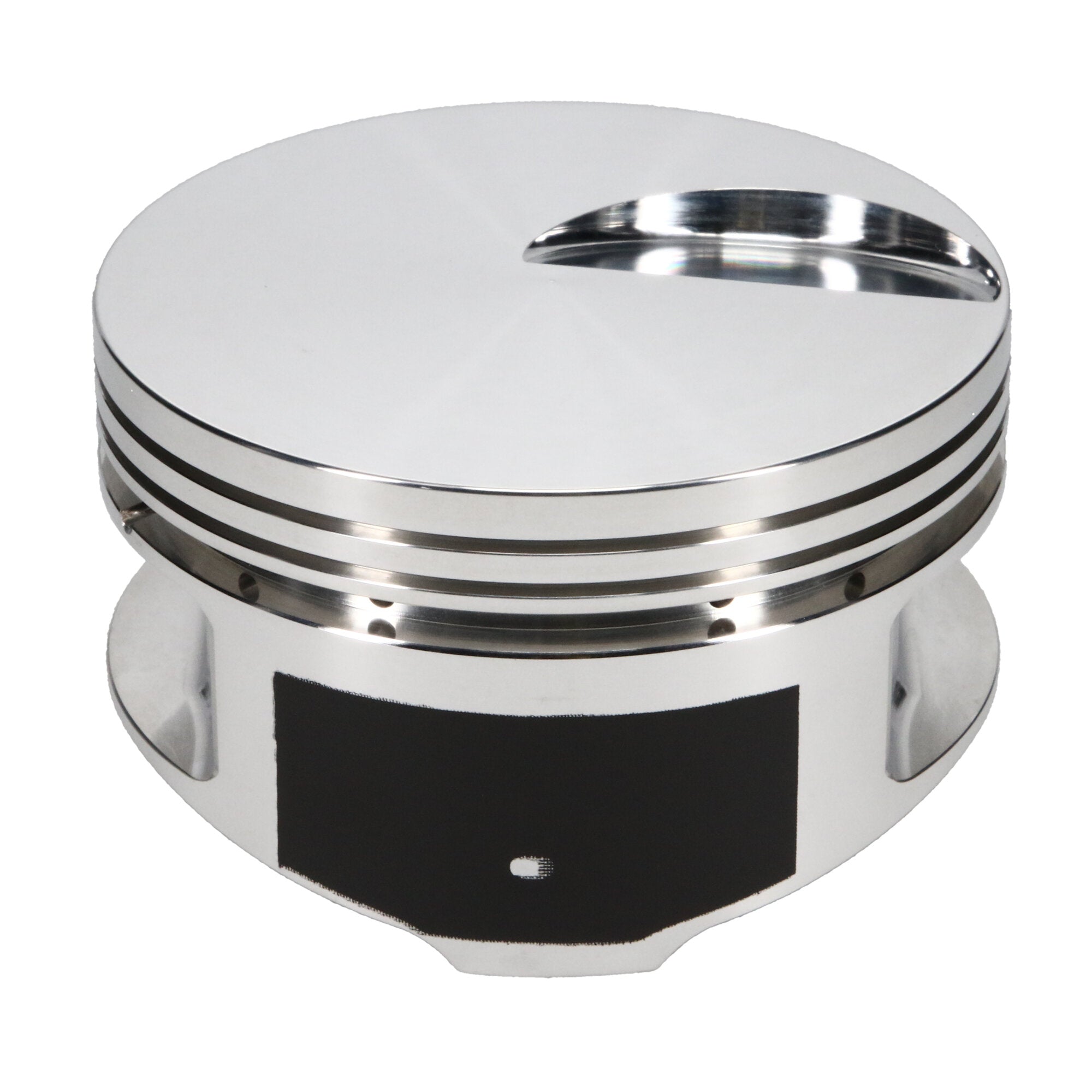

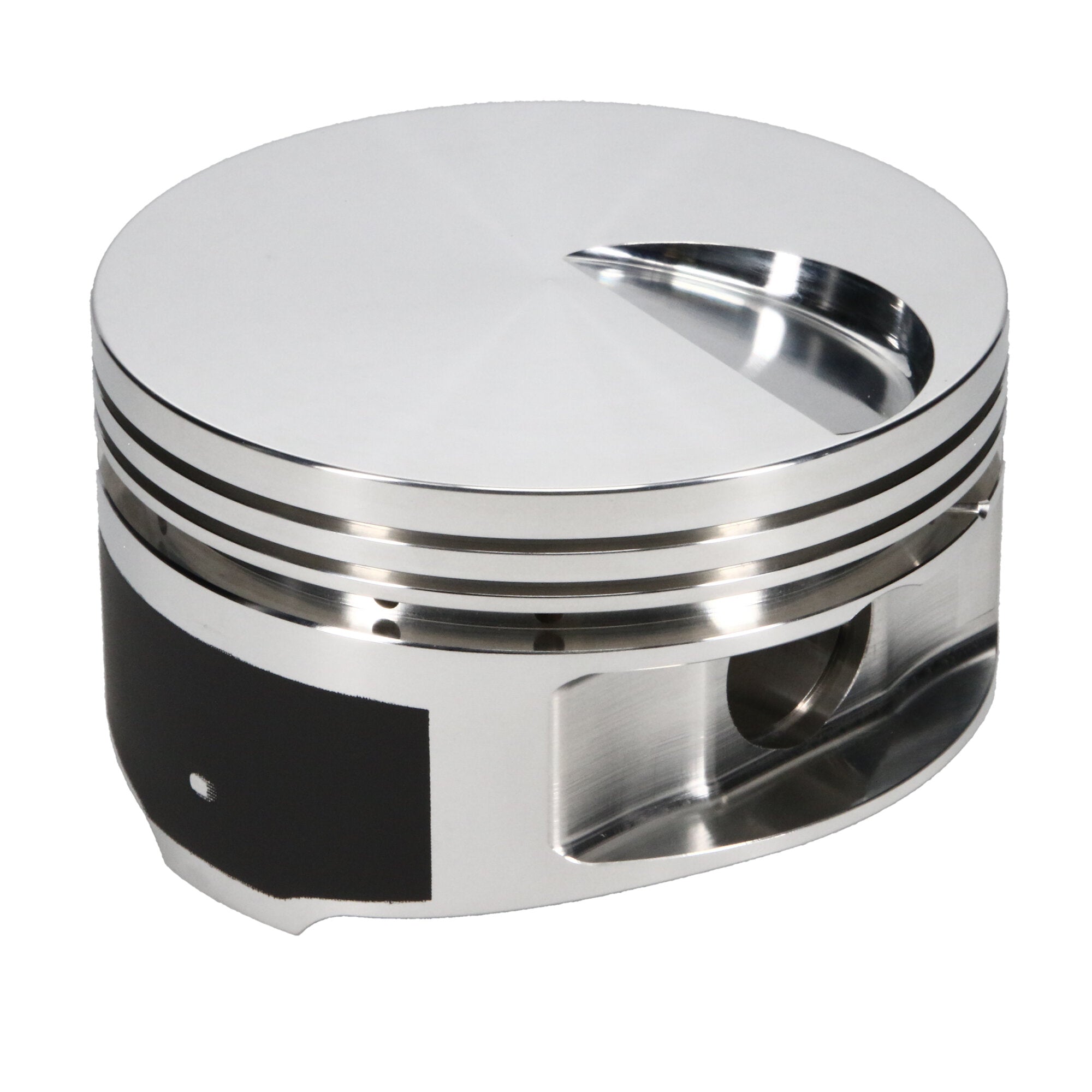

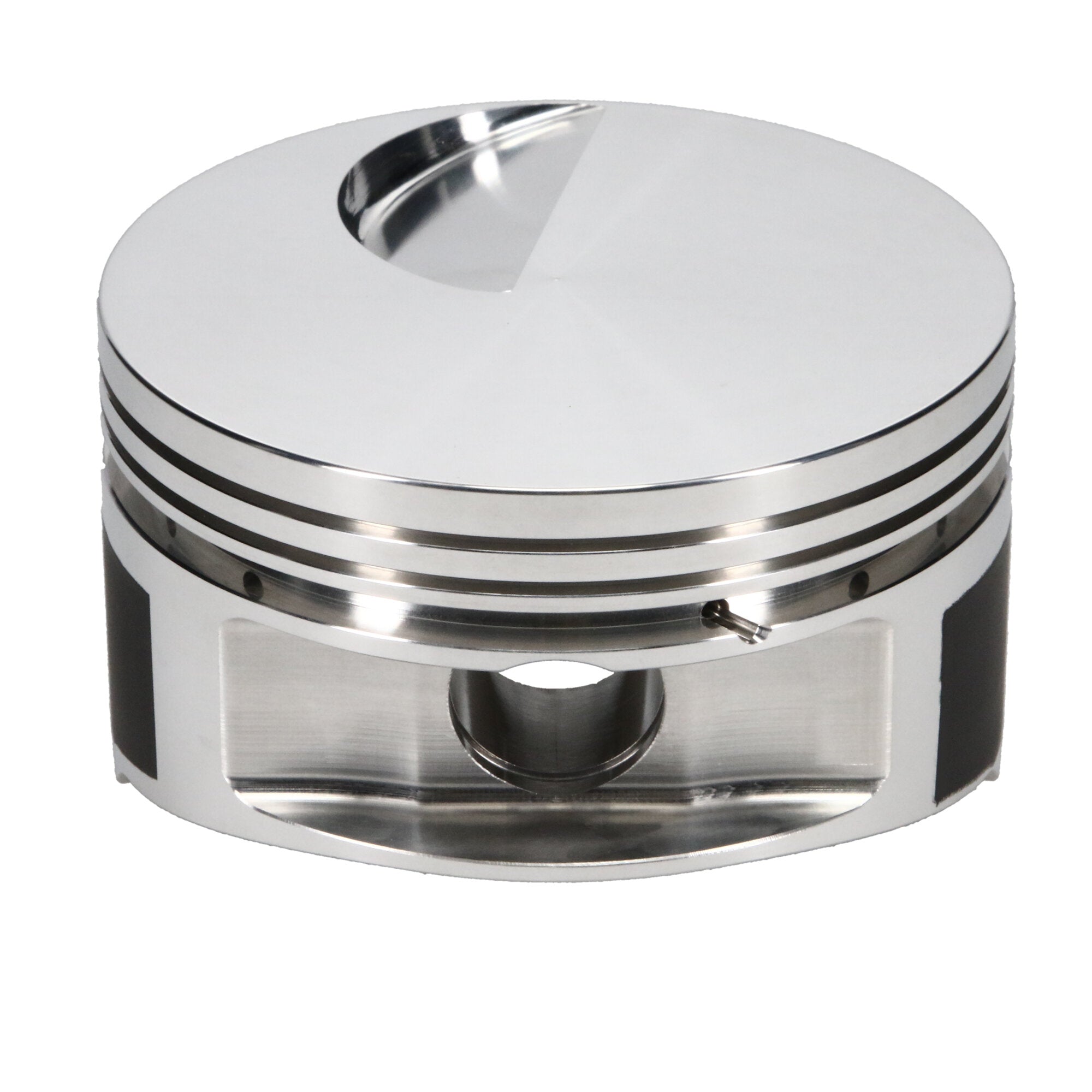

Piston Set, 2618, Flat Top, 4.440 Bore, 1.350 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, Big Block Ford, 4.440 in. Bore, 1.350 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Ford M-6049-SCJ, 4.440 Bore, Flat, Set of 8 |
| Wrist Pin Outer Diameter |
0.990 |
| Forging Type |
Round |
| Make |
FORD |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.188 |
| Compression Height |
1.350 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Outside Diameter |
0.990 |
| Piston Pin Material |
5115 |
| Title |
JE Pistons - Ford, Big Block, 4.440 in. Bore, Piston Kit |
| Piston Volume |
-6.30 |
| Piston Series |
JE Pistons |
| Piston Quantity |
8 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.930 |
| Ring Set Included |
No |
| Piston Material |
2618 |
| Title - Web |
JE Pistons Ford Big Block Piston Kit - 4.440 in. Bore - 1.350 in. CH, -6.30 CC |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 Yes/No |
Yes |
| Add-On |
990-042-CS |
| Piston Average Weight |
572 |
| Out of Stock Message |
Call for Availability |
| Product Market |
Domestic |
| Add-On |
990-2930-15-51S |
| Cylinder Head |
M-6049-SCJ |
| Piston Head Type |
Flat |
| Product Type |
Engine Piston Kit |
| Add-On |
J100F8-4440-5 |
| Industry |
Automotive |
| Bore Diameter |
4.440 |
| Piston Pin Length |
2.930 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Ford |
| Engine - Web |
Big Block |
| Engine |
Big Block |
| Ringset Included |
No |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
16.0000 |
