As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 396 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

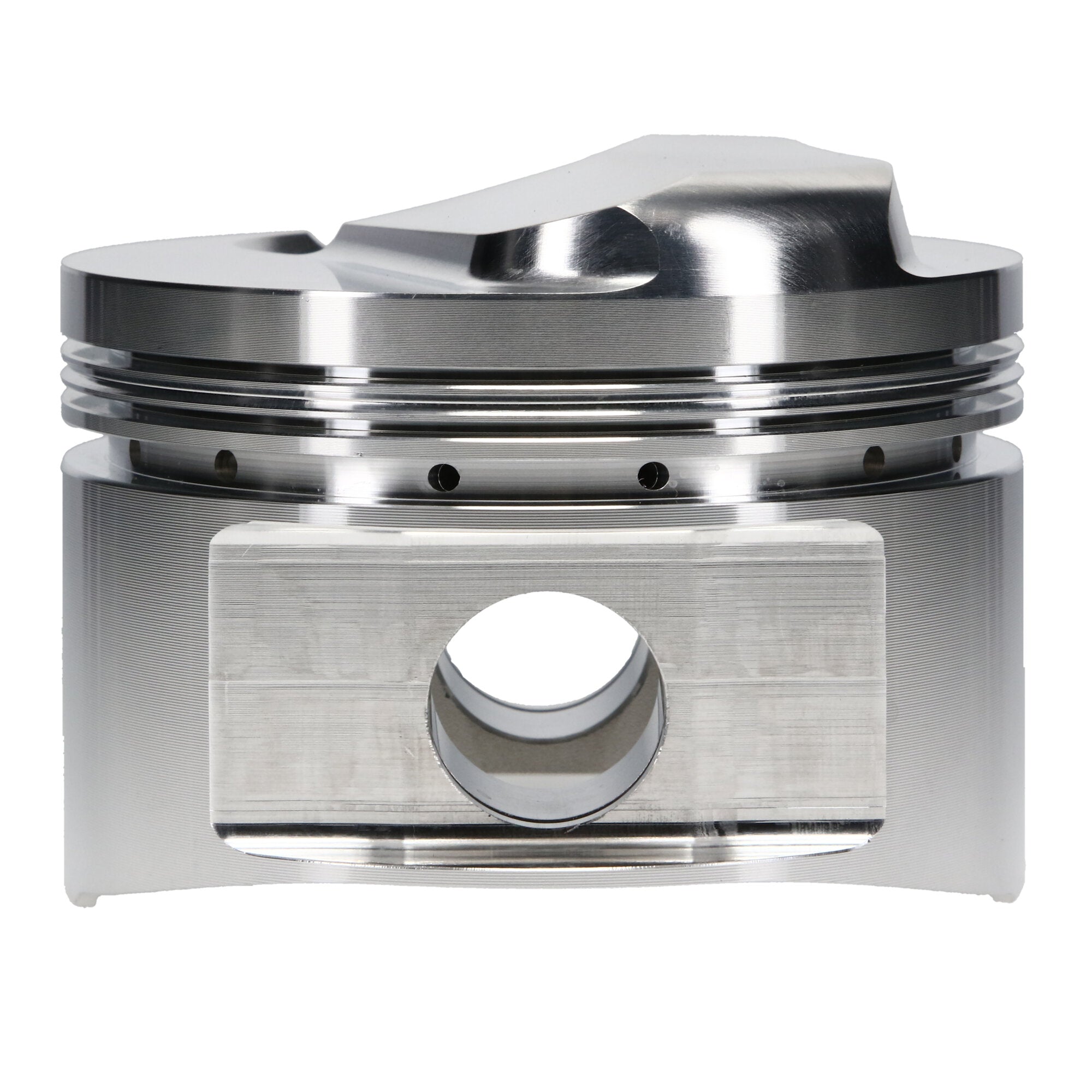

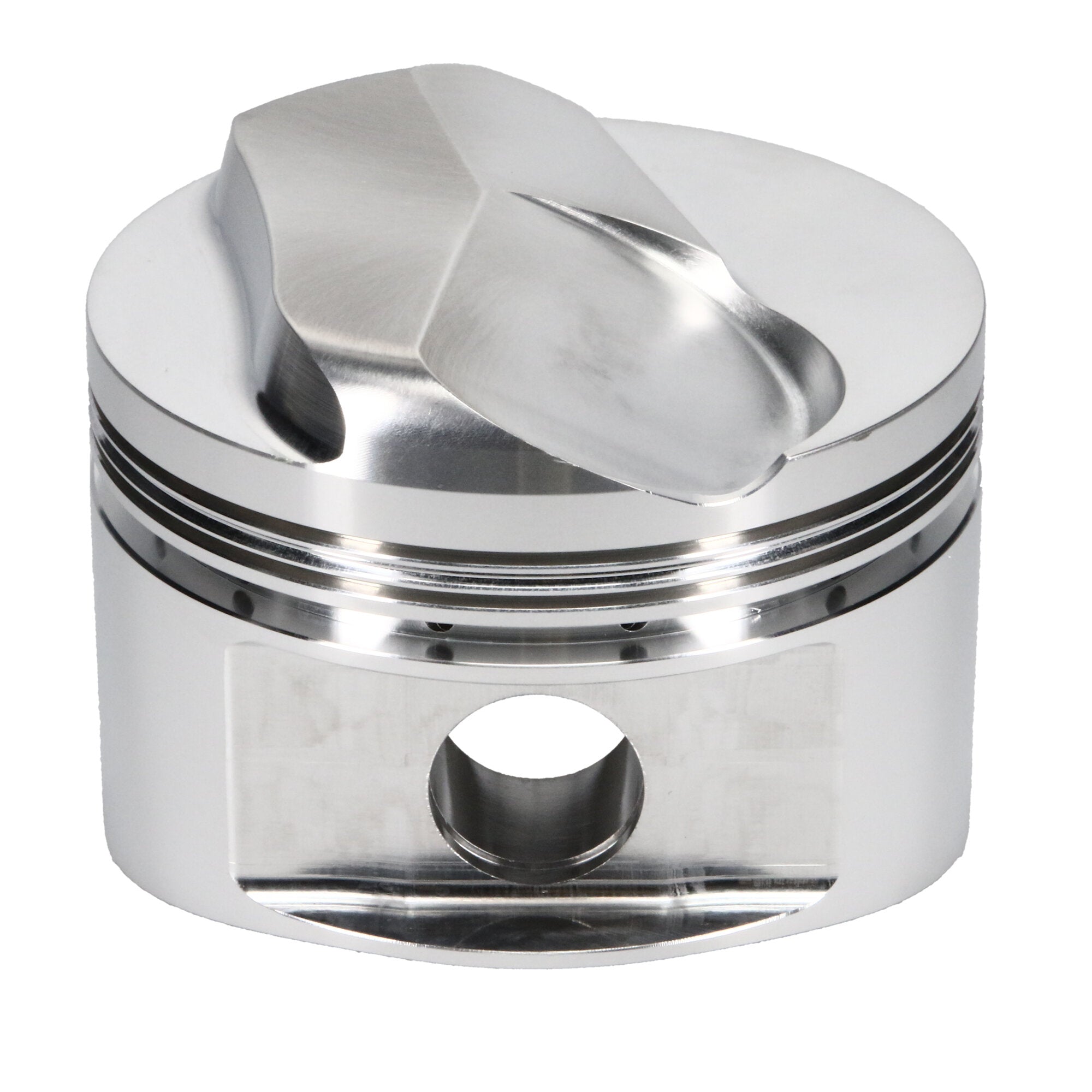

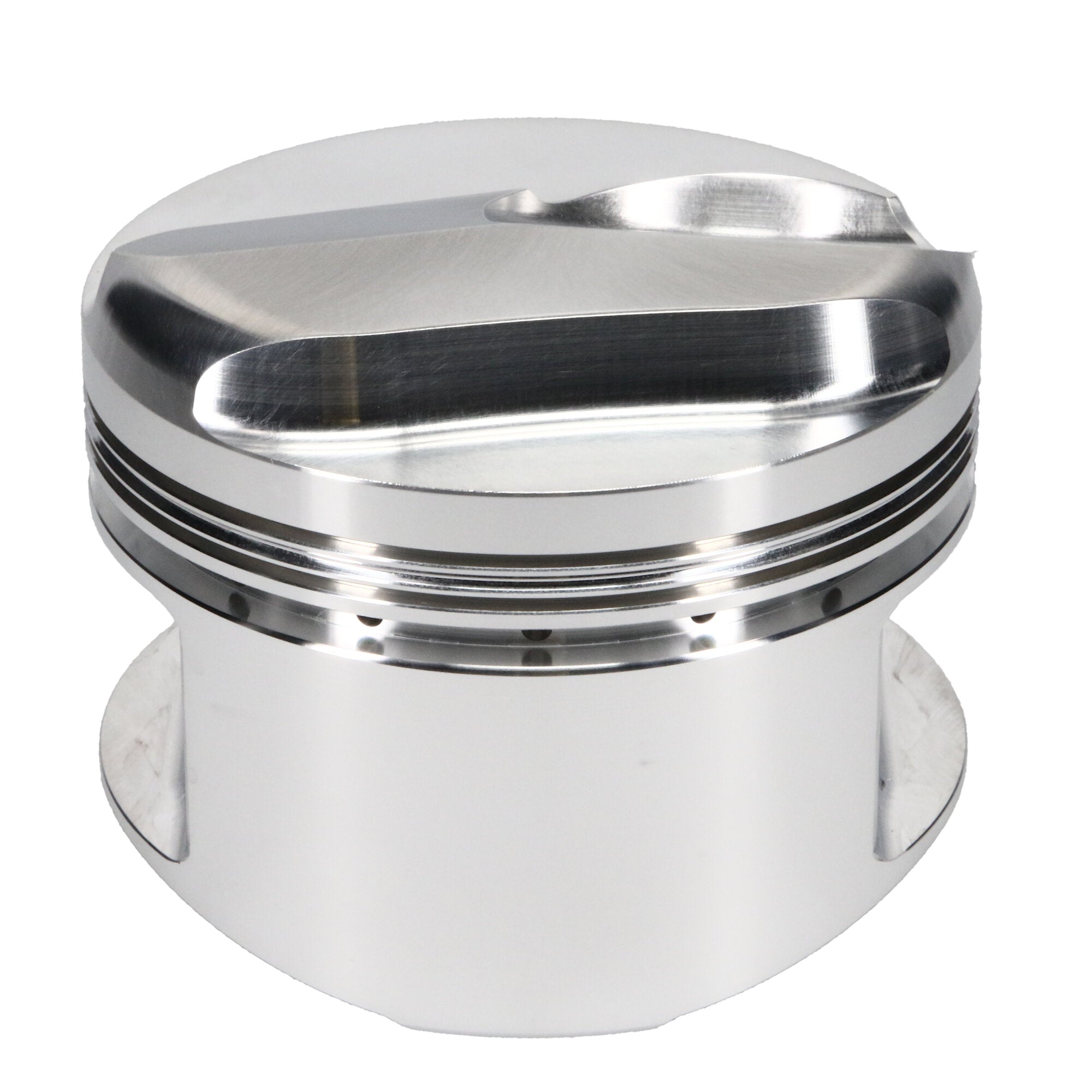

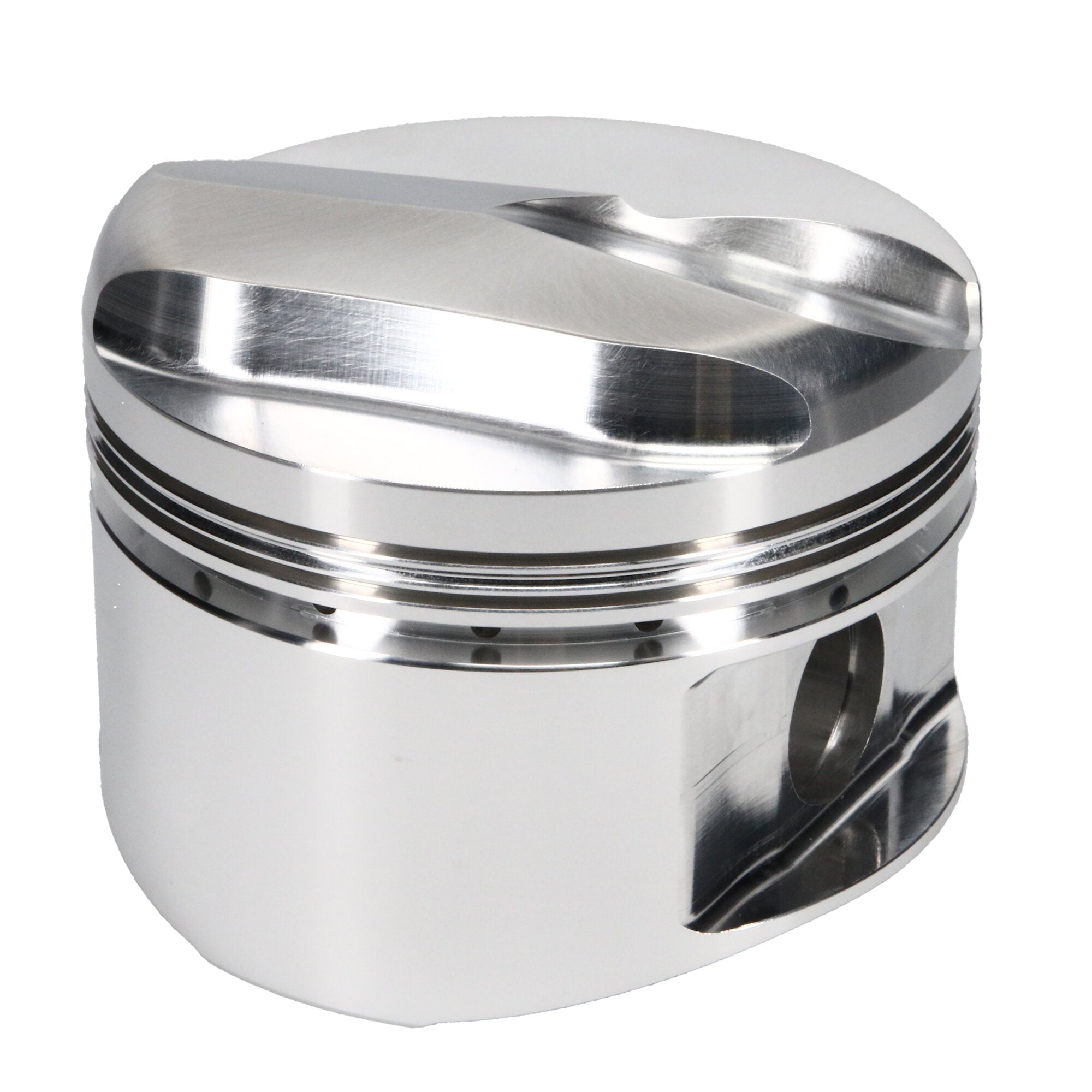

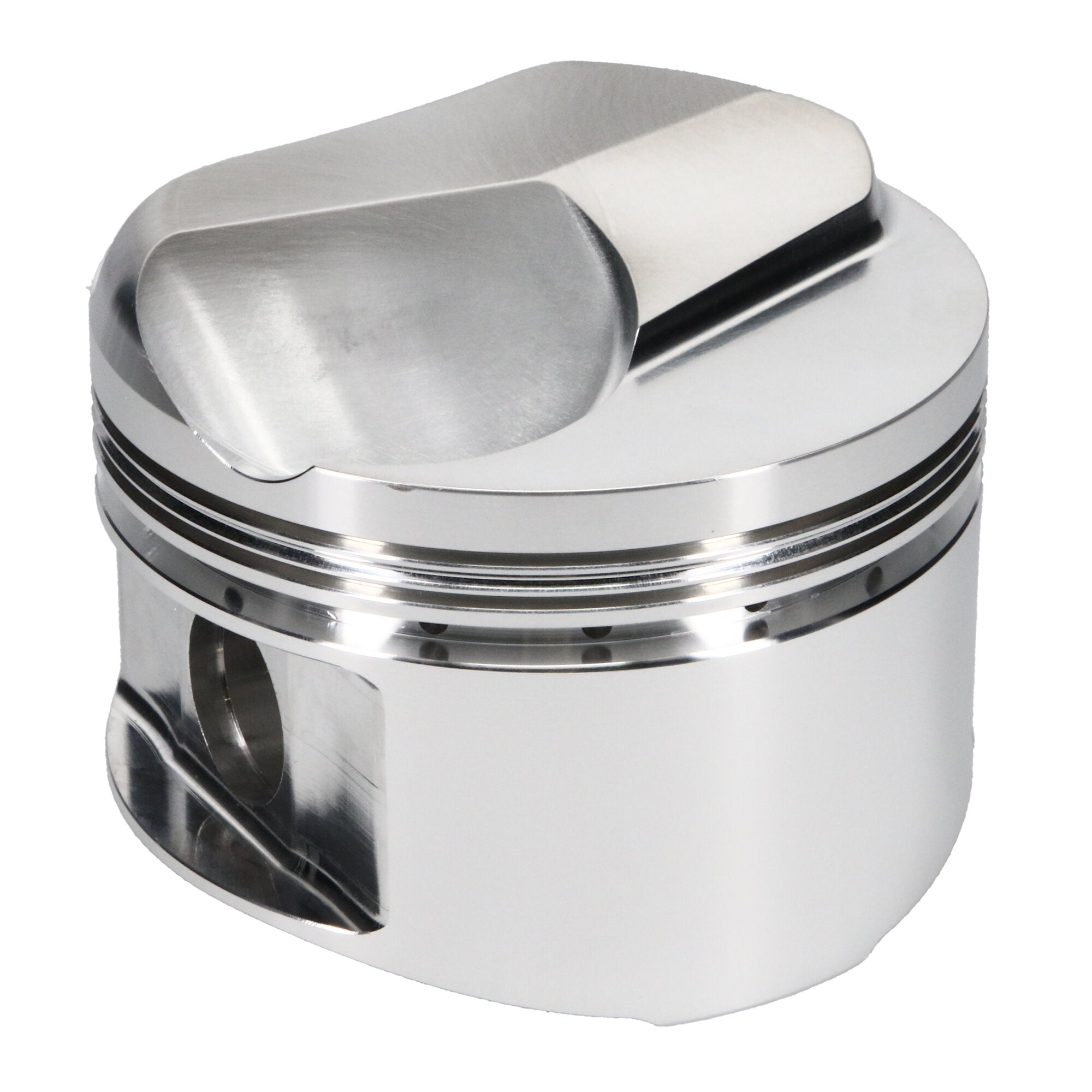

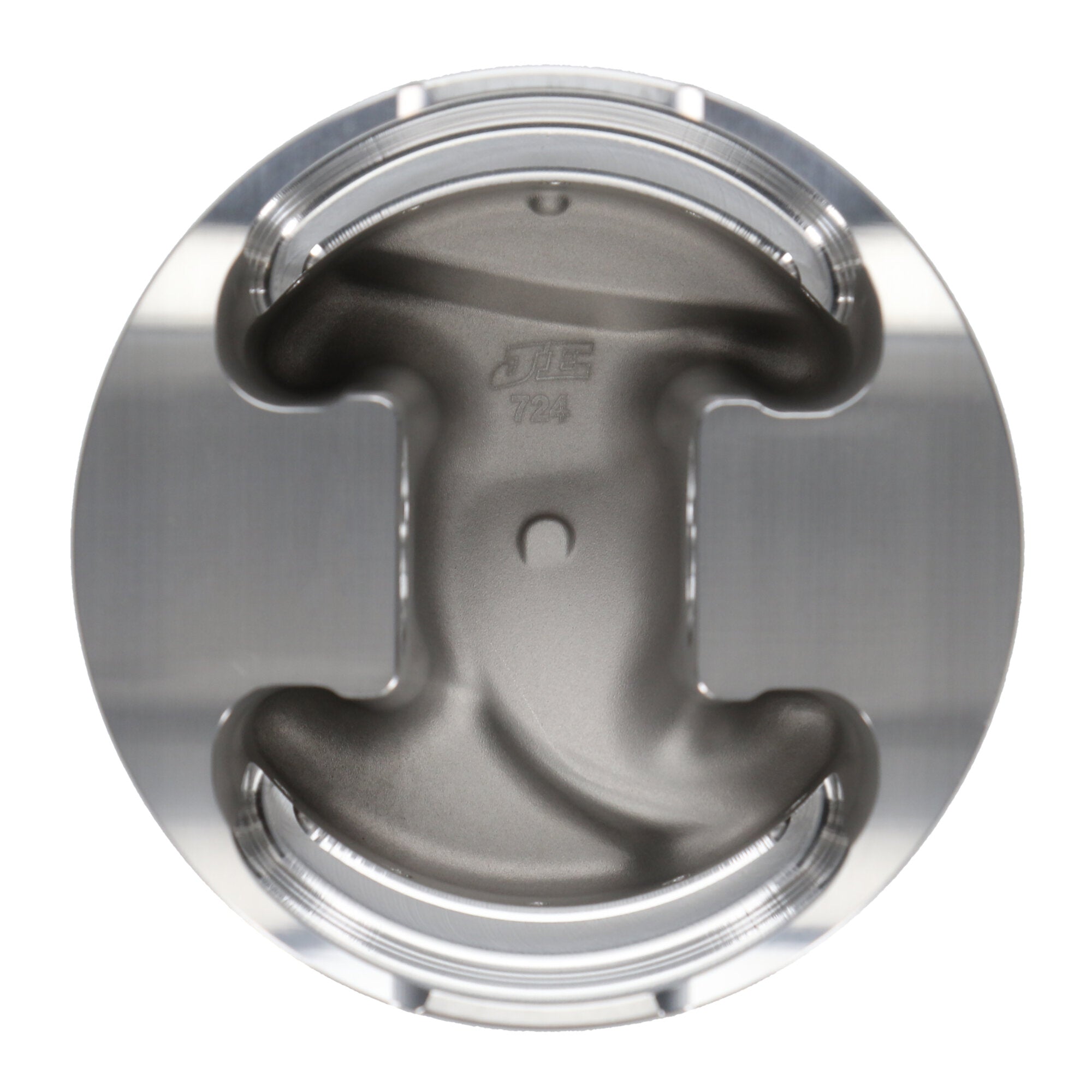

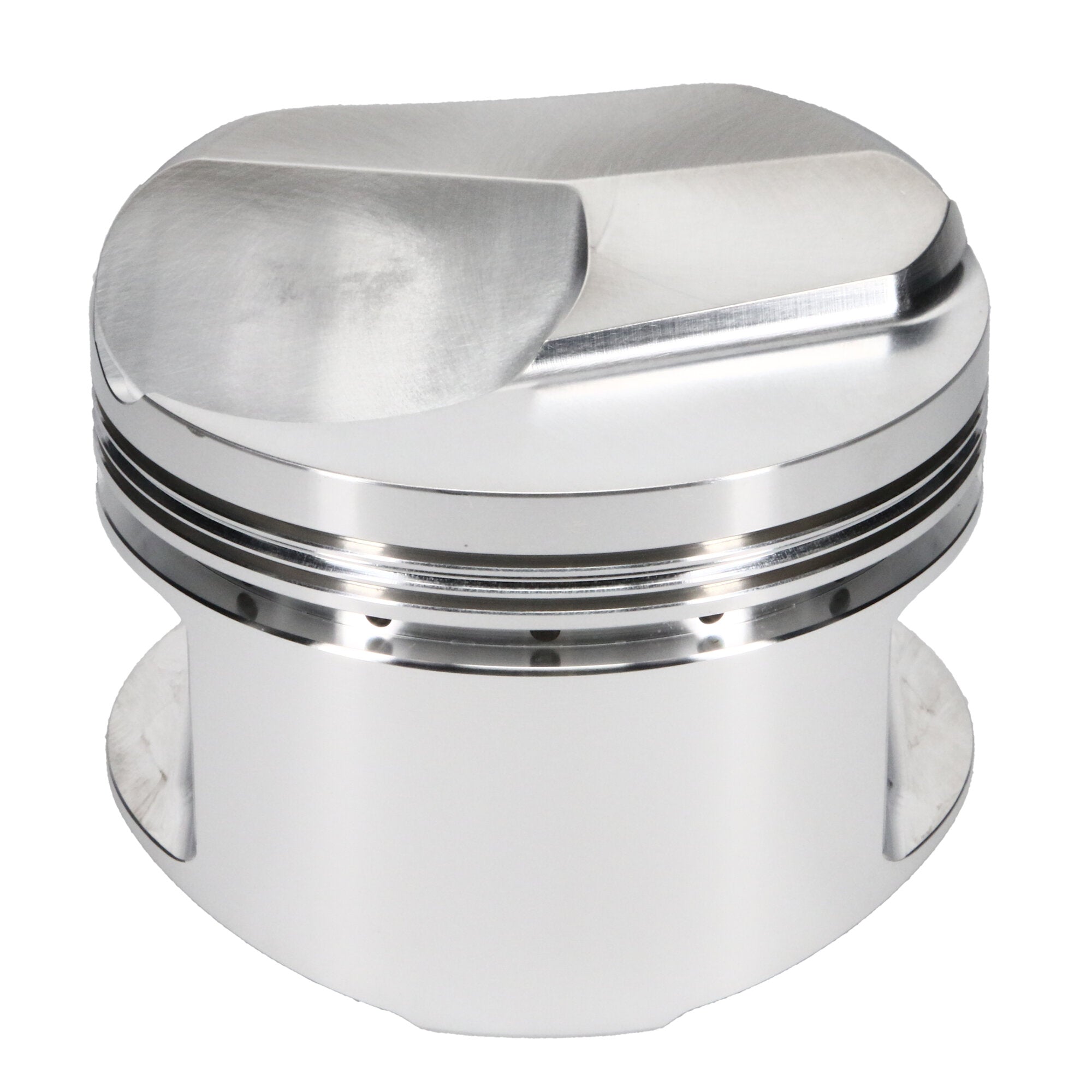

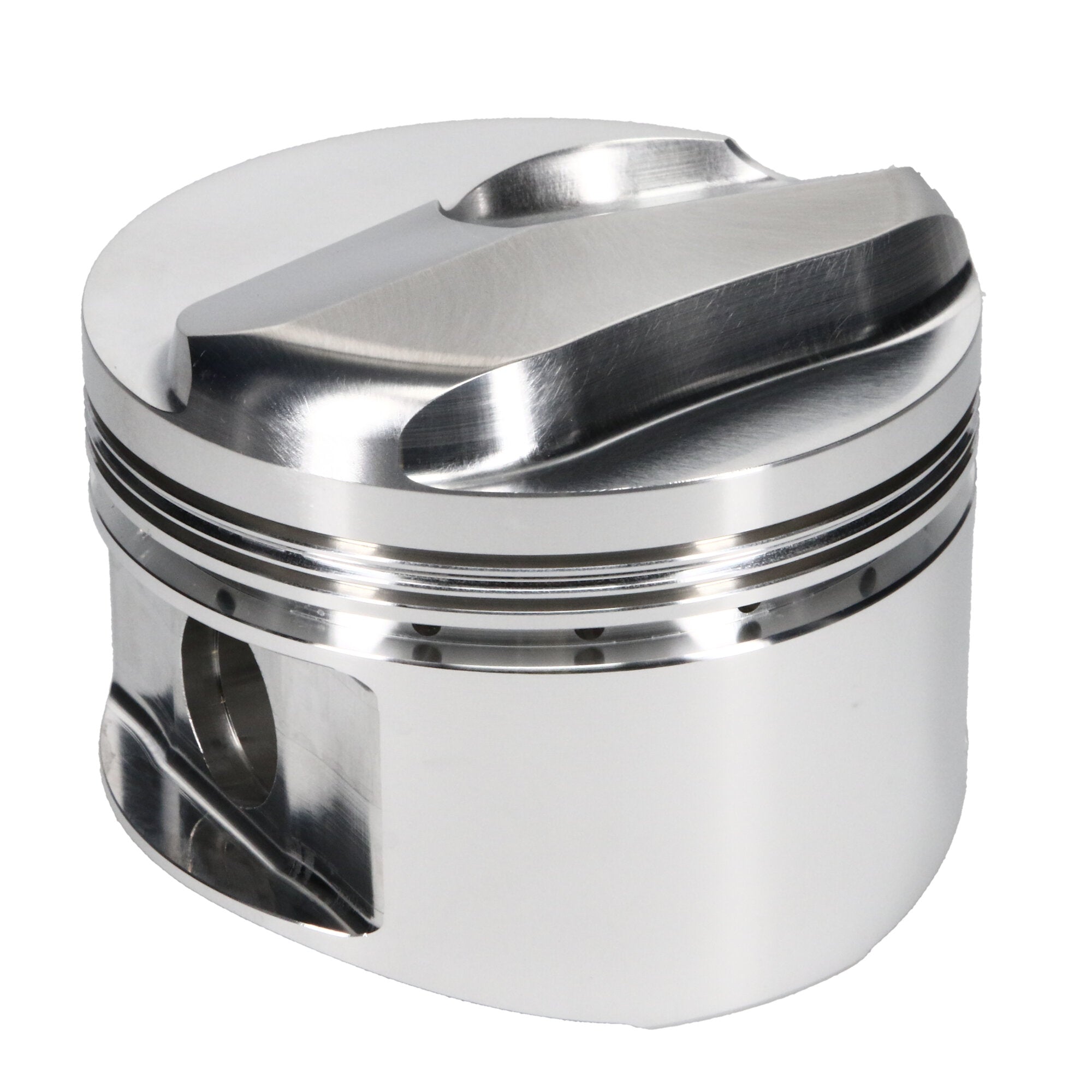

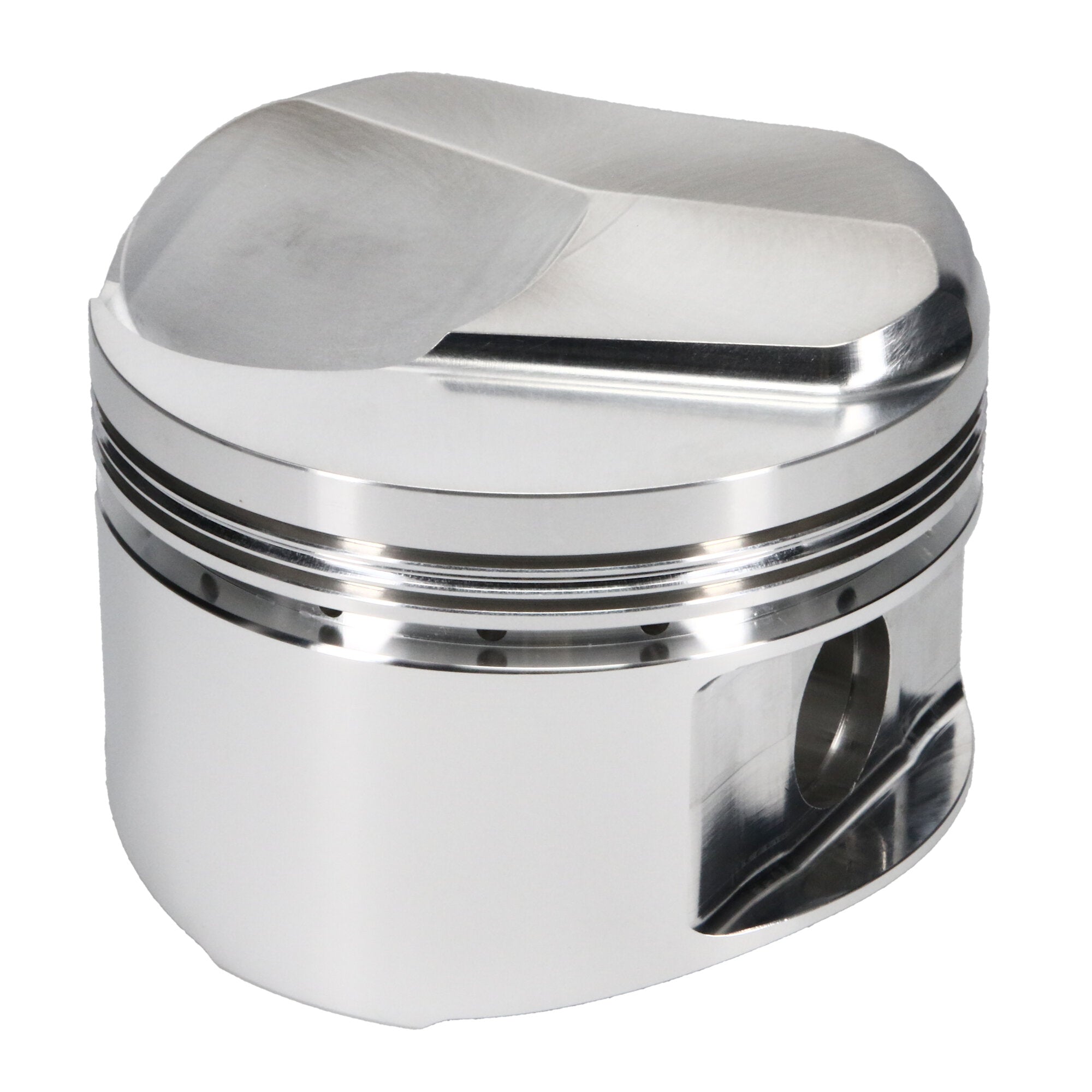

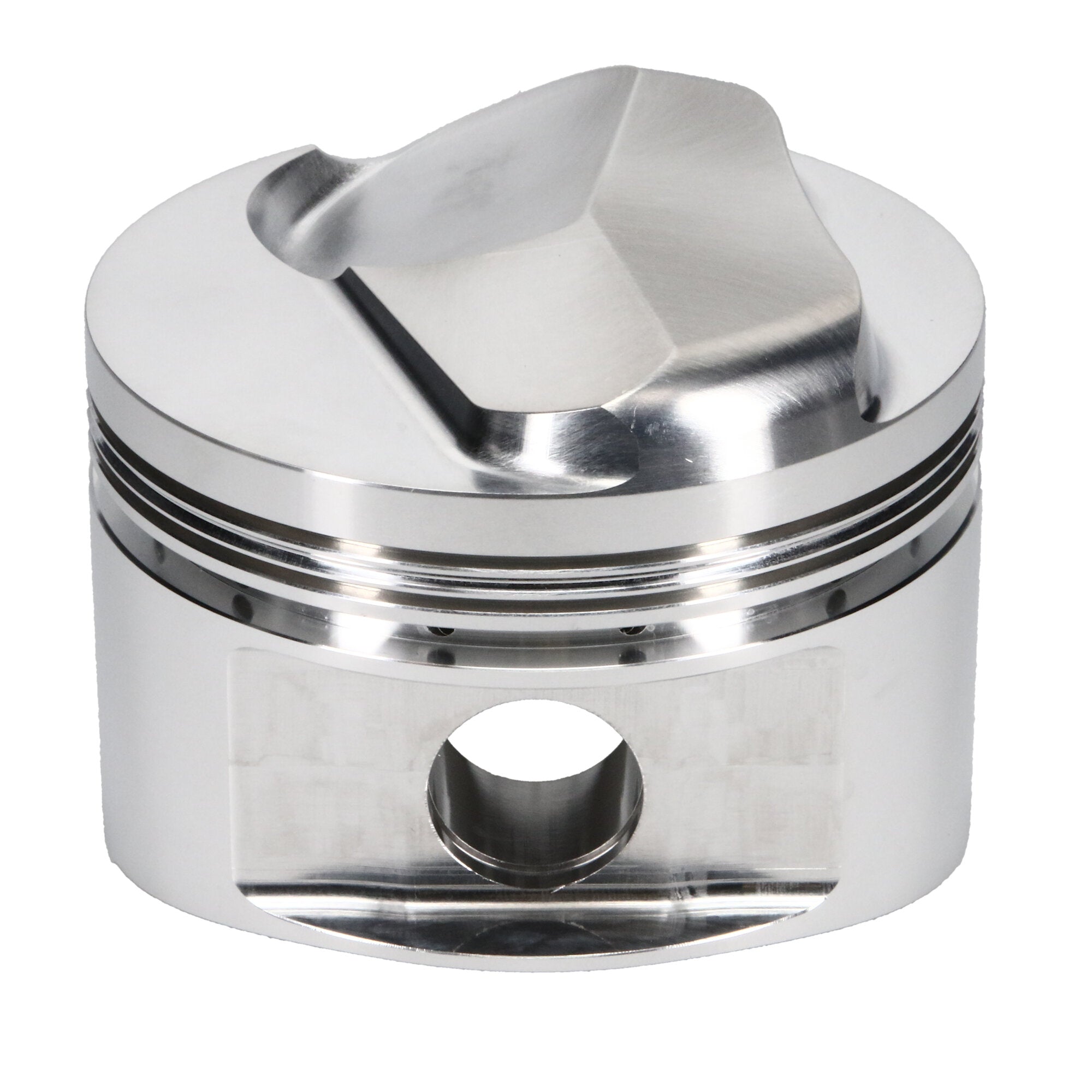

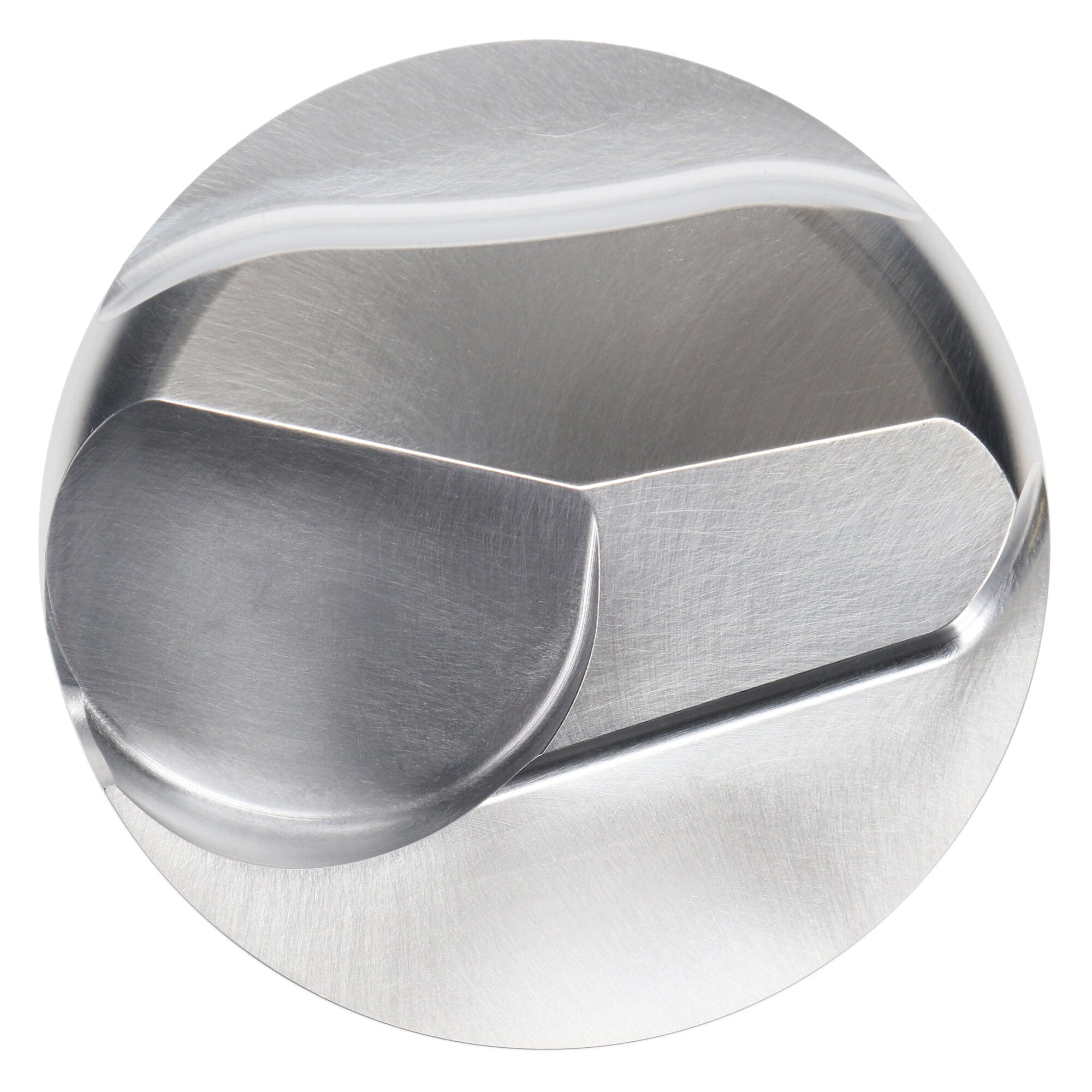

Piston Set, 2618, Dome, 4.155 Bore, 1.765 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.155 in. Bore, 1.765 CD, Dome, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 396, 4.155 Bore, Dome, Set of 8 |
| Piston Pin Material |
5115 |
| Piston Quantity |
8 |
| Forging Type |
Round |
| Piston Head Type |
Dome |
| Product Type |
Engine Piston Kit |
| Piston Series |
JE Pistons |
| Ring Set Included |
No |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Length |
2.930 |
| Engine Type |
ICE |
| Piston Pin Outside Diameter |
0.990 |
| Oil Ring Thickness |
0.188 |
| Top Compression Ring Thickness |
0.0640 |
| Title |
JE Pistons - Chevrolet, Big Block, 4.155 in. Bore, Piston Kit |
| Make |
CHEVROLET |
| Engine - Web |
Big Block |
| Wrist Pin Wall Thickness |
0.150 |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.155 in. Bore - 1.765 in. CH, 44.00 CC |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Volume |
44.00 |
| Piston Average Weight |
649 |
| Prop 65 (C, R or CR) |
CR |
| Out of Stock Message |
Call for Availability |
| Piston Pin Wall Thickness |
0.150 |
| Add-On |
J100F8-4155-5 |
| Bore Diameter |
4.155 |
| Cylinder Head |
CLOSED CHMBR |
| Compression Height |
1.765 |
| Add-On |
990-042-CS |
| Second Compression Ring Thickness |
0.0640 |
| Add-On |
990-2930-15-51S |
| Ringset Included |
No |
| Product Market |
Domestic |
| Piston Material |
2618 |
| Prop 65 Yes/No |
Yes |
| Industry |
Automotive |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine |
Big Block |
| Piston Pin Length |
2.930 |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
16.0000 |
