As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 Big Duke/Chief |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

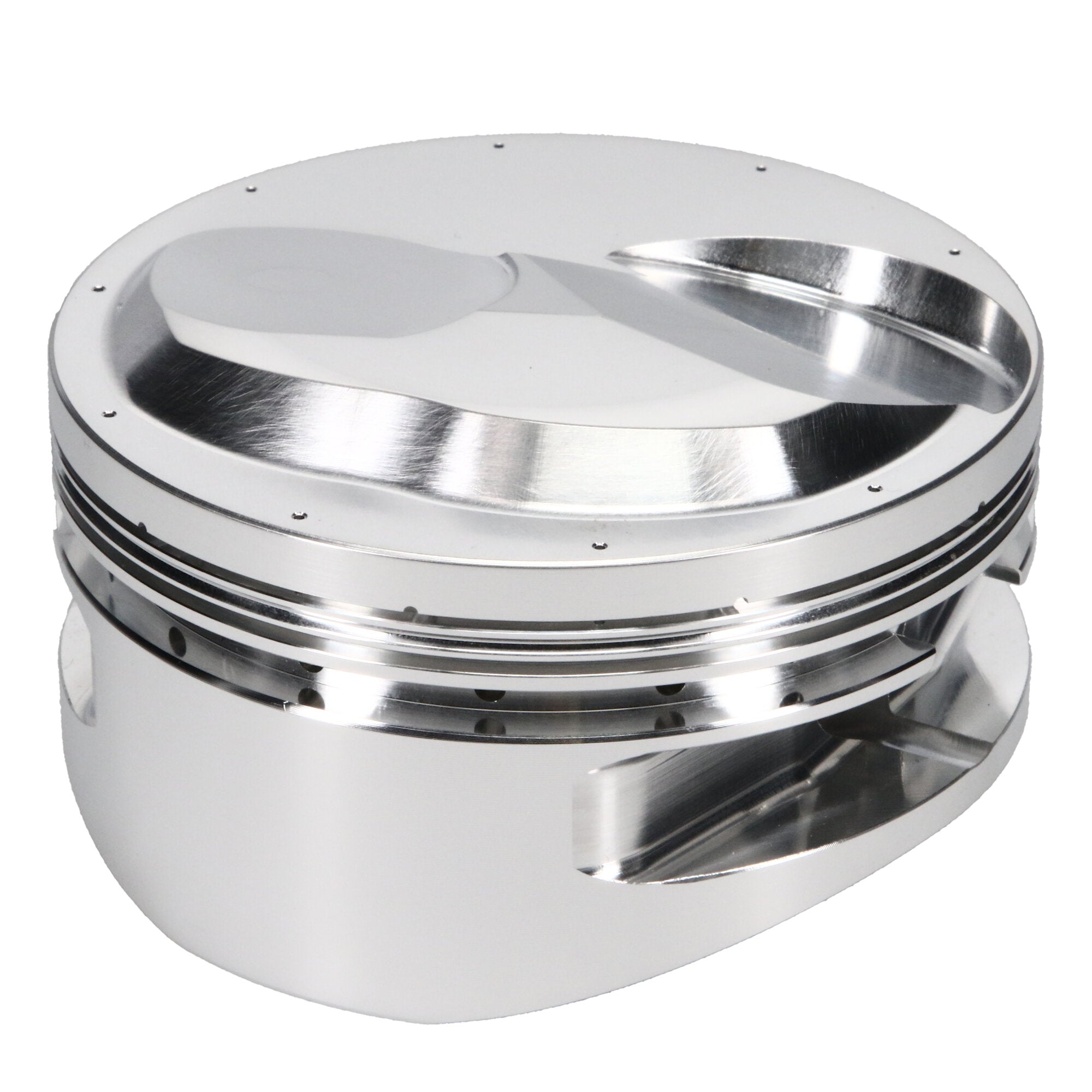

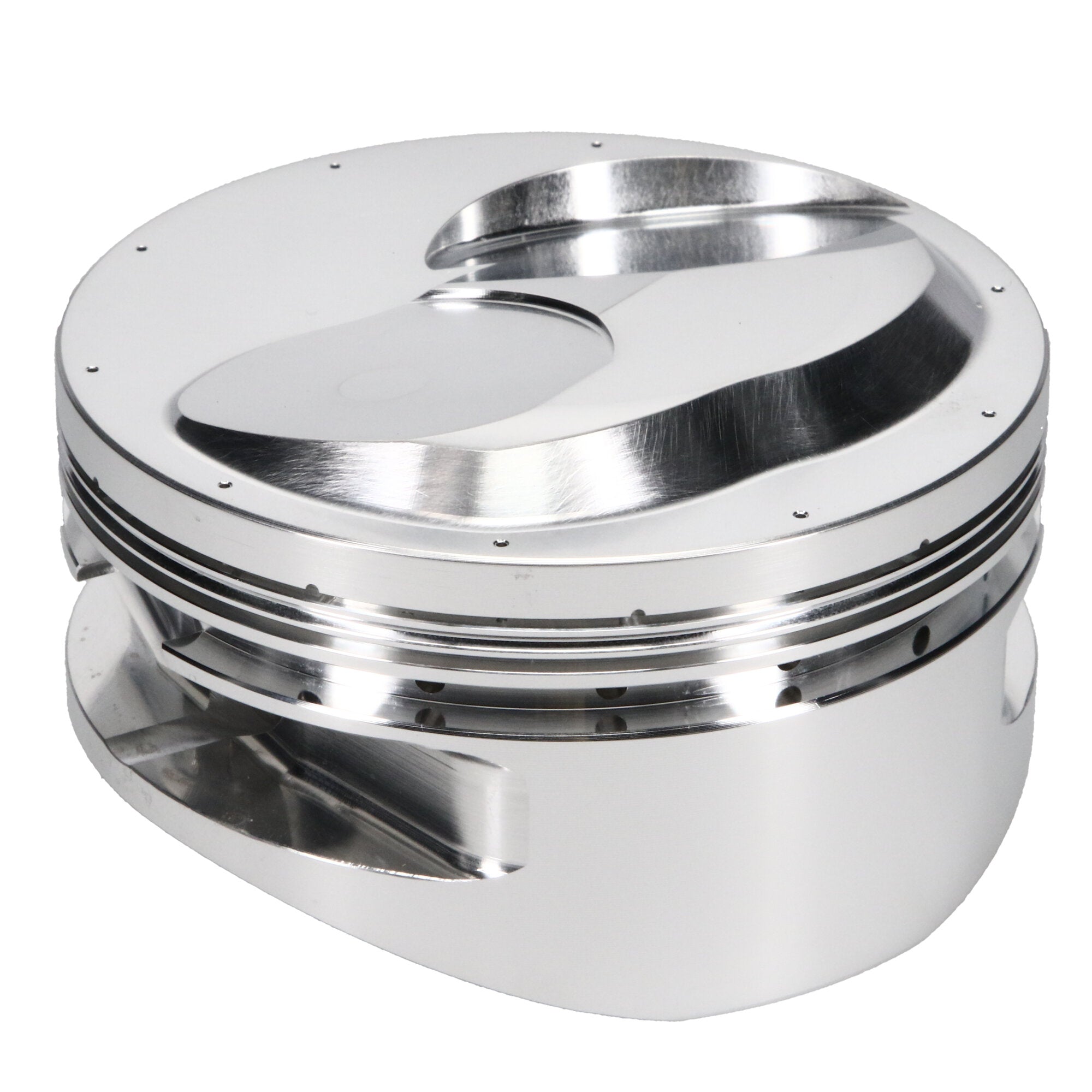

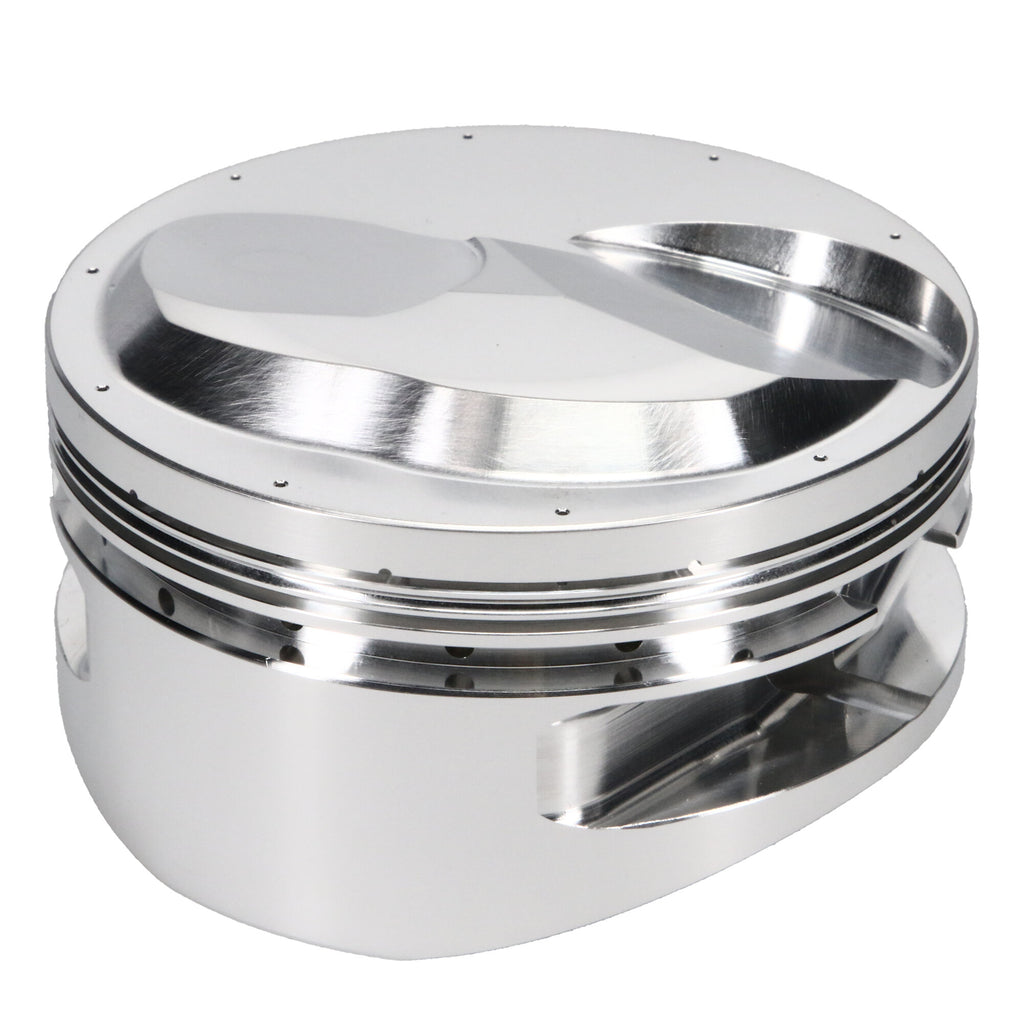

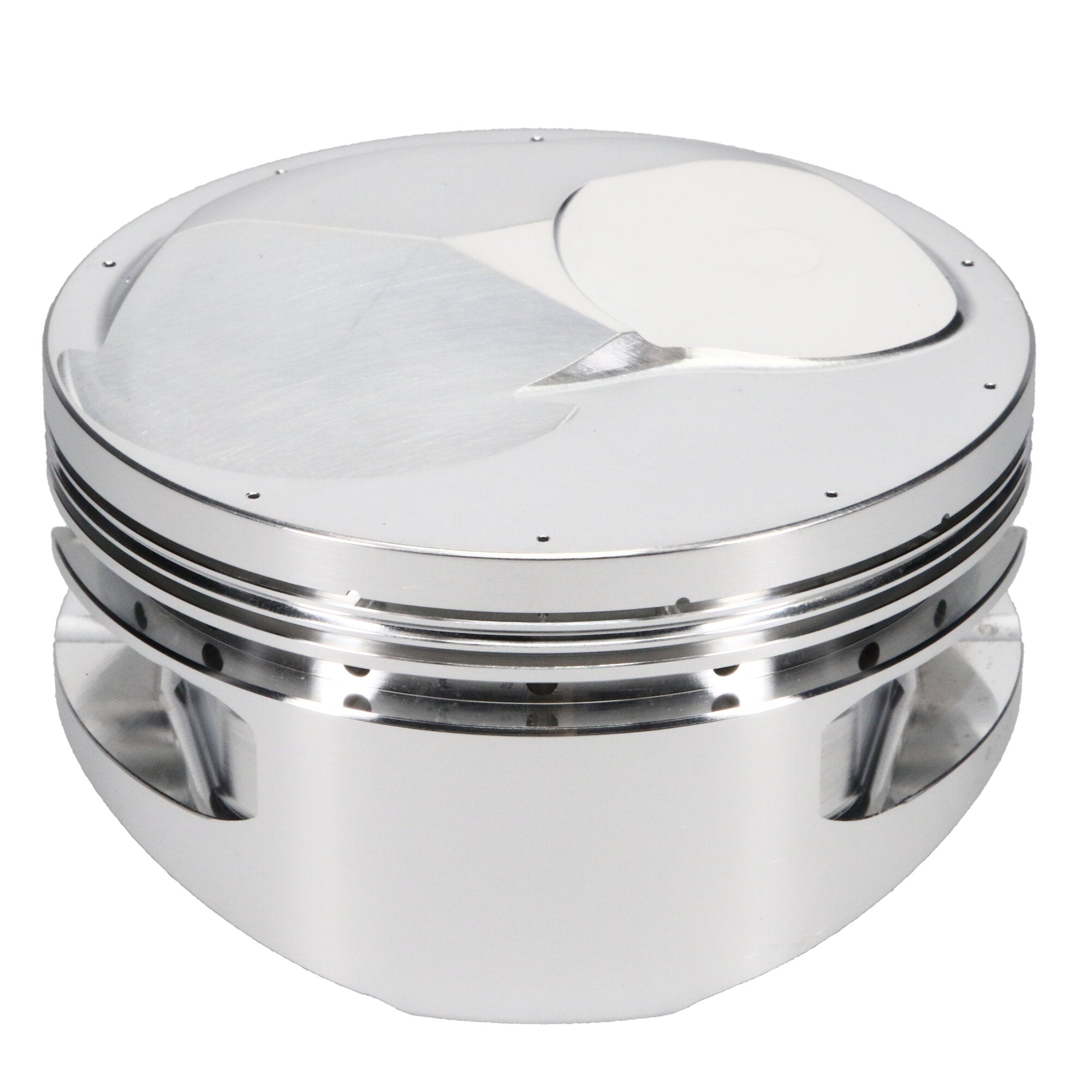

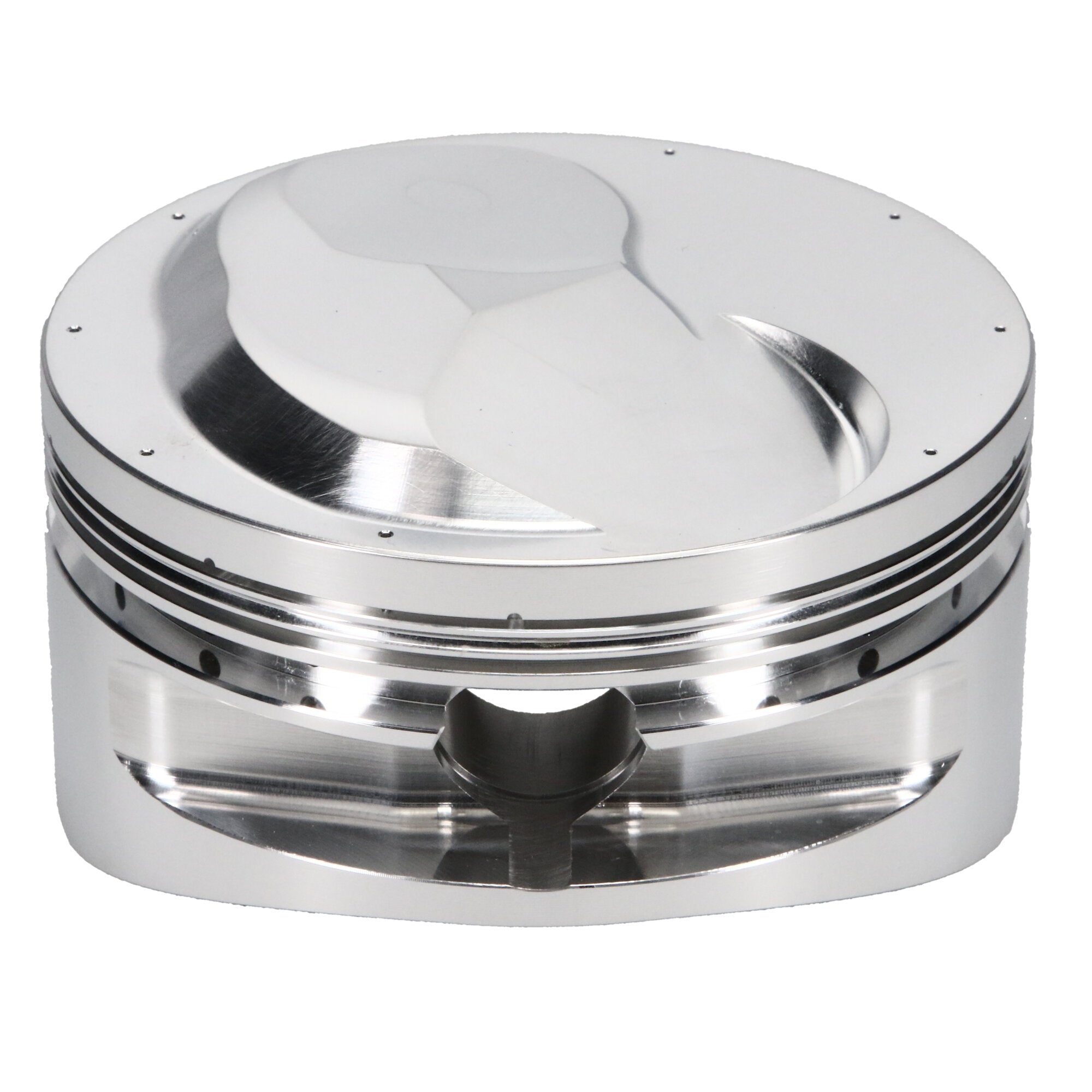

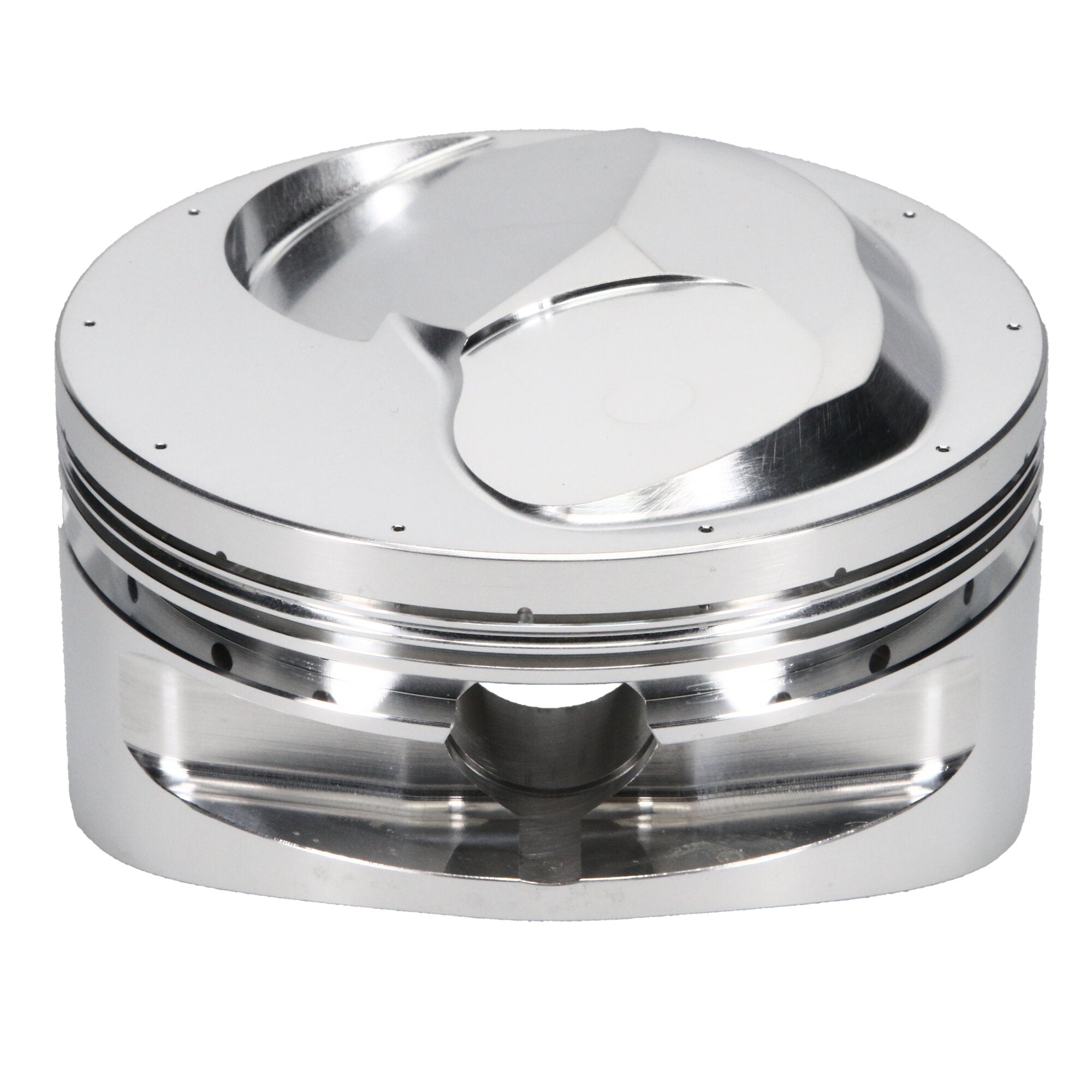

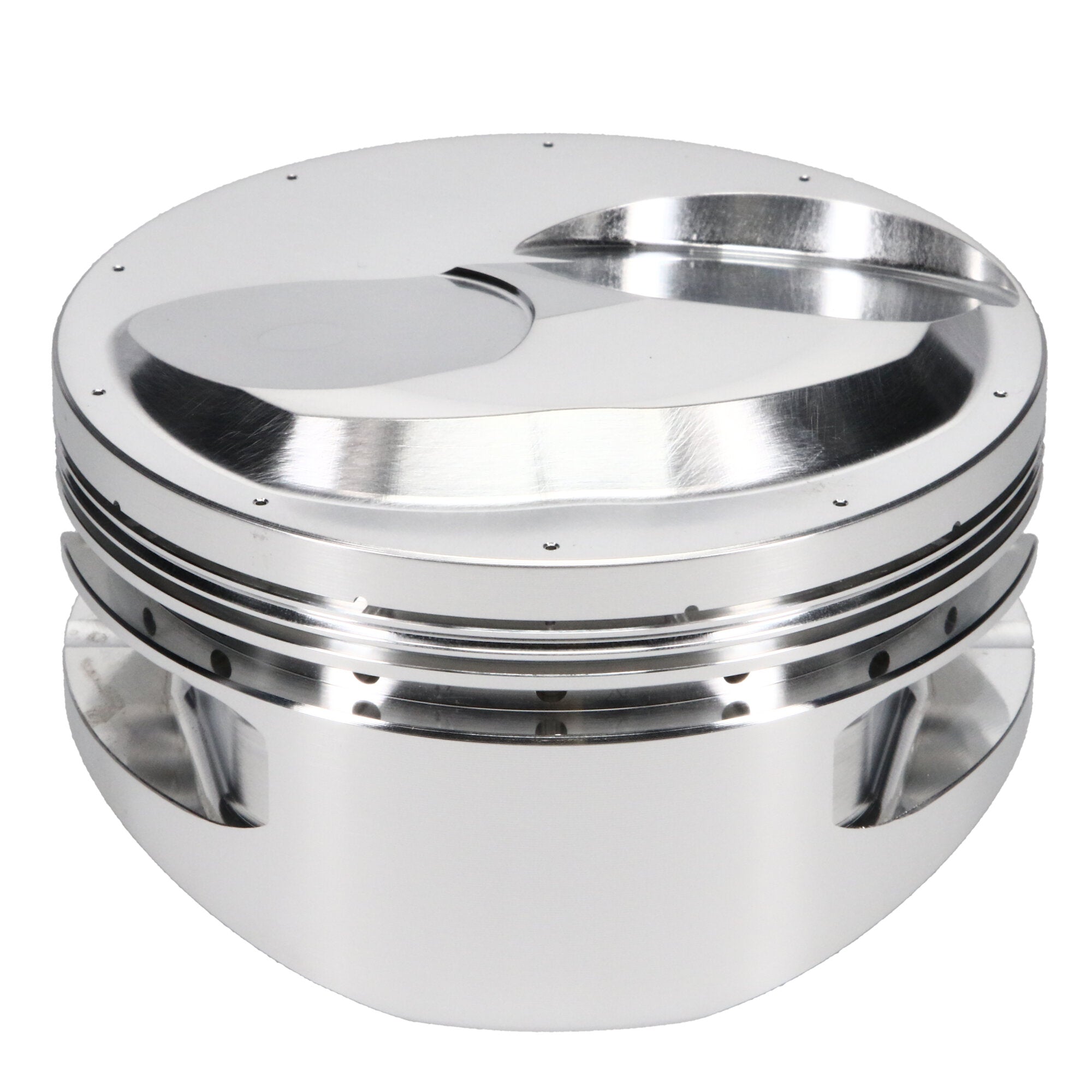

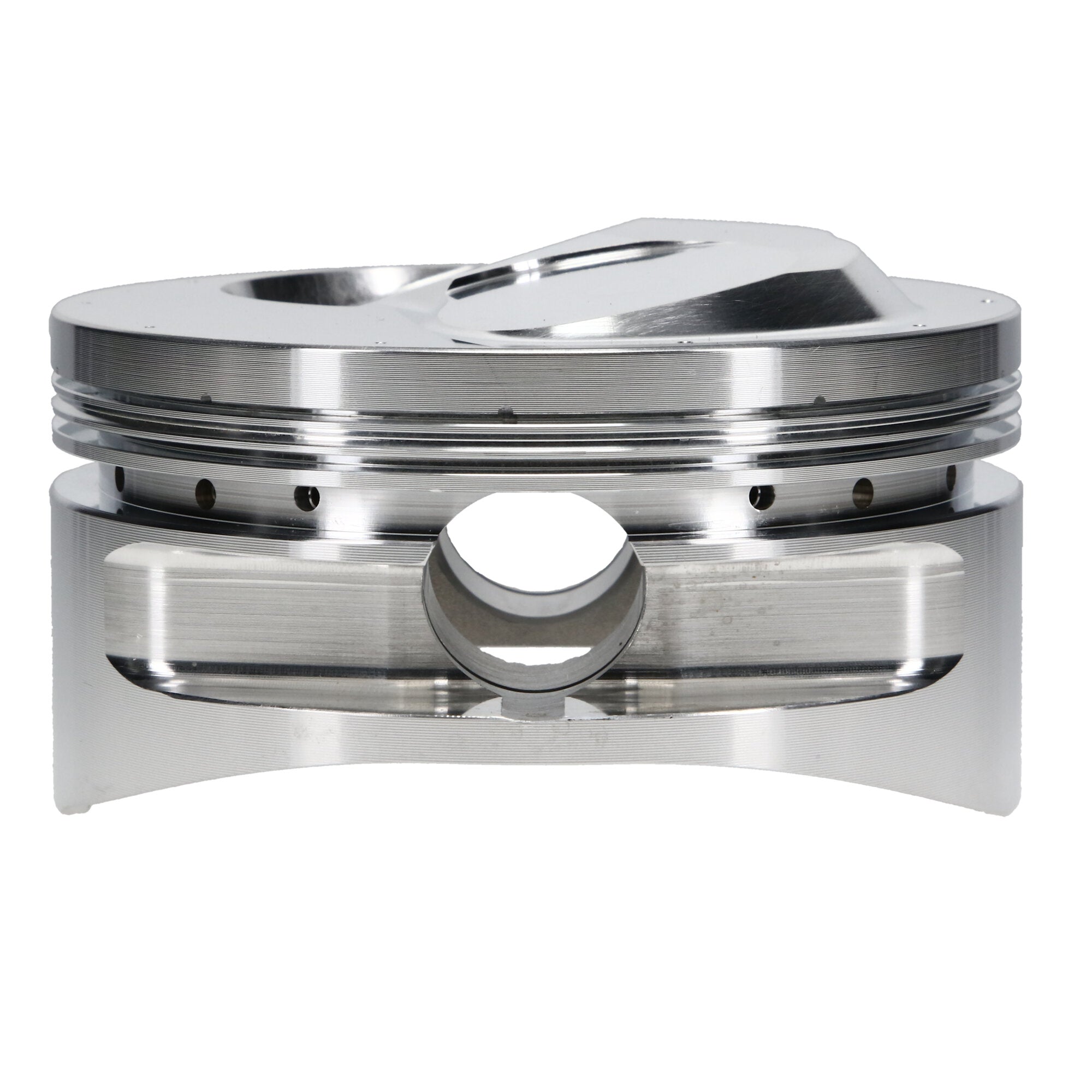

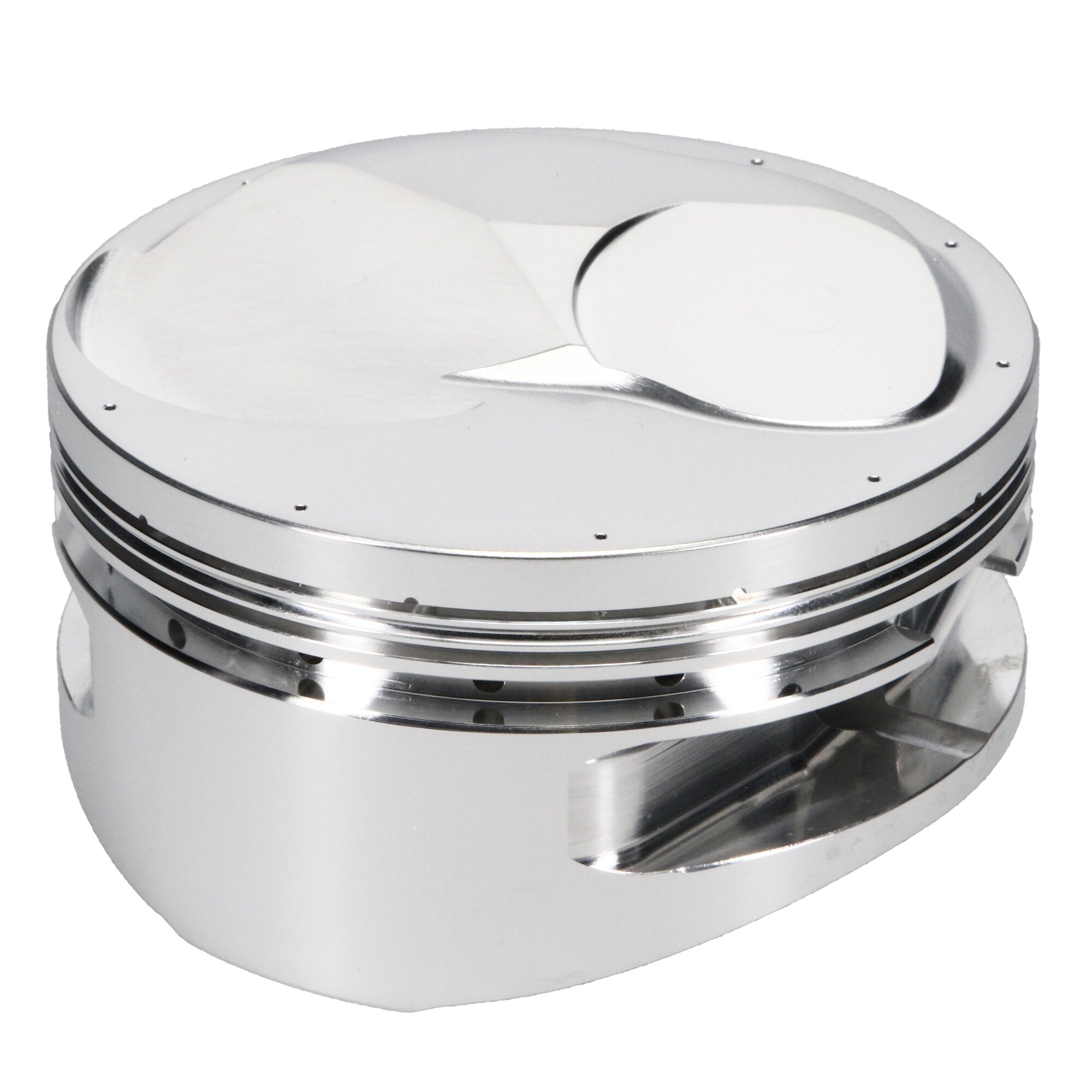

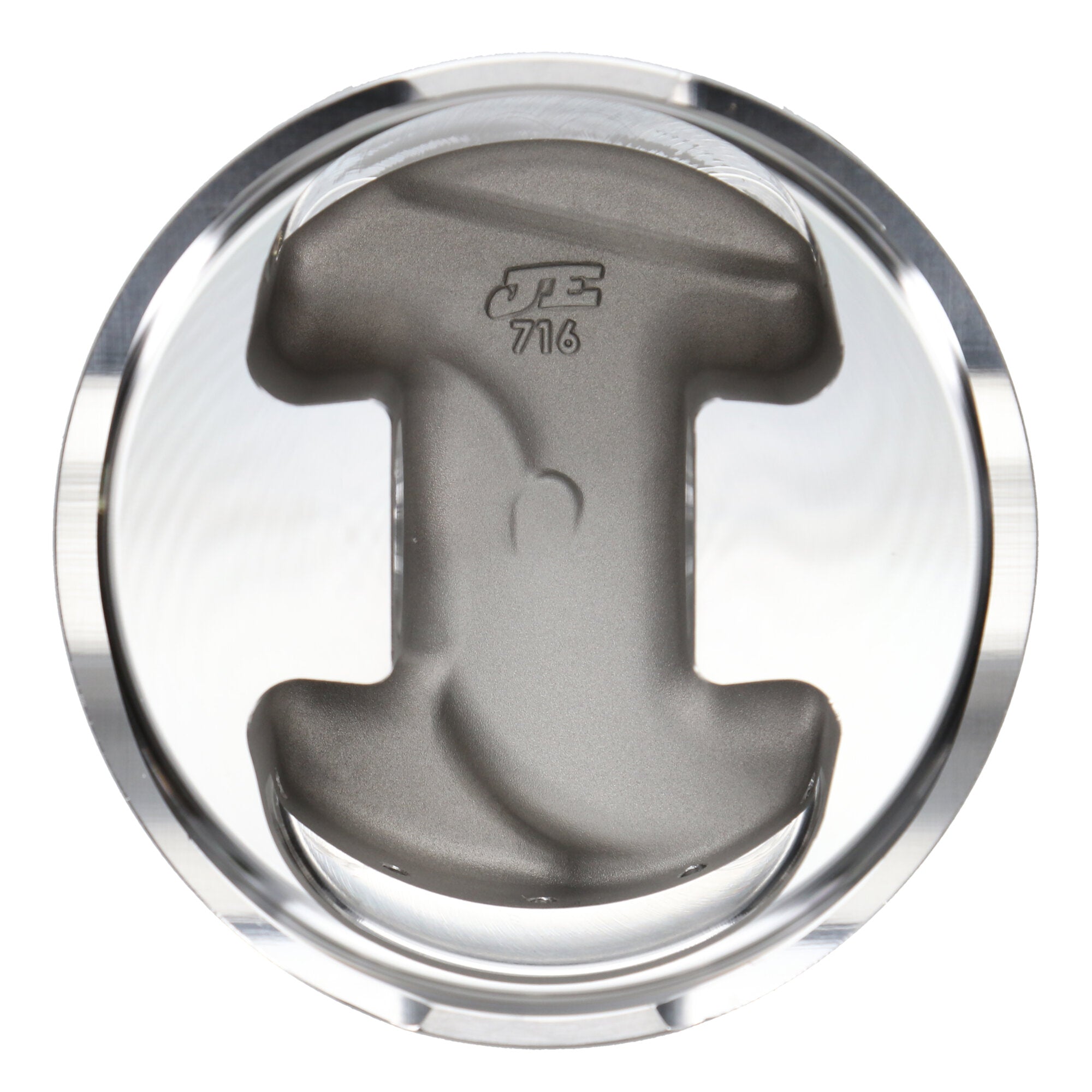

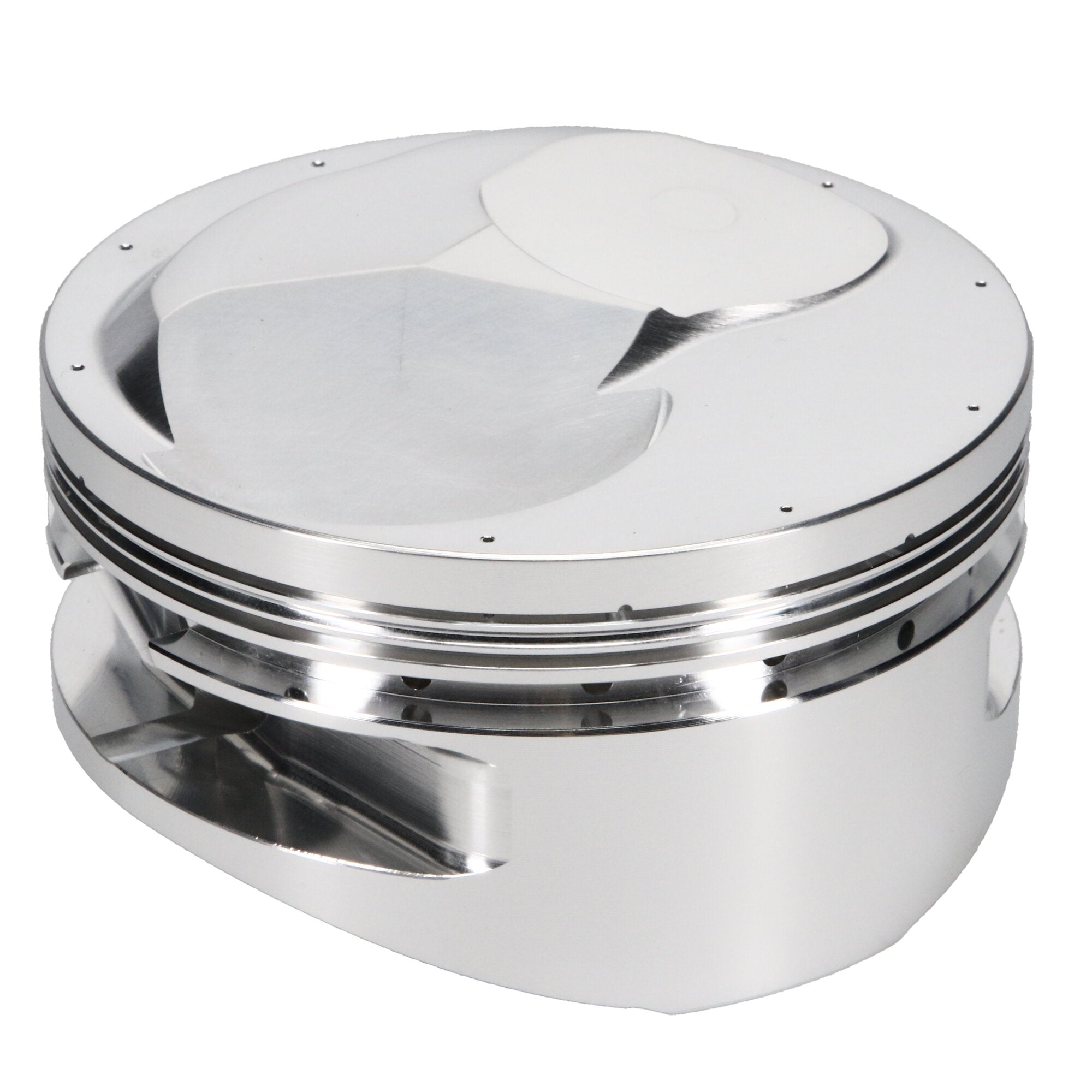

Piston Set, 2618, Dome, 4.610 Bore, 1.120 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.610 in. Bore, 1.120 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 502, 4.610 Bore, Dome, Set of 8 |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.610 in. Bore - 1.120 in. CH, 13.00 CC |
| Prop 65 Yes/No |
Yes |
| Cylinder Head |
BIG CHIEF |
| Second Compression Ring Thickness |
0.0640 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Material |
2618 |
| Engine |
Big Block |
| Ringset Included |
No |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Compression Height |
1.120 |
| Industry |
Automotive |
| Forging Type |
Round |
| Piston Pin Material |
5115 |
| Piston Head Type |

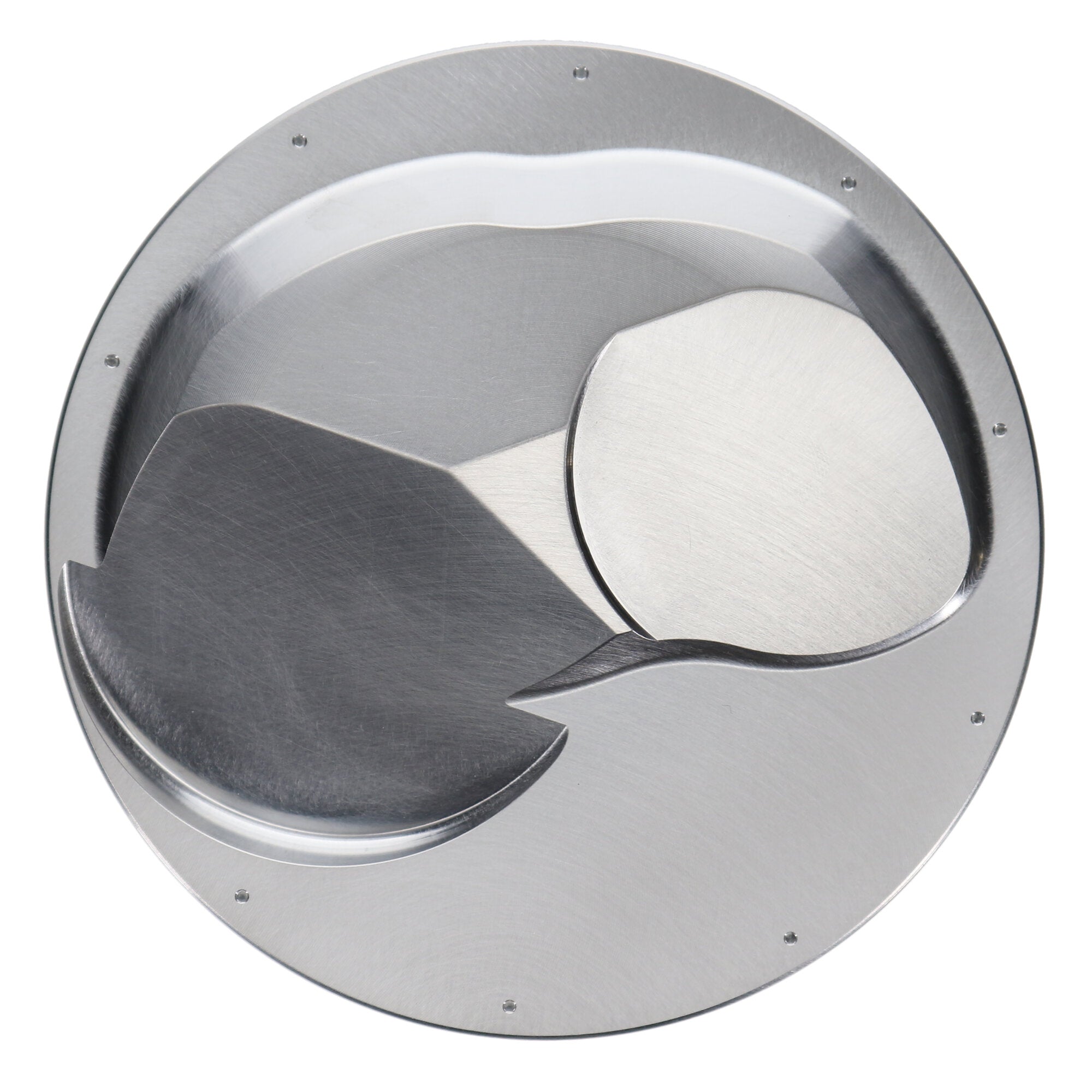

Dome |
| Add-On |
JG86L8-4610-5 |
| Add-On |
990-2930-18-51S |
| Add-On |
990-042-CS |
| Piston Pin Length |
2.930 |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Length |
2.930 |
| Engine - Web |
Big Block |
| Make - Web |
Chevrolet |
| Piston Volume |
13.00 |
| Piston Pin Outside Diameter |
0.990 |
| Top Compression Ring Thickness |
0.0435 |
| Piston Quantity |
8 |
| Piston Series |
JE Pistons |
| Piston Pin Wall Thickness |
0.180 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Title |
JE Pistons - Chevrolet, Big Block, 4.610 in. Bore, Piston Kit |
| Make |
CHEVROLET |
| Oil Ring Thickness |
0.218 |
| Engine Type |
ICE |
| Piston Average Weight |
621 |
| Bore Diameter |
4.610 |
| Product Market |
Domestic |
| Product Type |
Engine Piston Kit |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.180 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
16.0000 |
