As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

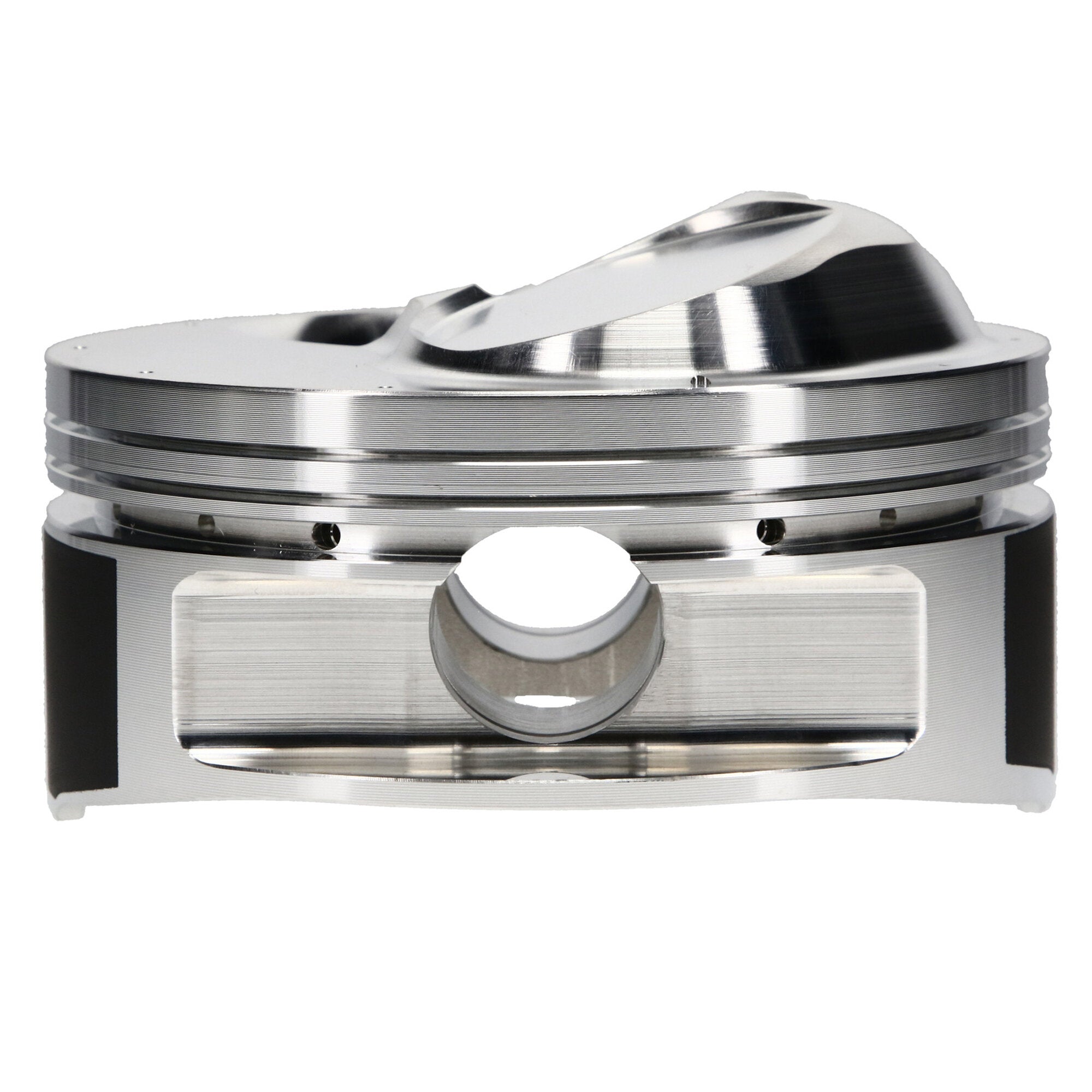

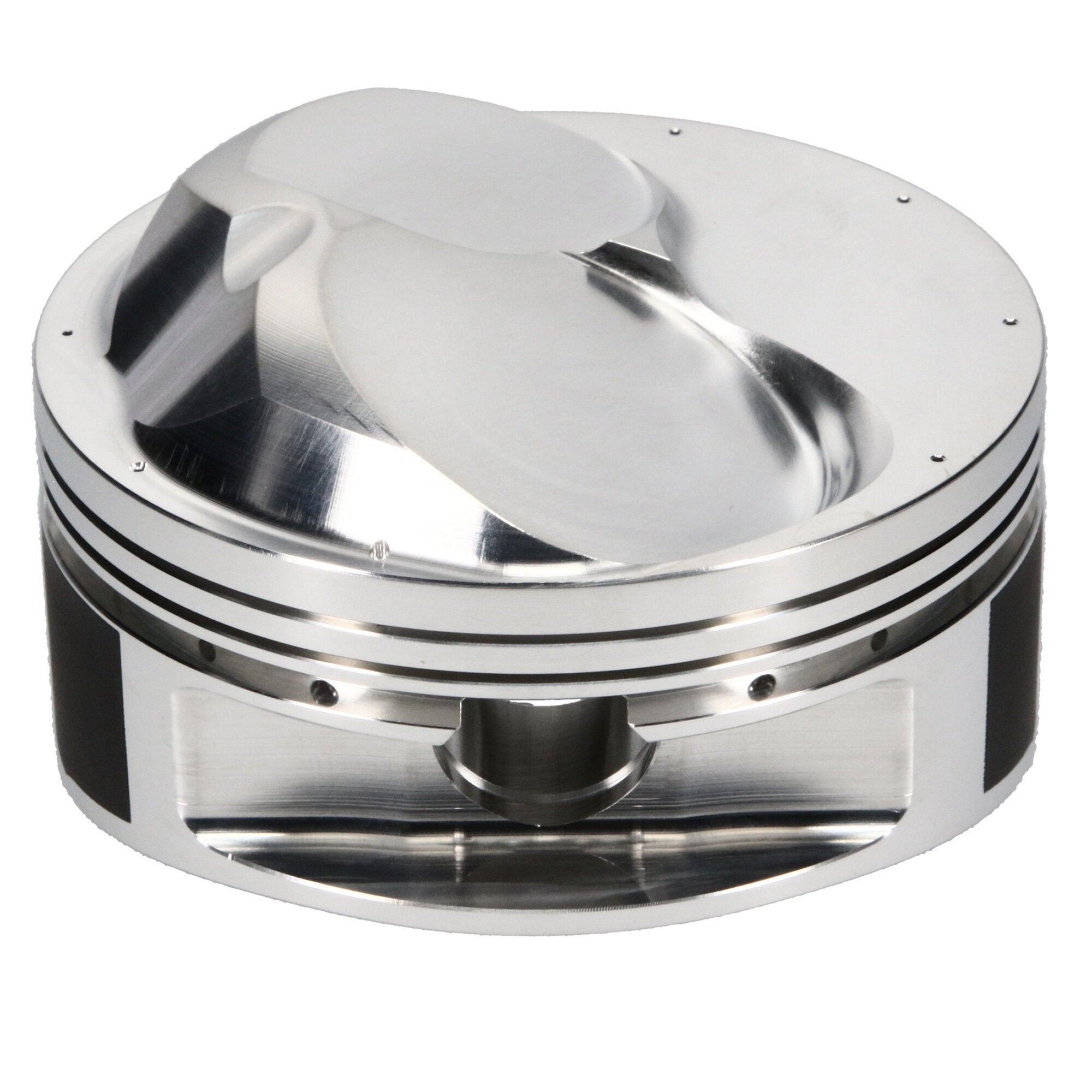

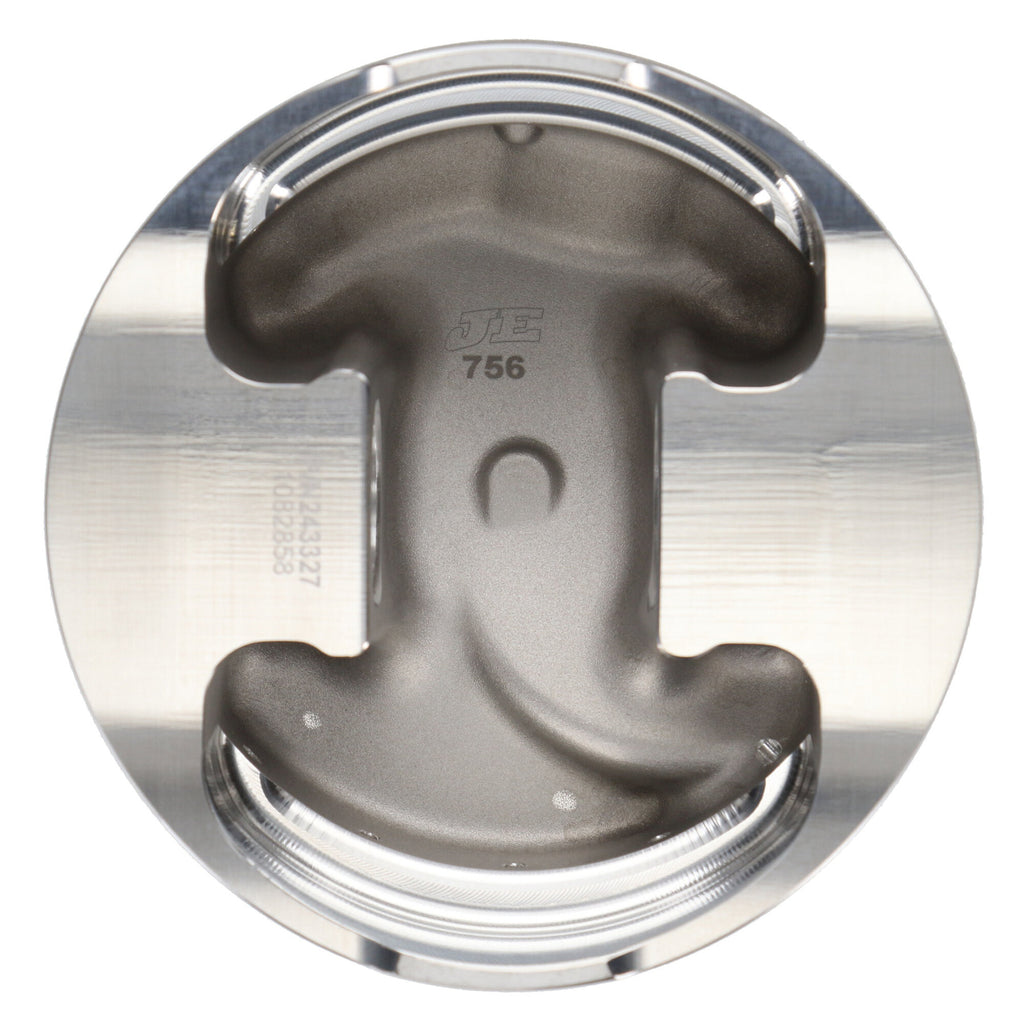

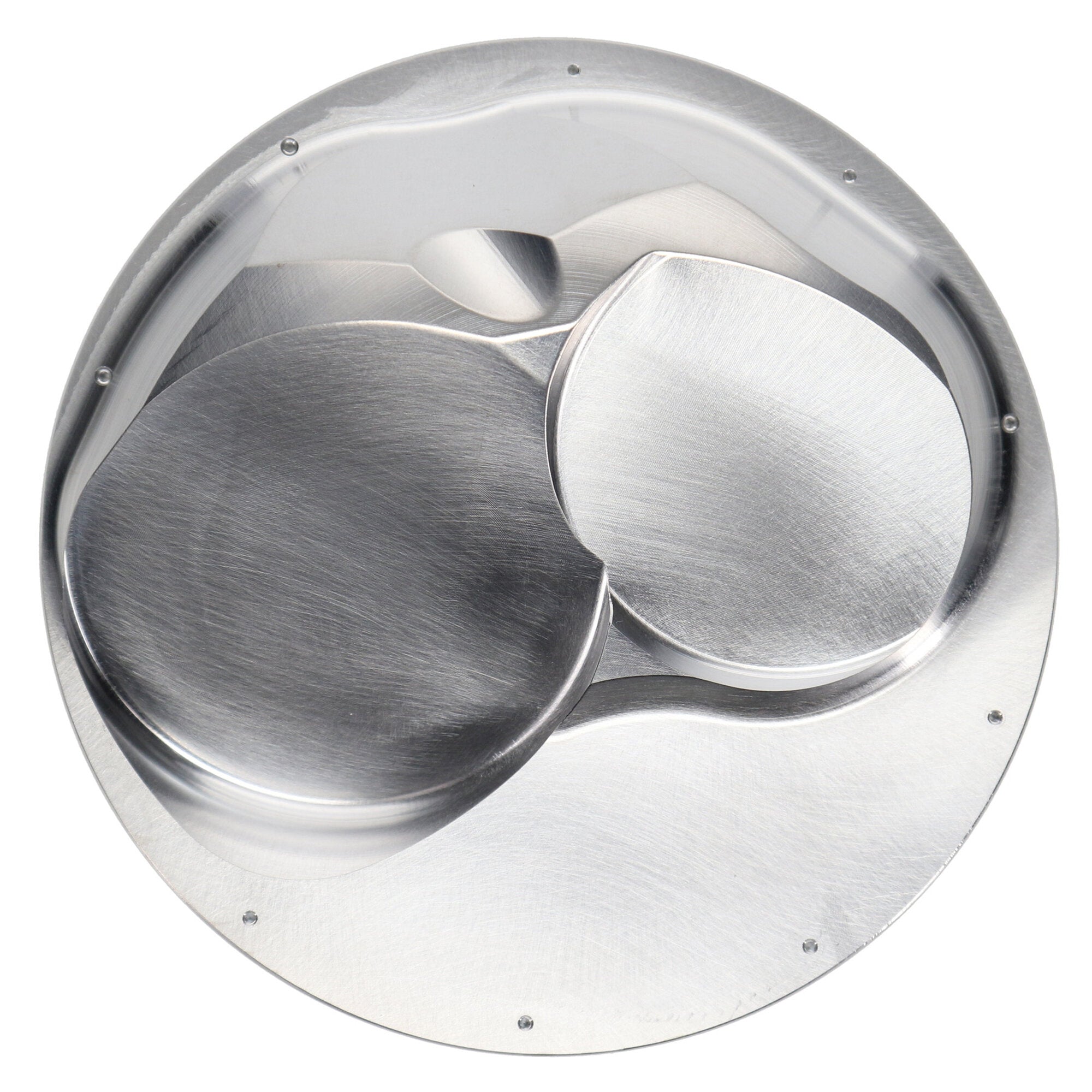

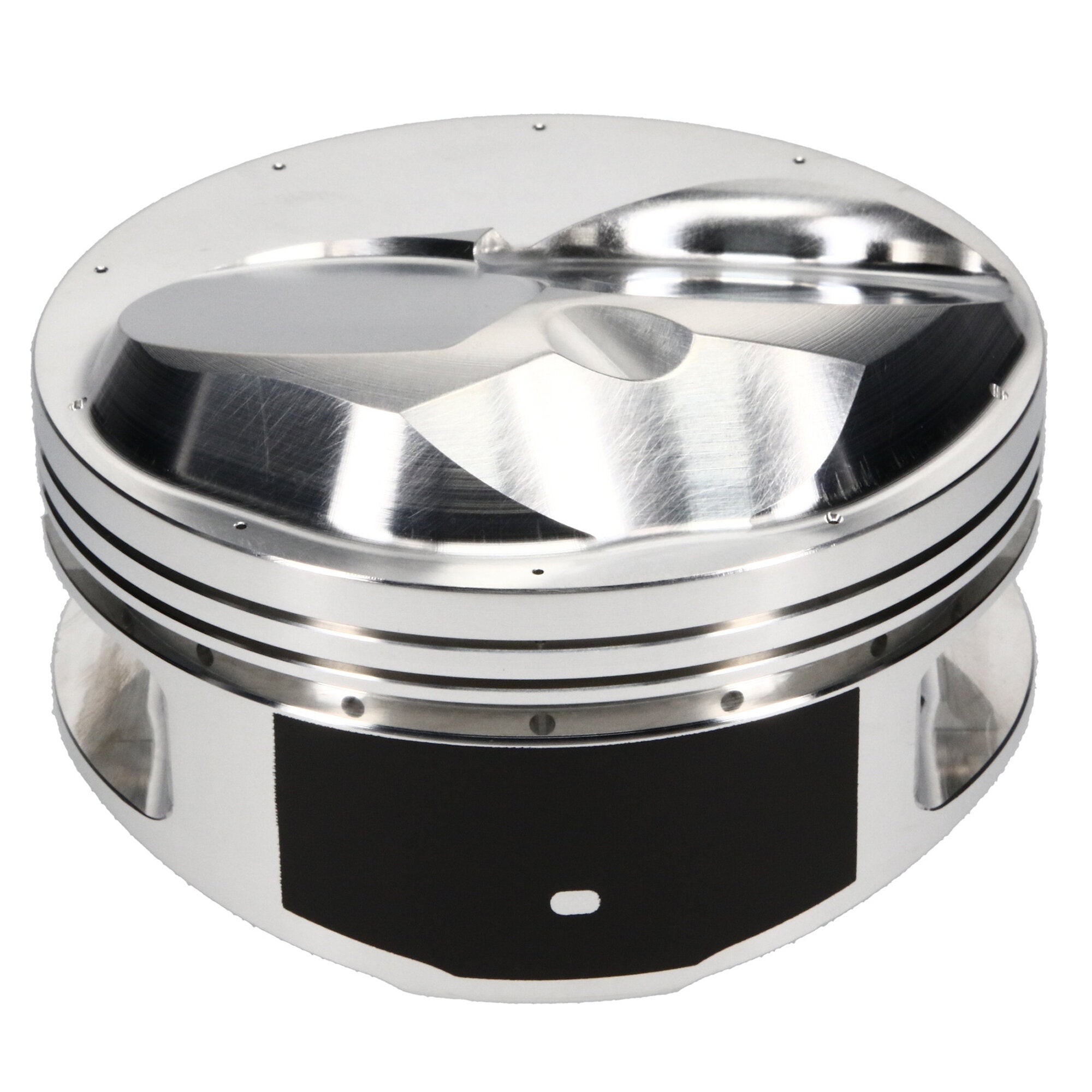

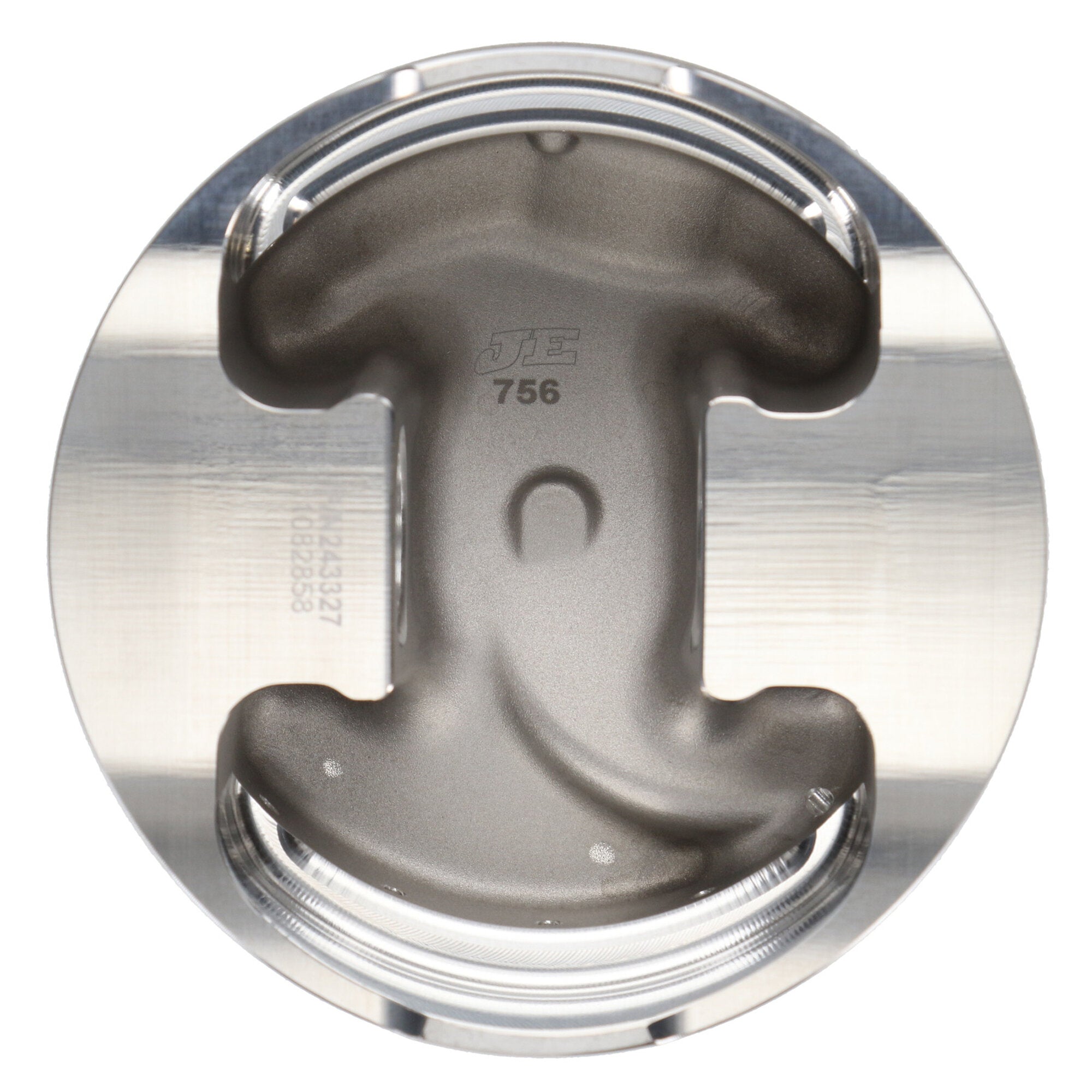

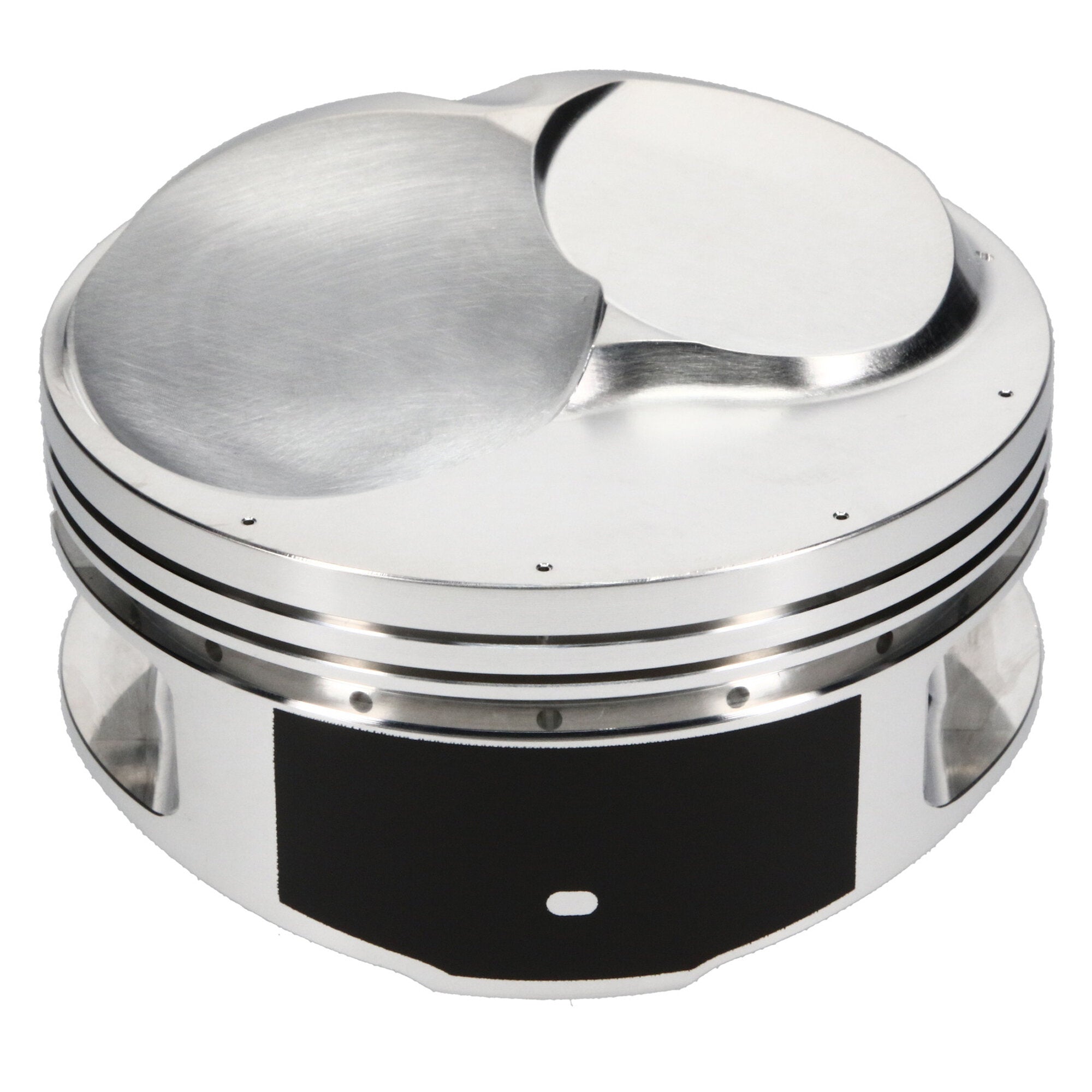

Piston Set, 2618, Dome, 4.625 Bore, 1.120 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.625 in. Bore, 1.120 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Chevrolet 502, 4.625 Bore, Dome, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Title |
JE Pistons - Chevrolet, Big Block, 4.625 in. Bore, Piston Kit |
| Bore Diameter |
4.625 |
| Piston Pin Material |
5115 |
| Forging Type |
Round |
| Top Compression Ring Thickness |
0.0435 |
| Product Market |
Domestic |
| Product Type |
Engine Piston Kit |
| Wrist Pin Length |
2.930 |
| Wrist Pin Wall Thickness |
0.180 |
| Piston Material |
2618 |
| Piston Quantity |
8 |
| Make |
CHEVROLET |
| Piston Average Weight |
602 |
| Piston Pin Outside Diameter |
0.990 |
| Industry |
Automotive |
| Ring Set Included |
No |
| Wrist Pin Outer Diameter |
0.990 |
| Prop 65 (C, R or CR) |
CR |
| Compression Height |
1.120 |
| Cylinder Head |
OPEN CHAMBER |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Oil Ring Thickness |
0.149 |
| Piston Pin Wall Thickness |
0.180 |
| Piston Volume |
46.00 |
| Second Compression Ring Thickness |
0.0440 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine - Web |
Big Block |
| Add-On |
990-042-CS |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Piston Series |
JE Pistons |
| Piston Head Type |
Dome |
| Engine |
Big Block |
| Add-On |
JG7708-4625-5 |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.625 in. Bore - 1.120 in. CH, 46.00 CC |
| Piston Pin Length |
2.930 |
| Ringset Included |
No |
| Add-On |
990-2930-18-51S |
| Engine Type |
ICE |
| Make - Web |
Chevrolet |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
