As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 Big Duke/Chief |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

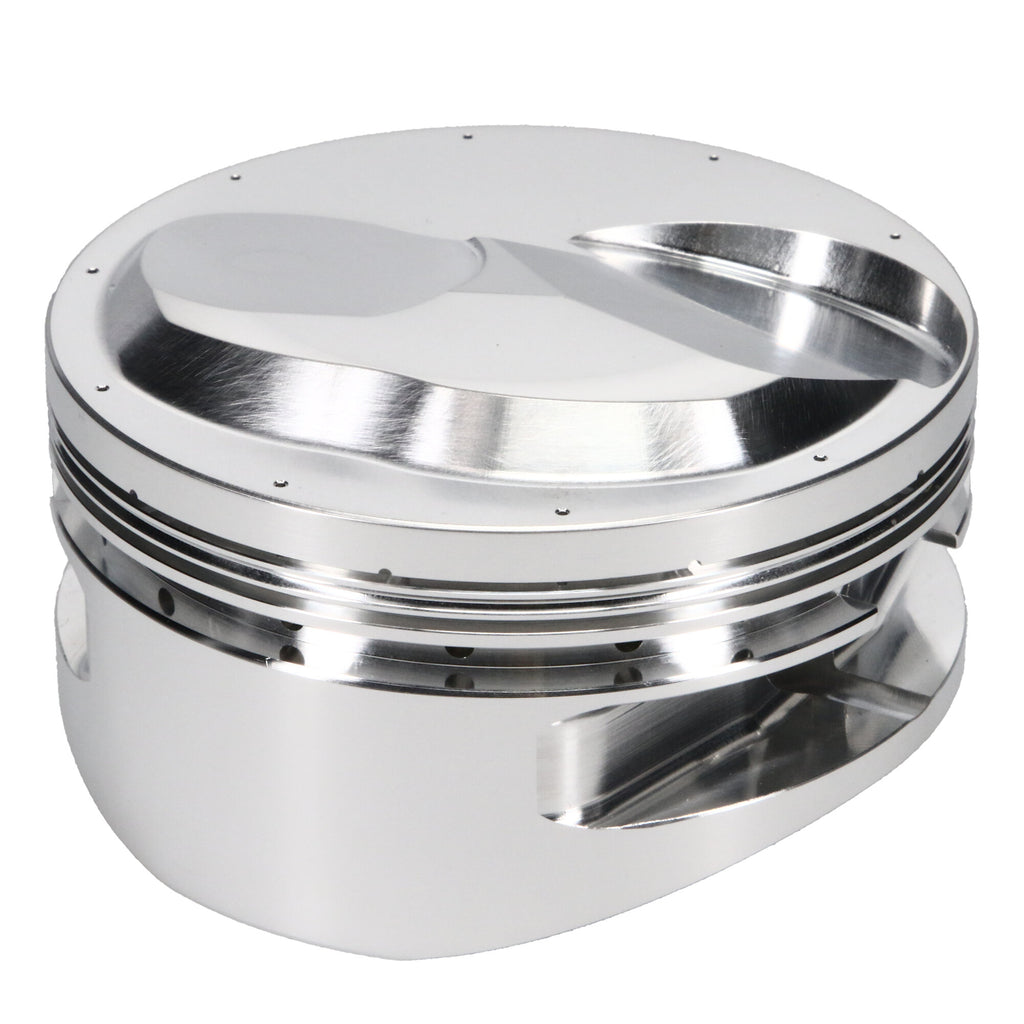

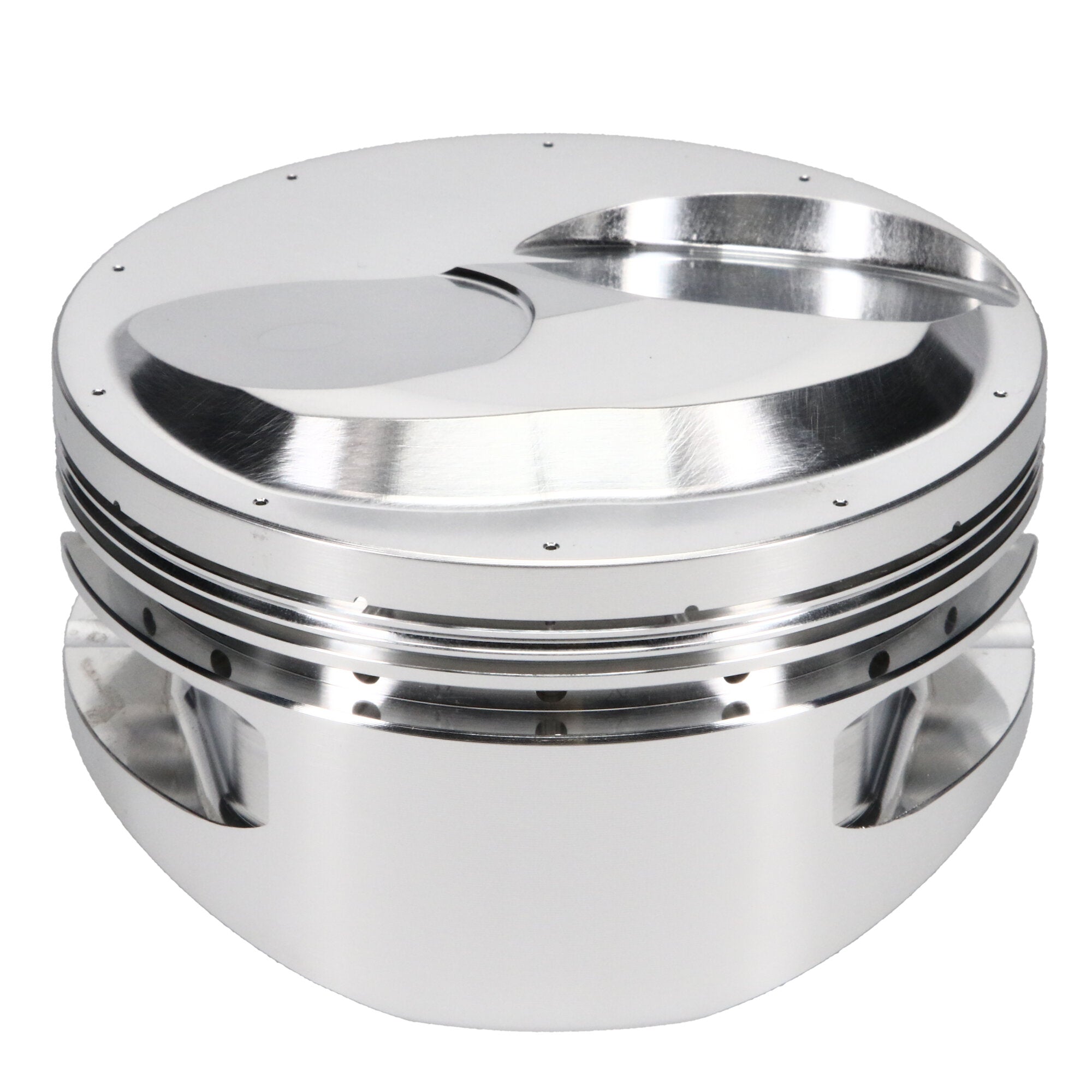

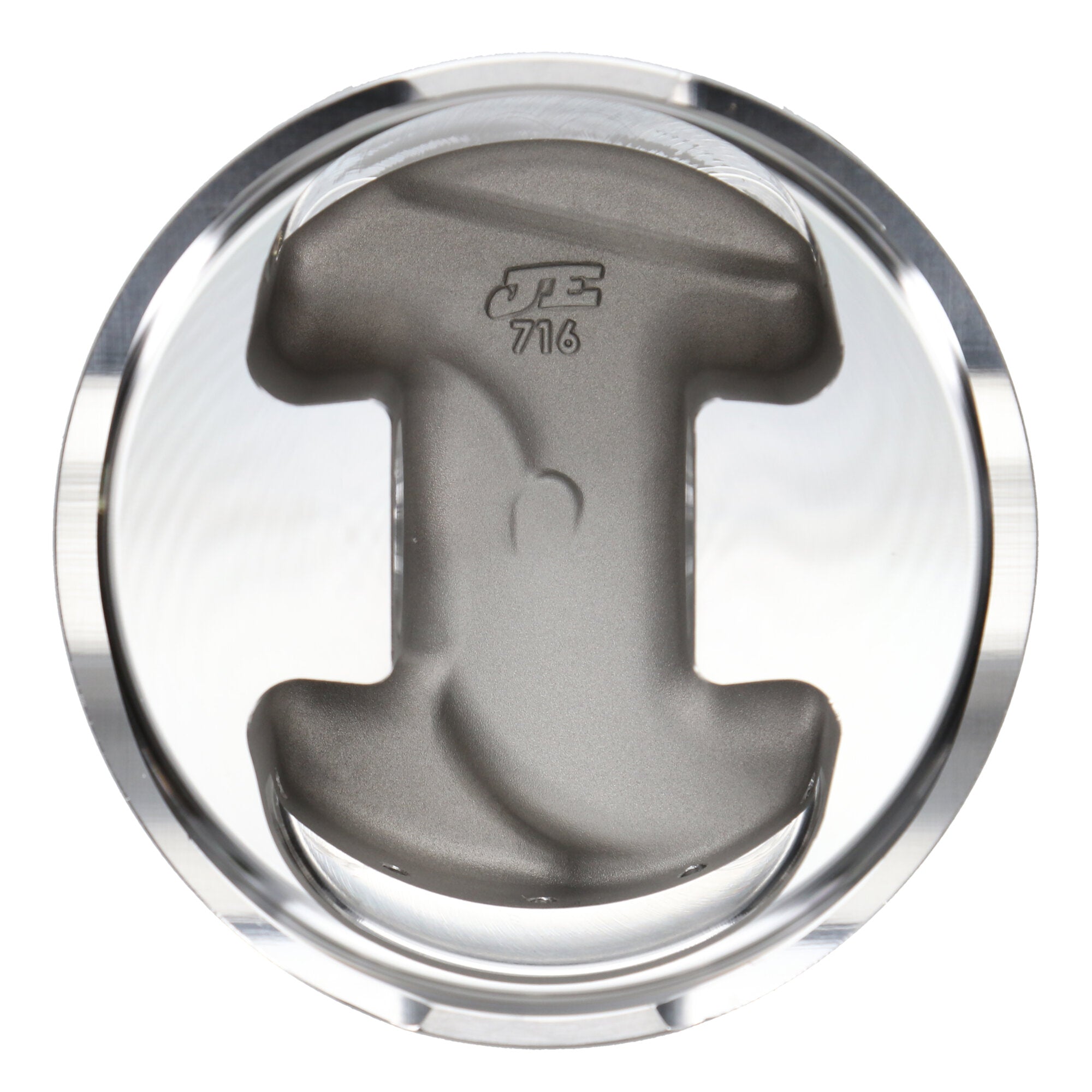

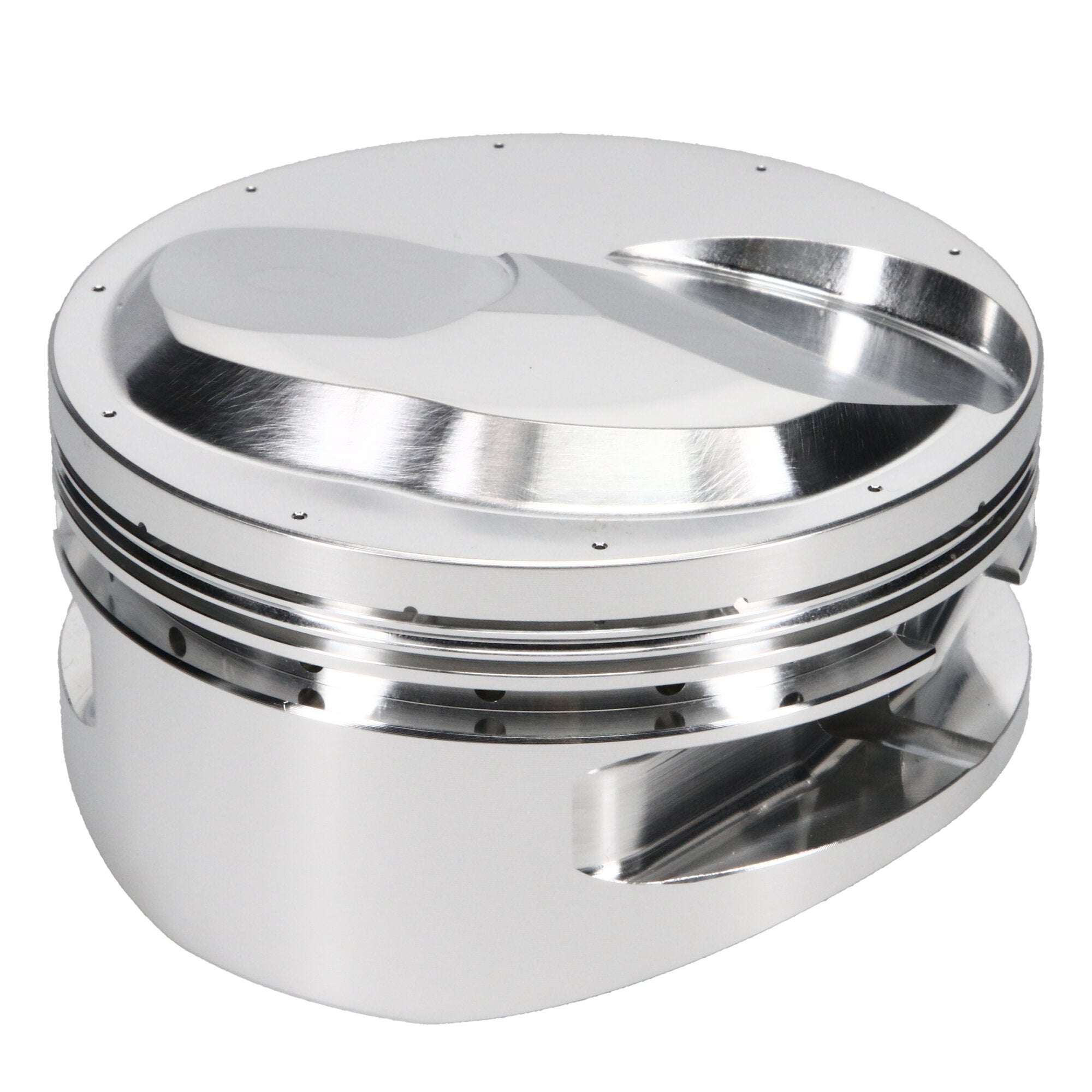

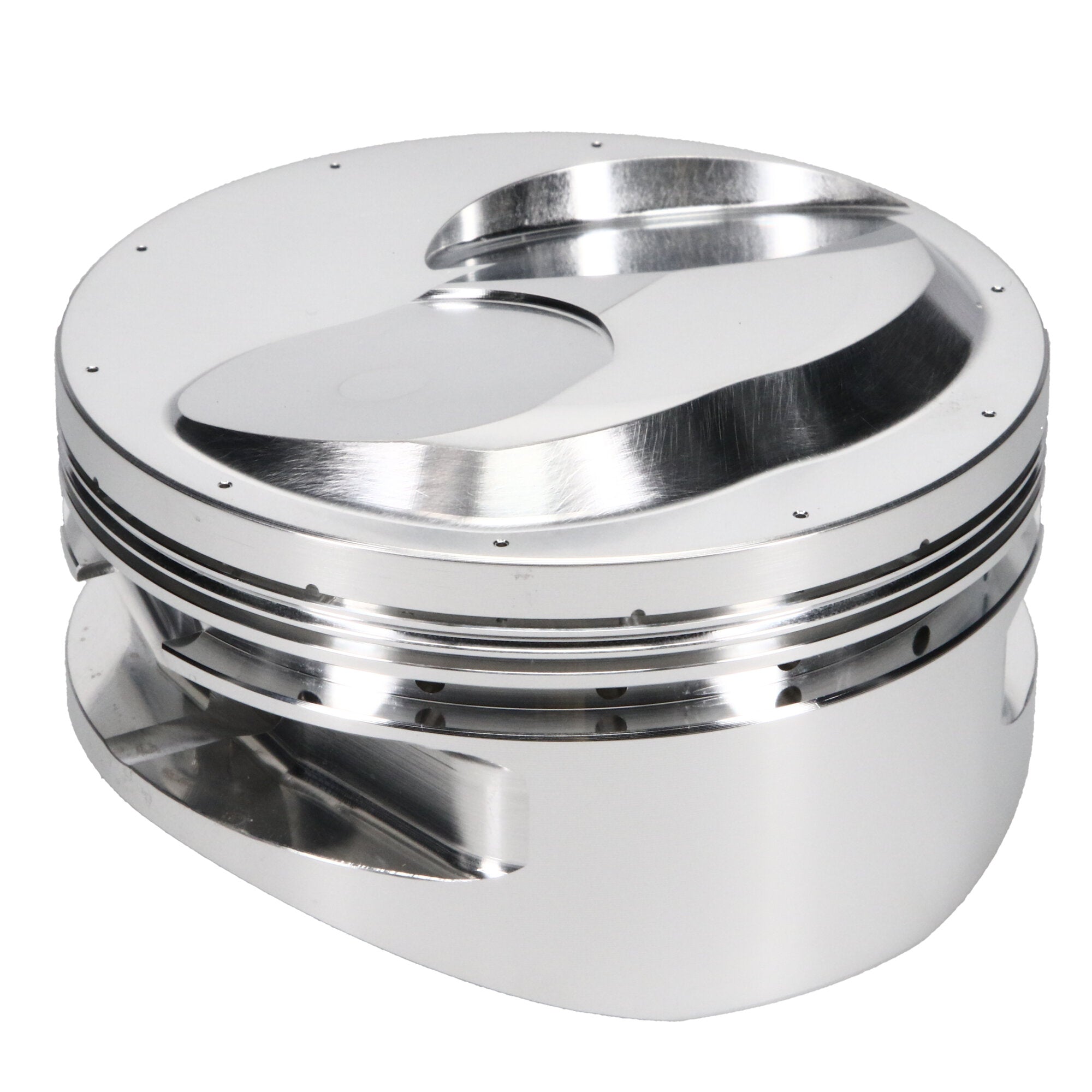

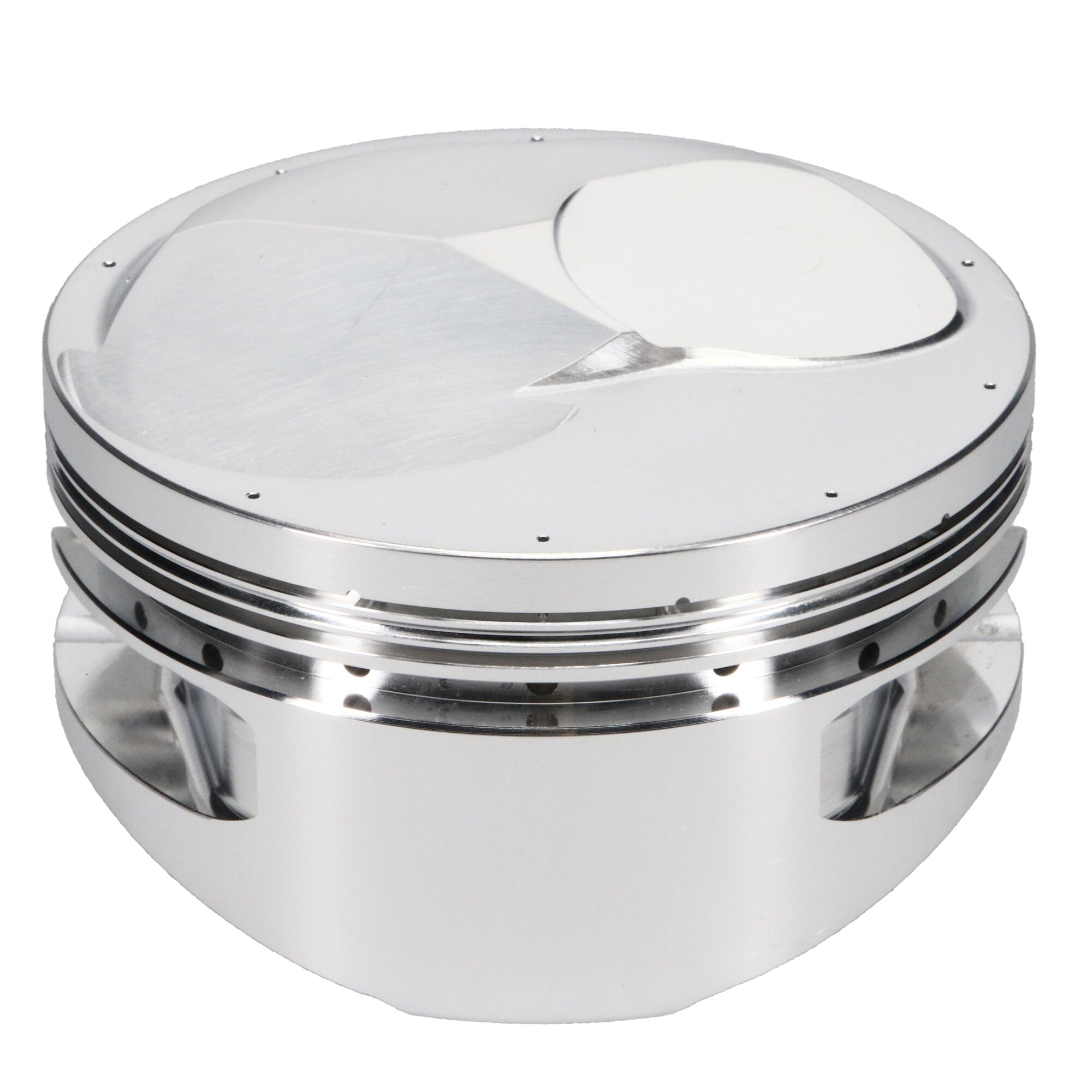

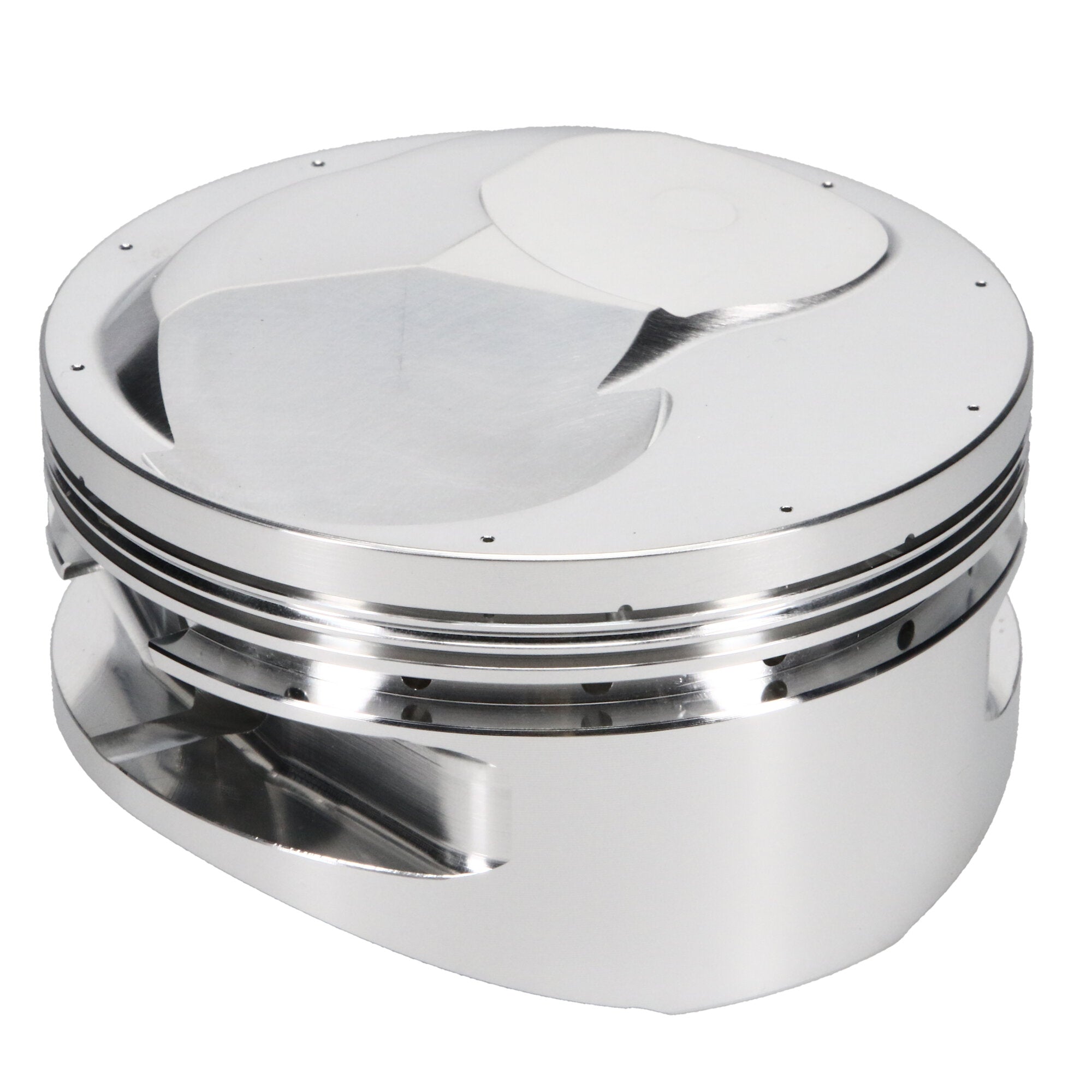

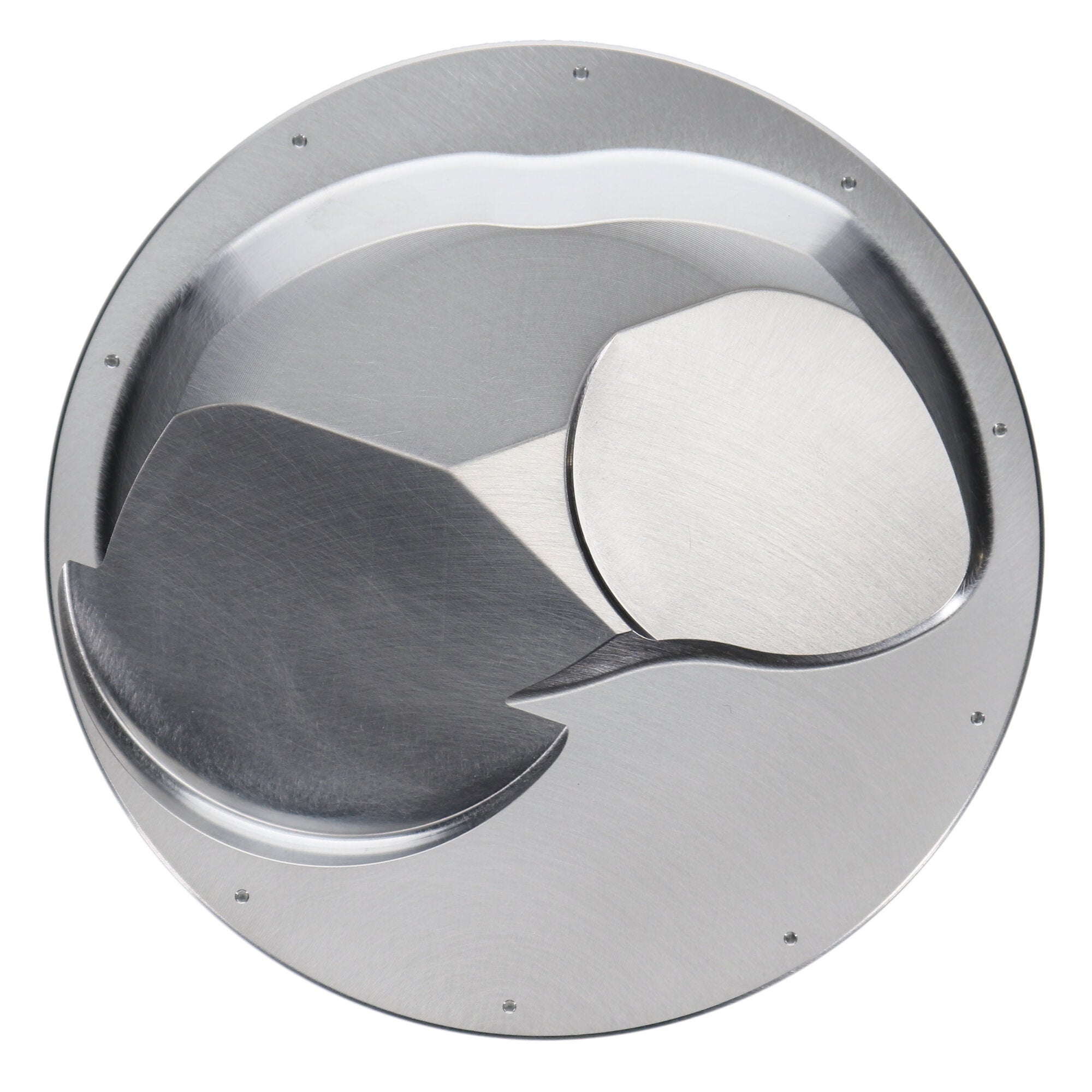

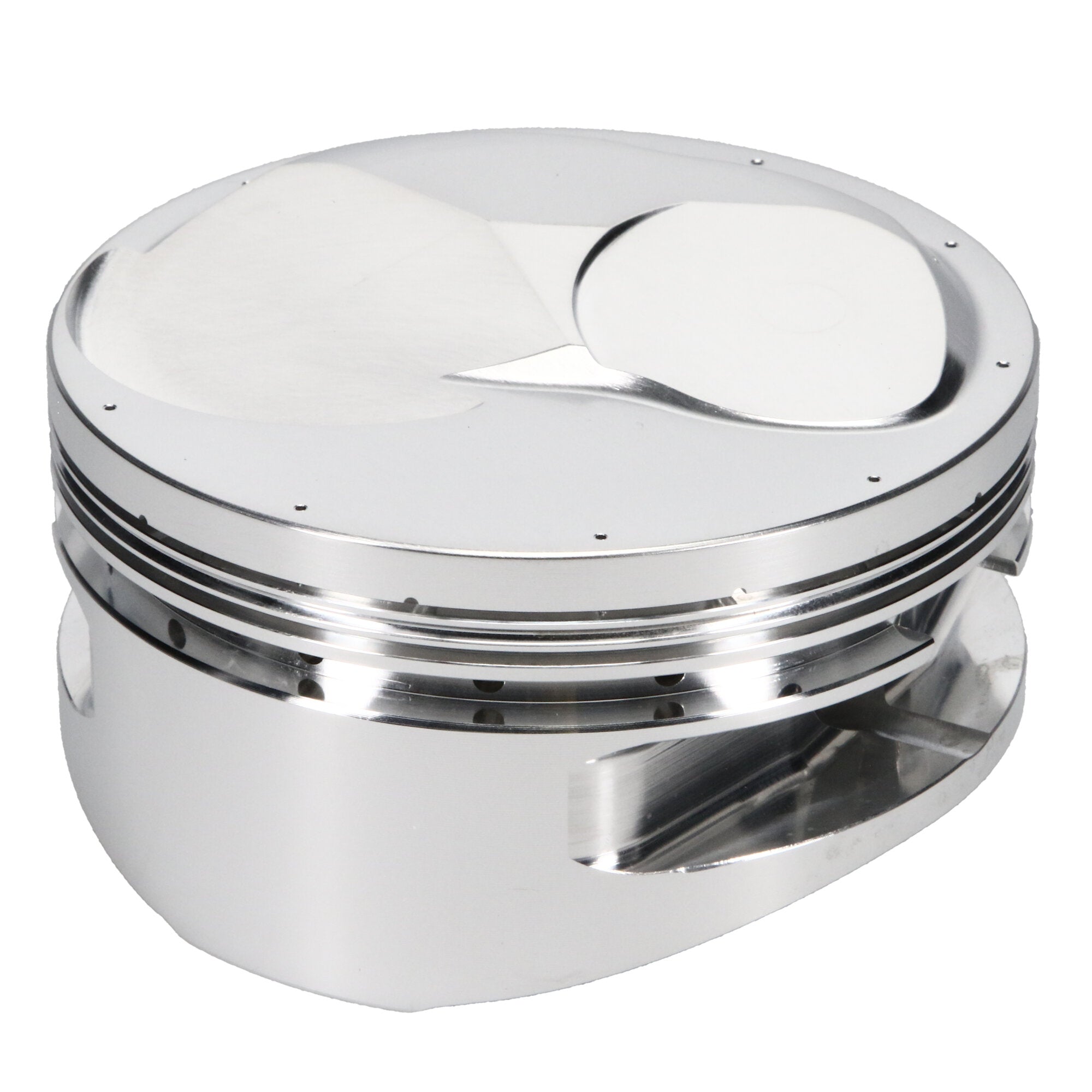

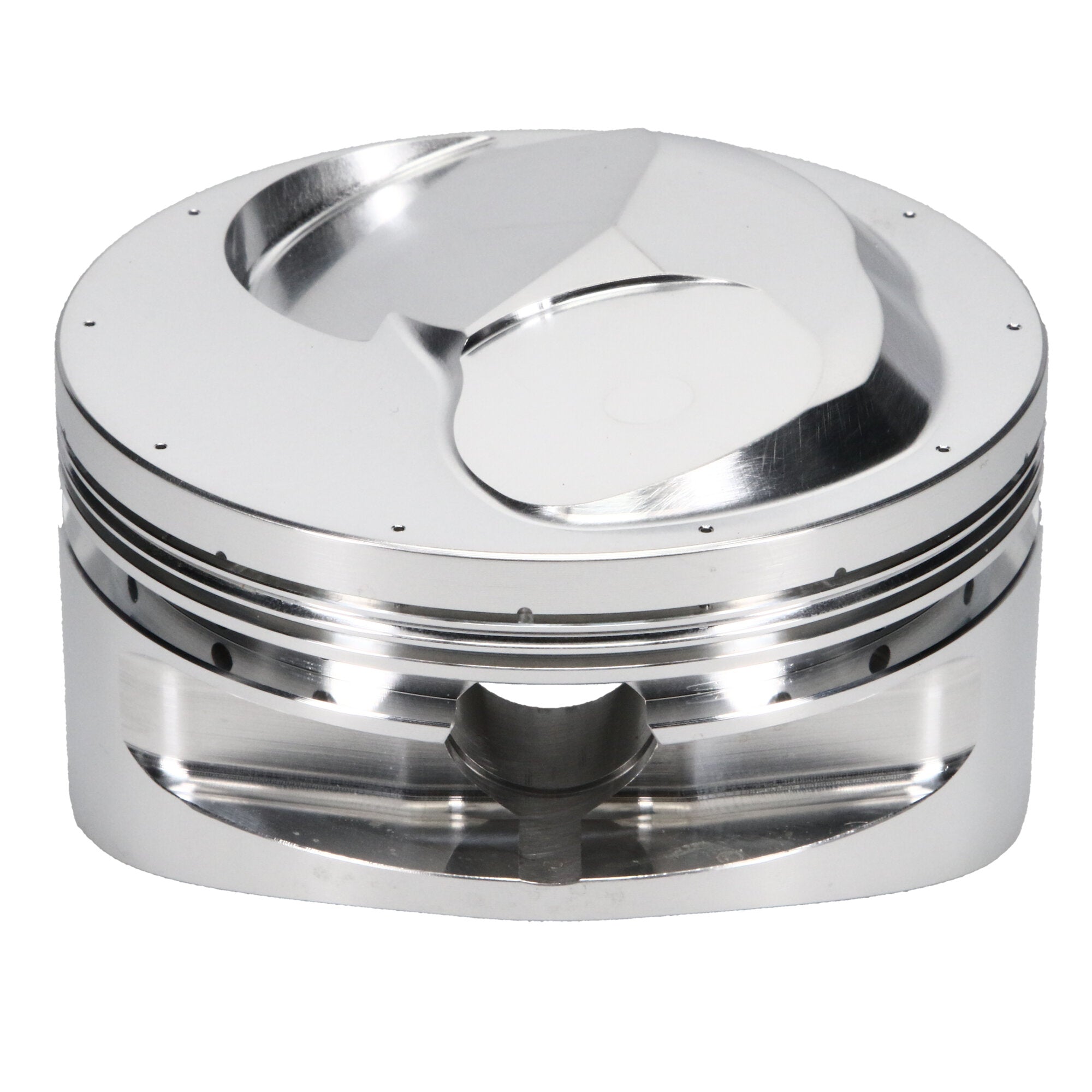

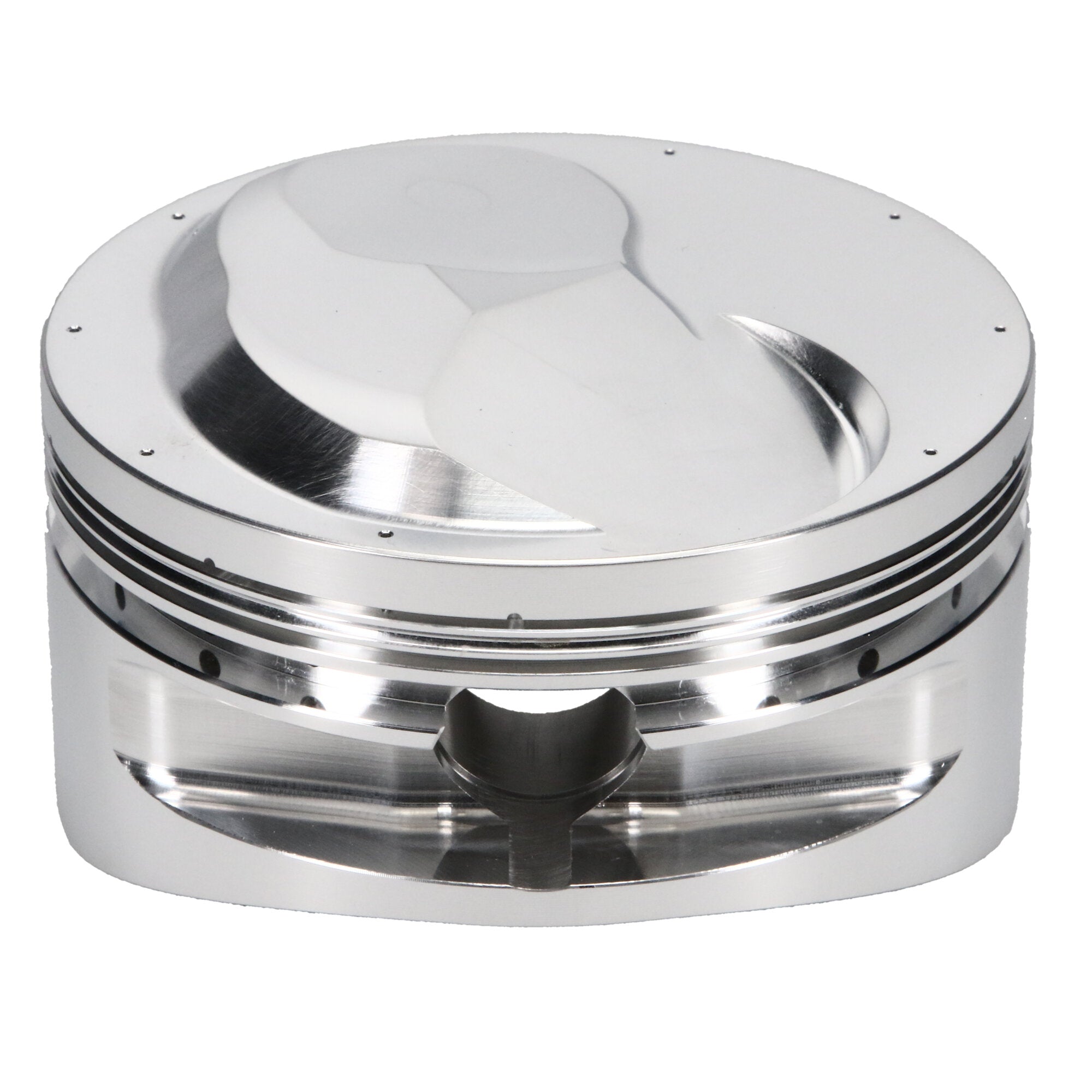

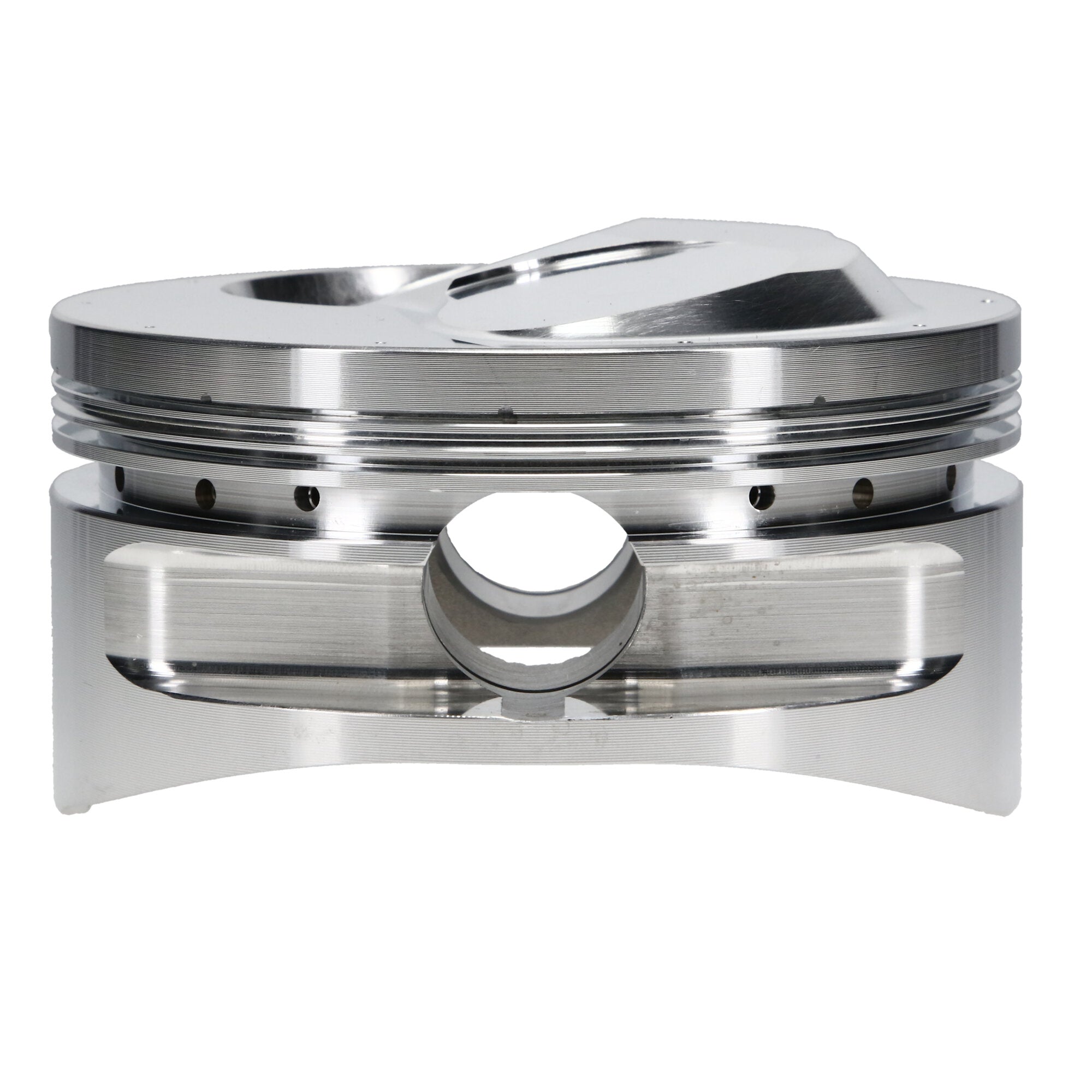

Piston Set, 2618, Dome, 4.600 Bore, 1.060 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.600 in. Bore, 1.060 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Chevrolet 502, 4.600 Bore, Dome, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Oil Ring Thickness |
0.149 |
| Bore Diameter |
4.600 |
| Engine Type |
ICE |
| Ringset Included |
No |
| Forging Type |
Round |
| Title |
JE Pistons - Chevrolet, Big Block, 4.600 in. Bore, Piston Kit |
| Piston Head Type |
Dome |
| Piston Series |
JE Pistons |
| Piston Average Weight |
585 |
| Make |
CHEVROLET |
| Compression Height |
1.060 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Pin Outside Diameter |
0.990 |
| Engine - Web |
Big Block |
| Piston Material |
2618 |
| Add-On |
990-042-CS |
| Piston Pin Material |
5115 |
| Product Market |
Domestic |
| Piston Pin Length |
2.930 |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
BIG CHIEF |
| Add-On |
JG7708-4600-5 |
| Industry |
Automotive |
| Piston Volume |
18.00 |
| Top Compression Ring Thickness |
0.0435 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Quantity |
8 |
| Product Type |
Engine Piston Kit |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Add-On |
990-2930-15-51S |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Length |
2.930 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.150 |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.600 in. Bore - 1.060 in. CH, 18.00 CC |
| Engine |
Big Block |
| Second Compression Ring Thickness |
0.0440 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
16.0000 |
