As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda K24A3/K20A2 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

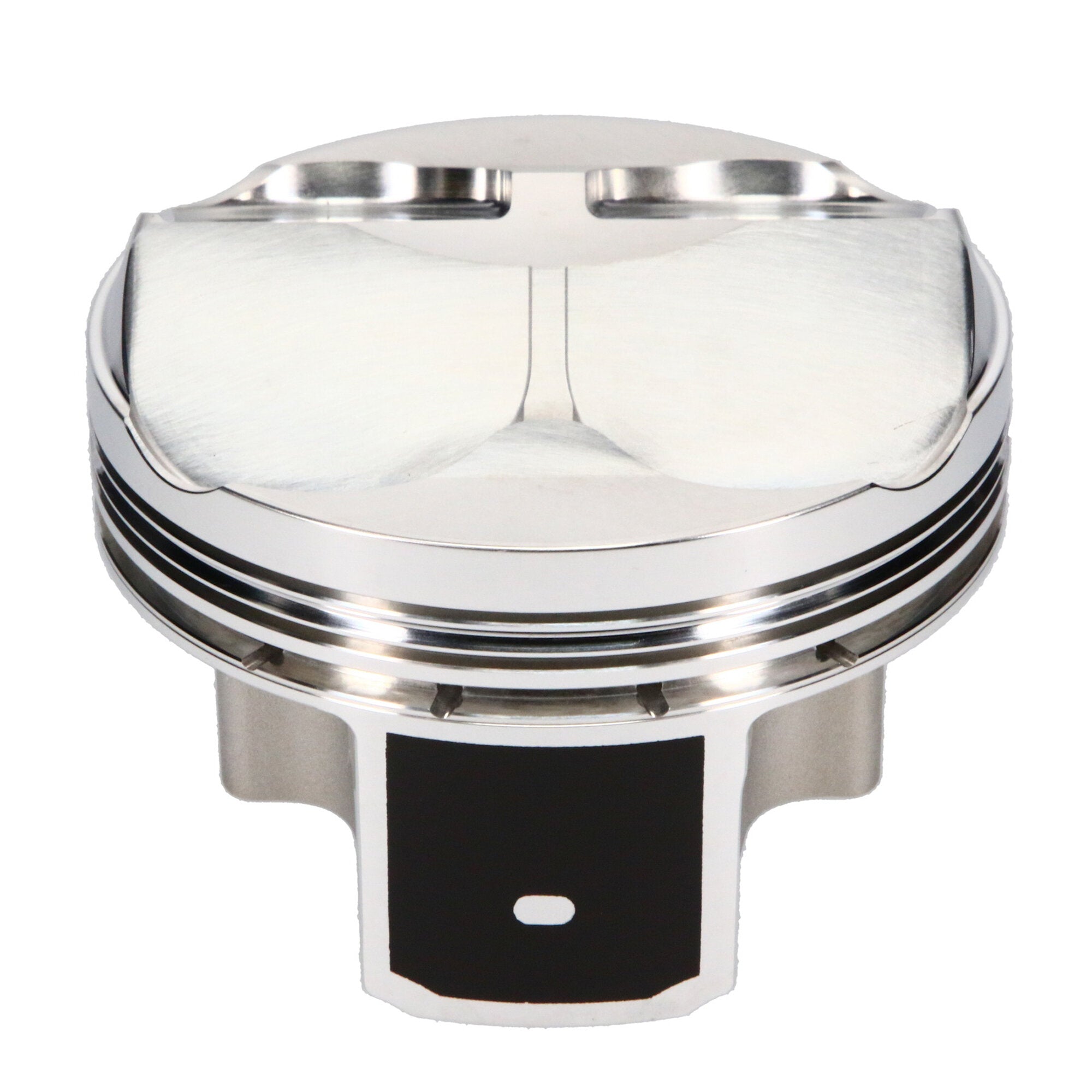

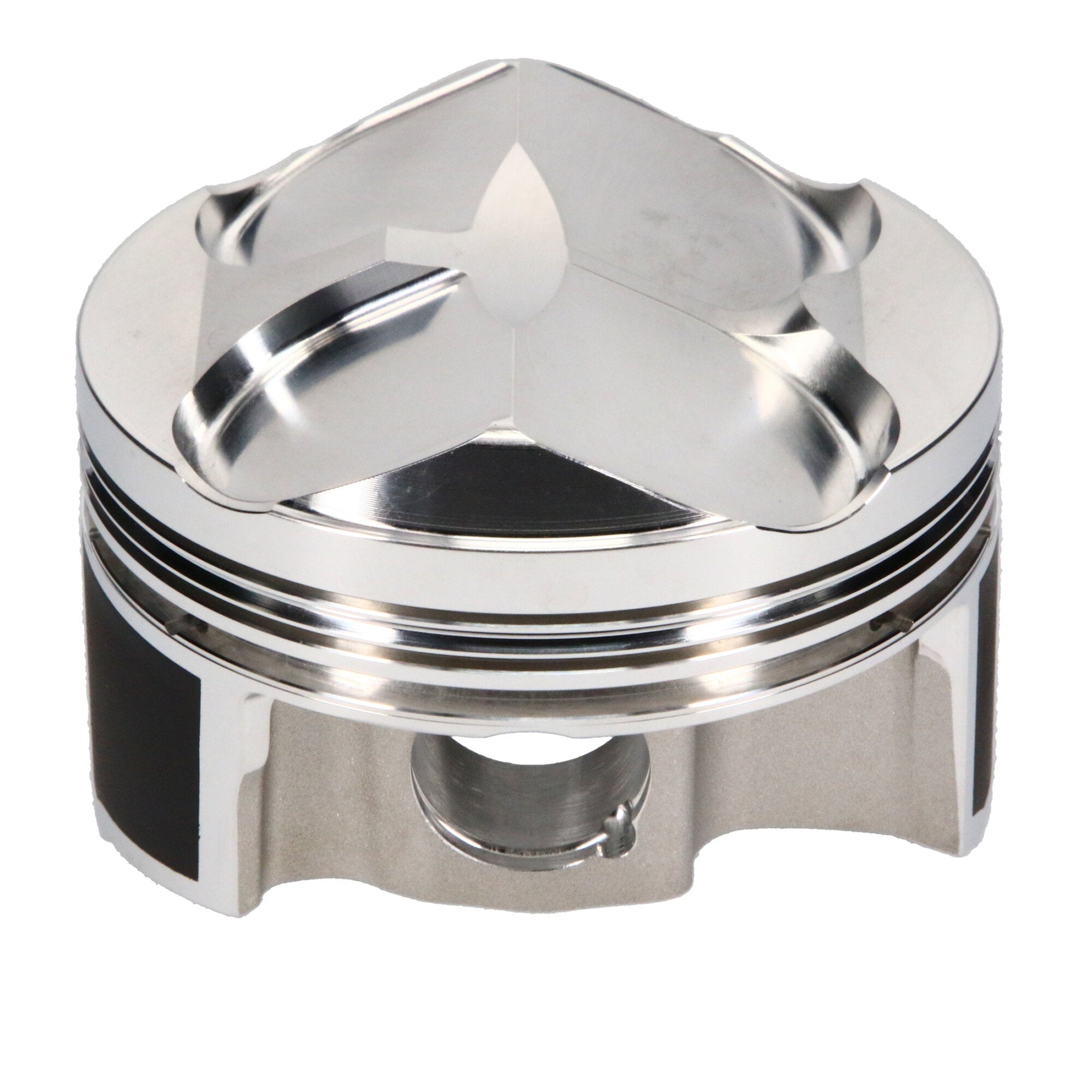

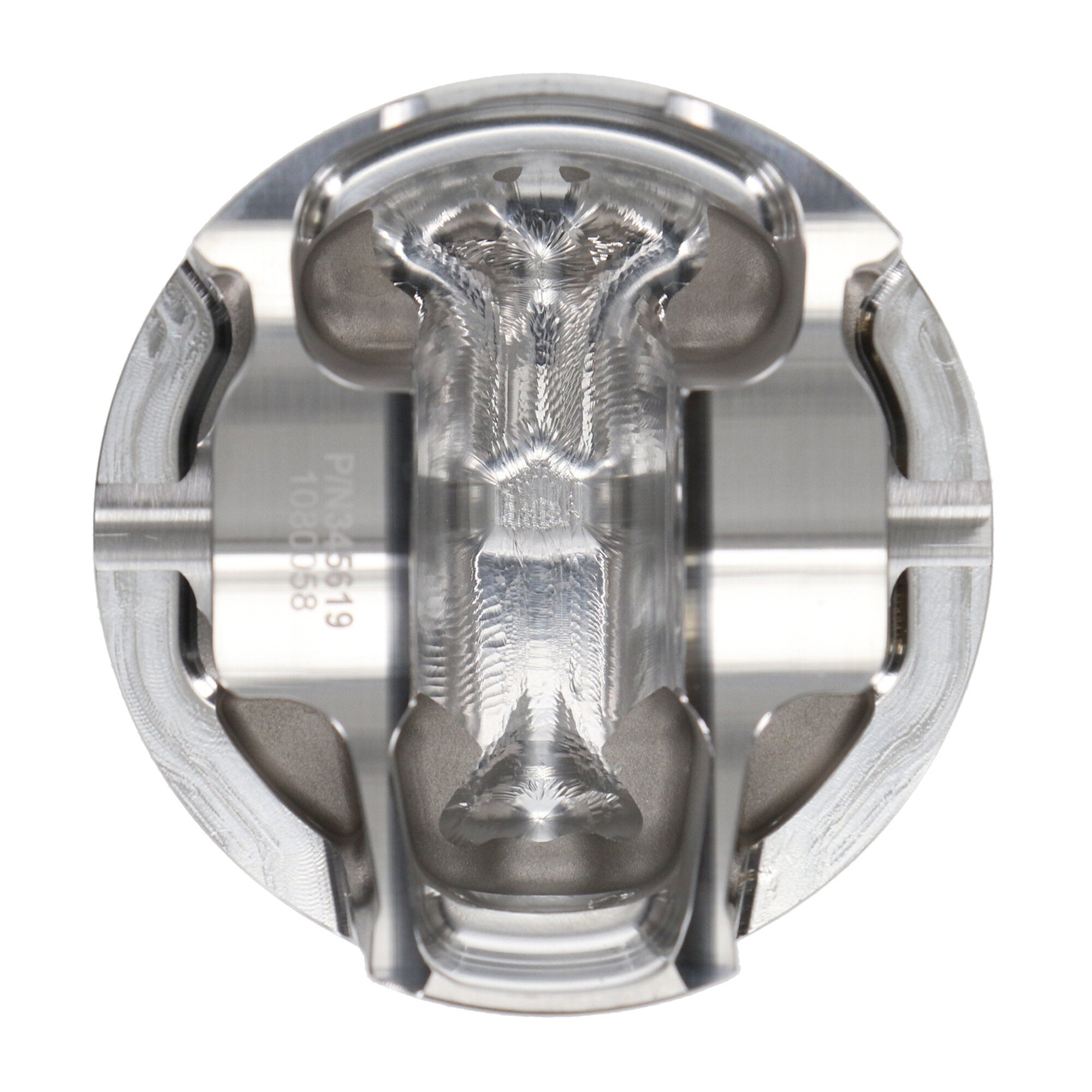

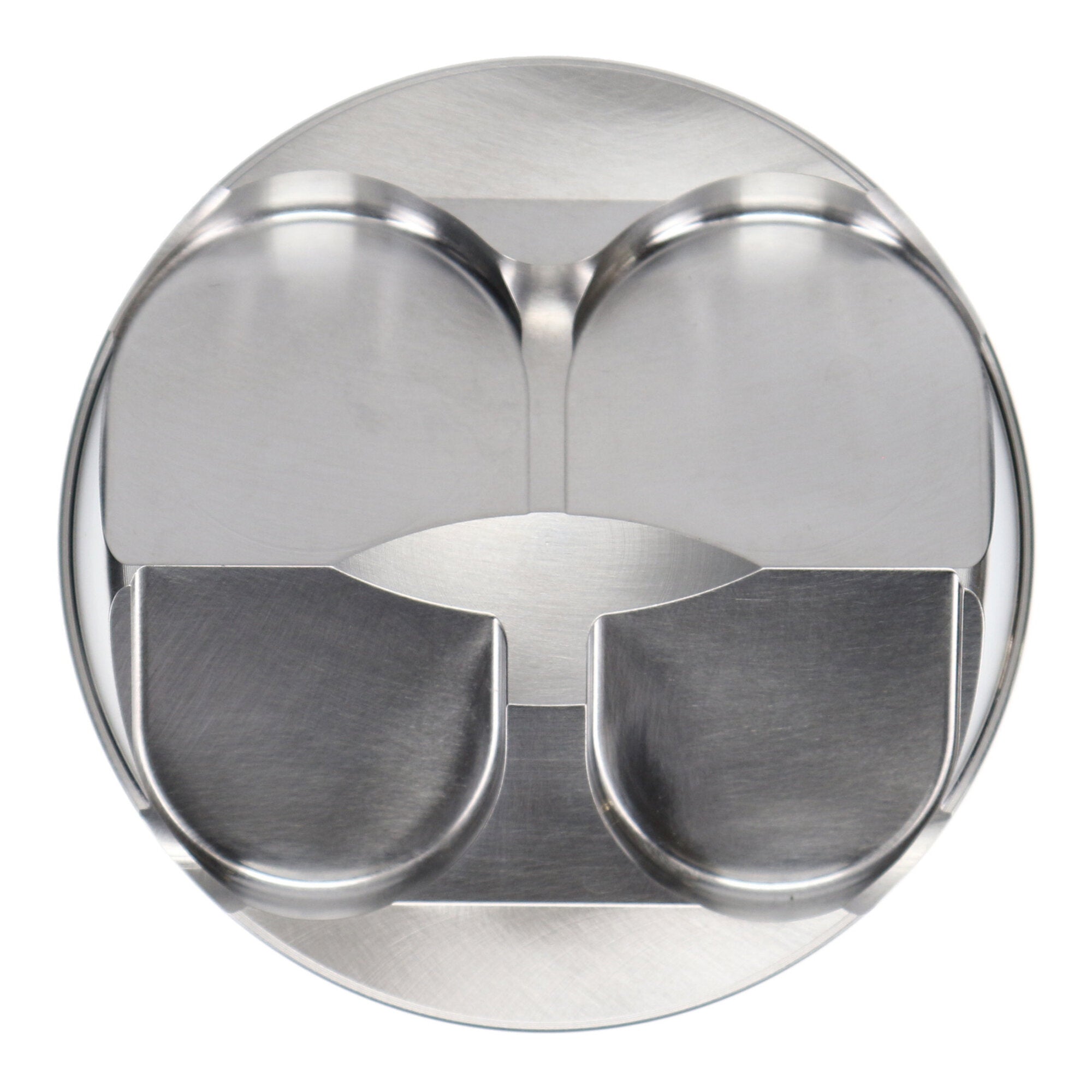

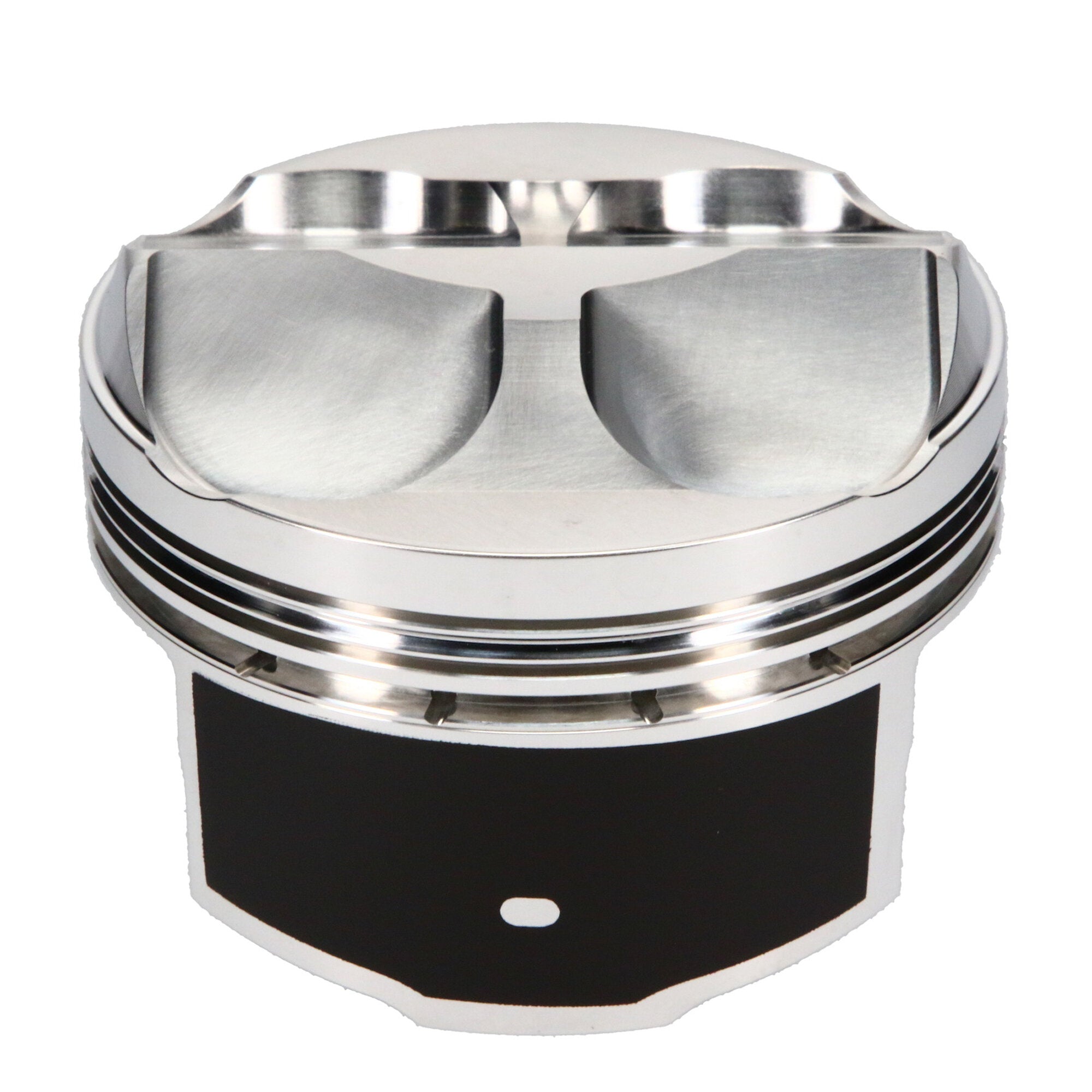

Piston Set, 2618, Dome, 3.464 Bore, 1.176 CD, 0.866 Pin, Set of 4. |
| Description_EXT |
JE, Acura, K Series, 3.464 in. Bore, 13.50:1, Dome, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Honda K20A2/K24A3, 88.00 Bore, Dome, Set of 4 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Product Market |
Sport Compact |
| Add-On |
866-2250-15-51C |
| Piston Pin Outside Diameter |
0.866 |
| Prop 65 Yes/No |
Yes |
| Make |
ACURA |
| Add-On |
866-063-MW |
| Product Type |
Engine Piston Kit |
| Add-On |
JG1001-3465 |
| Piston Average Weight |
341 |
| Out of Stock Message |
Call for Availability |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Top Compression Ring Thickness |
0.0400 |
| Cylinder Head |
K20 |
| Prop 65 (C, R or CR) |
CR |
| Bore Diameter |
88.00 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Quantity |
4 |
| Piston Material |
2618 |
| Wrist Pin Outer Diameter |
0.866 |
| Piston Pin Length |
2.250 |
| Second Compression Ring Thickness |
0.0480 |
| Engine |
K Series |
| Forging Type |
Round |
| Compression Height |
1.176 |
| Engine Type |
ICE |
| Industry |
Automotive |
| Title |
JE Pistons - Acura, K Series, 88.00 mm Bore, Piston Kit |
| Piston Volume |
7.70 |
| Oil Ring Thickness |
0.111 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine - Web |
K Series |
| Make - Web |
Acura |
| Ringset Included |
Yes |
| Title - Web |
JE Pistons Acura K Series Piston Kit - 88.00 mm Bore - 1.176 in. CH, 7.70 CC |
| Piston Head Type |
Dome |
| Piston Series |
JE Pistons |
| Piston Pin Material |
5115 |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
9.0000 |
| Weight |
5.0000 |
