As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chrysler 426 Hemi |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

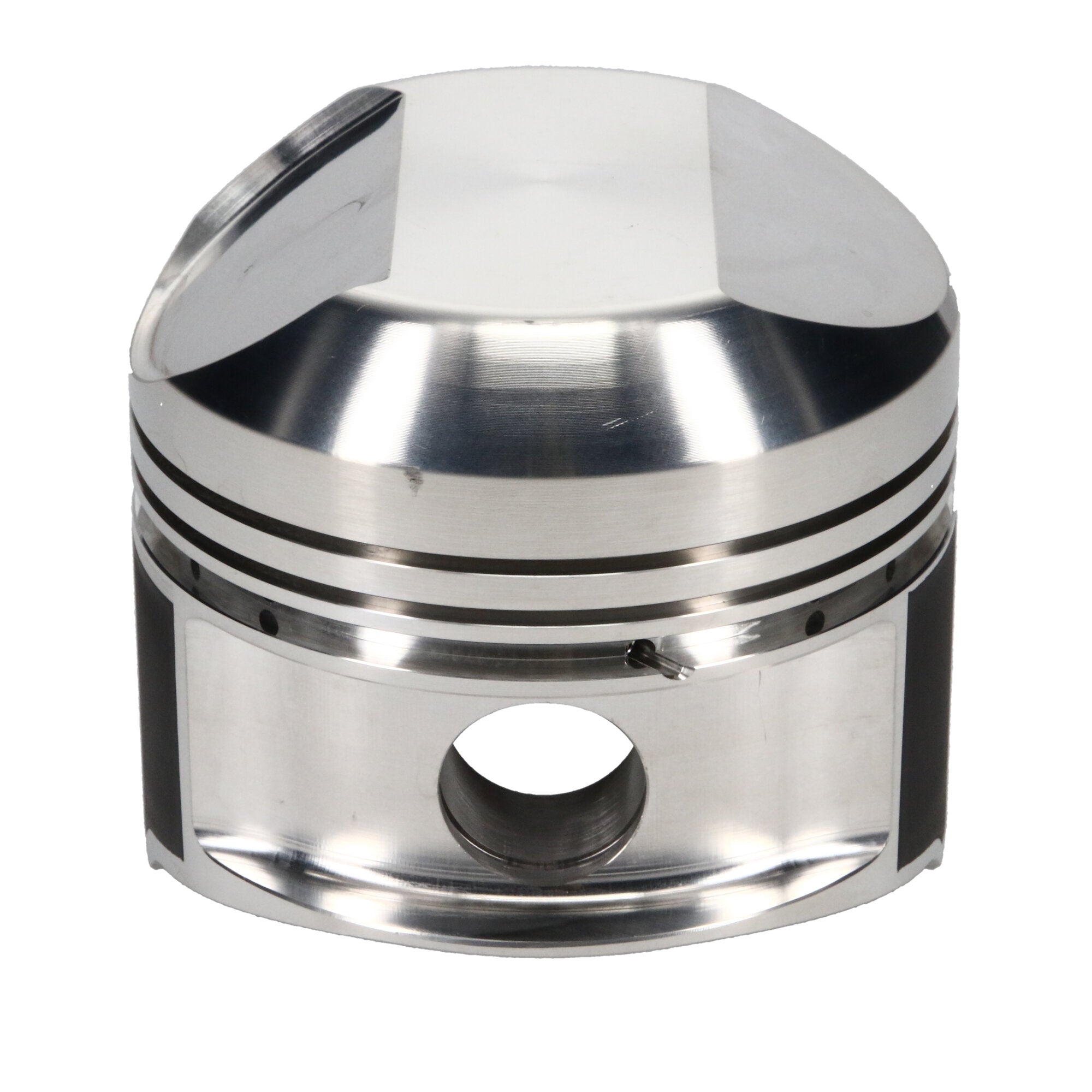

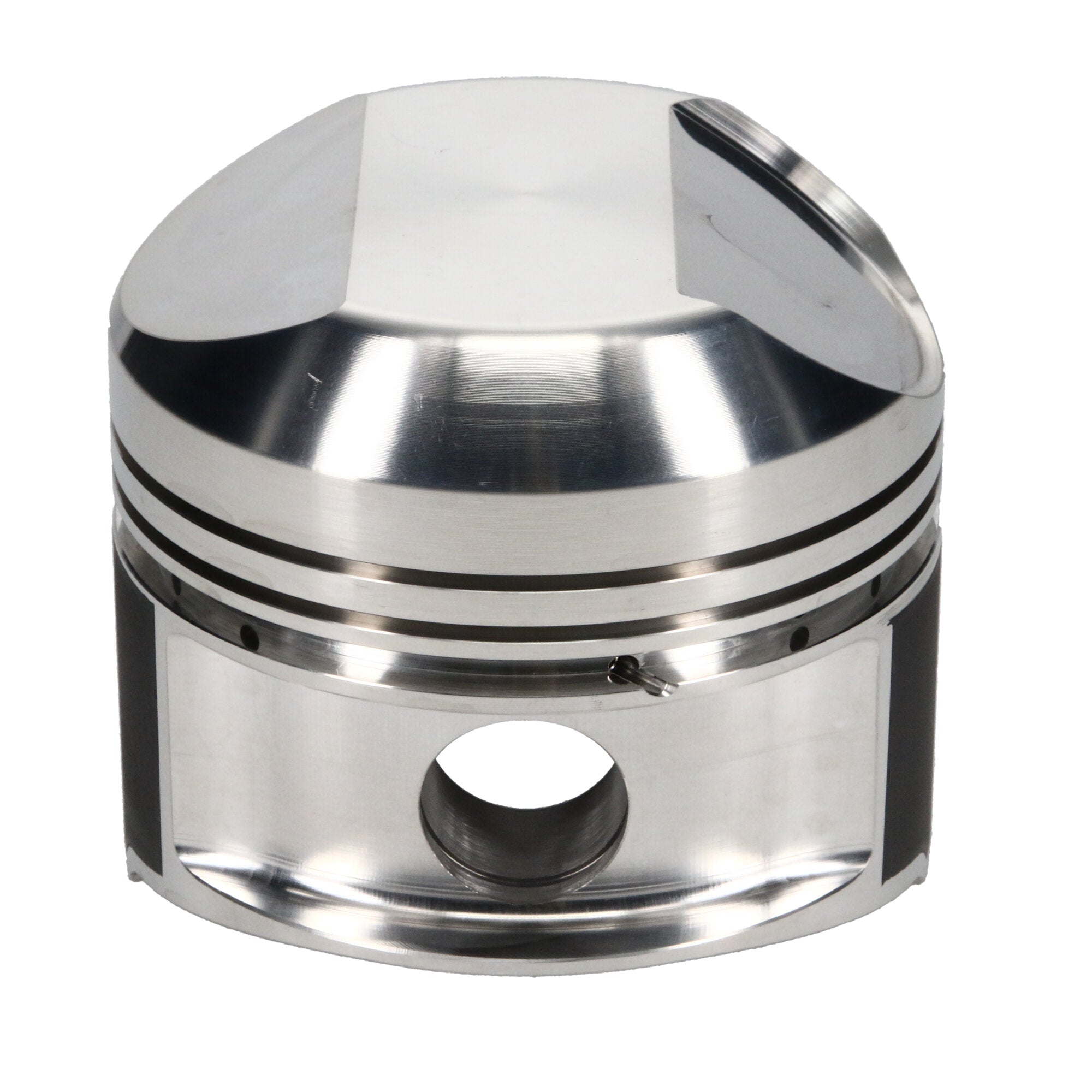

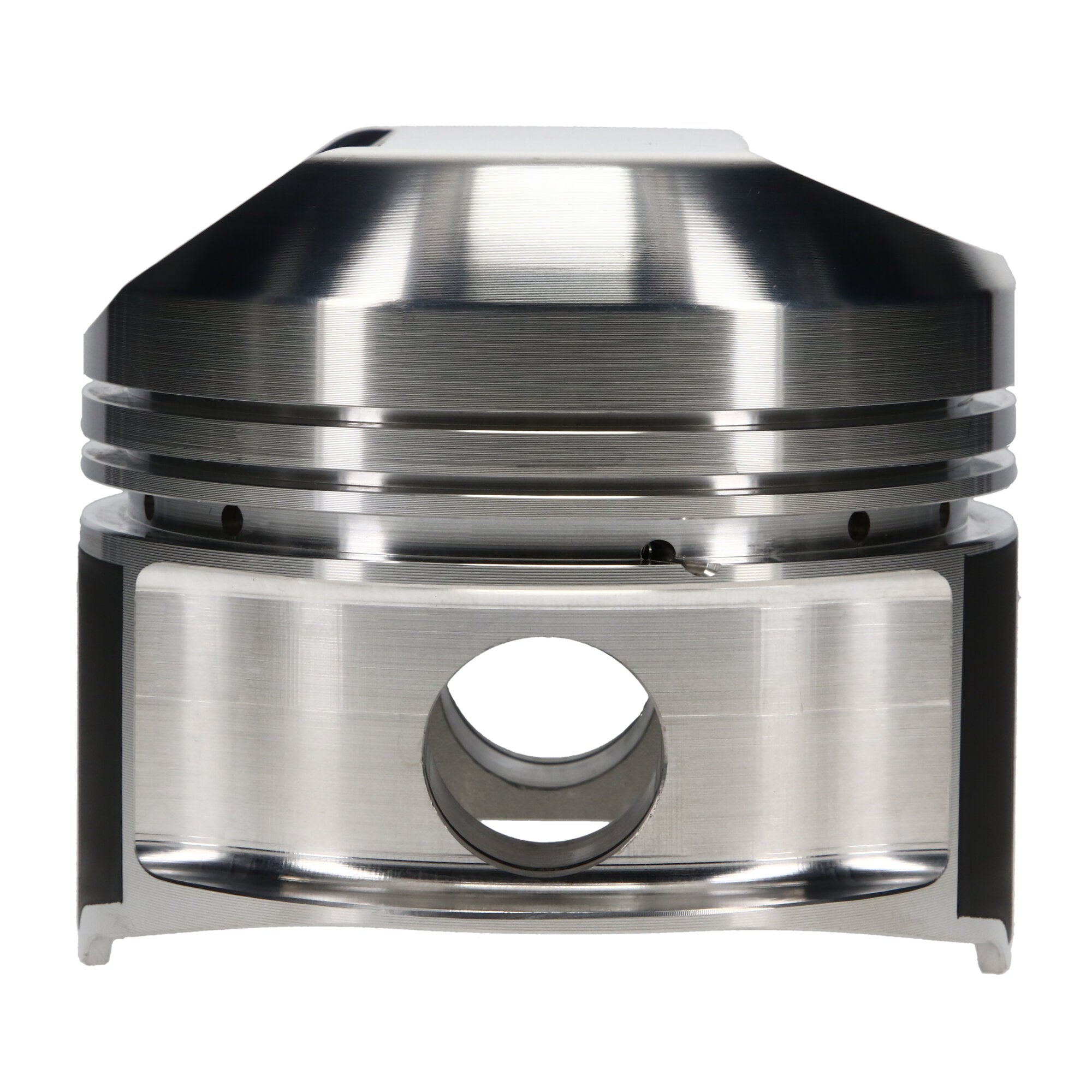

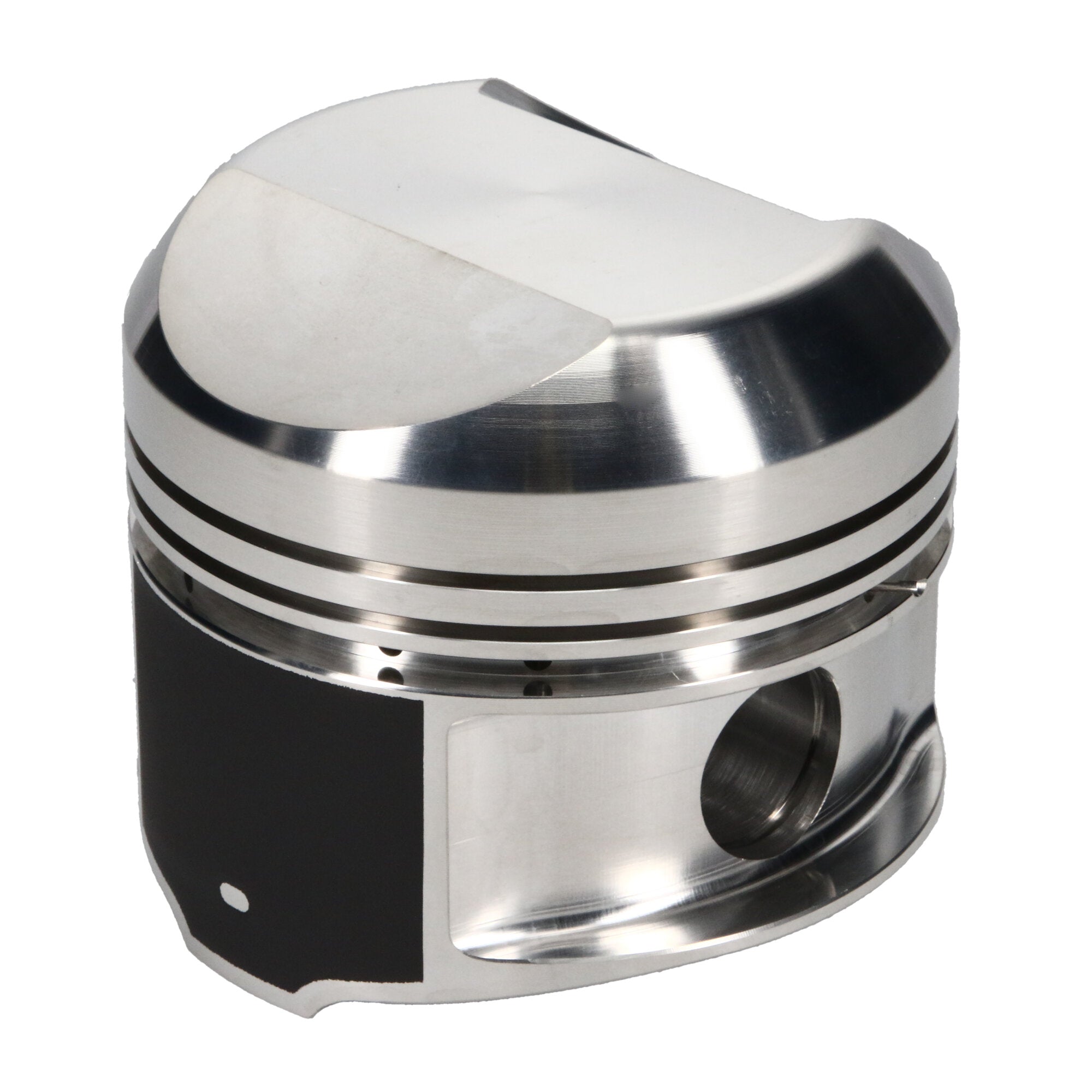

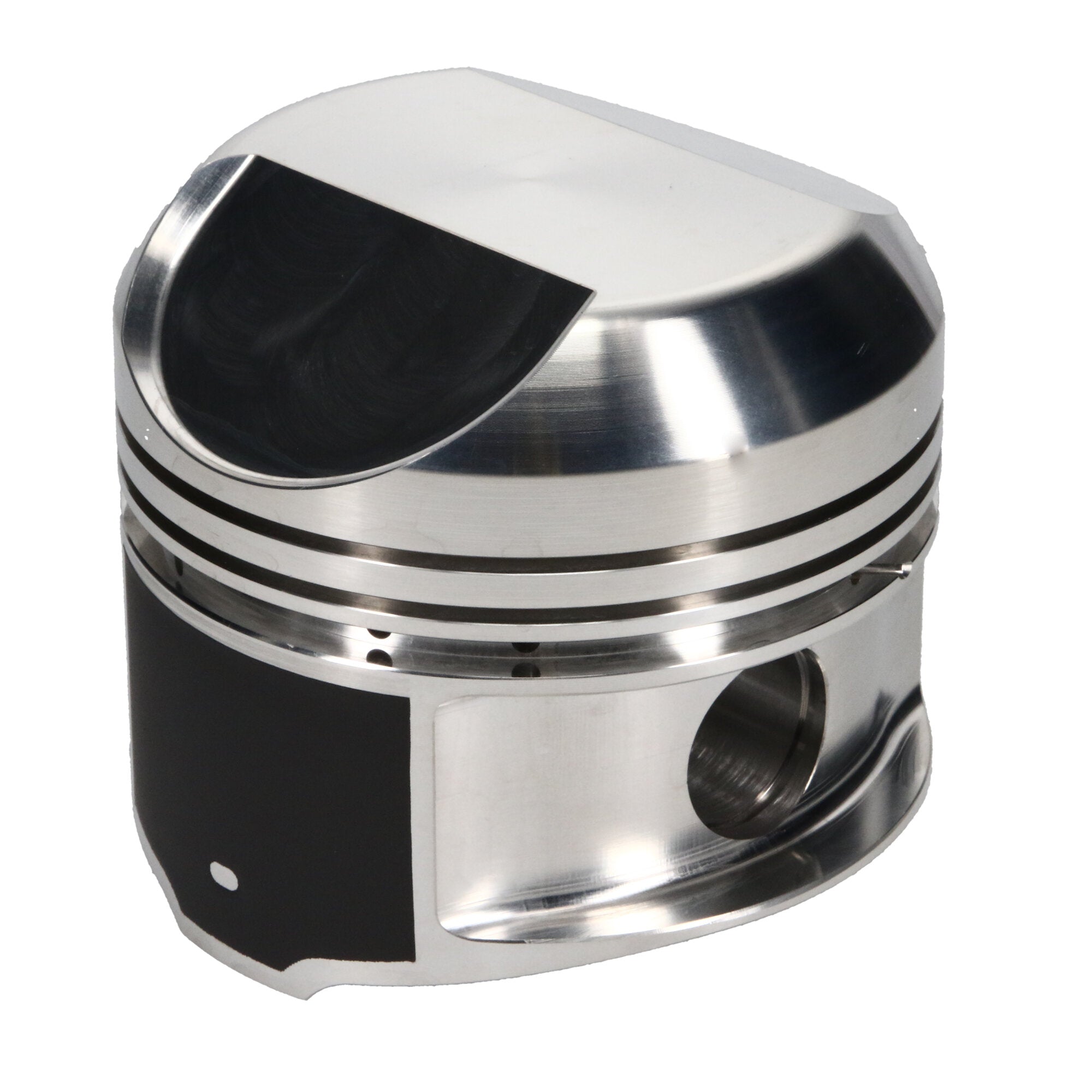

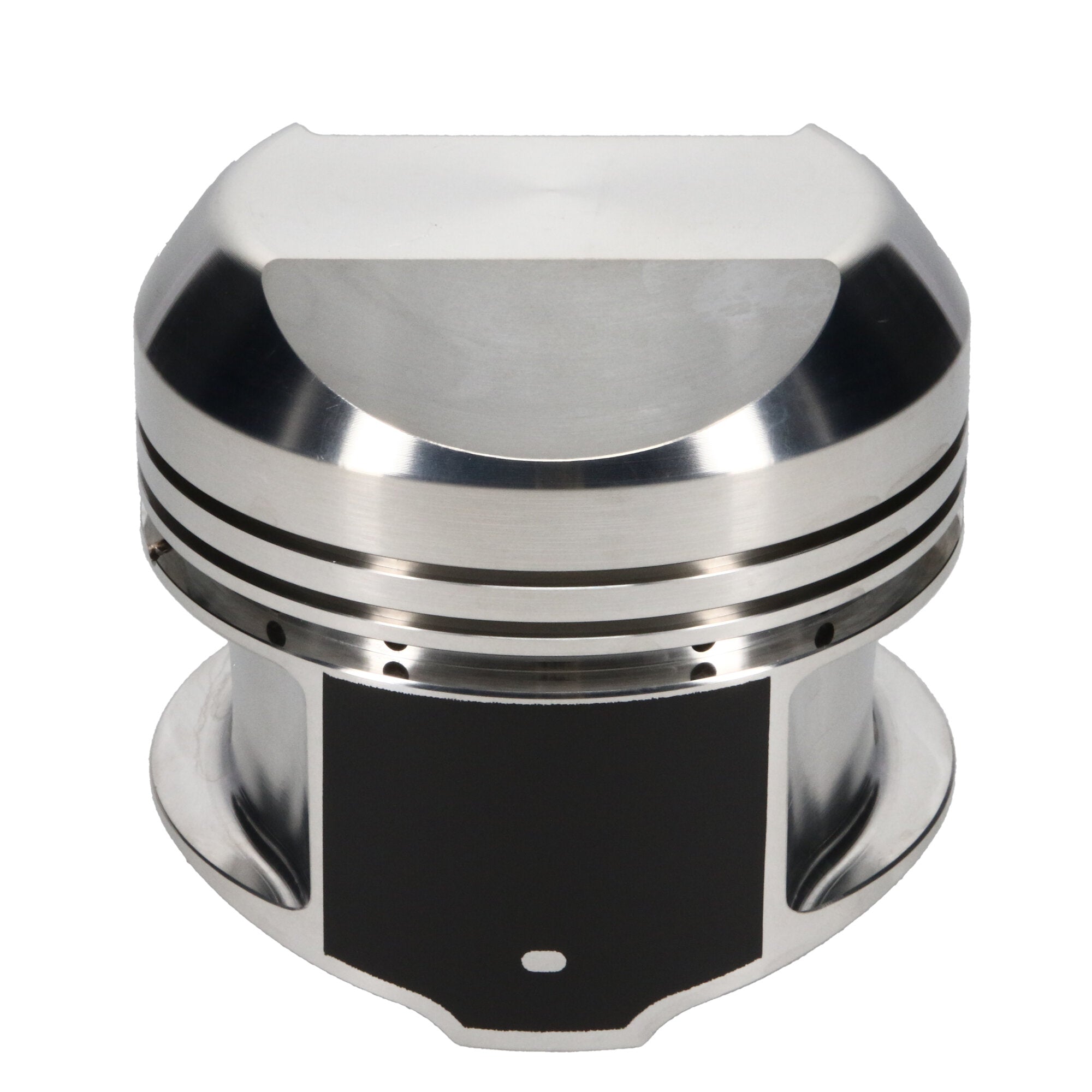

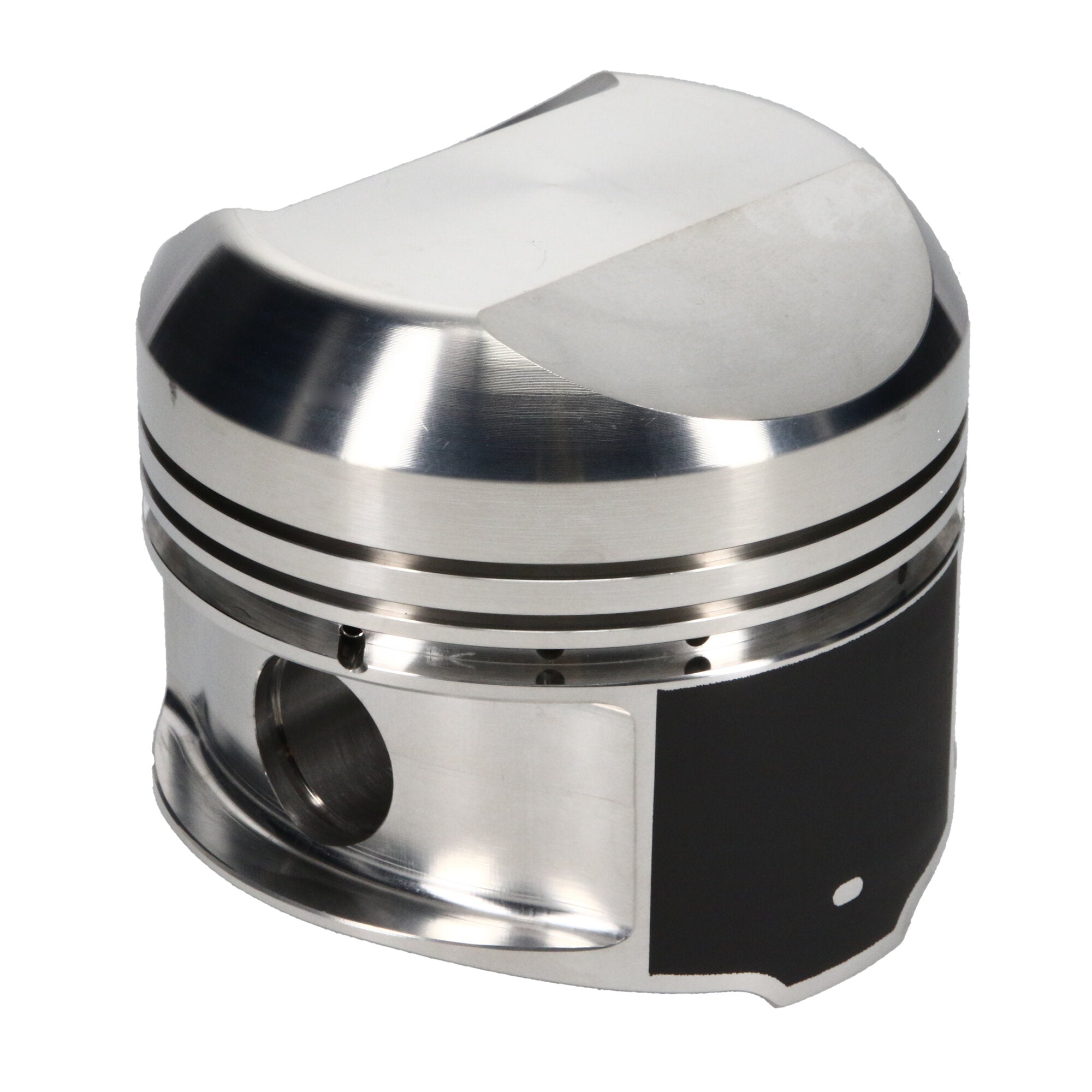

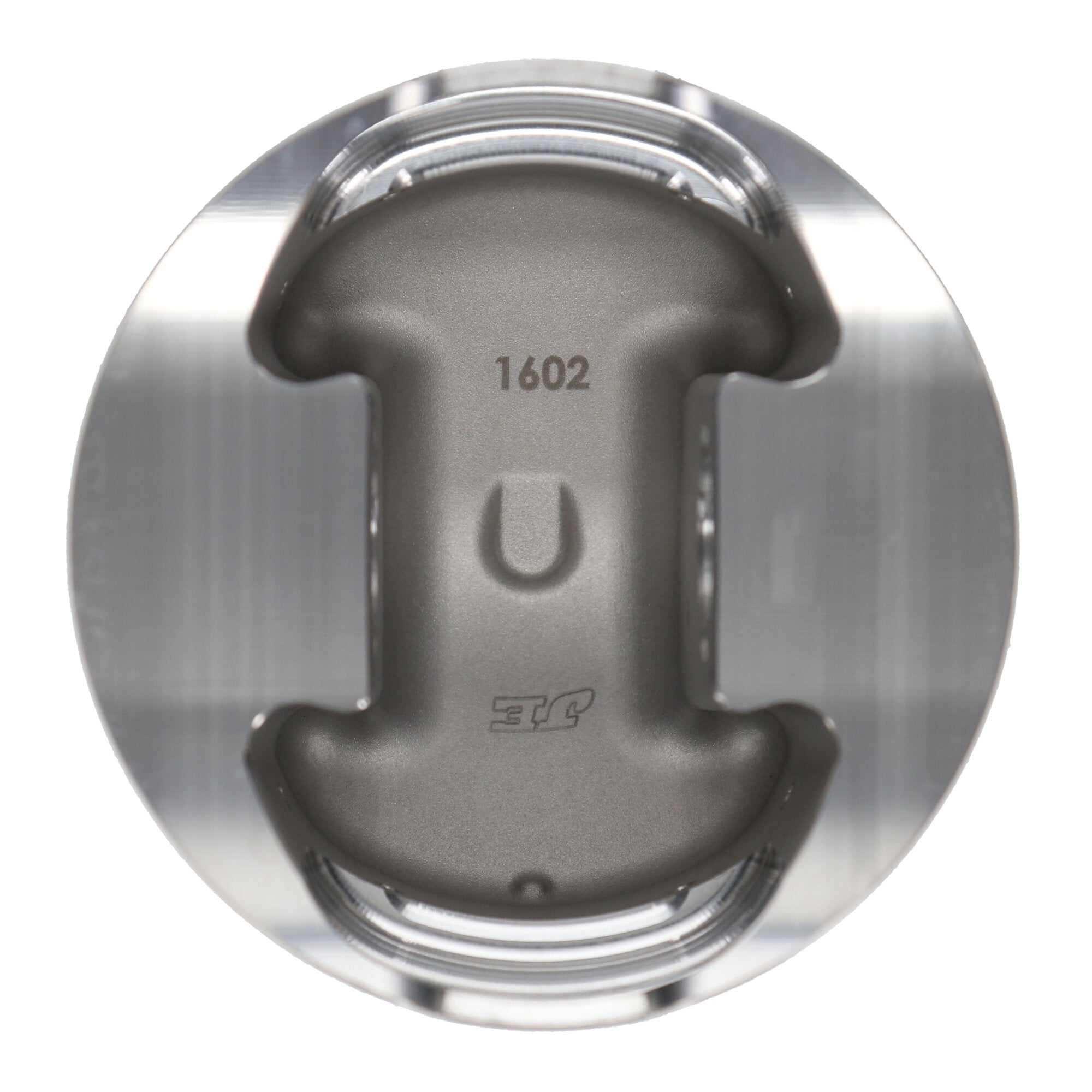

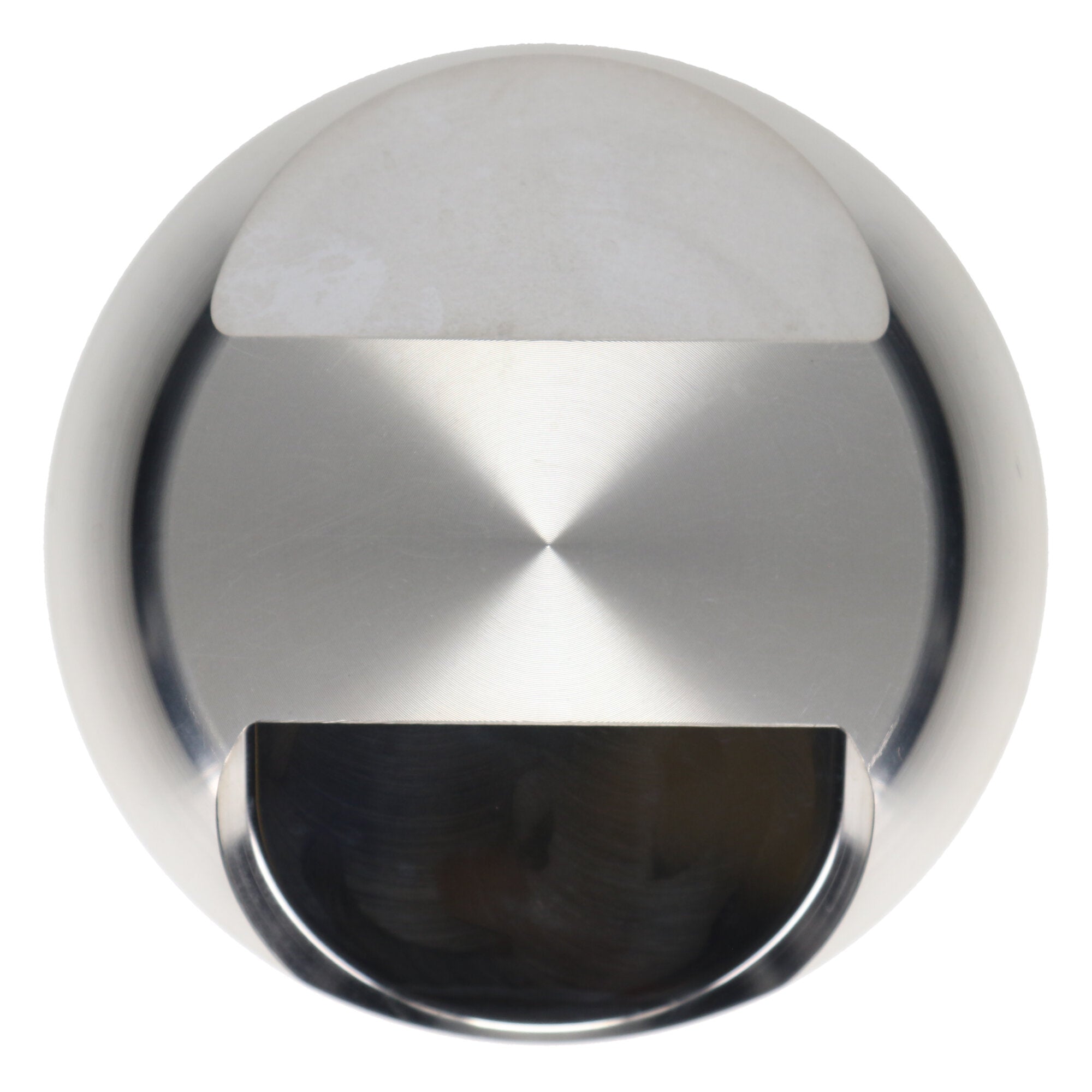

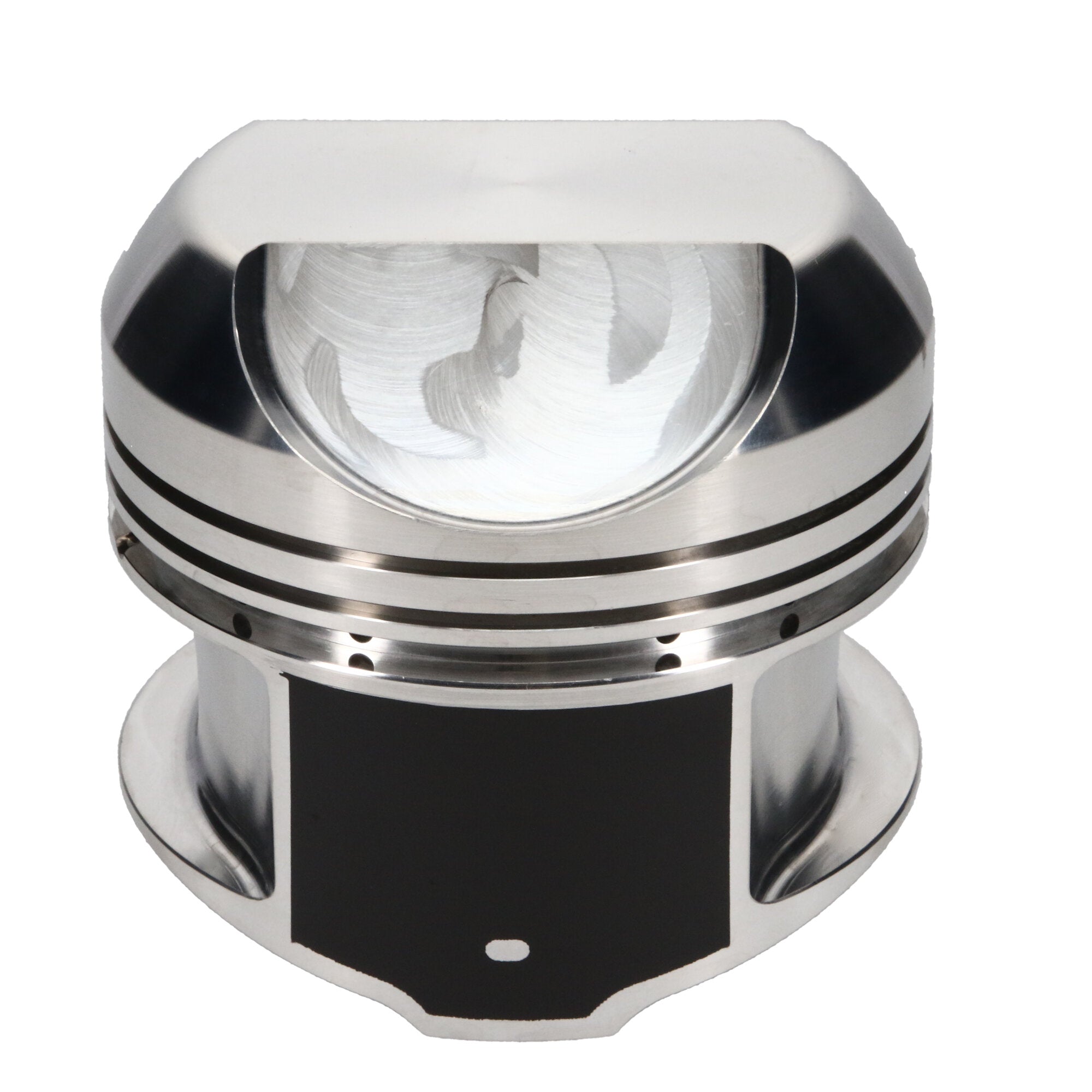

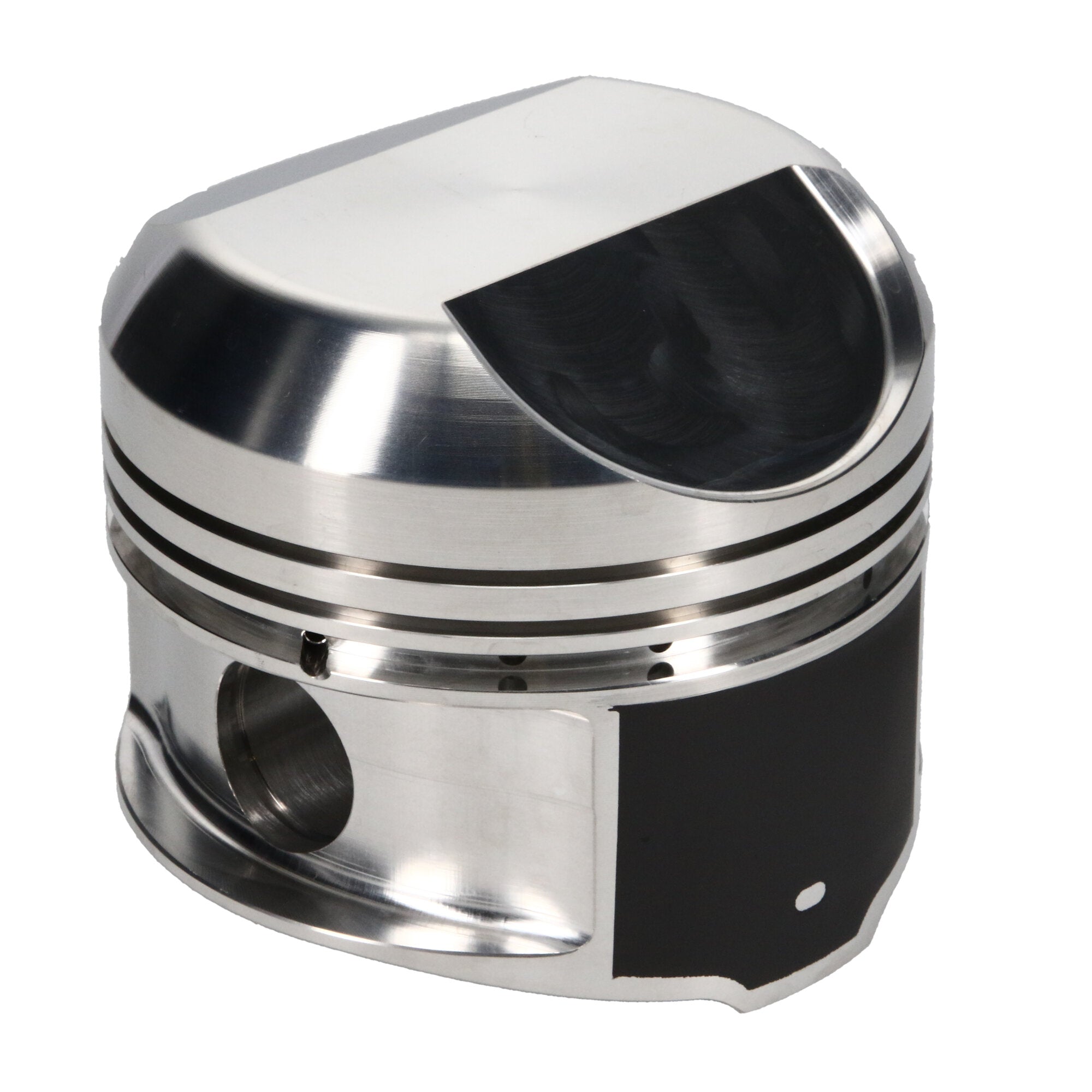

Piston Set, 4032, Dome, 4.500 Bore, 1.785 CD, 1.031 Pin, Set of 8. |
| Description_EXT |
JE, Chrysler, 426 Hemi, 4.500 in. Bore, 1.795 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chrysler 426 Hemi, 4.500 Bore, Dome, Set of 8 |
| Wrist Pin Wall Thickness |
0.170 |
| Product Market |
Domestic |
| Piston Pin Length |
2.930 |
| Piston Pin Material |
5115 |
| Engine |
426 HEMI |
| Ringset Included |
No |
| Oil Ring Thickness |
0.188 |
| Piston Pin Wall Thickness |
0.170 |
| Piston Pin Outside Diameter |
1.031 |
| Forging Type |
Round |
| Piston Series |
JE Pistons |
| Title |
JE Pistons - Chrysler, 426 Hemi, 4.500 in. Bore, Piston Kit |
| Compression Height |
1.785 |
| Make |
CHRYSLER |
| Piston Head Type |
Dome |
| Engine - Web |
426 Hemi |
| Wrist Pin Outer Diameter |
1.031 |
| Second Compression Ring Thickness |
0.0640 |
| Piston Quantity |
8 |
| Piston Volume |
62.30 |
| Cylinder Head |
426 HEMI |
| Product Type |
Engine Piston Kit |
| Add-On |
J10008-4500-5 |
| Prop 65 (C, R or CR) |
CR |
| Industry |
Automotive |
| Engine Type |
ICE |
| Add-On |
031-2930-17-51S |
| Prop 65 Yes/No |
Yes |
| Piston Material |
4032 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Out of Stock Message |
Call for Availability |
| Bore Diameter |
4.500 |
| Add-On |
031-042-CS |
| Top Compression Ring Thickness |
0.0640 |
| Piston Average Weight |
895 |
| Ring Set Included |
No |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.930 |
| Make - Web |
Chrysler |
| Title - Web |
JE Pistons Chrysler 426 Hemi Piston Kit - 4.500 in. Bore - 1.785 in. CH, 62.30 CC |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
20.0000 |
