As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda F20C/F22C |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

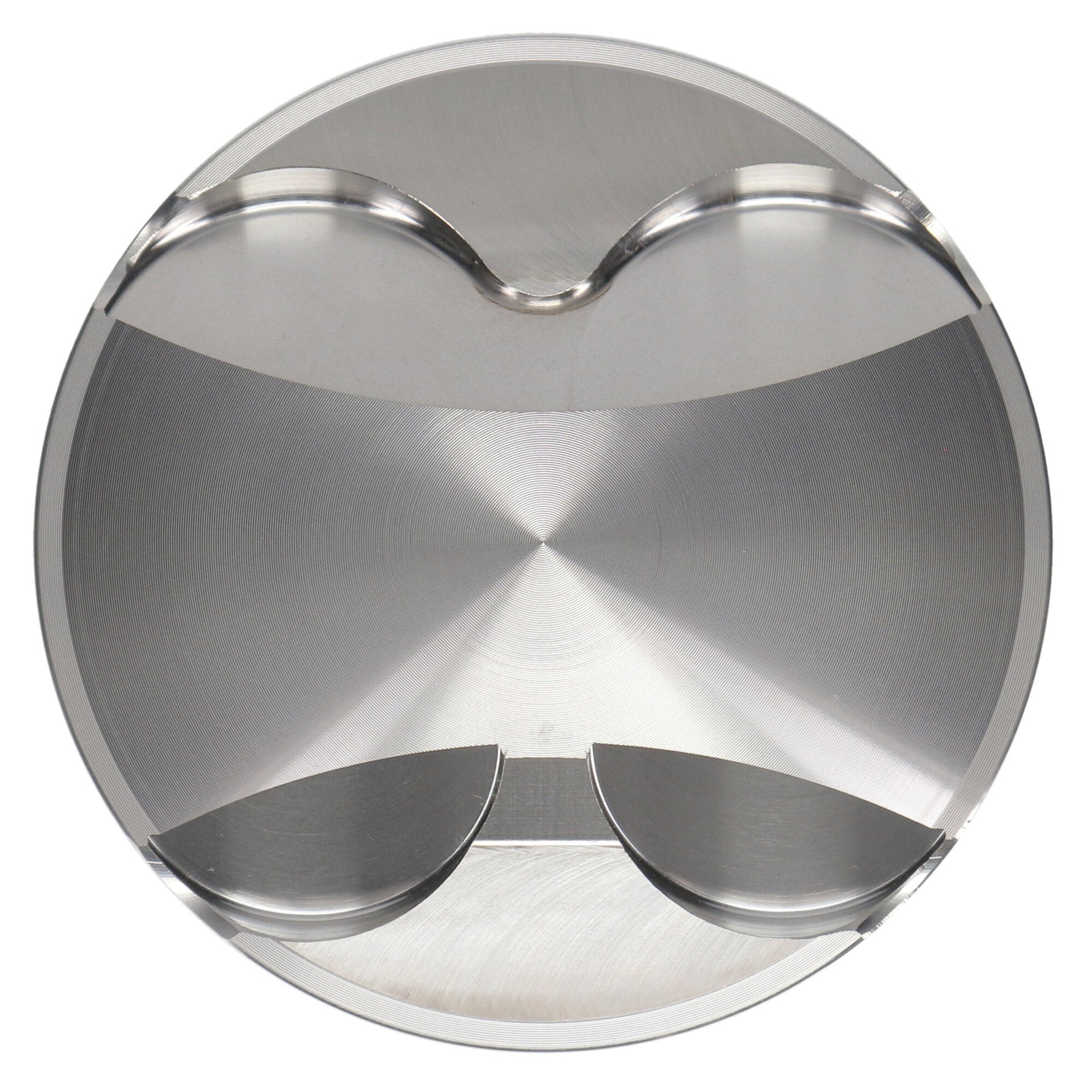

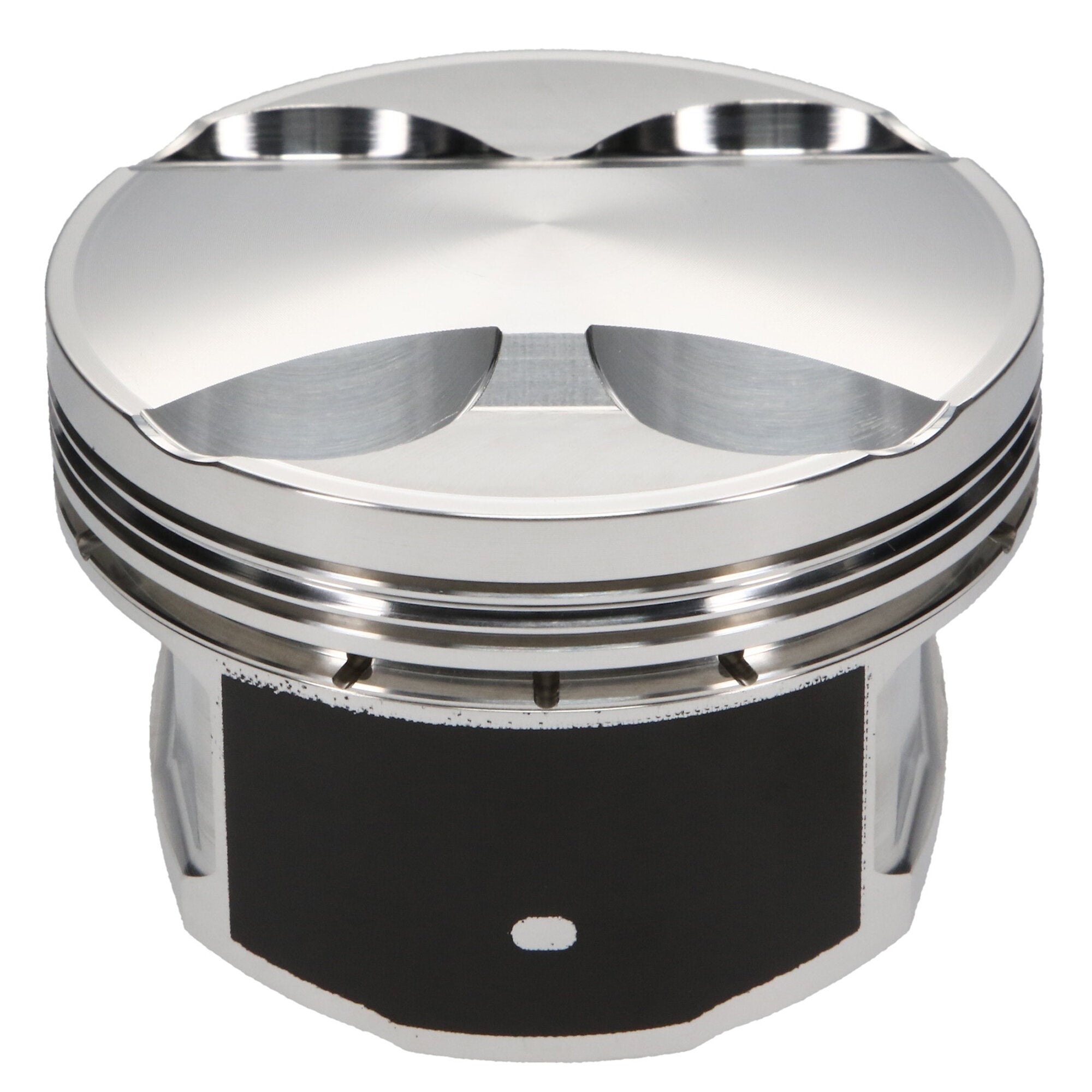

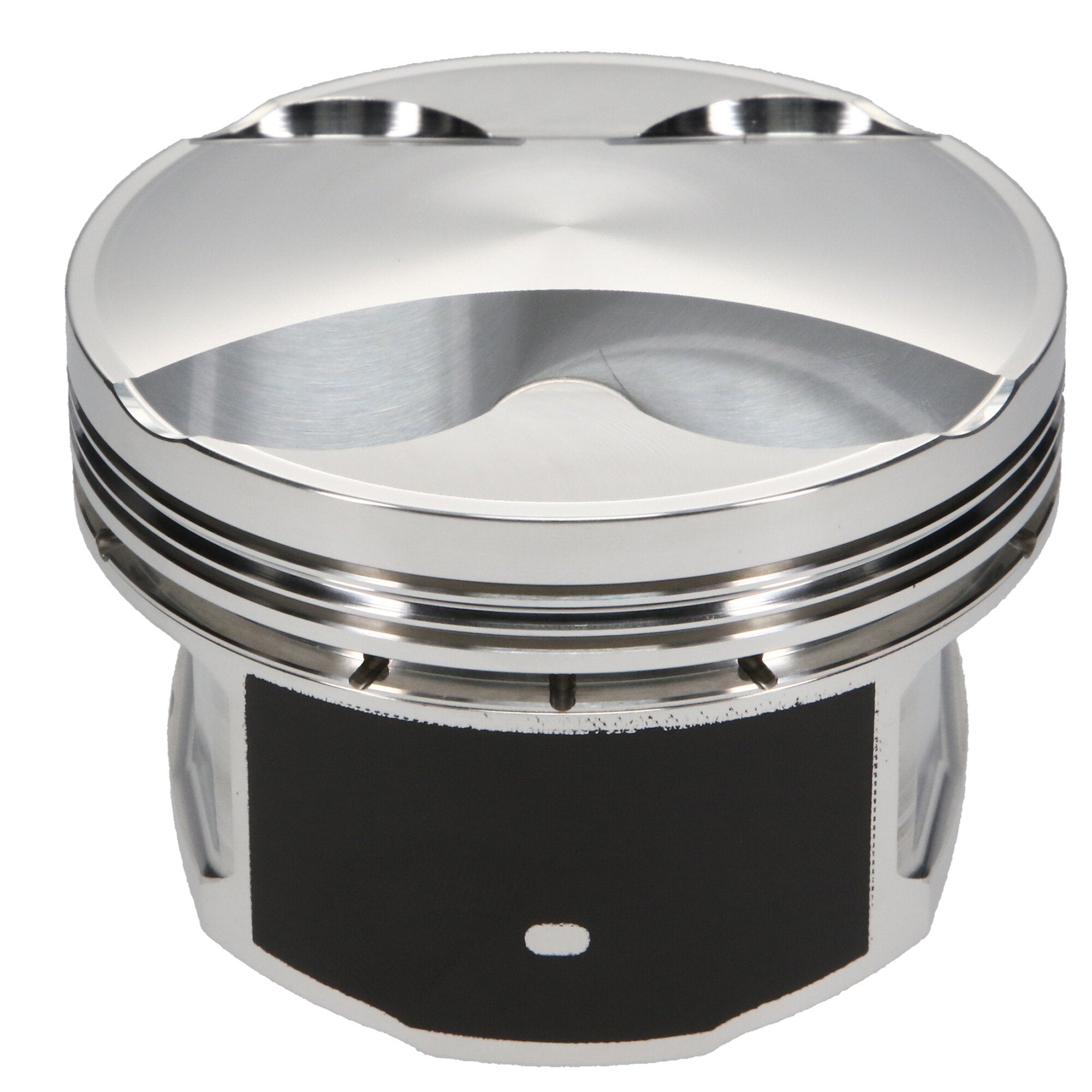

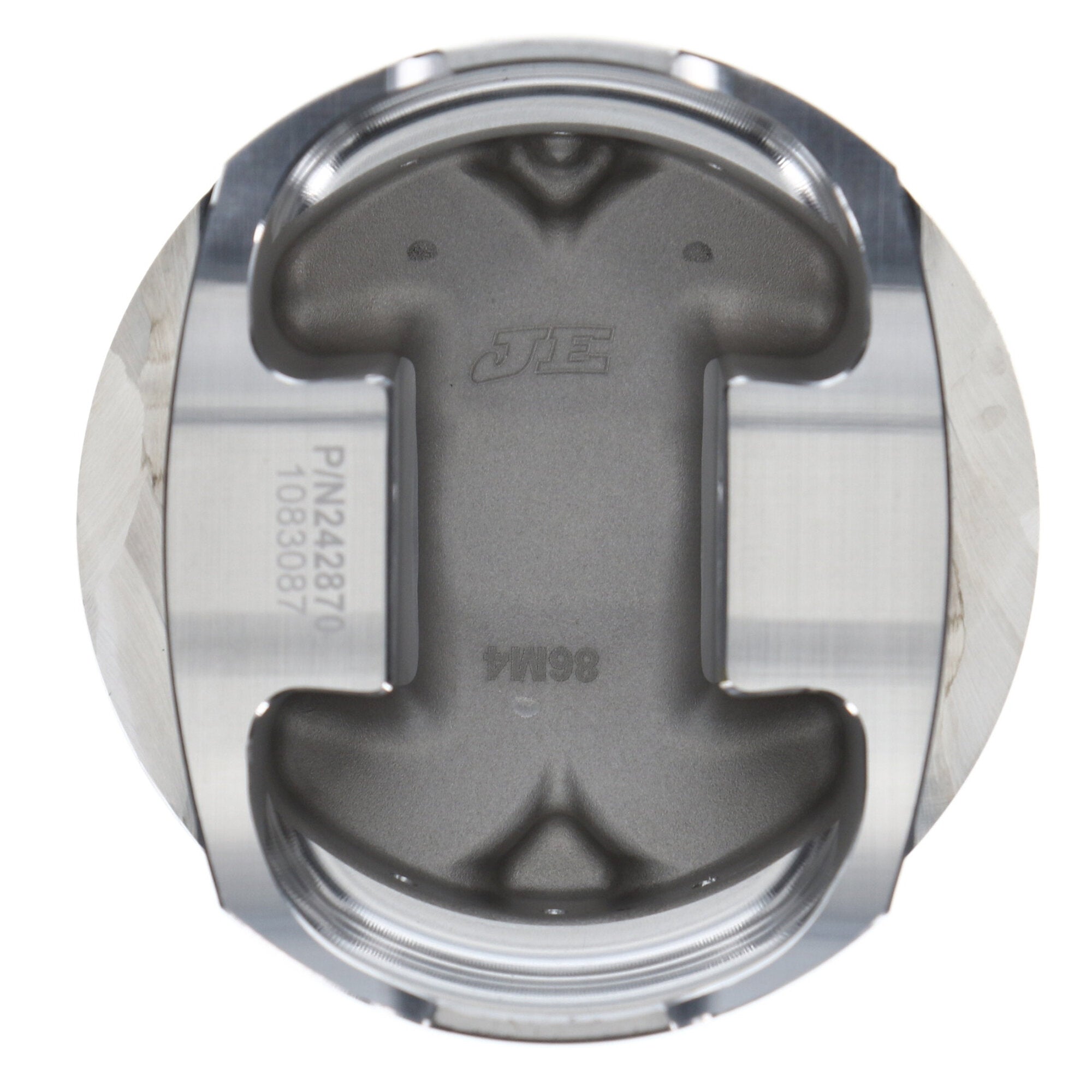

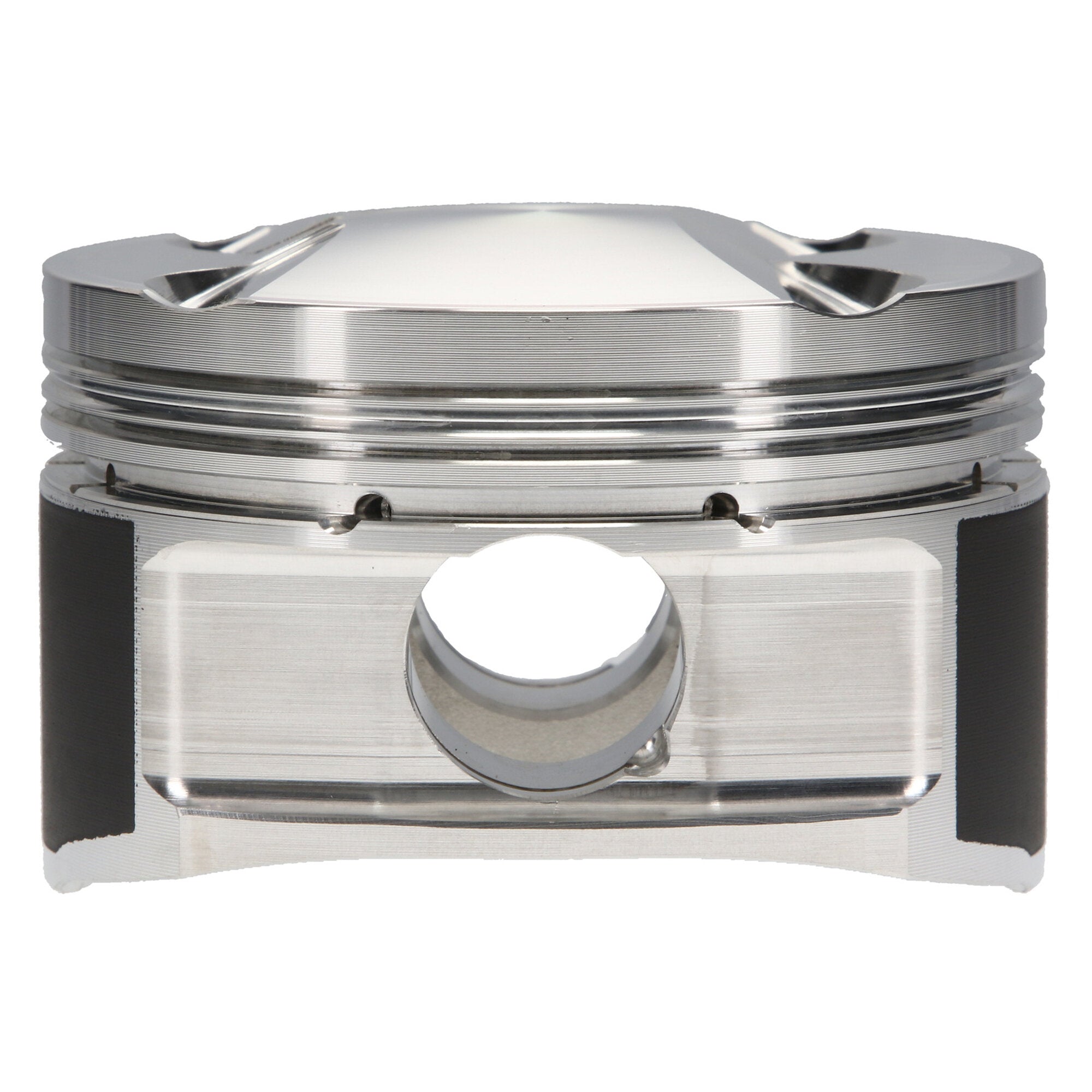

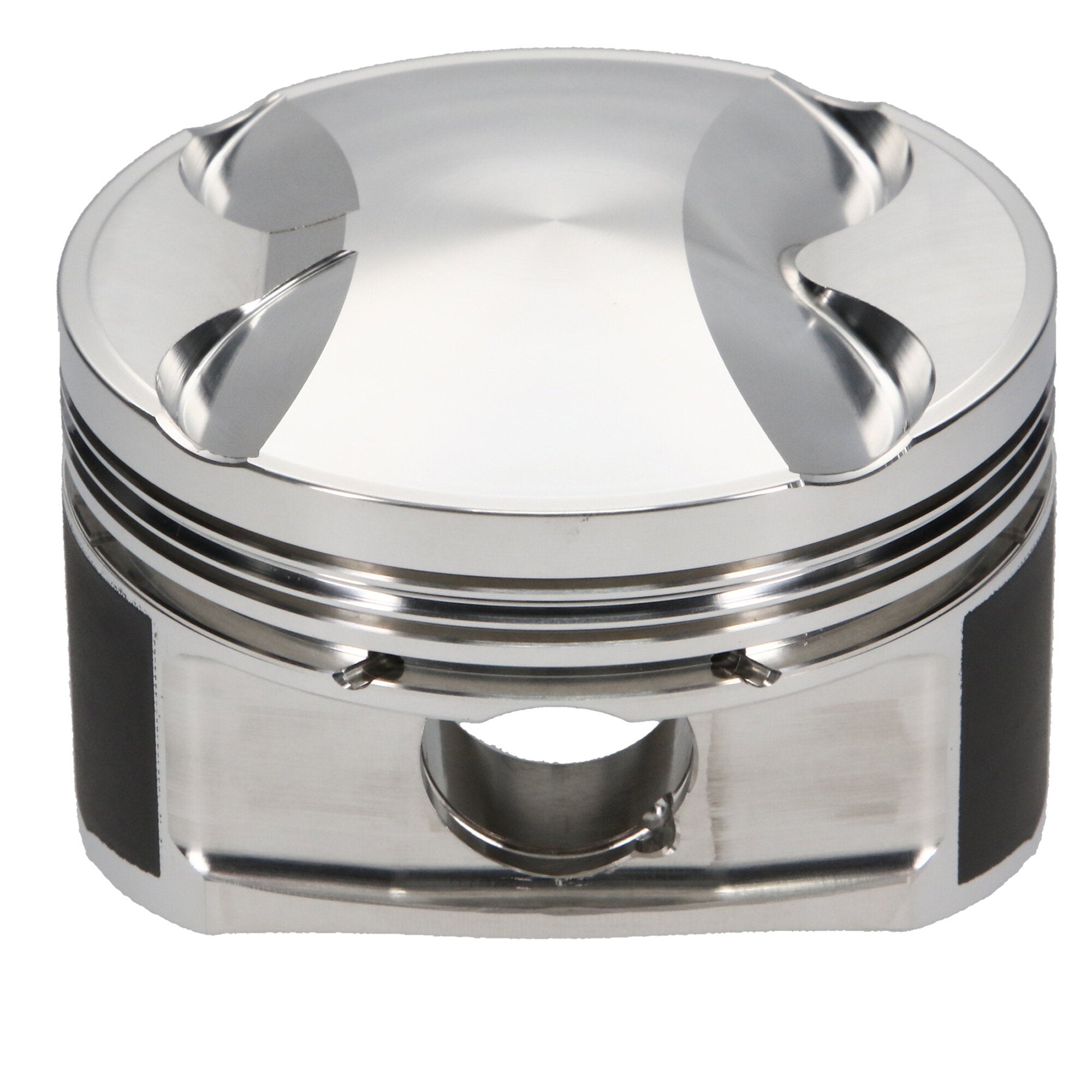

Piston Set, 2618, Dome, 3.504 Bore, 1.181 CD, 0.905 Pin, Set of 4. |
| Description_EXT |
JE, Honda, F Series, 3.504 in. Bore, 12.60:1, Dome, 4 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Honda F20C/F22C, 89.00 Bore, Dome, Set of 4 |
| Piston Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Piston Pin Length |
2.250 |
| Ringset Included |
Yes |
| Make - Web |
Honda |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Oil Ring Thickness |
0.111 |
| Piston Head Type |
Dome |
| Engine |
F SERIES |
| Forging Type |
FSR |
| Add-On |
JG1001-3504 |
| Make |
HONDA |
| Add-On |
905-2250-15-51C |
| Product Type |
Engine Piston Kit |
| Piston Series |
JE Pistons |
| Title - Web |
JE Pistons Honda F Series Piston Kit - 89.00 mm Bore - 1.181 in. CH, 7.00 CC |
| Add-On |
905-073-MW |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.905 |
| Wrist Pin Outer Diameter |
0.905 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.250 |
| Compression Height |
1.181 |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 (C, R or CR) |
CR |
| Piston Quantity |
4 |
| Prop 65 Yes/No |
Yes |
| Cylinder Head |
F20C1 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Out of Stock Message |
Call for Availability |
| Industry |
Automotive |
| Piston Volume |
7.00 |
| Product Market |
Sport Compact |
| Bore Diameter |
89.00 |
| Top Compression Ring Thickness |
0.0400 |
| Piston Material |
2618 |
| Title |
JE Pistons - Honda, F Series, 89.00 mm Bore, Piston Kit |
| Engine - Web |
F Series |
| Ring Set Included |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
9.0000 |
| Weight |
6.0000 |
