As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

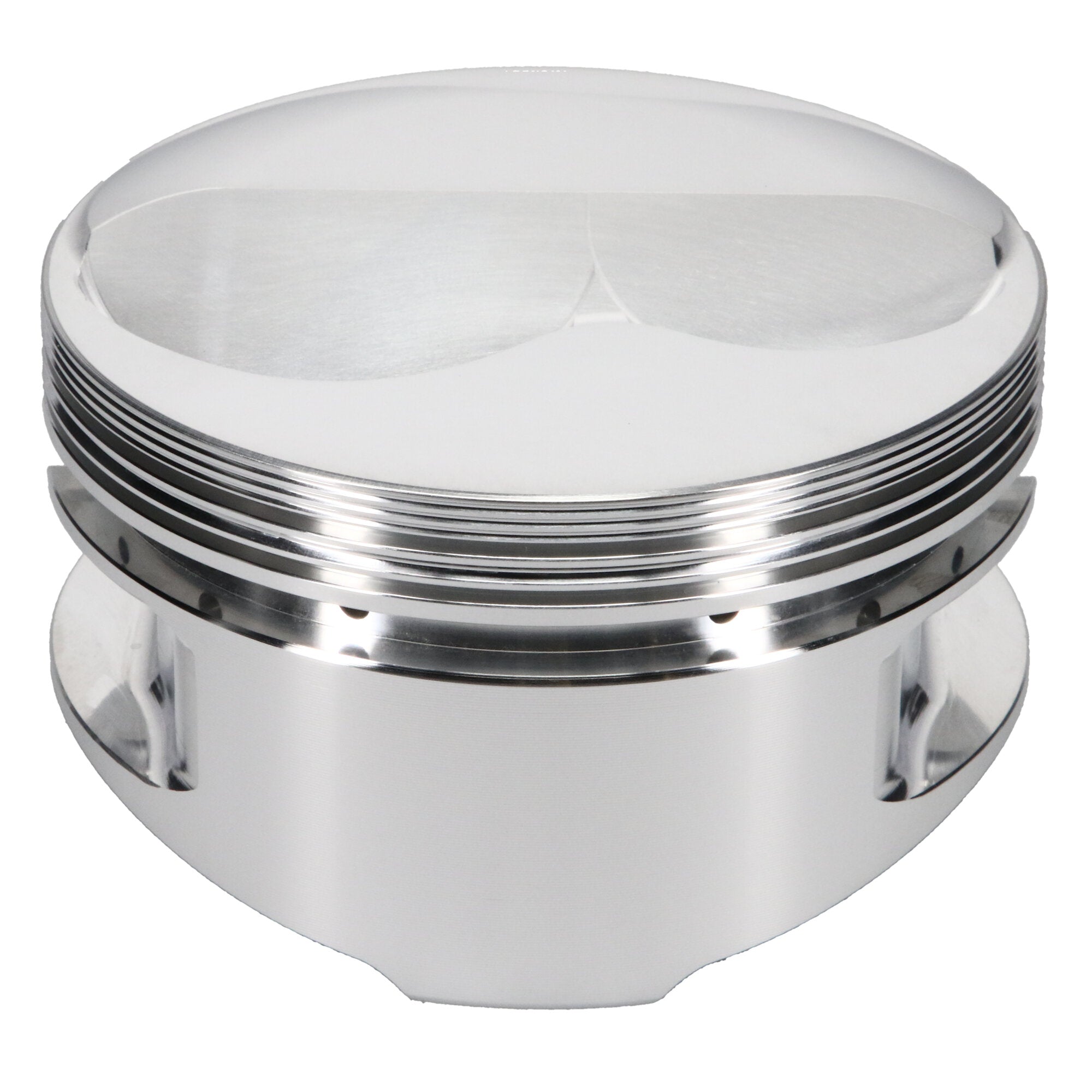

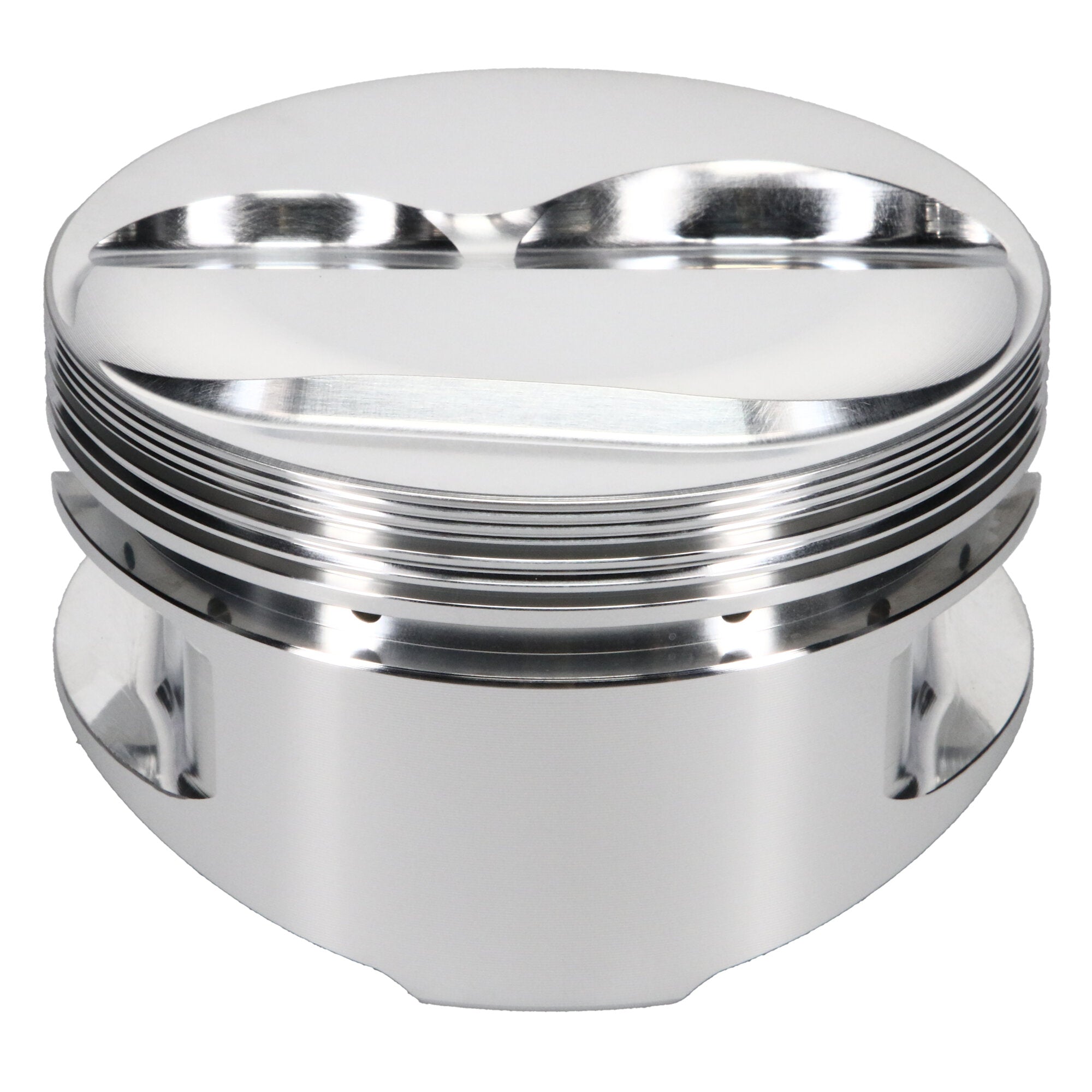

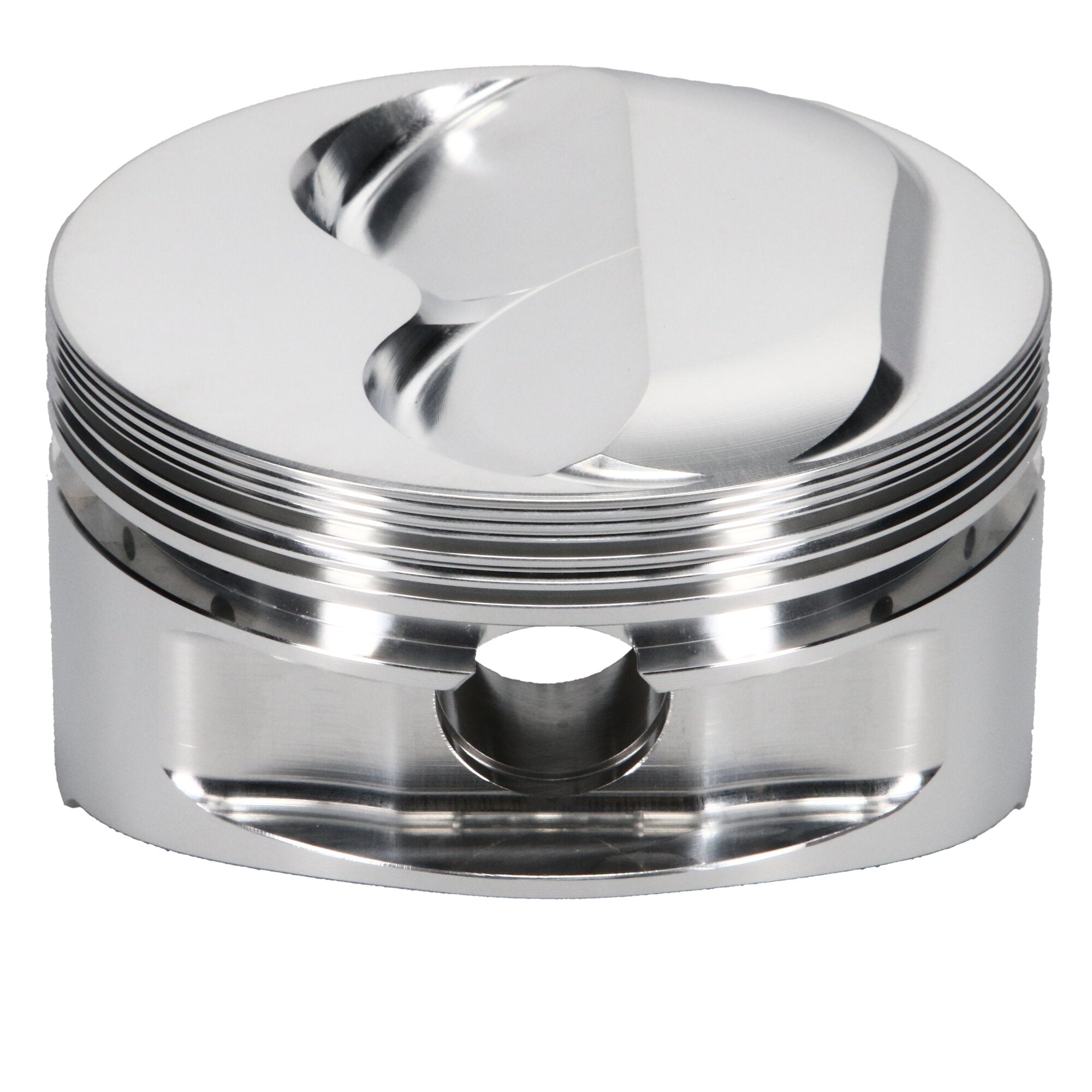

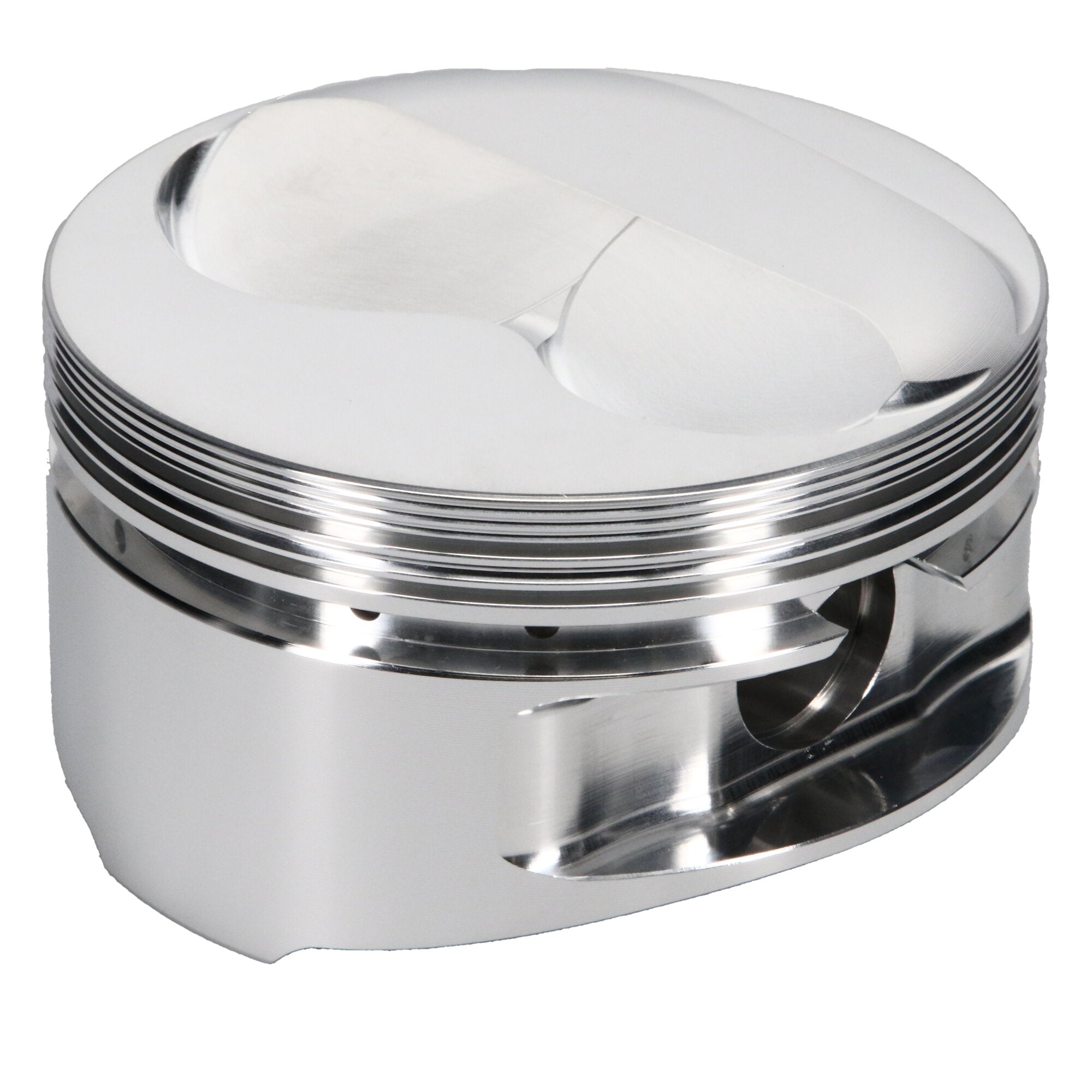

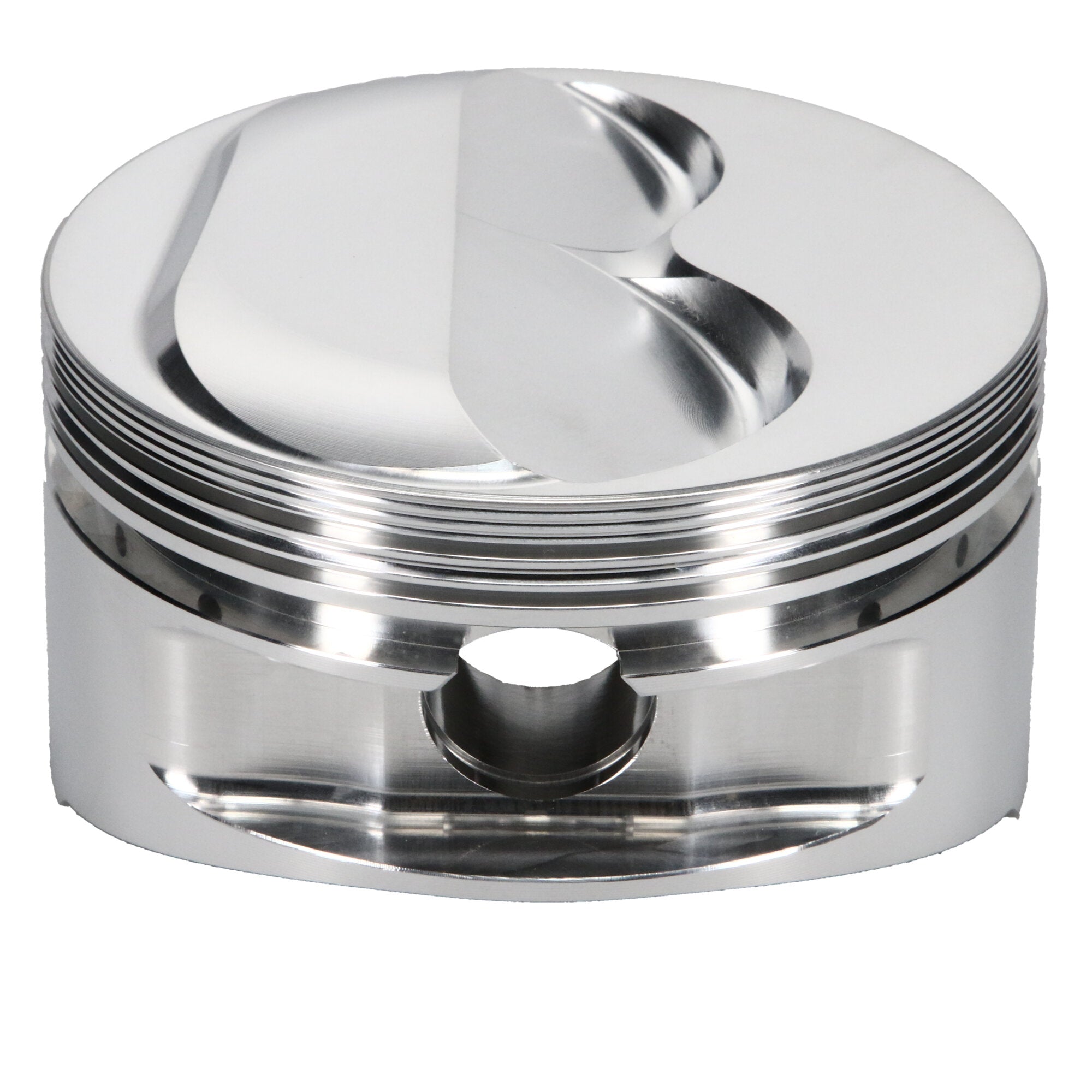

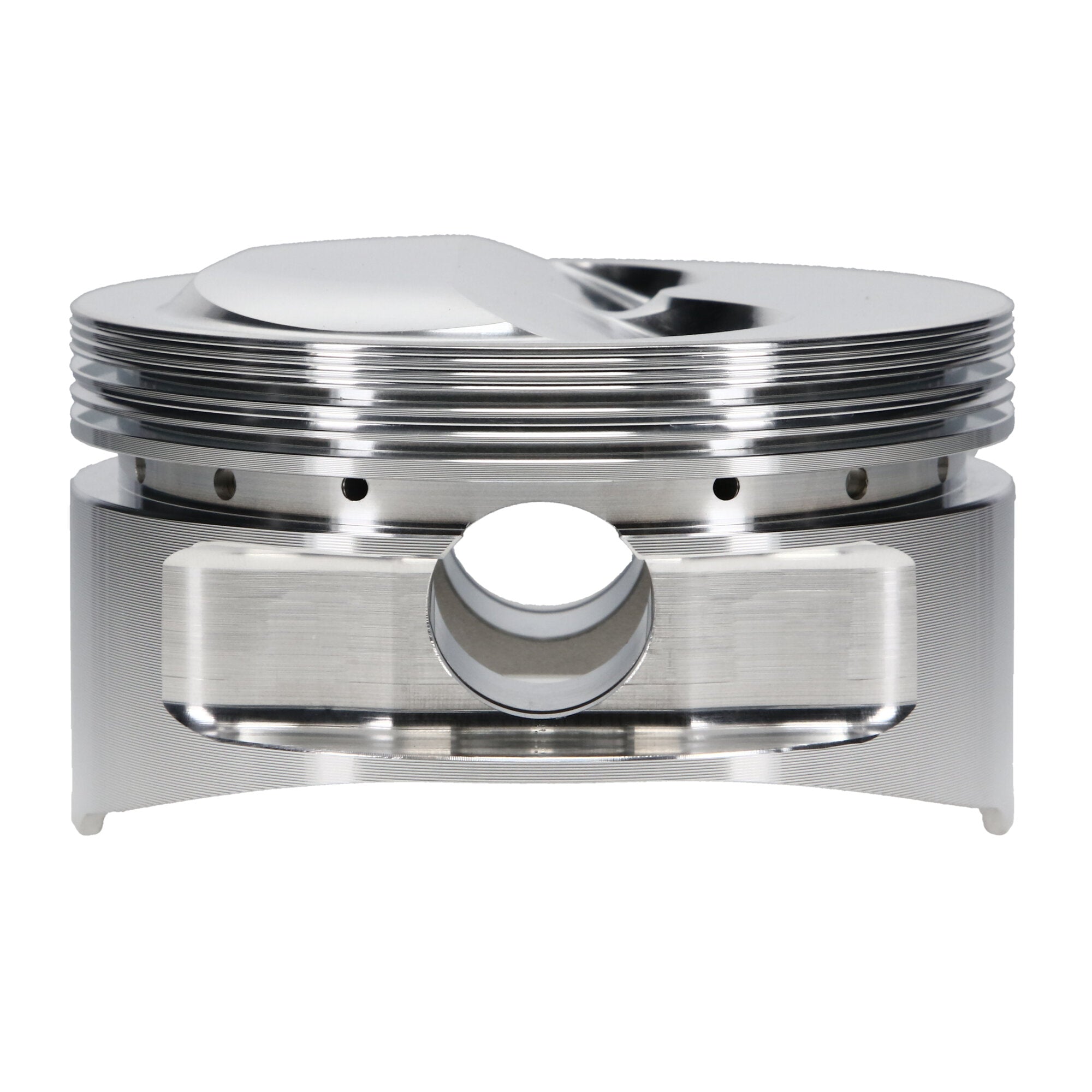

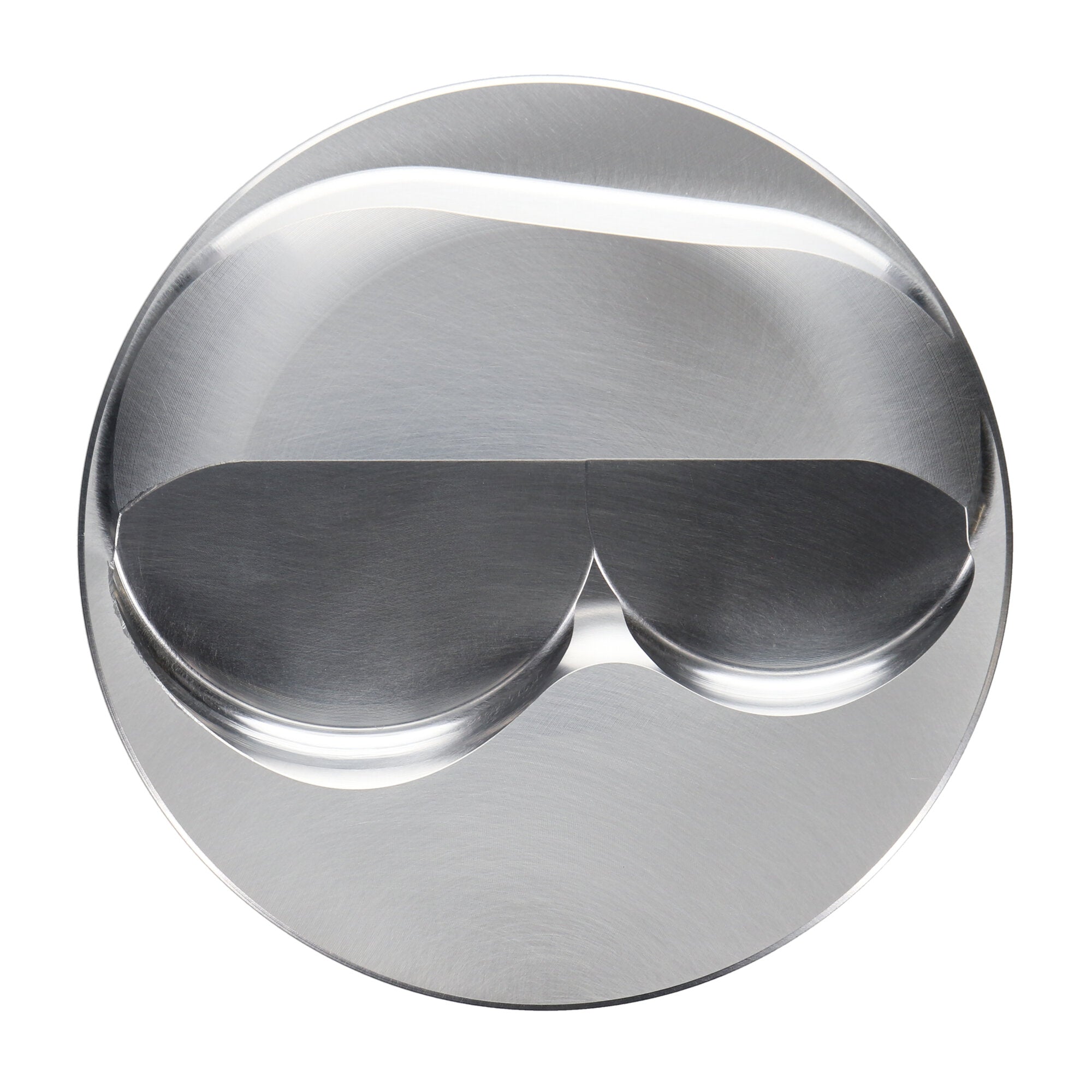

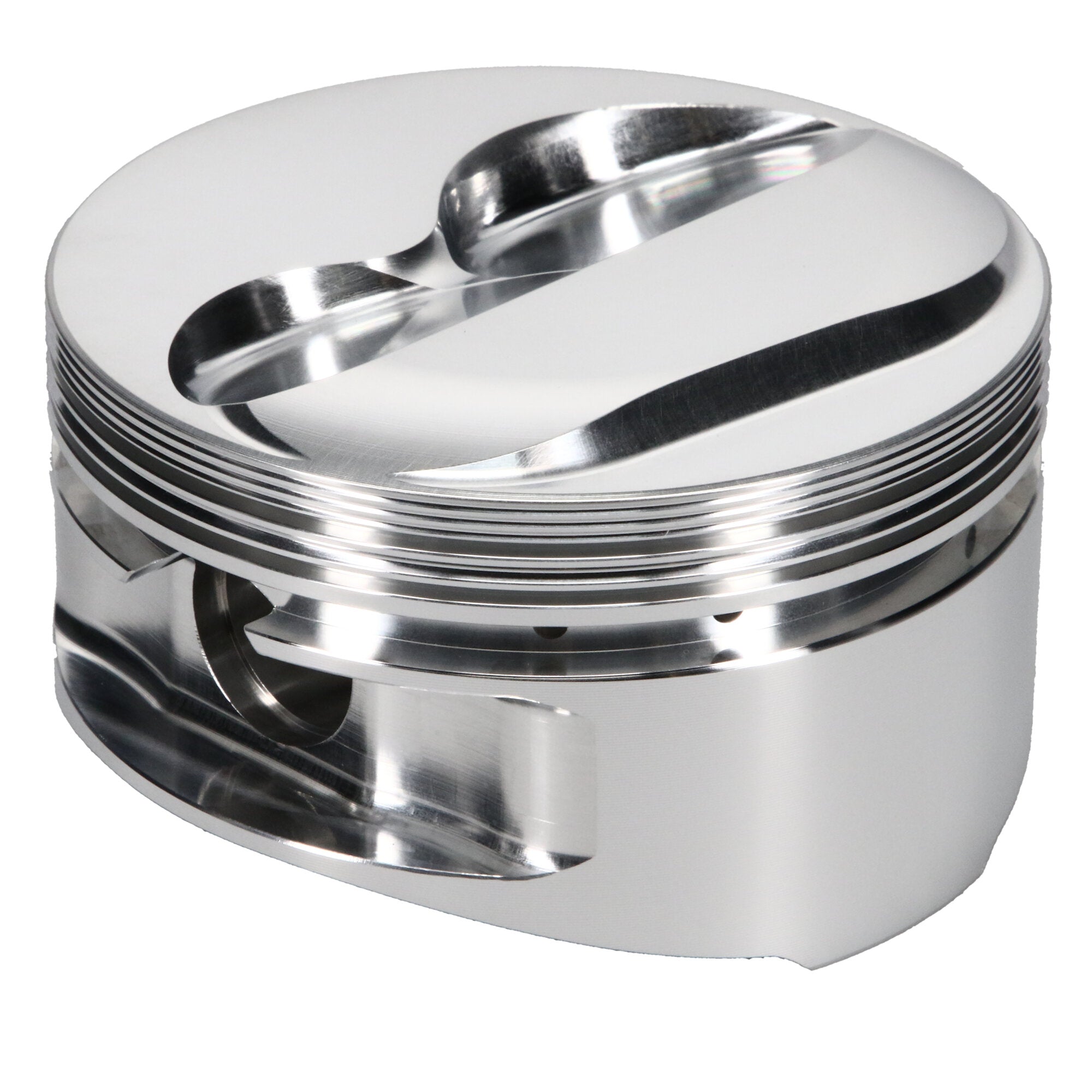

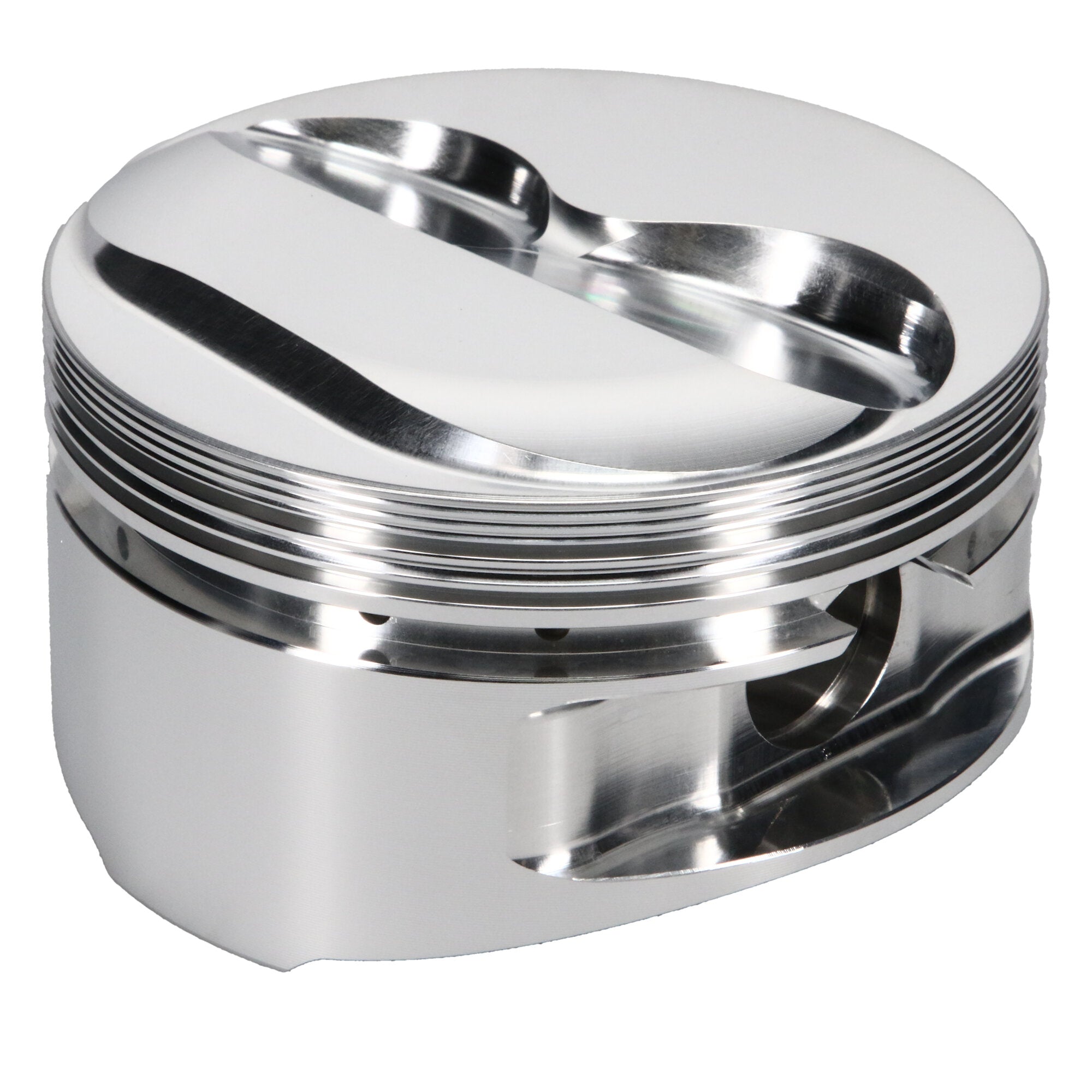

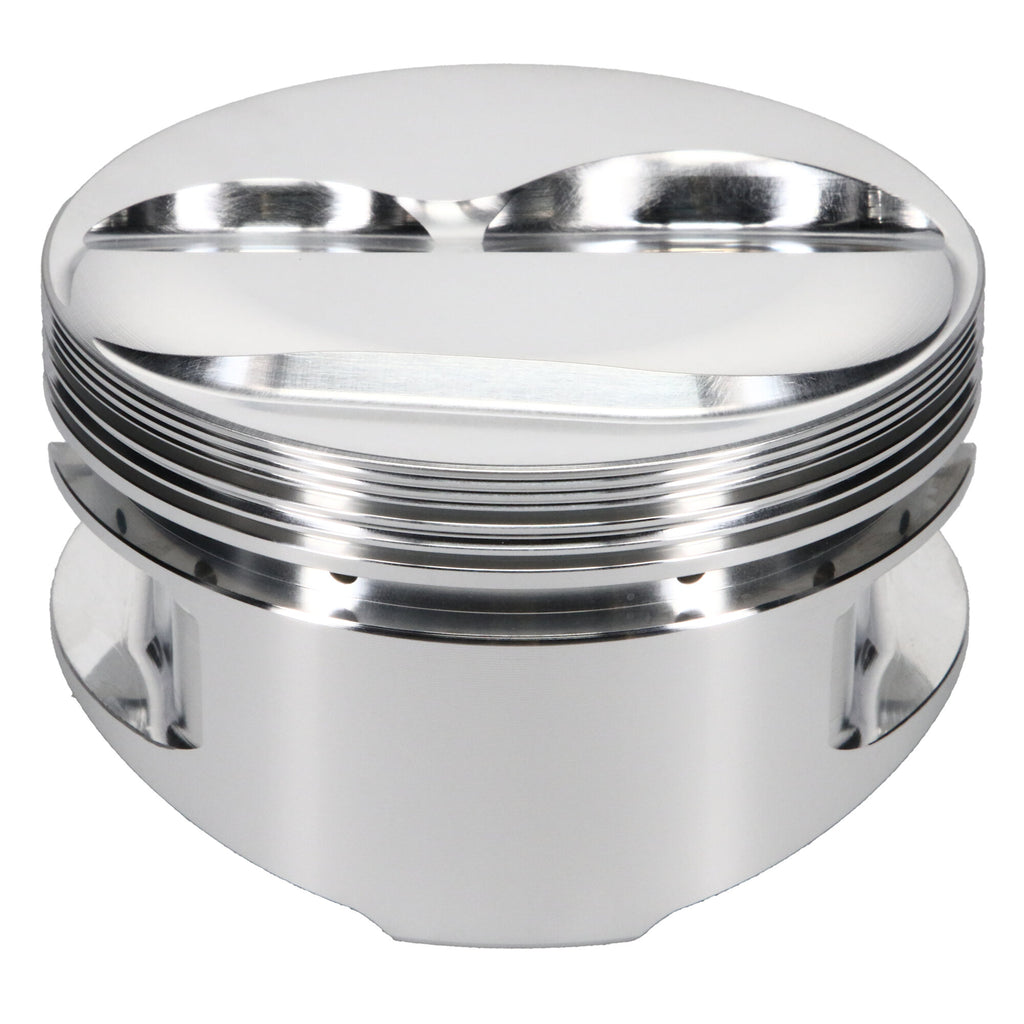

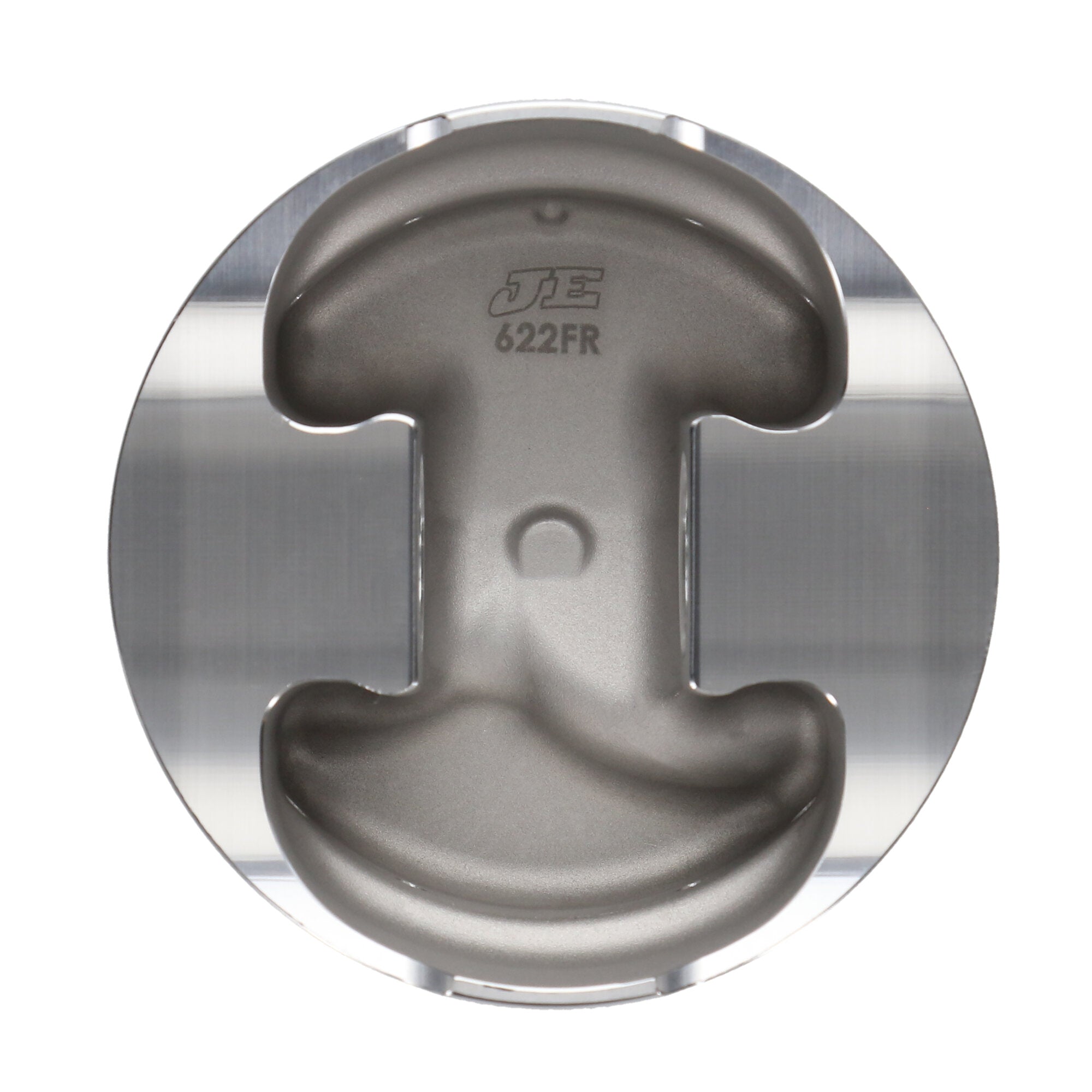

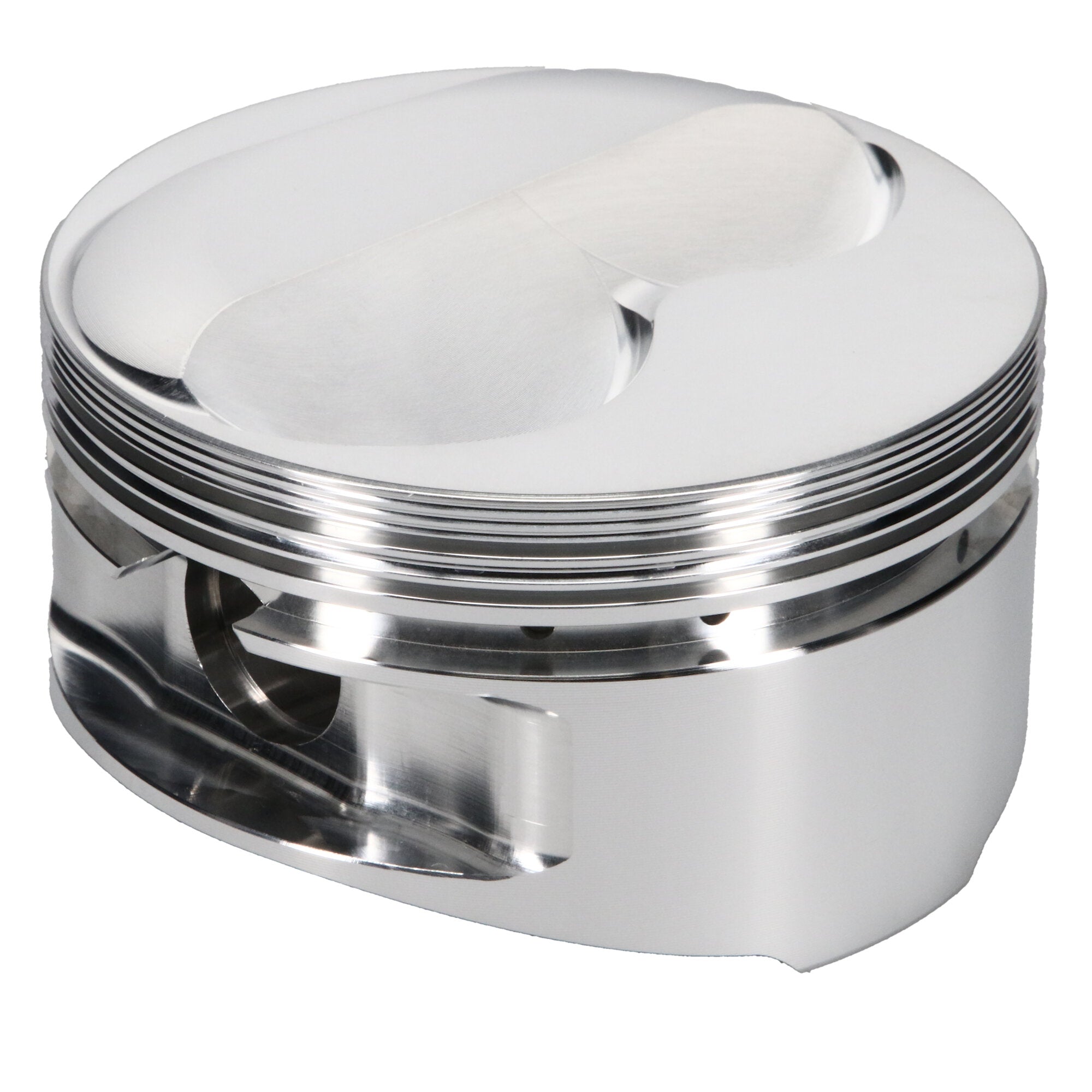

Piston Set, 2618, Dome, 4.165 Bore, 1.125 CD, 0.927 Pin, Set of 8. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.165 in. Bore, 1.125 CD, Dome, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 400, 4.165 Bore, Dome, Set of 8 |
| Wrist Pin Outer Diameter |
0.927 |
| Piston Head Type |
Dome |
| Make |
CHEVROLET |
| Piston Series |
JE Pistons |
| Piston Pin Outside Diameter |
0.927 |
| Compression Height |
1.125 |
| Piston Pin Material |
5115 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.165 in. Bore, Piston Kit |
| Forging Type |
Round |
| Piston Pin Length |
2.750 |
| Engine - Web |
Small Block |
| Ringset Included |
No |
| Oil Ring Thickness |
0.218 |
| Piston Pin Wall Thickness |
0.150 |
| Product Market |
Domestic |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Top Compression Ring Thickness |
0.0640 |
| Engine Type |
ICE |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Engine |
Small Block |
| Piston Average Weight |
468 |
| Wrist Pin Length |
2.750 |
| Wrist Pin Wall Thickness |
0.150 |
| Add-On |
927-042-CS |
| Product Type |
Engine Piston Kit |
| Piston Material |
2618 |
| Prop 65 (C, R or CR) |
CR |
| Industry |
Automotive |
| Bore Diameter |
4.165 |
| Add-On |
927-2750-15-51S |
| Second Compression Ring Thickness |
0.0640 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.165 in. Bore - 1.125 in. CH, 12.80 CC |
| Piston Volume |
12.80 |
| Piston Quantity |
8 |
| Out of Stock Message |
Call for Availability |
| Add-On |
J10008-4165-5 |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Ring Set Included |
No |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
