As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Big Block 427 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

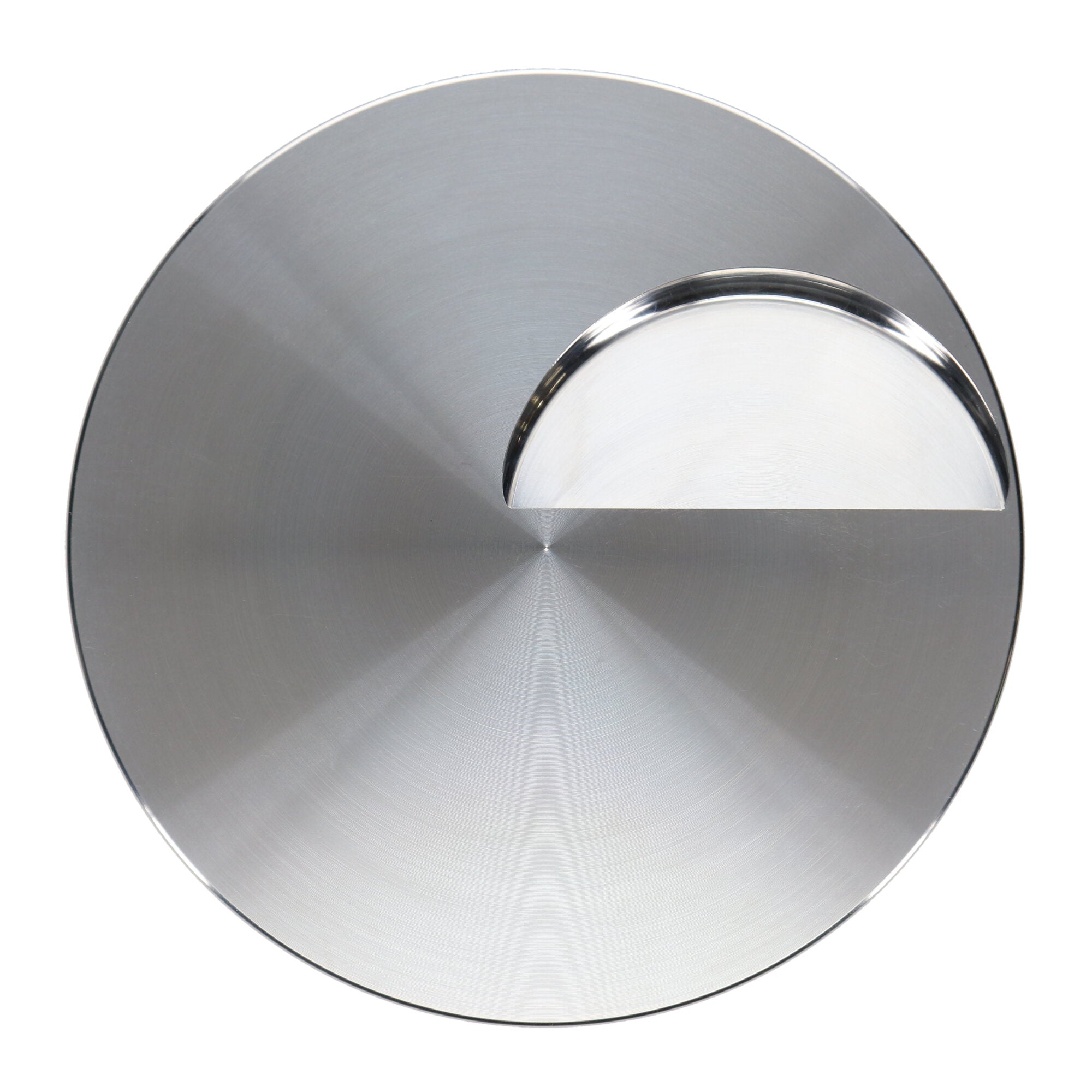

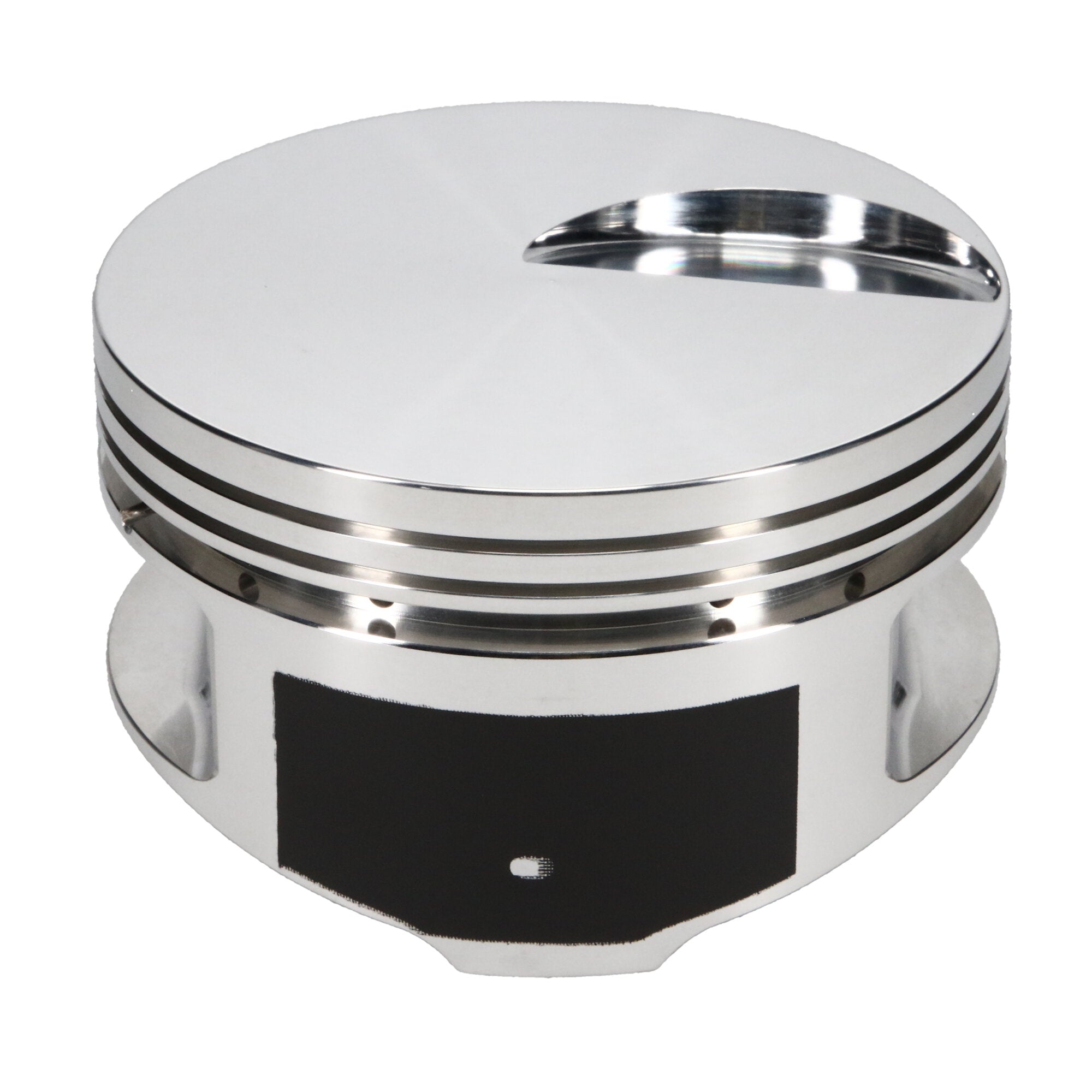

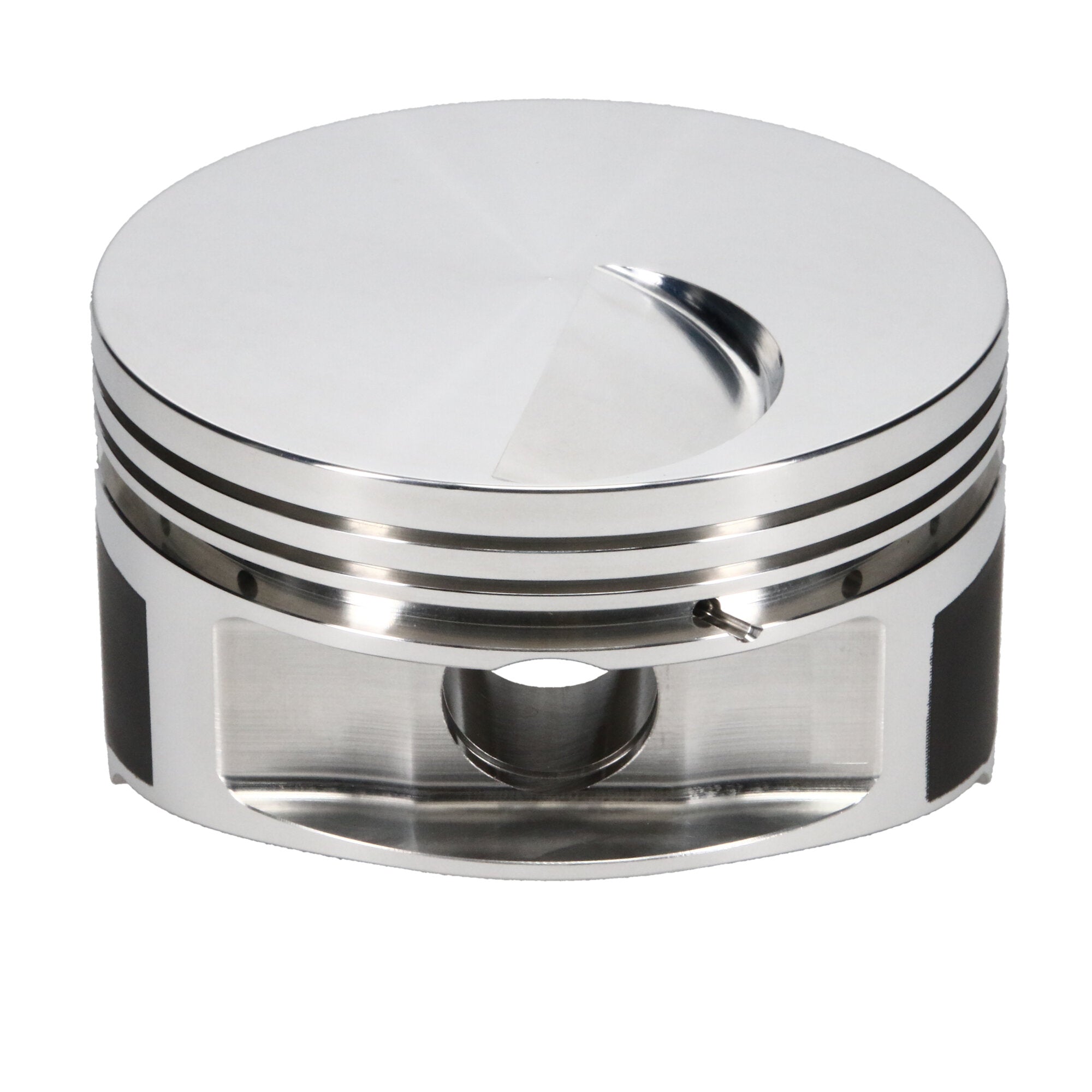

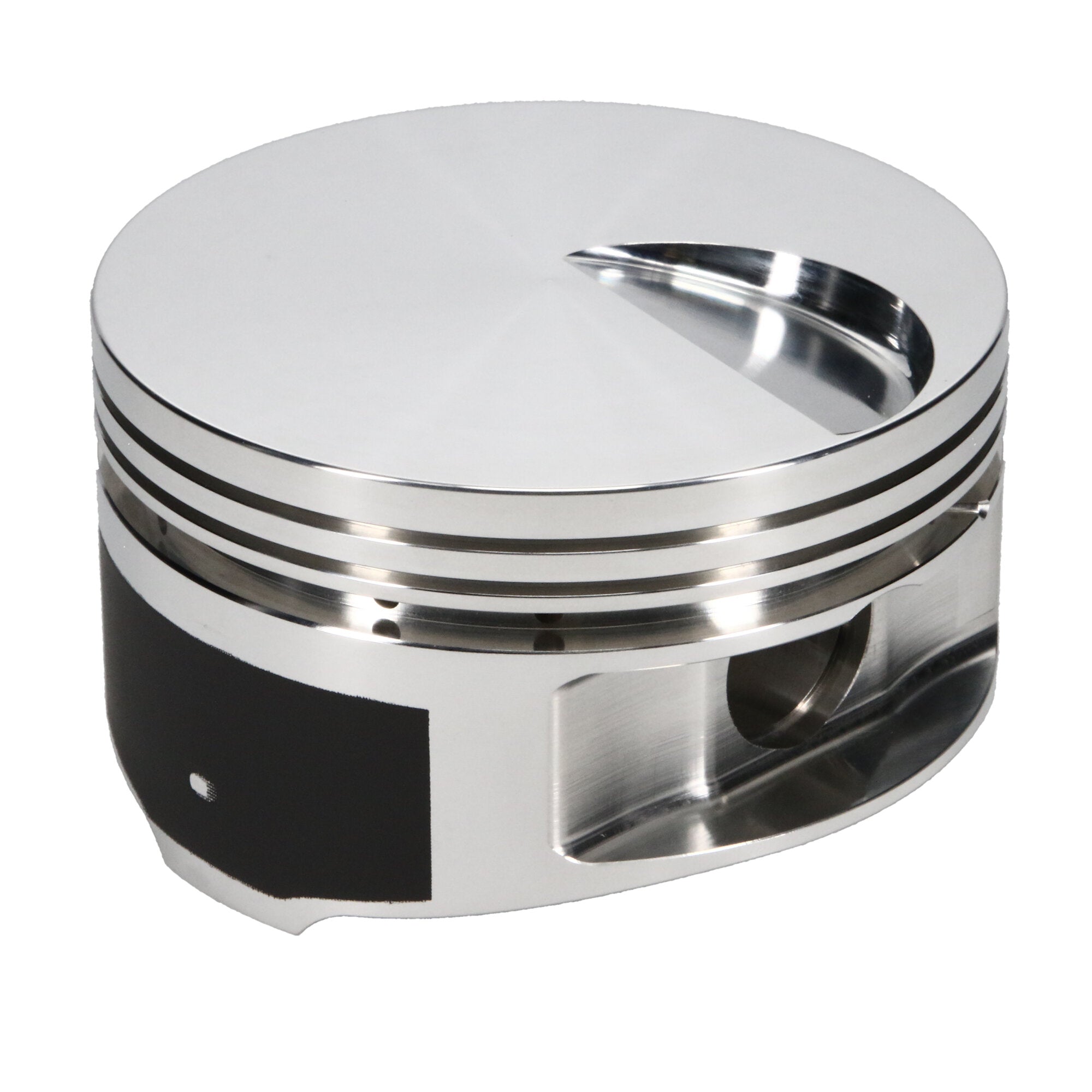

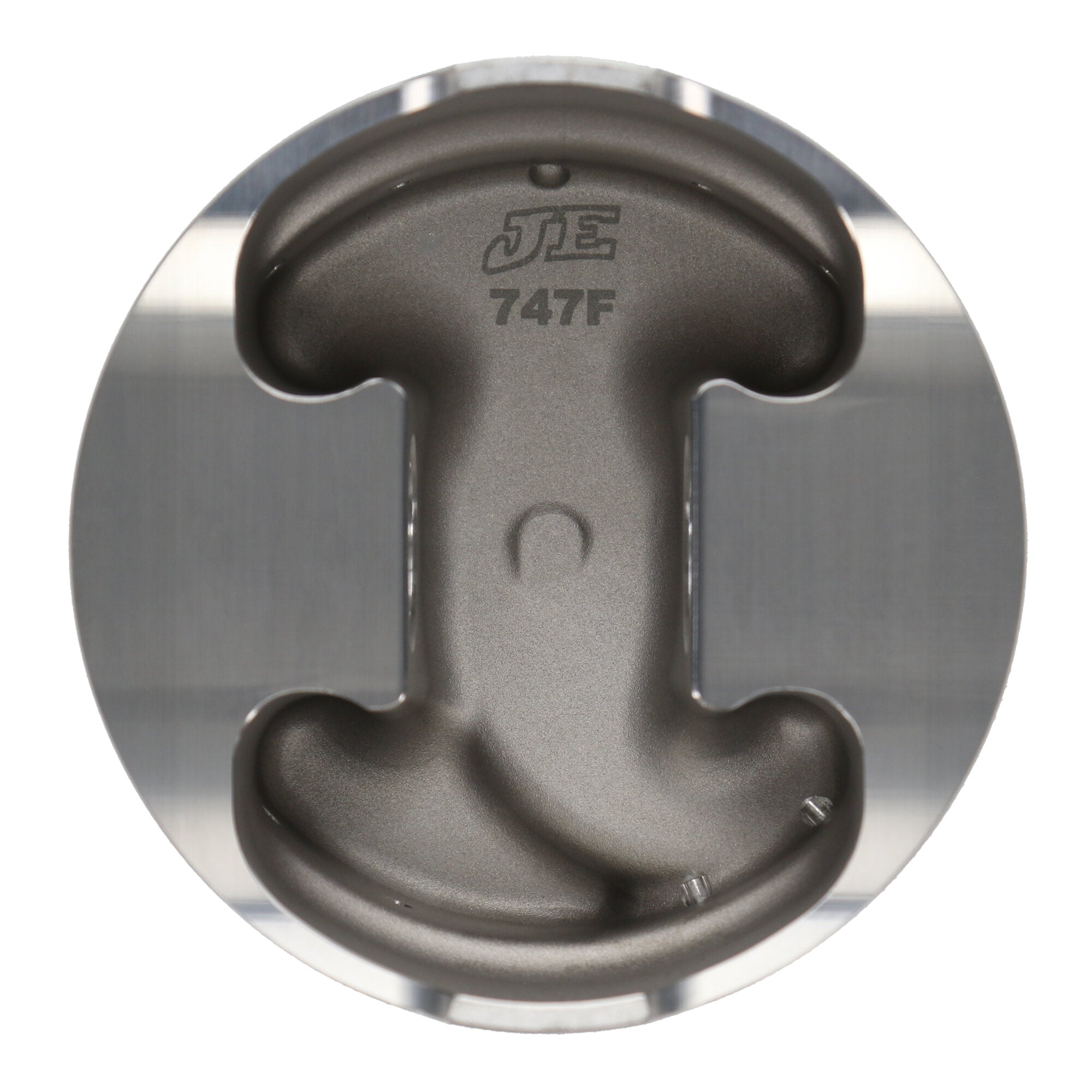

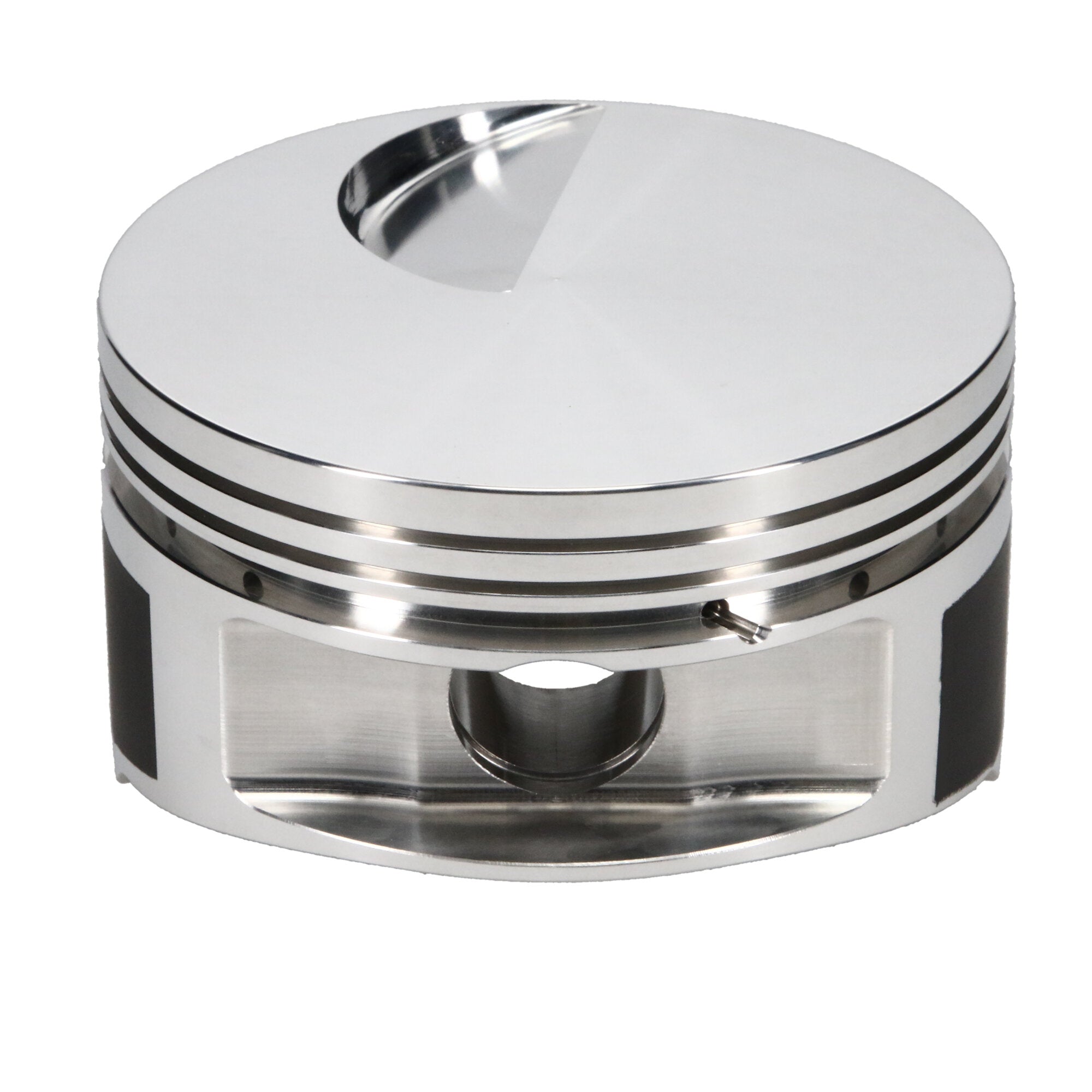

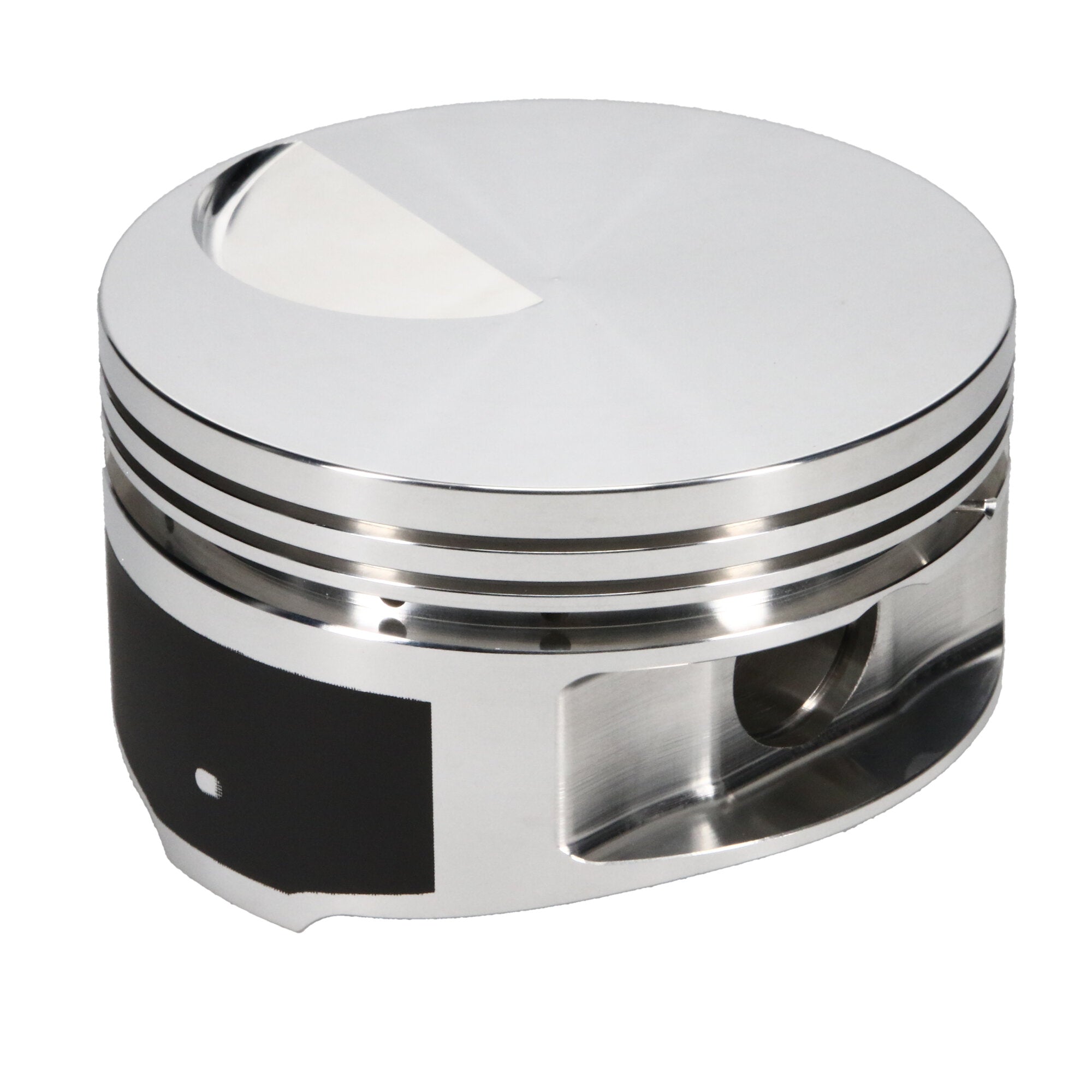

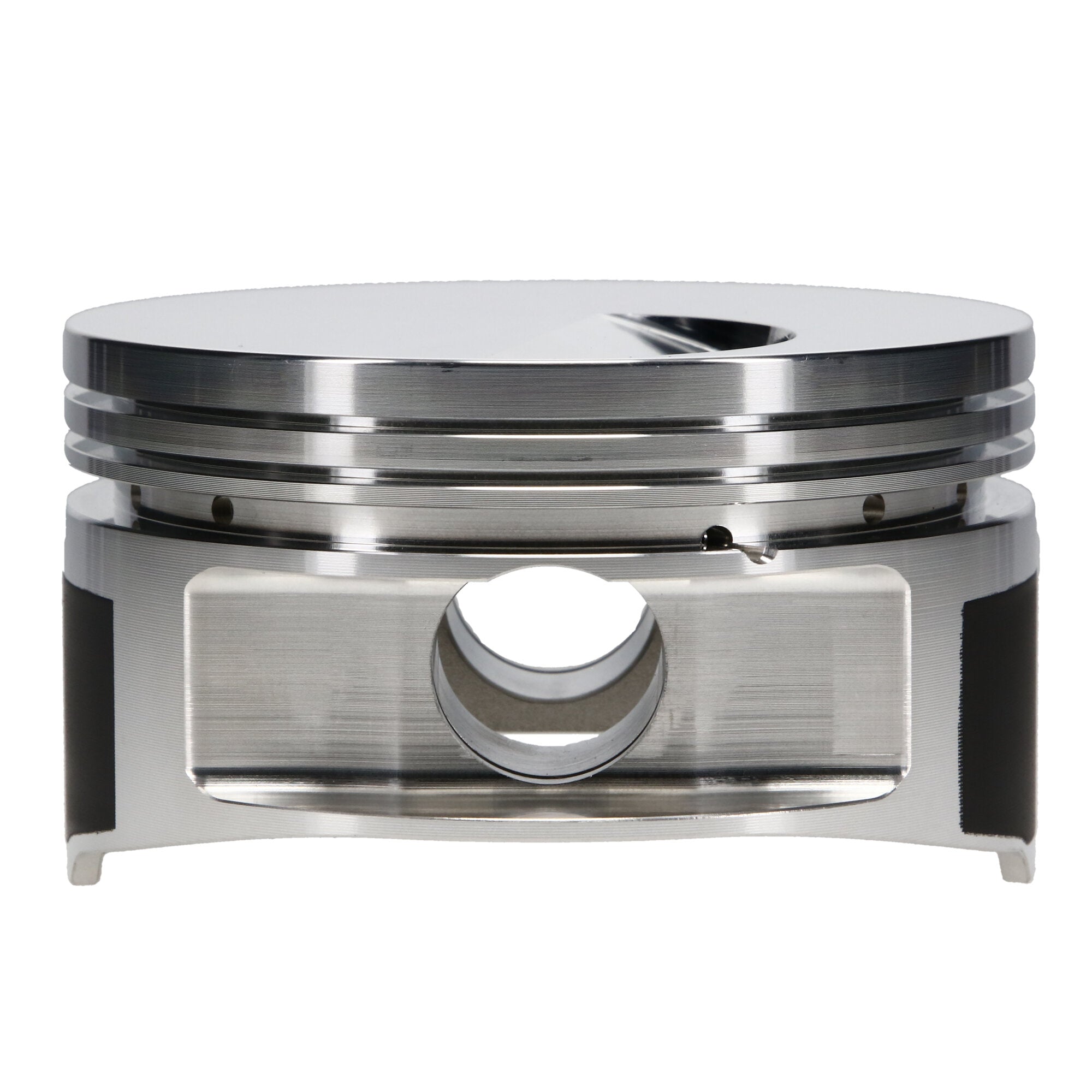

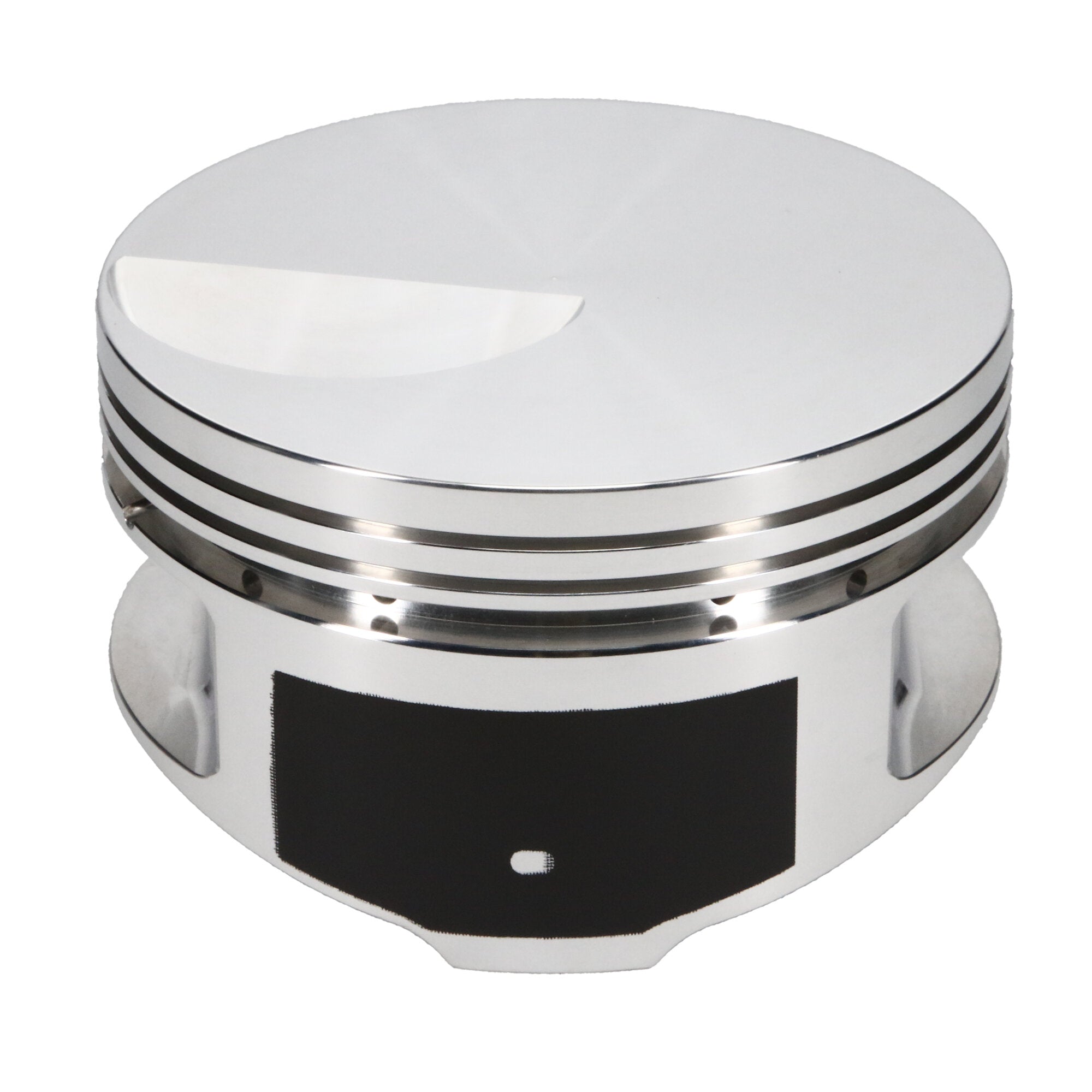

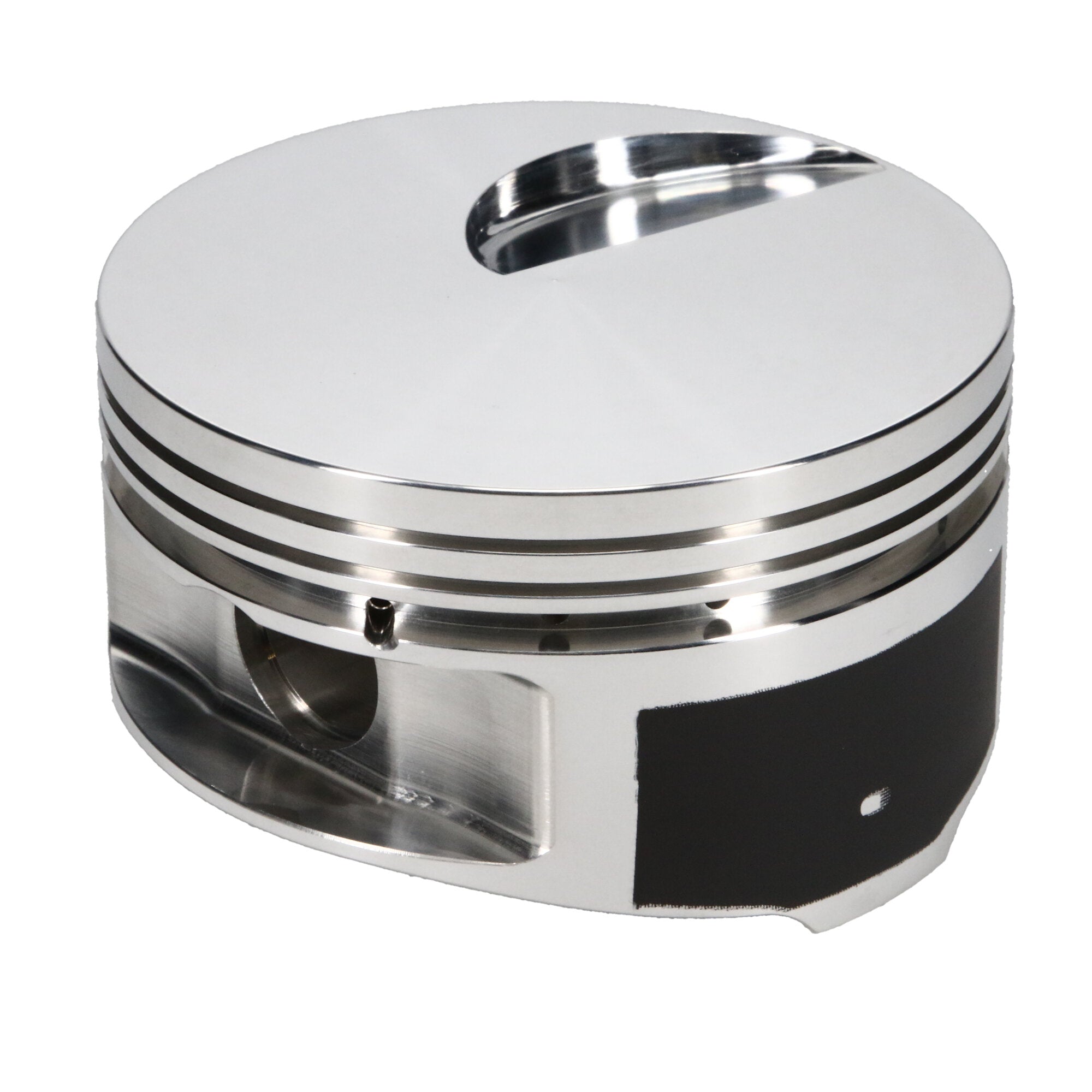

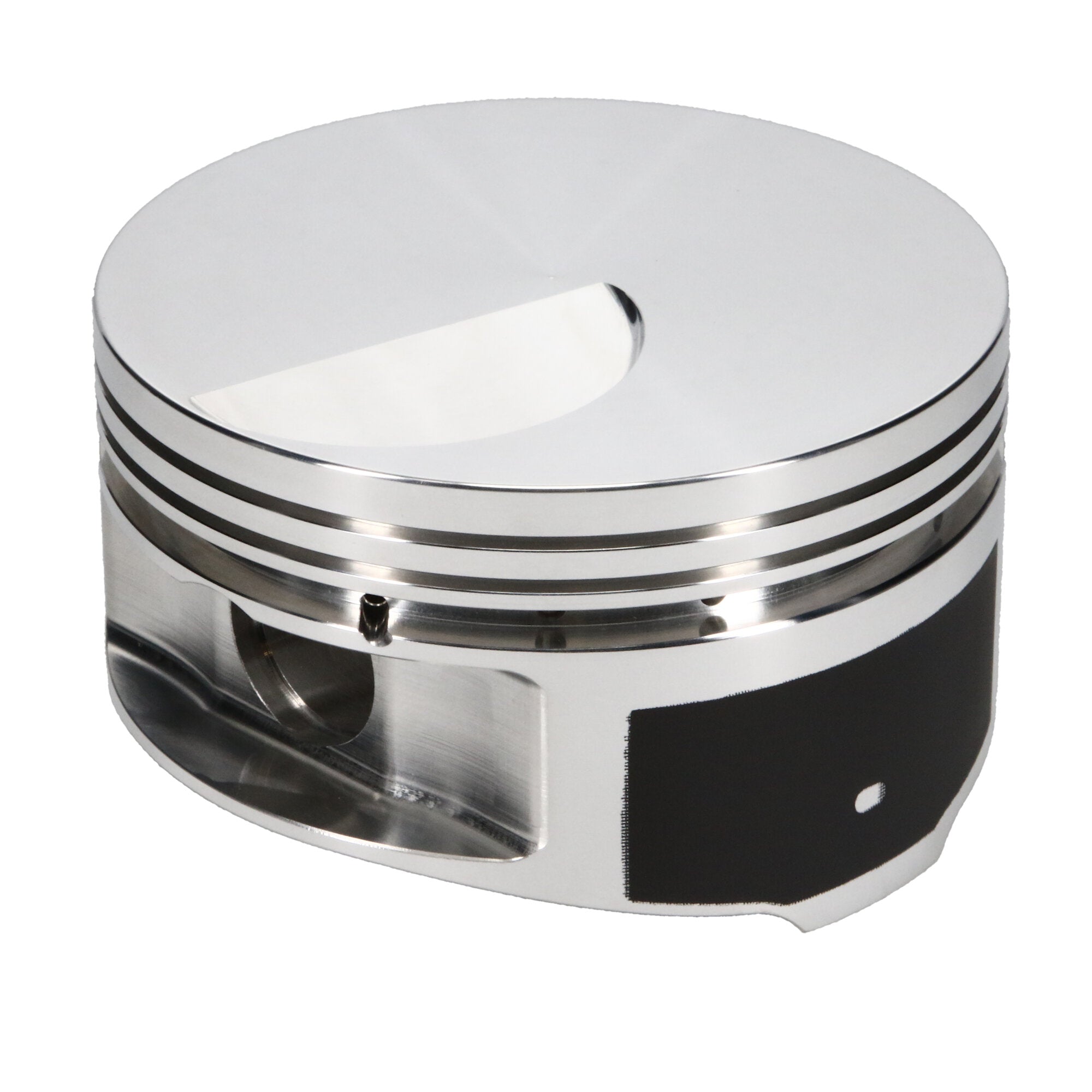

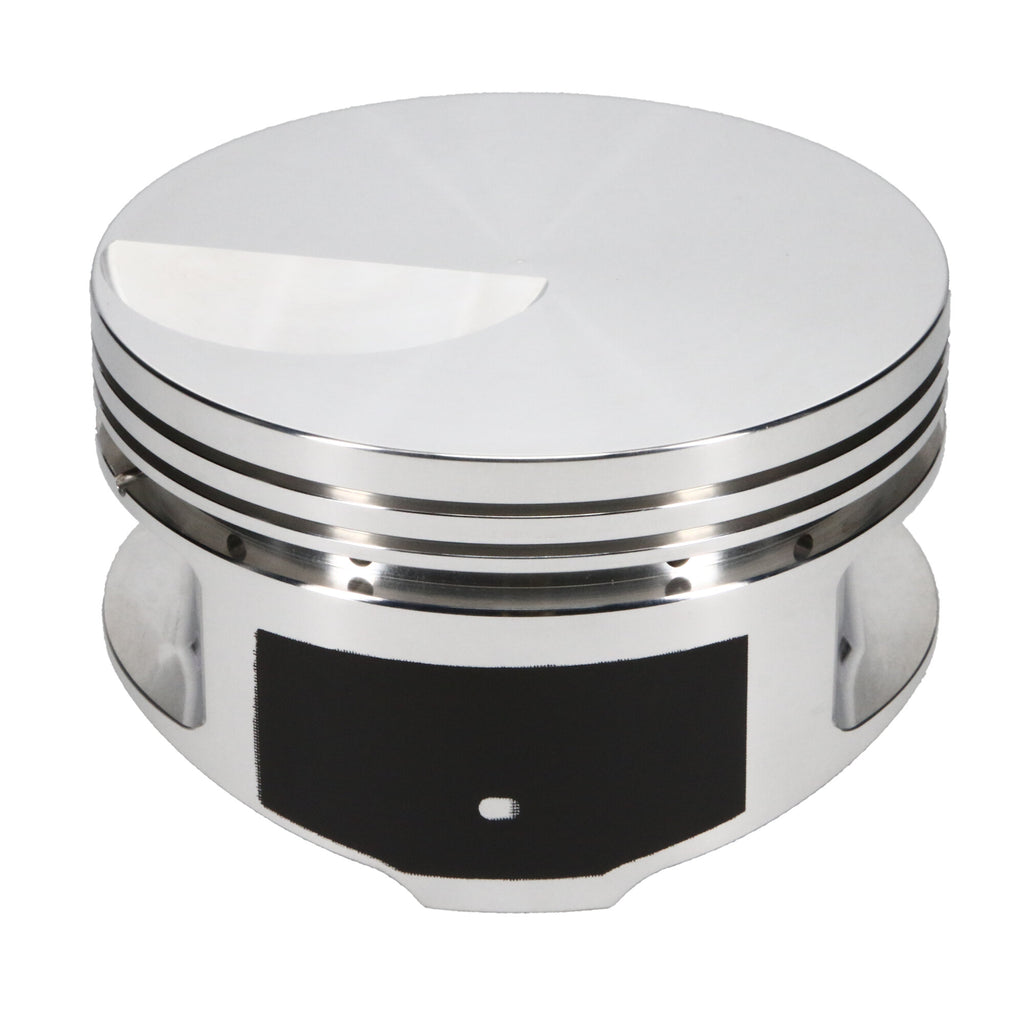

Piston Set, 2618, Flat Top, 4.310 Bore, 1.325 CD, 0.990 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ford, Big Block Ford FE, 4.310 in. Bore, 1.325 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 427, 4.310 Bore, Flat, Set of 8 |
| Product Type |
Engine Piston Kit |
| Piston Material |
2618 |
| Add-On |
990-042-CS |
| Add-On |
990-2930-15-51S |
| Industry |
Automotive |
| Add-On |
J100F8-4310-5 |
| Ring Set Included |
No |
| Piston Volume |
-5.00 |
| Second Compression Ring Thickness |
0.0640 |
| Cylinder Head |
427/428 FE |
| Prop 65 Yes/No |
Yes |
| Make - Web |
Ford |
| Engine |
Big Block FE |
| Wrist Pin Length |
2.930 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ringset Included |
No |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Pin Length |
2.930 |
| Piston Head Type |
Flat |
| Bore Diameter |
4.310 |
| Piston Pin Wall Thickness |
0.150 |
| Compression Height |
1.325 |
| Piston Series |
JE Pistons |
| Prop 65 (C, R or CR) |
CR |
| Product Market |
Domestic |
| Piston Average Weight |
528 |
| Out of Stock Message |
Call for Availability |
| Title - Web |
JE Pistons Ford Big Block FE Piston Kit - 4.310 in. Bore - 1.325 in. CH, -5.00 CC |
| Wrist Pin Wall Thickness |
0.150 |
| Engine - Web |
Big Block FE |
| Title |
JE Pistons - Ford, Big Block FE, 4.310 in. Bore, Piston Kit |
| Engine Type |
ICE |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.990 |
| Forging Type |
Round |
| Top Compression Ring Thickness |
0.0640 |
| Piston Quantity |
8 |
| Make |
FORD |
| Oil Ring Thickness |
0.188 |
| Wrist Pin Outer Diameter |
0.990 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
