As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Mopar Big Block 440 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

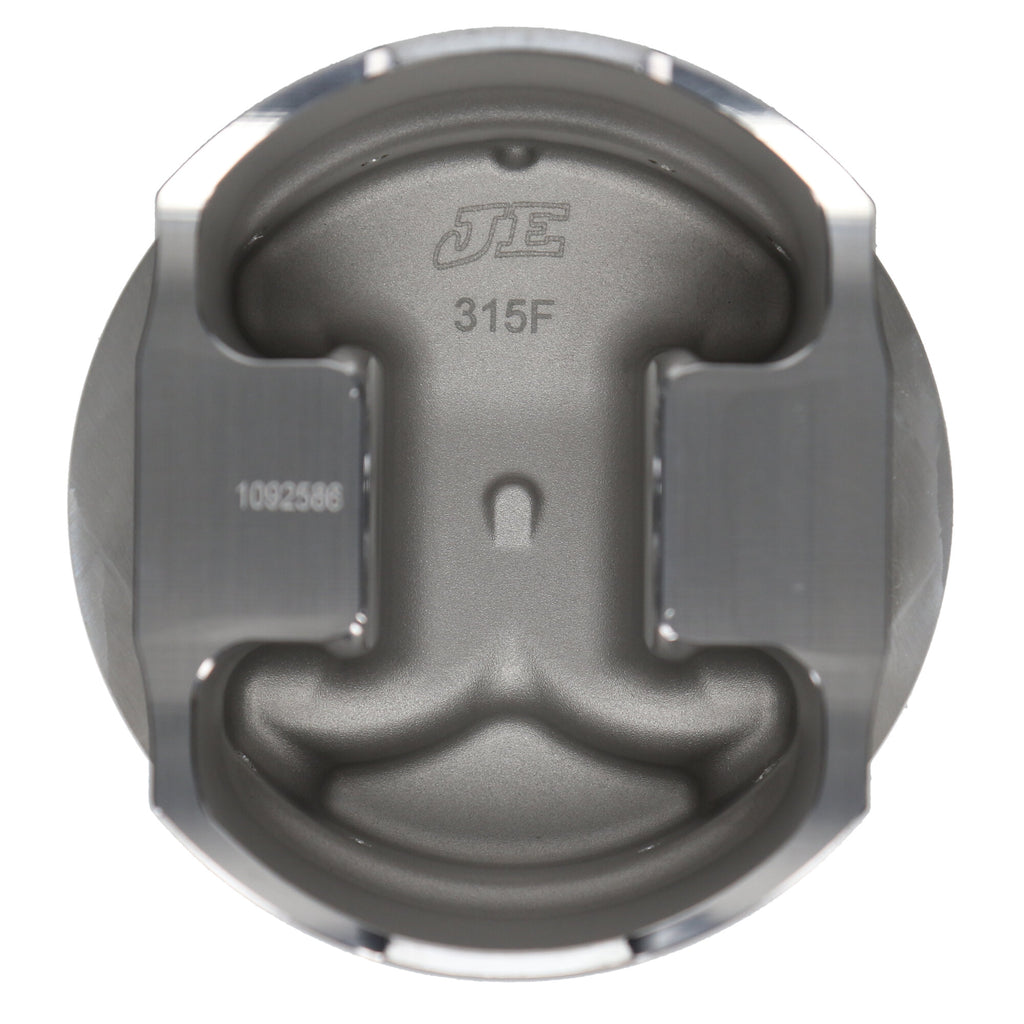

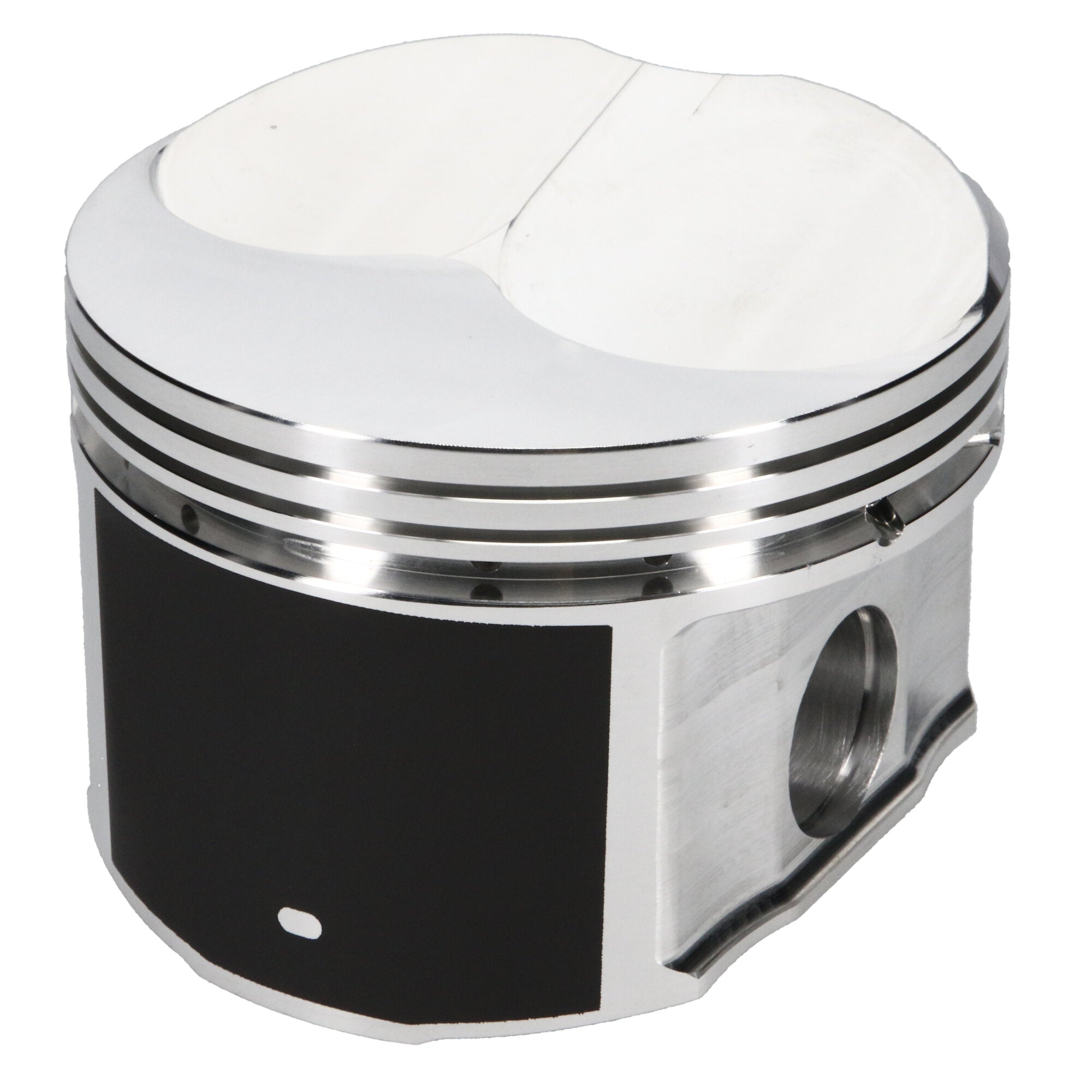

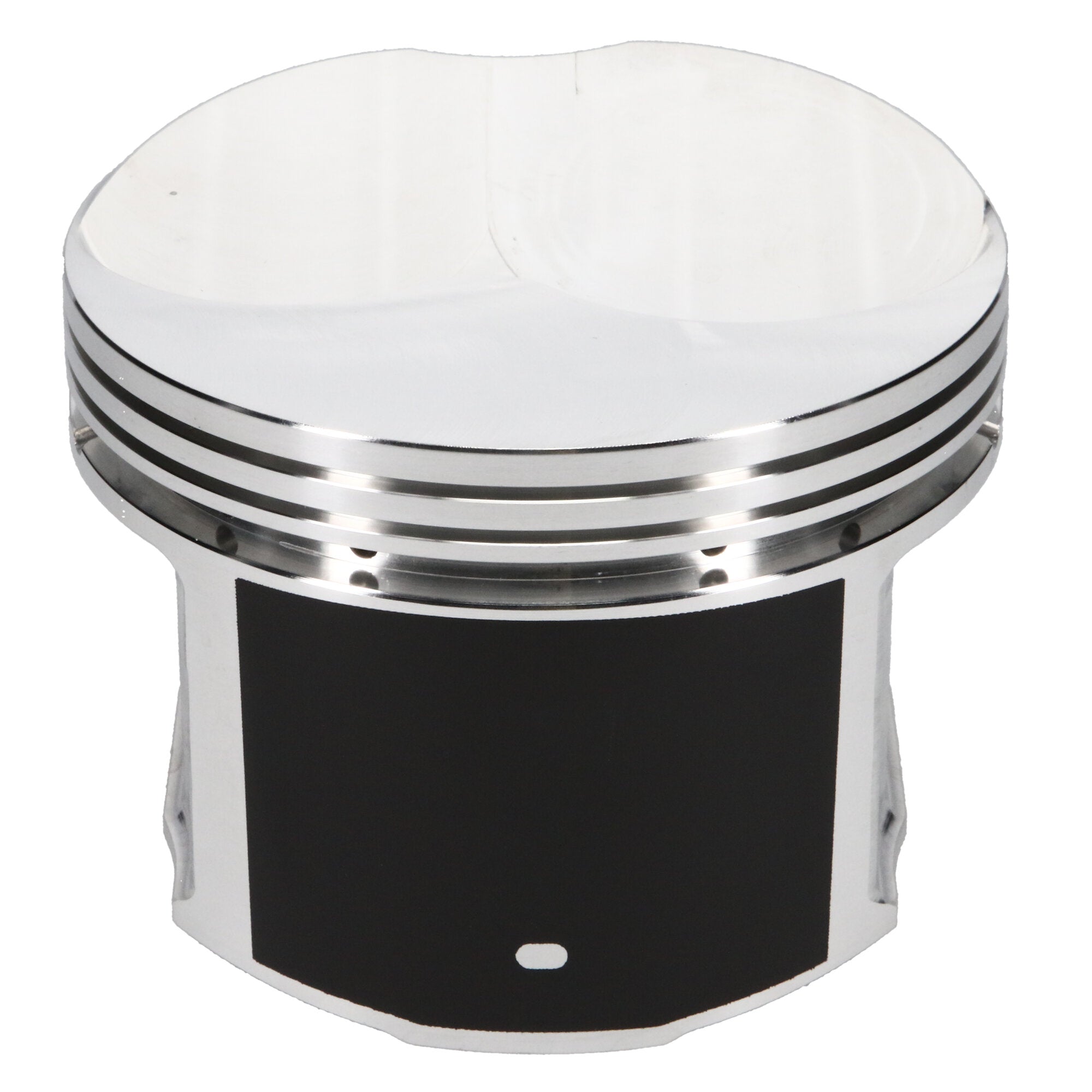

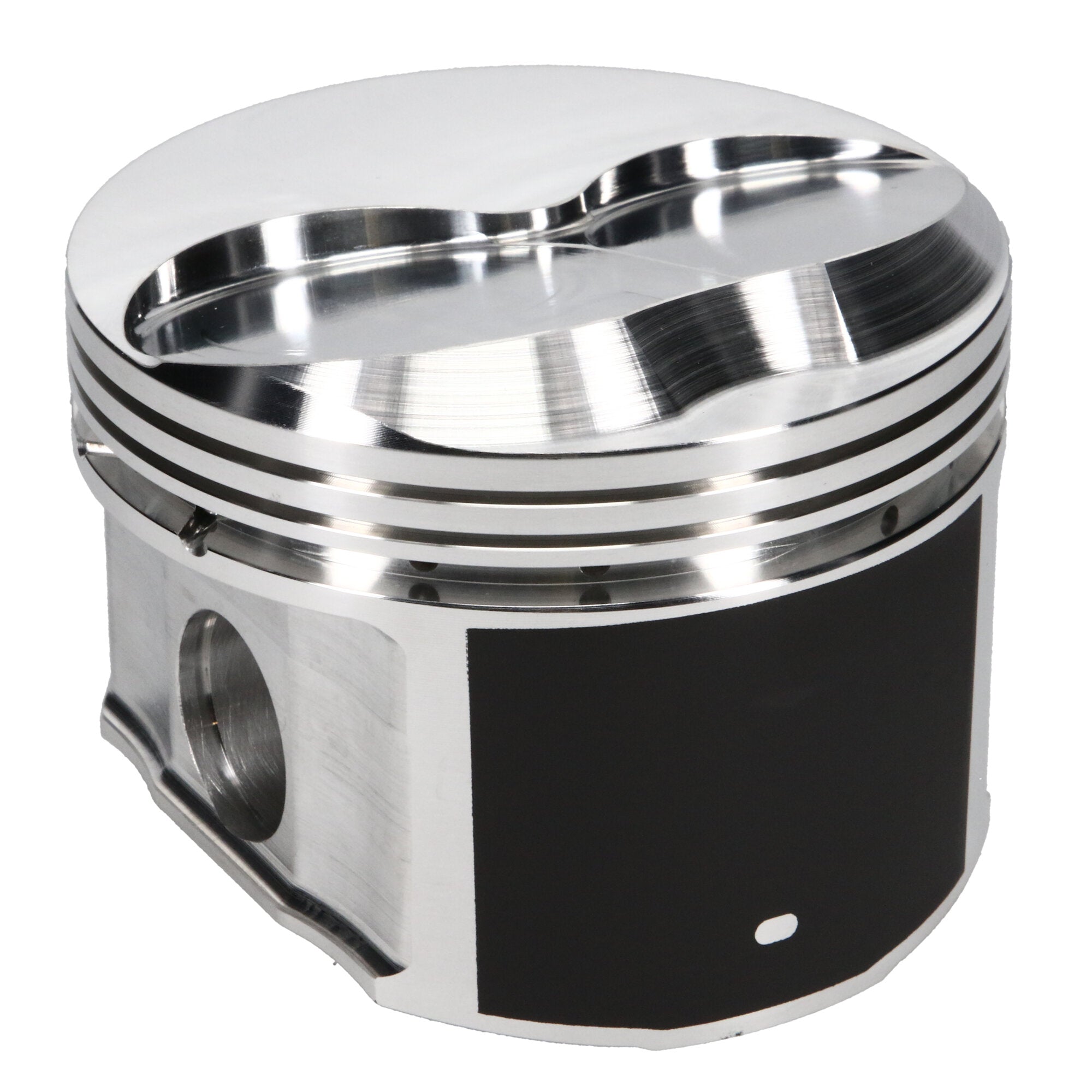

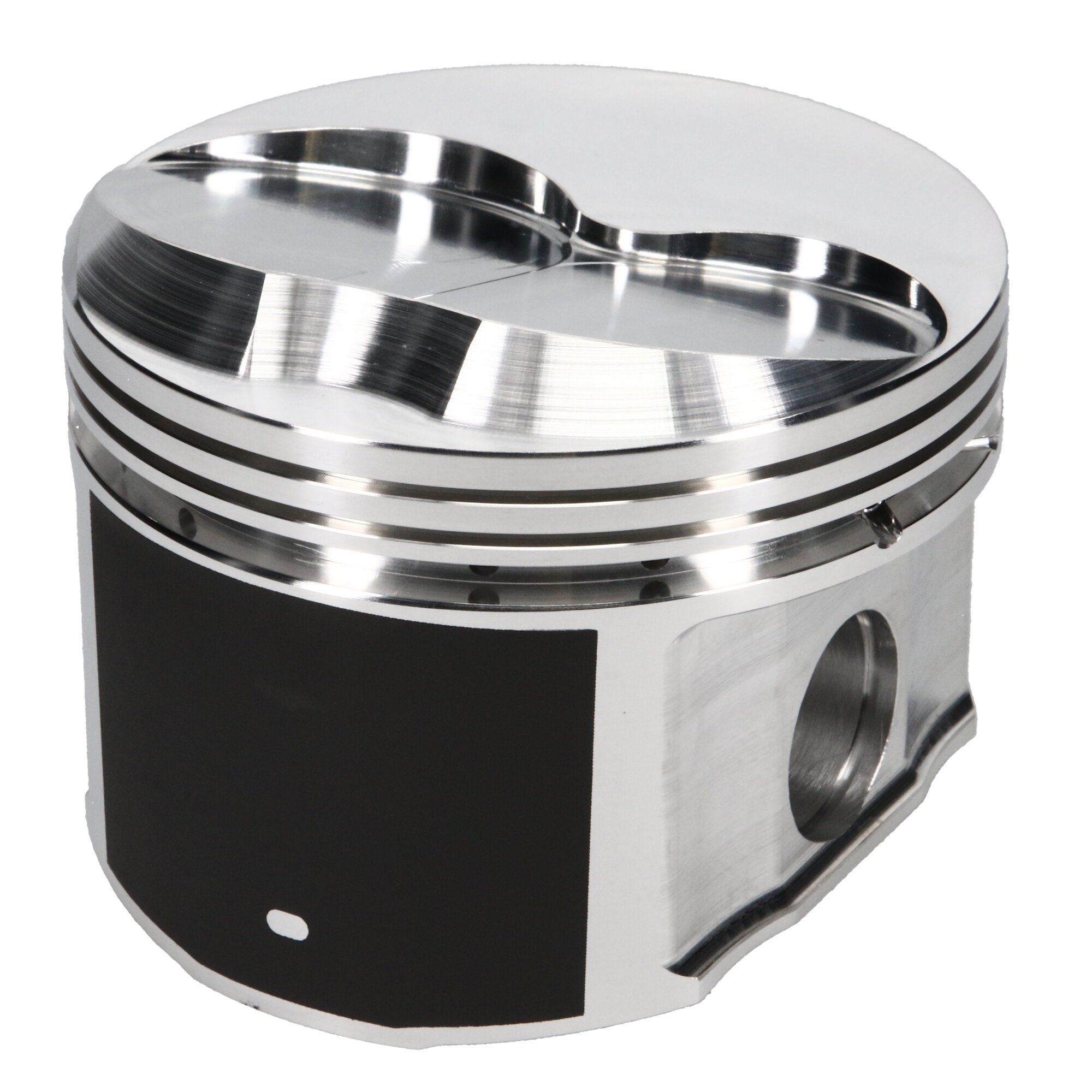

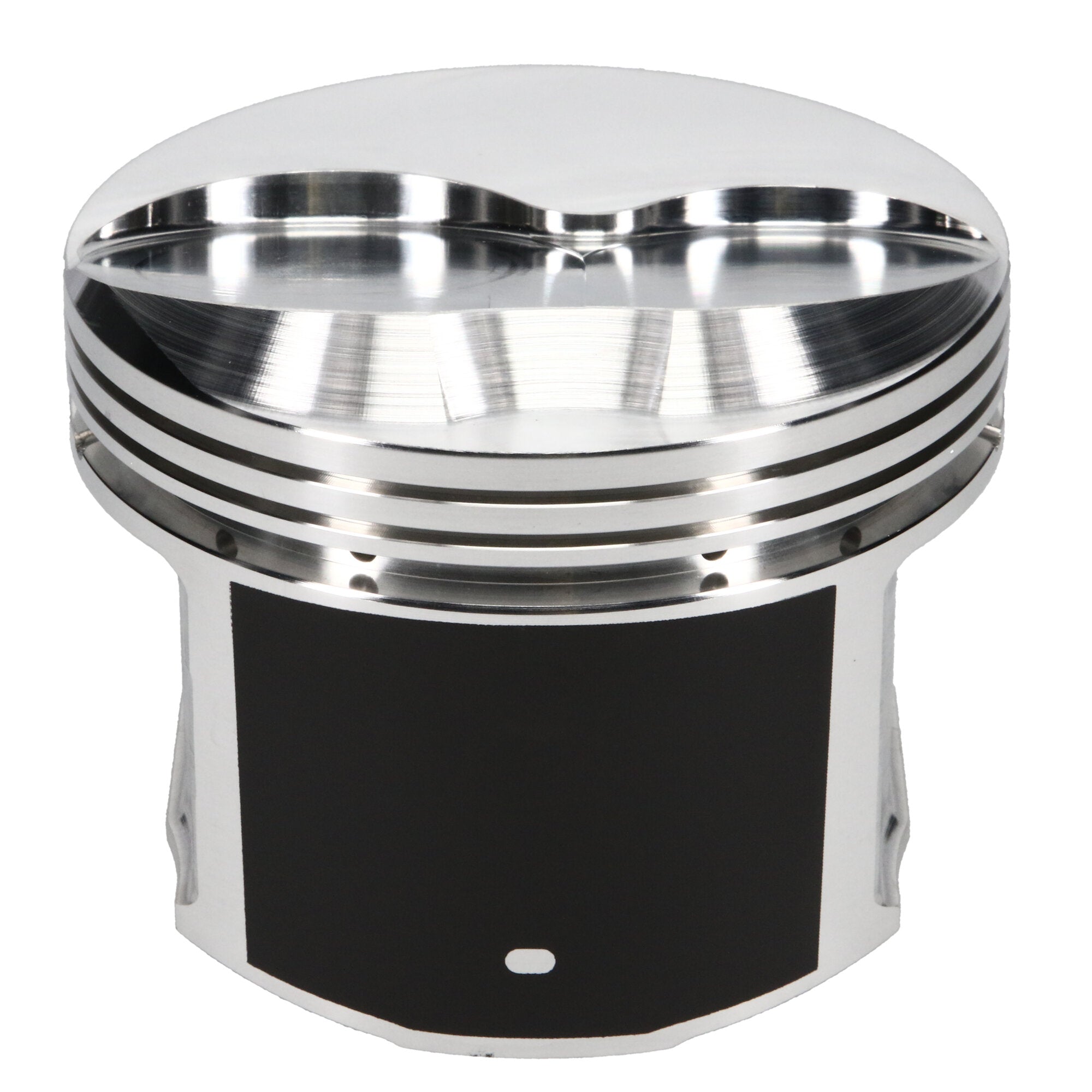

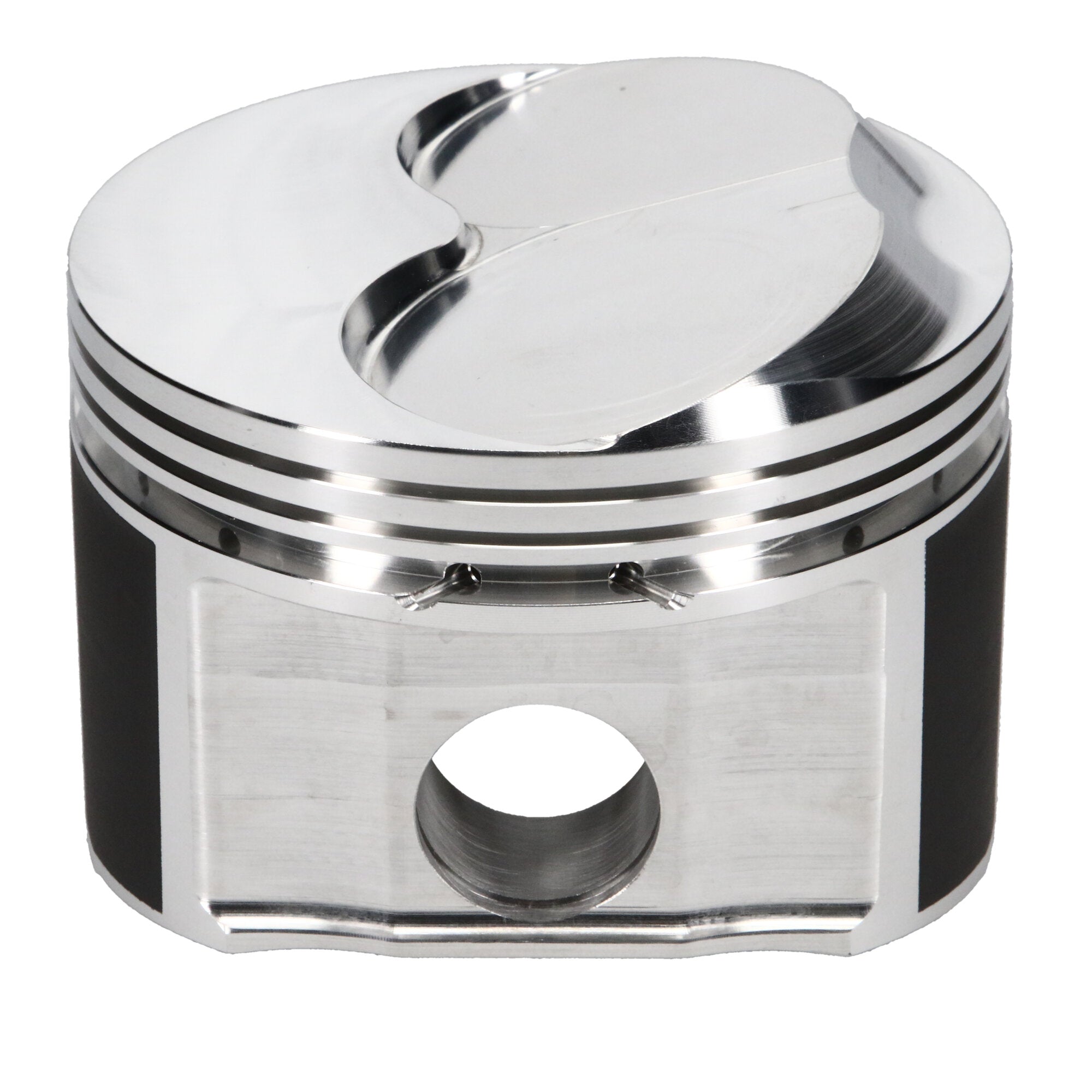

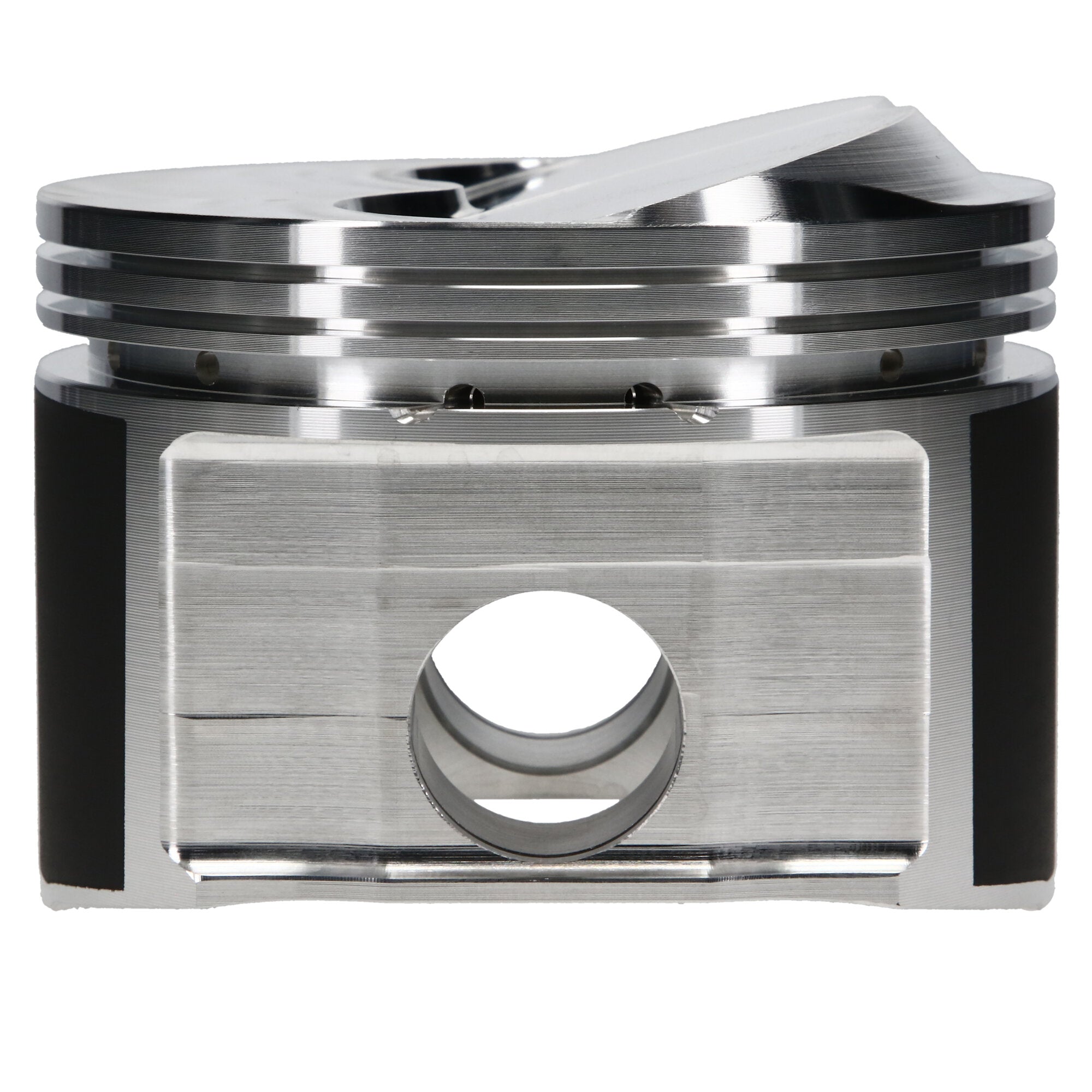

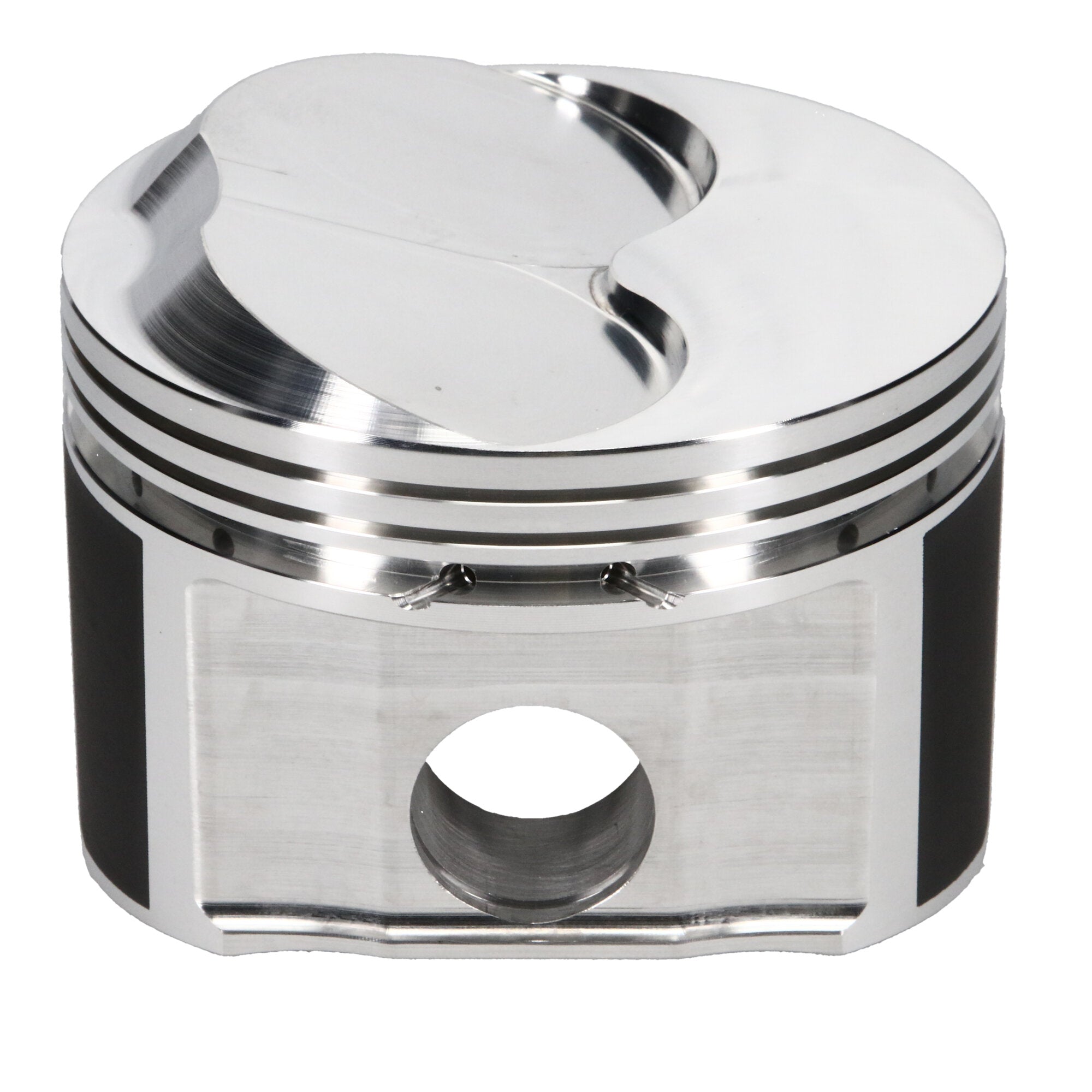

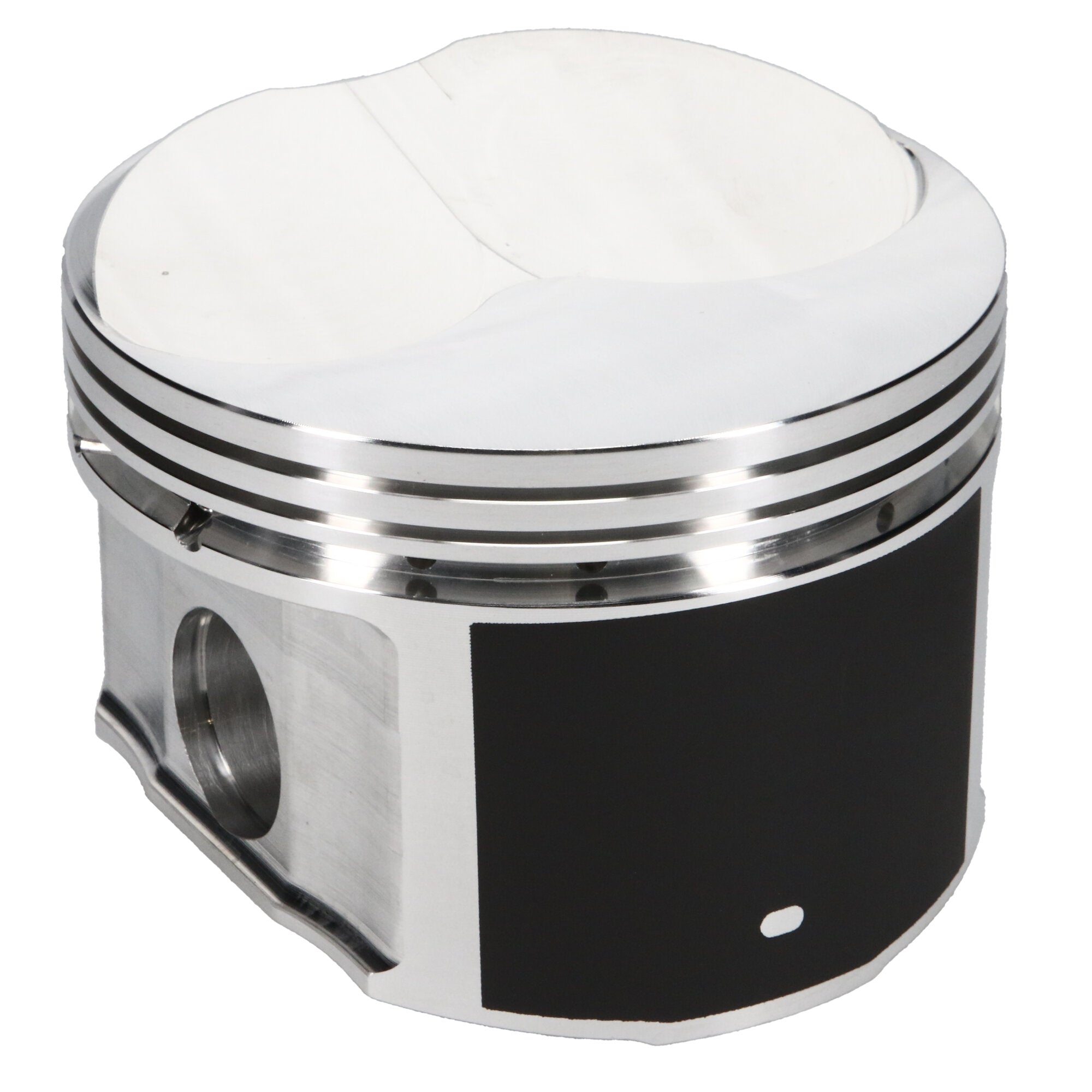

Piston Set, 2618, Dome, 4.350 Bore, 2.058 CD, 1.094 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability

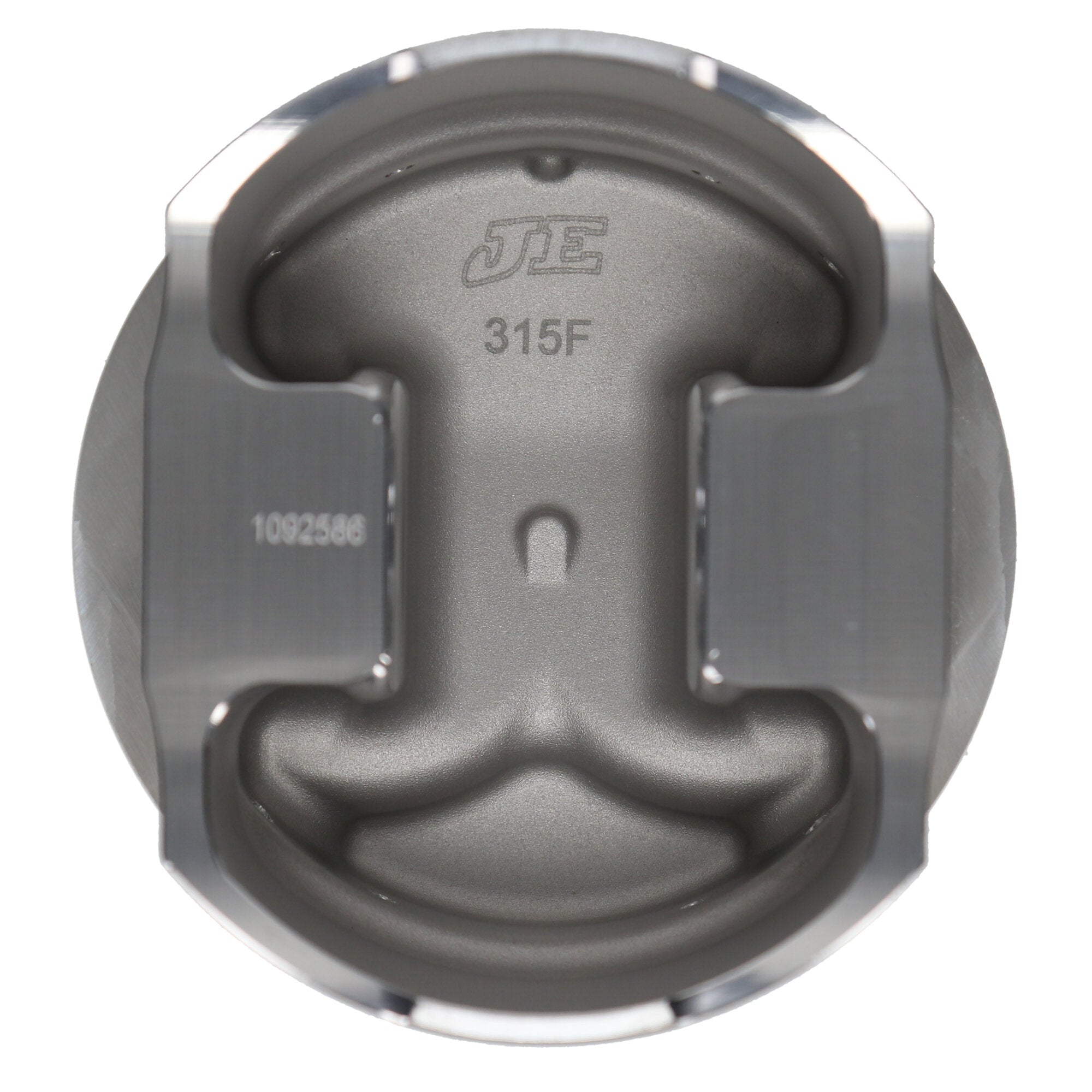

- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Mopar, Big Block Chrysler, 4.350 in. Bore, 2.058 CD, Dome, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
MOPAR 440, 4.350 Bore, Dome, Set of 8 |
| Make |
MOPAR |
| Top Compression Ring Thickness |
0.0640 |
| Ring Set Included |
No |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Wall Thickness |
0.150 |
| Compression Height |
2.058 |
| Title |
JE Pistons - Mopar, Big Block, 4.350 in. Bore, Piston Kit |
| Piston Quantity |
8 |
| Wrist Pin Outer Diameter |
1.094 |
| Piston Volume |
13.50 |
| Piston Average Weight |
645 |
| Piston Pin Outside Diameter |
1.094 |
| Product Type |
Engine Piston Kit |
| Engine - Web |
Big Block |
| Wrist Pin Length |
2.930 |
| Add-On |
J10008-4350-5 |
| Cylinder Head |
440 WEDGE |
| Add-On |
094-2930-15-51S |
| Engine |
Big Block |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Mopar Big Block Piston Kit - 4.350 in. Bore - 2.058 in. CH, 13.50 CC |
| Piston Material |
2618 |
| Industry |
Automotive |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Out of Stock Message |
Call for Availability |
| Bore Diameter |
4.350 |
| Product Market |
Domestic |
| Piston Pin Material |
5115 |
| Piston Head Type |

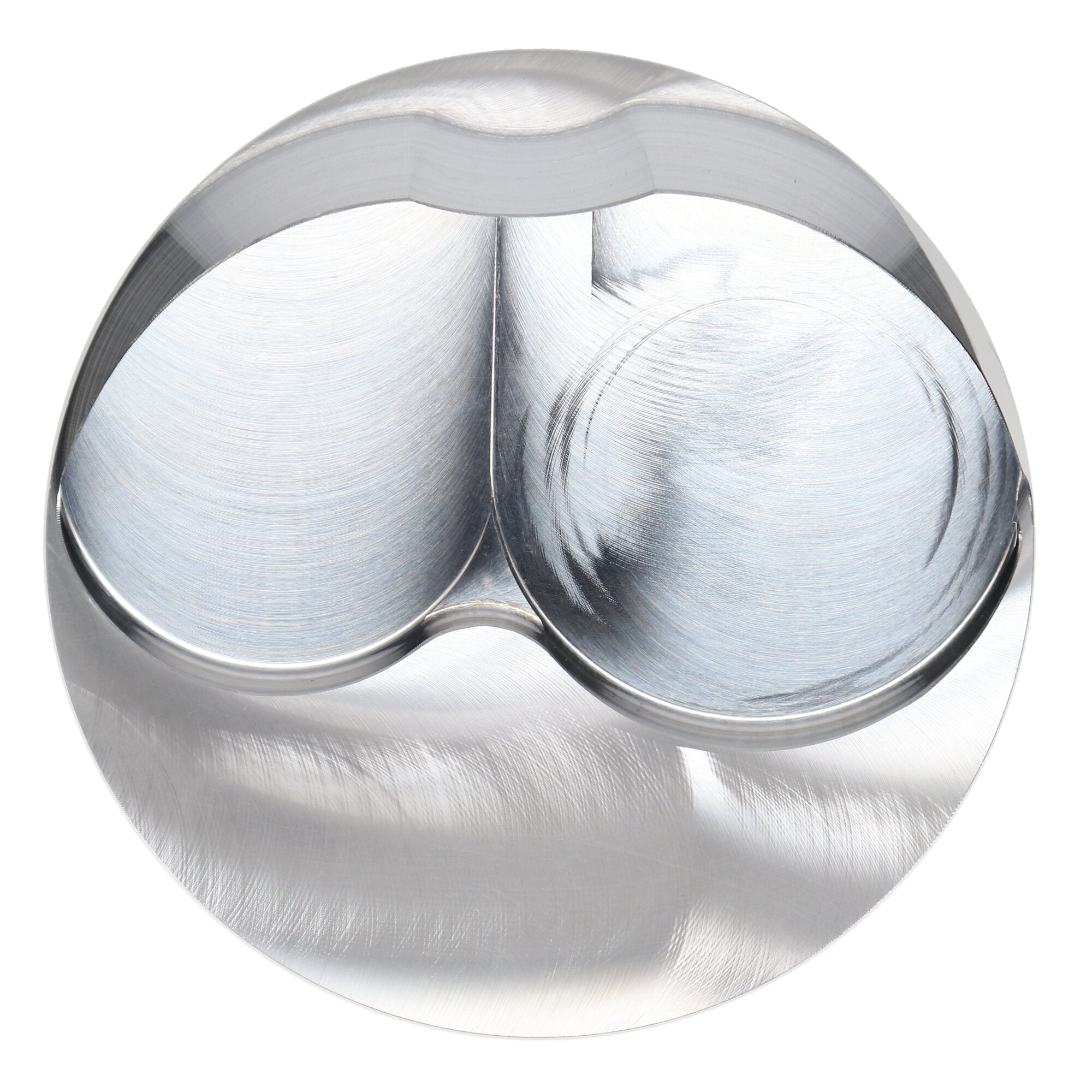

Dome |
| Piston Pin Length |
2.930 |
| Add-On |
094-037-CS |
| Wrist Pin Wall Thickness |
0.150 |
| Oil Ring Thickness |
0.188 |
| Piston Series |
JE Pistons |
| Second Compression Ring Thickness |
0.0640 |
| Ringset Included |
No |
| Forging Type |
Round |
| Engine Type |
ICE |
| Make - Web |
Mopar |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
