As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Pinto 2300 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

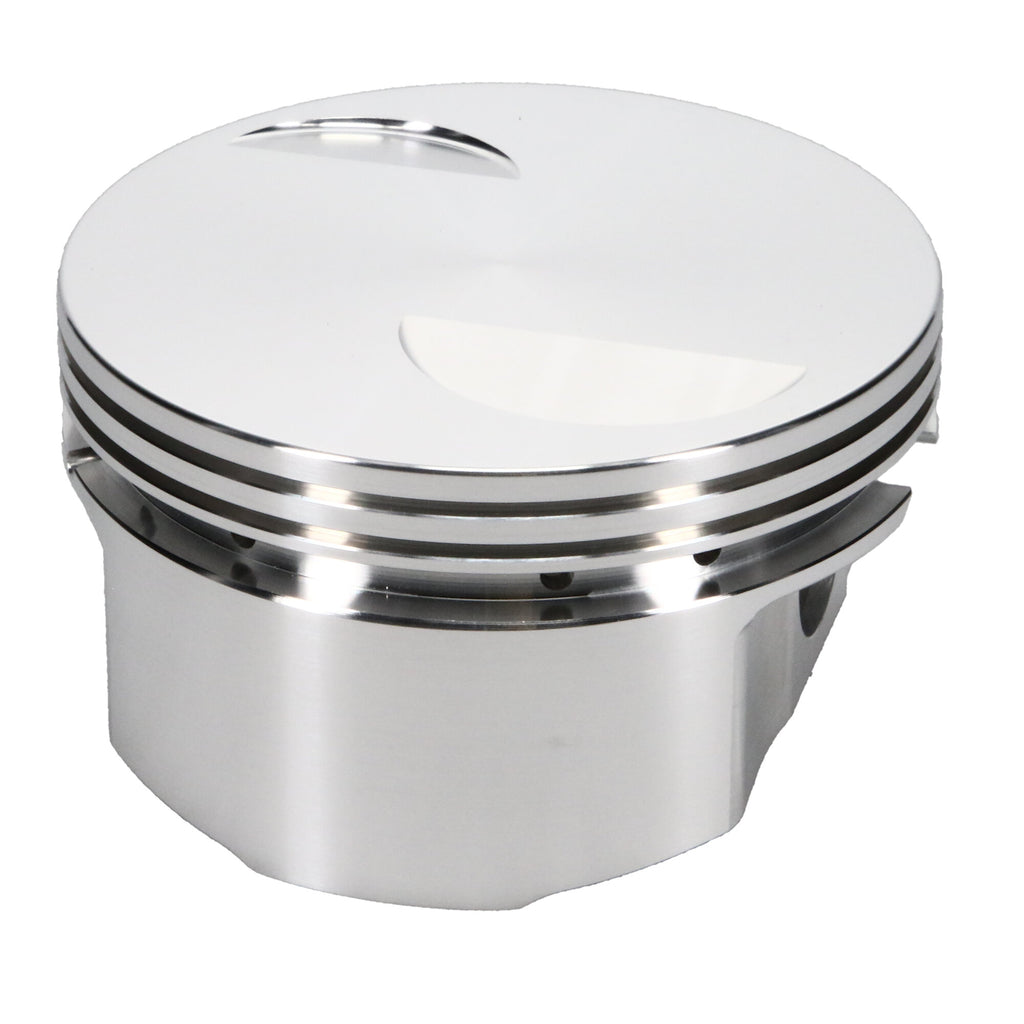

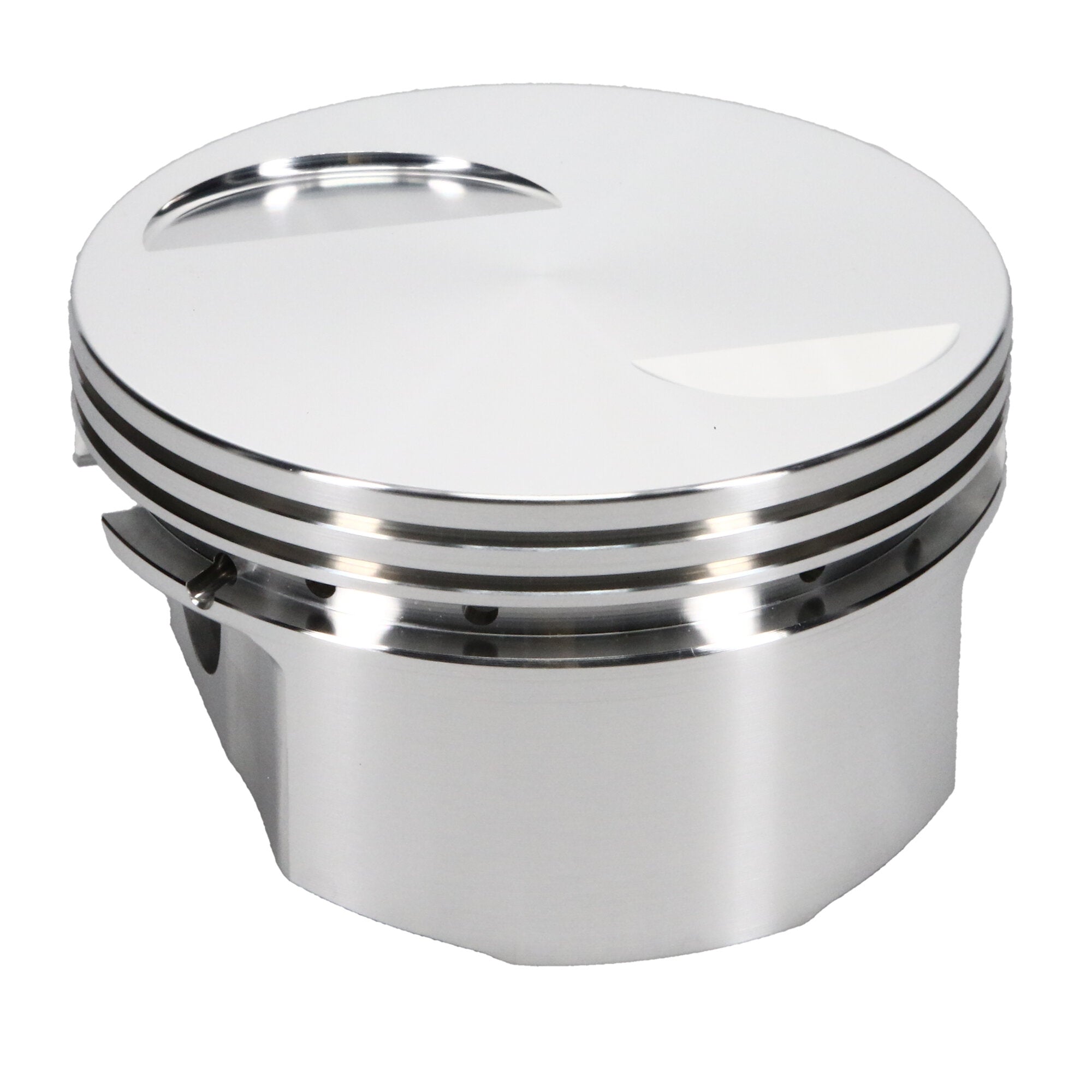

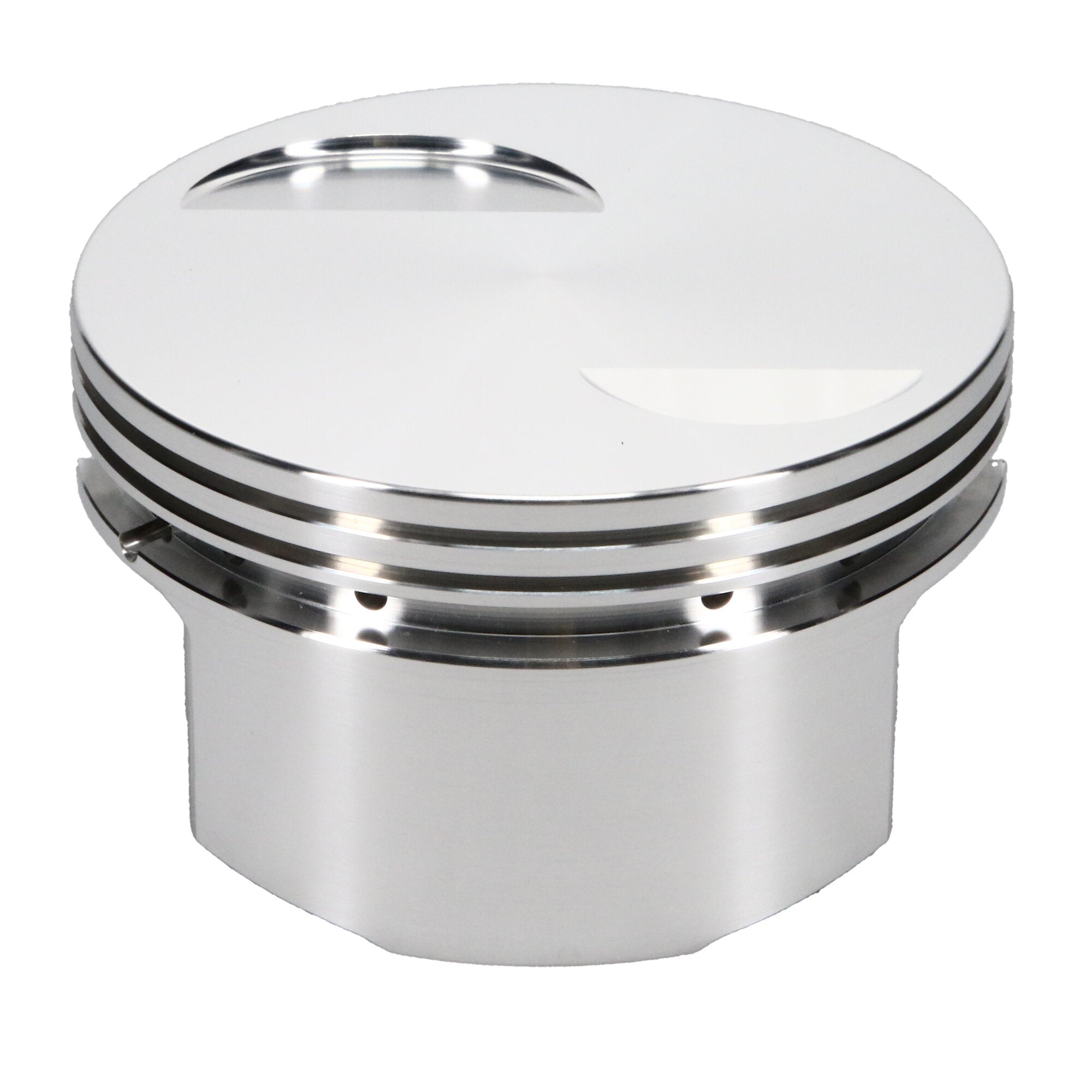

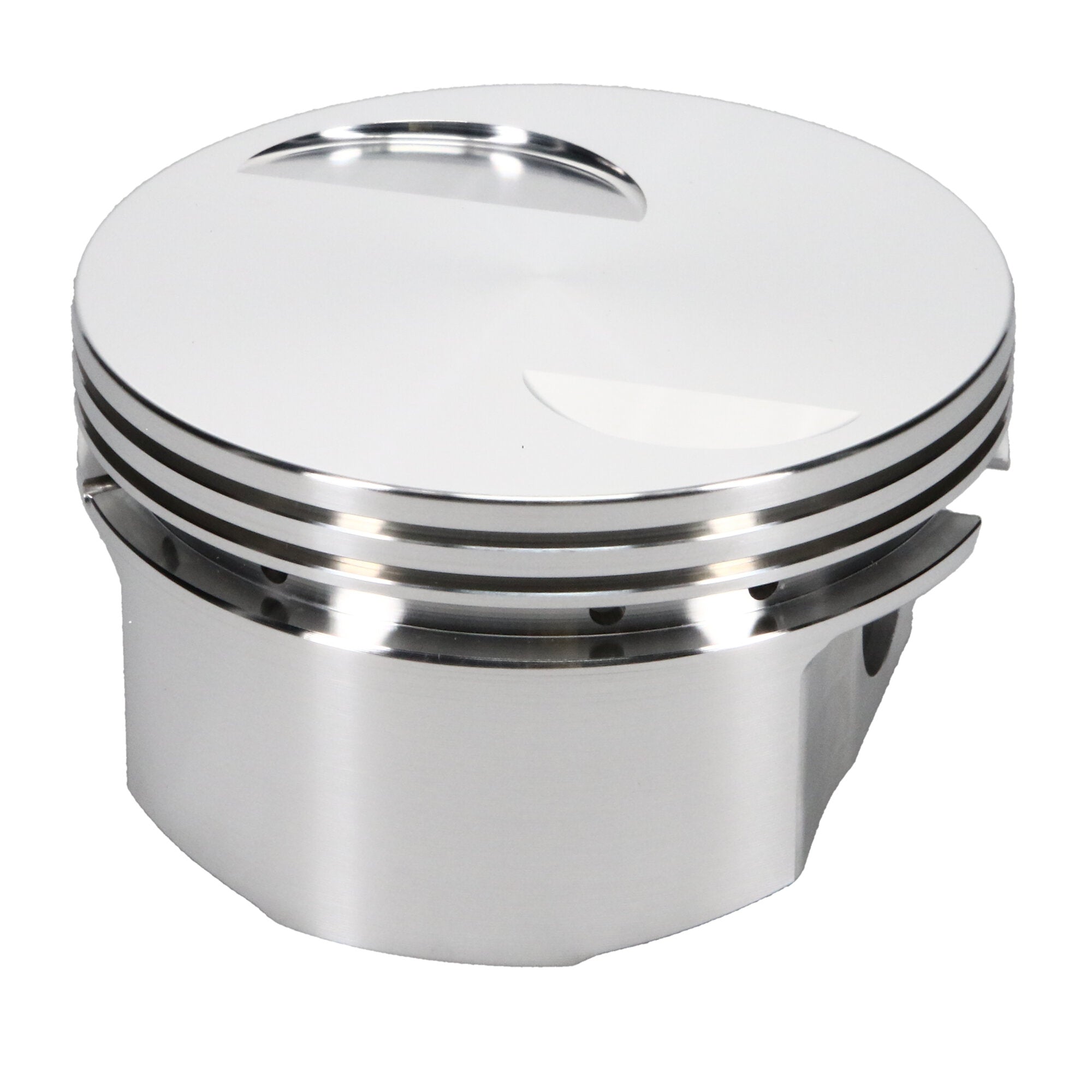

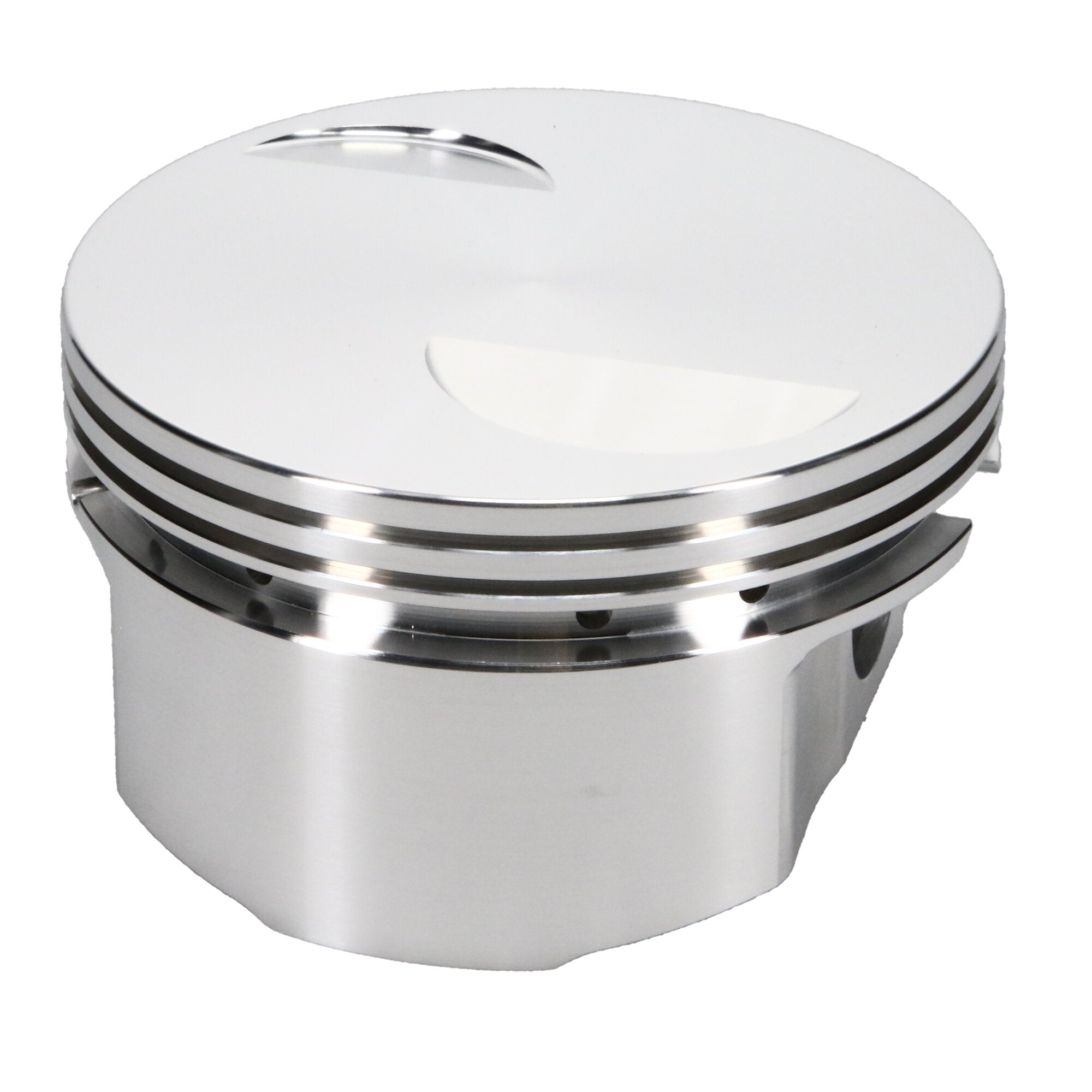

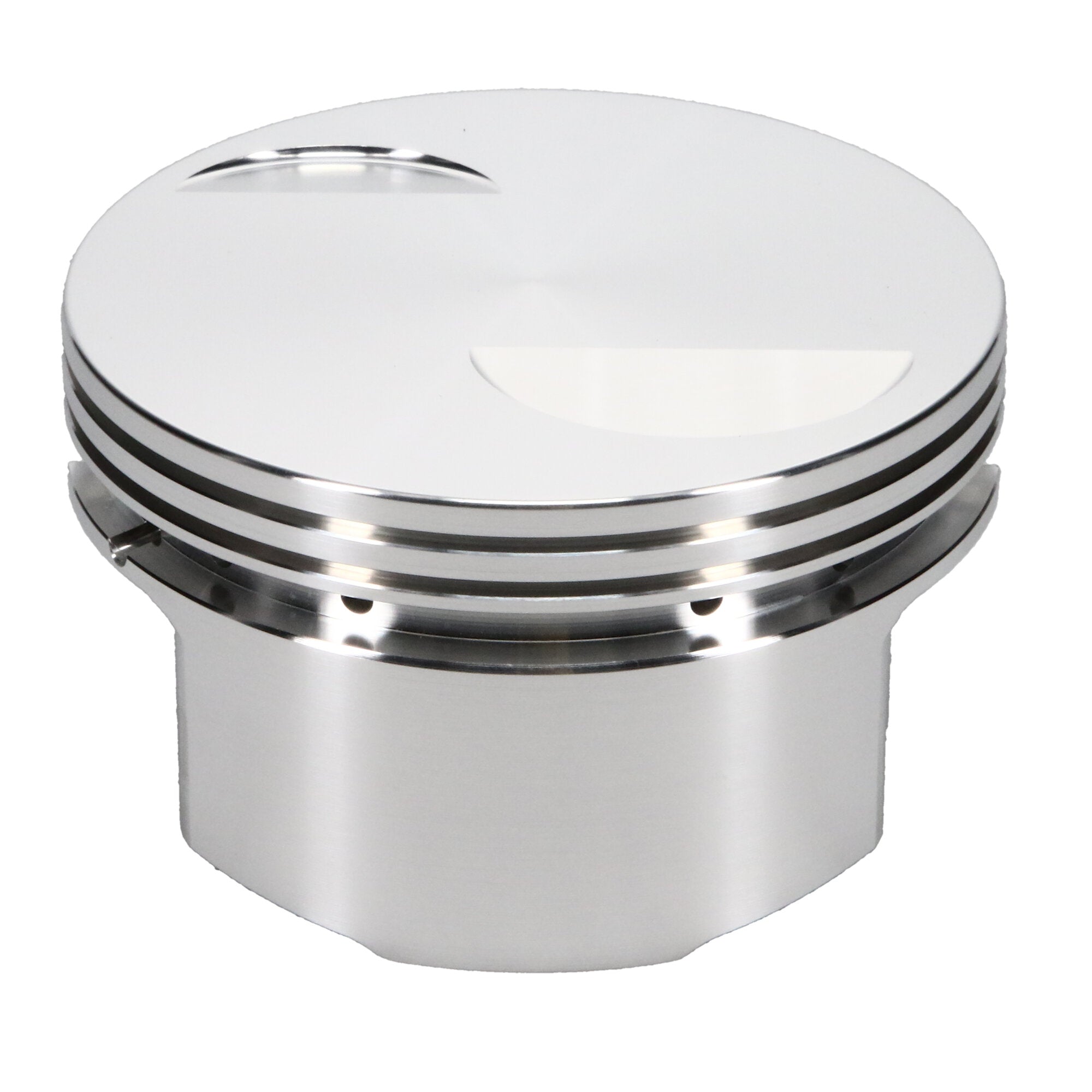

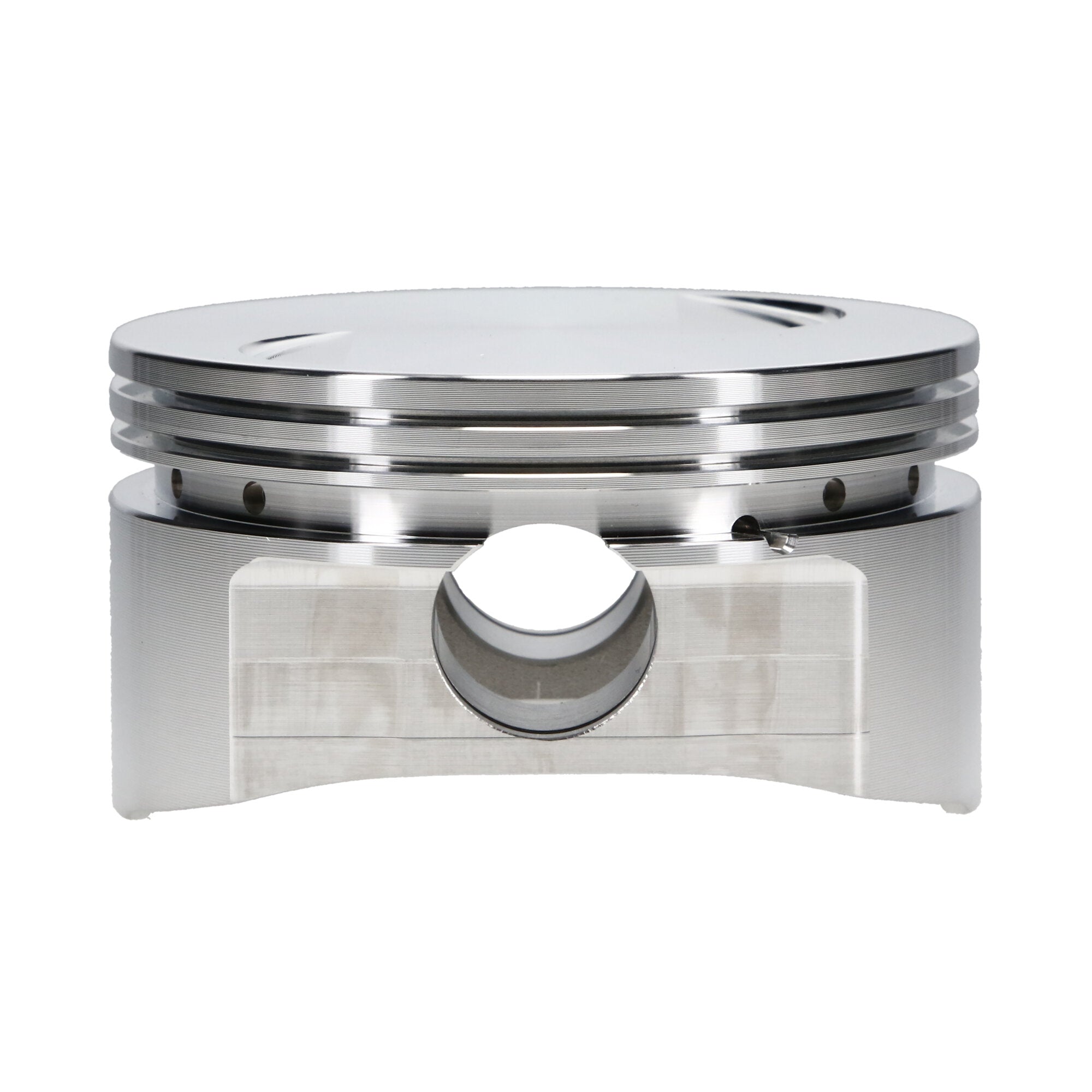

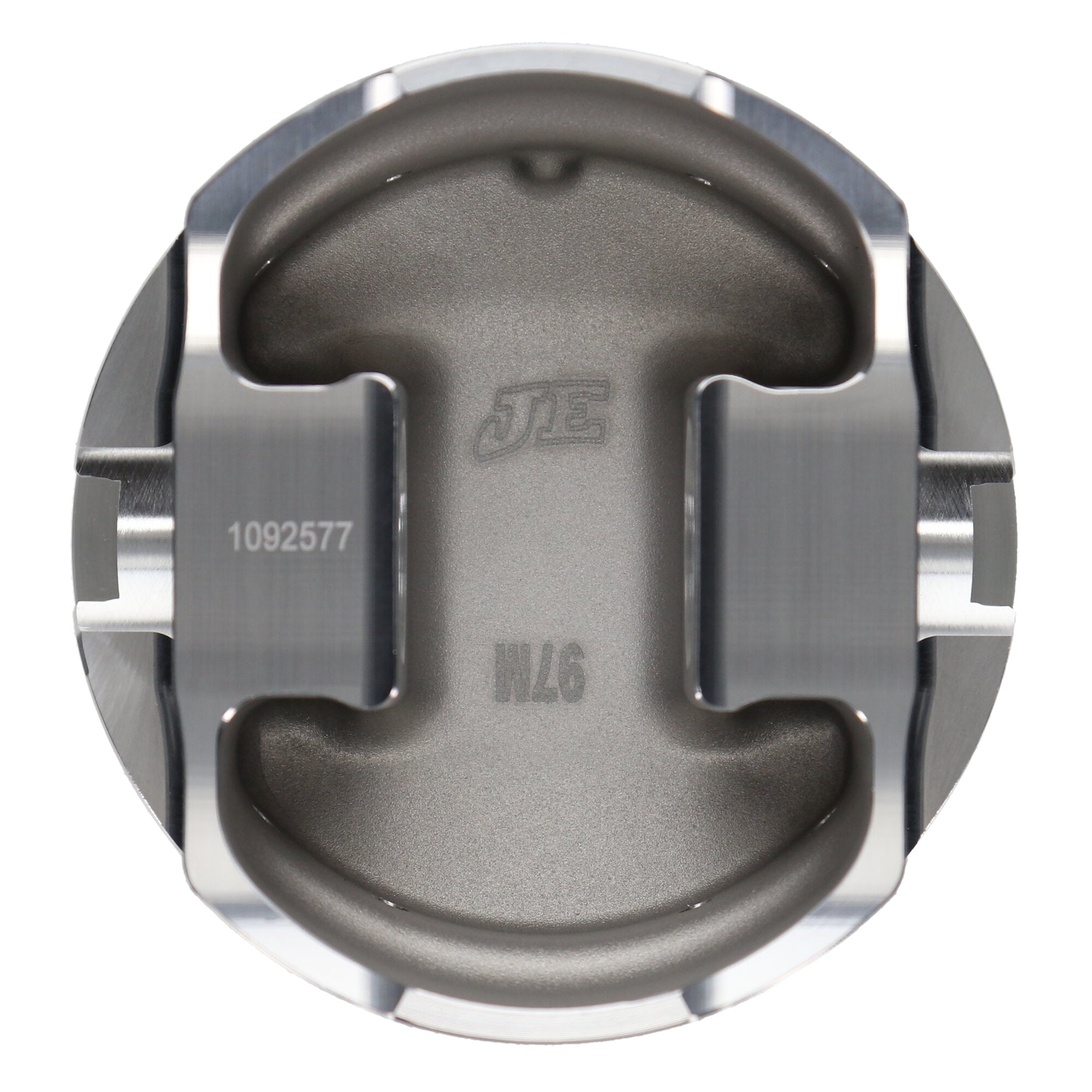

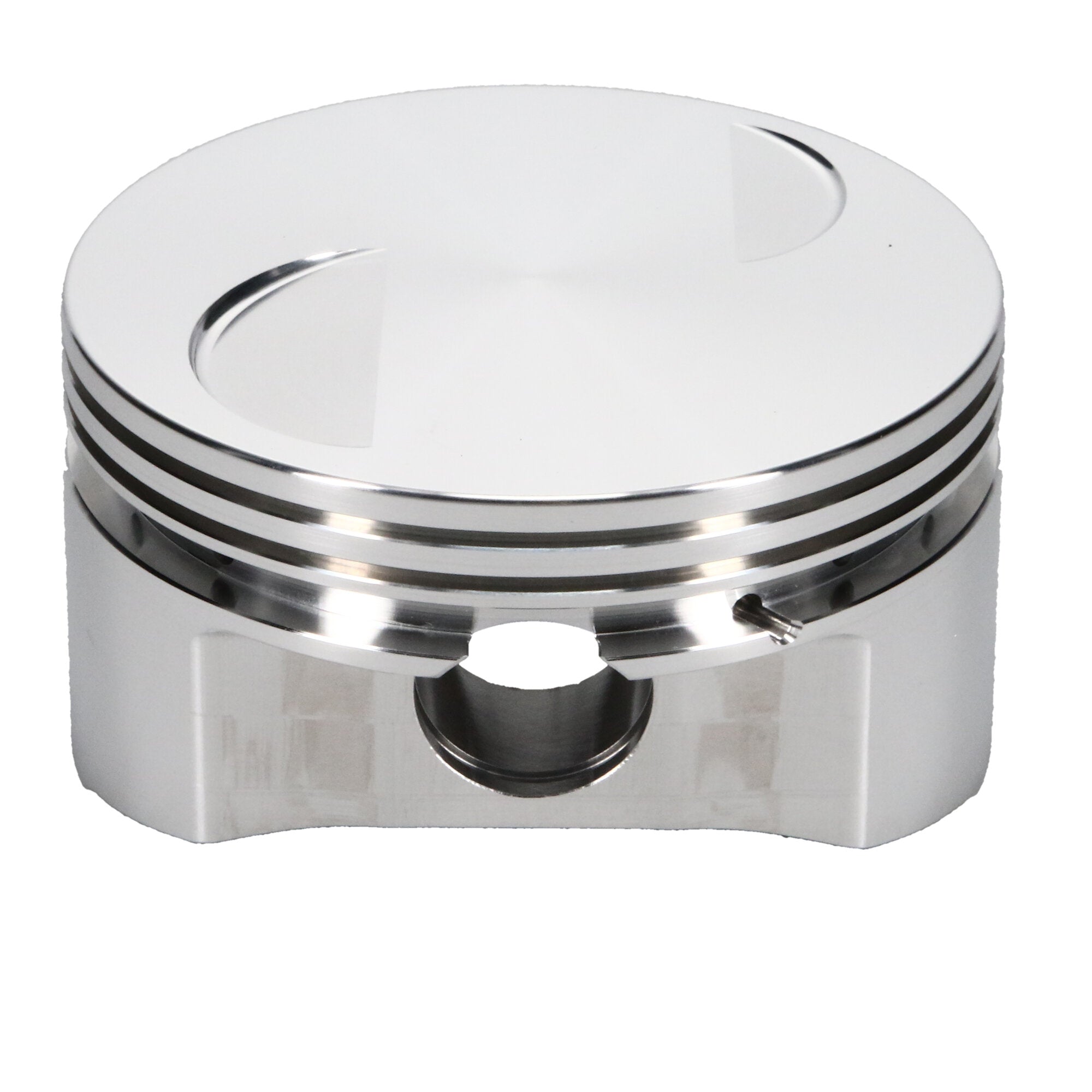

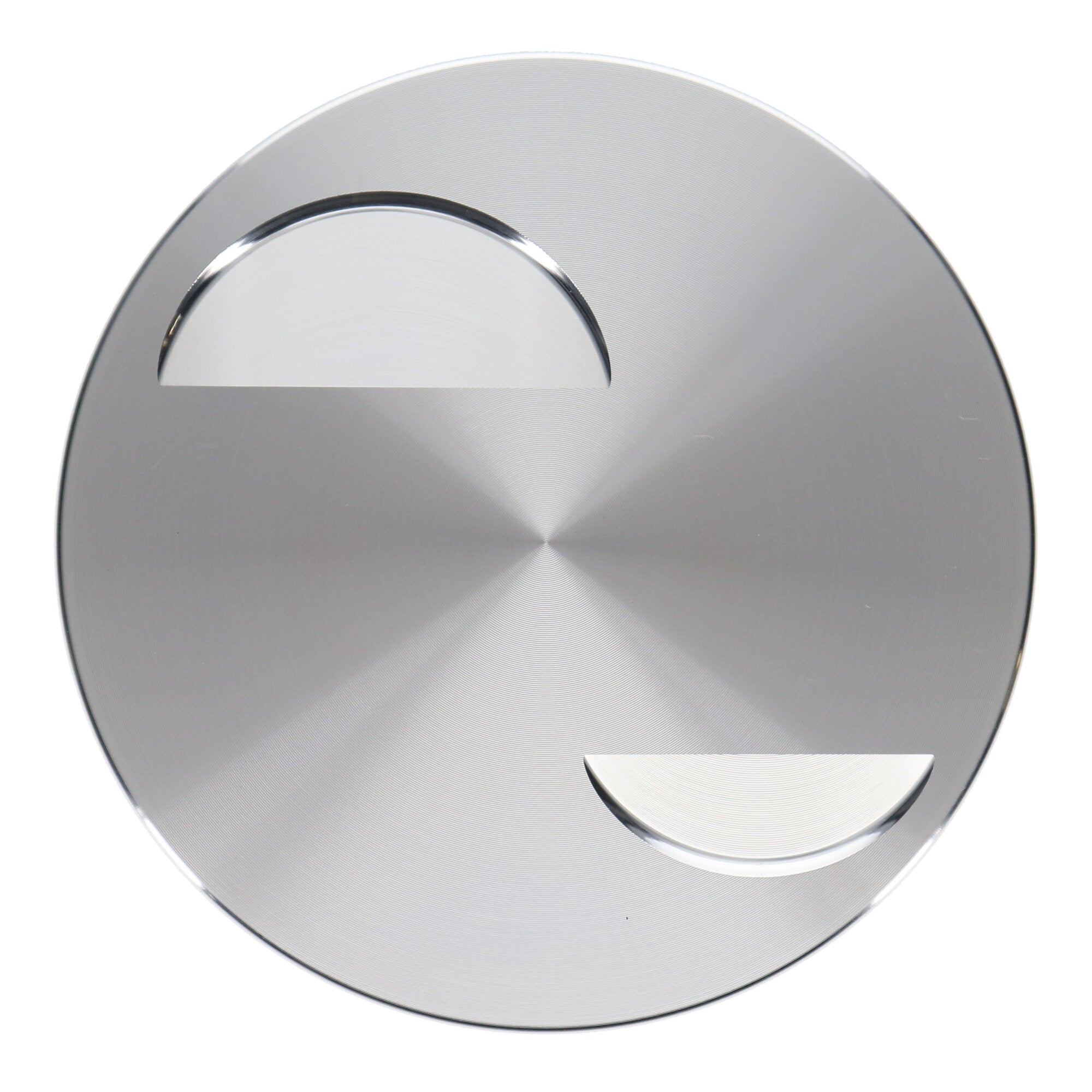

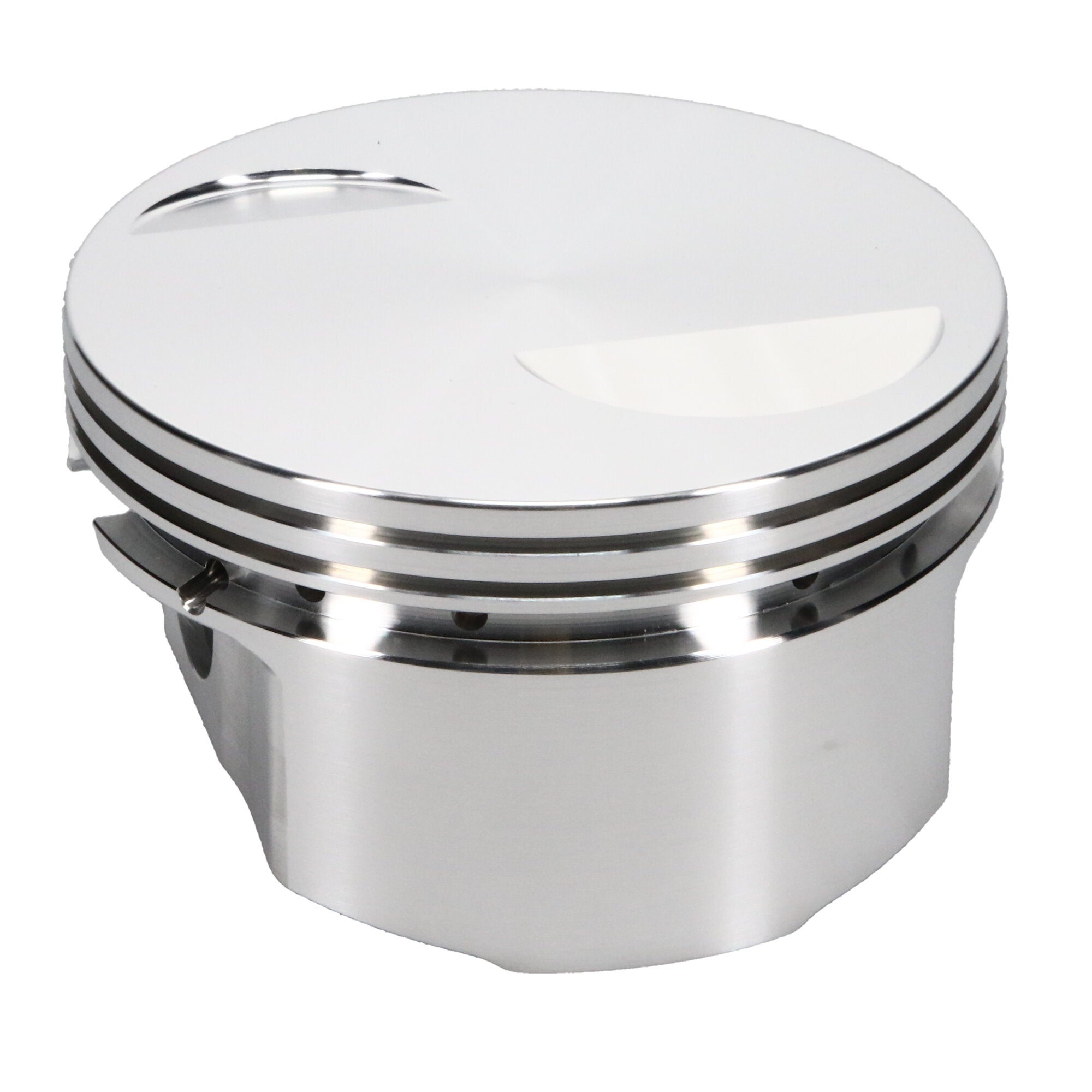

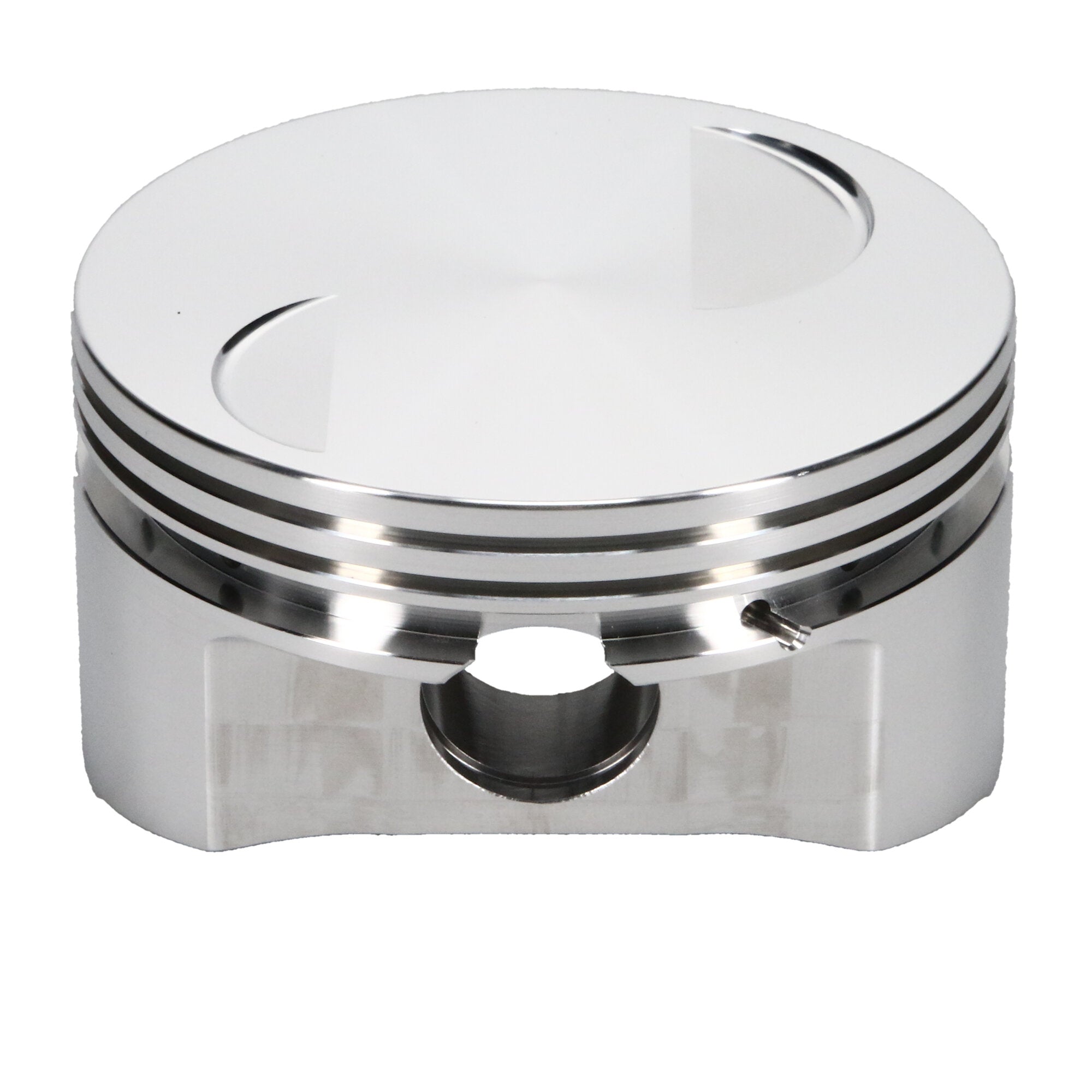

Piston Set, 2618, Flat Top, 3.810 Bore, 1.090 CD, 0.927 Pin, Set of 4. |
| Description_EXT |
JE, Ford, Pinto, 3.810 in. Bore, 1.090 CD, Flat Top, 4 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Ford 2300 4-Cyl, 3.810 Bore, Flat, Set of 4 |
| Second Compression Ring Thickness |
0.0640 |
| Make - Web |
Ford |
| Prop 65 (C, R or CR) |
CR |
| Wrist Pin Length |
2.500 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Quantity |
4 |
| Product Type |
Engine Piston Kit |
| Piston Material |
2618 |
| Piston Pin Outside Diameter |
0.927 |
| Ring Set Included |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Title - Web |
JE Pistons Ford Pin.to Piston Kit - 3.810 in. Bore - 1.090 in. CH, -2.00 CC |
| Piston Volume |
-2.00 |
| Prop 65 Yes/No |
Yes |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Industry |
Automotive |
| Out of Stock Message |
Call for Availability |
| Product Market |
Domestic |
| Add-On |
927-2500-13-51S |
| Piston Series |
JE Pistons |
| Forging Type |
Round |
| Compression Height |
1.090 |
| Make |
FORD |
| Piston Pin Length |
2.500 |
| Engine Type |
ICE |
| Piston Head Type |
Flat |
| Ringset Included |
Yes |
| Bore Diameter |
3.810 |
| Engine |
PINTO |
| Piston Pin Material |
5115 |
| Add-On |
J10001-3810-5 |
| Piston Average Weight |
341 |
| Piston Pin Wall Thickness |
0.130 |
| Add-On |
927-042-CS |
| Cylinder Head |
PINTO |
| Engine - Web |
Pinto |
| Wrist Pin Wall Thickness |
0.130 |
| Oil Ring Thickness |
0.218 |
| Title |
JE Pistons - Ford, Pin.to, 3.810 in. Bore, Piston Kit |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
6.0000 |
