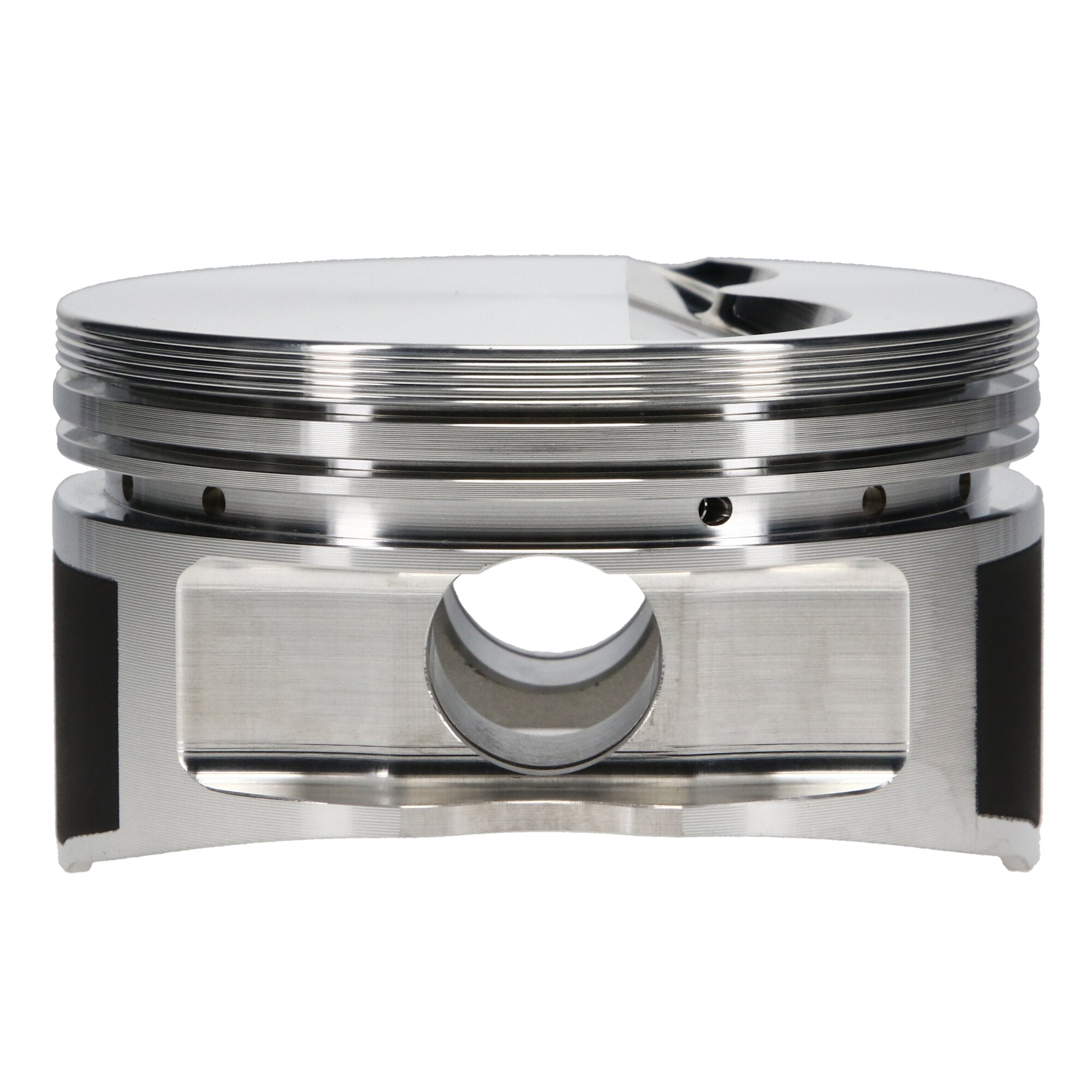

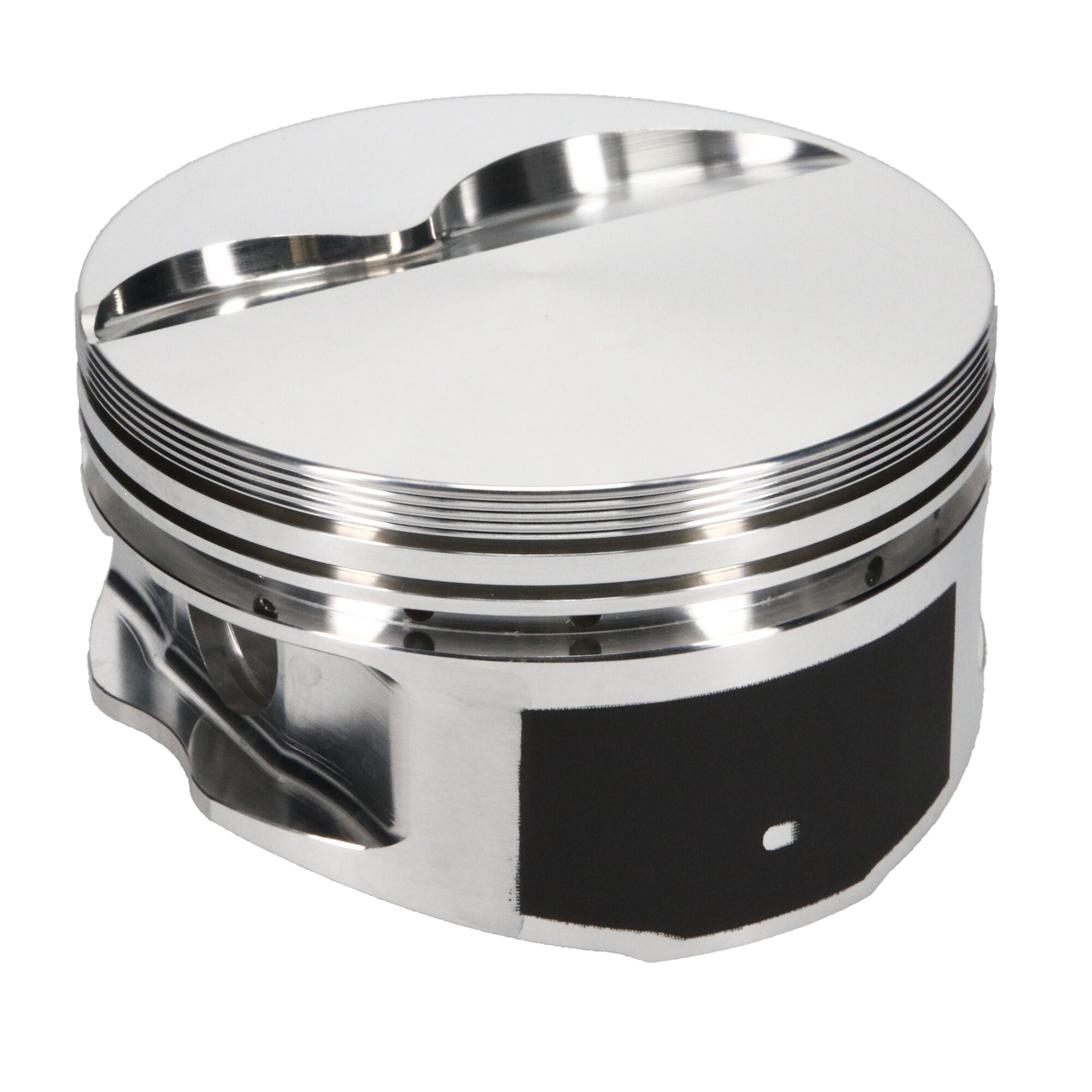

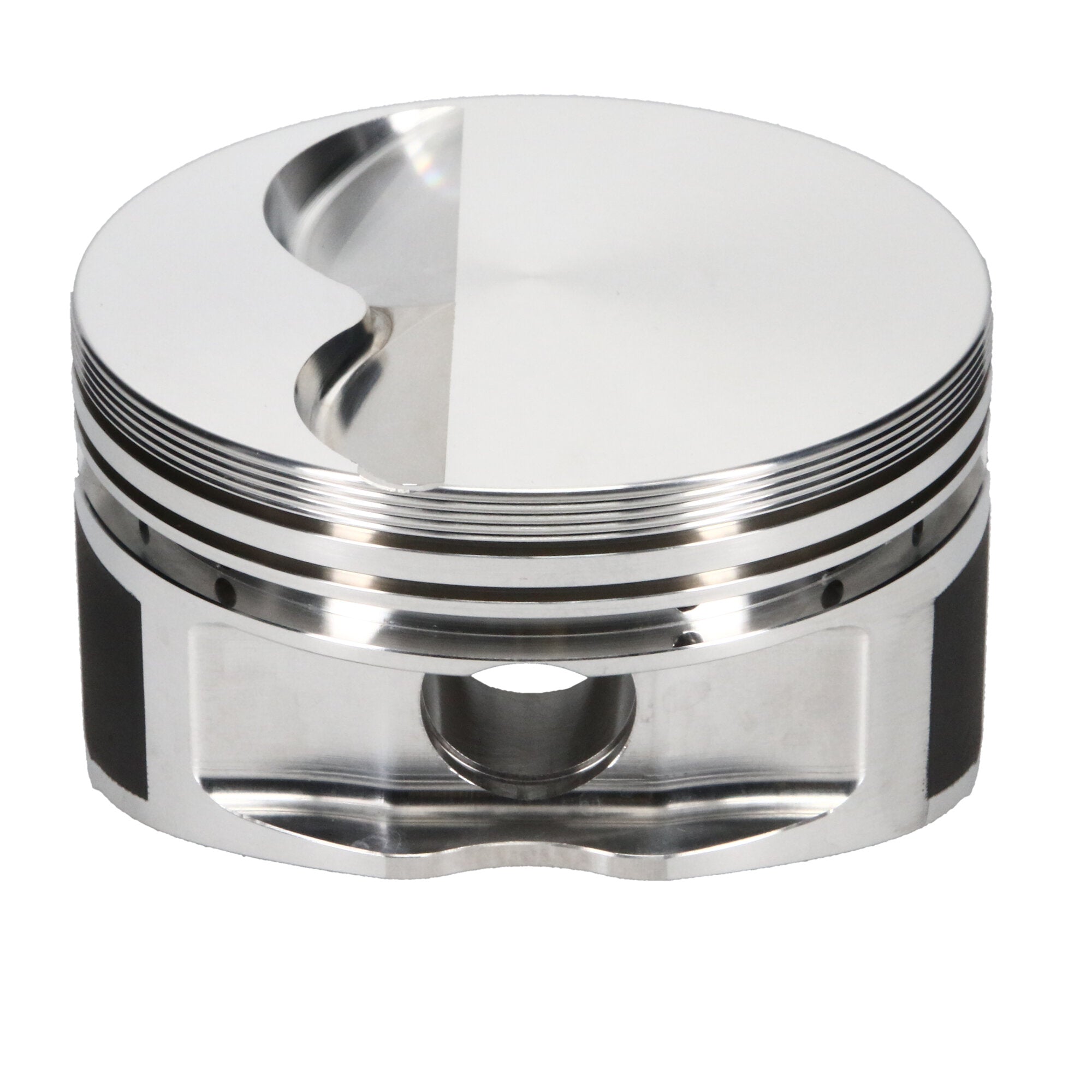

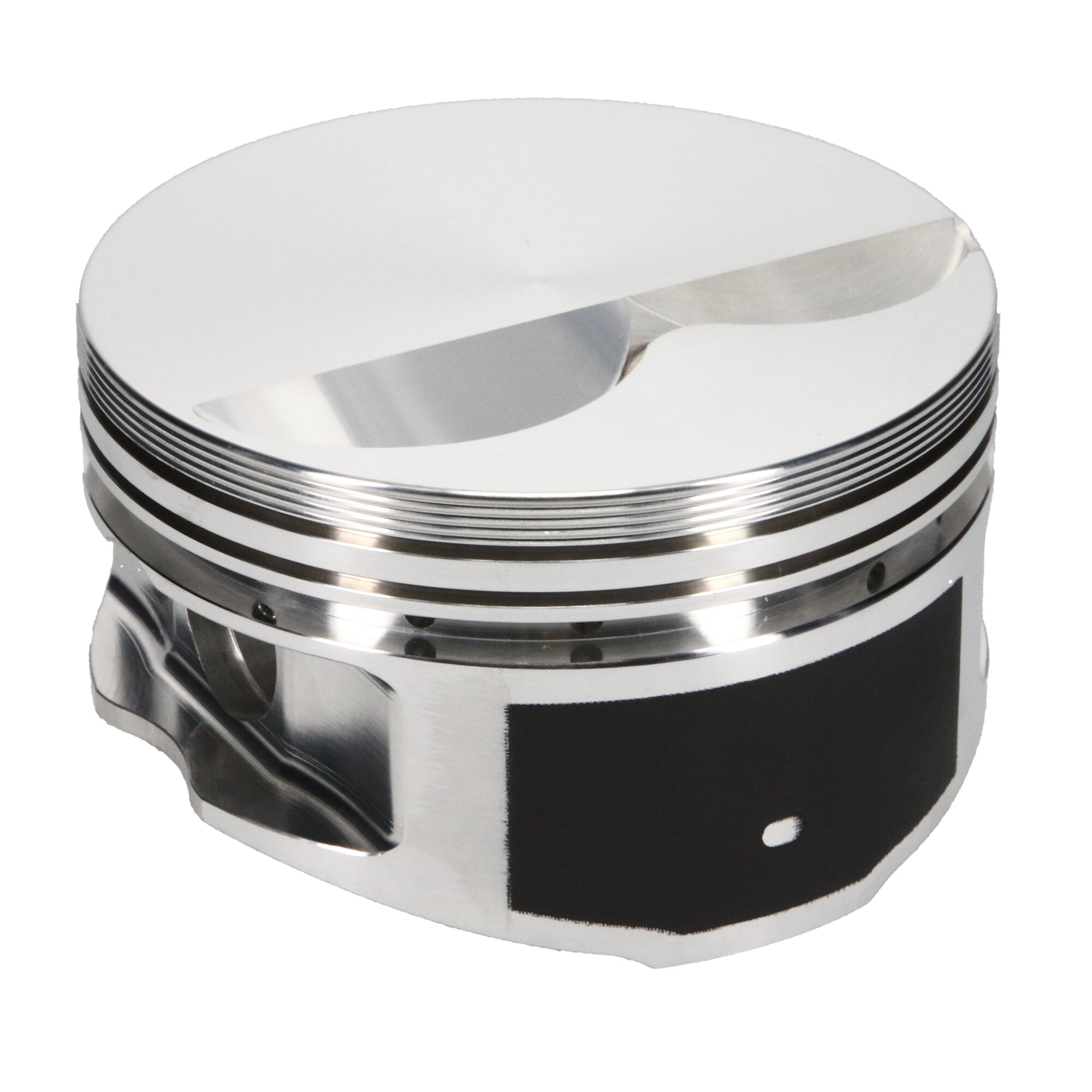

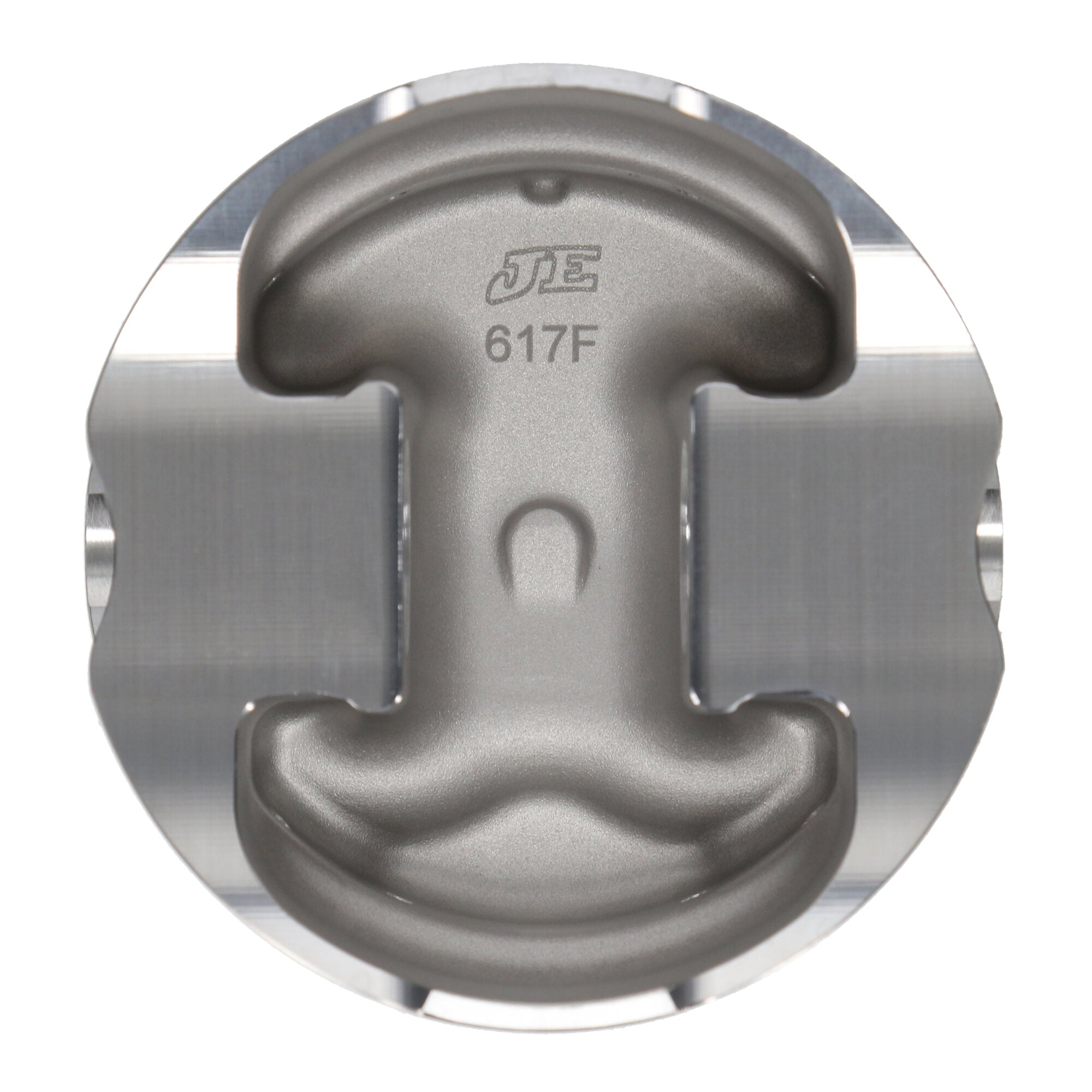

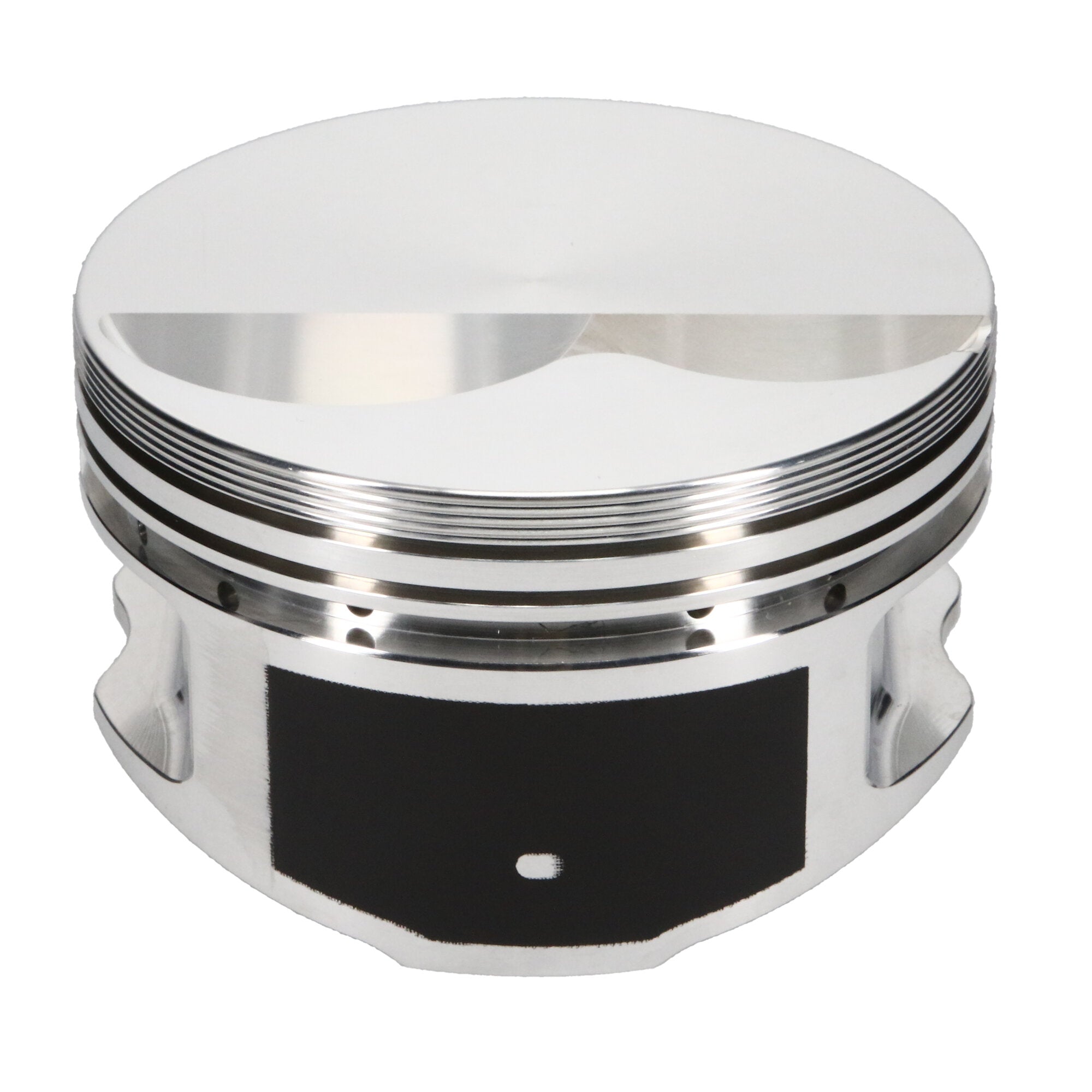

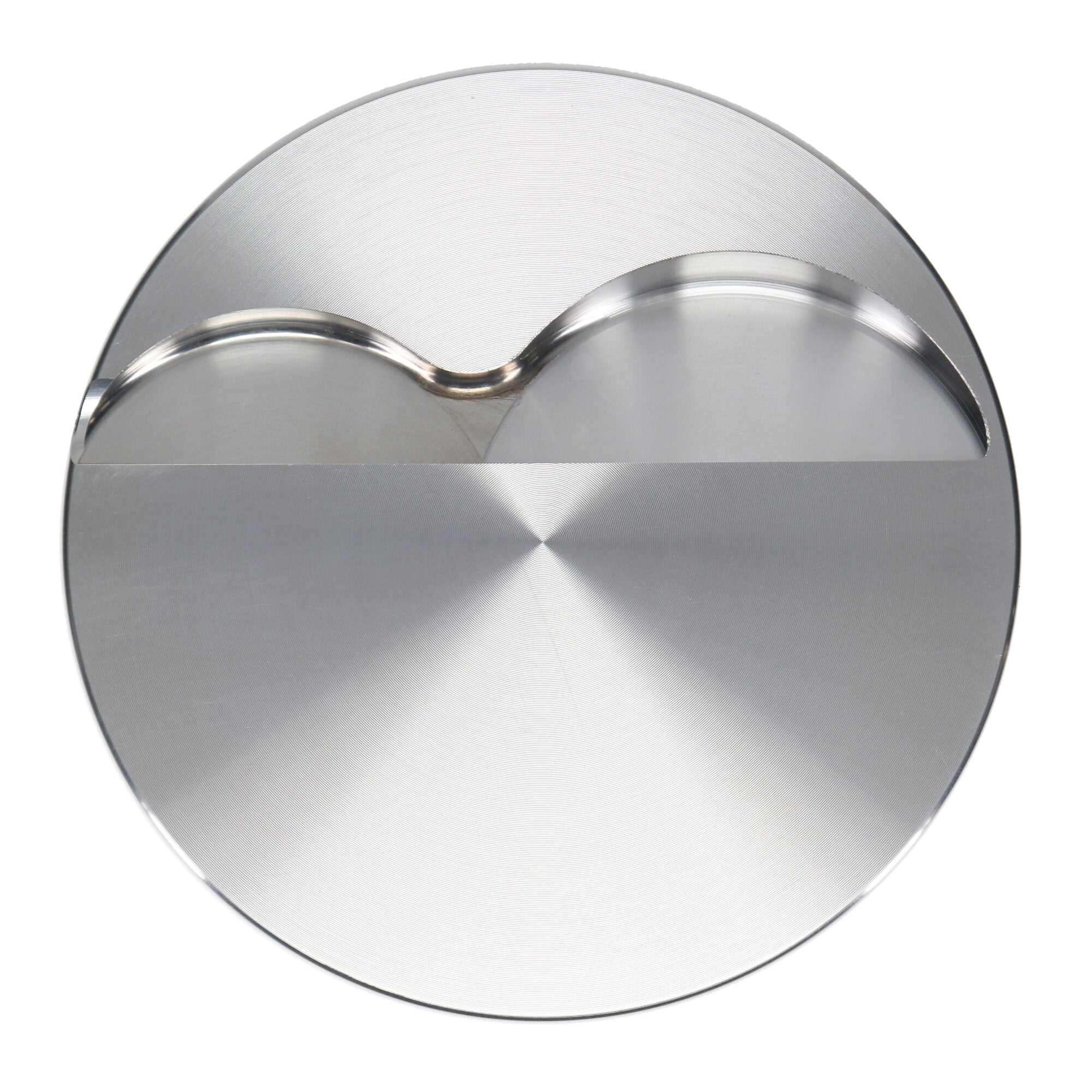

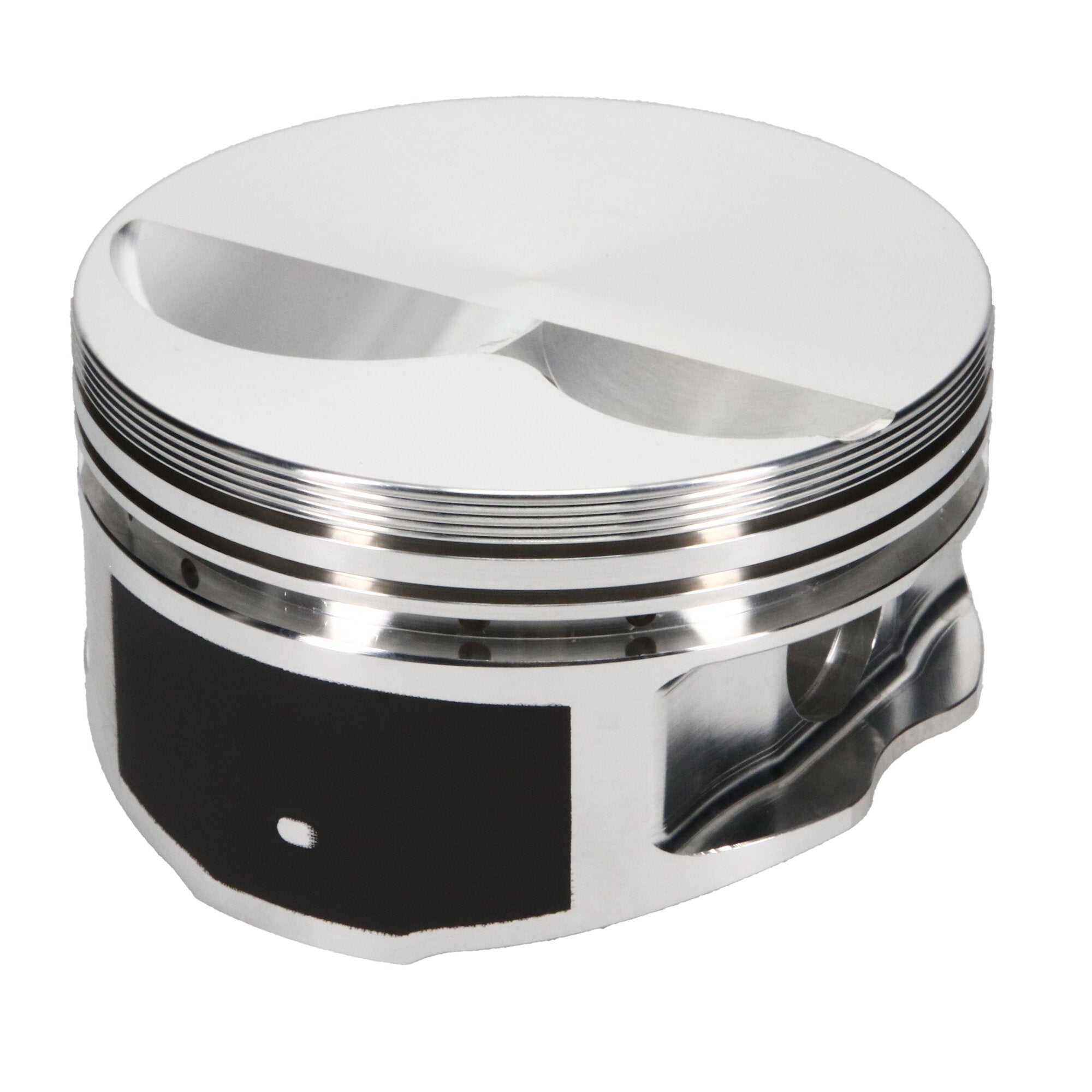

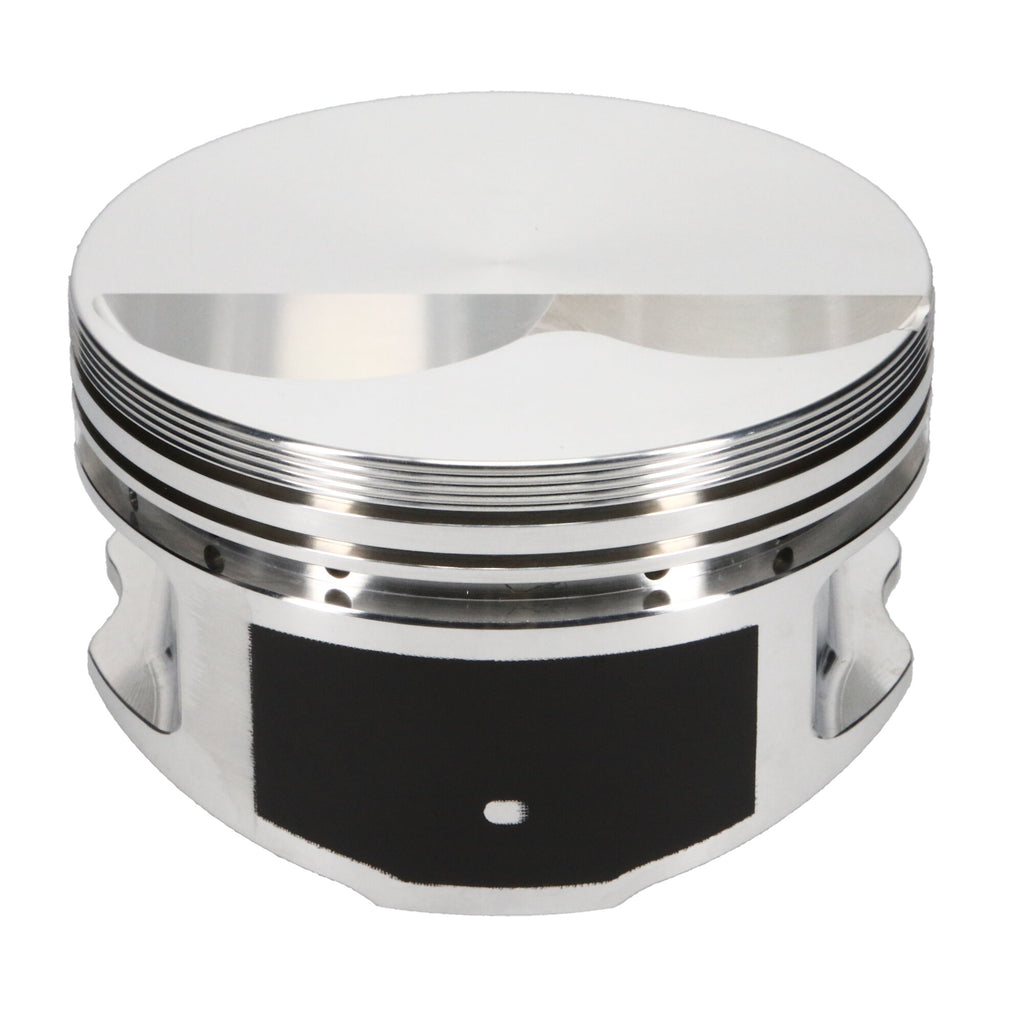

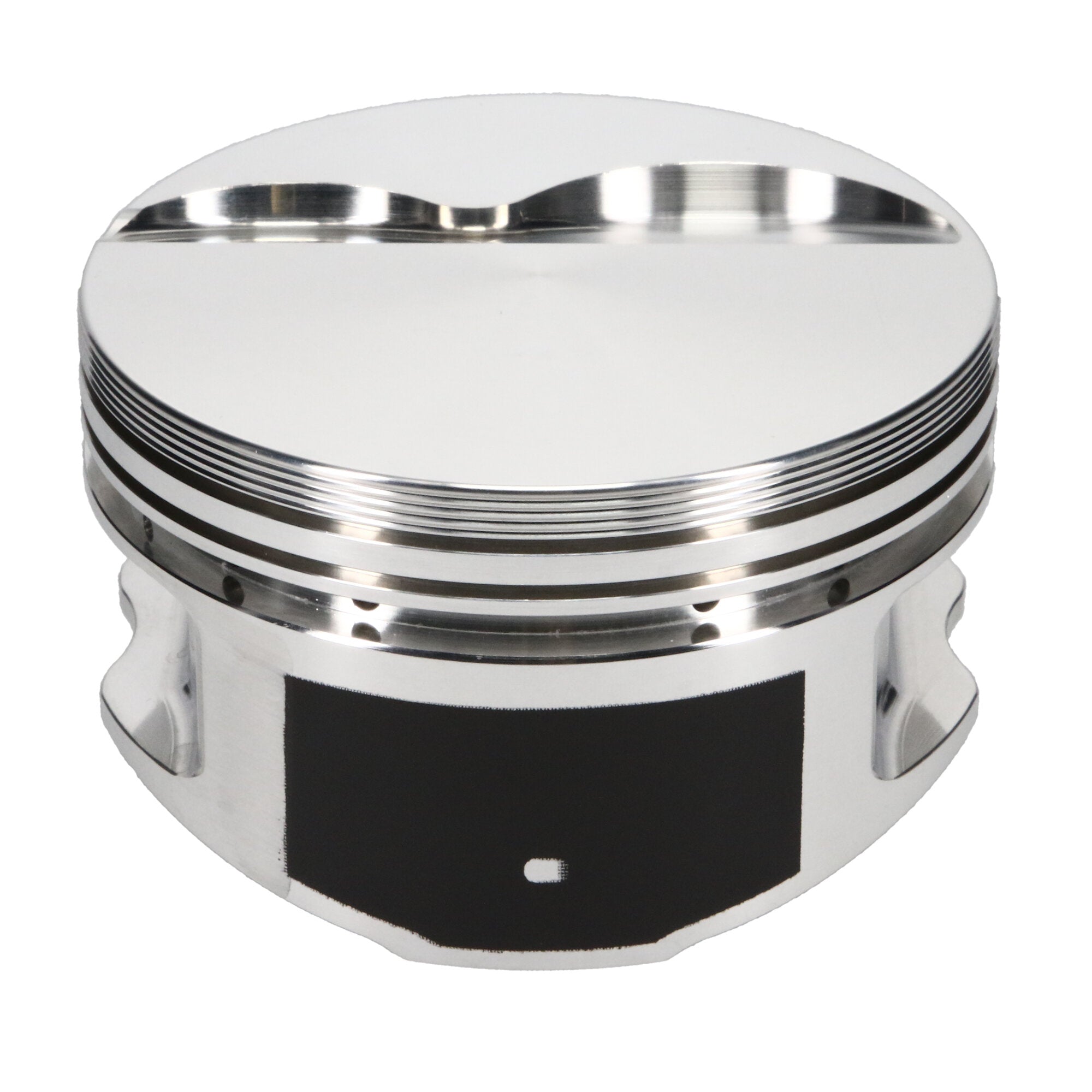

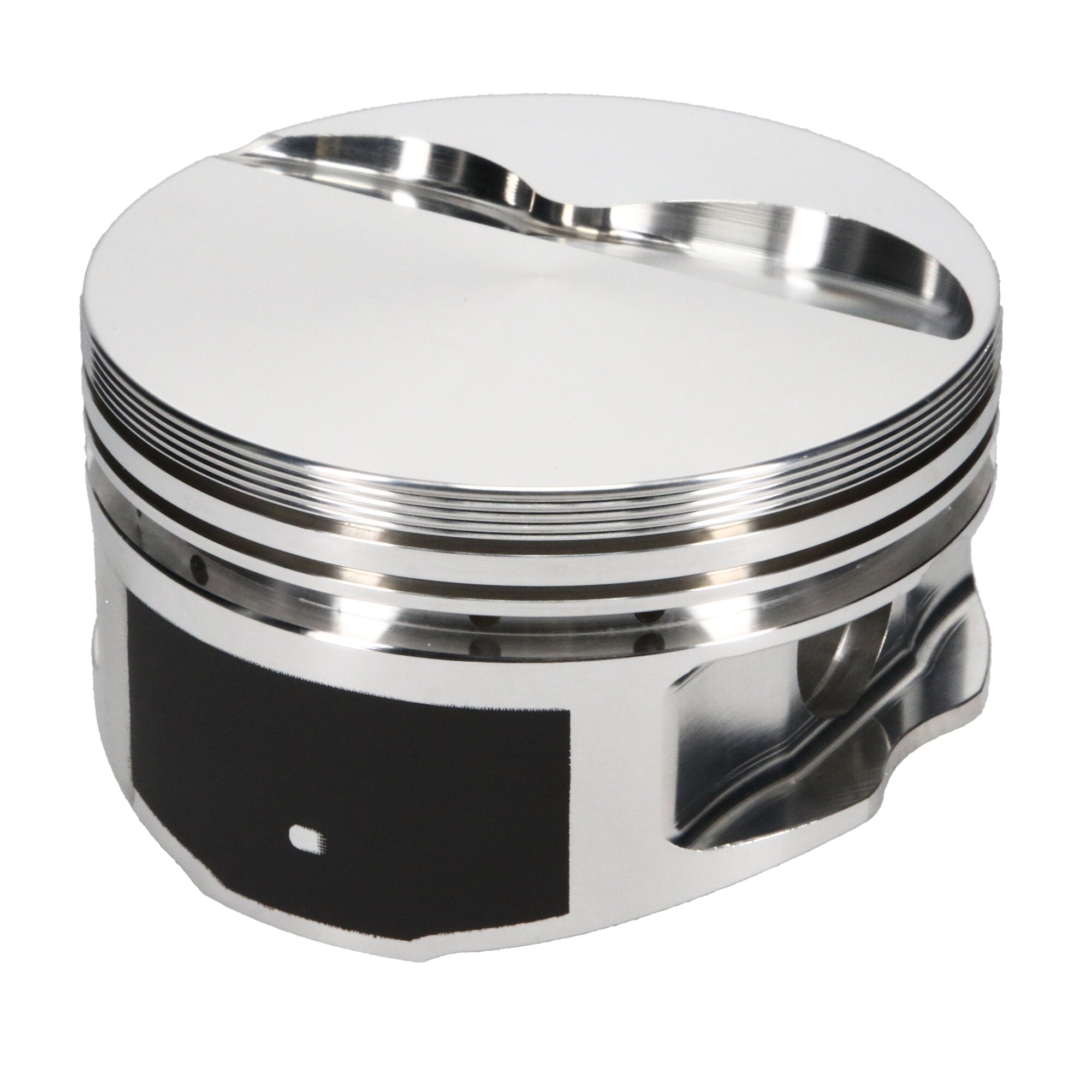

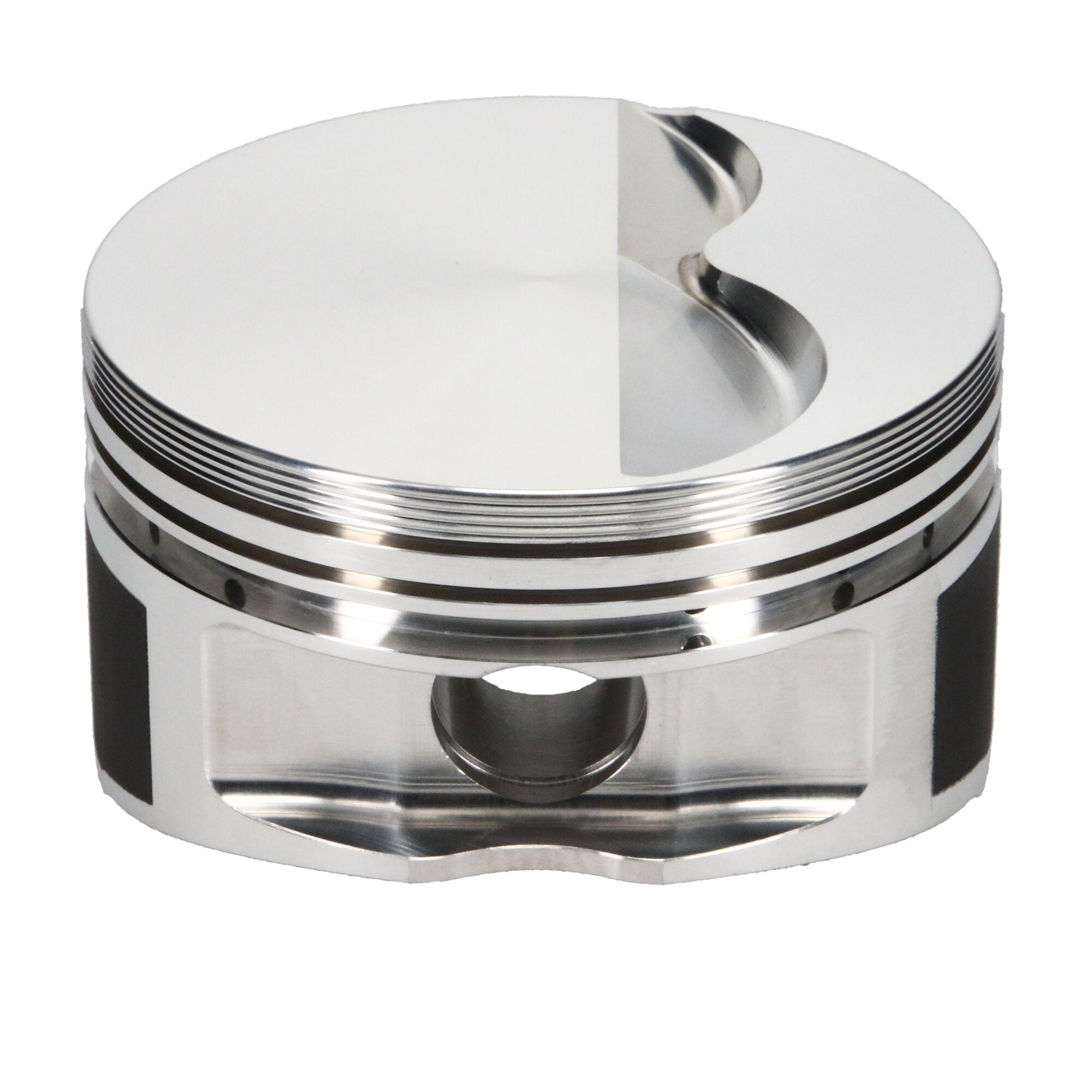

JE Pistons 170232 Piston Set, 2618, Flat Top, 4.030 Bore, 1.280 CD, 0.927 Pin, Set of 8.
2
sold in last
8
hours
$1,800.36
Guaranteed Fitment
Always the correct part
Added Value
Performance matched parts
In-House Experts
We know our products
Nationwide Delivery
Economy shipping
JE Pistons
ds_BHXG_170232
Engine Piston Kit
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
Description_ASM | Ford Small Block 351W Windsor |
Description_DEF | Engine Piston Kit |
Description_DES | Piston Set, 2618, Flat Top, 4.030 Bore, 1.280 CD, 0.927 Pin, Set of 8. |
Description_EXT | JE, Ford, Small Block Ford, 4.030 in. Bore, 1.280 CD, Flat Top, 8 Cyl. Piston Kit |
Description_INV | JE Pistons, Piston Kit |
Description_MKT | As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
Description_FAB |
|
Description_TLE | Ford 351 Windsor, 4.030 Bore, Flat, Set of 8 |
Description_SHO | Piston Kit |
Forging Type | Round |
Piston Pin Material | 5115 |
Piston Head Type | Flat |
Oil Ring Thickness | 0.188 |
Make | FORD |
Ringset Included | No |
Category Hierarchy | Auto>JE Pistons>Piston Kits>Domestic |
Title | JE Pistons - Ford, Small Block, 4.030 in. Bore, Piston Kit |
Piston Series | JE Pistons |
Product Market | Domestic |
Engine Type | ICE |
Piston Pin Outside Diameter | 0.927 |
Piston Quantity | 8 |
Top Compression Ring Thickness | 0.0640 |
Compression Height | 1.280 |
Wrist Pin Length | 2.750 |
Wrist Pin Wall Thickness | 0.150 |
Engine - Web | Small Block |
Wrist Pin Outer Diameter | 0.927 |
Add-On | J10008-4030-5 |
Piston Pin Length | 2.750 |
Out of Stock Message | Call for Availability |
Bore Diameter | 4.030 |
Piston Pin Wall Thickness | 0.150 |
Add-On | 927-042-CS |
Product Type | Engine Piston Kit |
Cylinder Head | SMALL BLOCK FORD 20 DEG |
Piston Average Weight | 478 |
Title - Web | JE Pistons Ford Small Block Piston Kit - 4.030 in. Bore - 1.280 in. CH, -5.00 CC |
Prop 65 (C, R or CR) | CR |
Add-On | 927-2750-15-51S |
Piston Material | 2618 |
Industry | Automotive |
Piston Volume | -5.00 |
Prop 65 Yes/No | Yes |
Engine | Small Block |
Ring Set Included | No |
Wrist Pin Material | 5115 Low Carbon Steel, Case Hardened |
Second Compression Ring Thickness | 0.0640 |
Make - Web | Ford |
Prop 65 - Short Label | Prop 65 Warning Label.JPG |
Length | 6.0000 |
Width | 12.0000 |
Height | 26.0000 |
Weight | 13.0000 |
