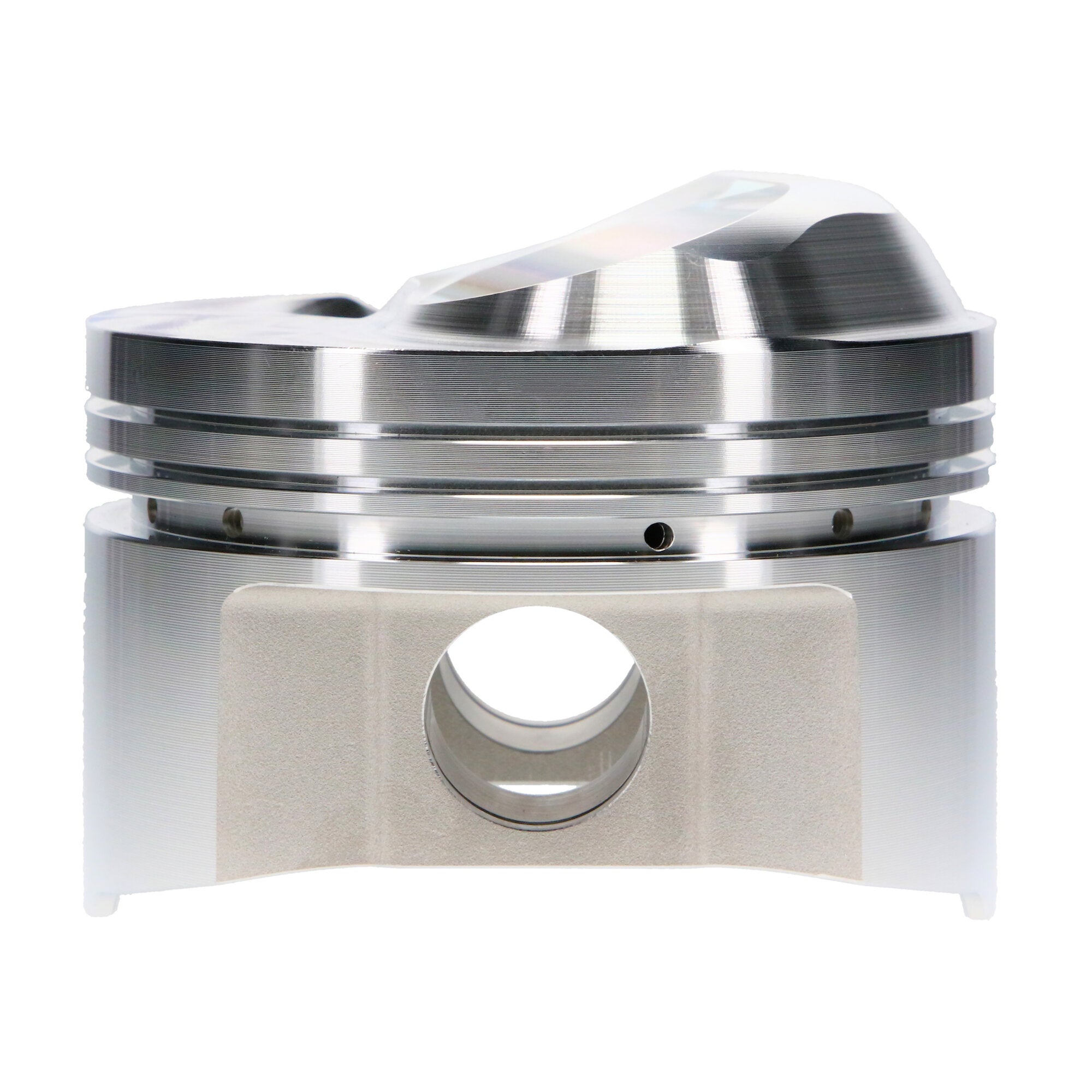

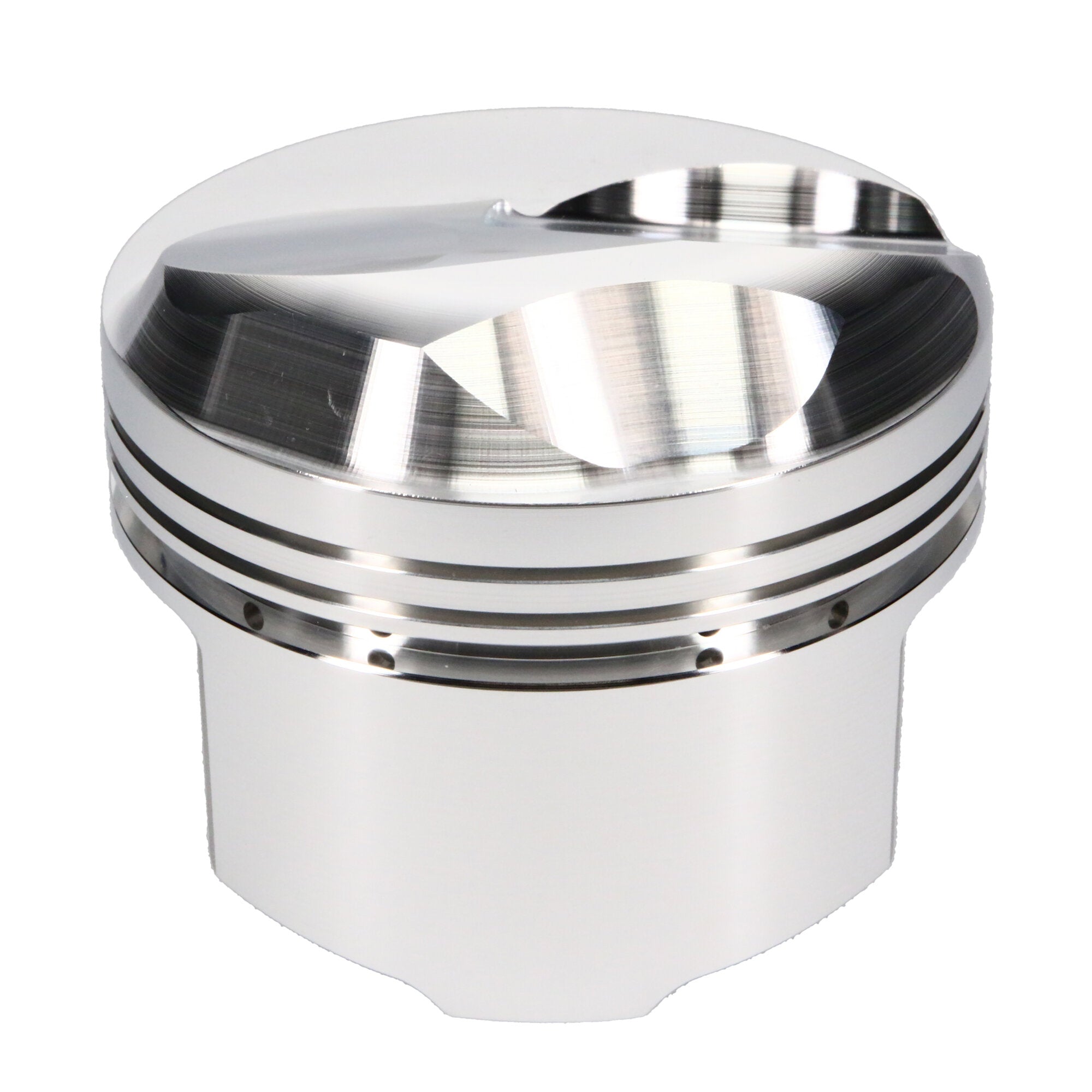

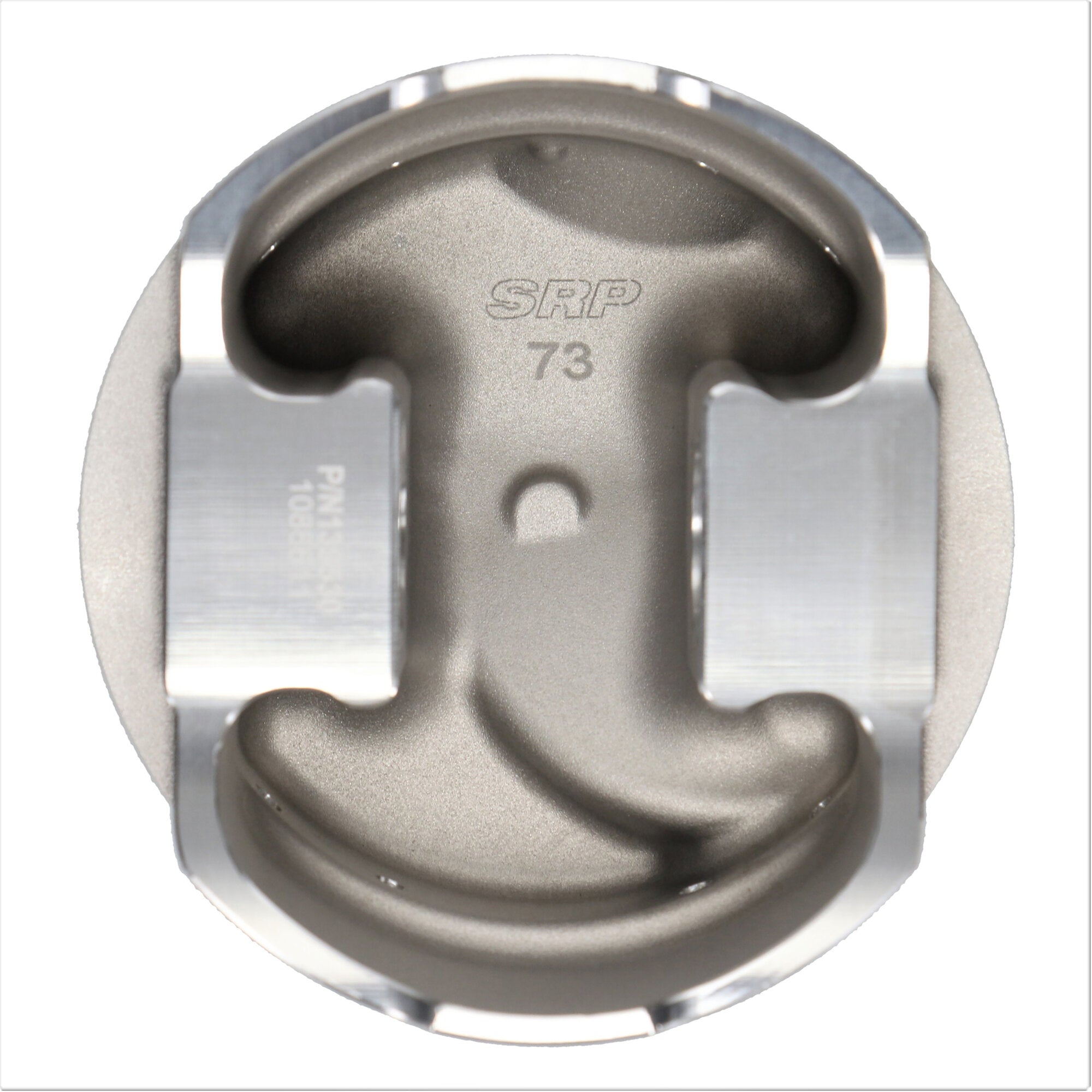

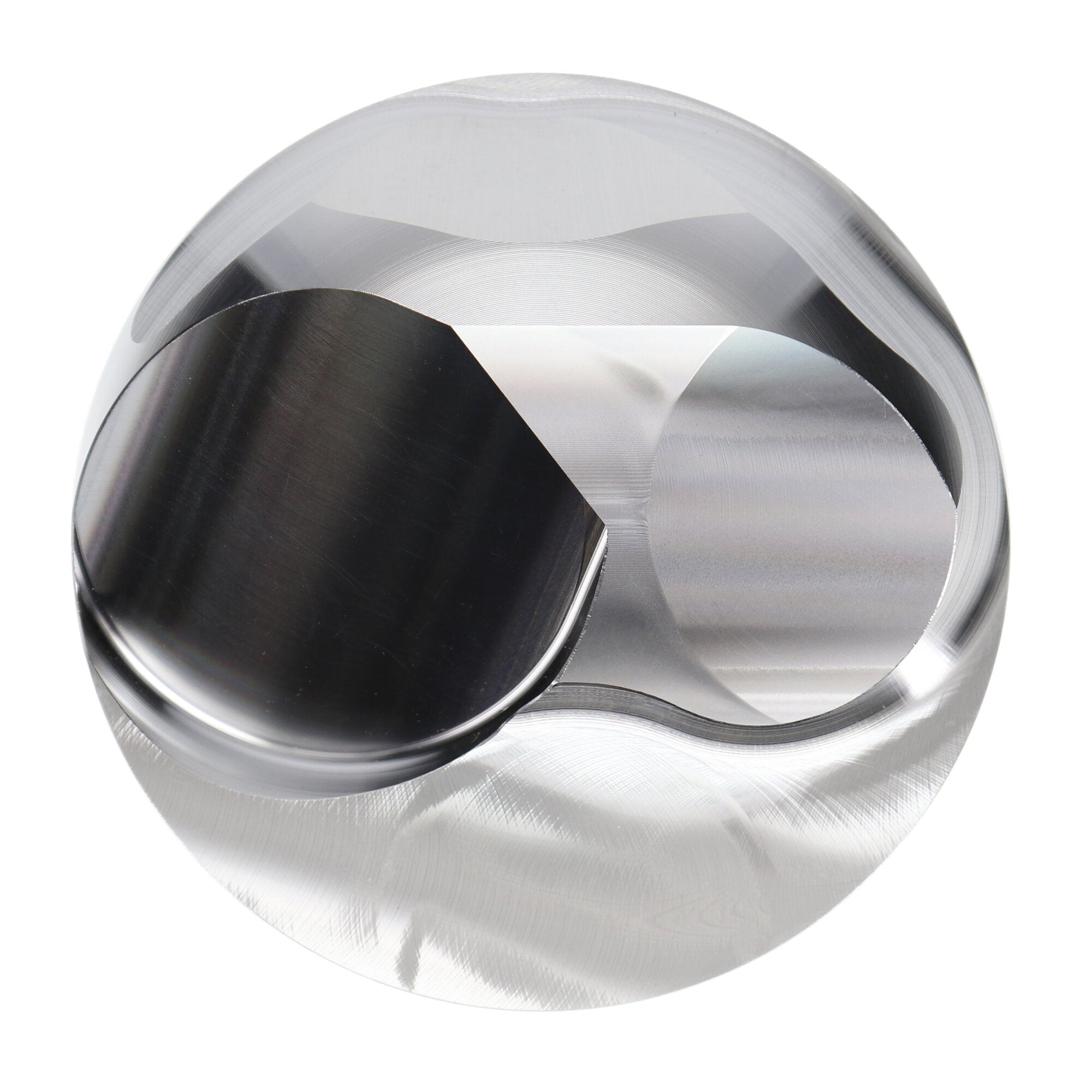

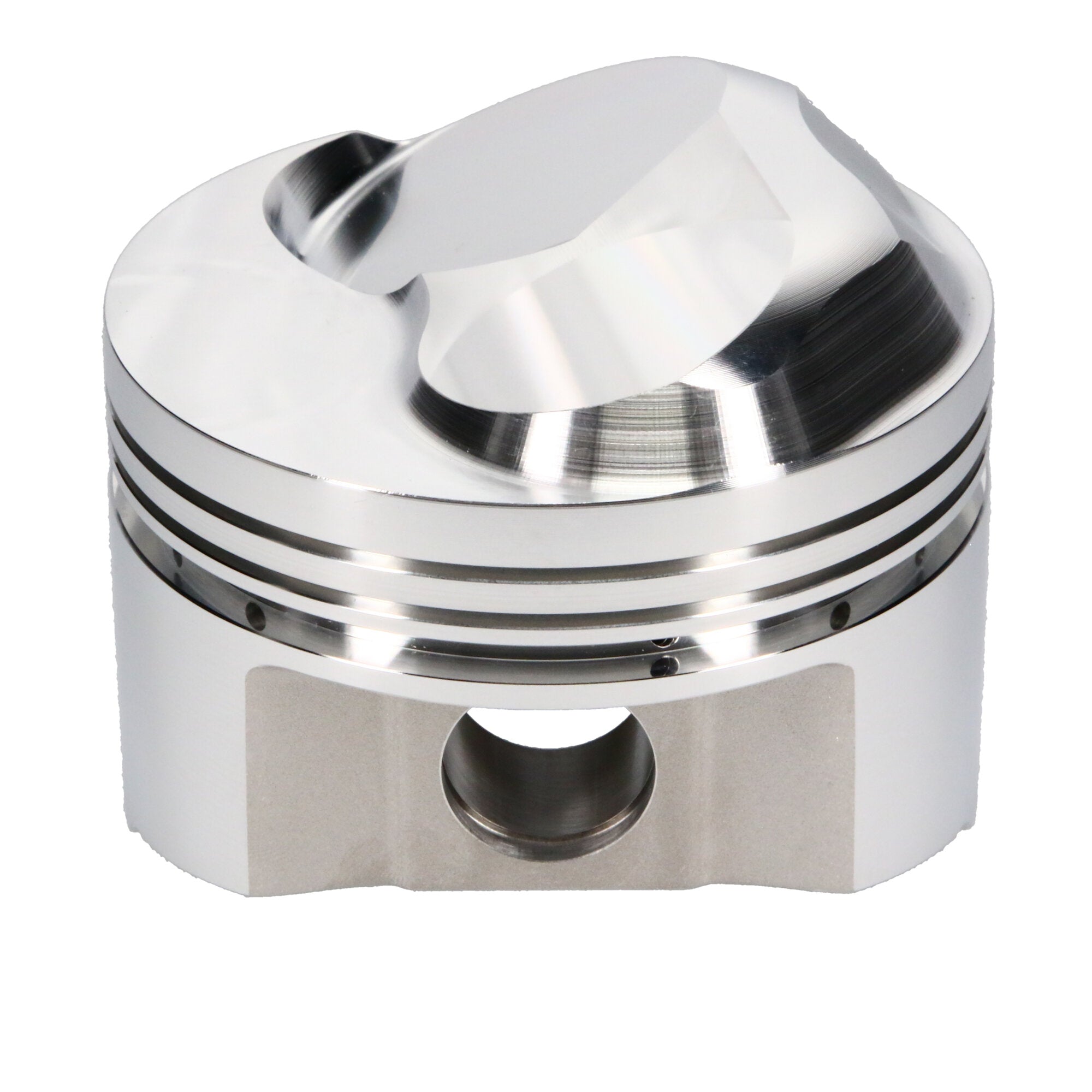

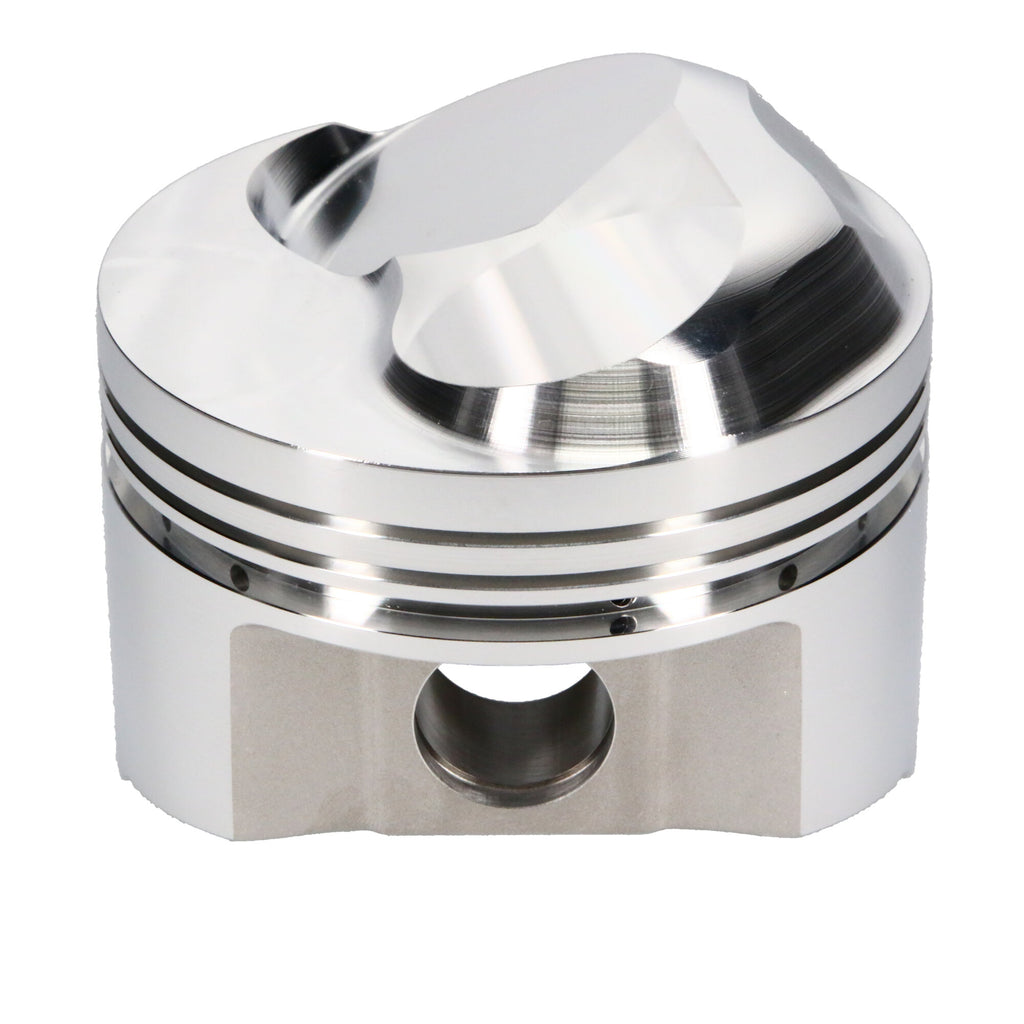

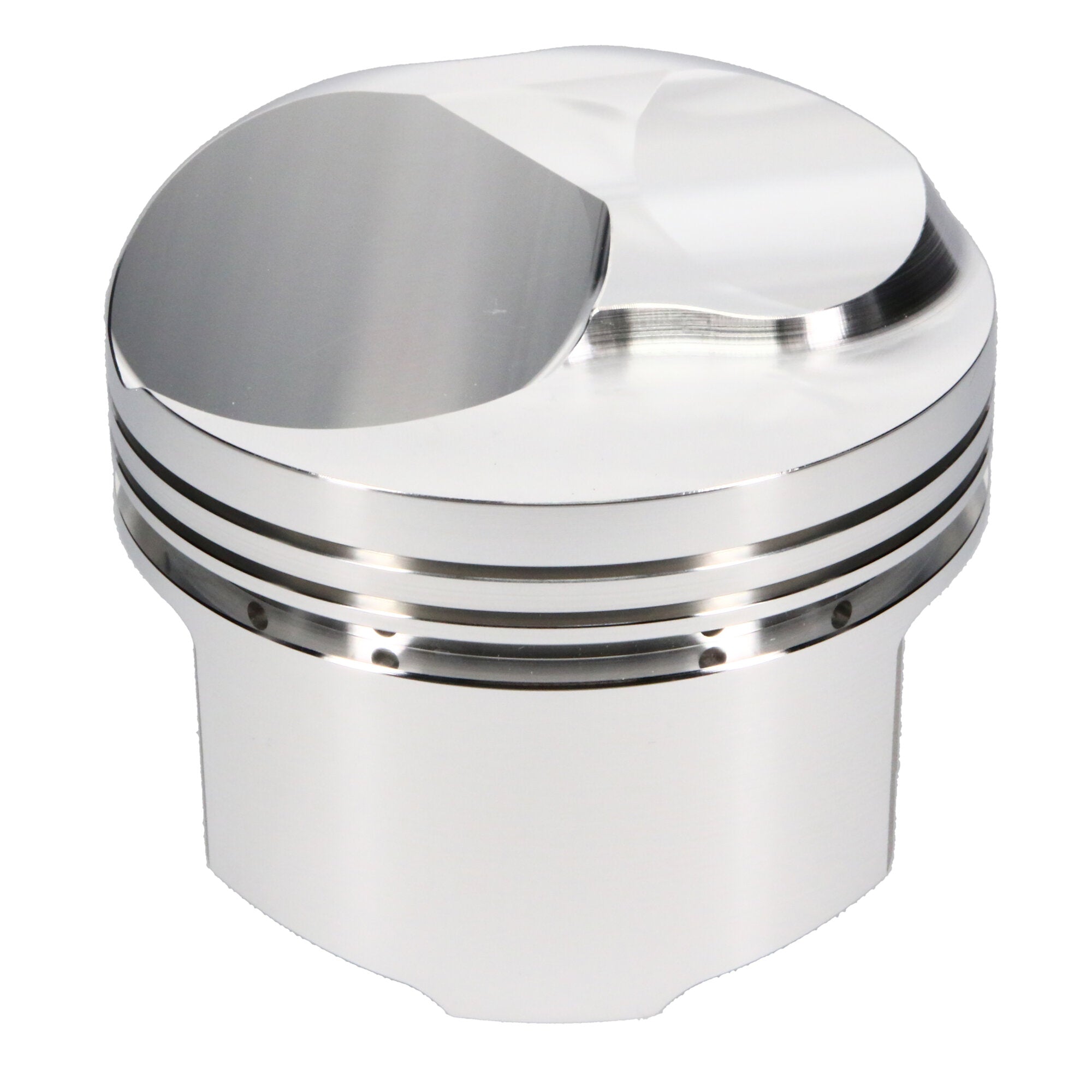

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 4.500 Bore, 1.395 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.500 in. Bore, 1.395 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chevrolet 454, 4.500 Bore, Dome, Set of 8 |
| Description_SHO |
Piston Kit |
| Make |
CHEVROLET |
| Piston Series |
SRP |
| Piston Head Type |
Dome |
| Wrist Pin Outer Diameter |
0.990 |
| Engine Type |
ICE |
| Forging Type |
FSR |
| Oil Ring Thickness |
0.188 |
| Ringset Included |
No |
| Engine |
Big Block |
| Piston Pin Length |
2.930 |
| Title |
SRP - Chevrolet, Big Block, 4.500 in. Bore, Piston Kit |
| Compression Height |
1.395 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Material |
5115 |
| Cylinder Head |
OPEN CHAMBER |
| Top Compression Ring Thickness |
0.0640 |
| Piston Average Weight |
676 |
| Bore Diameter |
4.500 |
| Product Market |
Domestic |
| Product Type |
Engine Piston Kit |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Material |
2618 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
No |
| Wrist Pin Length |
2.930 |
| Engine - Web |
Big Block |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Add-On |
S100S8-4500-5 |
| Add-On |
990-2930-15-51S |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0640 |
| Piston Pin Outside Diameter |
0.990 |
| Prop 65 Yes/No |
Yes |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.500 in. Bore - 1.395 in. CH, 41.00 CC |
| Add-On |
990-042-CS |
| Piston Volume |
41.00 |
| Out of Stock Message |
Call for Availability |
| Make - Web |
Chevrolet |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
