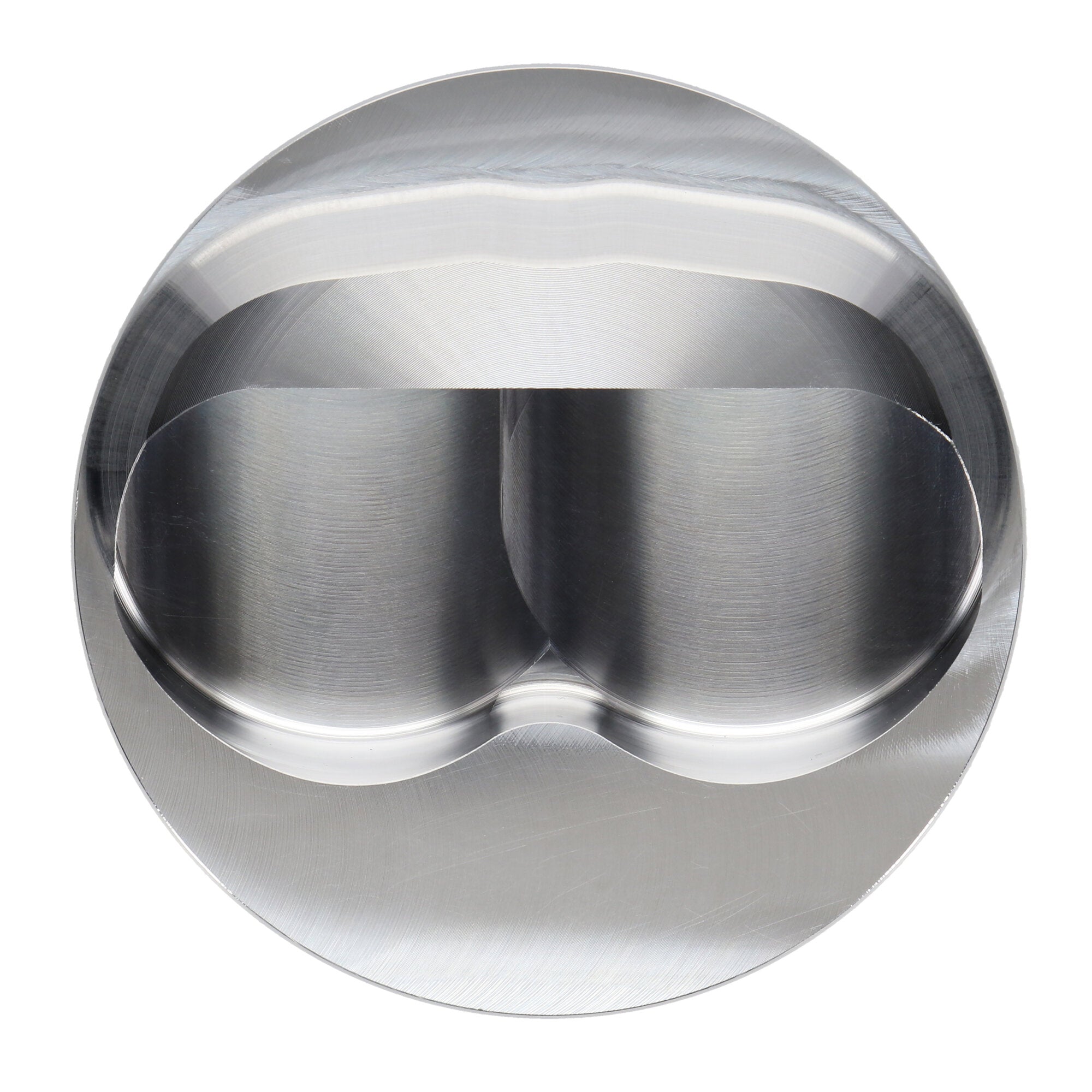

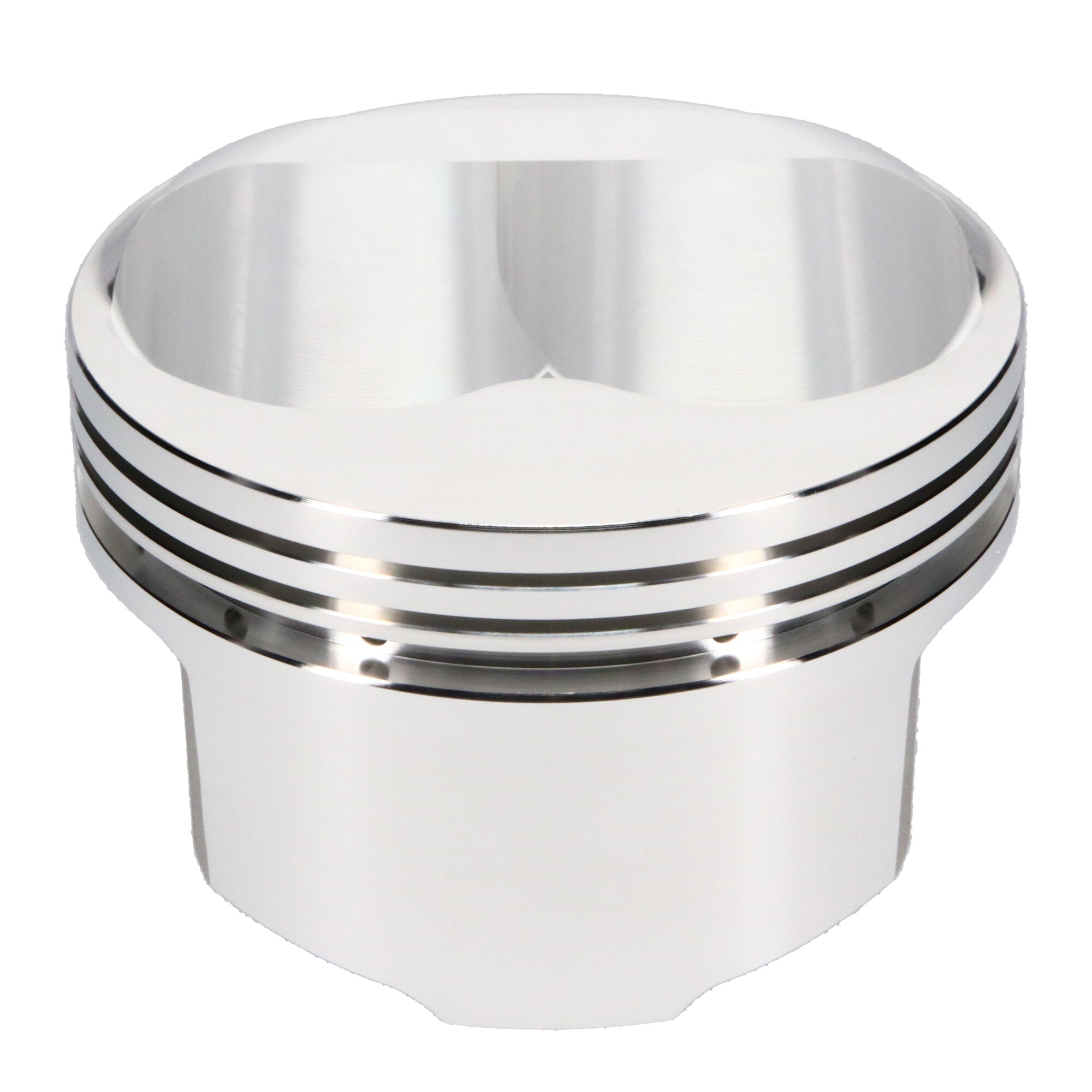

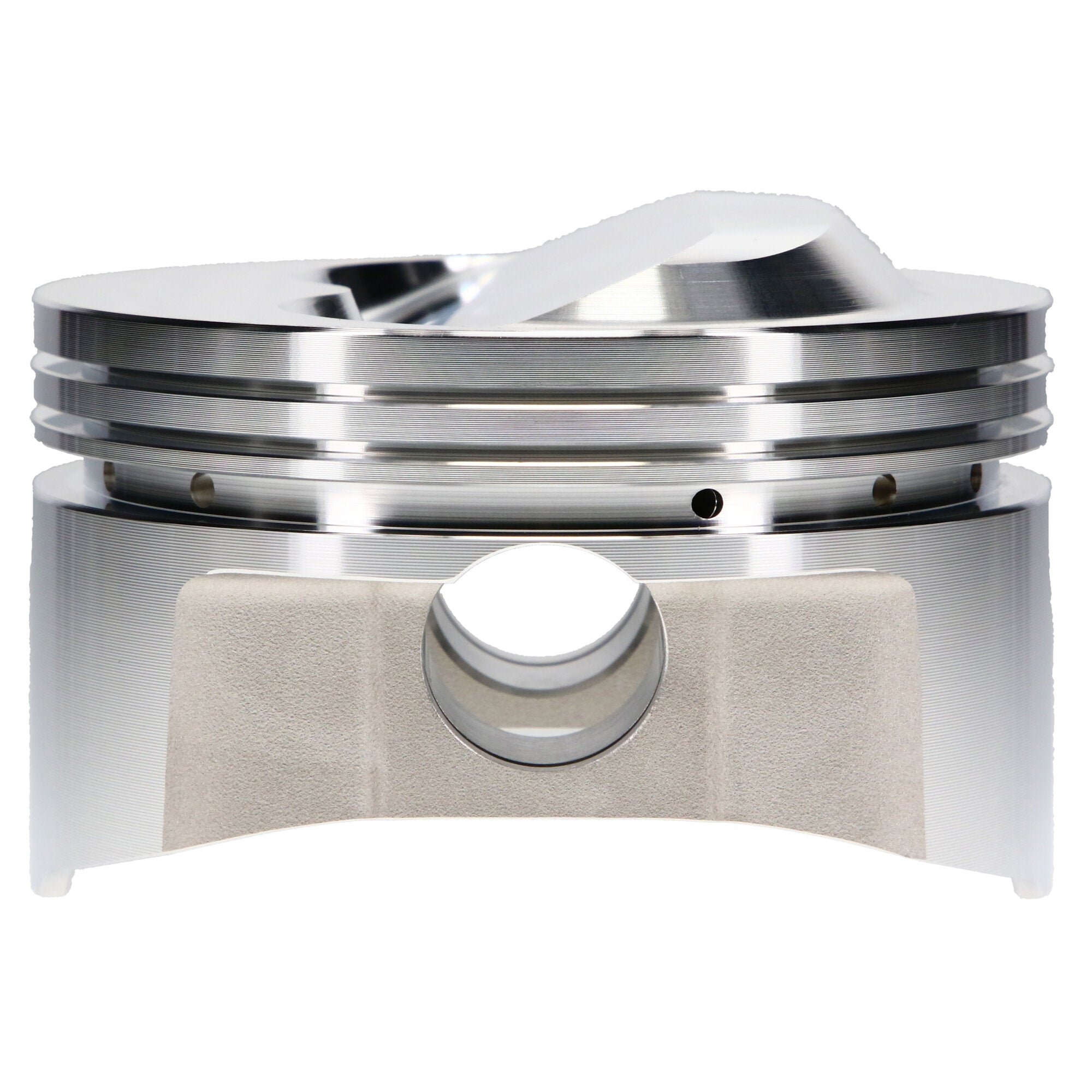

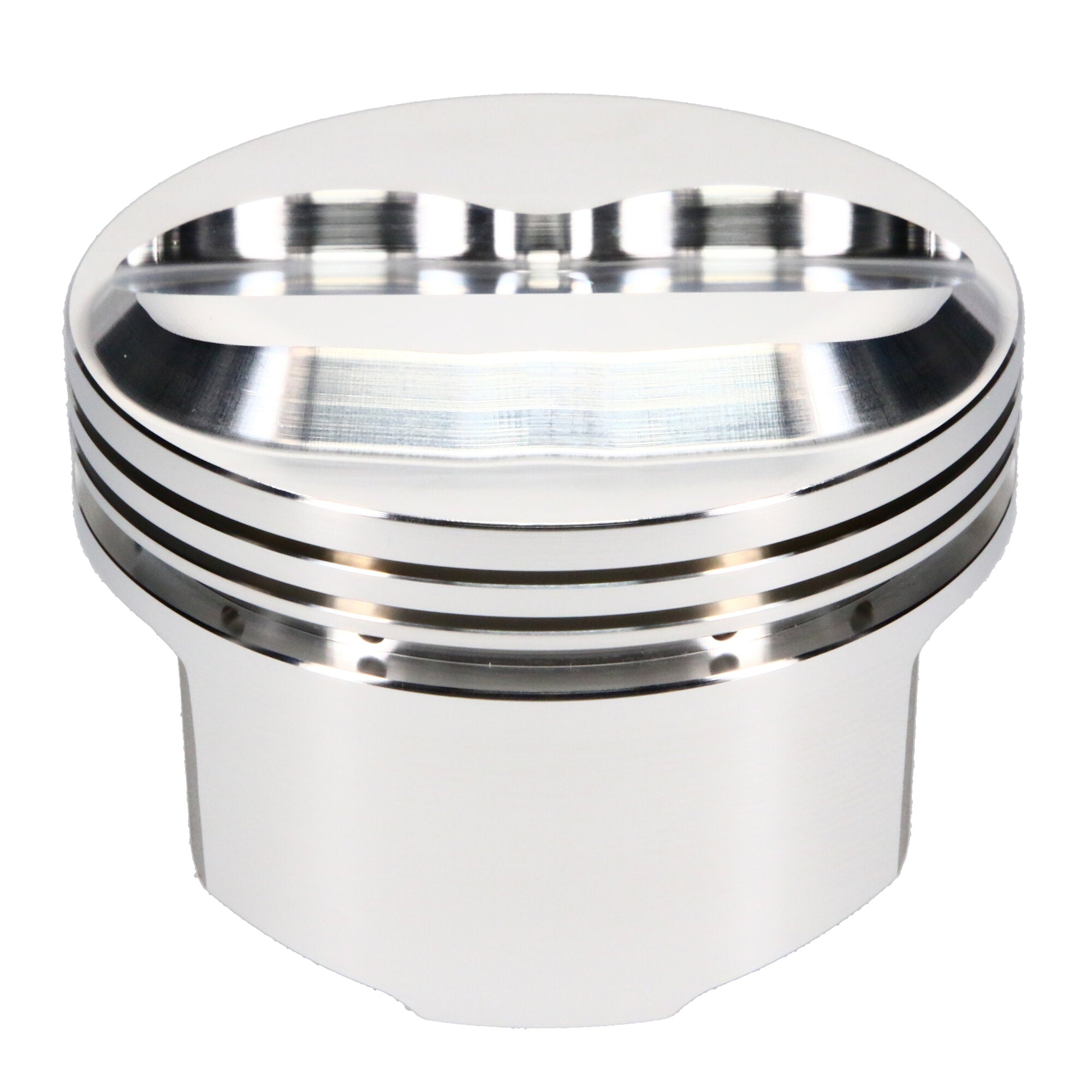

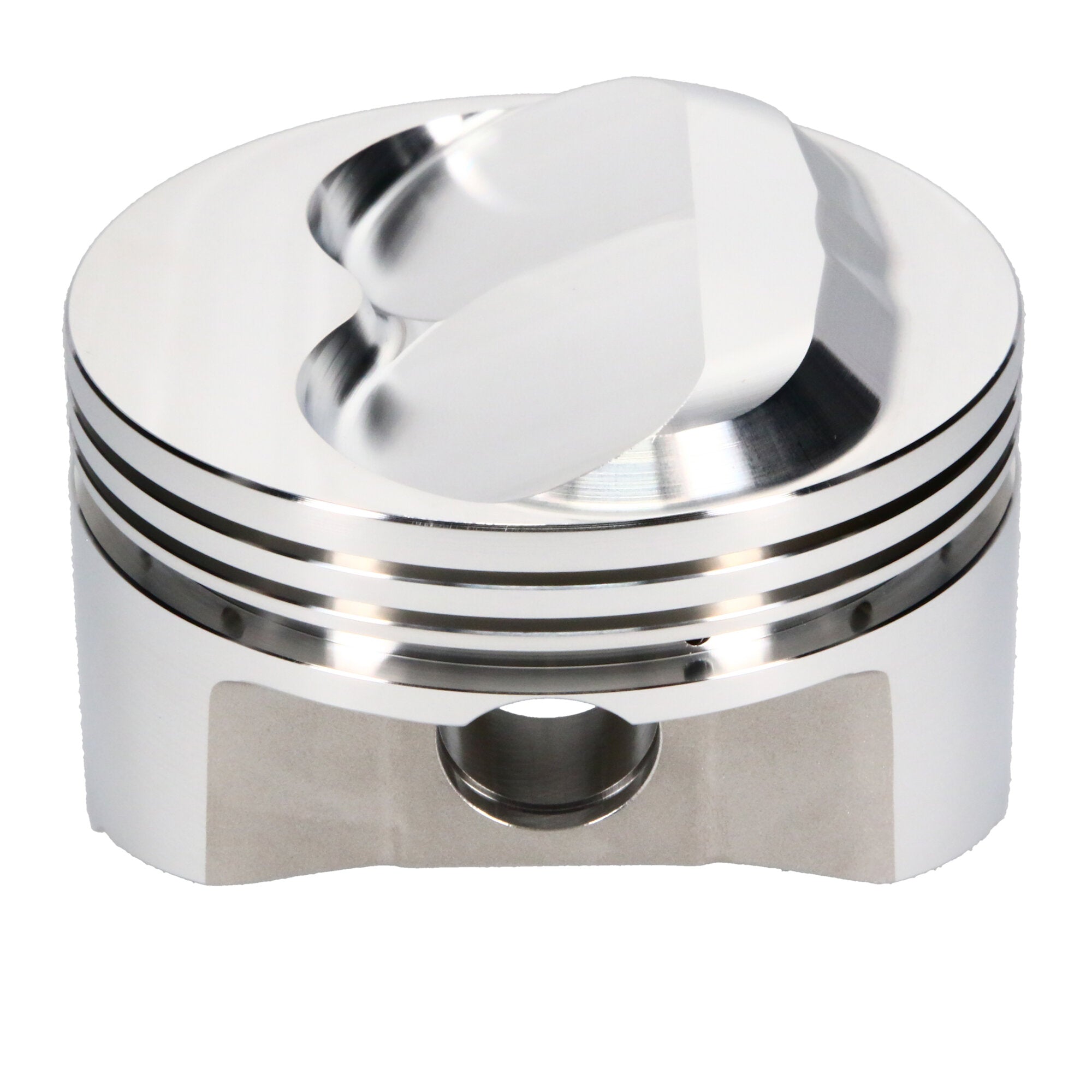

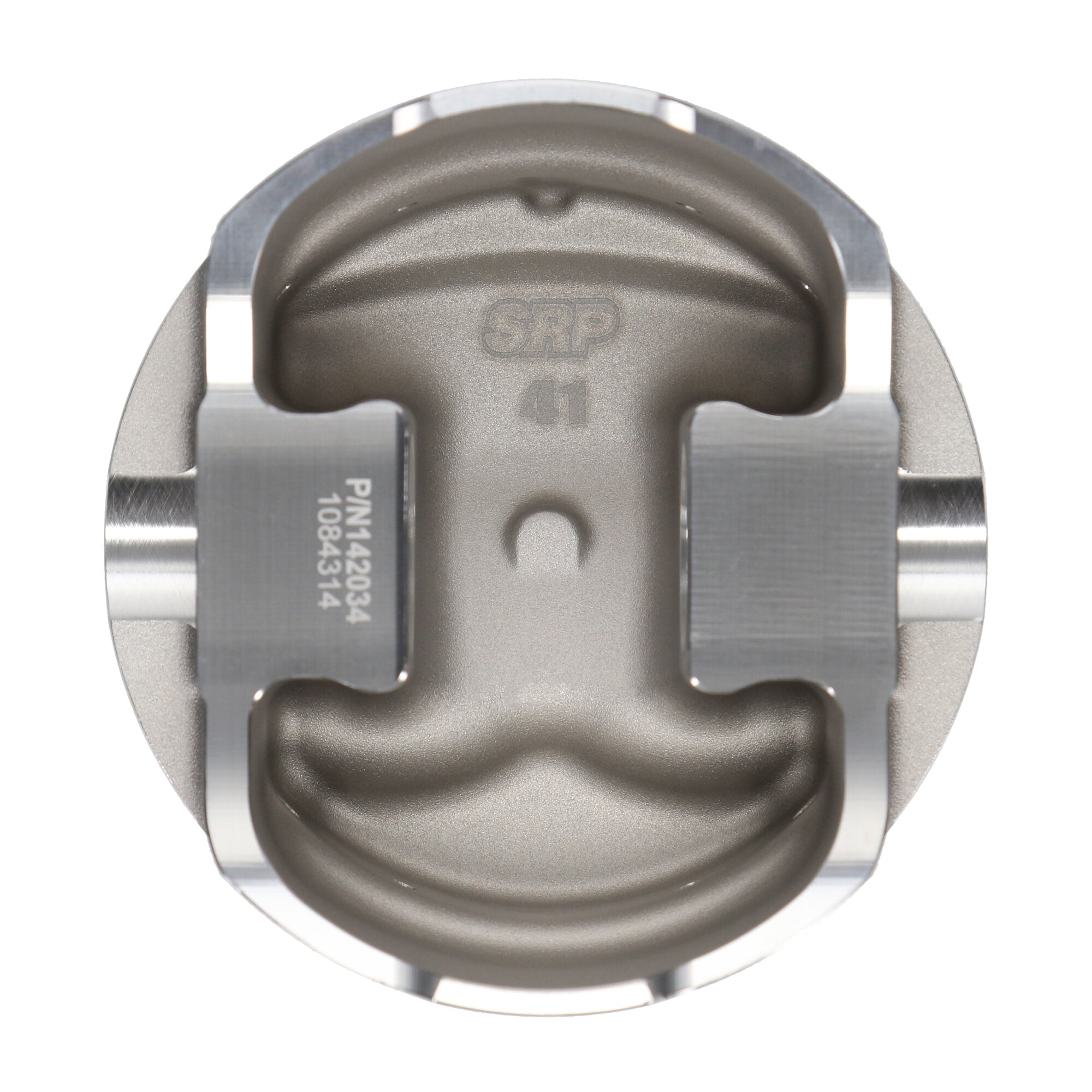

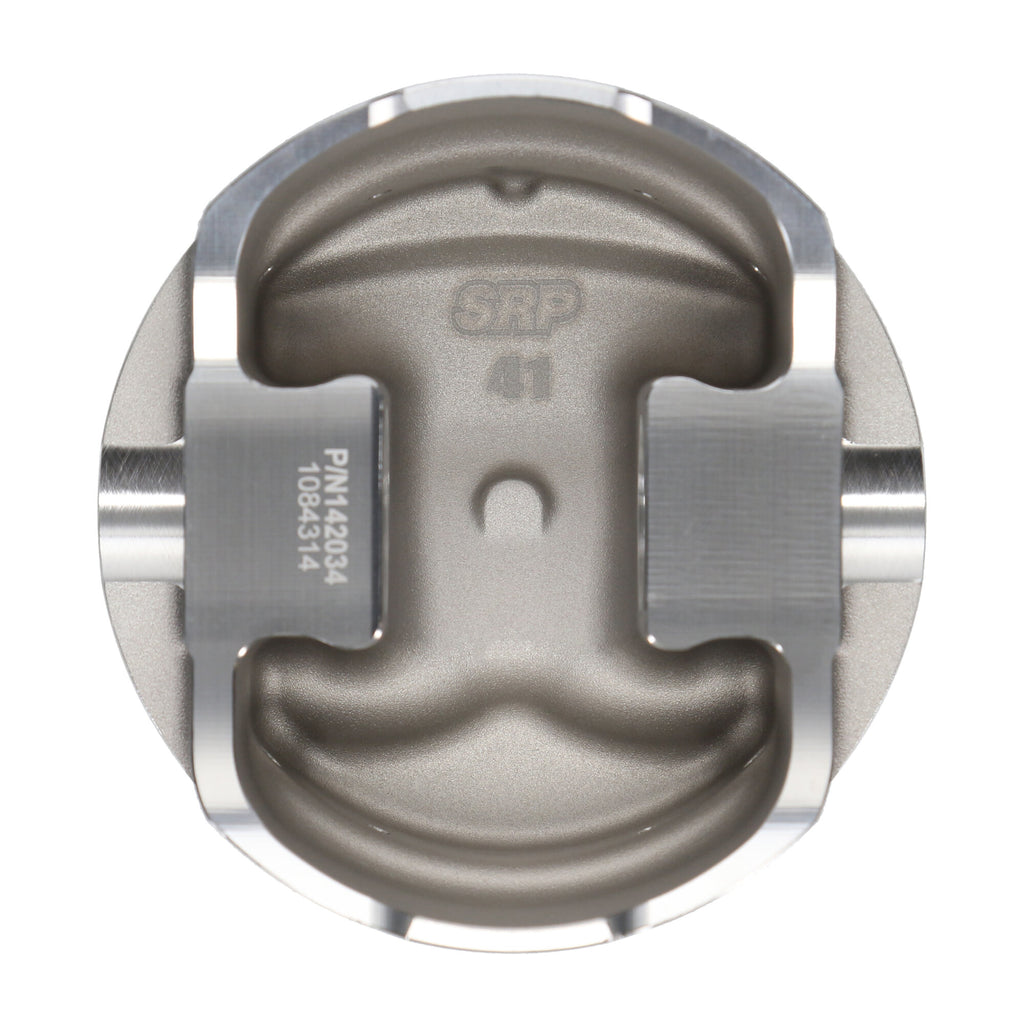

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 4.030 Bore, 1.260 CD, 0.927 Pin, Set of 8. |
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.260 CD, Dome, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chevrolet 350, 4.030 Bore, Dome, Set of 8 |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Industry |
Automotive |
| Piston Head Type |
Dome |
| Prop 65 Yes/No |
Yes |
| Make - Web |
Chevrolet |
| Add-On |
S100S8-4030-5 |
| Add-On |
927-042-CS |
| Title - Web |
SRP Chevrolet Small Block Piston Kit - 4.030 in. Bore - 1.260 in. CH, 11.00 CC |
| Add-On |
927-2750-15-51S |
| Ringset Included |
No |
| Piston Pin Length |
2.750 |
| Second Compression Ring Thickness |
0.0640 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Pin Outside Diameter |
0.927 |
| Piston Volume |
11.00 |
| Product Market |
Domestic |
| Title |
SRP - Chevrolet, Small Block, 4.030 in. Bore, Piston Kit |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.150 |
| Piston Average Weight |
459 |
| Oil Ring Thickness |
0.188 |
| Piston Series |
SRP |
| Prop 65 (C, R or CR) |
CR |
| Compression Height |
1.260 |
| Engine |
Small Block |
| Forging Type |
FSR |
| Make |
CHEVROLET |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Product Type |
Engine Piston Kit |
| Bore Diameter |
4.030 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Material |
2618 |
| Piston Pin Material |
5115 |
| Wrist Pin Length |
2.750 |
| Ring Set Included |
No |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
