As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

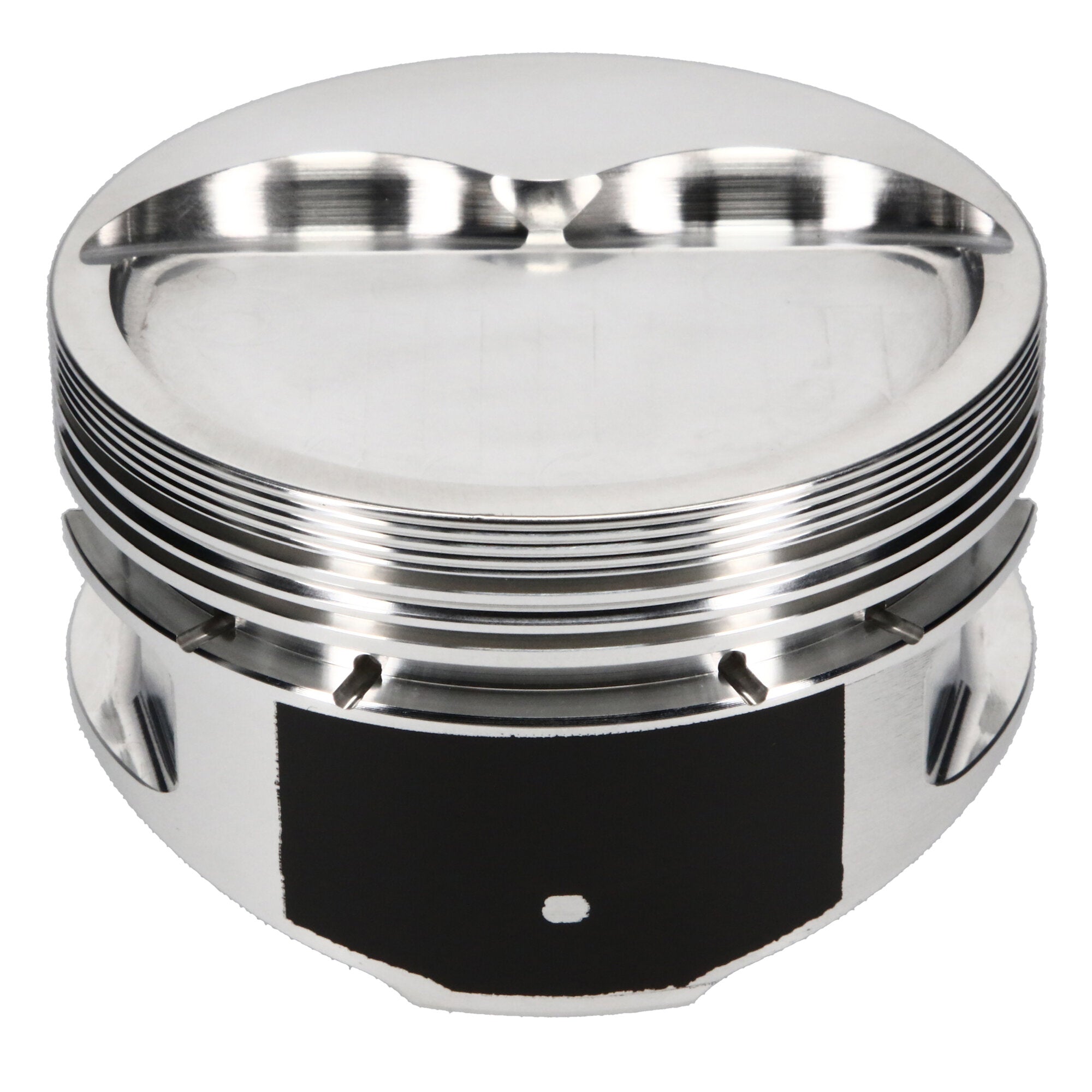

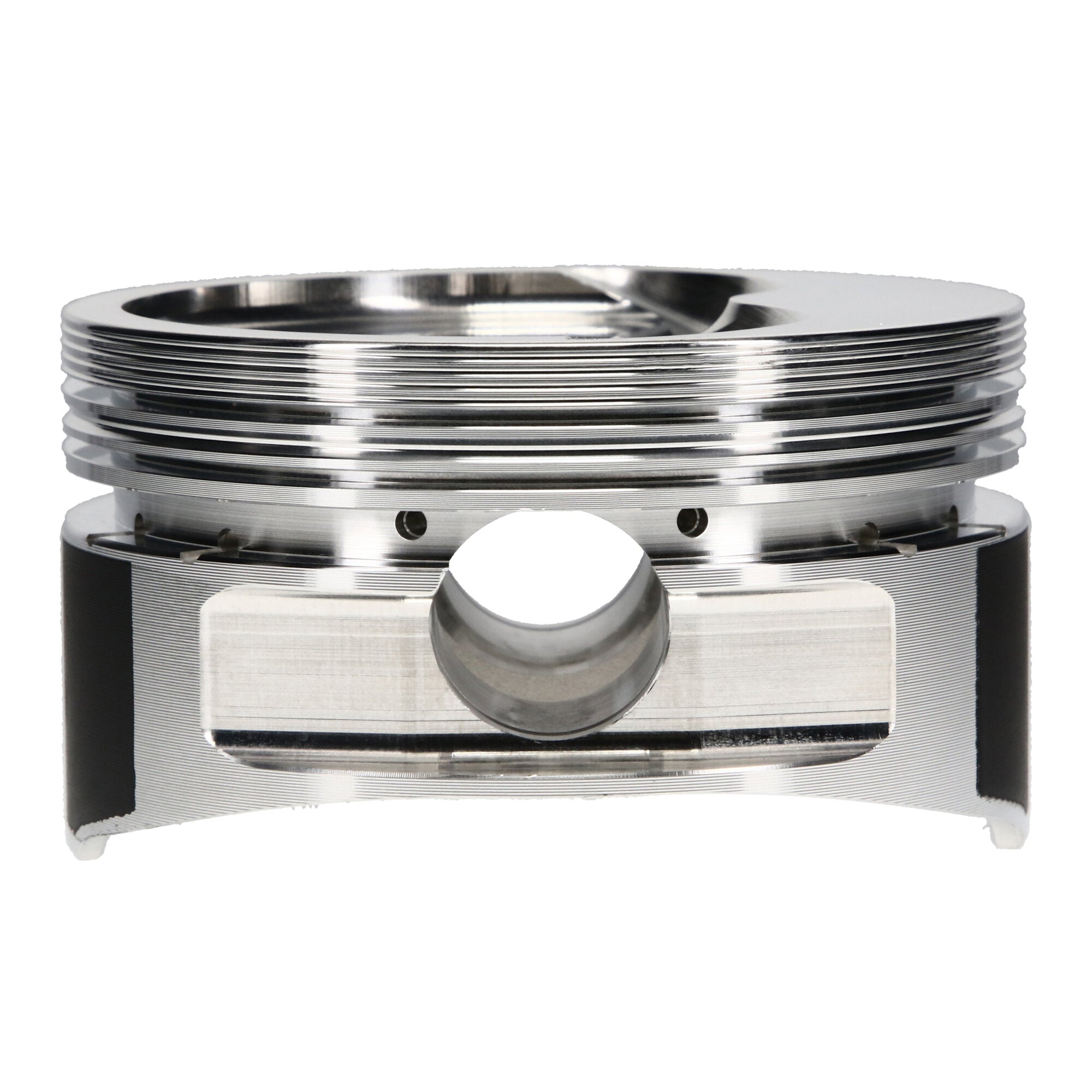

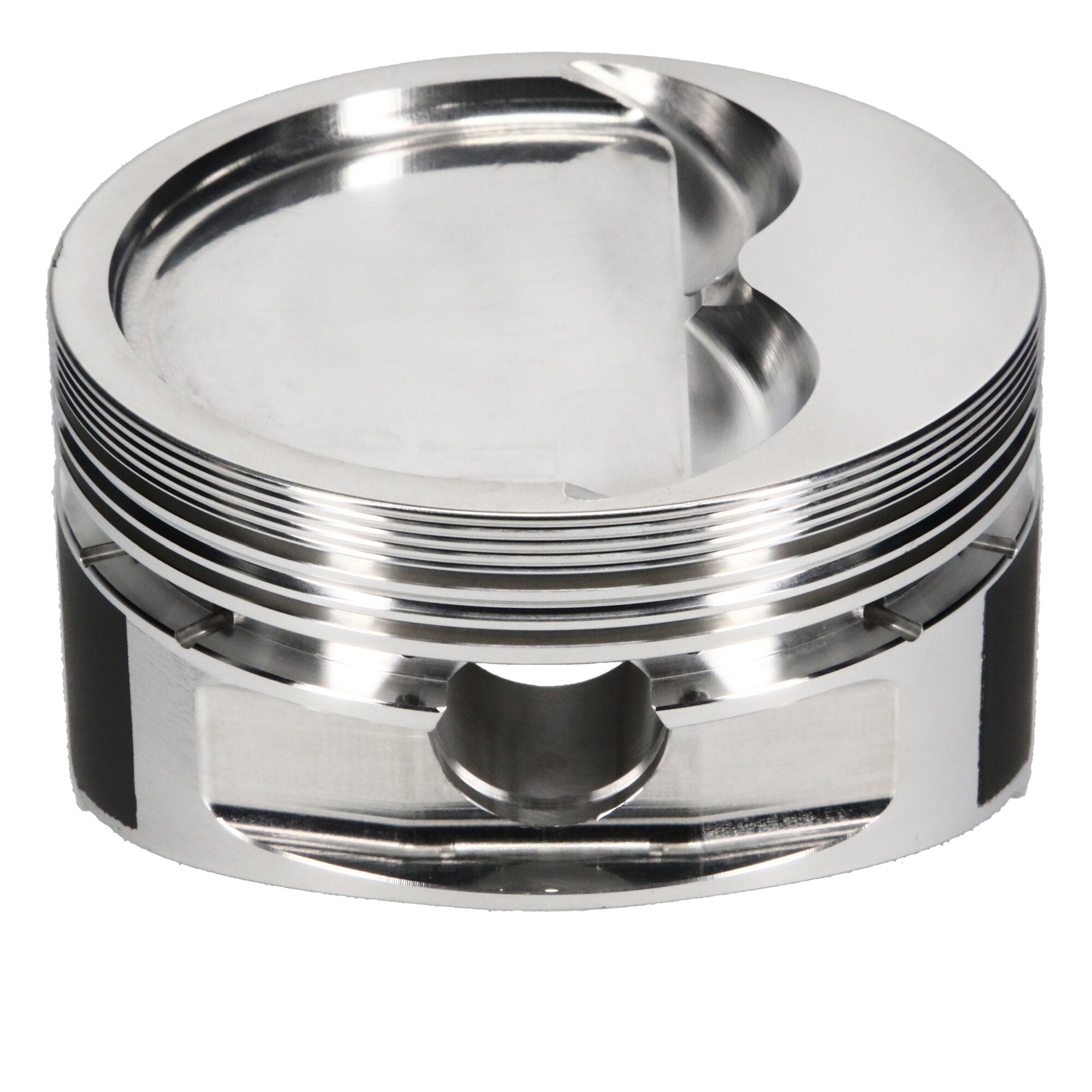

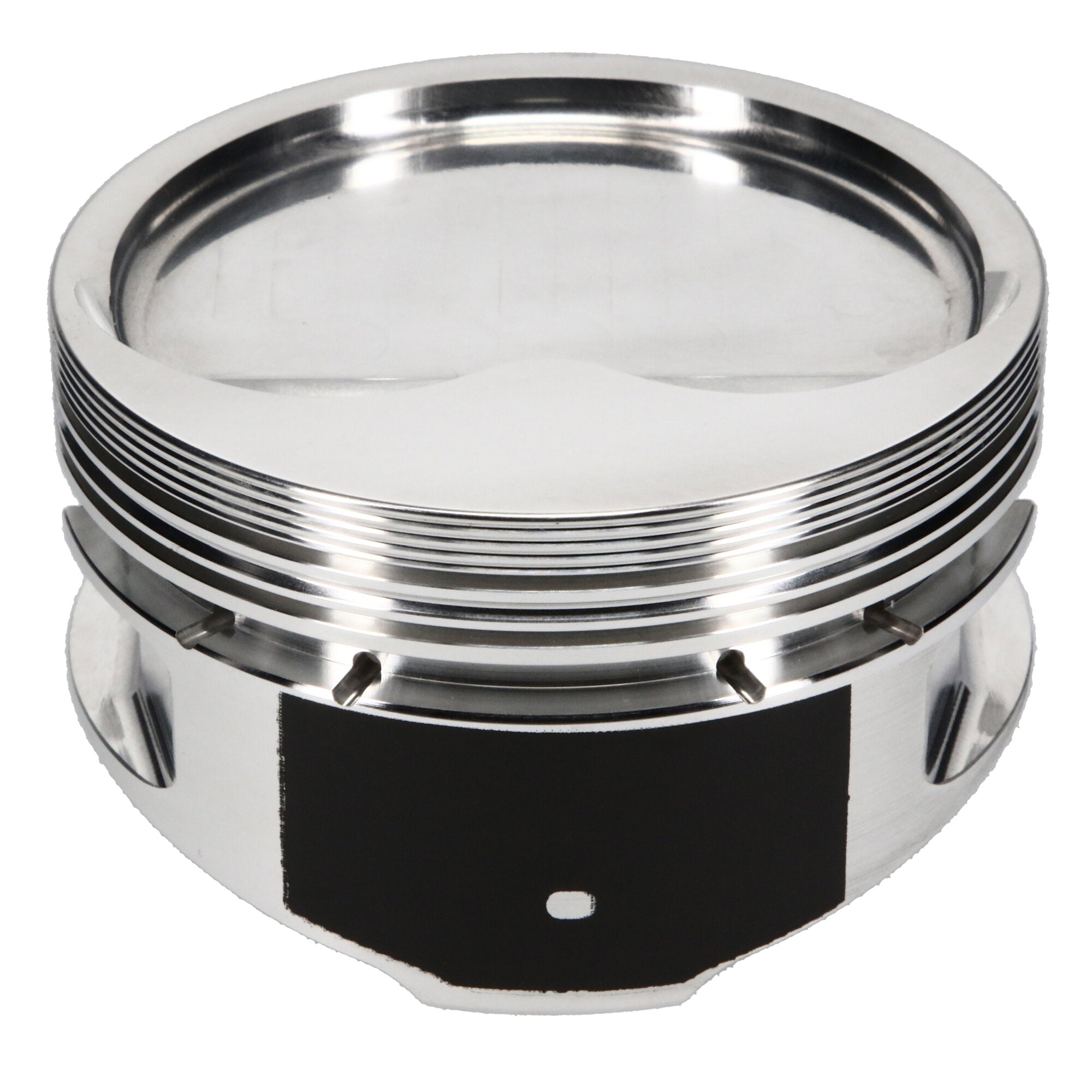

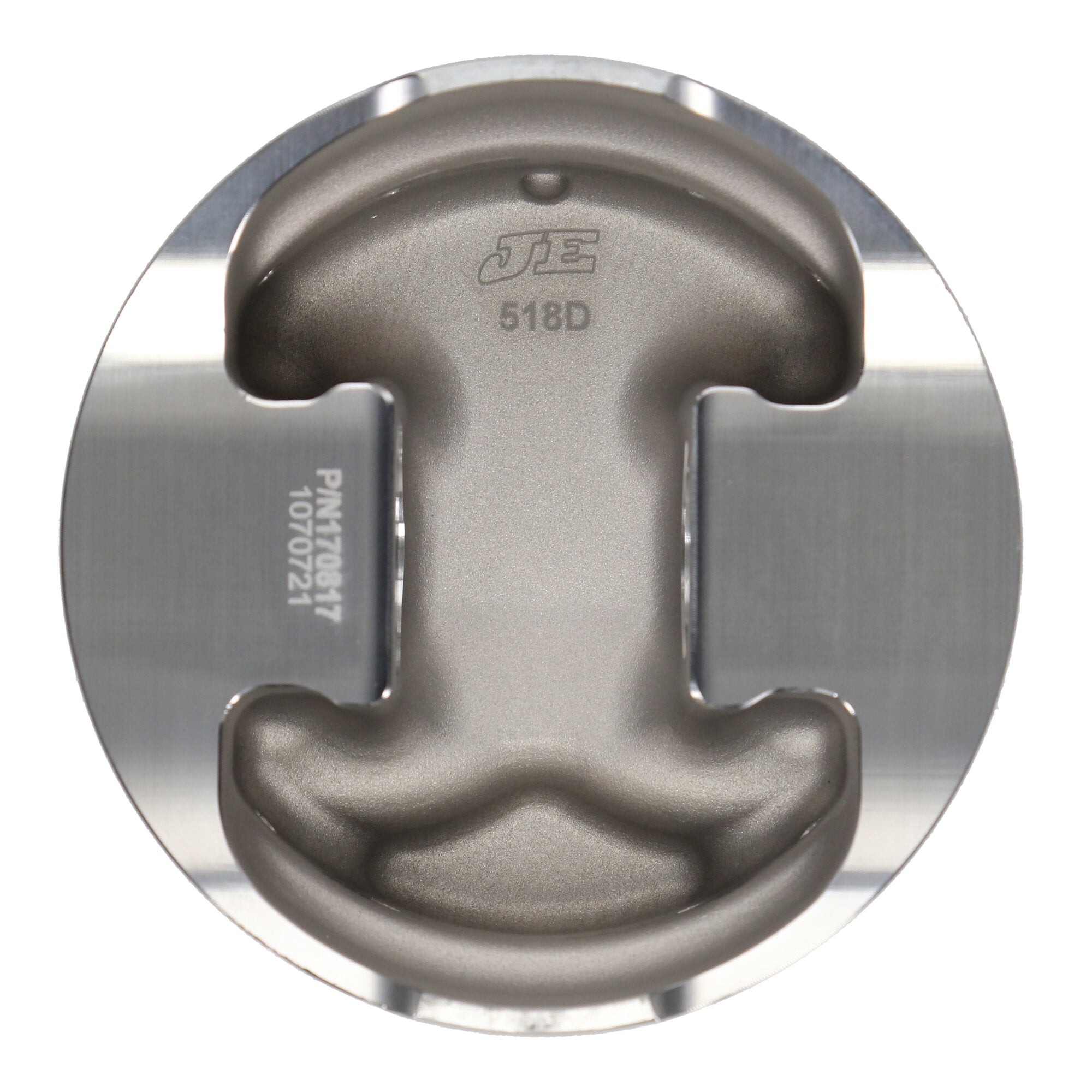

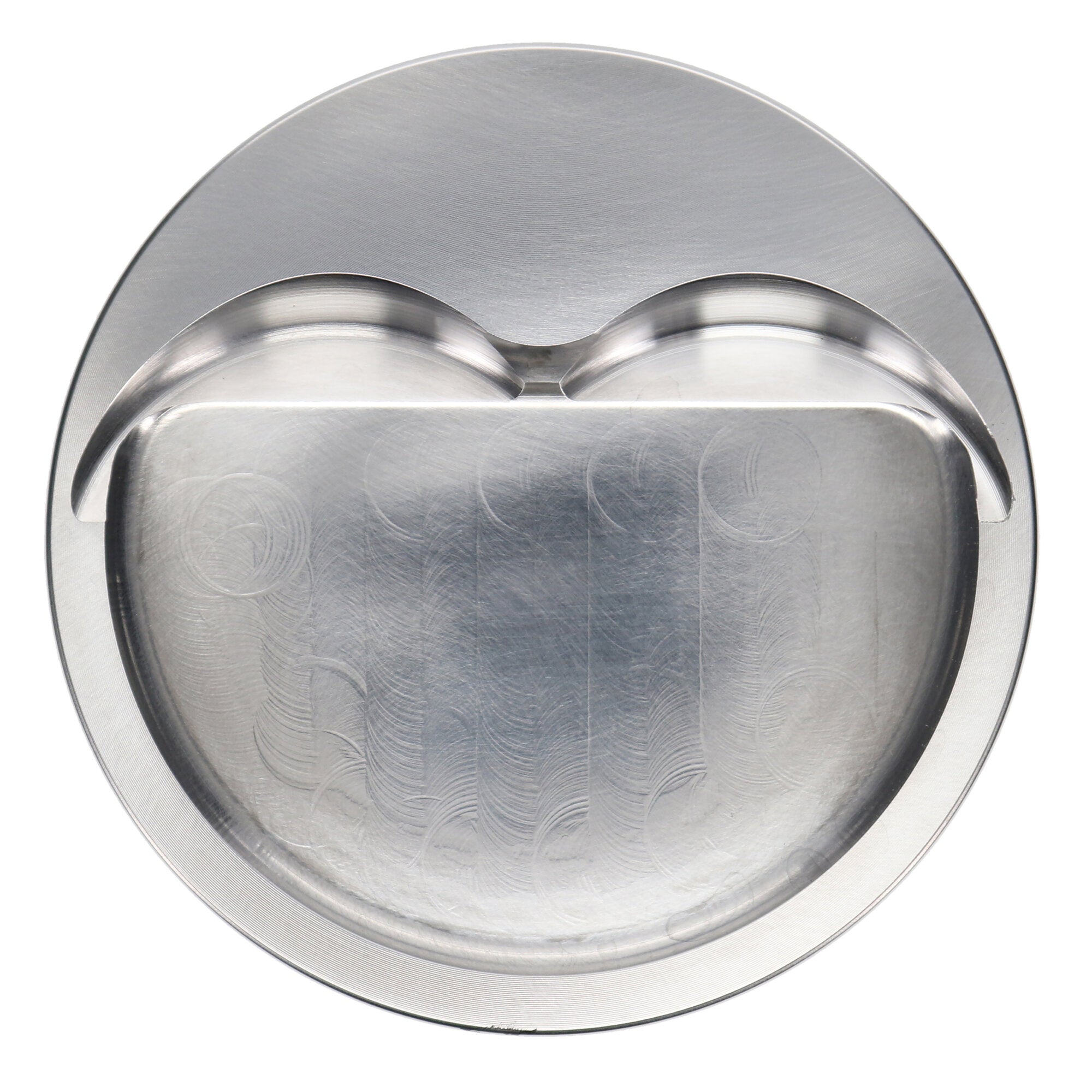

Piston Set, 2618, Inv Dome/Dish, 4.155 Bore, 1.425 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.155 in. Bore, 1.425 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 350, 4.155 Bore, Dish, Set of 8 |
| Product Type |
Engine Piston Kit |
| Bore Diameter |
4.155 |
| Piston Pin Outside Diameter |
0.927 |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Ring Set Included |
No |
| Wrist Pin Length |
2.950 |
| Add-On |
927-2950-15-51S |
| Piston Quantity |
8 |
| Industry |
Automotive |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Second Compression Ring Thickness |
0.0640 |
| Out of Stock Message |
Call for Availability |
| Product Market |
Domestic |
| Add-On |
927-042-CS |
| Top Compression Ring Thickness |
0.0640 |
| Piston Volume |
-36.60 |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Add-On |
J100F8-4155-5 |
| Piston Material |
2618 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.155 in. Bore, Piston Kit |
| Piston Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Engine |
Small Block |
| Compression Height |
1.425 |
| Piston Average Weight |
517 |
| Piston Pin Length |
2.950 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.155 in. Bore - 1.425 in. CH, -36.60 CC |
| Make - Web |
Chevrolet |
| Engine - Web |
Small Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Series |
JE Pistons |
| Make |
CHEVROLET |
| Ringset Included |
No |
| Forging Type |
Round |
| Piston Pin Material |
5115 |
| Oil Ring Thickness |
0.188 |
| Piston Head Type |
Dish |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
