As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan VQ37VHR |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

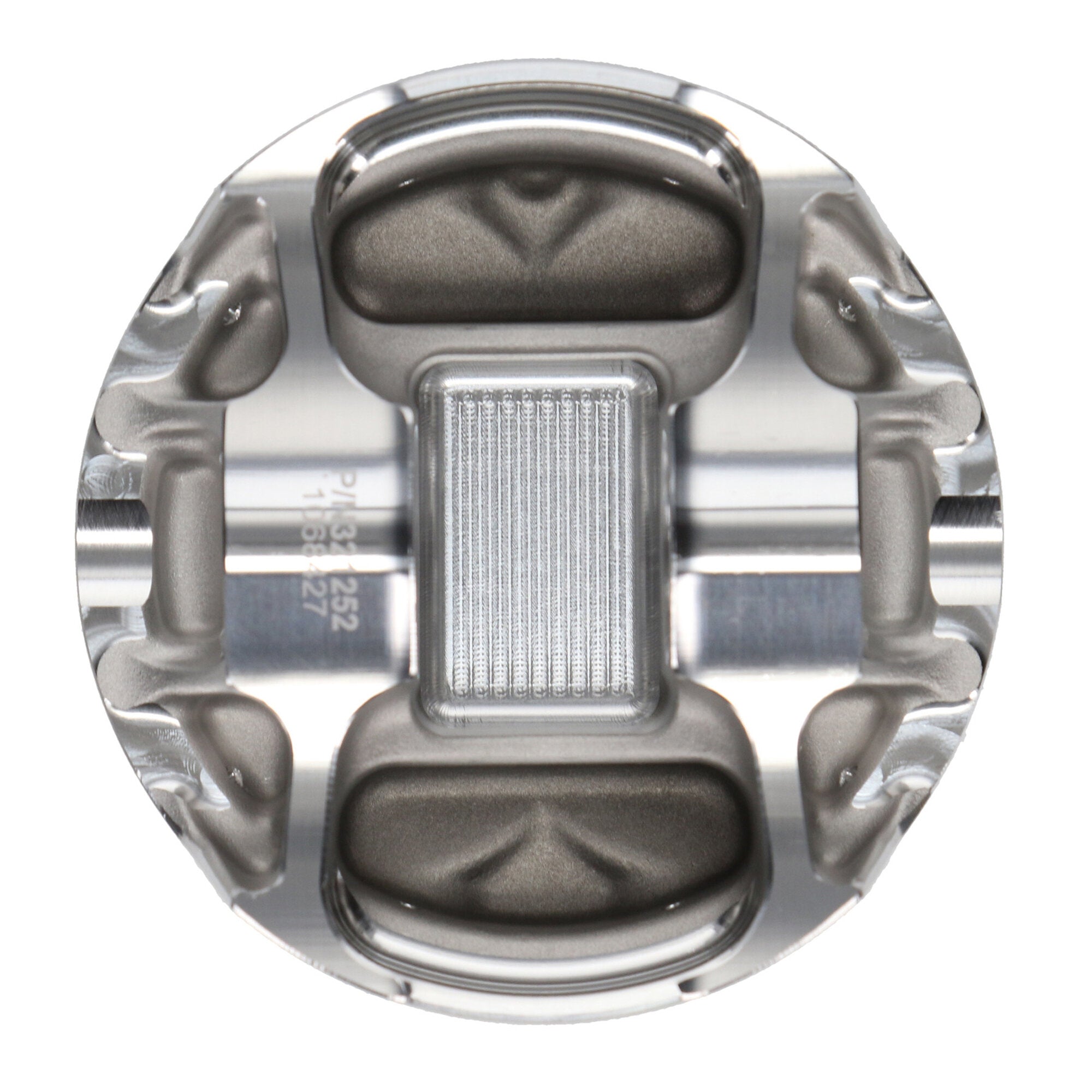

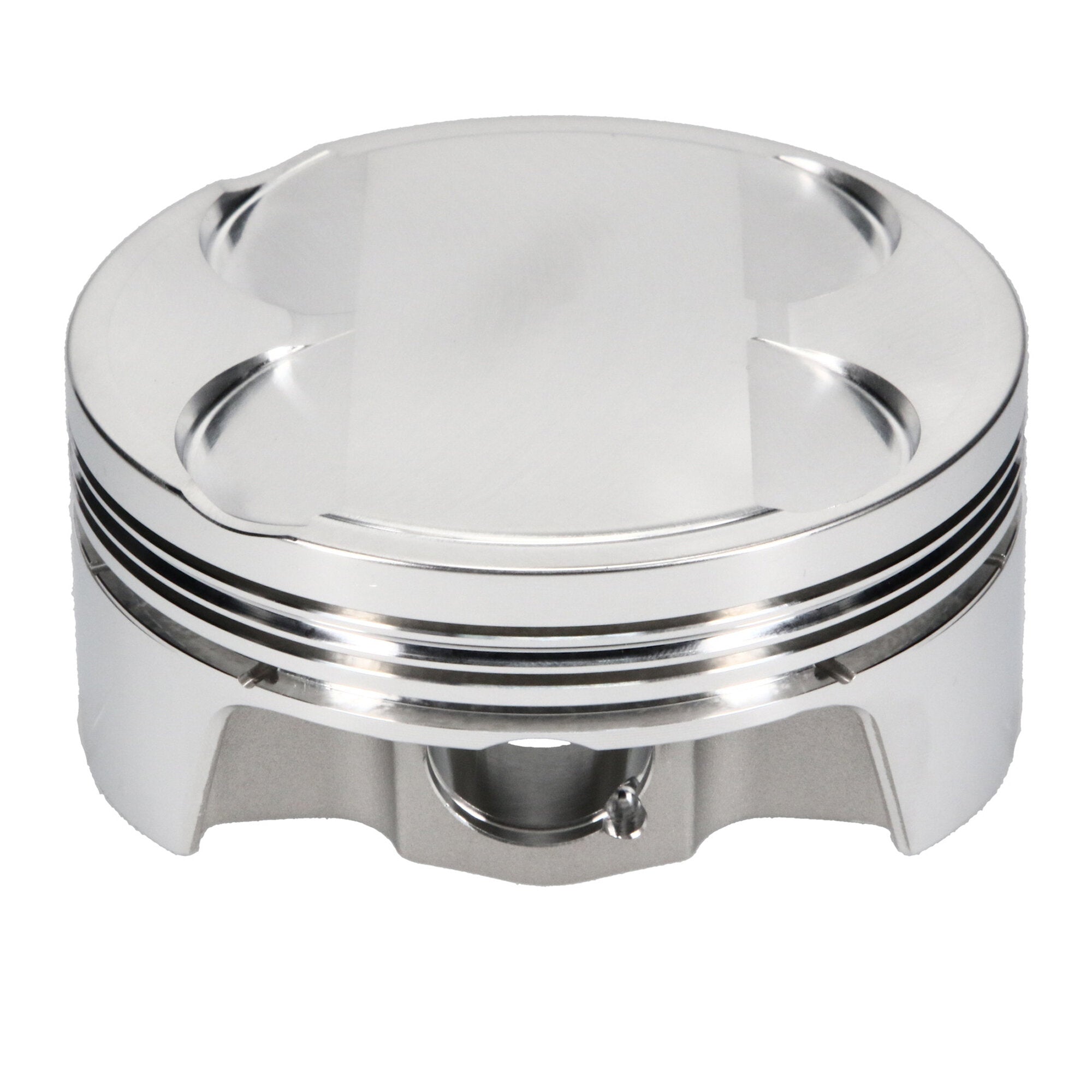

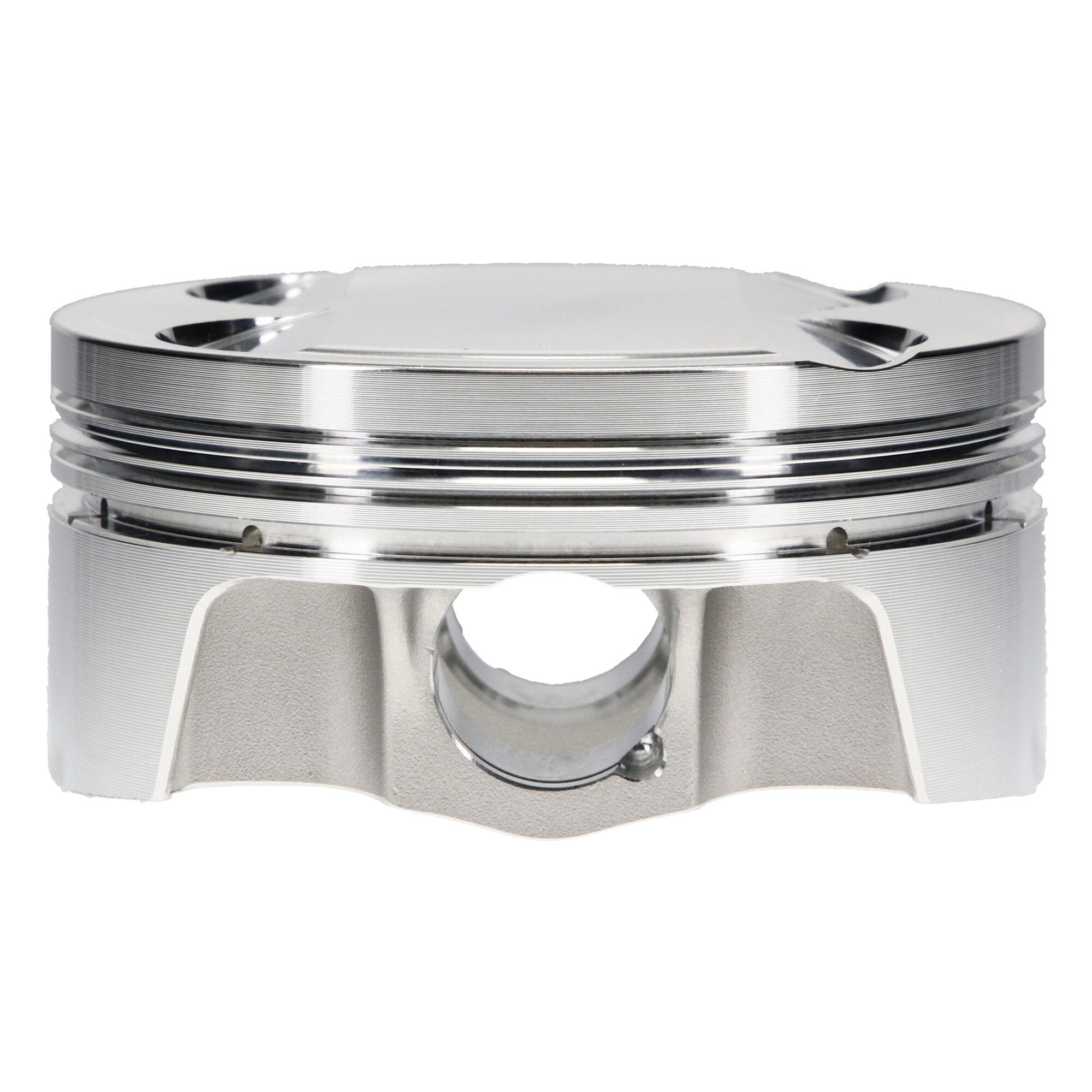

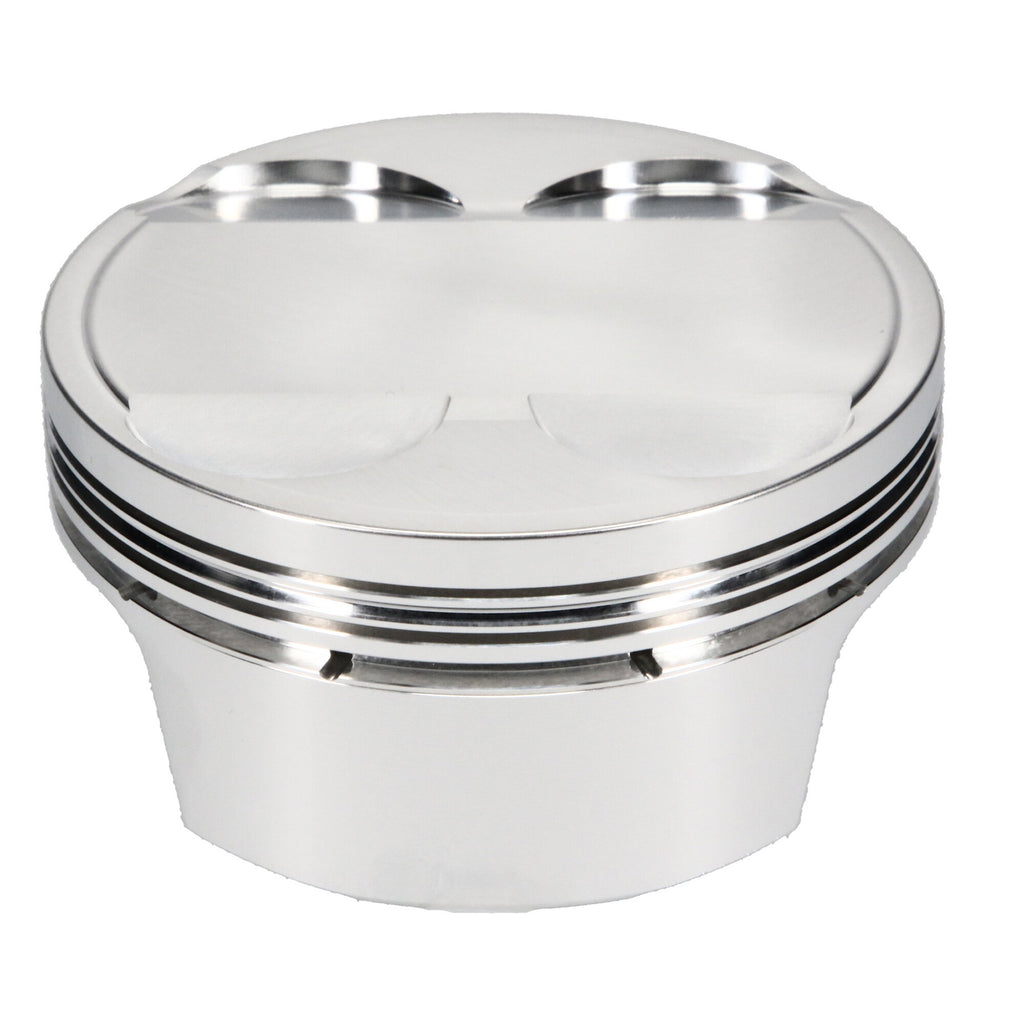

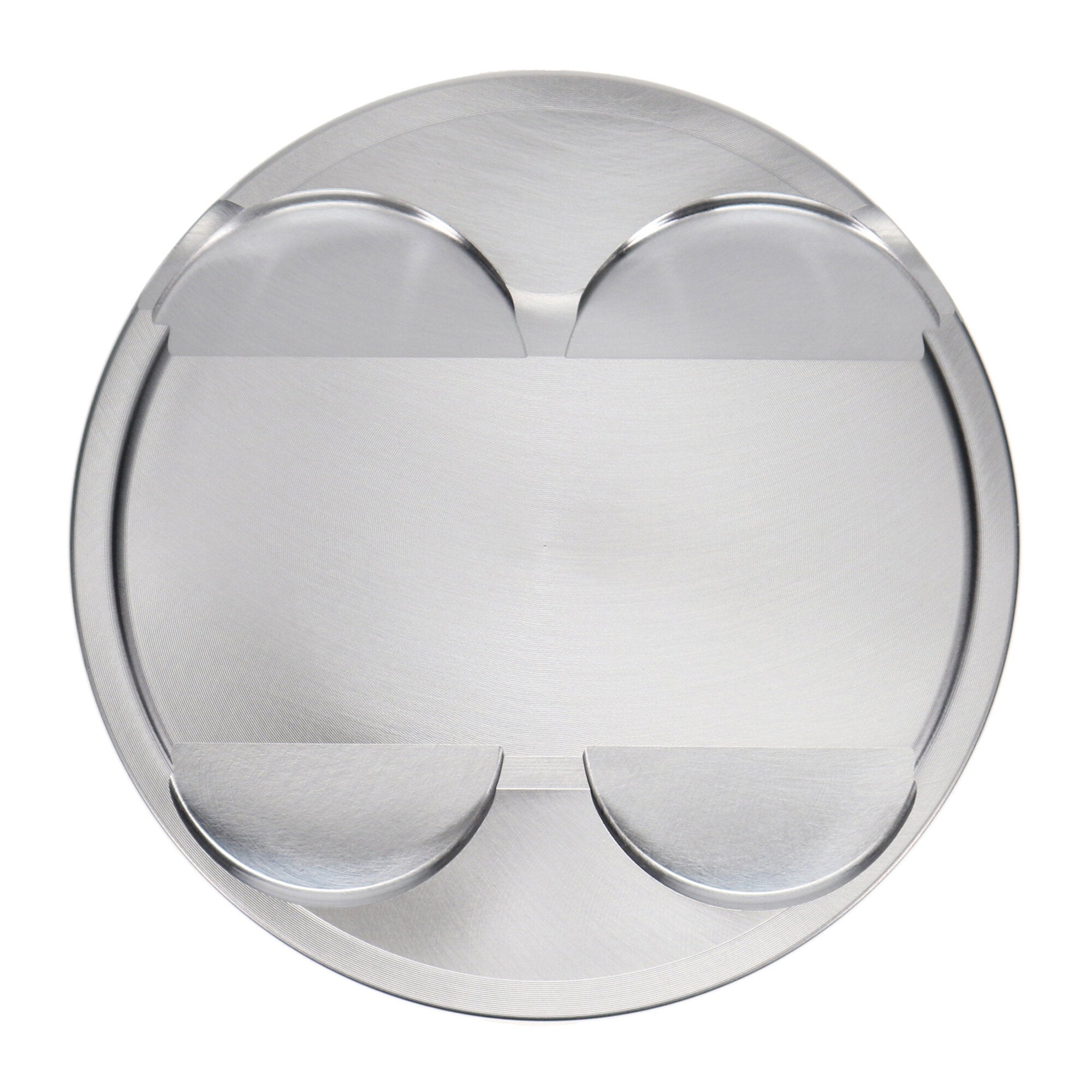

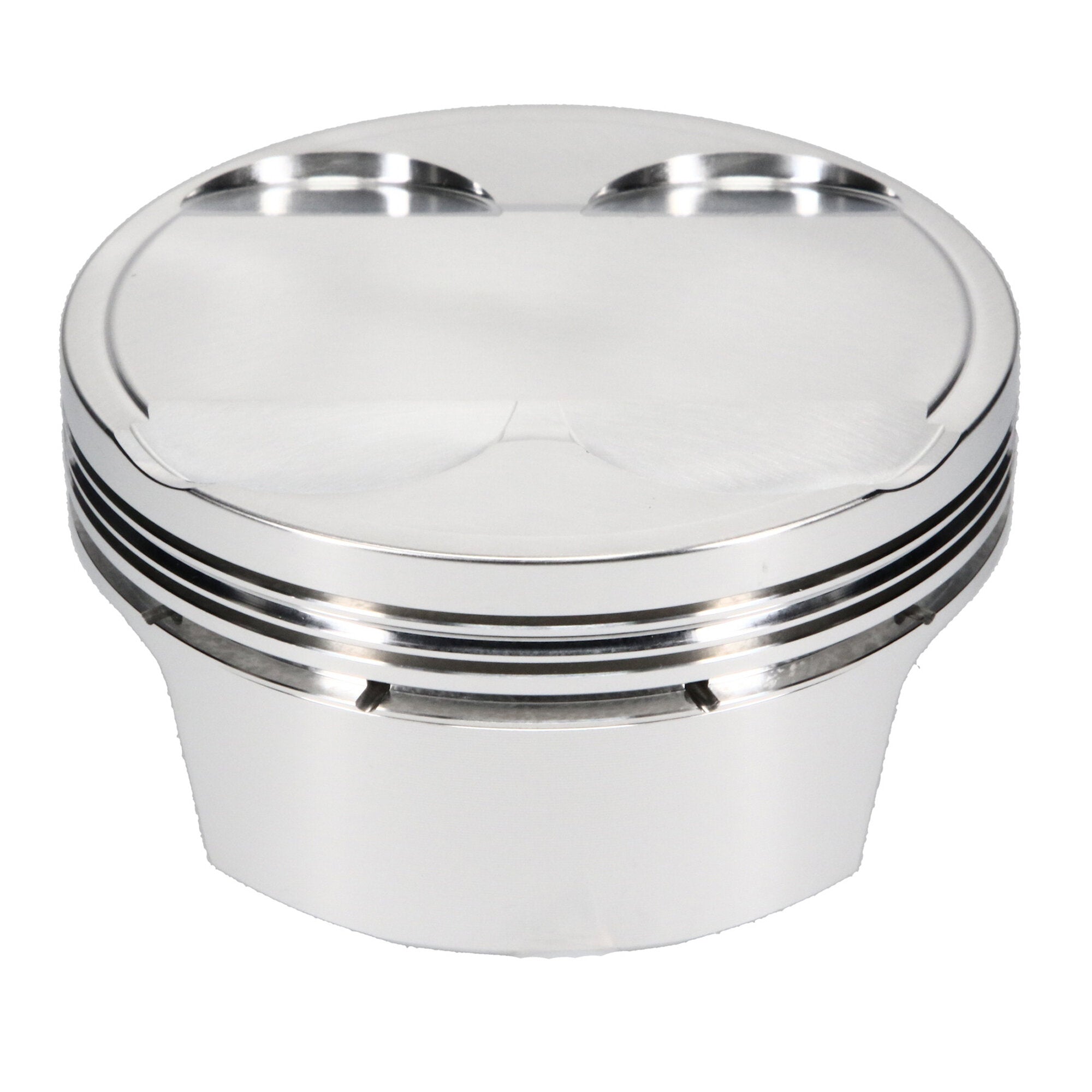

Piston Set, 2618, Dome, 3.760 Bore, 1.198 CD, 0.866 Pin, Set of 6. |
| Description_EXT |
JE, Nissan, VQ37VHR, 3.760 in. Bore, 11.50:1, Dome, 6 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Nissan VQ37VHR, 95.50 Bore, Dome, Set of 6 |
| Description_SHO |
Piston Kit |
| Cylinder Head |
VQ37VHR |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Engine |
VQ37VHR |
| Piston Material |
2618 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
Yes |
| Out of Stock Message |
Call for Availability |
| Piston Volume |
1.00 |
| Title - Web |
JE Pistons Nissan VQ37VHR Piston Kit - 95.50 mm Bore - 1.198 in. CH, 1.00 CC |
| Engine Type |
ICE |
| Product Type |
Engine Piston Kit |
| Add-On |
866-063-MW |
| Piston Pin Length |
2.250 |
| Oil Ring Thickness |
0.111 |
| Add-On |
866-2250-15-51C |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
JG1001-3760 |
| Piston Series |
JE Pistons |
| Wrist Pin Length |
2.250 |
| Make - Web |
Nissan |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make |
NISSAN |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Ringset Included |
Yes |
| Piston Quantity |
6 |
| Piston Average Weight |
431 |
| Piston Pin Wall Thickness |
0.150 |
| Compression Height |
1.198 |
| Product Market |
Sport Compact |
| Forging Type |
FSR |
| Piston Head Type |
Dome |
| Piston Pin Material |
5115 |
| Title |
JE Pistons - Nissan, VQ37VHR, 95.50 mm Bore, Piston Kit |
| Top Compression Ring Thickness |
0.0400 |
| Piston Pin Outside Diameter |
0.866 |
| Bore Diameter |
95.50 |
| Engine - Web |
VQ37VHR |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
5.0000 |
