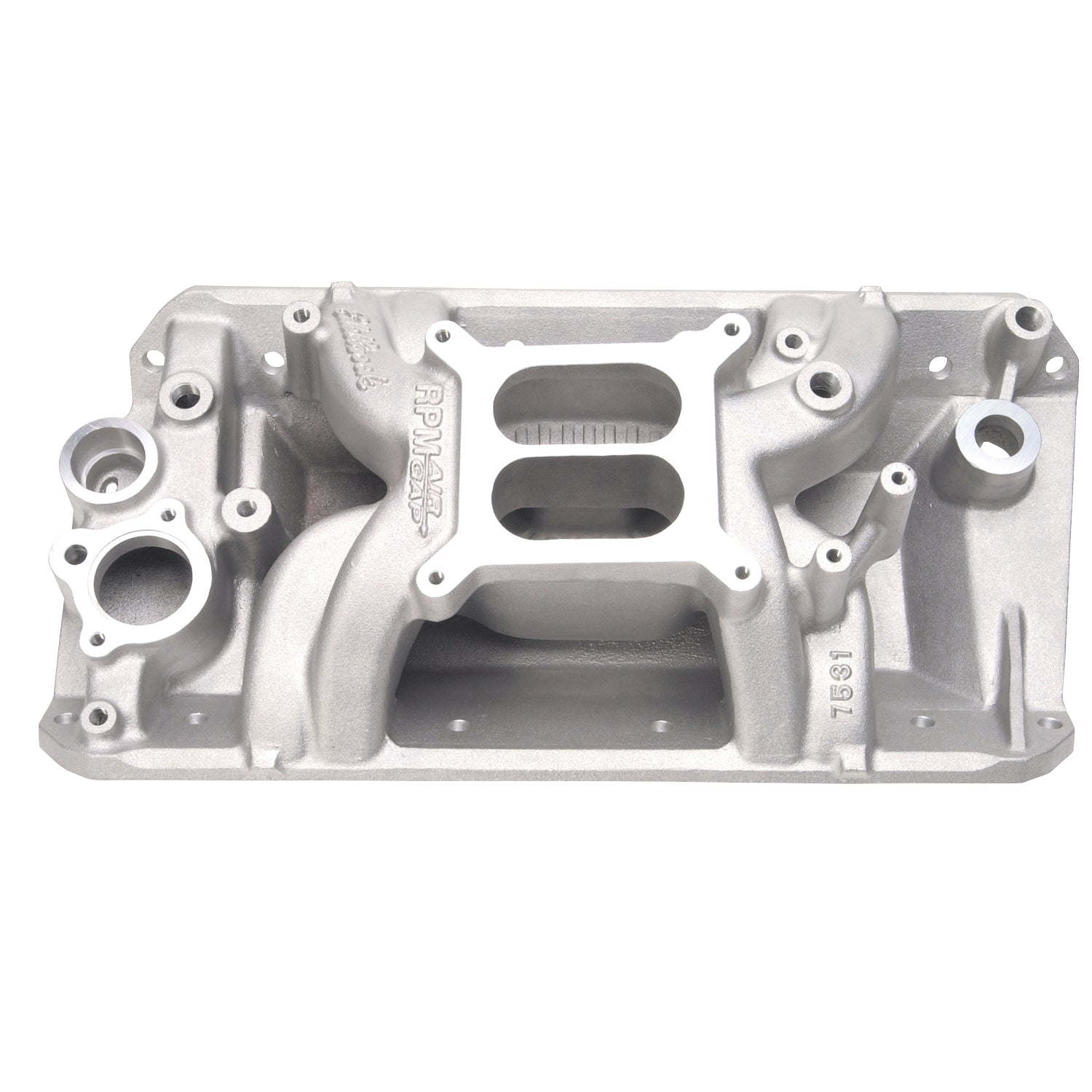

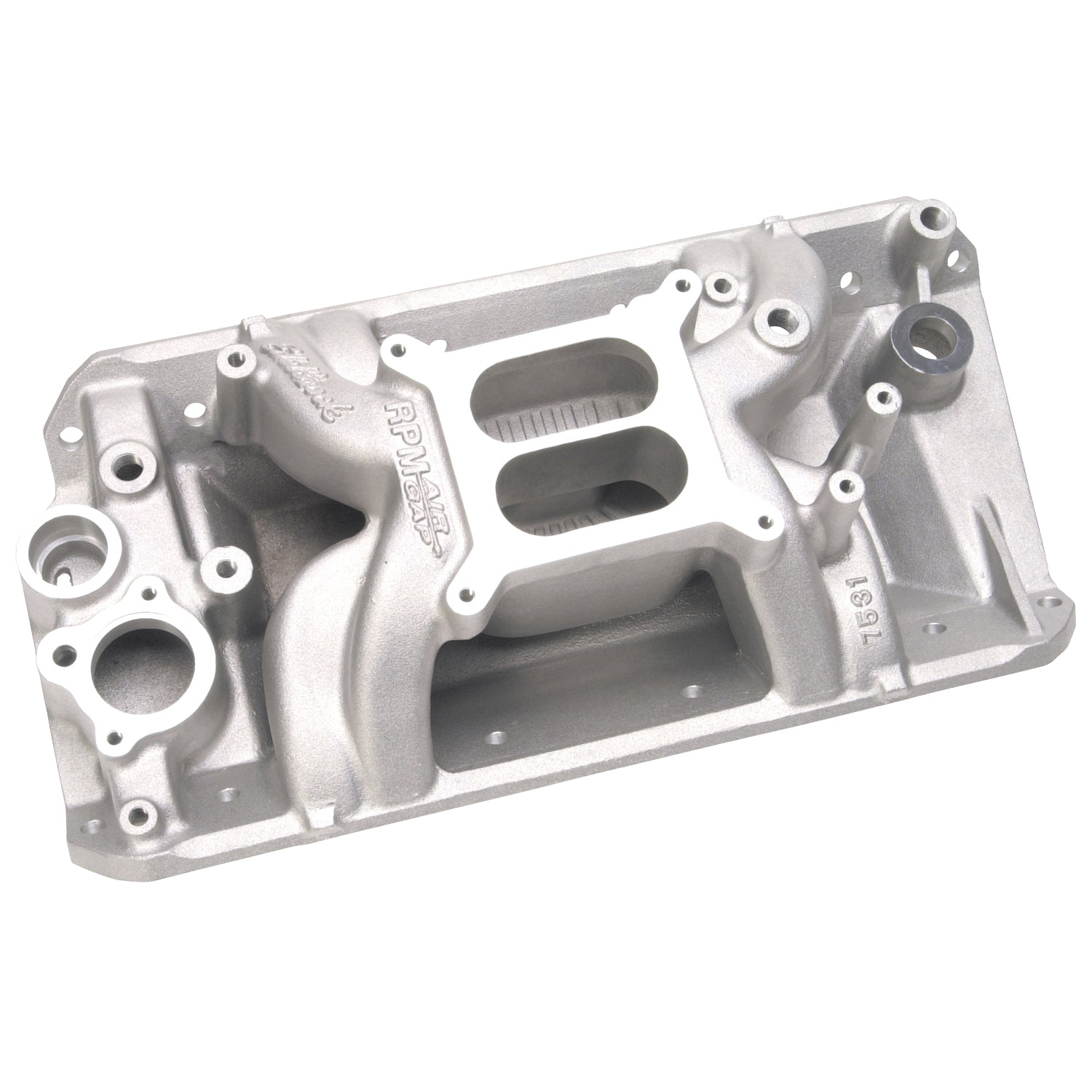

Edelbrock part #7531 RPM Air-Gap AMC intake manifold is designed for 1970-91 304-401 c.i.d. V8 applications. The RPM Air-Gap intake manifold incorporate the same race-winning technology as our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil for a cooler, denser charge and more power. Includes standard oil fill and PCV provisions as well as early air conditioning support bracket accessory bosses. For square-bore carbs. No provision for exhaust-heated chokes. No exhaust crossover.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
AMC:-:304 (5.0L)-401 (6.6L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock RPM Air-Gap AMC Intake Manifold for AMC 304-360-401 Small-Block V8 |
| Description_MKT |
Edelbrock part #7531 RPM Air-Gap AMC intake manifold is designed for 1970-91 304-401 c.i.d. V8 applications. The RPM Air-Gap intake manifold incorporate the same race-winning technology as our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil for a cooler, denser charge and more power. Includes standard oil fill and PCV provisions as well as early air conditioning support bracket accessory bosses. For square-bore carbs. No provision for exhaust-heated chokes. No exhaust crossover. |
| Description_INV |
RPM AMC Air-Gap 1970-91 Intake Manifold |
| Description_LAB |
RPM Air-Gap AMC 304/360/401 Intake Manifold |
| Description_TRA |
Recommended intake gasket: Fel-Pro MS96011 |
| Description_TRA |
Must use factory style metal valley tray |
| Description_TRA |
Has two center bolt holes offset |
| Description_TRA |
Manifold height: A-4.45", B-5.77" |
| Description_TRA |
Carb pad height: 5.11" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm. |
| Description_TRA |
Port exit dimensions: 1.04" x 2.10" |
| Description_TRA |
Edelbrock bracket #8034 required for 1979 and later vehicles |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Single Or Dual Plane Type |
Dual |
| Series |
RPM Air-Gap |
| Basic Operating RPM Range |
1500-6500 |
| Center Maximum Height |
5.110 |
| Gasket Or Seal Included |
No |
| Material |
Aluminum |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Front Maximum Height |
4.450 |
| EGR Port |
No - For 1967-69 290-390 c.i.d. |
| Vehicle Model |
AMC/Jeep |
| Rear Maximum Height |
5.770 |
| Finish |
Satin |
| CNC Ported |
No |
| Grade Type |
Performance |
| Flange Type |
4150 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
23.0000 |
