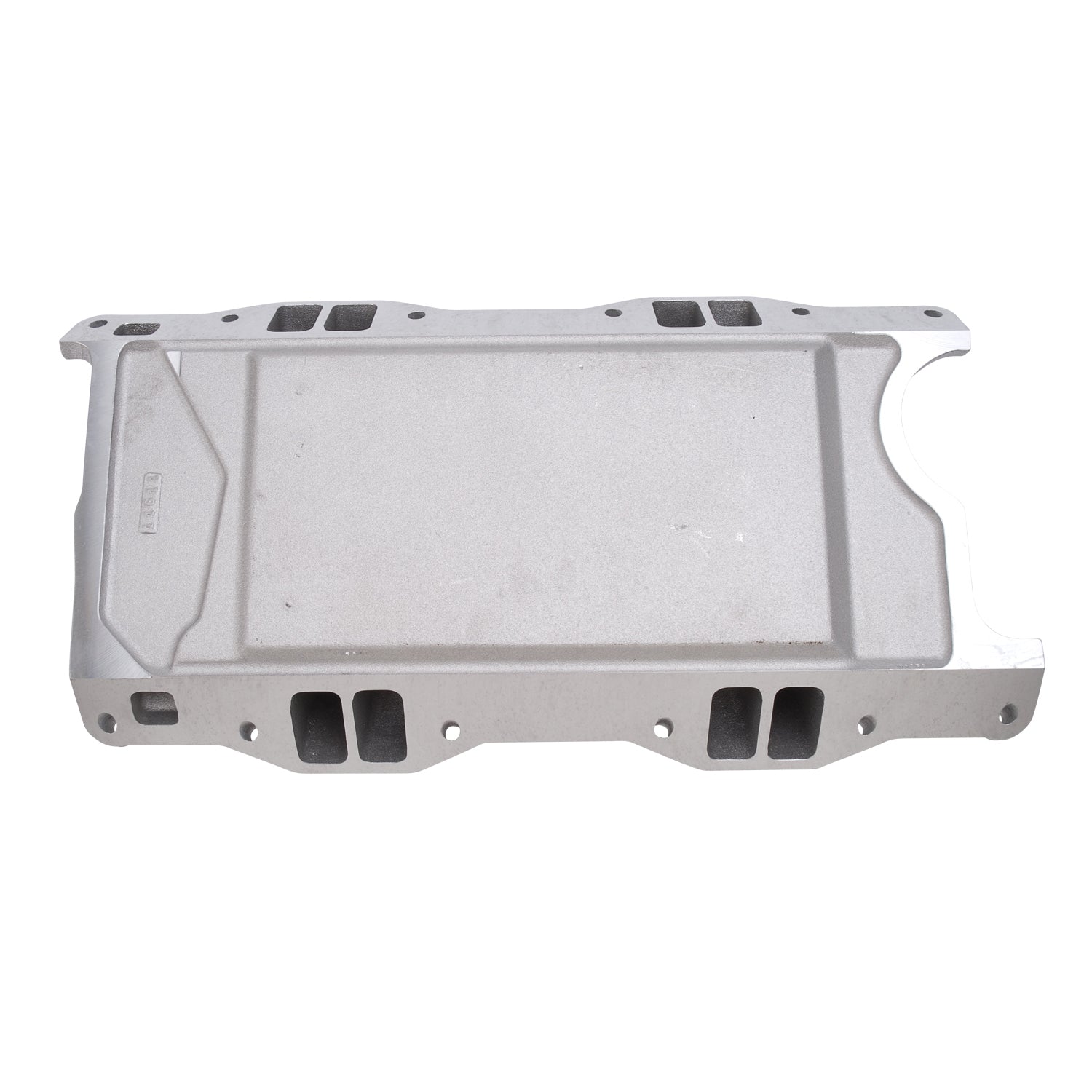

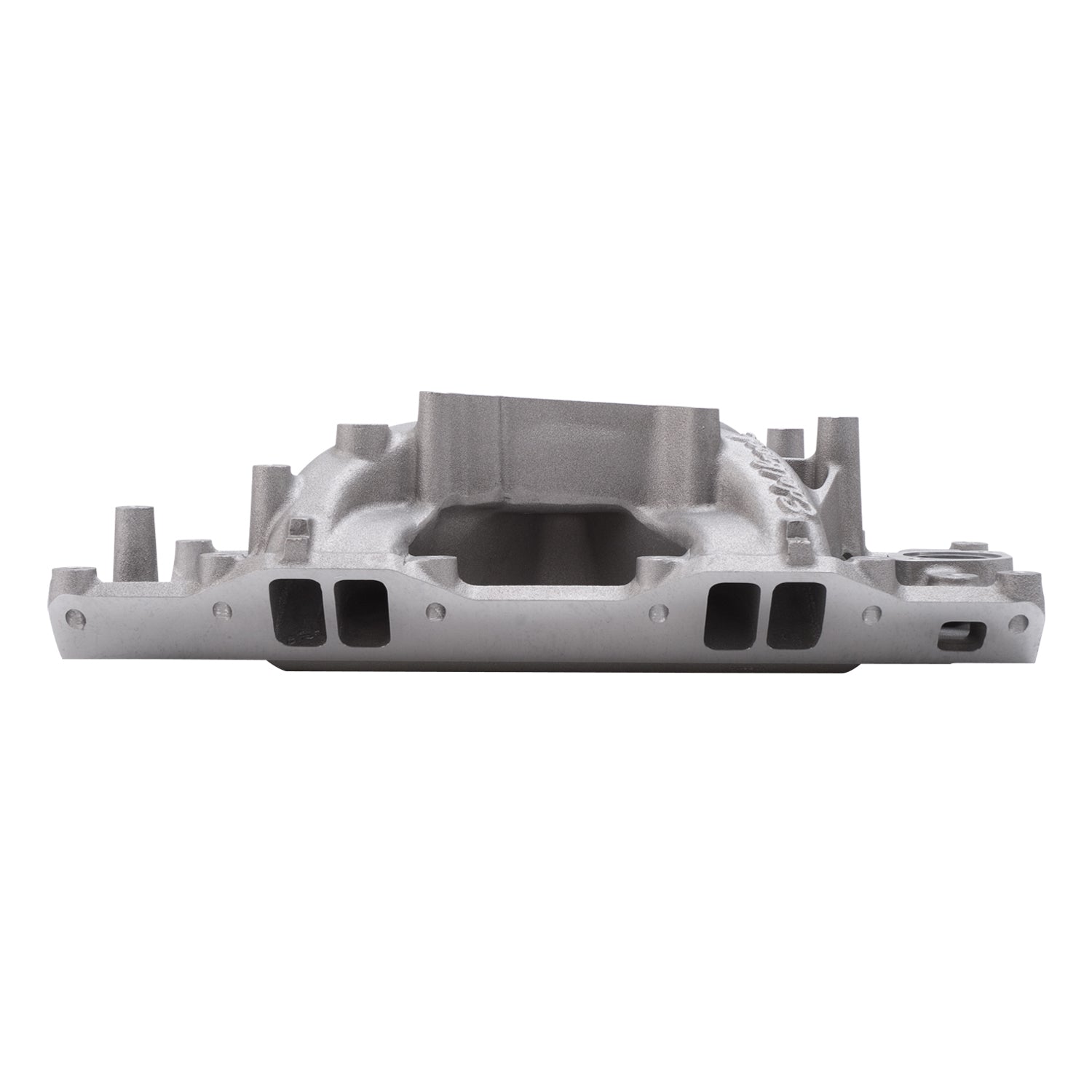

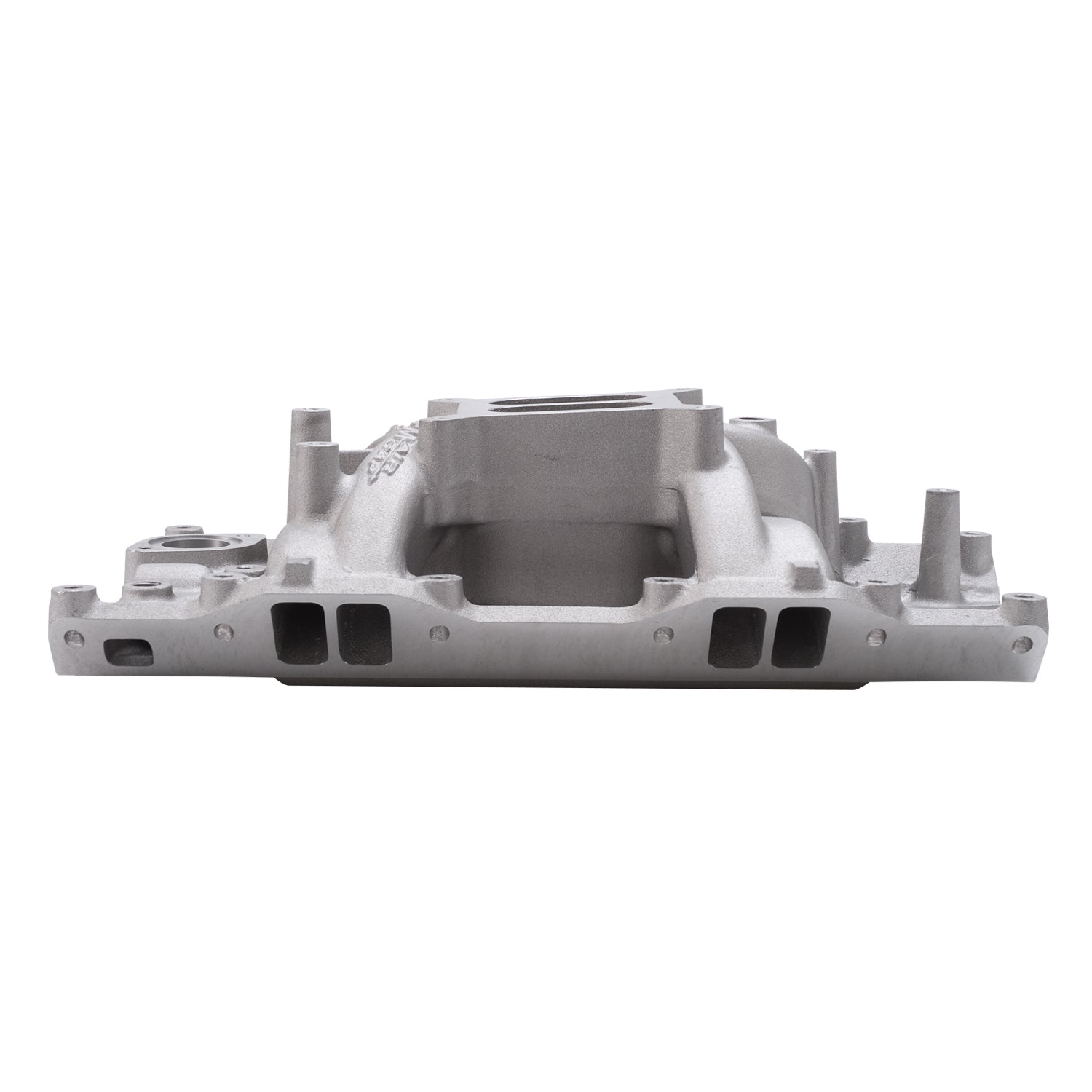

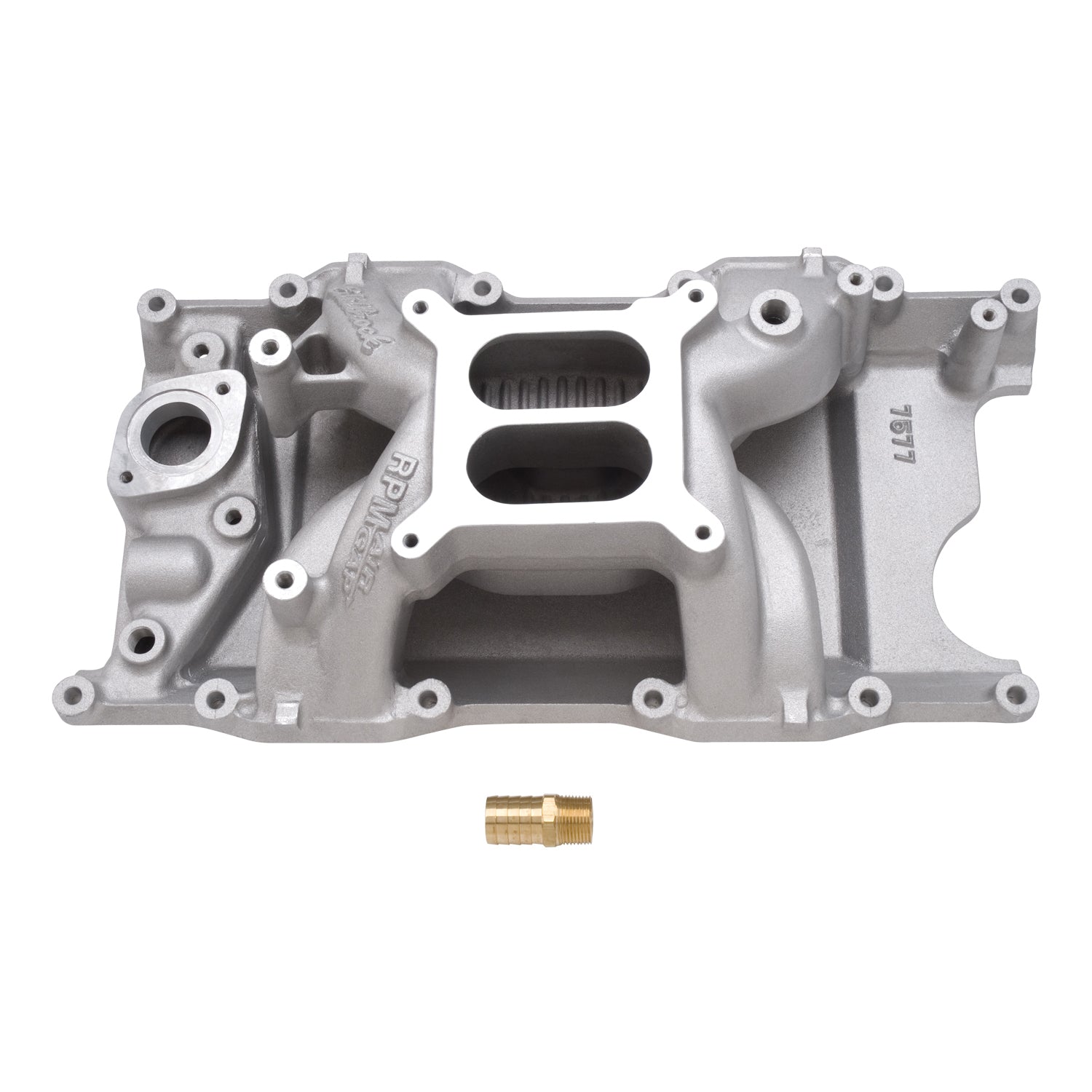

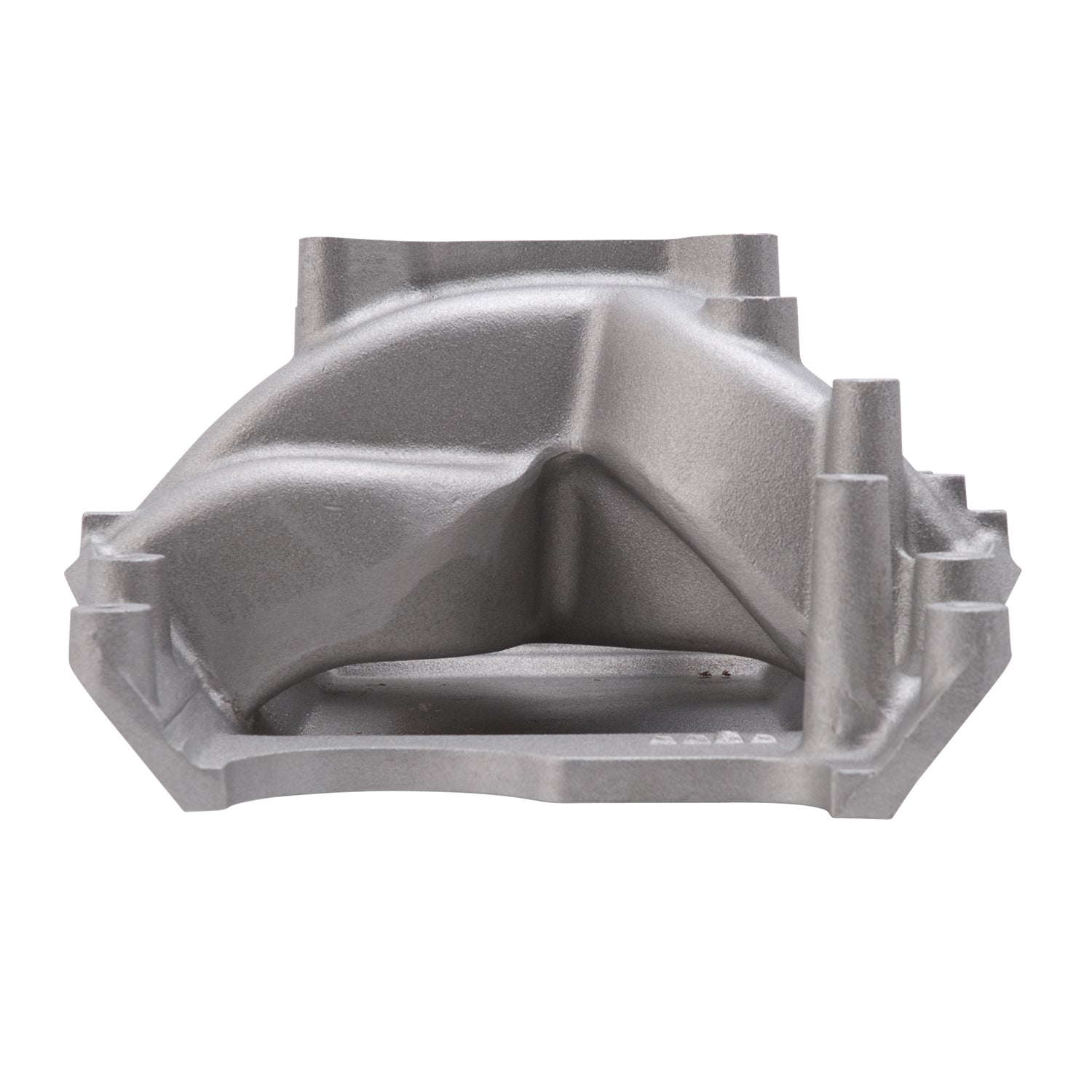

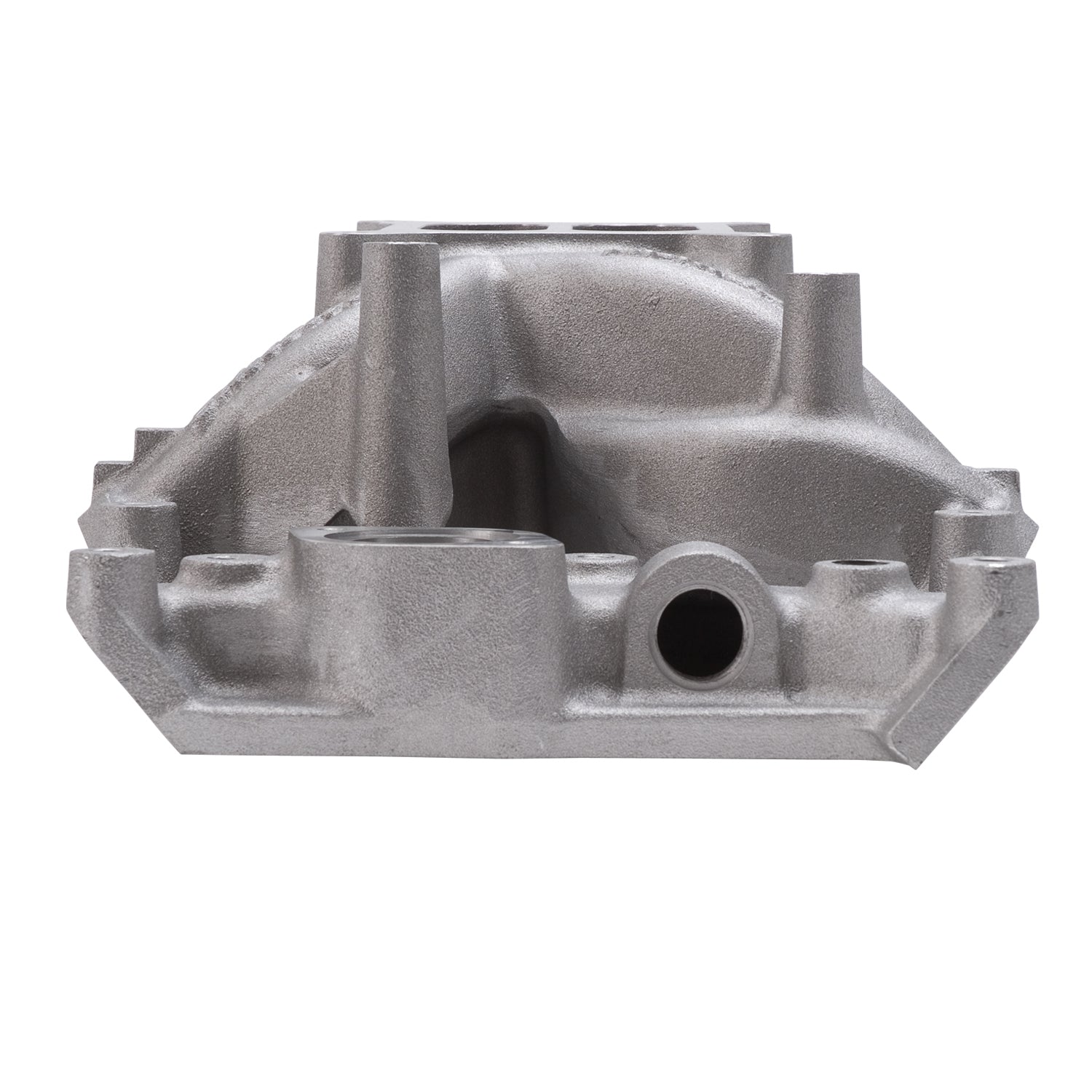

Edelbrock part #7577 RPM Air-Gap Magnum intake manifold is designed for 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum V8 applications. The RPM Air-Gap manifold allows the use of a carburetor for engine swaps in early muscle cars and street rods. This dual-plane manifold design incorporates the same race-winning Air-Gap technology that's been used on our Victor Series competition intakes for decades for outstanding performance in the 1500 to 6500 rpm range. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Match with Performer RPM Magnum cylinder heads #61779 for maximum performance.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chrysler:Magnum:318 (5.2L)/360 (5.9L) |
| Description_DEF |
Engine Intake Manifold |
| Description_MKT |
Edelbrock part #7577 RPM Air-Gap Magnum intake manifold is designed for 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum V8 applications. The RPM Air-Gap manifold allows the use of a carburetor for engine swaps in early muscle cars and street rods. This dual-plane manifold design incorporates the same race-winning Air-Gap technology that's been used on our Victor Series competition intakes for decades for outstanding performance in the 1500 to 6500 rpm range. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Match with Performer RPM Magnum cylinder heads #61779 for maximum performance. |
| Description_EXT |
Edelbrock RPM Air-Gap Intake Manifold for 318-340-360 Chrysler Small Block Magnum engines |
| Description_LAB |
RPM Air-Gap Small Block Chrysler Magnum Intake Manifold |
| Description_INV |
RPM Air-Gap Magnum Intake Manifold |
| Description_TRA |
Recommended intake gasket: Edelbrock #7277, Mopar Performance #4876049 (or equivalent) |
| Description_TRA |
Manifold height: A-4.75", B-5.8" |
| Description_TRA |
Carb pad height: 5.27" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use #1481 or #1843 throttle/transmission lever kit. |
| Description_TRA |
Port exit dimensions: 1.08" x 2.10" |
| Description_TRA |
Accepts Magnum water neck only. |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Series |
RPM Air-Gap |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Dual |
| Rear Maximum Height |
5.800 |
| Material |
Aluminum |
| Basic Operating RPM Range |
1500-6500 |
| Front Maximum Height |
4.750 |
| Gasket Or Seal Included |
No |
| Vehicle Model |
Chrysler |
| Center Maximum Height |
5.270 |
| Finish |
Satin |
| Flange Type |
4150 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| EGR Port |
No |
| CNC Ported |
No |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
21.0000 |
