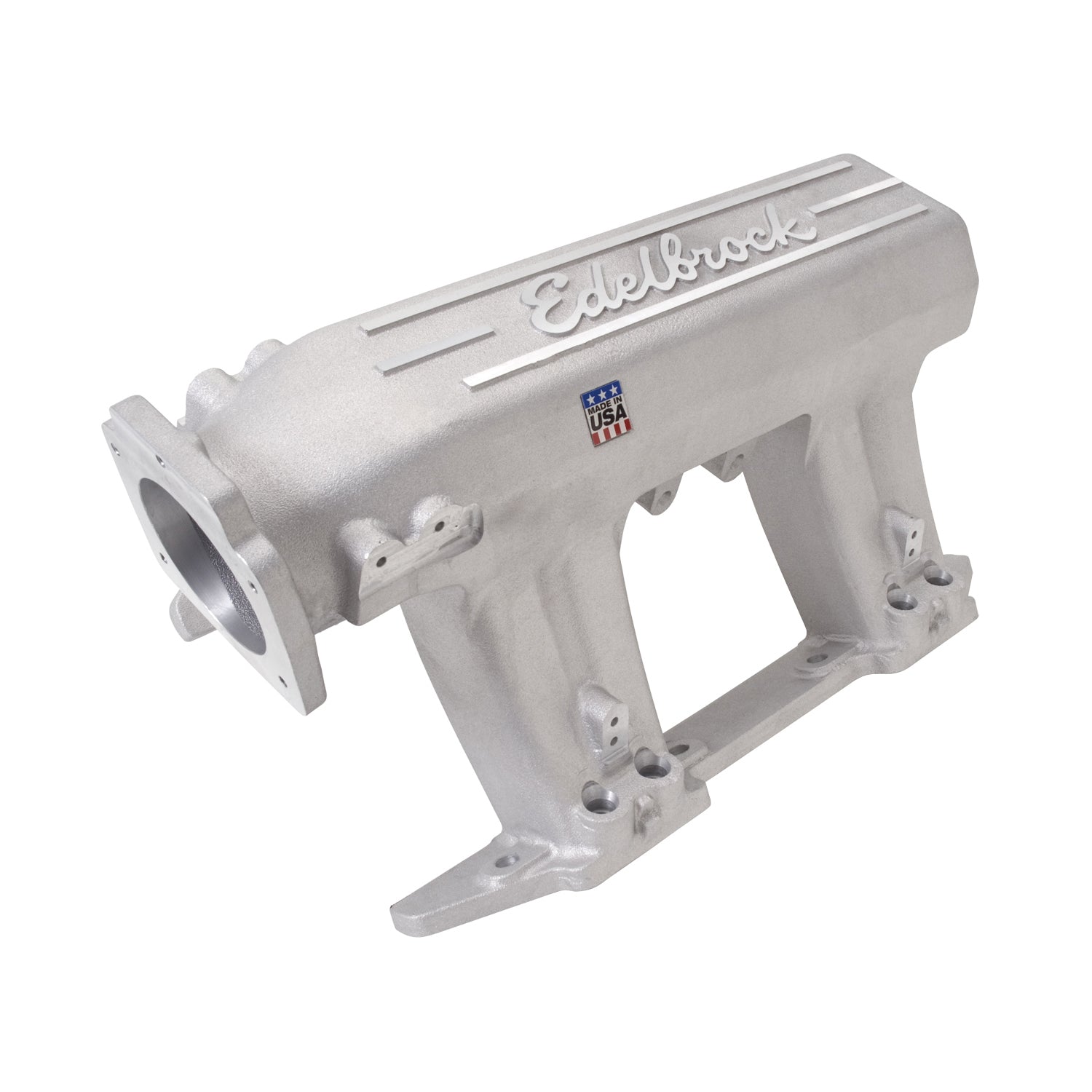

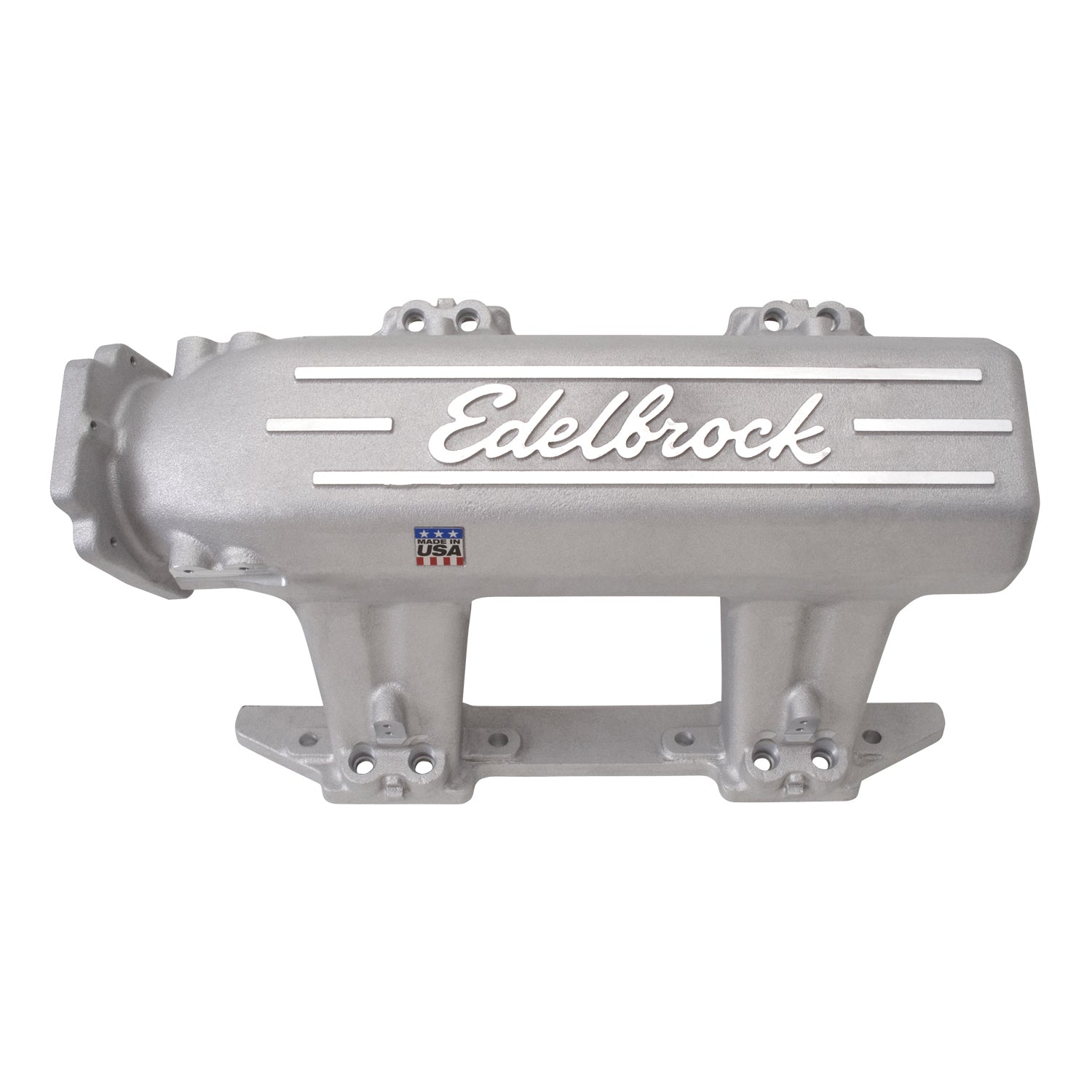

Edelbrock 7144 Pro Flo XT Chrysler 440 Intake Manifold

2 sold in last 8 days
Edelbrock
ds_BDVJ_7144
Engine Intake Manifold
$901.95
customers are viewing this product
Edelbrock 71393 Black Pro Flo XT LS1 Intake Manifold
Edelbrock 71393 Black Pro Flo XT LS1 Intake Manifold
$1,106.37
Edelbrock 7531 RPM AMC Air-Gap 1970-91 Intake Manifold
Edelbrock 7531 RPM AMC Air-Gap 1970-91 Intake Manifold
$813.42
Edelbrock 7144 Pro Flo XT Chrysler 440 Intake Manifold
Details

The Pro-Flo XT Chrysler 440 #7144 EFI intake manifold is engineered with a large plenum and long tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range 1500-7000 rpm. Features include a 90mm throttle bore opening. This manifold produced 20 more horsepower over our #35090 manifold at 5500 rpm. Accepts Pro-Flo XT throttle body #3869 or Ford throttle body #3818. Compatible with B/B Chrysler XT Fuel Rail Kit #3644 (sold separately).

Specifications:

Description_ABR Intake Mnfld
Description_ASM Chrysler:Big-Block RB Series:413 (6.8L)/426 (7.0L)/440 (7.2L)
Description_DEF Engine Intake Manifold
Description_EXT Edelbrock Pro-Flo XT EFI Intake Manifold for Chrysler 413-426-440 Big-Block V8
Description_MKT The Pro-Flo XT Chrysler 440 #7144 EFI intake manifold is engineered with a large plenum and long tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range 1500-7000 rpm. Features include a 90mm throttle bore opening. This manifold produced 20 more horsepower over our #35090 manifold at 5500 rpm. Accepts Pro-Flo XT throttle body #3869 or Ford throttle body #3818. Compatible with B/B Chrysler XT Fuel Rail Kit #3644 (sold separately).
Description_LAB Pro-Flo XT Chrysler Big Block RB EFI Intake Manifold
Description_INV Pro Flo XT Chrysler 440 Intake Manifold
Description_TRA Recommended gasket: Edelbrock #7255.
Description_TRA Throttle body recommendations: Edelbrock #3869, #38693, #3818, or #38183
Description_TRA Manifold Dimensions: A-9.70", B-9.60", C-15.90", D-4.0", E-15 Deg
Description_TRA Port exit dimensions: 1.12" x 2.12"
Description_TRA Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
Description_TRA Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
EGR Port No
Material Aluminum
Finish Satin
Flange Type Throttle Body XT
Rear Maximum Height 9.600
CNC Ported No
Grade Type Performance
Series Pro-Flo XT
Single Or Dual Plane Type Single
Center Maximum Height 9.700
Gasket Or Seal Included No
Vehicle Model Chrysler
RGL WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Basic Operating RPM Range 1500-7000
Front Maximum Height 9.700
Length 14.0000
Width 15.0000
Height 24.0000
Weight 23.0000
