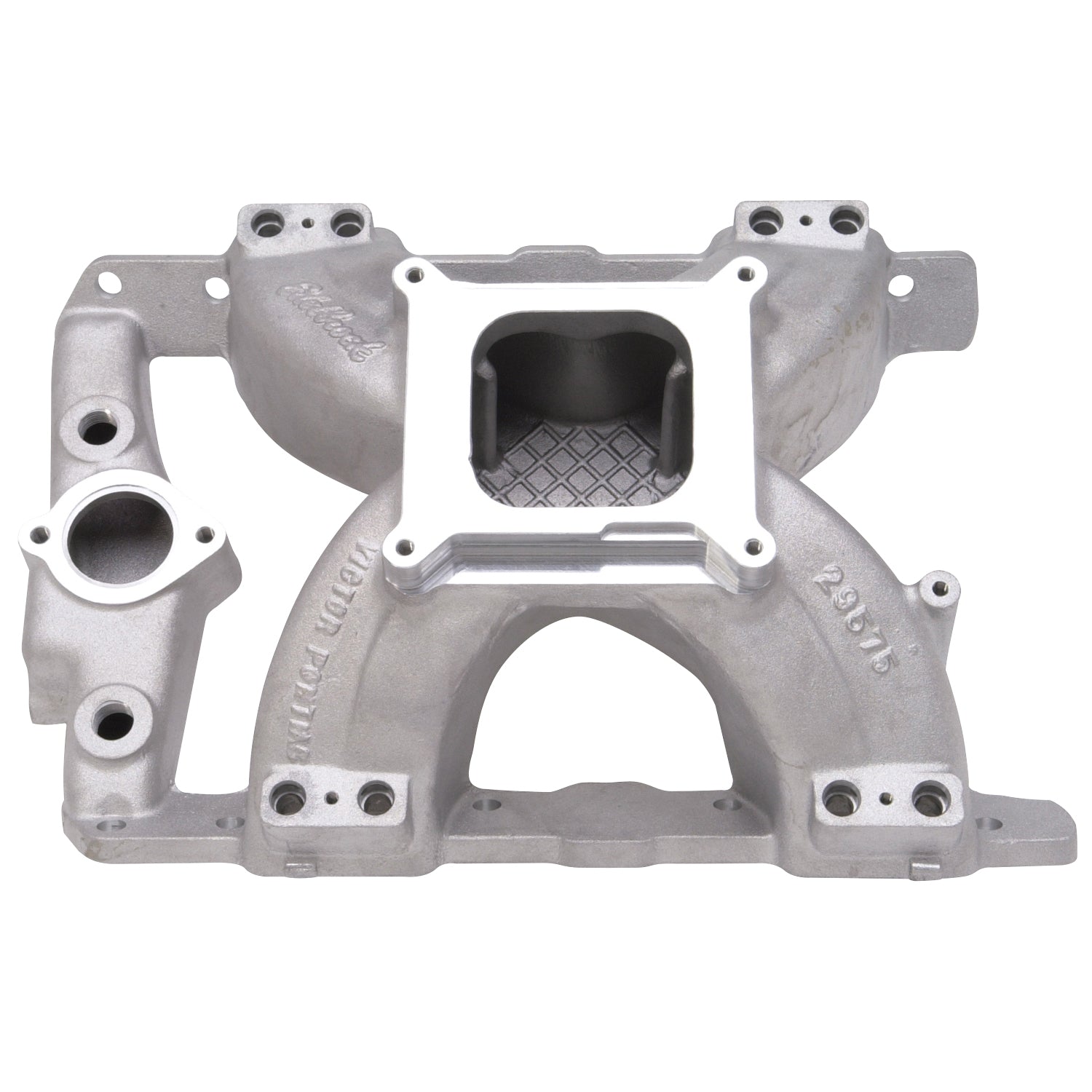

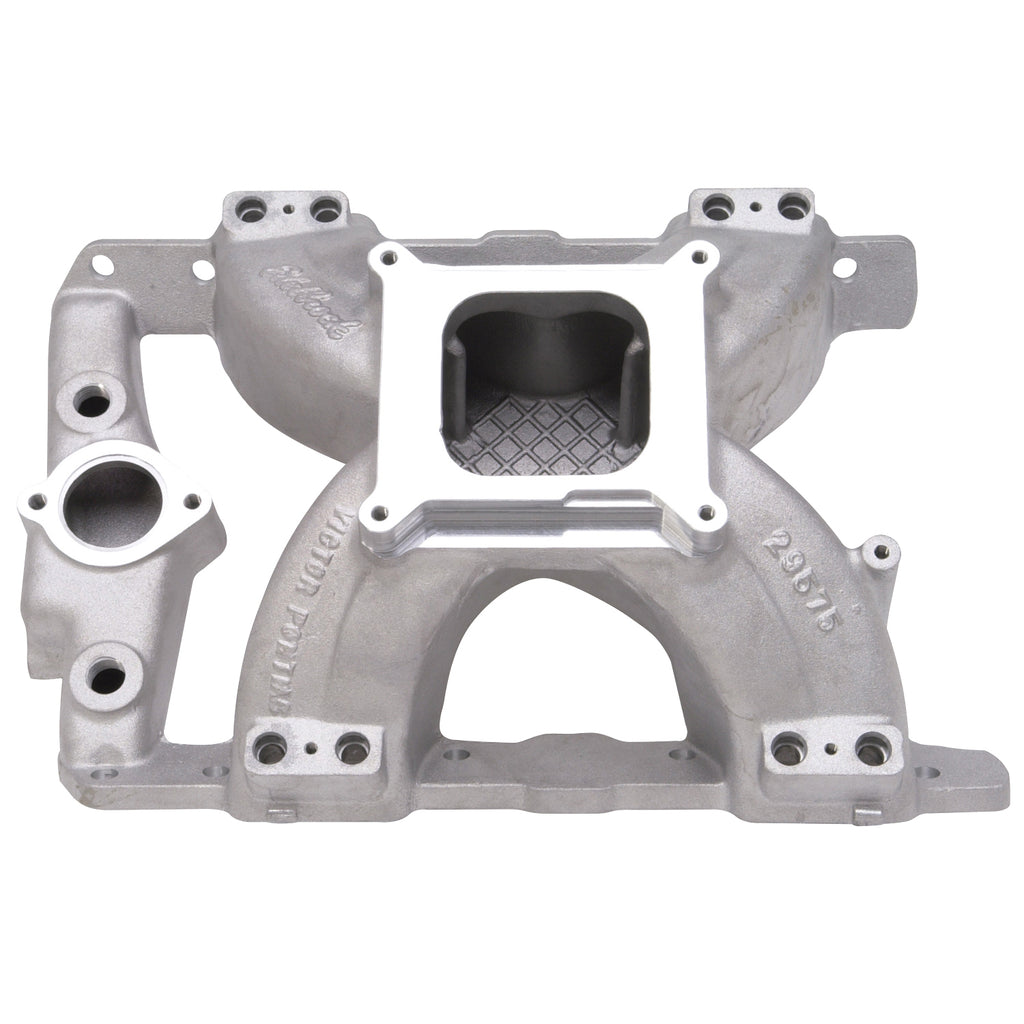

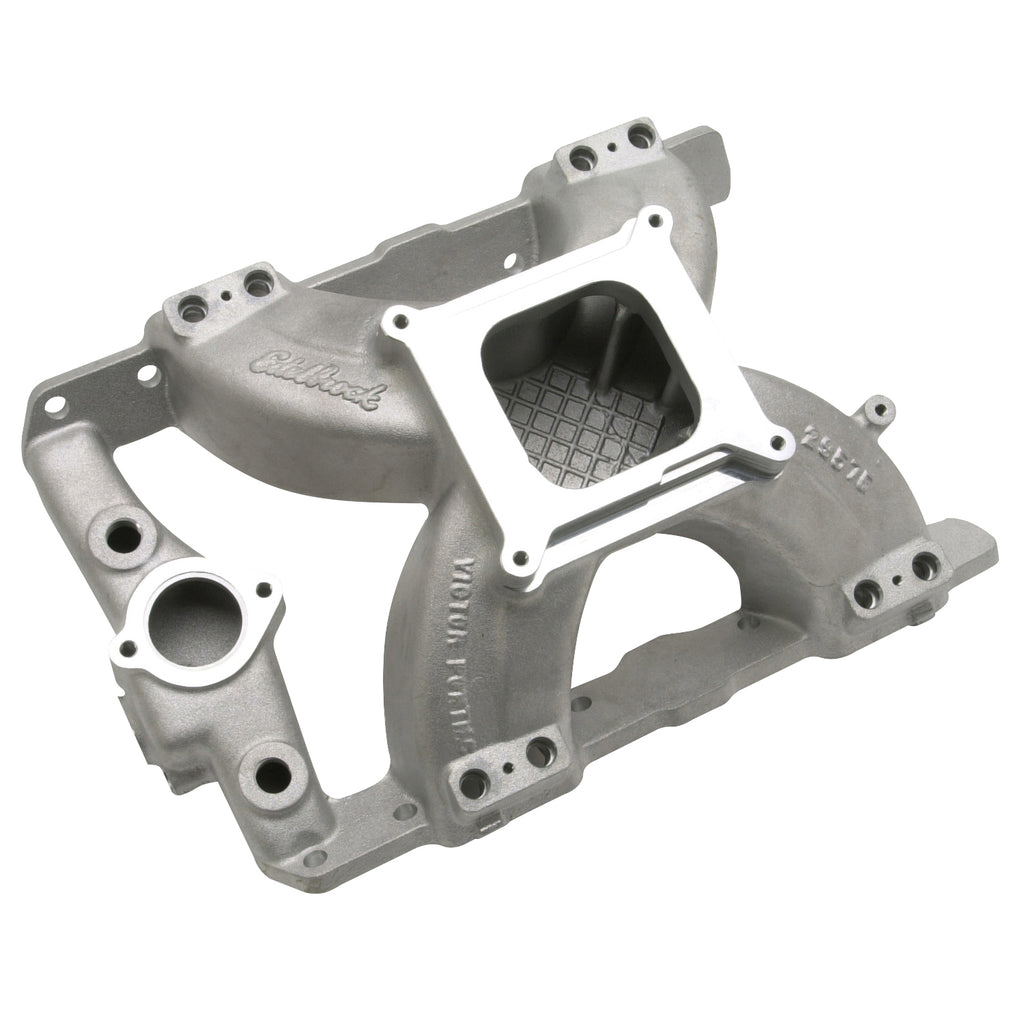

Edelbrock part #29575 Victor Pontiac EFI intake manifold is designed for use with 389-455 EFI competition engines. It is ideal for drag racing (Super Stock, Super Gas, Super Comp, Brackets, etc.), marine or any application requiring maximum power up to 7500 rpm. Compatible with standard Pontiac cast iron heads, or use with Edelbrock Performer RPM Pontiac aluminum heads for maximum power. Port exit size at head is 1.08" x 2.10" with enough material to open it up to larger port openings. This intake manifold is machined for use with 4150 series carburetors and throttle bodies.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4) |
| Description_DEF |
Engine Intake Manifold |
| Description_MKT |
Edelbrock part #29575 Victor Pontiac EFI intake manifold is designed for use with 389-455 EFI competition engines. It is ideal for drag racing (Super Stock, Super Gas, Super Comp, Brackets, etc.), marine or any application requiring maximum power up to 7500 rpm. Compatible with standard Pontiac cast iron heads, or use with Edelbrock Performer RPM Pontiac aluminum heads for maximum power. Port exit size at head is 1.08" x 2.10" with enough material to open it up to larger port openings. This intake manifold is machined for use with 4150 series carburetors and throttle bodies. |
| Description_LAB |
Super Victor EFI Pontiac Intake Manifold for 4150 Series Throttle Body |
| Description_EXT |
Edelbrock Super Victor EFI Pontiac Intake Manifold for 4150 Series Throttle Bodies for Pontiac 326-455 V8 |
| Description_INV |
EFI Super Vic Pontiac STD Flange Intake |
| Description_TRA |
Recommended intake gasket: Edelbrock #7280 |
| Description_TRA |
Manifold height: A-7.70", B-7.70" measured to engine block |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Material |
Aluminum |
| Rear Maximum Height |
7.700 |
| CNC Ported |
No |
| Single Or Dual Plane Type |
Single |
| Finish |
Satin |
| Flange Type |
4150 |
| Basic Operating RPM Range |
3500-7500 |
| Series |
Victor |
| EGR Port |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Grade Type |
Performance |
| Vehicle Model |
Pontiac |
| Center Maximum Height |
7.700 |
| Front Maximum Height |
7.700 |
| Gasket Or Seal Included |
No |
| Length |
10.0000 |
| Width |
17.0000 |
| Height |
22.0000 |
| Weight |
22.0000 |
