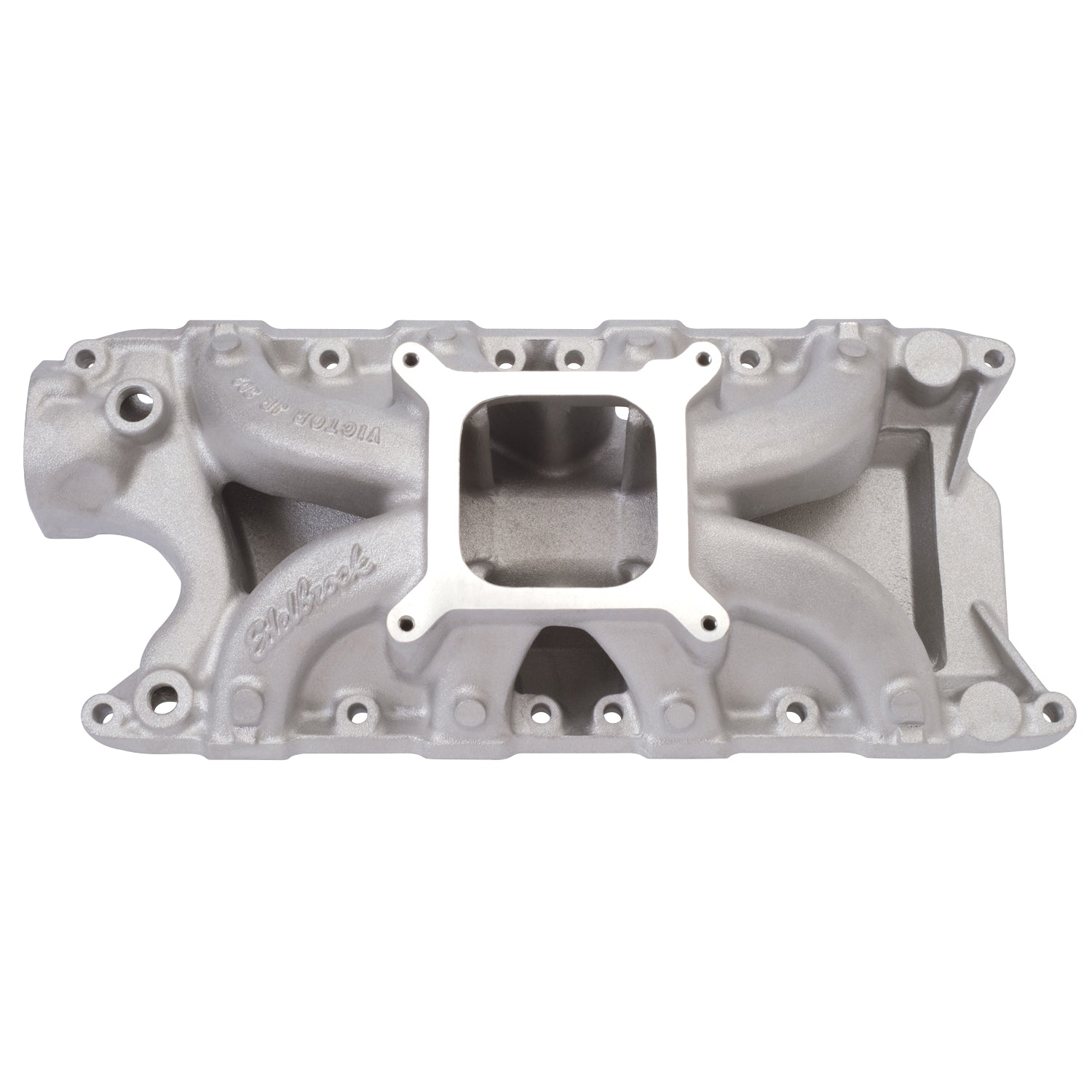

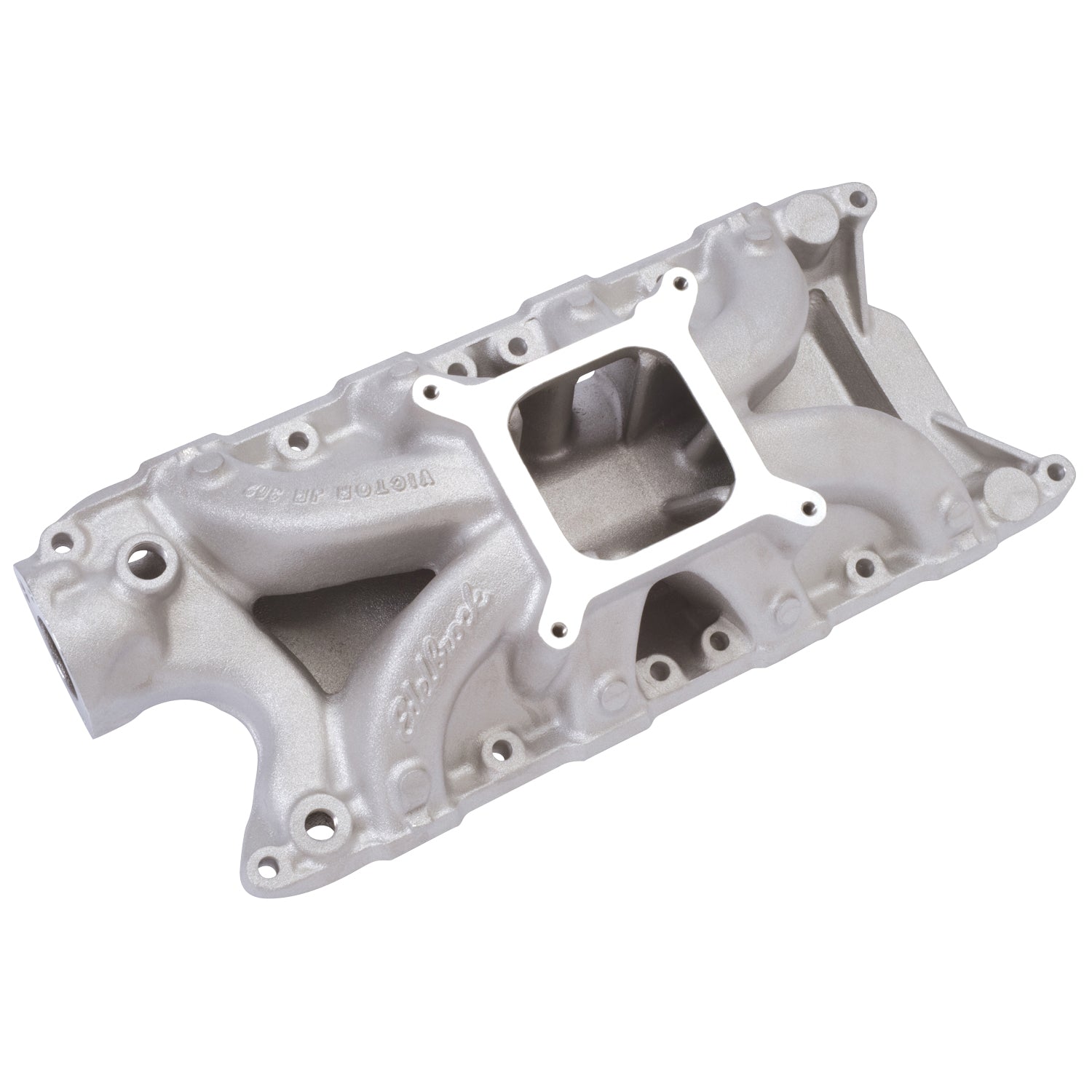

Edelbrock part #2921 Victor Jr. 302 intake manifold is designed for Ford 289-302 competition engines using modified stock cast iron or aftermarket Windsor-style cylinder heads such as Edelbrock #60259 and #77169 or equivalent. This intake manifold has bosses for rear water crossover. Port exit size at cylinder head is 1.08" x 1.90" with extra material to accommodate a 1.18" x 2.10" opening. This Victor Jr. is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L) |
| Description_DEF |
Engine Intake Manifold |
| Description_INV |
Victor Jr Ford 8.2 Deck Intake Manifold |
| Description_EXT |
Edelbrock Victor Jr. 302 Intake Manifold for Ford 289-347 Small-Block V8 |
| Description_MKT |
Edelbrock part #2921 Victor Jr. 302 intake manifold is designed for Ford 289-302 competition engines using modified stock cast iron or aftermarket Windsor-style cylinder heads such as Edelbrock #60259 and #77169 or equivalent. This intake manifold has bosses for rear water crossover. Port exit size at cylinder head is 1.08" x 1.90" with extra material to accommodate a 1.18" x 2.10" opening. This Victor Jr. is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds. |
| Description_LAB |
Victor Jr. 302 Intake Manifold Small-Block Ford |
| Description_TRA |
Recommended intake gasket: Edelbrock #7220 or Fel-Pro #1250 |
| Description_TRA |
Manifold height: A-5.50", B-5.50" |
| Description_TRA |
Carb recommendations: Use appropriate racing carburetor |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| CNC Ported |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Front Maximum Height |
5.500 |
| EGR Port |
No |
| Flange Type |
4150 |
| Vehicle Model |
Ford |
| Rear Maximum Height |
5.500 |
| Single Or Dual Plane Type |
Single |
| Center Maximum Height |
5.500 |
| Material |
Aluminum |
| Finish |
Satin |
| Grade Type |
Performance |
| Series |
Victor |
| Basic Operating RPM Range |
3500-8000 |
| Gasket Or Seal Included |
No |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
19.0000 |
