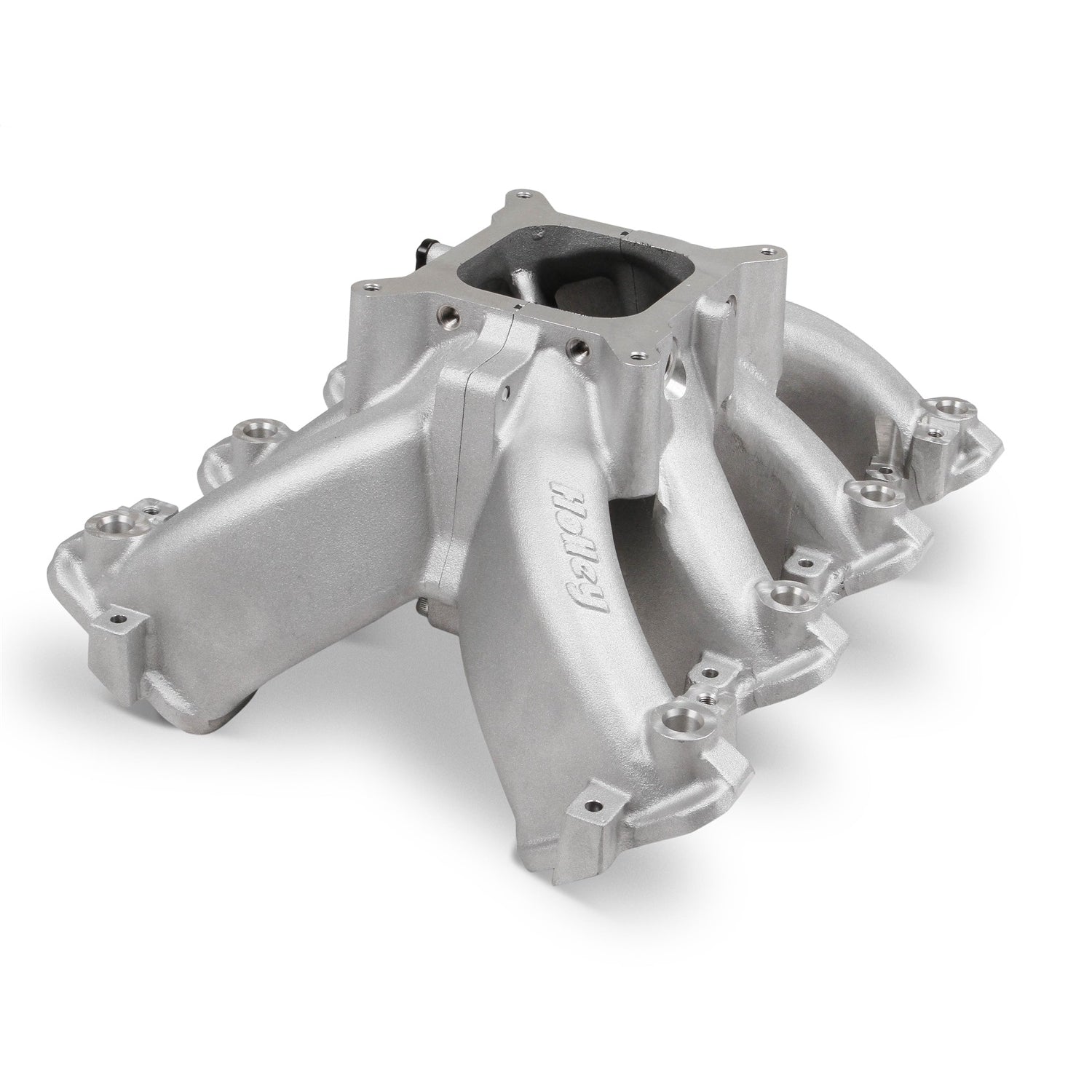

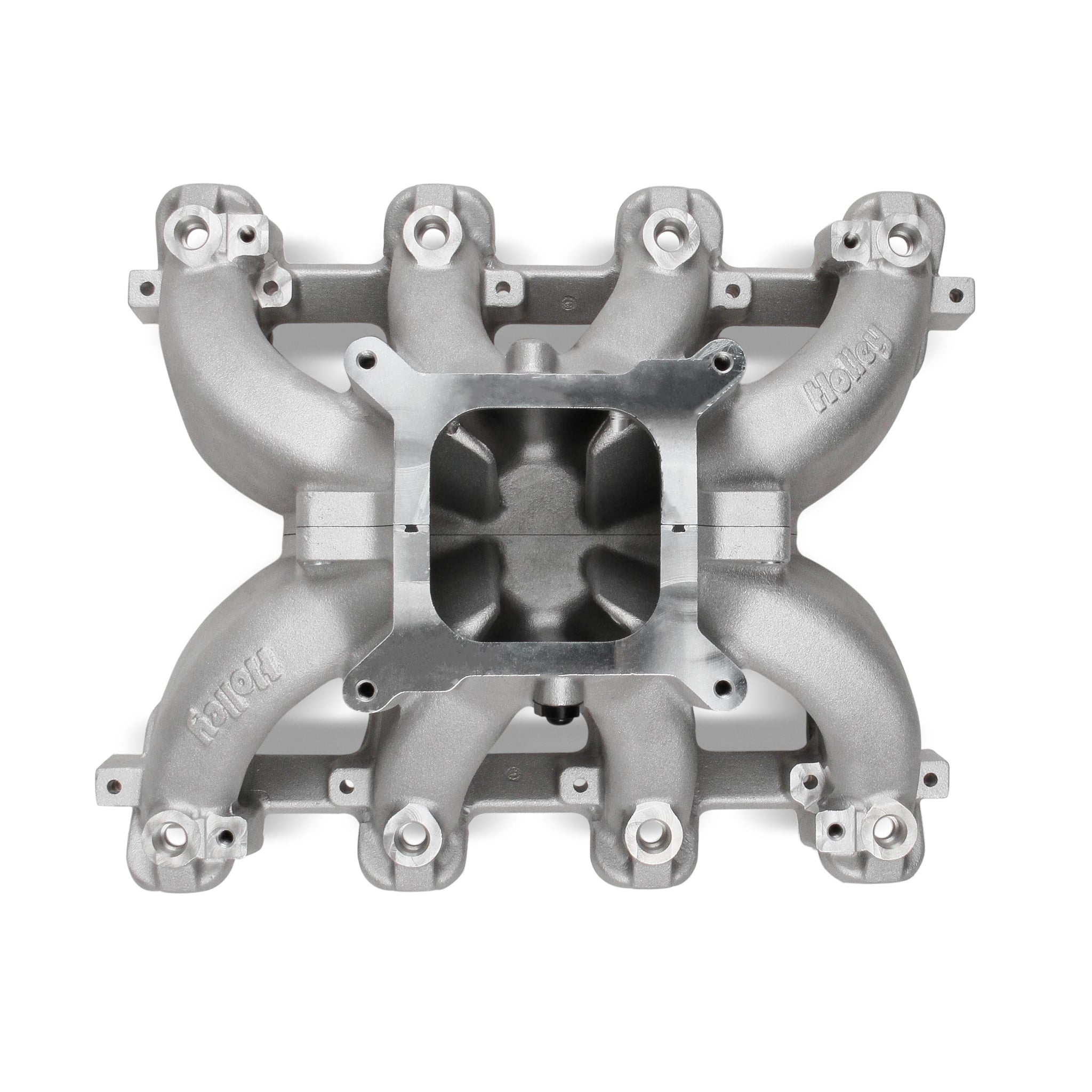

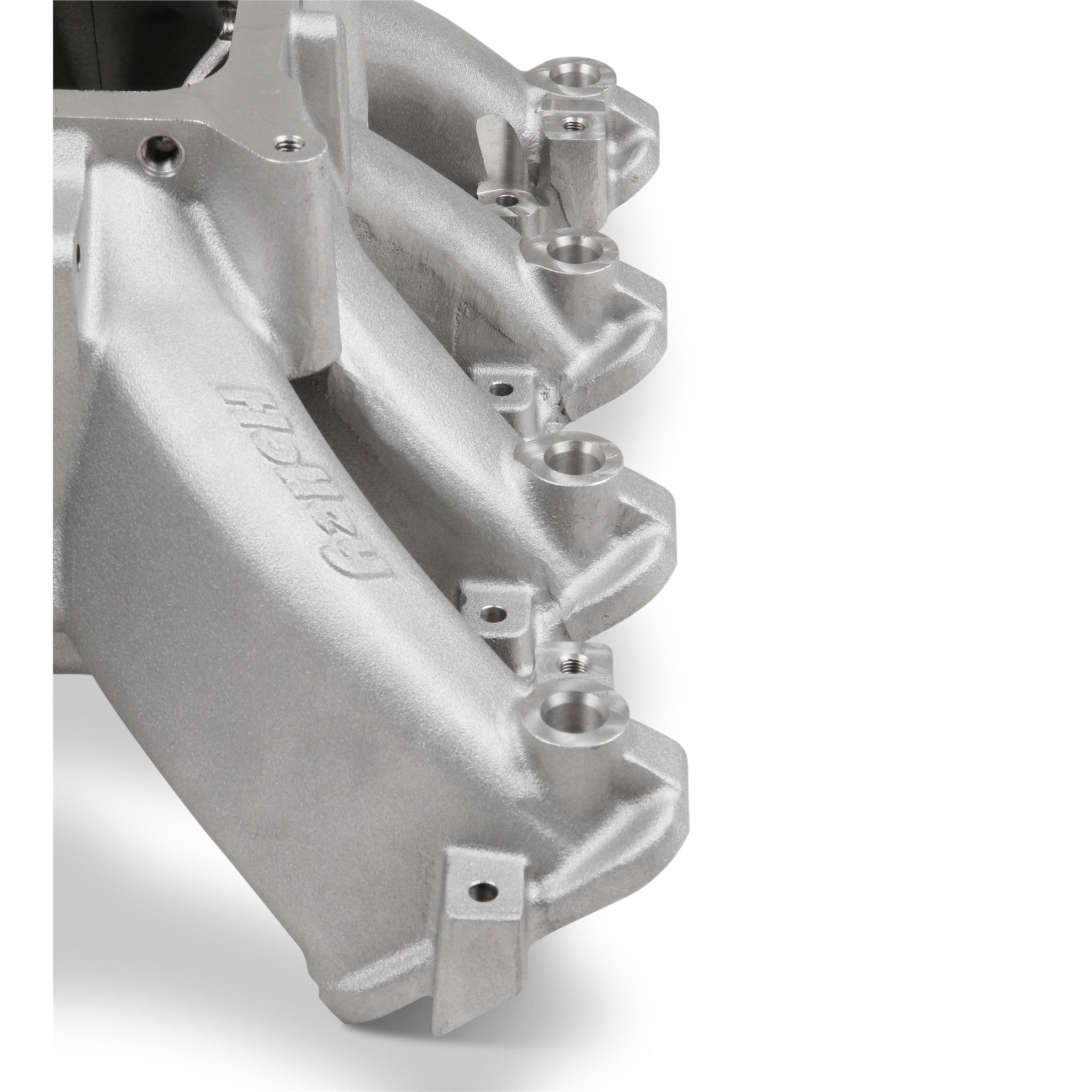

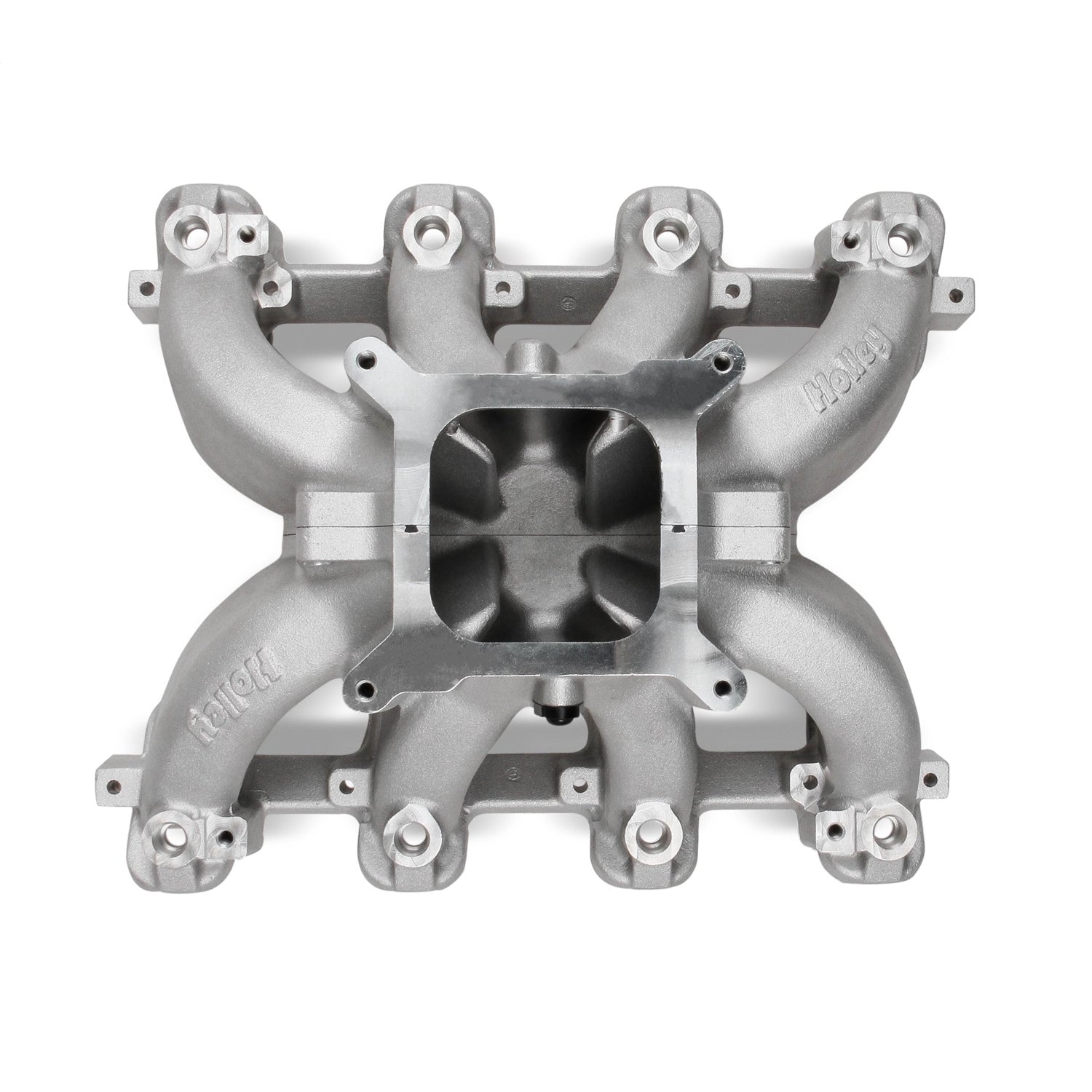

Holley 300-255 Single Plane Efi Split-Design Race Intake Manifold- Gm Ls1/Ls2/Ls6

2 sold in last 8 days
Holley
ds_BBVL_300-255
Engine Intake Manifold
$1,146.41 $1,037.13
$1,037.13
customers are viewing this product
Holley 300-684BK Ultra Lo-Ram Manifold Kit Dual Injector - Black - Gm Ls3/L92
Holley 300-684BK Ultra Lo-Ram Manifold Kit Dual Injector - Black - Gm Ls3/L92
$917.66 $699.58
Edelbrock 29575 EFI Super Vic Pontiac STD Flange Intake
Edelbrock 29575 EFI Super Vic Pontiac STD Flange Intake
$932.48

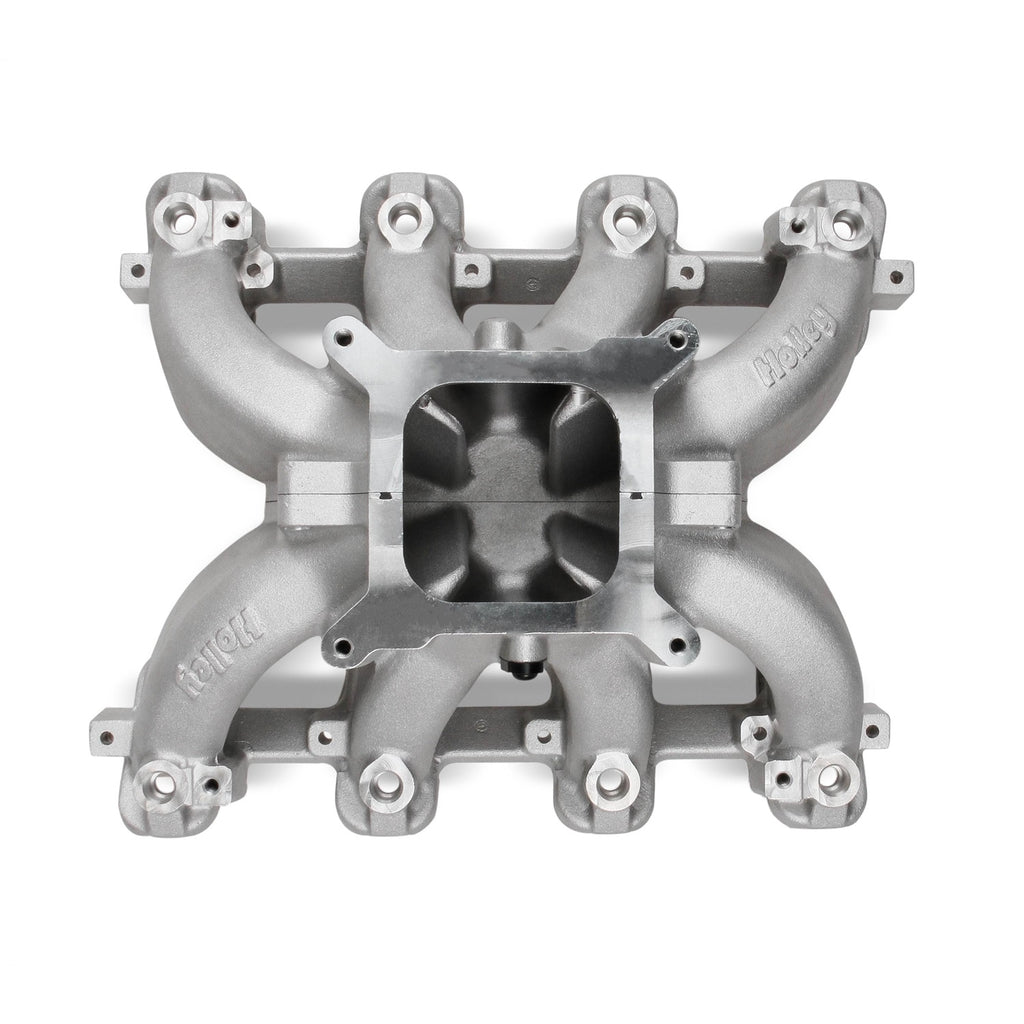

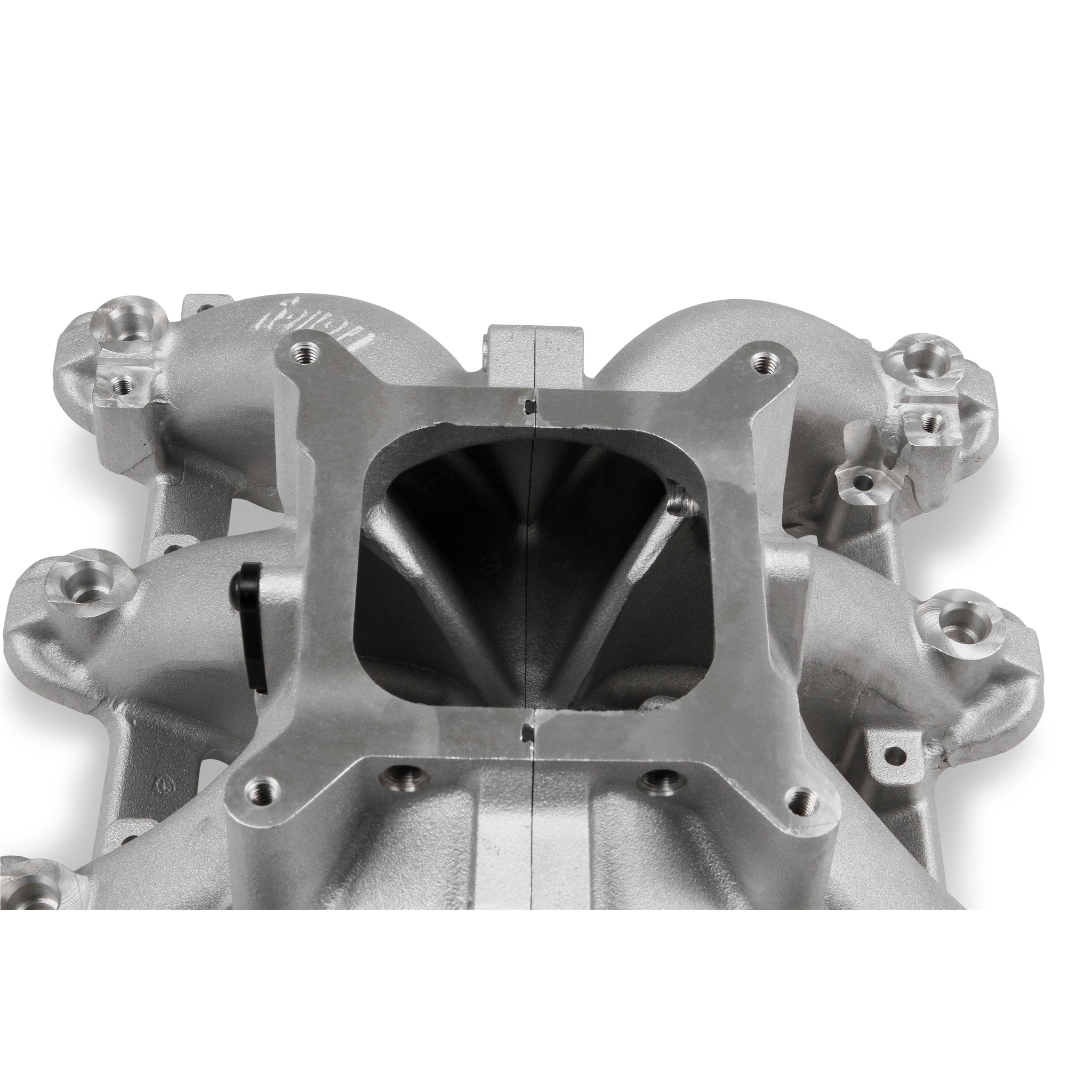

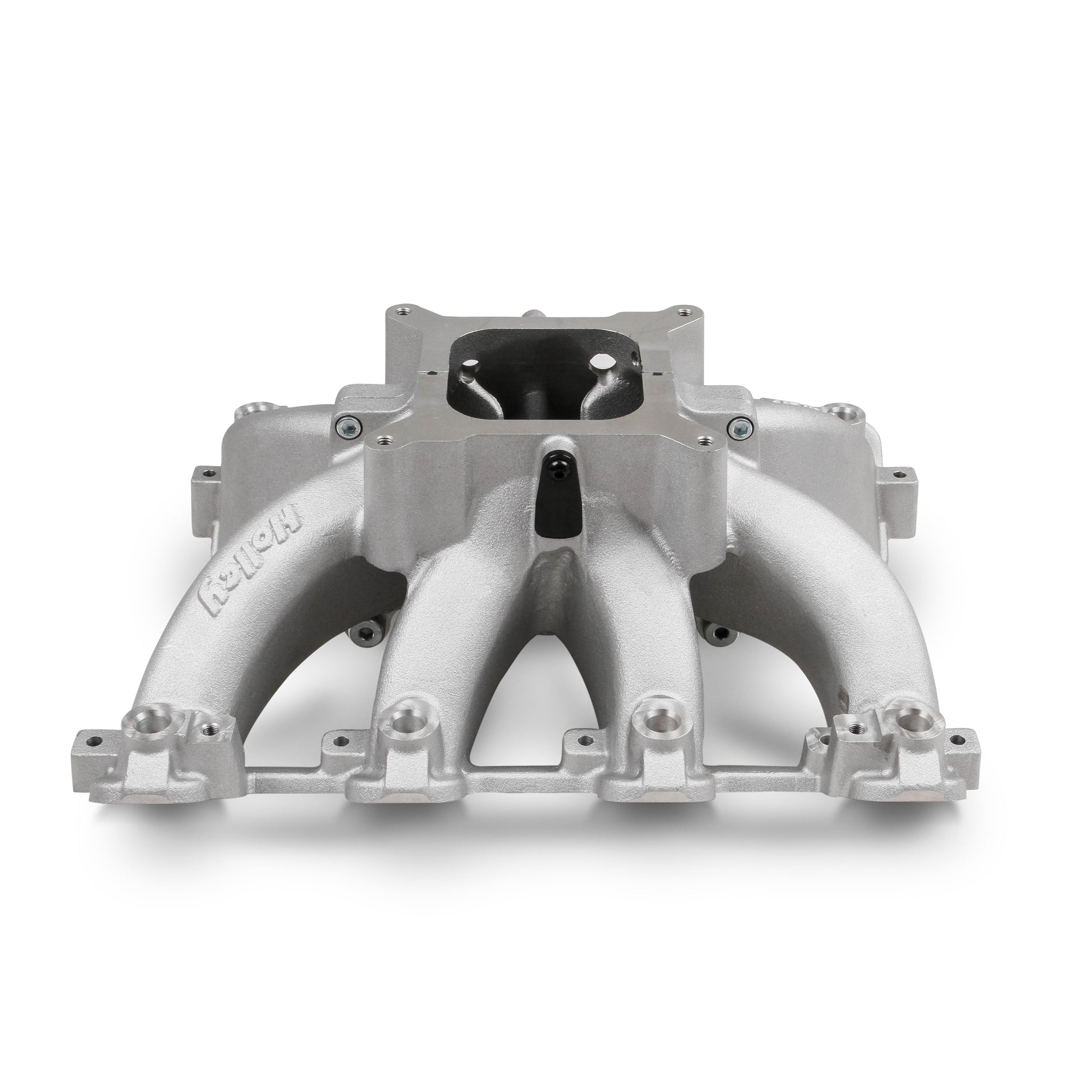

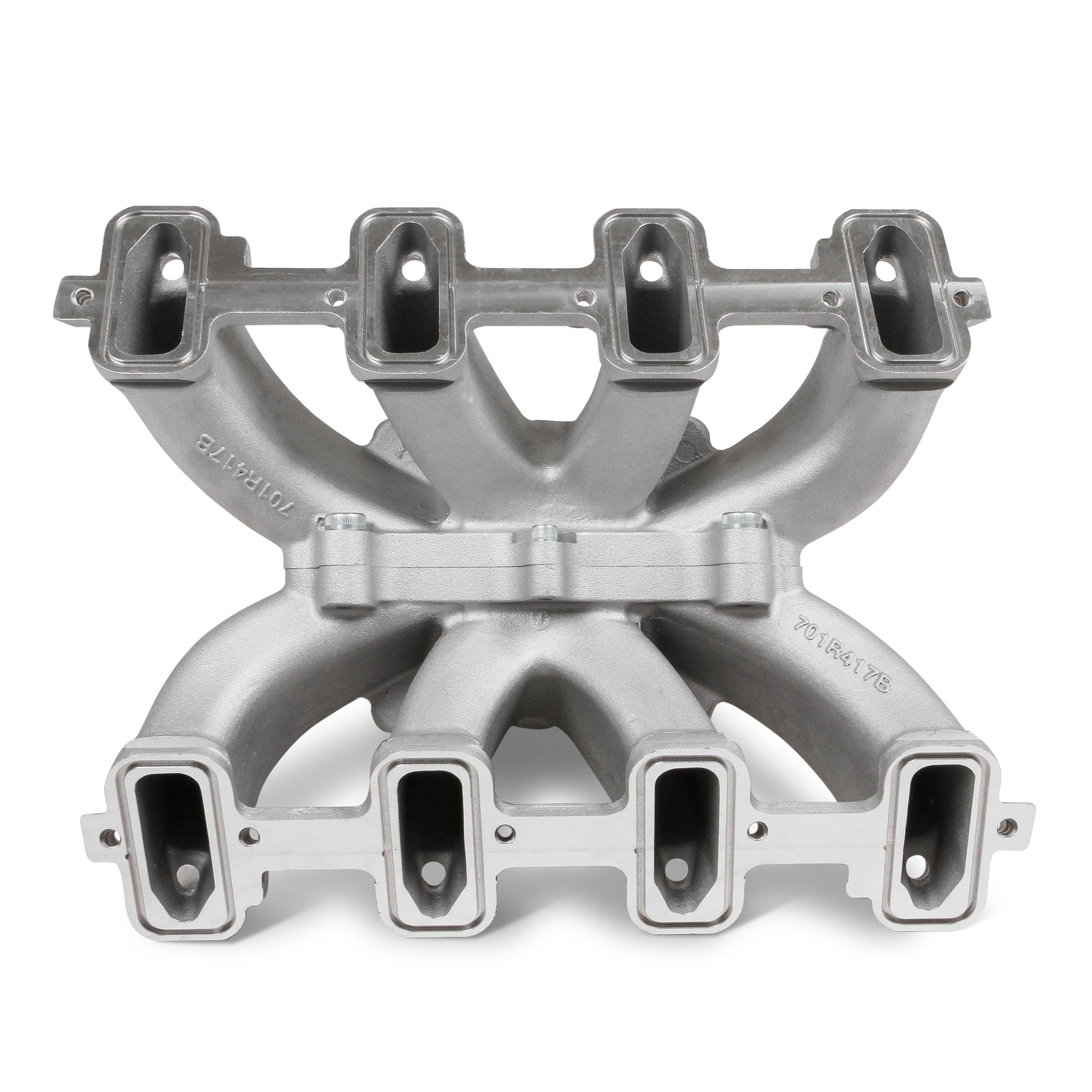

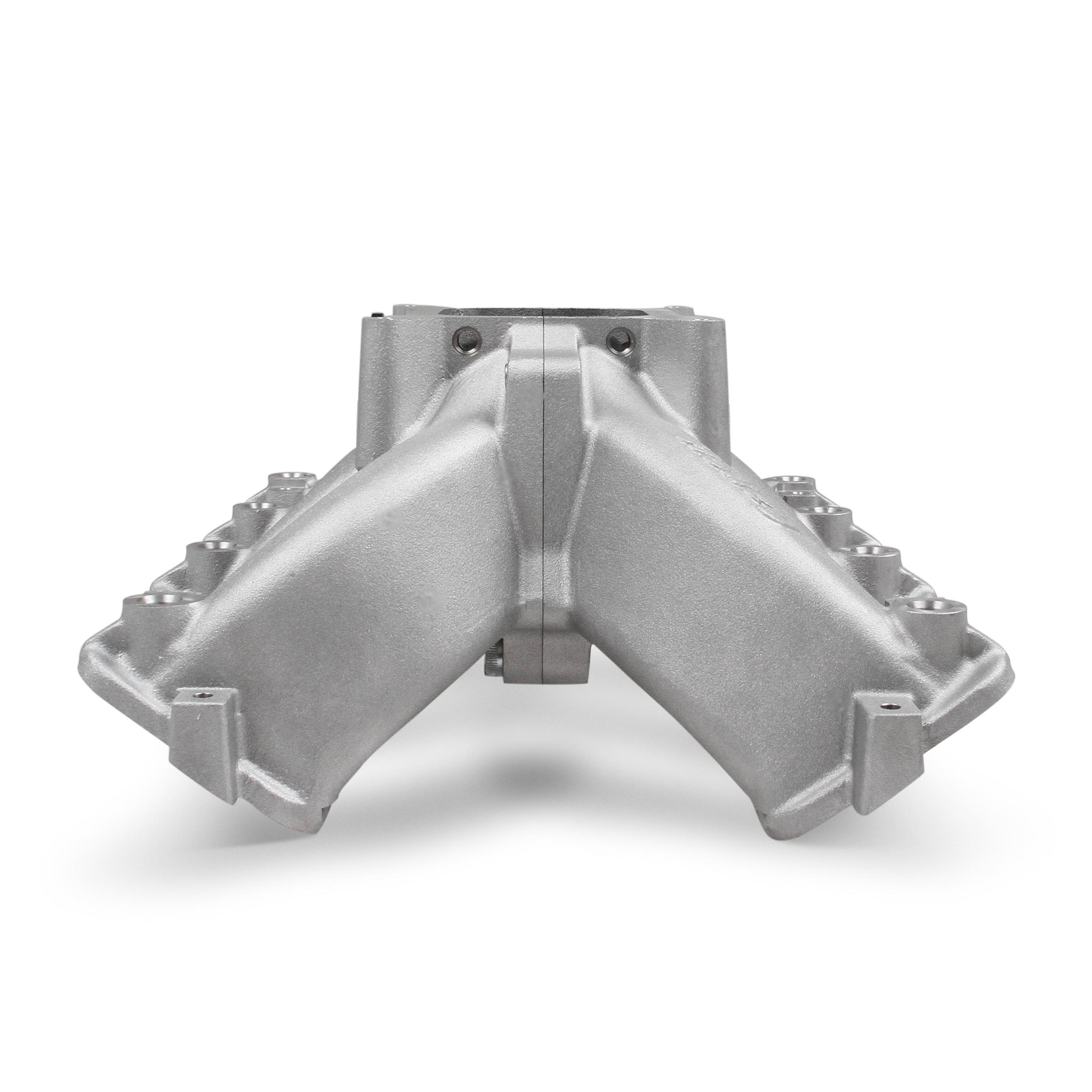

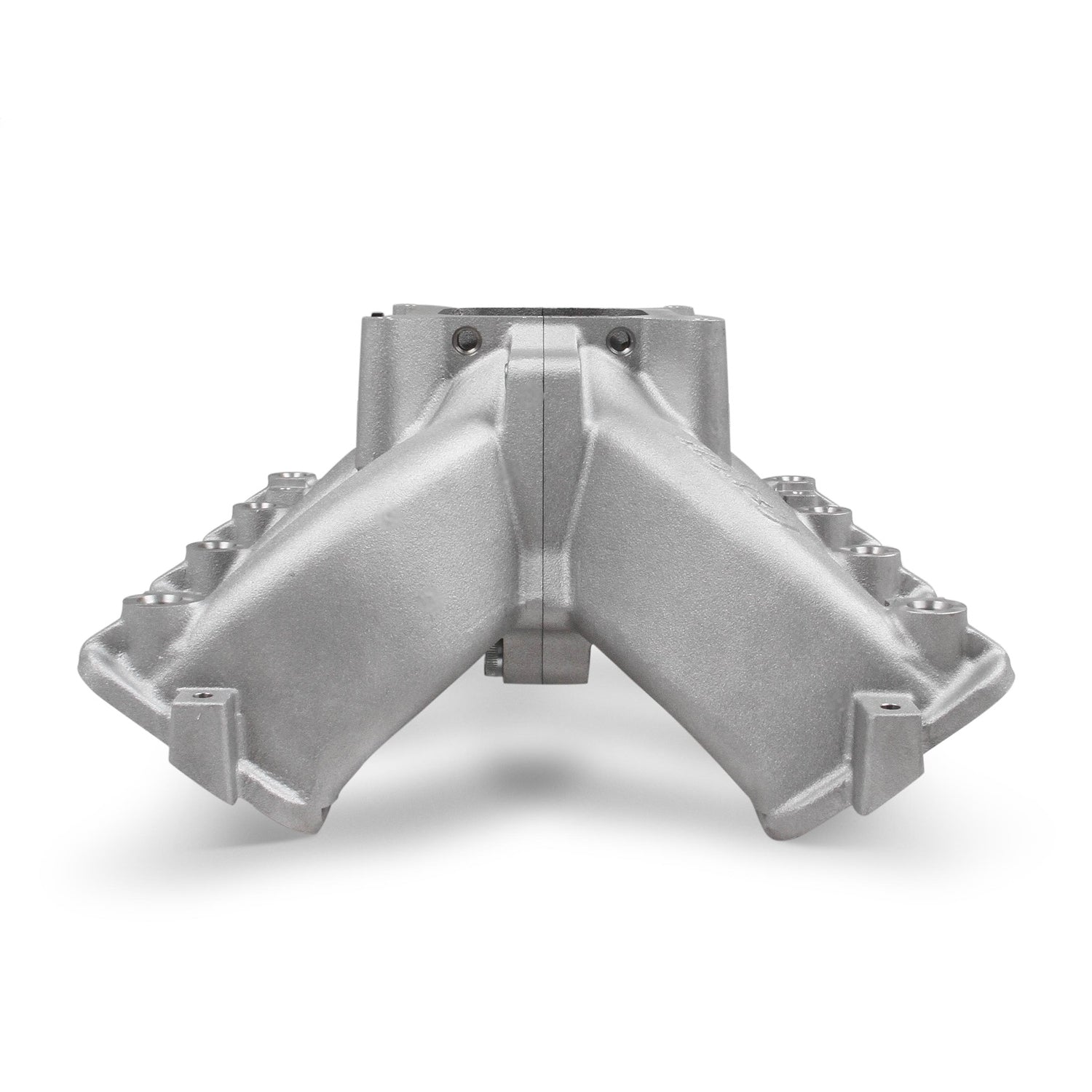

Holley 300-255 Single Plane Efi Split-Design Race Intake Manifold- Gm Ls1/Ls2/Ls6
Details

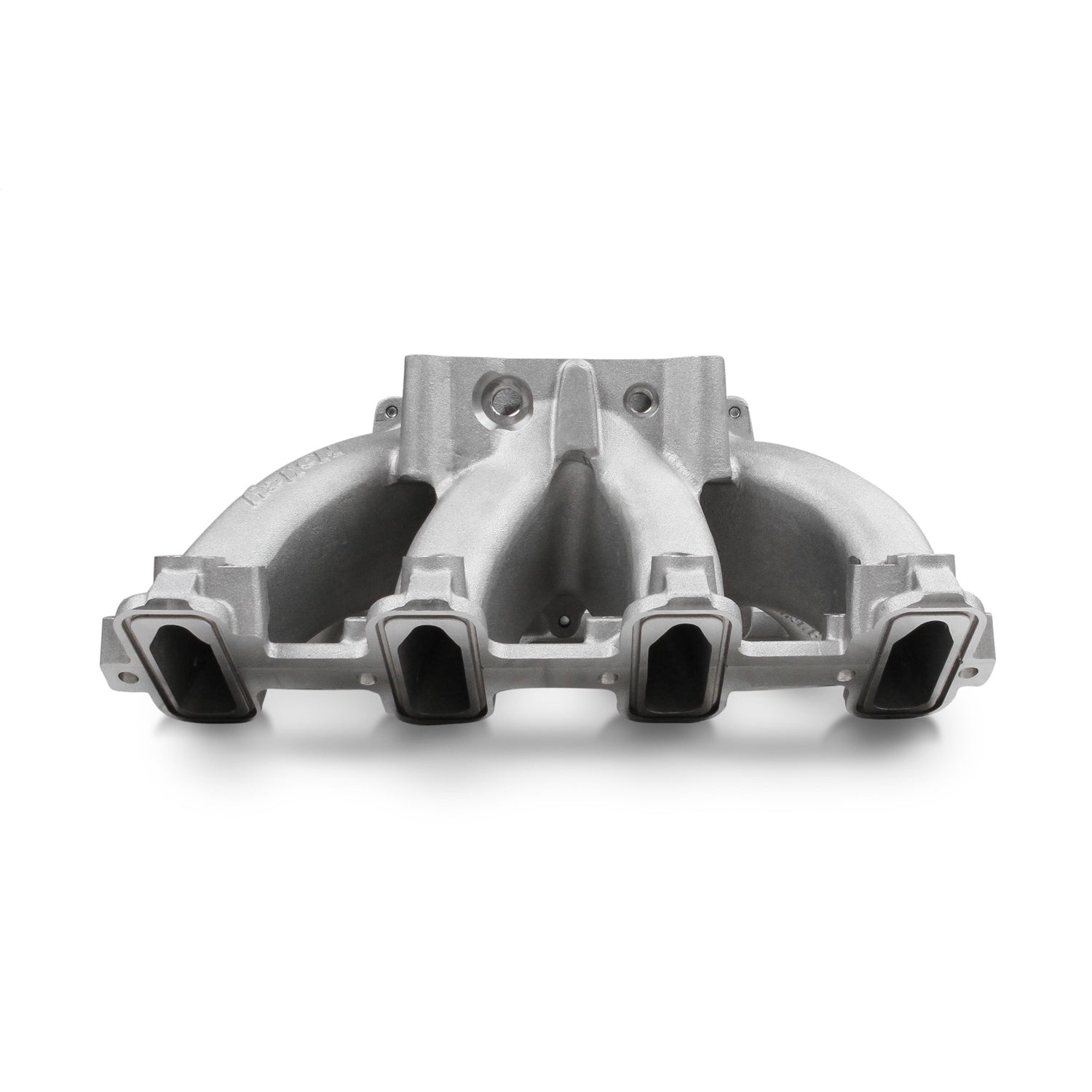

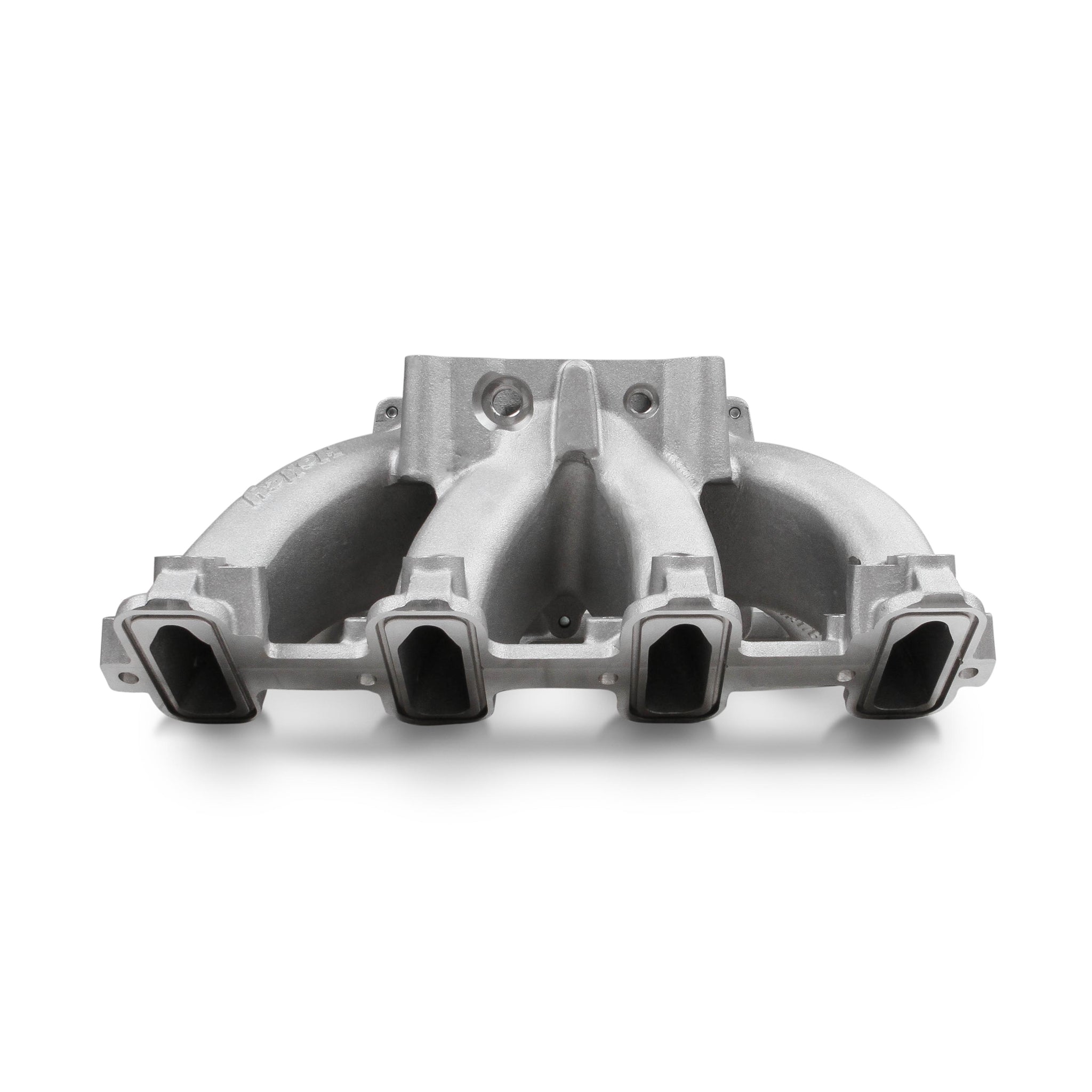

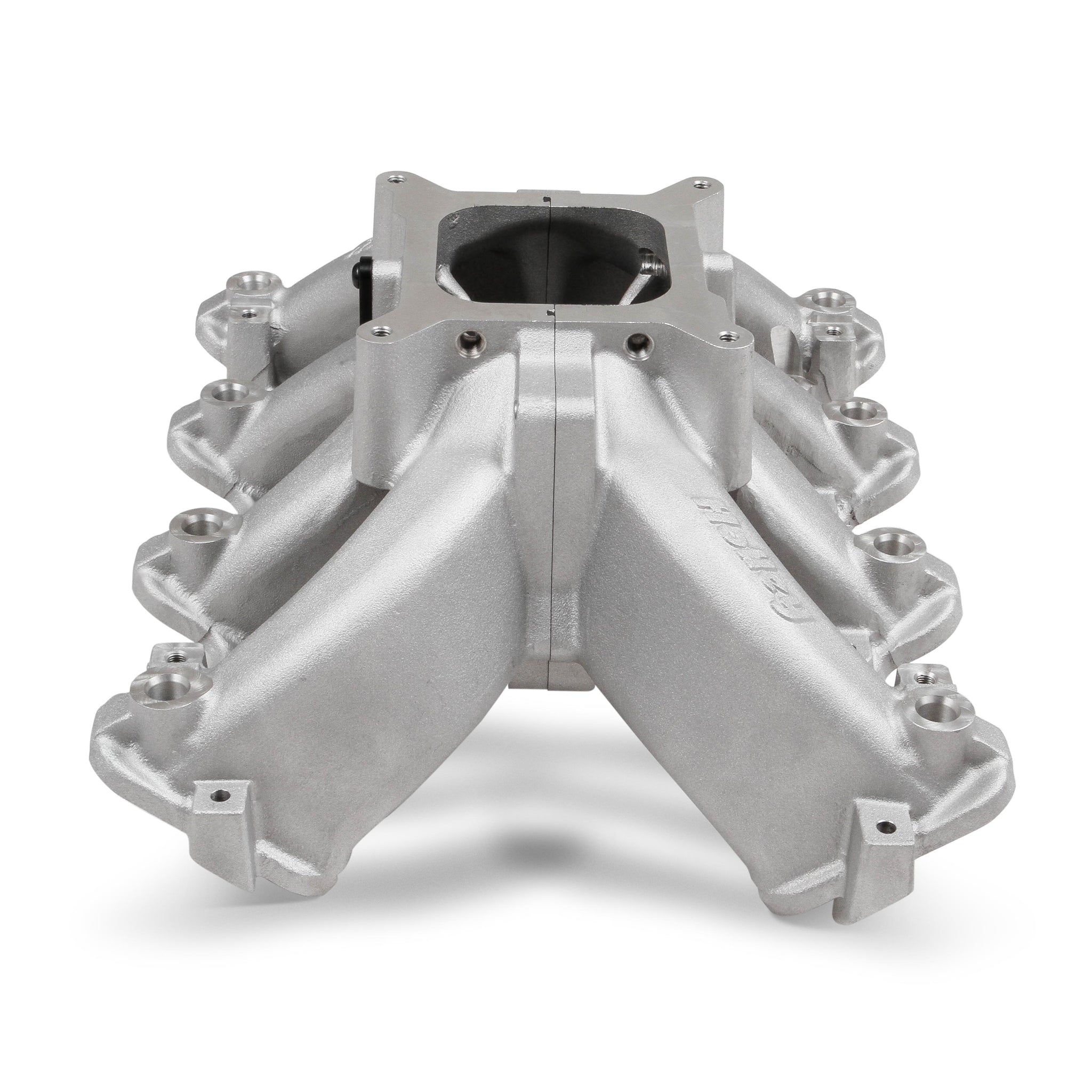

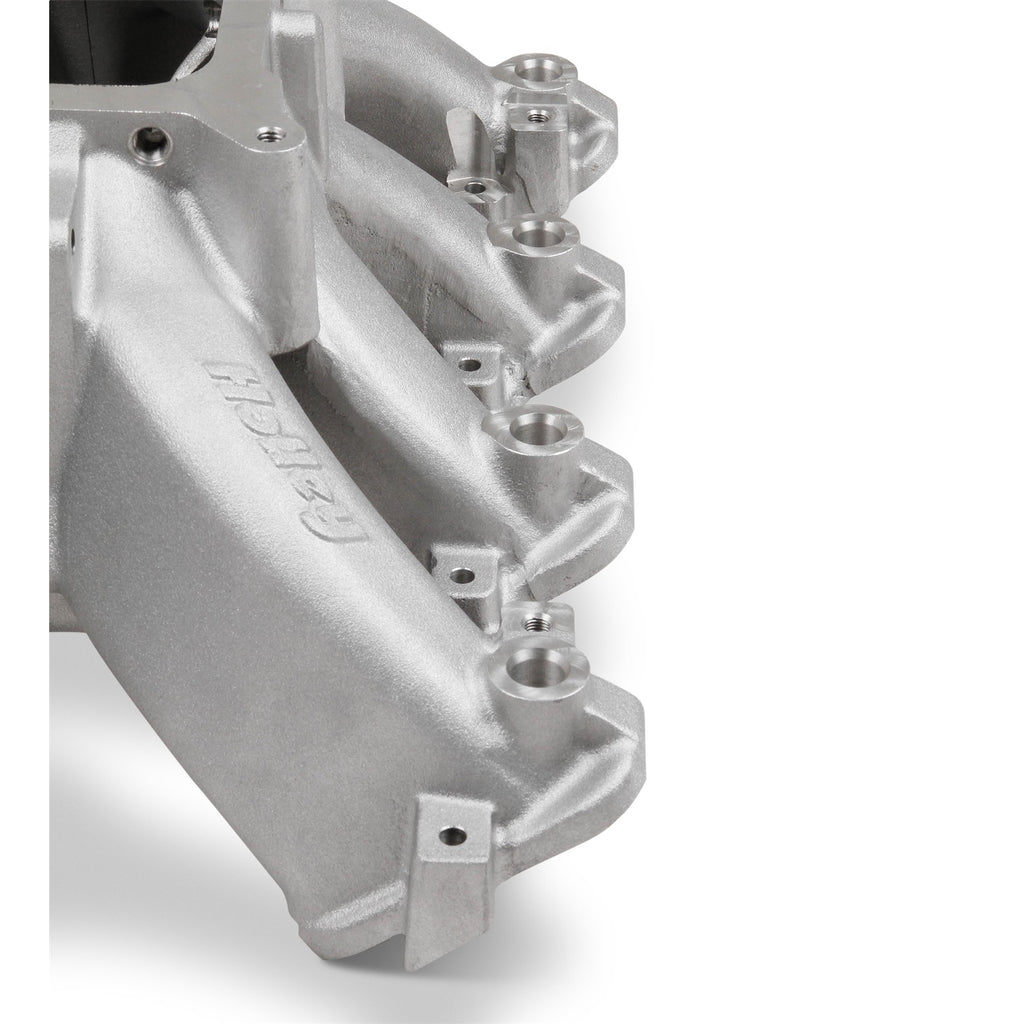

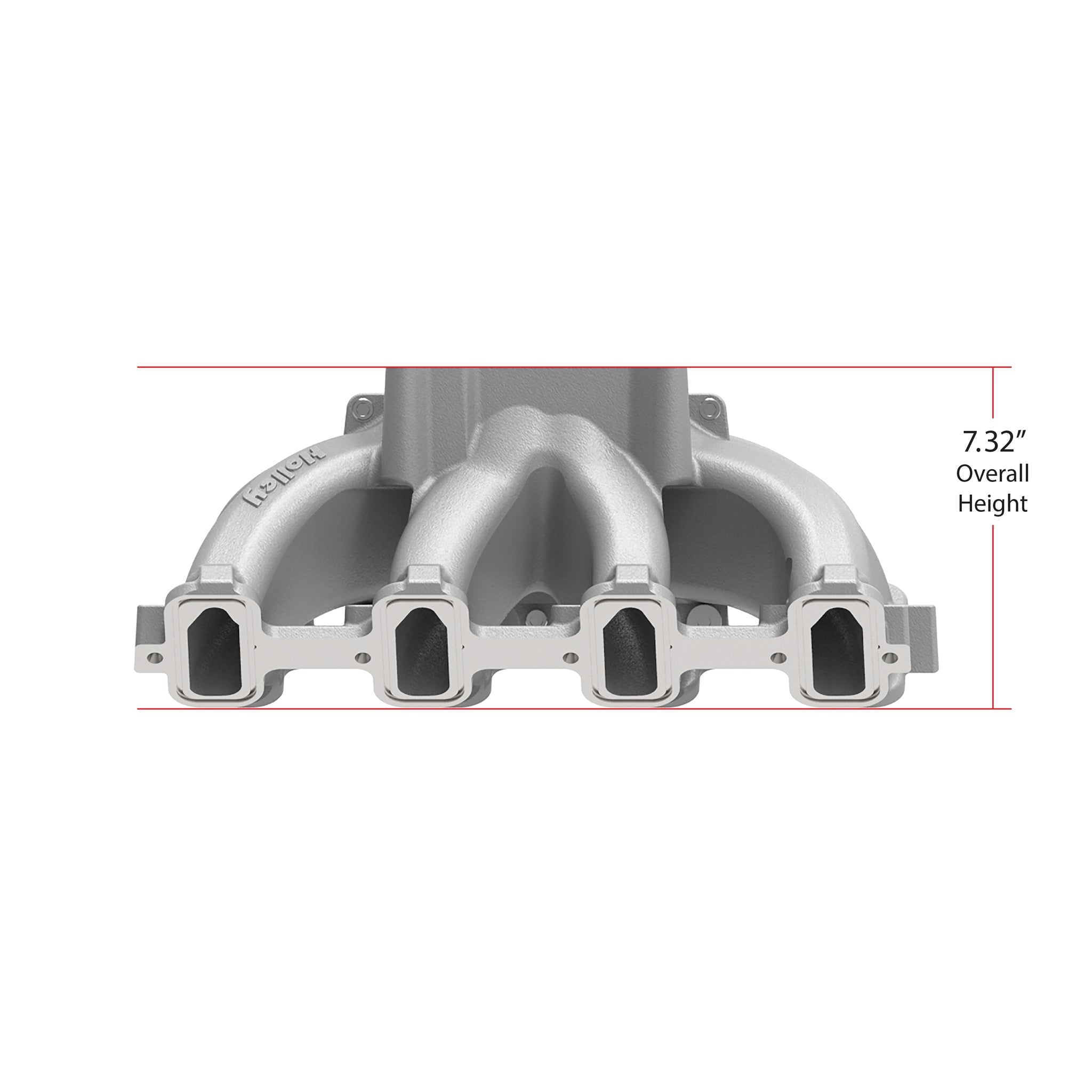

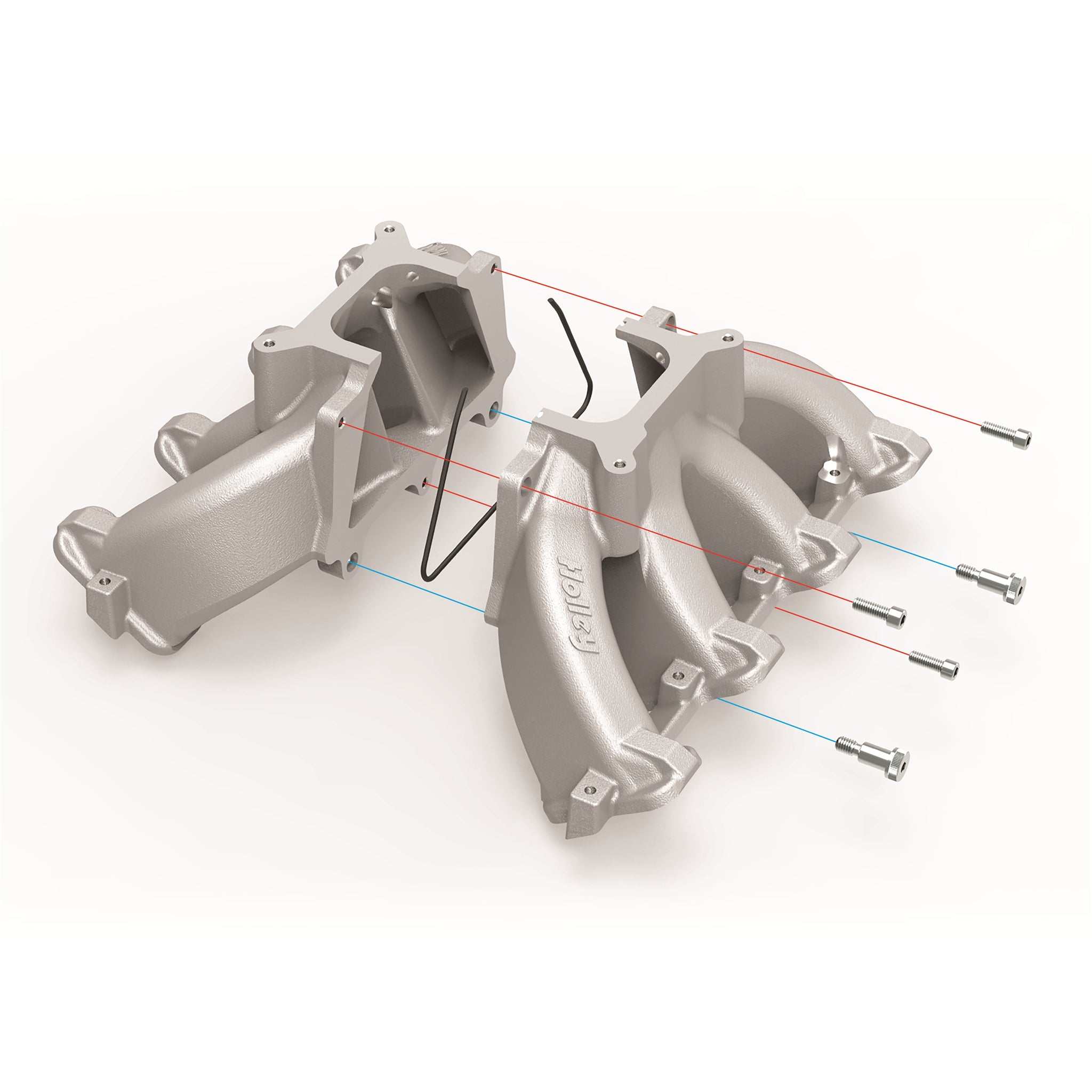

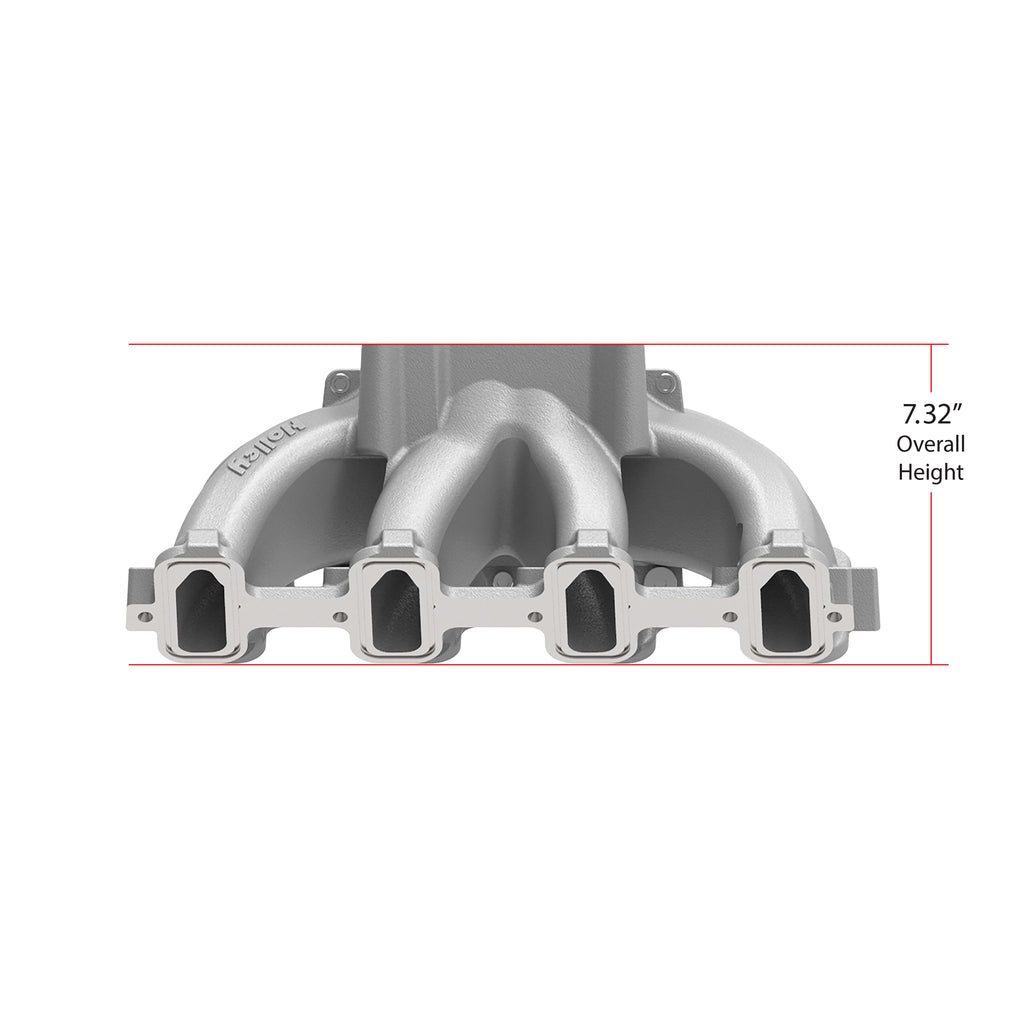

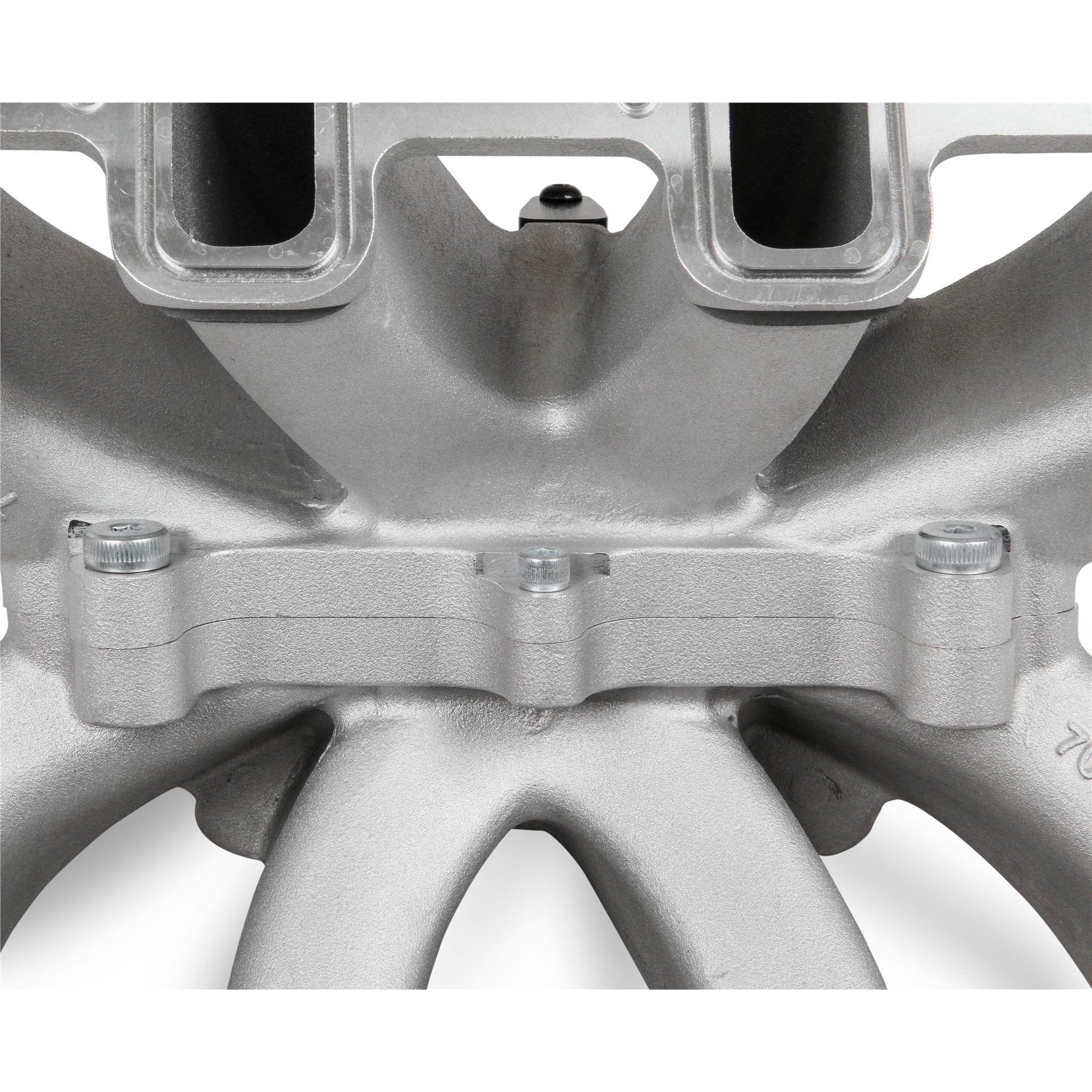

The new Holley Single-Plane Race intake manifold were designed with performance in mind. They feature a race bred, two piece split feature that was previously only found on the most expensive race intakes. The manifold will fit GM LS Gen III engines with cathedral port heads and are intended for 4150 style square bore flanged carburetors or throttle body EFI.The LS Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm.The Holley LS Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap. With shoulder bolt locators and O-ring seal, reassembly is simple and precise. Technical DataΓÇÜ┬╖ A-B Height - 7.32 in. (0° carb flange angle)iΓÇÜ┬╖ Port Size- 3.28 in. Height x 1.10 in. WideΓÇÜ┬╖ Throttle Body Flange - Standard 4150 for up to 1-3/4 in. diameter throttle boresiΓÇÜ┬╖ As-Cast Runner Cross-Sectional Area - 3.5 inA┬▓ at the runner entry tapered to 2.9 inA┬▓ at the flange exit

Specifications:

Description_DEF Engine Intake Manifold
Description_DES Holley Single Plane EFI Split-Design Race Intake Manifold- GM LS1/LS2/LS6
Description_INV INTAKE MNFLD CATHEDRAL SPLIT SGL-PLN EFI
Description_FAB Maximum performance race design with hood clearance consideration
Description_FAB Lighter than other split race intakes
Description_FAB Split feature making porting efforts easy!
Description_FAB 33 to 50% the price of other split race intakes

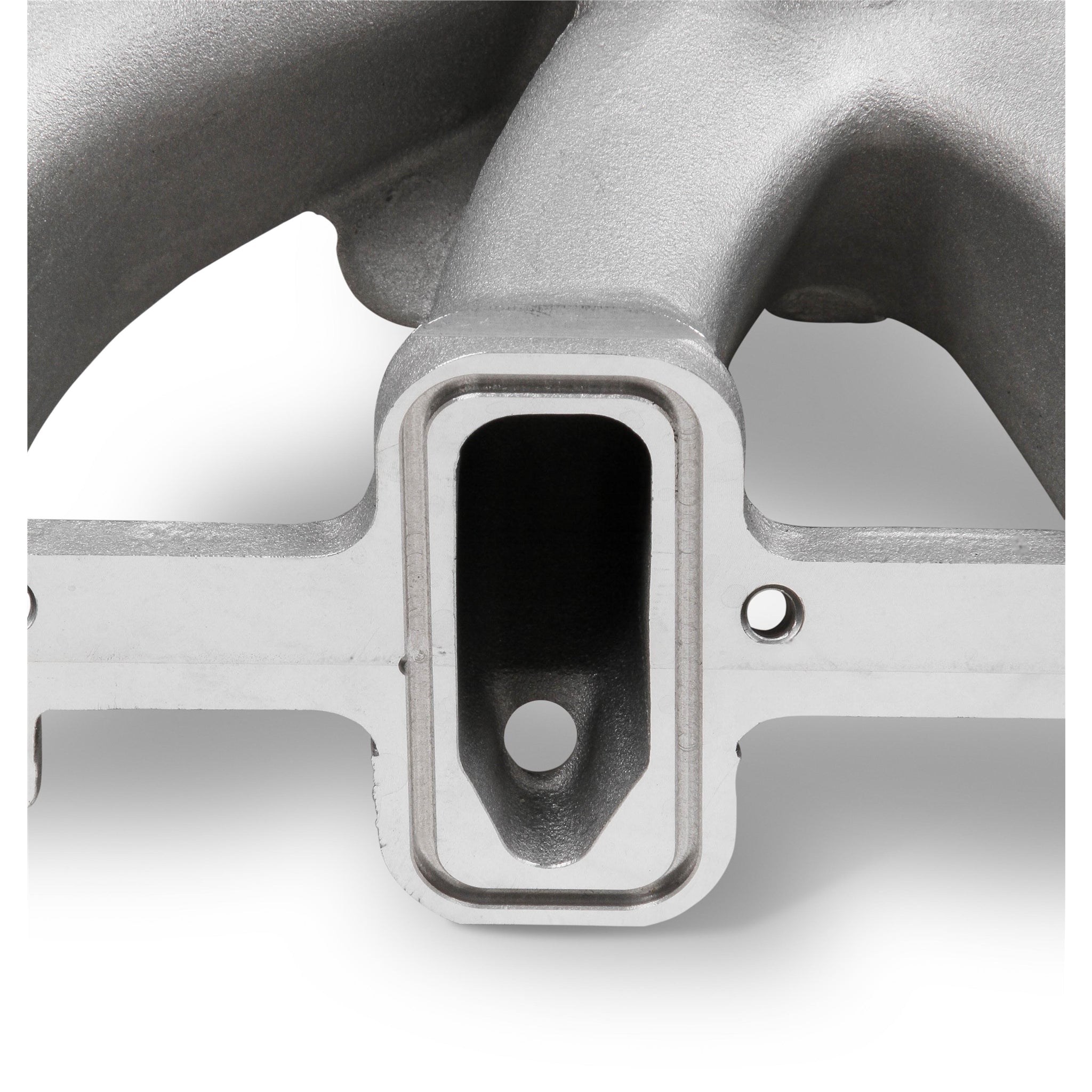

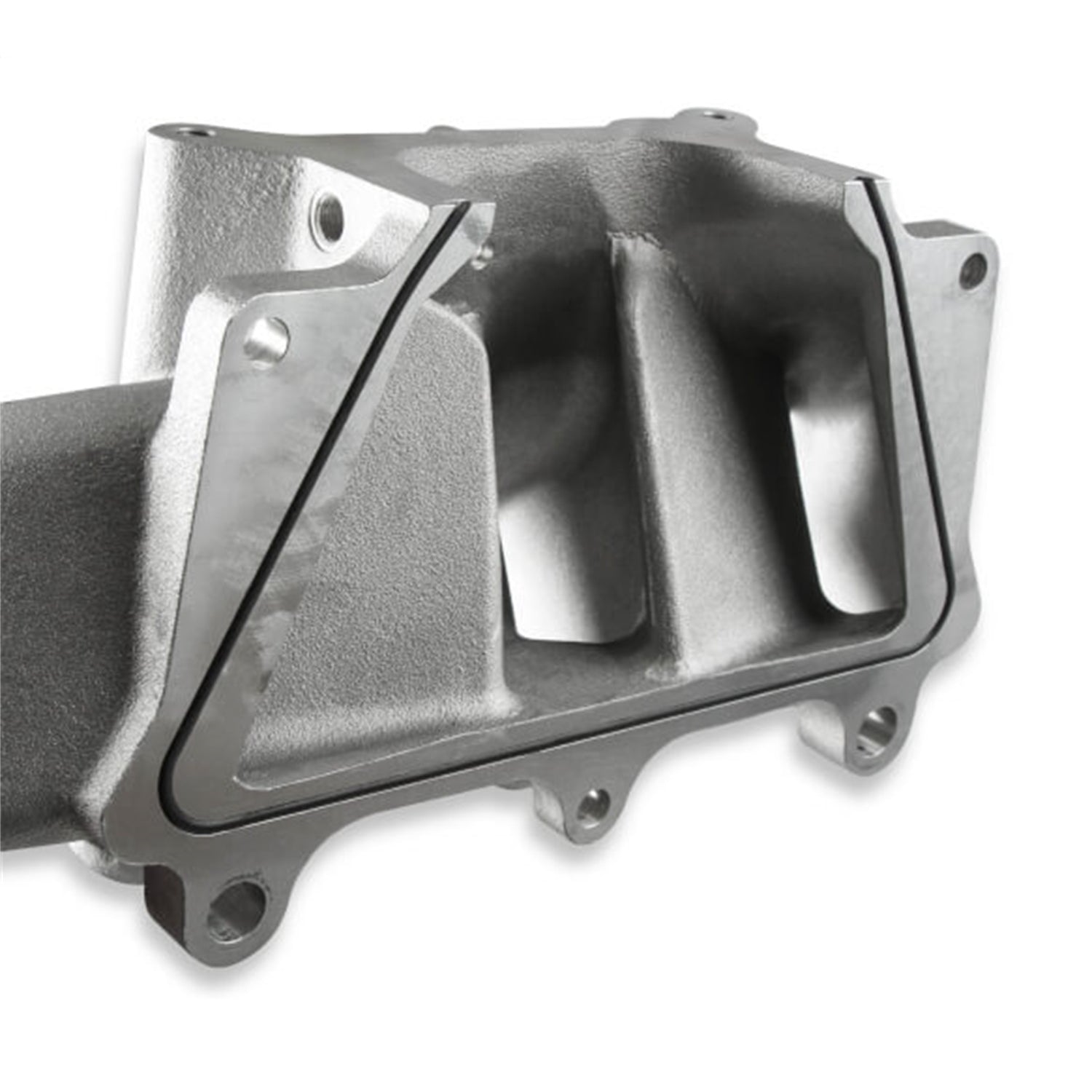

Description_FAB Captured O-ring seals at head ports and split

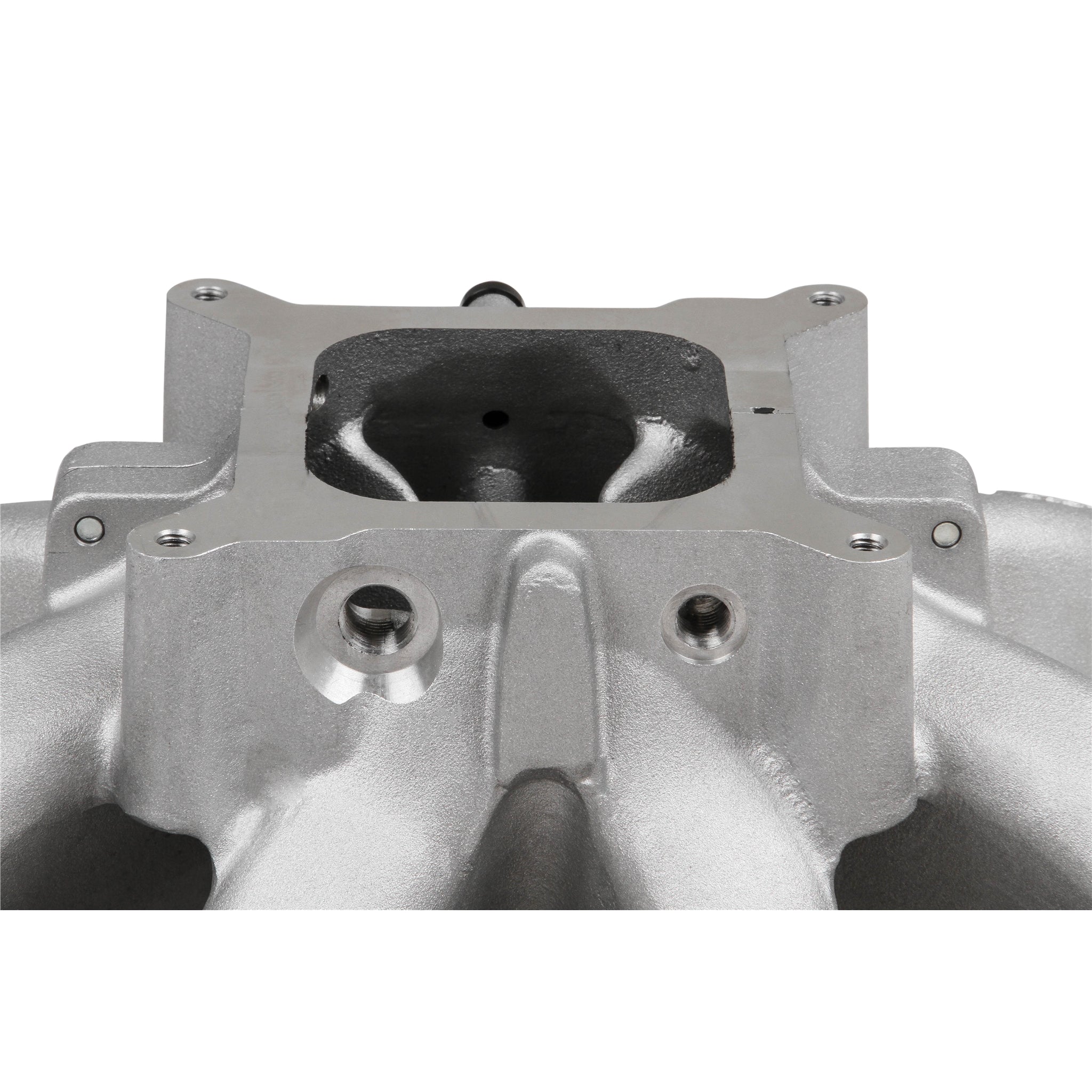

Description_FAB Vacuum Port options include (2) 1/8, (1) 1/4, and (1) 3/8, NPT ports at the carb flange

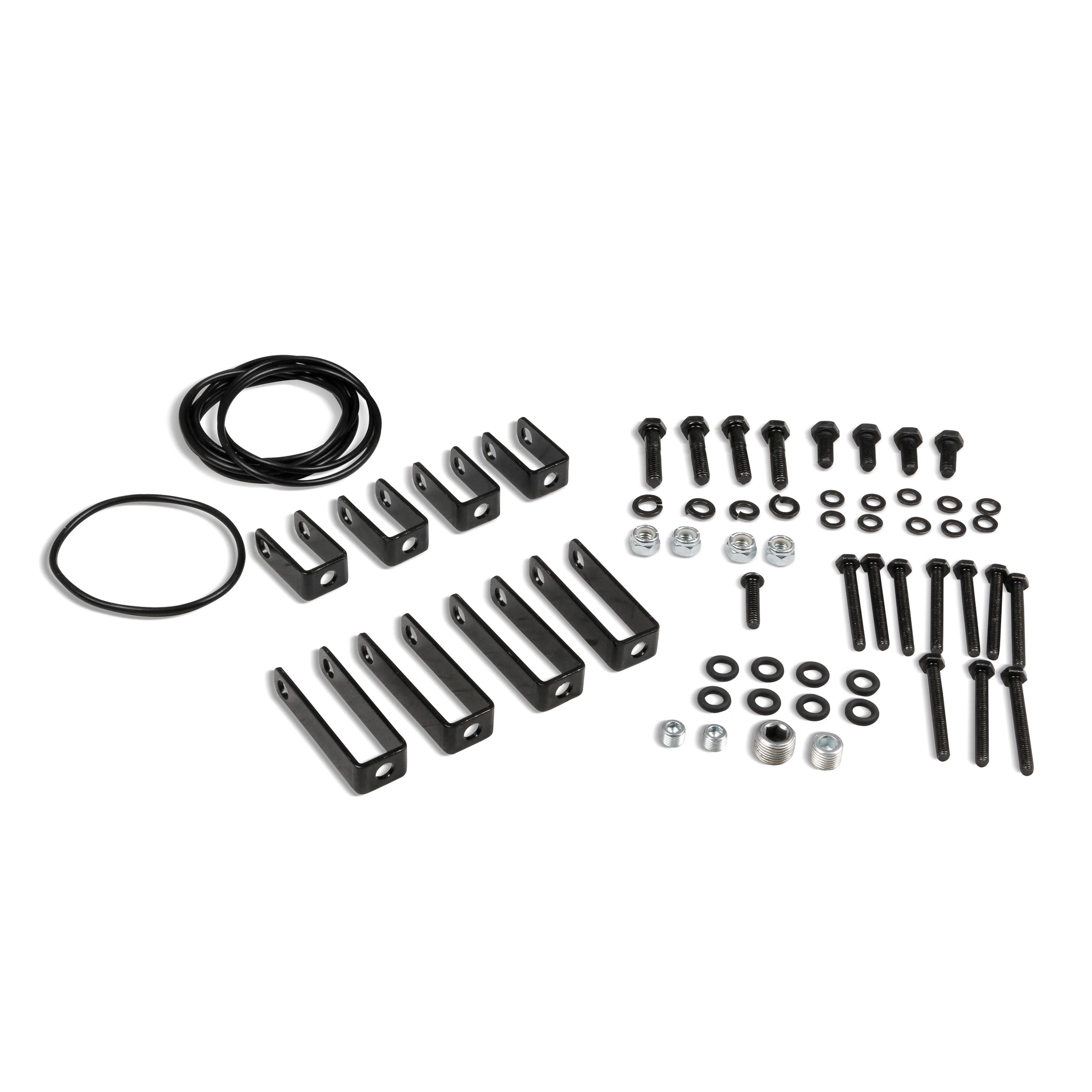

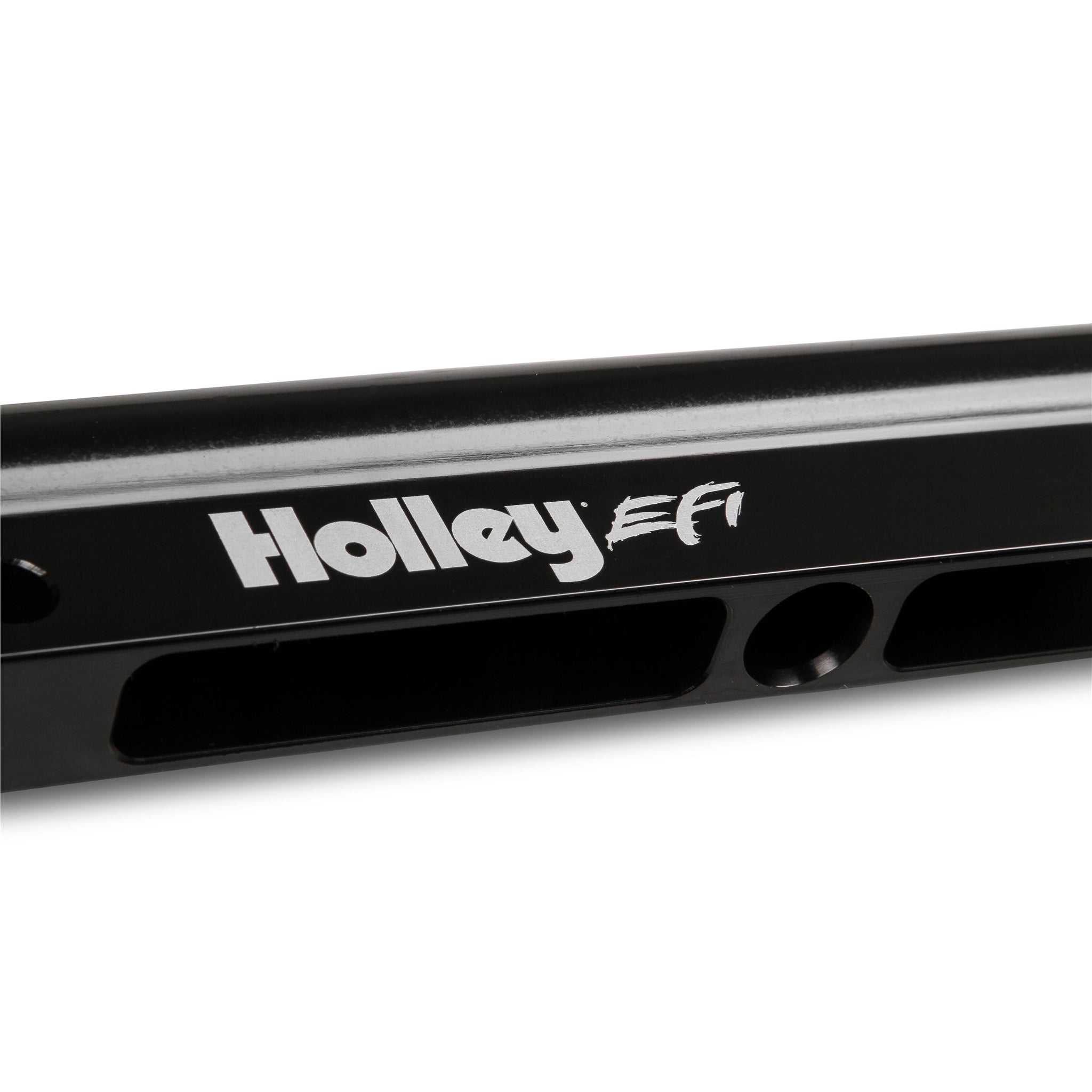

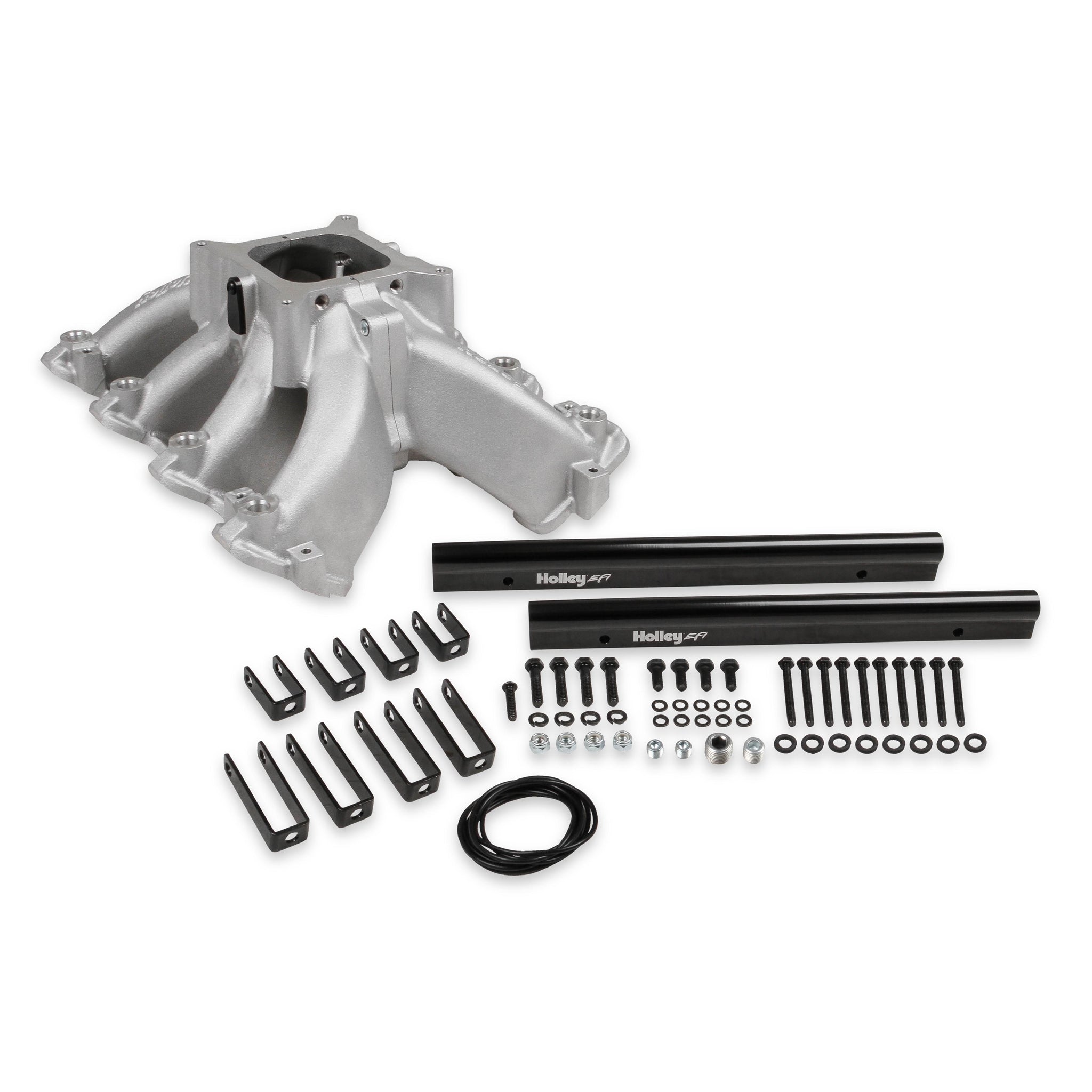

Description_FAB Billet Fuel Rails and rail mounting hardware included.
Description_EXT Single Plane Intake Manifold Kit; Carbureted; w/Cathedral Port Cyl. Heads; Front Height/Rear 7.32 in.; RPM Power Band 2500-7000; Satin Finish; For Use w/LS1/LS2/LS6;
Description_MKT The new Holley Single-Plane Race intake manifold were designed with performance in mind. They feature a race bred, two piece split feature that was previously only found on the most expensive race intakes. The manifold will fit GM LS Gen III engines with cathedral port heads and are intended for 4150 style square bore flanged carburetors or throttle body EFI.The LS Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm.The Holley LS Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap. With shoulder bolt locators and O-ring seal, reassembly is simple and precise. Technical DataΓÇÜ┬╖ A-B Height - 7.32 in. (0° carb flange angle)iΓÇÜ┬╖ Port Size- 3.28 in. Height x 1.10 in. WideΓÇÜ┬╖ Throttle Body Flange - Standard 4150 for up to 1-3/4 in. diameter throttle boresiΓÇÜ┬╖ As-Cast Runner Cross-Sectional Area - 3.5 inA┬▓ at the runner entry tapered to 2.9 inA┬▓ at the flange exit
Description_KEY holley; manifold; holley manifold; intake manifold; edelbrock; professional products
Description_SHO Intake Manifold
Emission Code 3
Cylinder Head Type LS1/LS2/LS6
Finish Silver
RPM Range 2500-7000
Usage Racing
Barrels 4
Color Silver
Fuel System Type EFI
Manifold Type Split Single Plane
Rear Height 7.32"
WARNING CA Proposition 65 No
Brand Holley
Construction Cast
Engine GM LS1/LS2/LS6
Front Height 7.32"
Recommended Use Forced Induction
RPM Power Band 3500-8000 RPM
Warranty Limited 90 Day
Engine Make/Size Chevy LS1/2/6
Flange Style 4150 Square Bore
Product Type Intake Manifold
Sale Category Air and Fuel Delivery
Length 8.0000
Width 15.0000
Height 22.0000
Weight 21.0000
