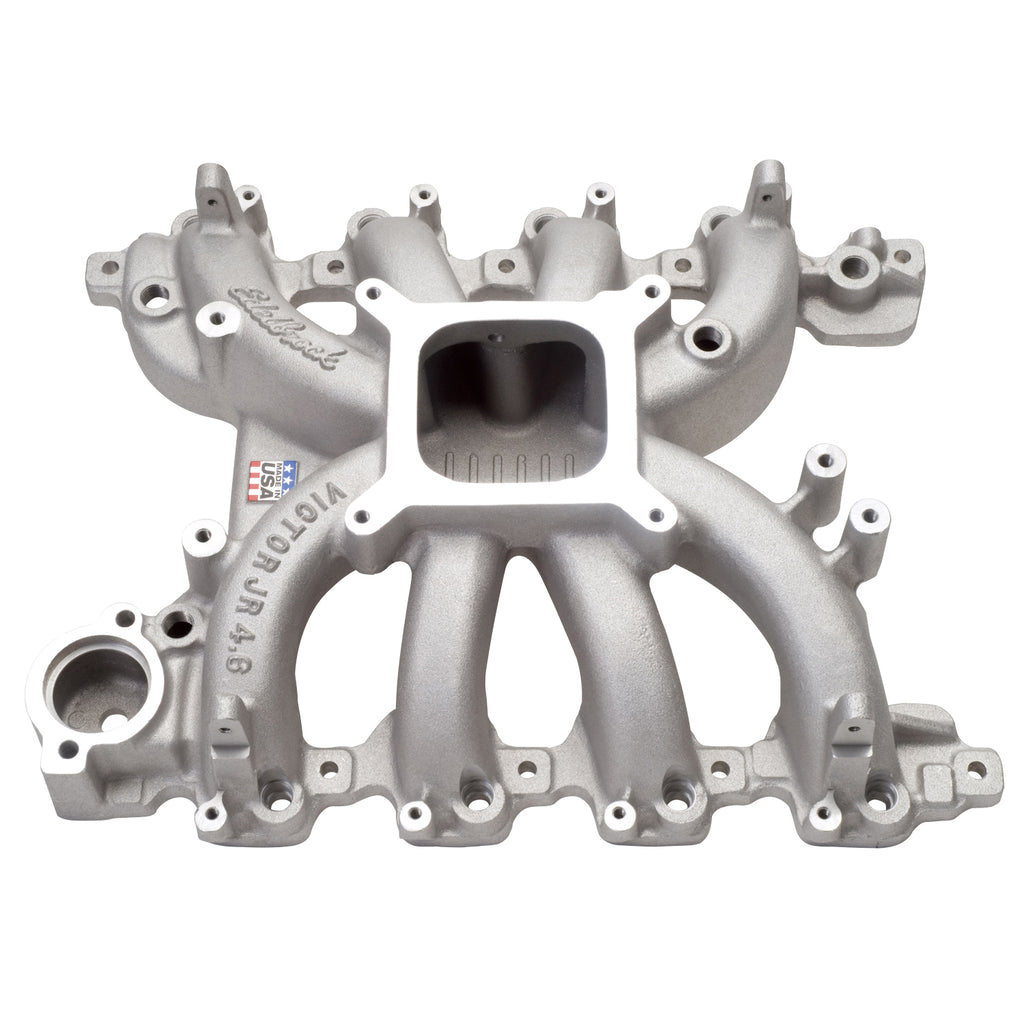

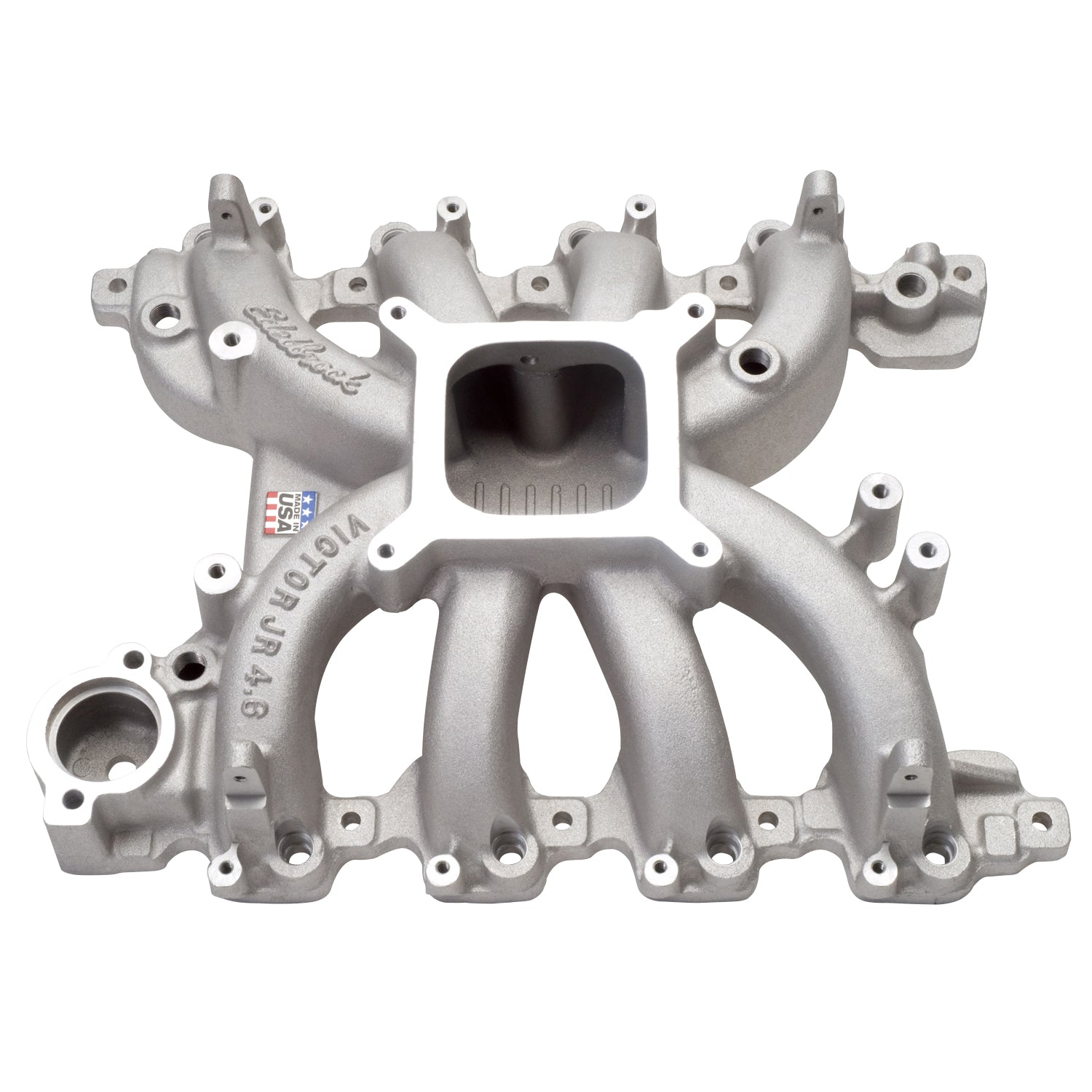

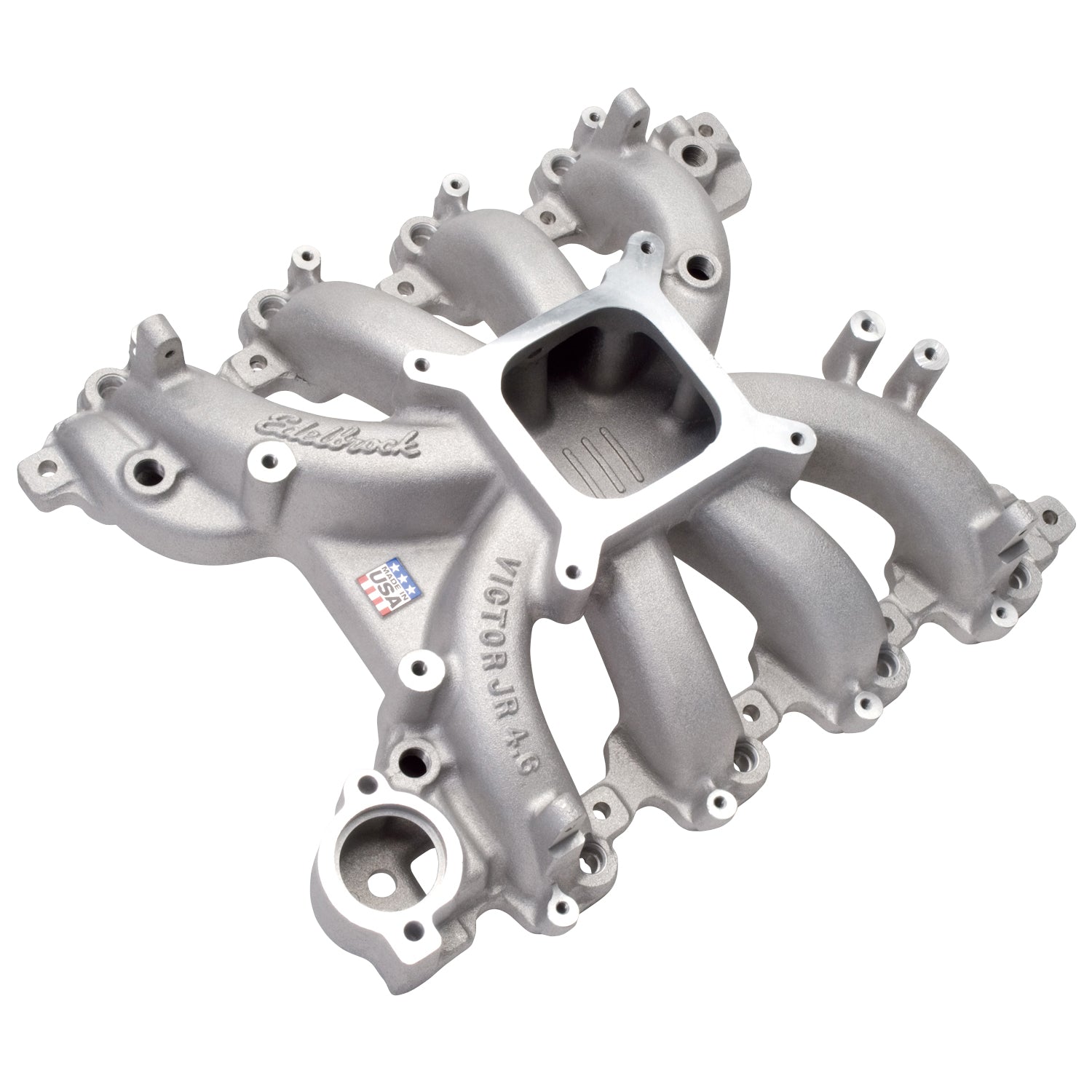

Edelbrock part #28385 Victor Jr. Ford 4.6L SOHC EFI intake manifold is designed for Ford 4.6L SOHC Modular engines, 1999-2004 SOHC Modular 4.6L engine is designed for 4.6l Ford's using EFI in racing. Timing control module available separately. Not intended for or as a stock replacement intake manifold. Whether you're building a daily driver, ultra high-performance's street machine or race car, an Edelbrock intake manifold will provide the power right where you want it. The Edelbrock Victor Jr. Ford 4.6L SOHC also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Modular 2V:281 (4.6L) |
| Description_DEF |
Engine Intake Manifold |
| Description_INV |
EFI Victor Jr Ford 4.6L Modular Intake |
| Description_EXT |
Edelbrock EFI Victor Jr Ford 4.6L Modular Intake Manifold |
| Description_LAB |
Victor Jr Ford 4.6L Modular Intake Manifold EFI |
| Description_MKT |
Edelbrock part #28385 Victor Jr. Ford 4.6L SOHC EFI intake manifold is designed for Ford 4.6L SOHC Modular engines, 1999-2004 SOHC Modular 4.6L engine is designed for 4.6l Ford's using EFI in racing. Timing control module available separately. Not intended for or as a stock replacement intake manifold. Whether you're building a daily driver, ultra high-performance's street machine or race car, an Edelbrock intake manifold will provide the power right where you want it. The Edelbrock Victor Jr. Ford 4.6L SOHC also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA. |
| Description_TRA |
Recommended fuel rail: Edelbrock #3639 |
| Description_TRA |
Recommended intake gasket: OEM factory gaskets |
| Description_TRA |
Throttle body recommendations: Edelbrock #38783 4150 style 4V |
| Description_TRA |
or #3848 competition EFI elbow and #3818 90mm throttle body. |
| Description_TRA |
Manifold height: A-4.75", B-4.75", 0 Deg carb angle |
| Description_TRA |

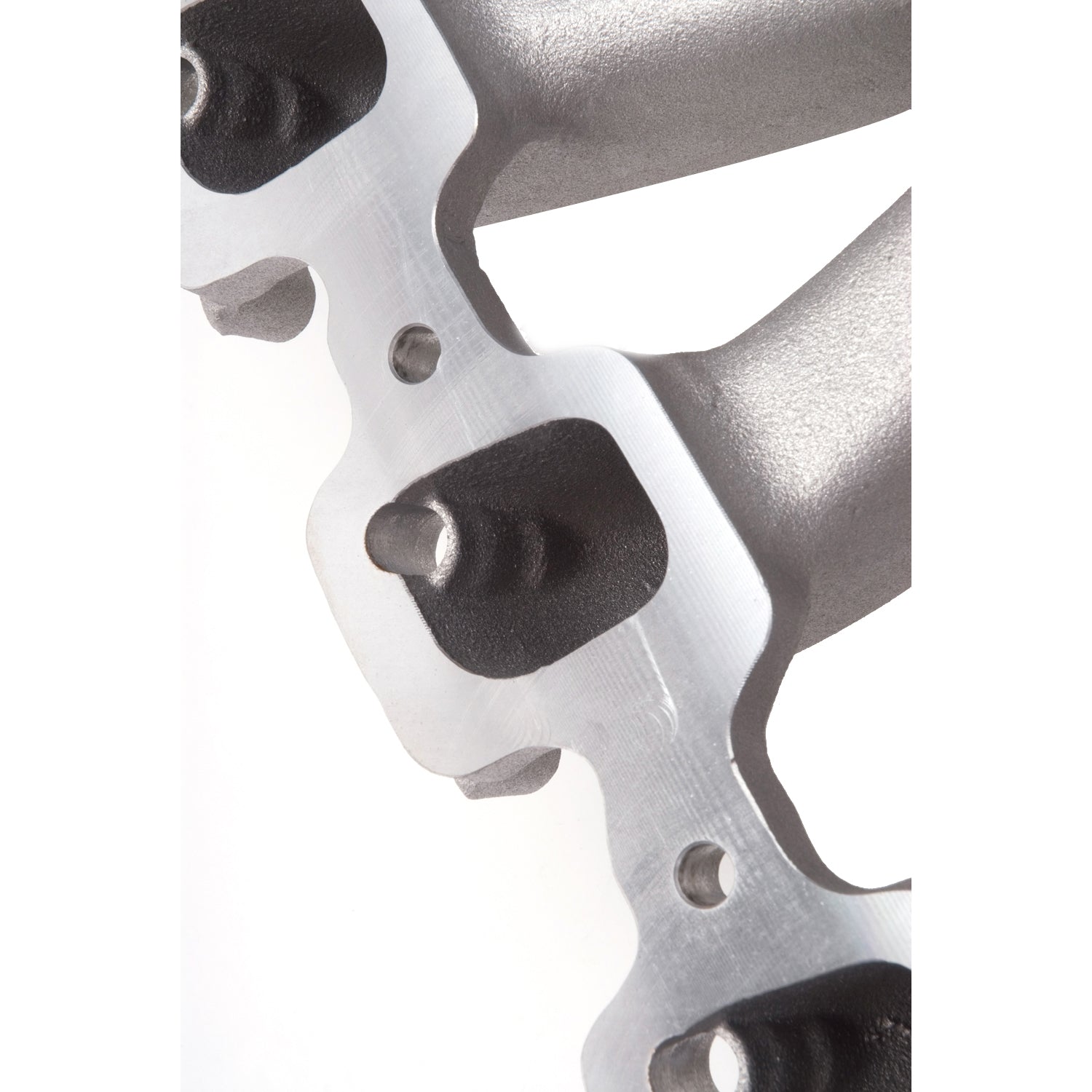

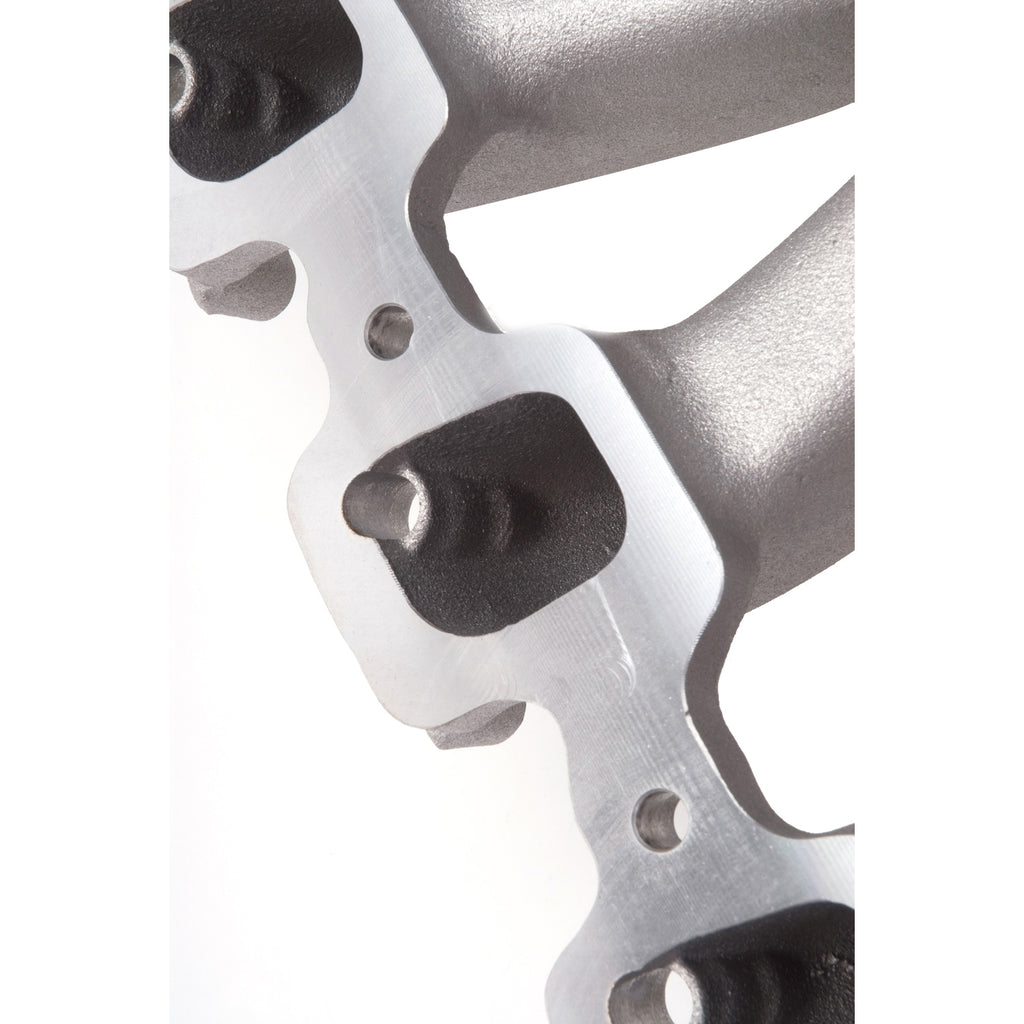

Port exit dimensions: 1.42" x 1.72" |
| Description_TRA |
Throttle pad and plenum optimized for square-bore (4150 style) 4V throttle bodies. |
| Description_TRA |
Built in water crossover with clearance for the stock 1999-2004 alternator location. |
| Vehicle Model |
Ford |
| Front Maximum Height |
4.750 |
| EGR Port |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| CNC Ported |
No |
| Finish |
Satin |
| Flange Type |
4150 |
| Rear Maximum Height |
4.750 |
| Series |
Victor |
| Single Or Dual Plane Type |
Single |
| Basic Operating RPM Range |
3500-7500 |
| Material |
Aluminum |
| Gasket Or Seal Included |
No |
| Grade Type |
Performance |
| Center Maximum Height |
4.750 |
| Length |
10.0000 |
| Width |
16.0000 |
| Height |
24.0000 |
| Weight |
22.0000 |
