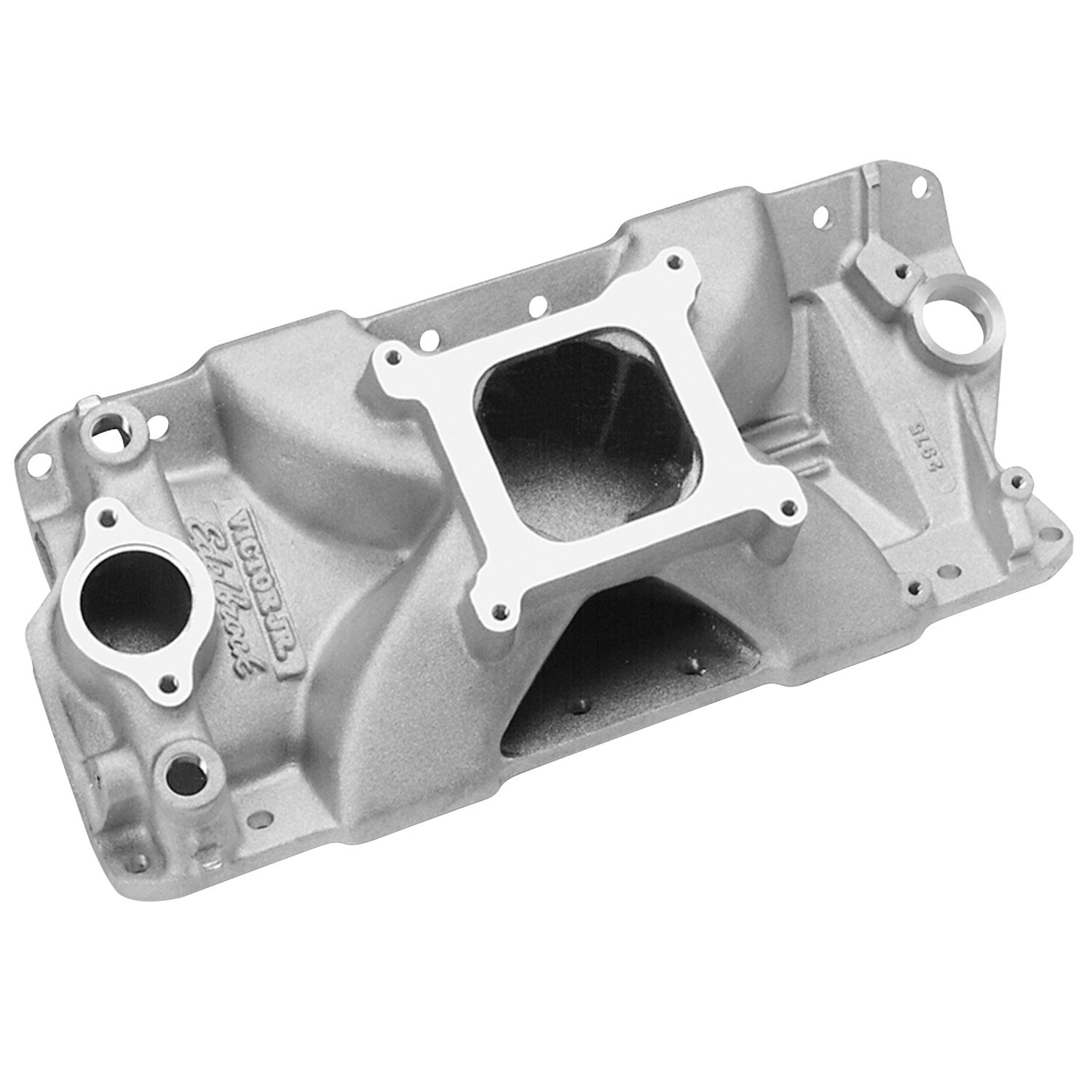

Edelbrock part #2900 Victor Jr. Port Matched intake manifold is excellent for many applications from drag to circle track racing. The Victor Jr. Port Matched manifold has CNC-blended port exits that match any competition head using Fel-Pro gasket #1206. The low-profile of the #2900 works well in applications with minimal hood clearance and where 1" or 2" spacers can be used for performance tuning. This intake manifold is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Intake Manifold |
| Description_LAB |
Victor Jr. 23 Degree Port Matched Intake Manifold Small-Block Chevy |
| Description_INV |
Victor Jr Port Matched Intake Manifold |
| Description_EXT |
Edelbrock Victor Jr. 23 Degree Port Matched Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_MKT |
Edelbrock part #2900 Victor Jr. Port Matched intake manifold is excellent for many applications from drag to circle track racing. The Victor Jr. Port Matched manifold has CNC-blended port exits that match any competition head using Fel-Pro gasket #1206. The low-profile of the #2900 works well in applications with minimal hood clearance and where 1" or 2" spacers can be used for performance tuning. This intake manifold is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds. |
| Description_TRA |
Recommended intake gasket: Edelbrock #7201 or Fel-Pro #1206. |
| Description_TRA |
No provisions for exhaust heated chokes or EGR. |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA |
NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA |
To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Basic Operating RPM Range |
3500-8000 |
| Front Maximum Height |
0.010 |
| Vehicle Model |
Chevrolet |
| Gasket Or Seal Included |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Center Maximum Height |
4.580 |
| Material |
Aluminum |
| Single Or Dual Plane Type |
Single |
| Rear Maximum Height |
0.010 |
| EGR Port |
No |
| Flange Type |
4150 |
| Series |
Victor |
| Finish |
Satin |
| Grade Type |
Performance |
| CNC Ported |
Yes |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
20.0000 |
