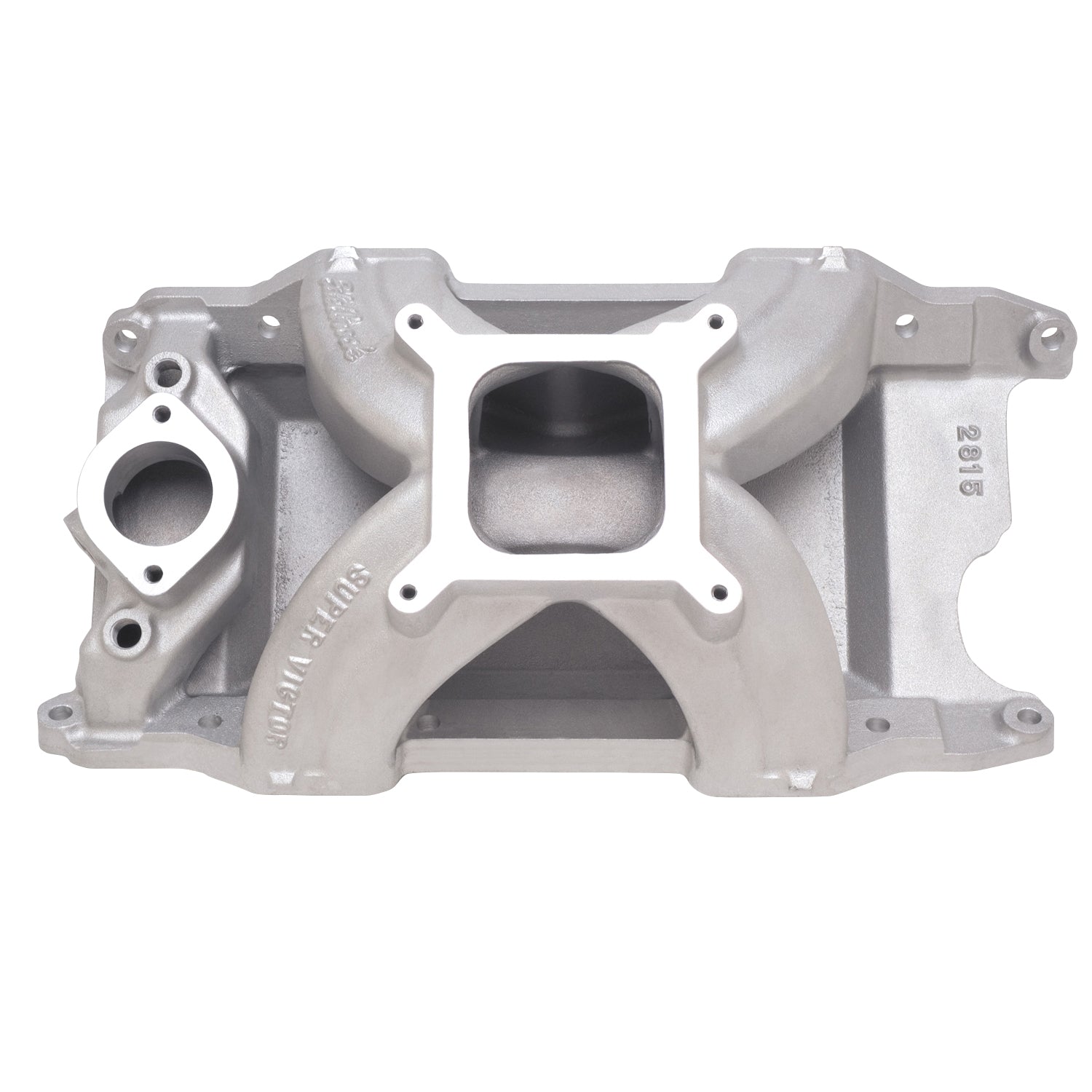

Edelbrock part #2815 Super Victor intake manifold is designed for small-block Chrysler engines with conventional rectangular port heads like Edelbrock Performer RPM cylinder heads or Victor heads, this single-plane Air-Gap style manifold operates from 3500 to 8000 rpm. Testing has shown substantial mid-range gains over the current designs. The runners have been cast in such a way to insure enough metal thickness to allow for gasket matching and porting. Accepts 1975 and earlier waterneck only.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chrysler:Small-Block LA-Series:340 (5.6L)/360 (5.9L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Super Victor Intake Manifold for 318-340-360 Small-Block Chrysler "LA" Engines is Designed for high-performance's street & Competition Applications. Accepts a 4150-Style Square-Bore Carburetor. Non-EGR. |
| Description_INV |
Super Victor 340/360 Intake Manifold |
| Description_LAB |
Super Victor Intake Manifold for Small-Block Chrysler LA Engines |
| Description_MKT |
Edelbrock part #2815 Super Victor intake manifold is designed for small-block Chrysler engines with conventional rectangular port heads like Edelbrock Performer RPM cylinder heads or Victor heads, this single-plane Air-Gap style manifold operates from 3500 to 8000 rpm. Testing has shown substantial mid-range gains over the current designs. The runners have been cast in such a way to insure enough metal thickness to allow for gasket matching and porting. Accepts 1975 and earlier waterneck only. |
| Description_TRA |
Recommended intake gasket: Edelbrock #7276. |
| Description_TRA |
Manifold ht.: A-6.30", B-6.30" |
| Description_TRA |
Carb recommendations: Use appropriate racing carburetor |
| Description_TRA |
Port exit dimensions .98"x 2.15" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Gasket Or Seal Included |
No |
| Vehicle Model |
Chrysler |
| Basic Operating RPM Range |
3500-8000 |
| Front Maximum Height |
6.300 |
| Center Maximum Height |
6.300 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Flange Type |
4150 |
| Series |
Victor |
| Rear Maximum Height |
6.300 |
| Finish |
Satin |
| EGR Port |
No |
| CNC Ported |
No |
| Single Or Dual Plane Type |
Single |
| Material |
Aluminum |
| Grade Type |
Performance |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
23.0000 |
