| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75" Backspace / 25mm Offset |
| Description_ASC |
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE. |
| Description_ASC |
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE. |
| Description_ASC |
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO. |
| Description_ASC |

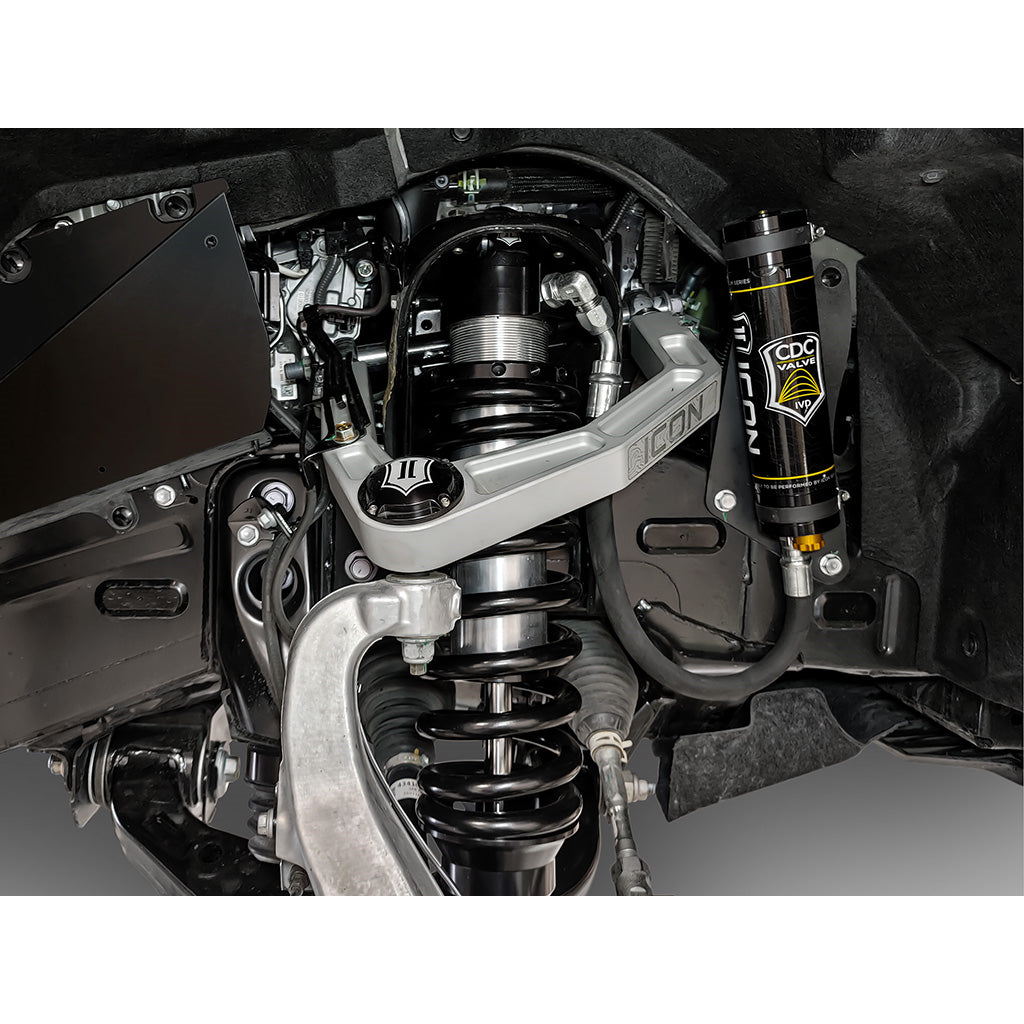

TECH NOTE: Requires installation of ICON front upper control arms |
| Description_ASC |
TECH NOTE: If upgrading a vehicle equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional |
| Description_ASC |
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.25" over stock |
| Description_ASC |
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.75" over stock |
| Description_ASC |
TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-4.25" over stock |
| Description_ASC |
TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.5" over stock |
| Description_ASC |
TECH NOTE: Most Sequoia sub-models will have front lift height range of 3.5-4.25" over stock |
| Description_ASC |
TECH NOTE: Not compatible with Sequoia TRD Pro |
| Description_ASC |
TECH NOTE: Tundra lift heights above 2.25" require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. |
| Description_ASM |
ICON 22-23 TUNDRA 3.0 VS RR CDCV COILOVER KIT |
| Description_DEF |

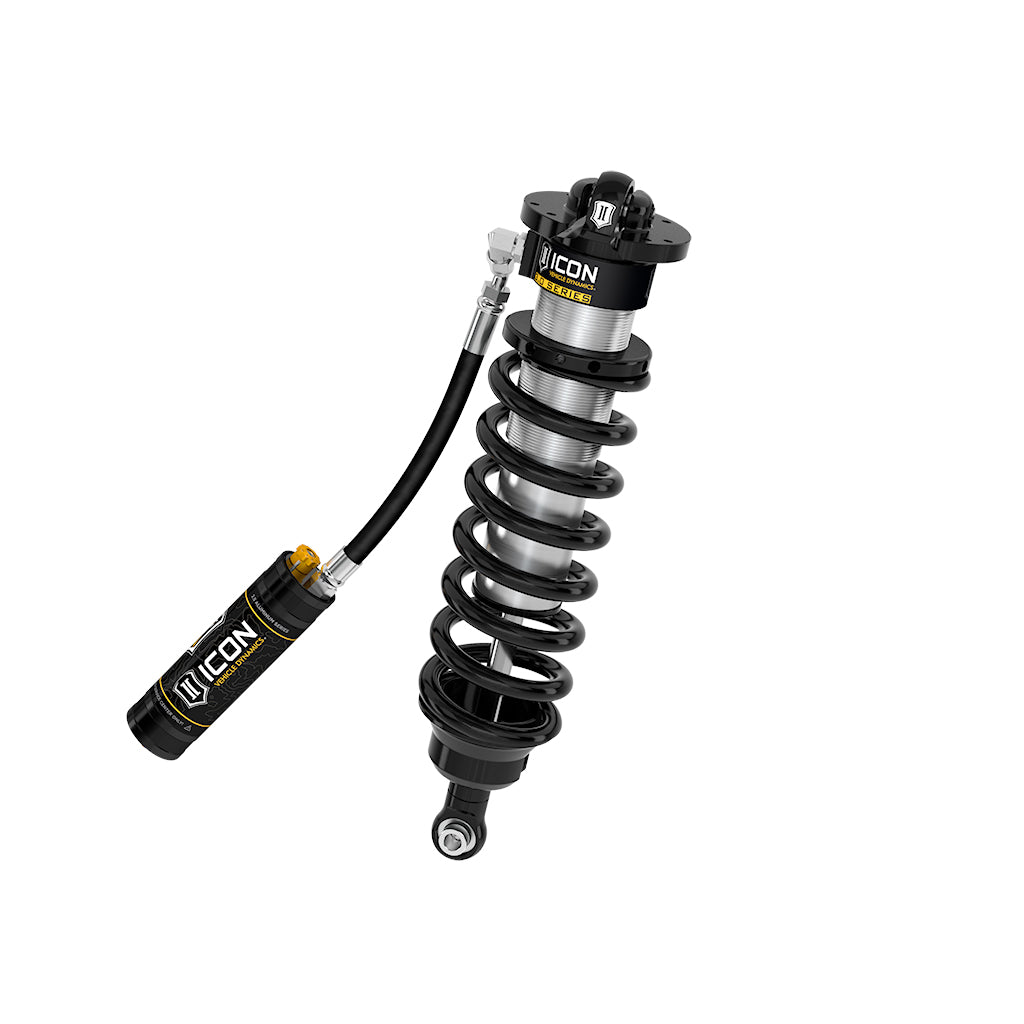

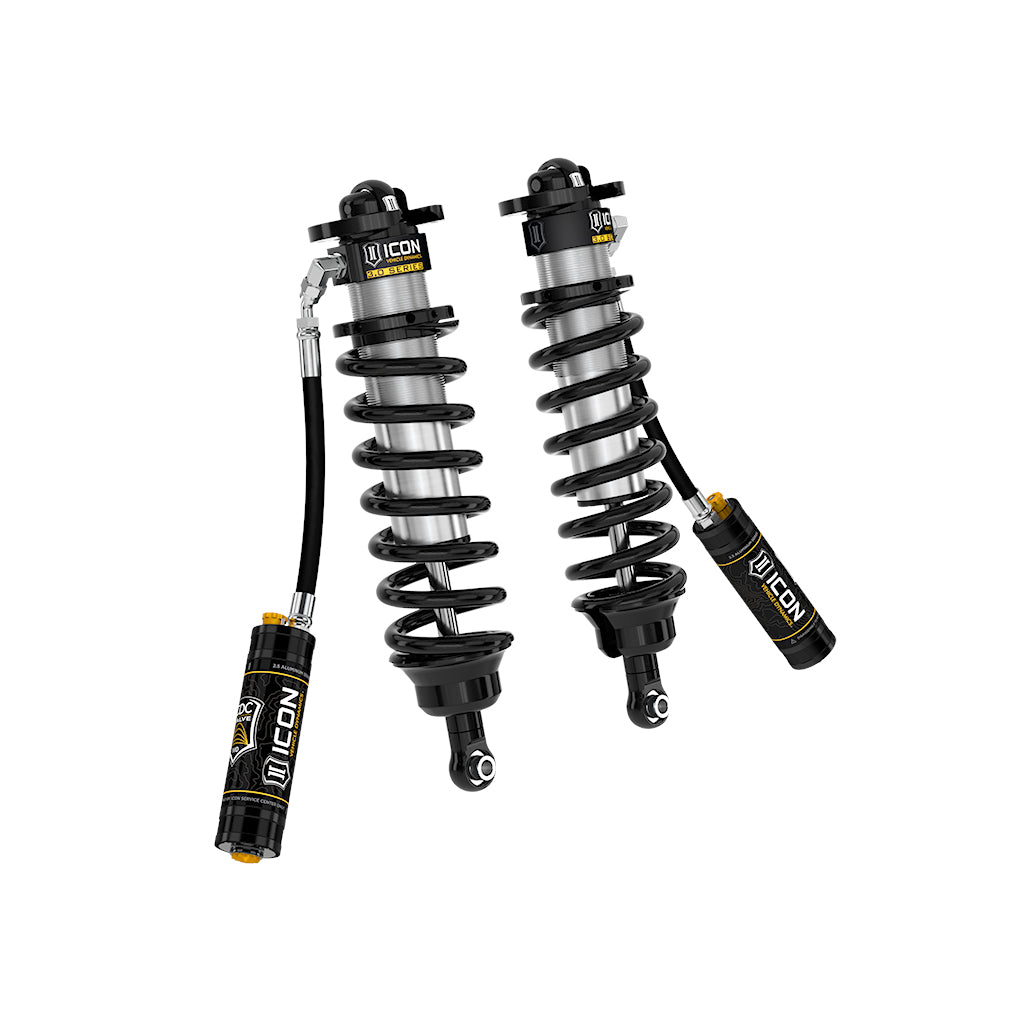

Coilover Spring and Shock Assembly |
| Description_DES |
22-23 TUNDRA/23 SEQUOIA 3.0 VS RR CDCV COILOVER KIT |
| Description_EXT |
ICON's Vehicle-specific shock length and valving along with the larger 3.0" shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. |
| Description_INV |
58775C |
| Description_FAB |
40% increase in front wheel travel over stock |
| Description_FAB |
Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia |
| Description_FAB |
Vehicle specific design and tuning for superior shock damping and control |
| Description_FAB |
3.0" Body diameter for increased oil volume and larger piston area |
| Description_FAB |
ICON's multi-stage, tunable hydraulic ΓÇ£Bump Zone" exponentially increases bottom-out resistance in the last 40% of compression travel |
| Description_FAB |
Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations |
| Description_FAB |
CNC machined 6061 aluminum components with a black anodized finish |
| Description_FAB |
PTFE lined spherical bearings for extended longevity and minimal deflection |
| Description_FAB |
7/8" diameter induction hardened, chrome plated shock shafts |
| Description_FAB |
Fully Rebuildable and Re-tunable |
| Description_MKT |
ICON's 3.0 Series Coilovers with CDCV for 2022-2023 Toyota Tundra and 2023 Toyota Sequoia are designed to take the off-road capability of the trucks to new levels by increasing wheel travel by up to 40% and significantly improving the damping ability of the front shocks. |
| Description_MKT |

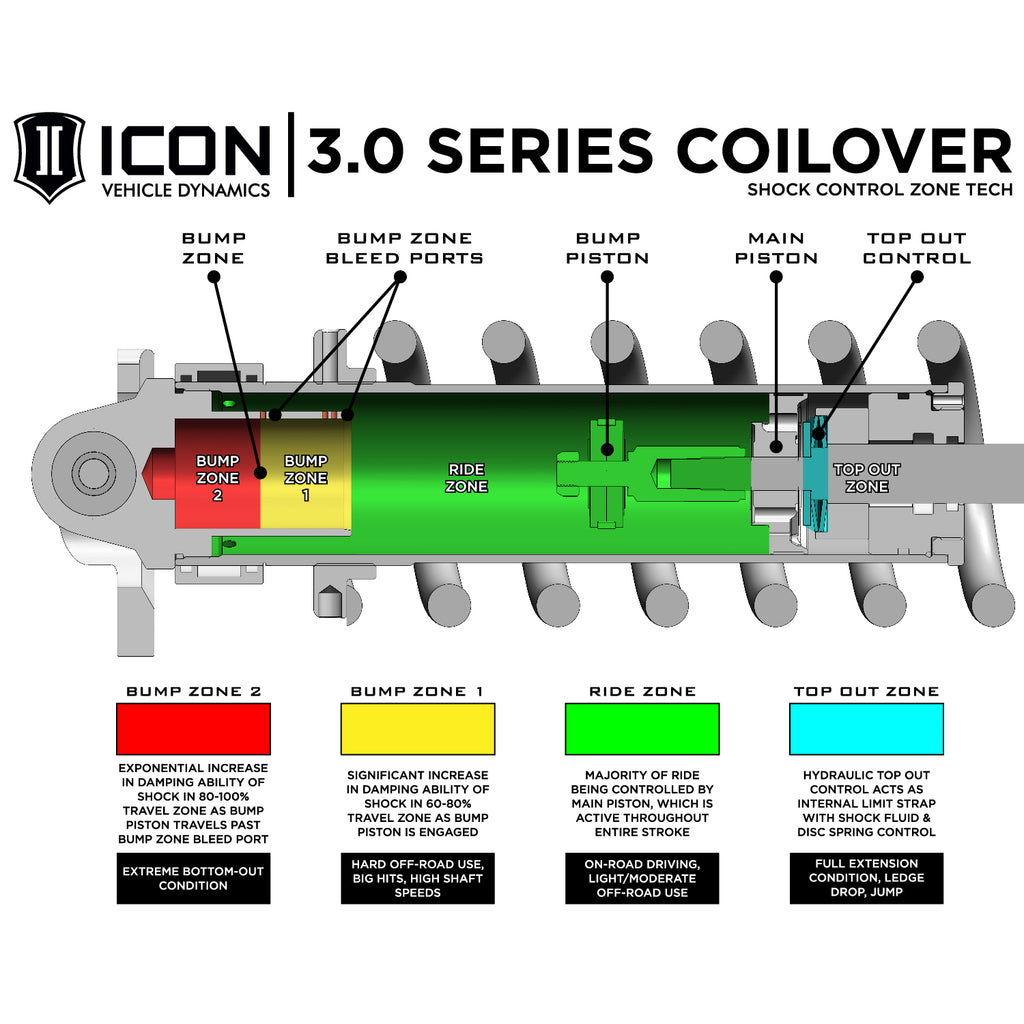

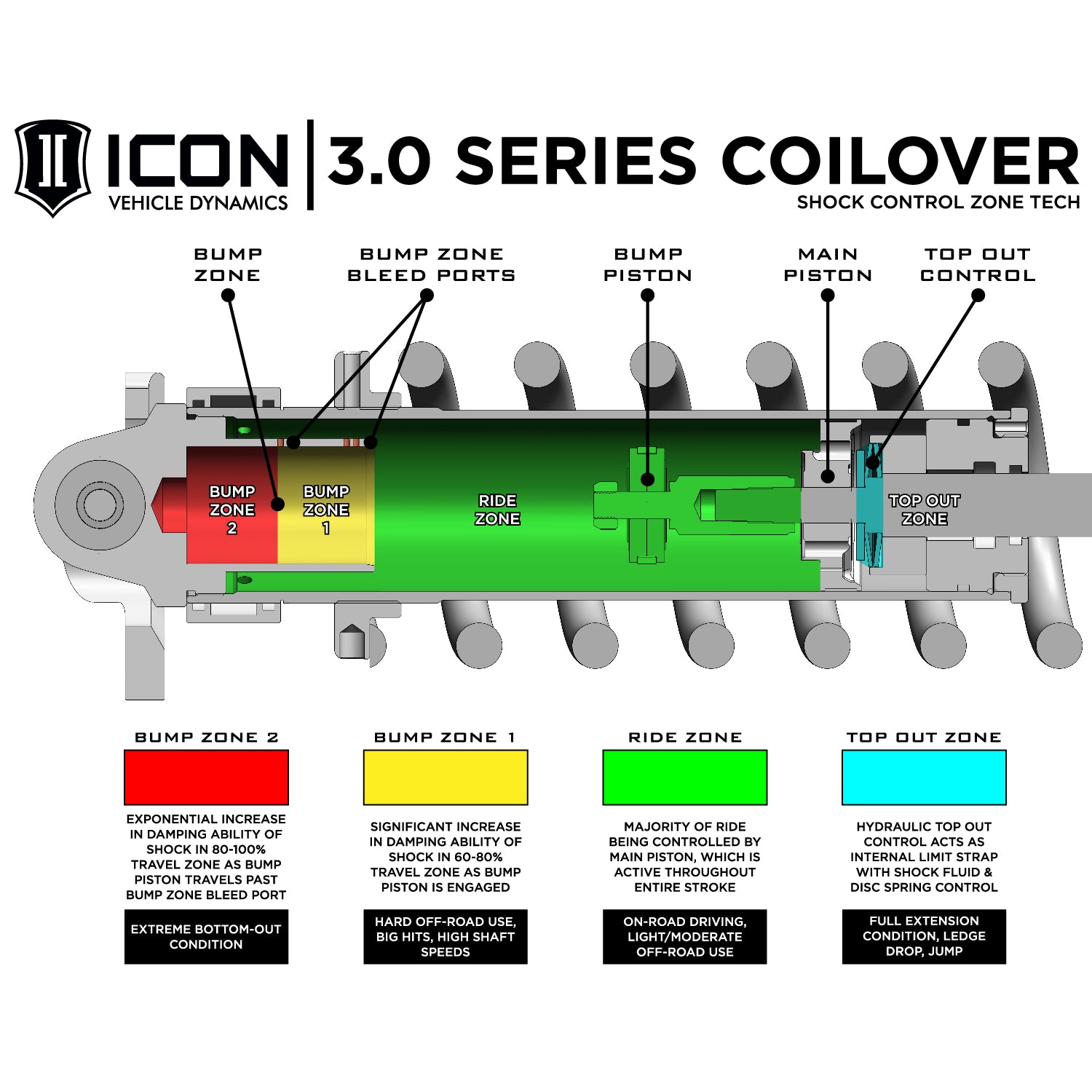

3.0 Series shocks boast 50% more piston surface area in the ride zone of the shock's travel, and 100% in the ΓÇ£Bump Zone", compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. |
| Description_MKT |
ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 3.0 Series rear shocks with CDCV, vehicle control can be precisely dialed in front to rear, resulting in the best overall driving experience. |
| Description_MKT |
These 3.0 Series coilovers are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Built-in ride height adjustability yields 1.25 to 3.25" of front lift height on Tundra or 3-4.25" of lift on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue. |
| Description_TLE |

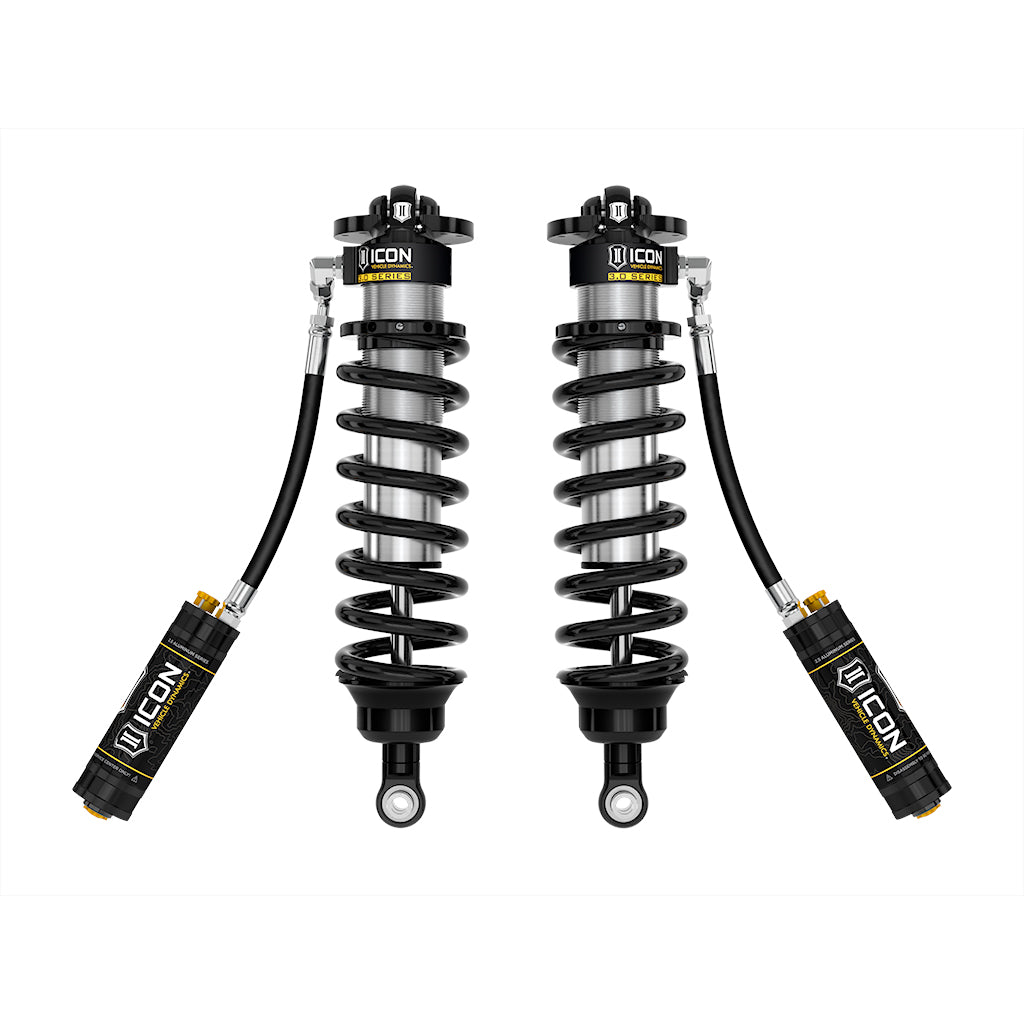

ICON 22-23 Tundra 1.25-3.25"/23 Sequoia 3-4.25", 3.0 VS CO Kit w/CDCV, Pair |
| Description_TRA |
ICON 2022-2023 Toyota Tundra 3.0 VS Coilover Kit w/CDCV, Pair, 58775C |
| Description_SHO |
3.0 COILOVER KIT |
| Coil Over Springs Included |
Yes |
| Damping Type |
Oil |
| Dust Shield |
No |
| Grade Type |
Performance |
| Remote Reservoir |
Yes |
| Material |
Aluminum |
| Spring Material |
Steel |
| Title |
ICON 22-23 Tundra 1.25-3.25"/23 Sequoia 3-4.25", 3.0 VS CO Kit w/CDCV, Pair |
| Service Parts |
254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Maximum Lift |
3.25 |
| Shaft Diameter |
0.875 |
| Adjustable Damping |
Yes |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Spring Color |
Black |
| Spring Rate Type |
Linear |
| Damping Adjustment Type |
Manual |
| Length |
10.0000 |
| Width |
15.0000 |
| Height |
33.0000 |
| Weight |
75.0000 |
