| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC |
TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information. |
| Description_ASC |
TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock |
| Description_ASM |

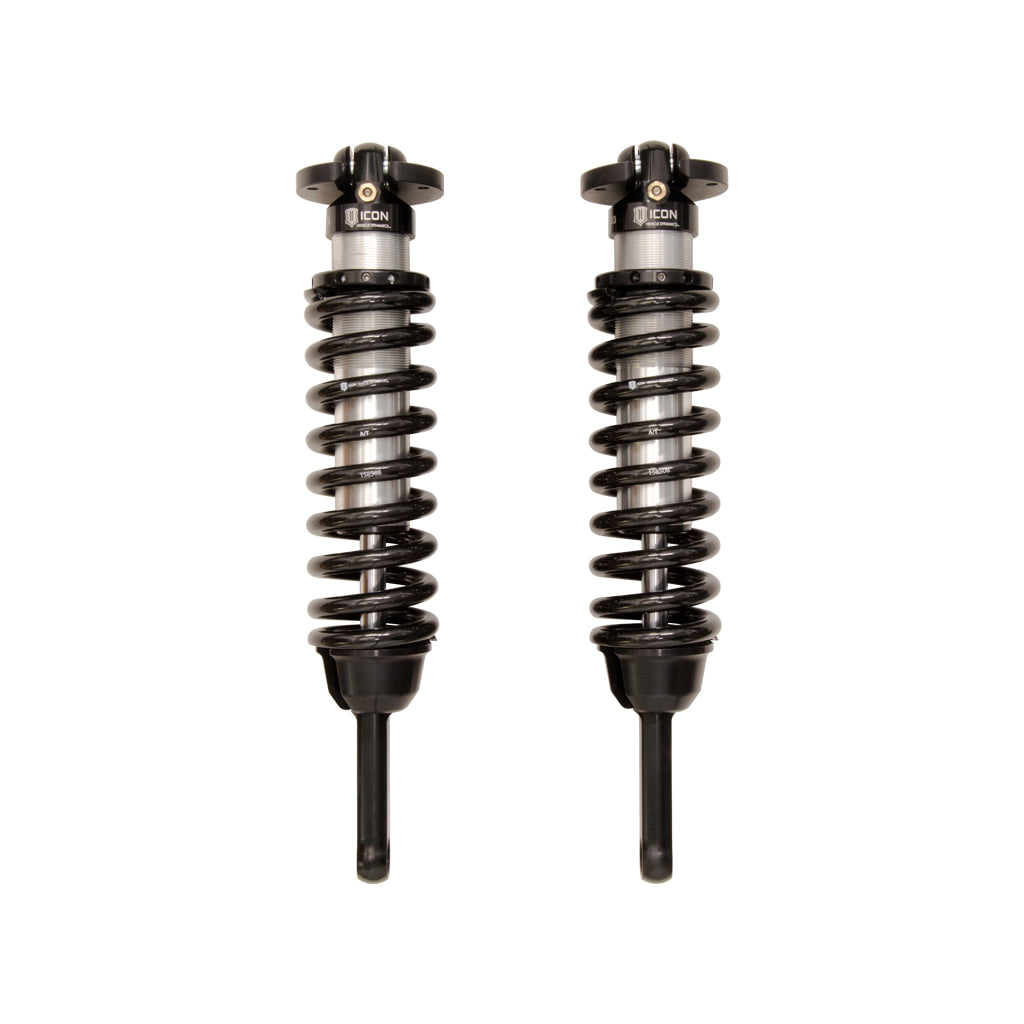

ICON 05-UP TACOMA 2.5 VS IR COILOVER KIT-700 |
| Description_DEF |
Coilover Spring and Shock Assembly |
| Description_DES |
05-UP TACOMA 2.5 VS IR COILOVER KIT-700 |
| Description_EXT |
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride characteristics across varying types of terrain. |
| Description_INV |
58630-700 |
| Description_FAB |
Vehicle specific tuned front shocks for superior shock damping and control |
| Description_FAB |
Improved ride quality over stock both on and off-road |
| Description_FAB |
Height-adjustable coilovers offer 0-2.75" of lift height adjustment |
| Description_FAB |
ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends |
| Description_FAB |
6061 Aircraft grade aluminum CNC machined components |
| Description_FAB |
Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft |
| Description_SHO |
TACOMA COILOVERS |
| Description_MKT |
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride characteristics across varying types of terrain. |
| Description_TRA |
ICON 2005-Up Toyota Tacoma, 2.5 VS Coilover Kit, 700lb Coils, 58630-700 |
| Description_TLE |
ICON 2005-Up Toyota Tacoma, 2.5 VS Coilover Kit, 700lb Coils |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Title |
05-UP TACOMA 2.5 VS IR COILOVER KIT-700 |
| Spring Material |
Steel |
| OEM Wheels & Tires Fitment |
Yes |
| Spring Color |
Black |
| Material |
Aluminum |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Damping Type |
Oil |
| Grade Type |
Performance |
| Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Shaft Diameter |
0.875 |
| Dust Shield |
No |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Coil Over Springs Included |
Yes |
| Remote Reservoir |
NO |
| Service Parts |
252001 - 2.5 FIXED SPANNER WRENCH |
| Adjustable Damping |
NO |
| Length |
7.0000 |
| Width |
13.0000 |
| Height |
26.0000 |
| Weight |
50.0000 |
