| Description_ASM |
Fits Chrysler 273, 318, 340 and 360 LA |
| Description_DEF |
Engine Camshaft |
| Description_EXT |
3.91+ gears, 2800+ stall, 9.5:1 compression, needs headers, rough idle, street strip. |
| Description_DES |

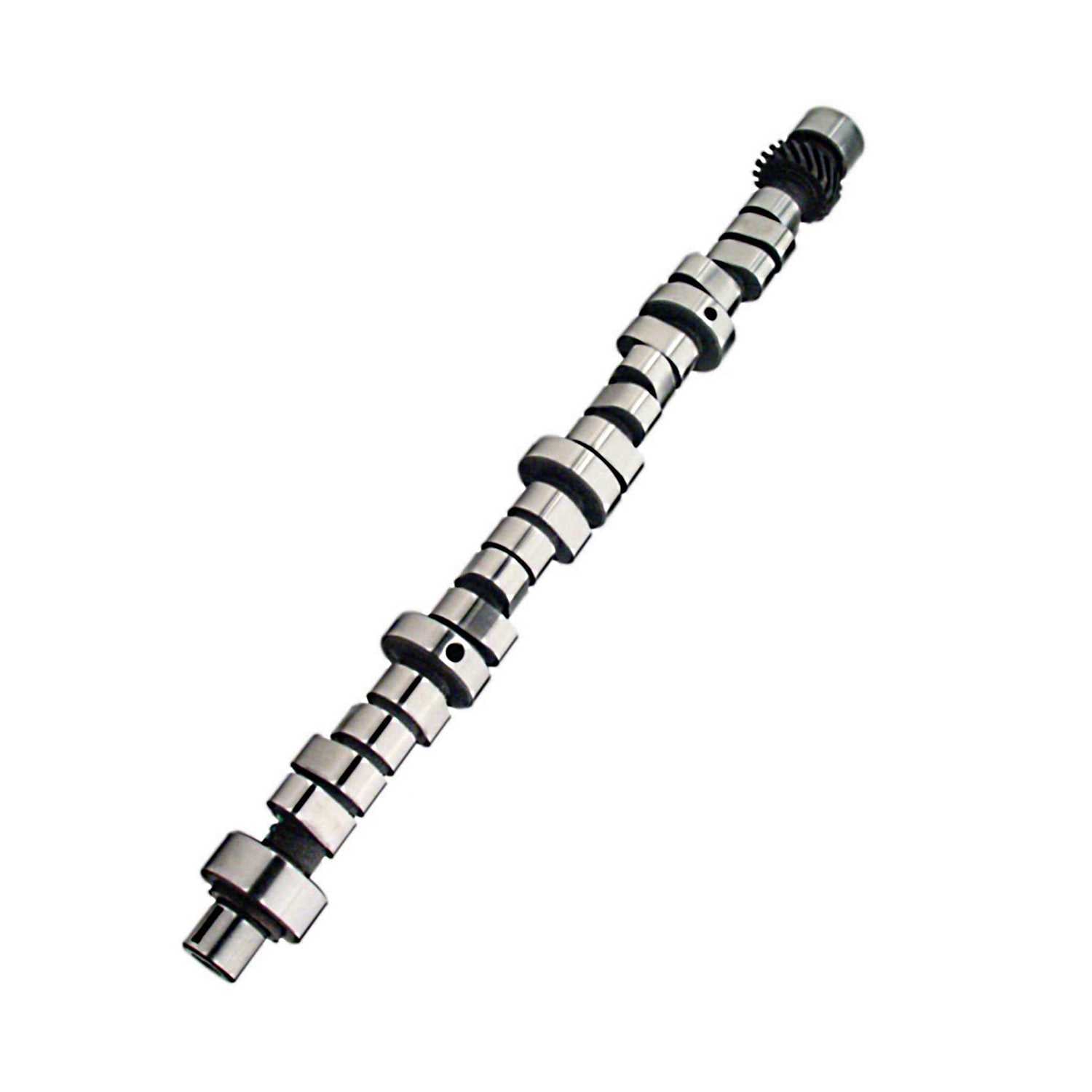

Xtreme Energy 236/242 Hydraulic Roller Cam for Chrysler 273-360 |
| Description_INV |
XE 236/242 H-Roller Cam Chrysler 273-360 |
| Description_MKT |
Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust. |
| Description_KEY |
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_SHO |
XE 236/242 HRlChrLA |
| Description_SHP |
None |
| Advertised Intake Duration |
286 |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Grind Number |
XR286HR-10 |
| Advertised Exhaust Duration |
294 |
| Intake Valve Lift |
0.544 |
| Title |
Xtreme Energy 236/242 Hydraulic Roller Cam for Chrysler 273-360 |
| Amazon ASIN |
B001GBRPGY |
| Intake Duration at .050 Inch Lift |
236 |
| Assembly Lubricant Included |
No |
| C.A.R.B. Exemption Reason |
N/A |
| Camshaft Gear Attachment |
1-Bolt |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. E.O. Number |
N/A |
| Basic Operating RPM Range |
2,500-6,200 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Exhaust Duration at .050 inch Lift |
242 |
| Valve Springs Required |
Yes |
| Usage |
Street/Performance |
| Cam Type |
Hydraulic Roller |
| Camshaft Series |
Xtreme Energy |
| Camshaft Material |
Billet Steel |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Exhaust Valve Lift |
0.541 |
| Lobe Separation |
110 |
| Lifters Included |
No |
| Engine Family |
Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
| Lifter Type |
Hydraulic Roller |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
23.0000 |
| Weight |
9.0000 |
