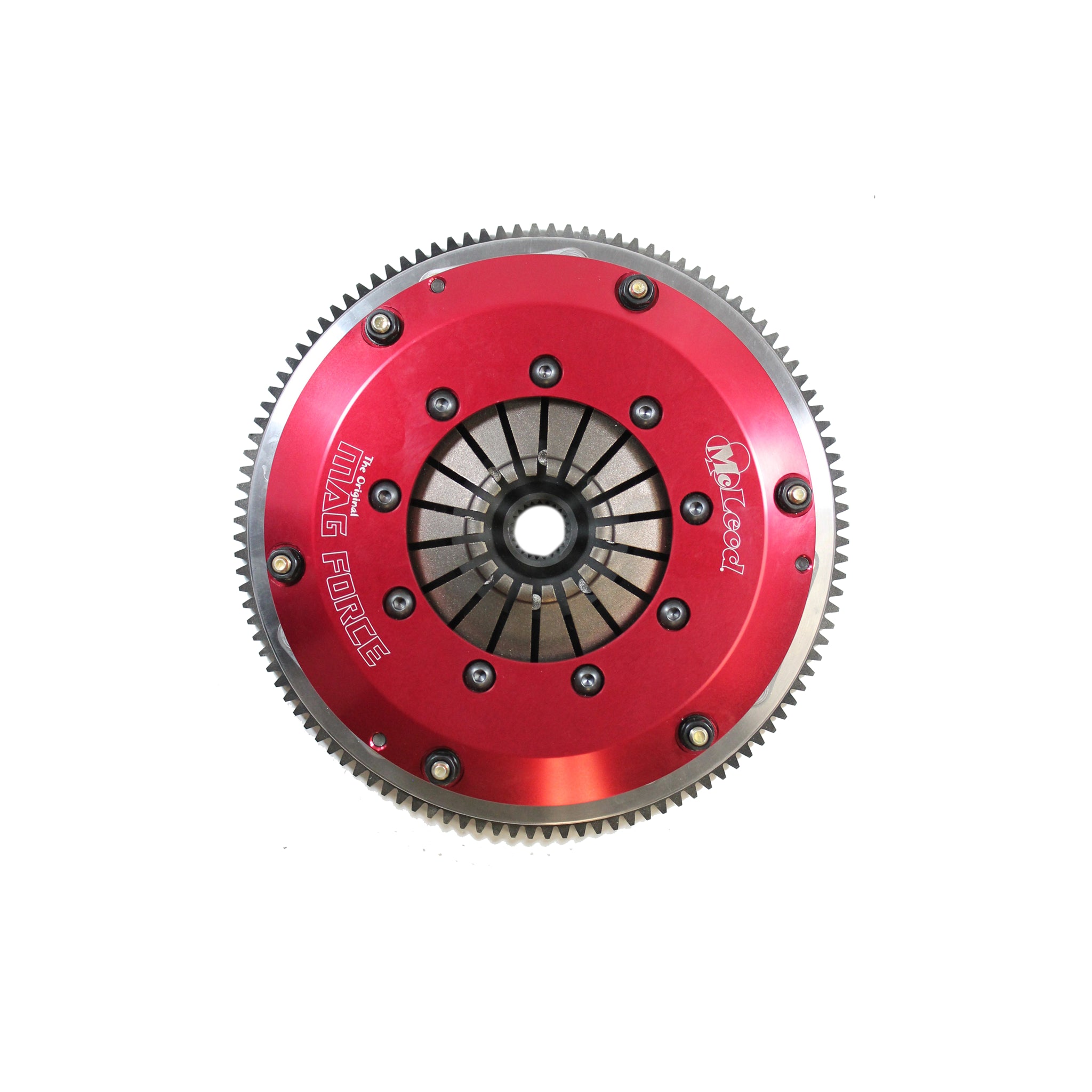

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_ASM |
Ford: Mustang 96 - 04 4.6 L Engine, Ford: Mustang 11 - 17 5 L Engine, Ford: Mustang 00 - 09 5.4 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_DES |
Mag Force: Triple Disc: Pin Drive: Ford: 1996-17 Modular 4.6/5.0L: 1-1/8x26:164T |
| Description_INV |
Clutch Kit |
| Description_EXT |
Mag Force: Triple Disc: Pin Drive: Ford: 1996-17 Modular 4.6/5.0L: 8 Bolt Crank: 1-1/8x26: 164T |
| Description_SHO |
Clutch Kit |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Hardware Included |
Yes |
| Pilot Bushing Material |
N/A |
| Make |
Ford |
| NOTES: |
Will not fit in a factory depth bell housing. Needs High Gear Can Scatter shield. |
| Flywheel Included |
Yes |
| Racing Application |
Road Race & Slalom Racing |
| Disc Diameter |
8In. |
| Alignment Tool Included |
Yes |
| Pilot Bushing Included |
No |
| Engine |
1996-2016 4.6L/5.0L/5.4L 8 Bolt Crank |
| Throwout Bearing Included |
No |
| Flywheel Material |
Aluminum |
| Engine Balance |
Internal Balance |
| Spline |
1 1/8In. x 26 |
| Clutch Usage |
Drifting |
| Disc Material |
Sintered Iron |
| Number of Discs |
Triple |
| Throwout Bearing Style |
Standard |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
27.0000 |
