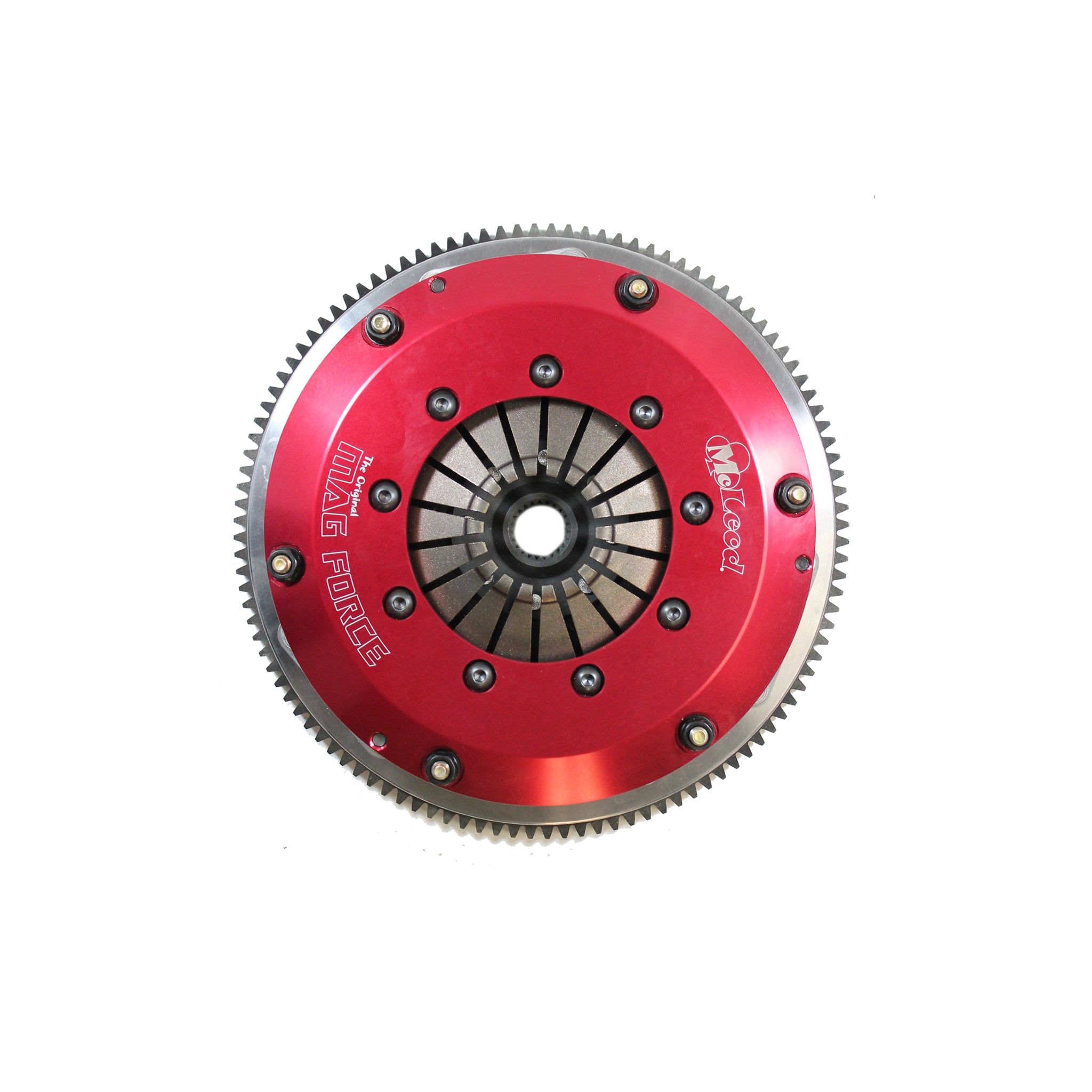

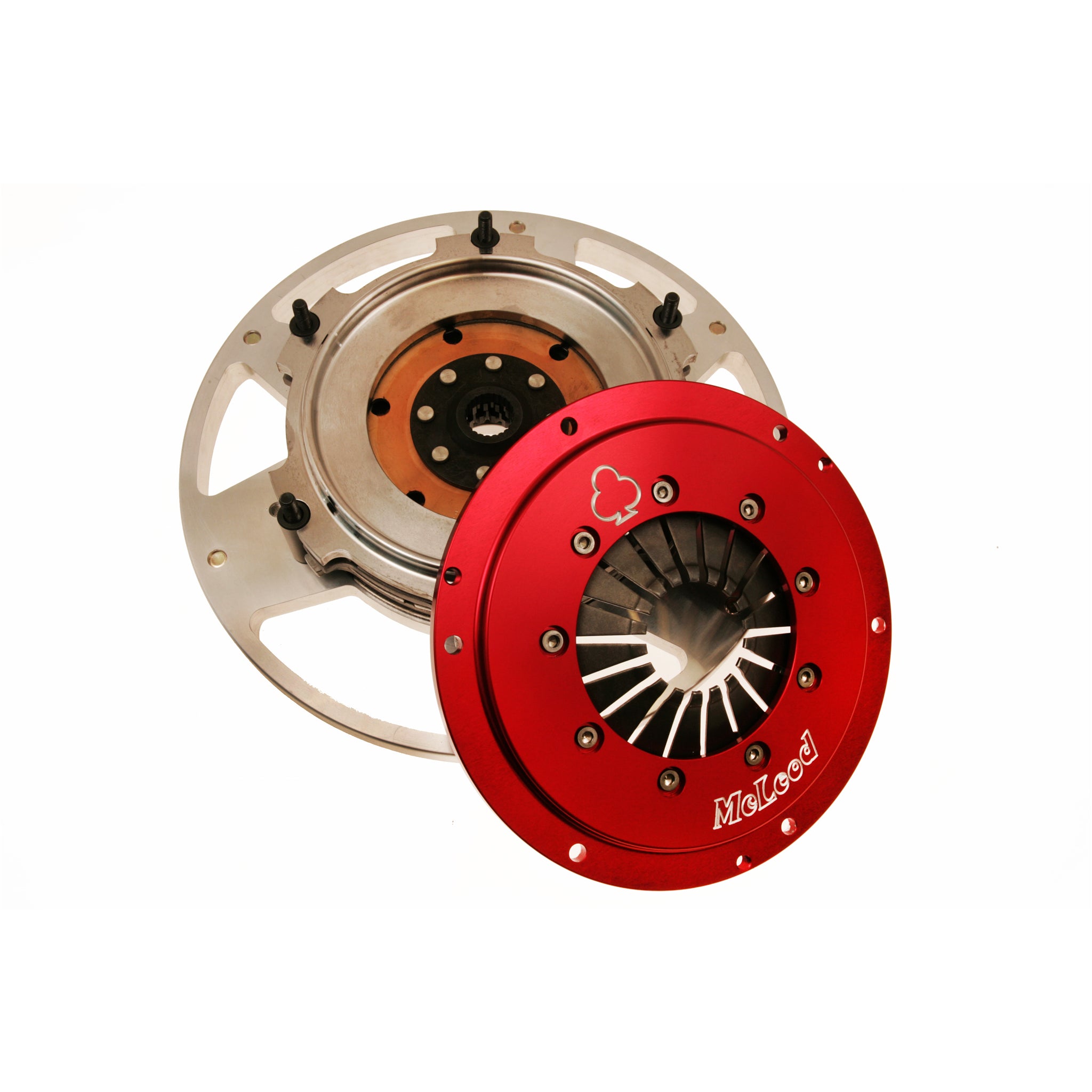

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_ASM |
Chevrolet: Bel Air 57 - 67 4.6 L Engine, Chevrolet: Bel Air 68 - 68 5 L Engine, Chevrolet: Bel Air 62 - 69 5.3 L Engine, Chevrolet: Bel Air 69 - 73 5.7 L Engine, Chevrolet: Bel Air 65 - 69 6.5 L Engine, Chevrolet: Bel Air 70 - 73 6.6 L Engine, Chevrolet: Bel Air 61 - 65 6.7 L Engine, Chevrolet: Bel Air 63 - 69 7 L Engine, Chevrolet: Bel Air 70 - 73 7.4 L Engine, Chevrolet: Biscayne 58 - 67 4.6 L Engine, Chevrolet: Biscayne 68 - 68 5 L Engine, Chevrolet: Biscayne 62 - 69 5.3 L Engine, Chevrolet: Biscayne 69 - 72 5.7 L Engine, Chevrolet: Biscayne 65 - 69 6.5 L Engine, Chevrolet: Biscayne 70 - 72 6.6 L Engine, Chevrolet: Biscayne 61 - 65 6.7 L Engine, Chevrolet: Biscayne 63 - 69 7 L Engine, Chevrolet: Biscayne 70 - 72 7.4 L Engine, Chevrolet: Brookwood 69 - 72 5 L Engine, Chevrolet: Brookwood 69 - 69 5.3 L Engine, Chevrolet: Brookwood 69 - 72 5.7 L Engine, Chevrolet: Brookwood 69 - 69 6.5 L Engine, Chevrolet: Brookwood 70 - 72 6.6 L Engine, Chevrolet: Brookwood 69 - 69 7 L Engine, Chevrolet: Brookwood 70 - 72 7.4 L Engine, Chevrolet: Camaro 67 - 69 4.9 L Engine, Chevrolet: Camaro 69 - 85 5 L Engine, Chevrolet: Camaro 67 - 69 5.3 L Engine, Chevrolet: Camaro 67 - 81 5.7 L Engine, Chevrolet: Camaro 67 - 69 6.5 L Engine, Chevrolet: Camaro 70 - 72 6.6 L Engine, Chevrolet: Camaro 69 - 69 7 L Engine, Chevrolet: Caprice 66 - 67 4.6 L Engine, Chevrolet: Caprice 68 - 72 5 L Engine, Chevrolet: Caprice 66 - 69 5.3 L Engine, Chevrolet: Caprice 69 - 72 5.7 L Engine, Chevrolet: Caprice 66 - 69 6.5 L Engine, Chevrolet: Caprice 70 - 72 6.6 L Engine, Chevrolet: Caprice 66 - 69 7 L Engine, Chevrolet: Caprice 70 - 72 7.4 L Engine, Chevrolet: Chevelle 64 - 67 4.6 L Engine, Chevrolet: Chevelle 68 - 72 5 L Engine, Chevrolet: Chevelle 64 - 67 5.3 L Engine, Chevrolet: Chevelle 70 - 72 5.7 L Engine, Chevrolet: Chevelle 65 - 67 6.5 L Engine, Chevrolet: Chevelle 70 - 72 6.6 L Engine, Chevrolet: Chevelle 70 - 72 7.4 L Engine, Chevrolet: Chevy II 63 - 67 4.6 L Engine, Chevrolet: Chevy II... |
| Description_DEF |
Transmission Clutch Kit |
| Description_EXT |
Mag Force: Triple Disc: Pin Drive: Chevrolet: 1955-85 SBC: 1-1/8x10: 168T |
| Description_INV |
Clutch Kit |
| Description_DES |
Mag Force: Triple Disc: Pin Drive: Chevrolet: 1955-85 SBC: 1-1/8x10: 168T |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Description_SHO |
Clutch Kit |
| Pilot Bushing Material |
N/A |
| Make |
Chevrolet |
| Engine 2 |
1970-1990 BBC 2pc Seal |
| Disc Diameter |
8In. |
| NOTE: |
Triple Disc units are not guaranteed to fit in a factory depth bell-housing. You may need to go to a aftermarket high gear can. For further info please call McLeod Tech 714-630-2764 |
| Racing Application |
Road Race & Slalom Racing |
| Engine 3 |
1991-Up BBC 1pc Seal |
| Disc Material |
Sintered Iron |
| Number of Discs |
Triple |
| Pilot Bushing Included |
No |
| Disc Style |
Puck Style |
| Spline |
1 1/8In. x 10 |
| Throwout Bearing Included |
No |
| Ring Gear |
168 tooth |
| Engine Balance |
Internal Balance |
| Hardware Included |
Yes |
| Flywheel Material |
Aluminum |
| Balance |
For Ext Balanced Also Order Weight Kit 560222 |
| Flywheel Included |
Yes |
| Engine |
1955-85 SBC 2pc Seal |
| Throwout Bearing Style |
Standard |
| Racing Application 2 |
Drifting |
| Alignment Tool Included |
Yes |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
27.0000 |
