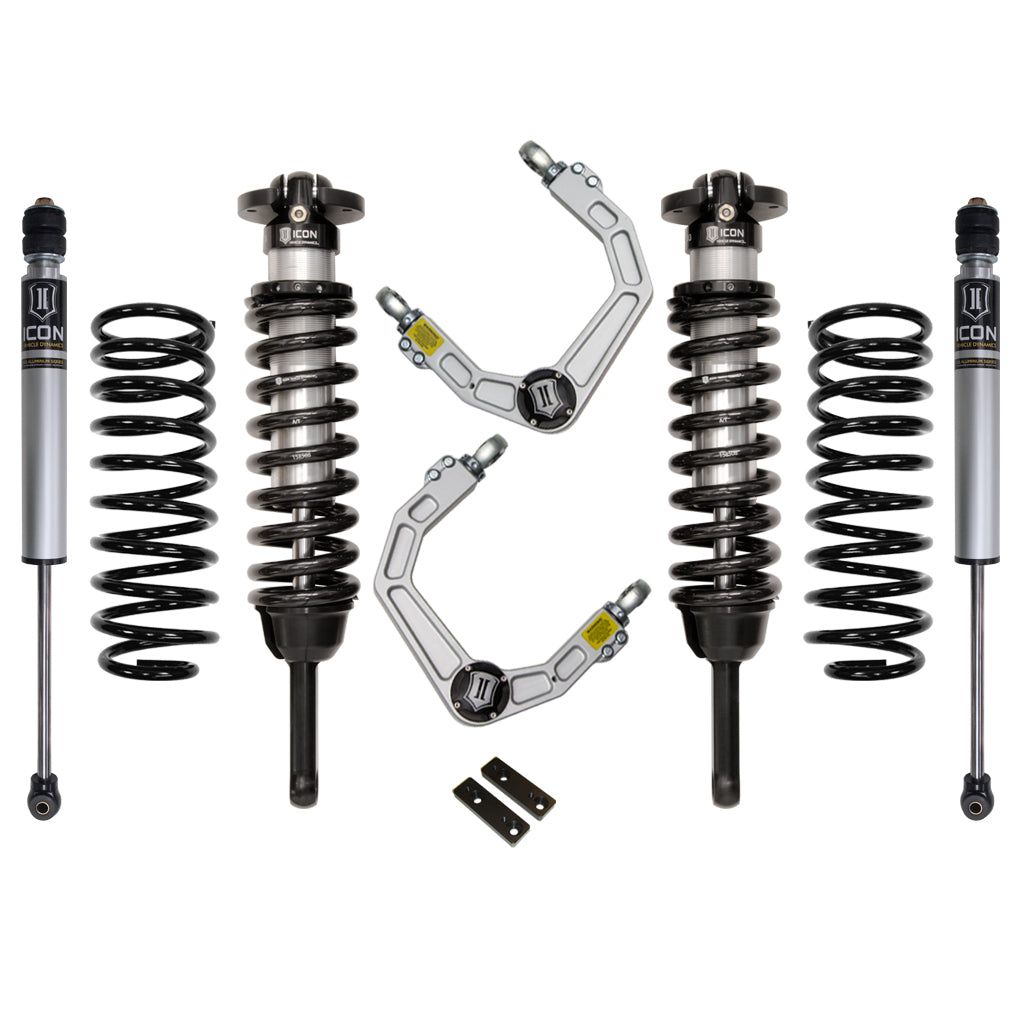

This ICON Stage 2 suspension system for the 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser uses the same components as the Stage 1 system with a few simple changes and additions. The 2.5 Series coilover shocks used in this system are the Extended Travel version, offering increased wheel travel that will enhance your on and off-road performance even more so than the standard travel units. Since these shocks do provide more suspension travel, they require the use of an ICON upper control arm.
Specifications:
| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC |
APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC |
Ships in multiple boxes |
| Description_DEF |
Suspension Lift Kit |
| Description_DES |
03-09 4RUNNER/FJ 0-3.5" STAGE 2 SUSPENSION SYSTEM W BILLET UCA |
| Description_FAB |
Increased wheel travel and ride quality over stock |
| Description_FAB |
Vehicle specific tuned front and rear shocks for superior shock damping and control |
| Description_FAB |
Adjustable coilovers provide 0-3.5" of front lift height |
| Description_FAB |
Extended Travel coilovers matched with ICON UCA provides increased front droop travel |
| Description_FAB |
6061 aircraft grade aluminum CNC machined components |
| Description_FAB |
Corrosion resistant CAD plated coilover shock body with 7/8" shaft |
| Description_FAB |
FK Rod End bearings for extended longevity and minimal deflection |
| Description_FAB |
2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts |
| Description_FAB |
Bolt-on system means no cutting or welding necessary for install |
| Description_EXT |
2003-2009 4RUNNER/2007-2009 FJ CRUISER 0-3.5" LIFT STAGE 2 SUSPENSION SYSTEM WITH BILLET UCA |
| Description_INV |
4RUNNER/FJ STAGE 2 SUSP SYS W BILLET UCA |
| Description_SHO |
SUSPENSION SYSTEM |
| Description_MKT |
This ICON Stage 2 suspension system for the 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser uses the same components as the Stage 1 system with a few simple changes and additions. The 2.5 Series coilover shocks used in this system are the Extended Travel version, offering increased wheel travel that will enhance your on and off-road performance even more so than the standard travel units. Since these shocks do provide more suspension travel, they require the use of an ICON upper control arm. |
| Description_MKT |
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint. |
| Description_TLE |
ICON 03-09 4Runner/FJ Cruiser 0-3.5" Lift, Stage 2 Suspension System, Billet UCA |
| Description_TRA |
ICON 03-09 4Runner/FJ Cruiser 0-3.5" Lift, Stage 2 Suspension System, Billet UCA, K53052 |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Title |
03-09 4RUNNER/FJ 0-3.5" STAGE 2 SUSPENSION SYSTEM W BILLET UCA |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| OEM Wheels & Tires Fitment |
Yes |
| Add-On Part |
191014 - .25" COLLAR SPANNER PIN WRENCH |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
27.0000 |
| Weight |
97.0000 |
